Amana RCC-4-L1 (BOM: P7277802M L)

Model: RCC-4-L1 (BOM: P7277802M L)

Save Part Not Listed?
product name

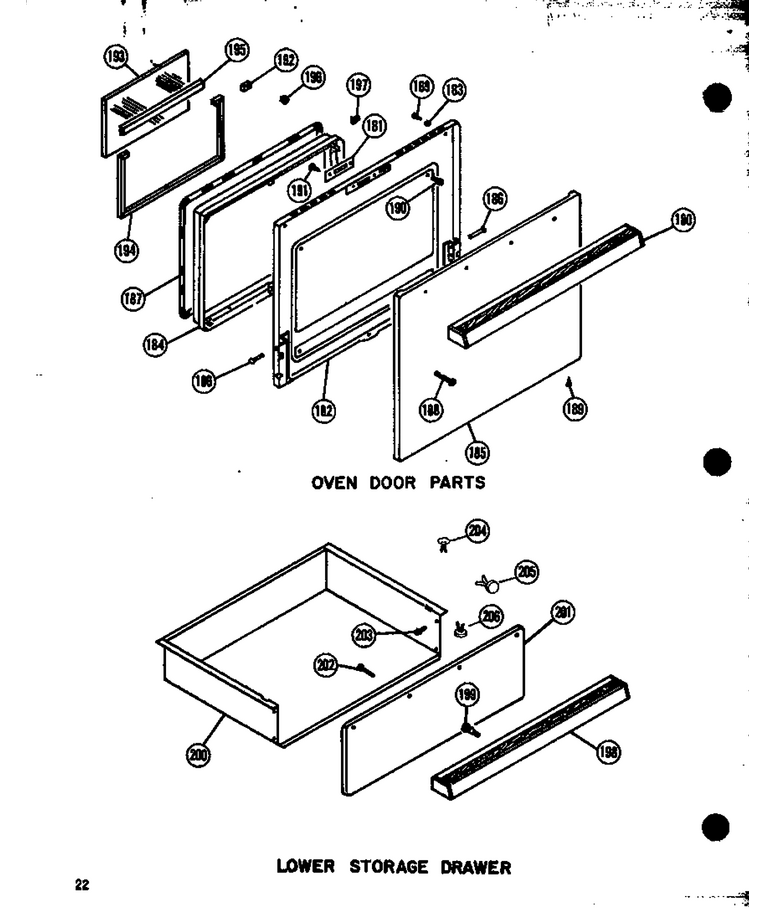

03 - Oven Door Parts

...
...
185
Oven Panel-Al WPL-R0178898
...
201
Drawer Panel-Av WPL-R0178912

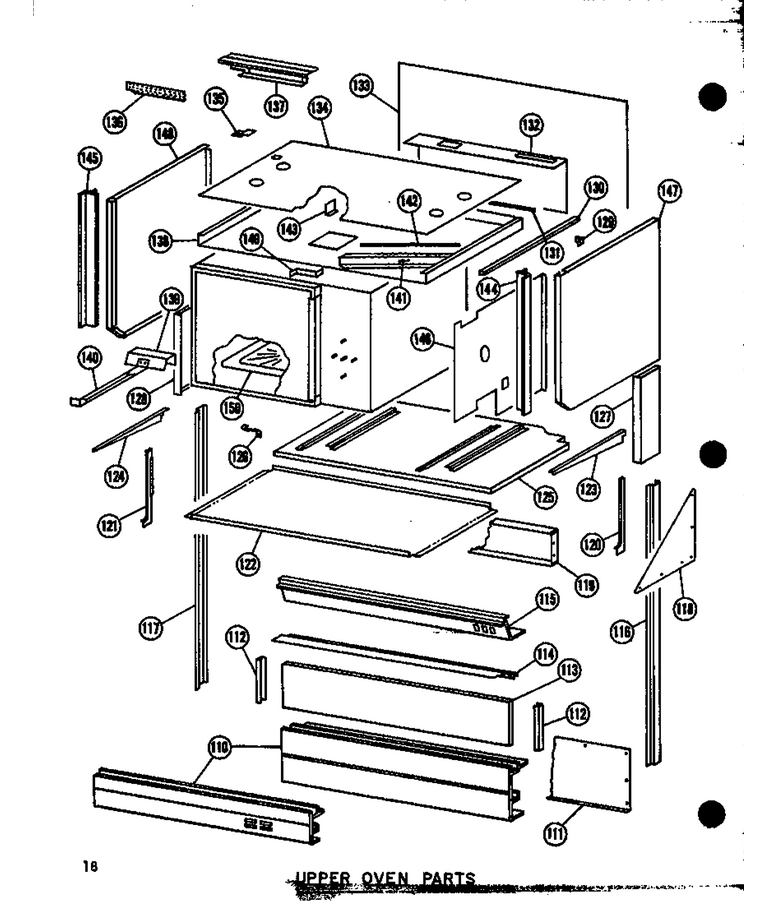

04 - Upper Oven Parts

...
...
127
End Panel-Rh-G WPL-R0178881
...
128
End Panel-Lh-Al WPL-R0178878
...
147
End Panel-Rh-G WPL-R0178889
...
148
End Panel-Lh-Av WPL-R0178887

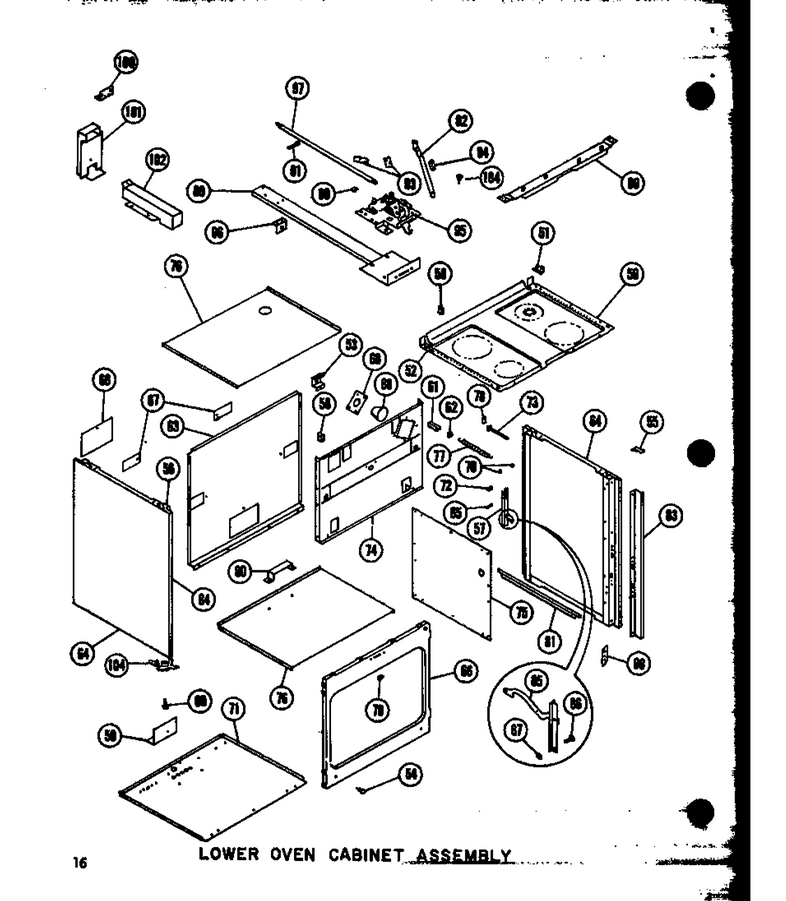

01 - Lower Oven Cabinet Assy

...
...
50
Angle, Terminal Block WPL-Y0091539
...
53
Bracket-Light Socket WPL-R0191040
...
54
Bumper-Drawer WPL-R0182043
...
55
Trim, Cap, R.h. WPL-R0178751
...
56
Trim, Cap, L.h. WPL-R0178752
...
57
Channel, Hinge Adjustment WPL-R0179016
...
58
Clip, Wire Cable WPL-R0191041
...
59
Drip Baffle-W WPL-R0178753
...
60
Leg, Leveling WPL-Y0062362
...
61
Link Oven Door Spring WPL-R0178757
...
62
Nut, Square No.10-32 WPL-R0189015
...
63
Oven Back Panel WPL-R0178758
...
64
Side Panel Kit - Dark Copper WPL-R0178905
...
65
Roller Pin WPL-R0191042
...
66
Front Frame WPL-R0178763
...
67
Access Plate, Spring Adjust. WPL-R0178764
...
68
Plate, Access WPL-31800001
...
69
Mtg Bracket-Light WPL-R0191043
...
70
Plug Button Guide WPL-R0183036
...
71
Retainer, Insulation Bottom WPL-R0178766
...
72
Roller, Nylon WPL-R0183037
...
73
Screw WPL-Y0091602
...
74
Insulation Retainer, Back WPL-R0178767
...
75
Shield Slide WPL-R0178768
...
76
Heat Shield WPL-R0178769
...
77
Spring, Oven Door WPL-R0178770
...
78
Stop, Spring WPL-R0178771
...
79
Washer WPL-R0190023
...
80
Supt-Oven Shell WPL-R0178772
...
81
Track-Rh-Drawer WPL-R0176007
...
83
Front Trim-Rh WPL-R0178773
...
84
Front Trim-Lh WPL-R0178774
...
85
Hinge Blade-Lh WPL-R0179018
...
86
Rivet WPL-R0191044
...
87
Clip, Push-On WPL-R0191045
...
88
Retainer WPL-R0178775
...
89
Latch Mtg Channel WPL-R0178776
...
90
Retainer Ring WPL-Y0091671
...
91
Cotter Pin WPL-R0191046
...
92
Latch Arm Black WPL-Y065779B
...
93
Insulation, Esm WPL-Y0091523
...
94
Knob-Door Latch WPL-R0181070
...
95
Latch Assy WPL-R0179021
...
96
Supt-Latch Channel WPL-R0179022
...
97
Rod-Latch Release WPL-R0179023
...
98
Spacer-Drawer WPL-R0178778
...
99
Element Support Channel WPL-R0178779
...
100
Flueway Supt WPL-R0178780
...
101
Vertical Flueway WPL-R0178781
...
102
Horiz Flueway WPL-R0178782
...
103
Screw WPL-M0230814
...
104
Retainer Nut WPL-R0178874

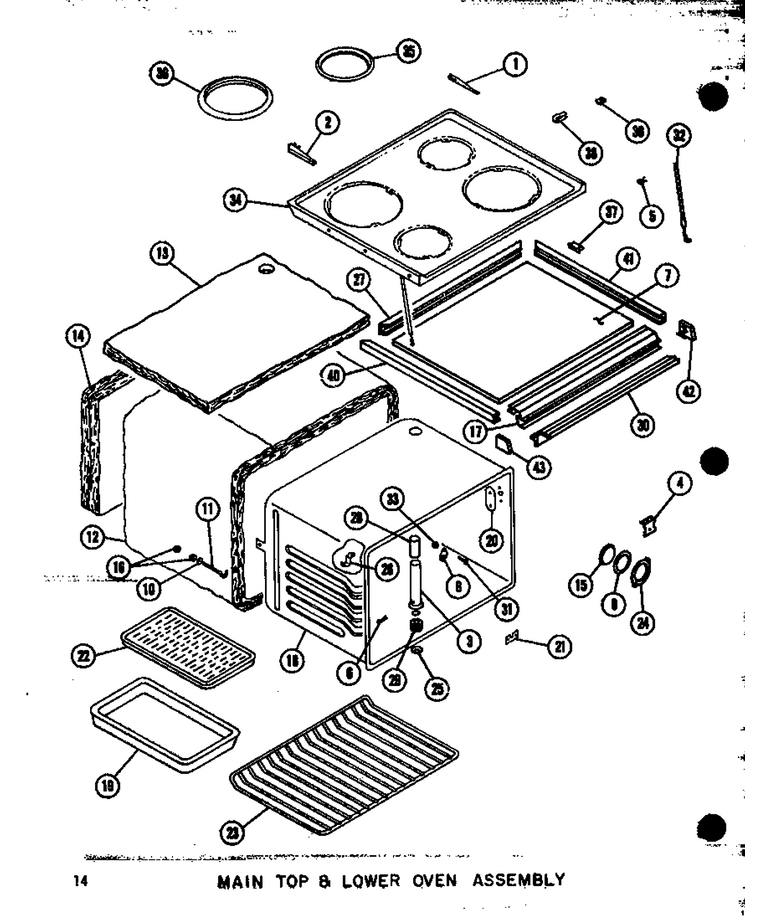

02 - Main Top & Lower Oven Assy

...
...
3
Tube-Oven Vent WPL-R0174044
...
4
Bracket, Broiler Element WPL-R0191033
...
6
Cotter Pin WPL-Y0071890
...
7
Net-Kit,heater Panel WPL-R0183032
...
8
Cover, Rotisserie WPL-R0178729
...
9
Gasket-Oven Lens WPL-R0182042
...
10
Washer WPL-Y0071876
...
11
Hook Bolt WPL-Y0091536
...
12
Insulation, Oven Wrap WPL-R0196018
...
13
Insulation,wrapper WPL-R0196019
...
14
Insulation,wrapper WPL-R0196020
...
15
Lens WPL-R0183033
...
16
Hex Nut No.10-32 Nickel WPL-R0189012
...
17
Trim-Rail WPL-R0178730
...
18
Oven Shell Assy WPL-R0178731
...
19
Procelain Broiler (Pan And Grid) WPL-4396923
...
20
Retainer Plate WPL-R0178733
...
21
Plate WPL-R0178734
...
22
Procelain Broiler (Pan And Grid) WPL-4396923
...
23
Rack-Oven WPL-WP314763J
...
24
Retainer, Oven Light Lens WPL-R0178736
...
25
Retaining Ring WPL-Y0091608
...
26
Bracket, Thermostat Bulb WPL-R0179012
...
27
Rear Trim Rail WPL-R0178738
...
28
Shield-Vent Tube WPL-R0174045
...
29
Smoke Eliminator Catalyst WPL-R0183034
...
30
Retainer-Glass Top WPL-R0179013
...
31
No.10-24 Bolt Cover Plate WPL-R0187013
...
33
Nut WPL-M0282009
...
34
Main Top-G WPL-R0178902
...
37
Speed Clip K WPL-R0191038
...
40
Side Rail, L.h. WPL-Y0071805
...
41
Side Rail, R.h. WPL-Y0071806
...
42
End Cap, R.h. WPL-Y0071800
...
43
End Cap, L.h. WPL-R0178749
