Amana RC8 (BOM: P7690003M)

Model: RC8 (BOM: P7690003M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

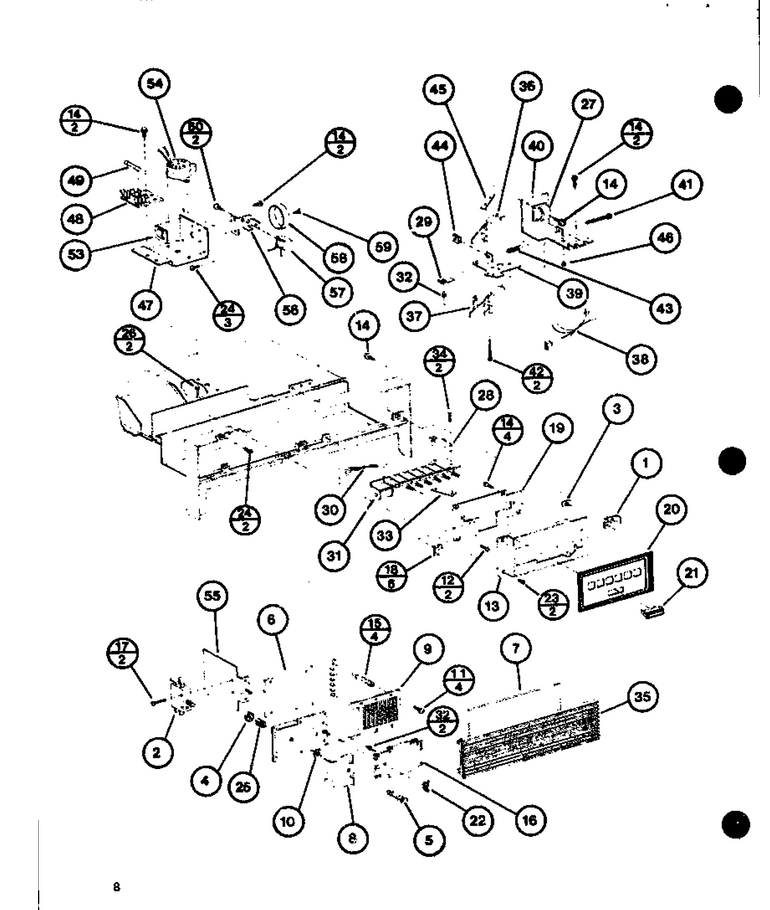

02 - Page 2

...
...
1
Bracket Escutch WPL-B5760402
...
2
Switch WPL-C8715203
...
3
Speed Nut WPL-M0287713
...
4
Clip-Pin WPL-B8311801
...
5
Pin-Spring Retainer WPL-B8312001
...
6
Timer WPL-D7443803
...
7
Filter WPL-A3094904
...
8
Retainer-Grille WPL-B8317301
...
9
Panel - Air Inlet WPL-D7697201
...
10
Clip Push On WPL-M0118904
...
11
Screw WPL-M0213815
...
12
Screw WPL-W11084238
...
13
Escutcheon Timer A WPL-C8868702
...
14
Screw WPL-WP489349
...
15
Support P.c. Board WPL-M0580506
...
16
Timer Access Weld WPL-C8946401
...
17
Screw WPL-M0227520
...
18
Button, Timer WPL-B8323201
...
19
Plate Switch WPL-B8313502
...
20
Thinplate WPL-B8332902
...
21
Light-Indicator WPL-B5751901
...
22
Palnut WPL-M0287303
...
23
Screw WPL-214597
...
24
Screw WPL-M0213815
...
25
Spring-Grille Ret WPL-B8315601
...
26
Rivet WPL-WP210720
...
27
Clip, Cord WPL-M0104102
...
28
Sw Limit Aux A WPL-B8301903
...
29
Clip WPL-B8321802
...
30
Assy, Pb Switch K WPL-C8941602
...
31
Assy, Pb Switch K WPL-C8941602
...
32
Rivet-Pop WPL-59002054
...
33
Nut A WPL-M0289504
...
34
Screw A WPL-M0229008
...
35
Grille-Air Inlet WPL-C8853301
...
36
Switch-Interlock (Limit) WPL-C3670014
...
37
Intlk Sw-Weld WPL-B8324002
...
38
Harness Wire WPL-D7705901
...
39
Bracket WPL-C8875301
...
40
Bracket Interlock WPL-B8332501
...
41
Screw WPL-M0216539
...
42
Screw WPL-M0213123
...
43
Spring A WPL-A3277701
...
44
Speed Nut WPL-M0288010
...
45
Speednut WPL-M0289505
...
46
Rivet A-K WPL-M1205109
...
47
Plate Mtg WPL-D7695901
...
48
Board-Term WPL-C8988701
...
49
Fuse 20 A WPL-WPM0805101
...
53
Clip WPL-WPM0104106
...
54
Motor WPL-B5602812
...
55
S W Brkt. Weld WPL-B8372401
...
56
Brkt-Solenoid WPL-B5737001
...
57
Solenoid, Bell WPL-B5677303
...
58
Gong-Timer WPL-A3252901
...
59
Screw WPL-WPW10068250
...
60
Screw WPL-M0201414

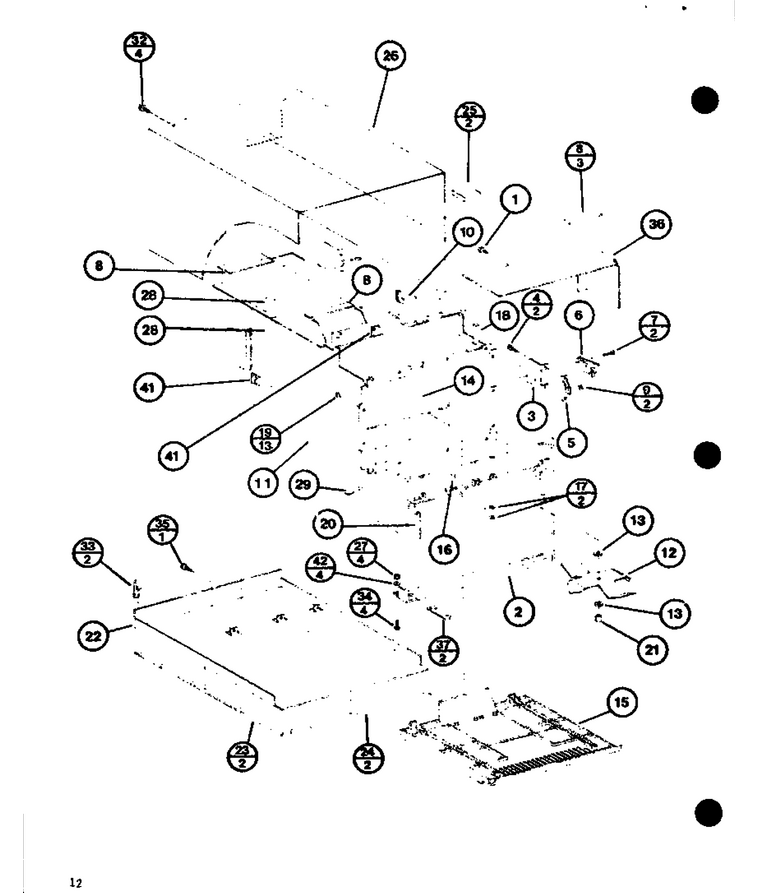

04 - Page 4

...
...
1
Screw WPL-WP489349
...
2
Bezel-Outercase WPL-D7666402
...
3
Bracket-Latch WPL-B5675403
...
4
Screw-Sm/hex WPL-12990523
...
5
Strike-Latch WPL-C3680202
...
6
Switch-Preform WPL-A3163414
...
7
Screw WPL-M0227520
...
8
Gasket K WPL-A4591129
...
9
Washer WPL-M0270502
...
10
Grommet Per In. WPL-A3261703
...
11
Weld, Oven WPL-10564501
...
12
Stirrer Blade (Antenna) WPL-C8708601
...
13
Washer WPL-A3109101
...
14
Tray-Oven WPL-B5795002
...
15
Shield,splatter WPL-D7457103
...
16
Guide-Door Stop WPL-A3181801
...
17
Bushing WPL-A3182101
...
18
Gasket White K WPL-A4591131
...
19
Nut, Self Thread WPL-M0283801
...
20
Gasket WPL-B5107619
...
21
Clip WPL-M0114002
...
22
O C Base Weld Pnd WPL-D7508806
...
23
Gasket,base Pan Q WPL-C8870705
...
24
Gasket,base Pan Q WPL-C8870704
...
25
Gasket WPL-B8343701
...
26
Outer Case WPL-C8815105
...
27
Nut WPL-WP488130
...
28
Gasket-Cavity Top WPL-10839709
...
29
Sealer WPL-M0275501
...
32
Screw WPL-WP3388228
...
33
Gasket WPL-B5107619
...
34
Screw WPL-WPW10001160
...
35
Screw WPL-WP489464
...
36
Shield Top WPL-D7500601
...
37
See Srvc Ltr Cr-163d WPL-C8937701
...
41
Clip, Cord WPL-M0104102
...
42
Lock Washer WPL-M0272402

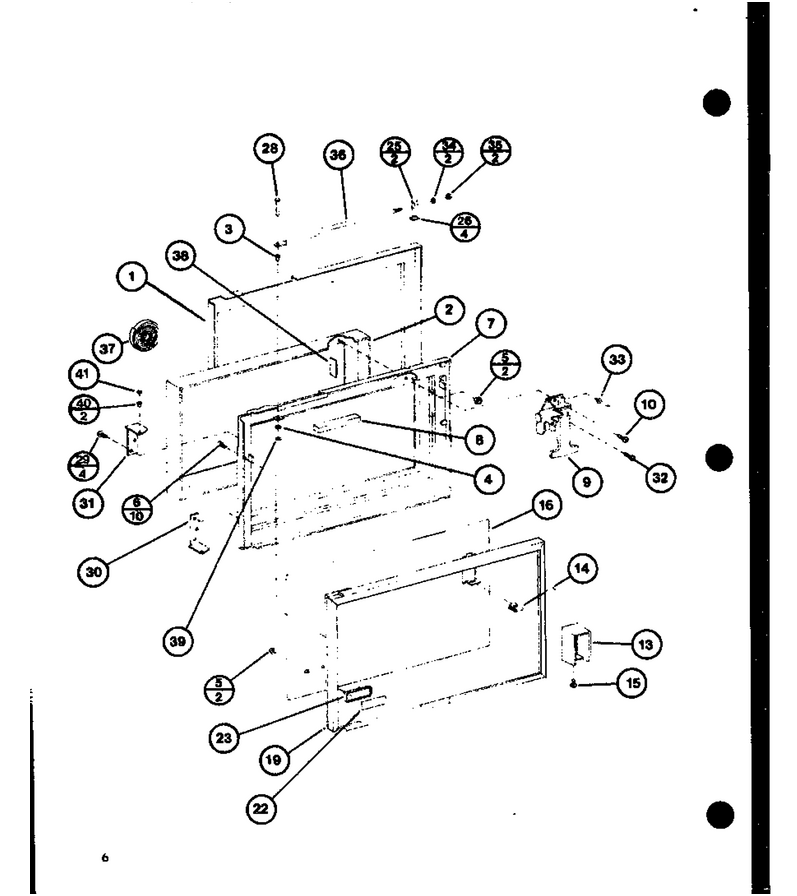

01 - Page 1

...
...
1
Gasket, Door WPL-D7670501
...
2
Inner Door Kit WPL-R0156665
...
3
Bushing-Door Arm WPL-A3185001
...
4
Washer WPL-M0270502
...
5
Nut WPL-717488
...
6
Screw T.c WPL-M0229916
...
7
Inner Dr Ring Weld WPL-D7132505
...
8
Gasket WPL-A4591128
...
9
Door Latch Assembly WPL-D7178504
...
10
Screw WPL-WPW10068250
...
13
Bezel-Door Handle WPL-B5671901
...
14
Speed Nut WPL-M0288102
...
15
Screw,tc WPL-M0230017
...
16
Panel-Outer Door WPL-D7178603
...
19
Outer Door Ring WPL-D7667701
...
22
Medallion Insert WPL-C8883501
...
23
Medallion WPL-B5694901
...
25
Guide-Door Stop WPL-A3181801
...
26
Bushing WPL-A3182101
...
29
Screw WPL-M0253230
...
30
Door Hinge Kit (Includes All Upper & Lower Hi WPL-R0156889
...
31
Door Hinge Kit (Includes All Upper & Lower Hi WPL-R0156889
...
32
Screw WPL-M0234030
...
33
Rivet, Pop (Wht) WPL-B5642901
...
34
Washer WPL-M0270501
...
35
Nut WPL-WP488130
...
36
Arm, Dr Stop K WPL-B5748702
...
37
Tape Per Roll WPL-M0275163
...
38
Sealer WPL-M0275501
...
39
Clip Push On WPL-M0118905
...
40
See Svc Ltr Cr-163d WPL-A3168101
...
41
Washer Non-Metal WPL-M0274032

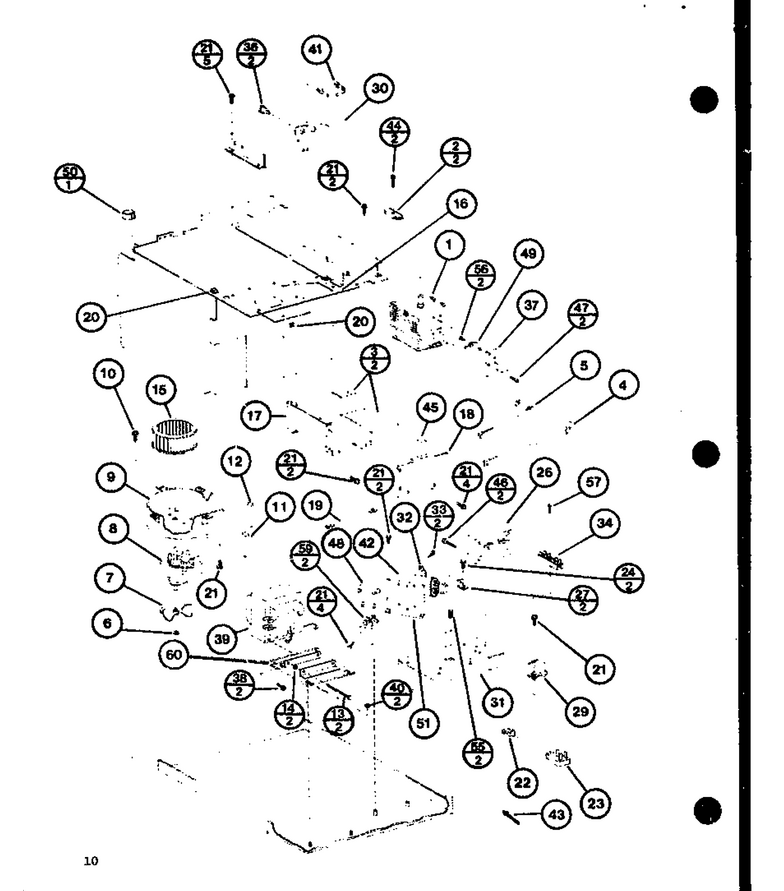

03 - Page 3

...
...
1
Kit, Magnetron WPL-R0157488
...
2
Brkt-Mag Tube WPL-B5774402
...
3
Gasket WPL-B8343706
...
4
Jumper Wire WPL-D7292694
...
5
Jumper Wire WPL-D7292695
...
6
Clip WPL-M0118901
...
7
Fan Blade-Blower WPL-B5706702
...
8
Motor, Blower, 120 V., 60 Hz, WPL-C8811602
...
9
Blower Scroll Weld WPL-C8710708
...
10
Clip WPL-M0118801
...
11
Gasket (Per Foot) WPL-A3030303
...
12
Gasket (Per Foot) WPL-10839706
...
13
Screw, Thread Cut WPL-M0224452
...
14
Lock Washer WPL-M0272805
...
15
Blower Wheel WPL-C3670805
...
16
Gasket WPL-A3030302
...
17
Plenum Weld WPL-C8934201
...
18
Cover-Plenum WPL-A3230302
...
19
Jumper Wire WPL-D7365131
...
20
Clip WPL-WPM0104106
...
21
Screw WPL-WP489349
...
22
Strain Relief WPL-M0370007
...
23
Cord-Power WPL-B5674404
...
24
Screw WPL-WP90767
...
26
Trans Filament WPL-C8798801
...
27
Brkt-Transformer WPL-B5779401
...
29
Kit, Diode WPL-M3D71
...
30
Cover-Air Duct WPL-D7224902
...
31
Chasiss Power Supply WPL-D7695801
...
32
Strap, Capacitor WPL-A4055405
...
33
Screw-Sm/hex WPL-12990523
...
34
Terminal Block WPL-B5677203
...
36
Bushing,terminal WPL-M0325401
...
37
Plate Tc Mtg WPL-B8373501
...
38
Screw WPL-WP489464
...
39
Transformer WPL-D7369203
...
40
Nut WPL-WP487939
...
41
Thermal Fuse W/terminals WPL-B8353203Q
...
42
Capacitor-.69 WPL-59001160
...
43
Rivet-Pop WPL-59002054
...
44
Screw WPL-M0216531
...
45
Gasket (Per Foot) WPL-A3030303
...
46
Screw WPL-M0218136
...
47
Screw T.c WPL-M0229916
...
48
Resistor Assy WPL-B8320102
...
49
Protector, Thermal WPL-B5684109
...
50
Clip WPL-M0118801
...
51
Plate, Relay Mtg WPL-C8945901
...
55
Screw WPL-M0258015
...
56
Screw WPL-M0232012
...
57
Screw, No.6x18x1/4 (3) WPL-487010
...
59
Relay K WPL-C8873901
...
60
Transformer Plate WPL-C8882001
