product name

Amana RC7A-PB (BOM: P7265103M)

Model: RC7A-PB (BOM: P7265103M)

Save Part Not Listed?
product name

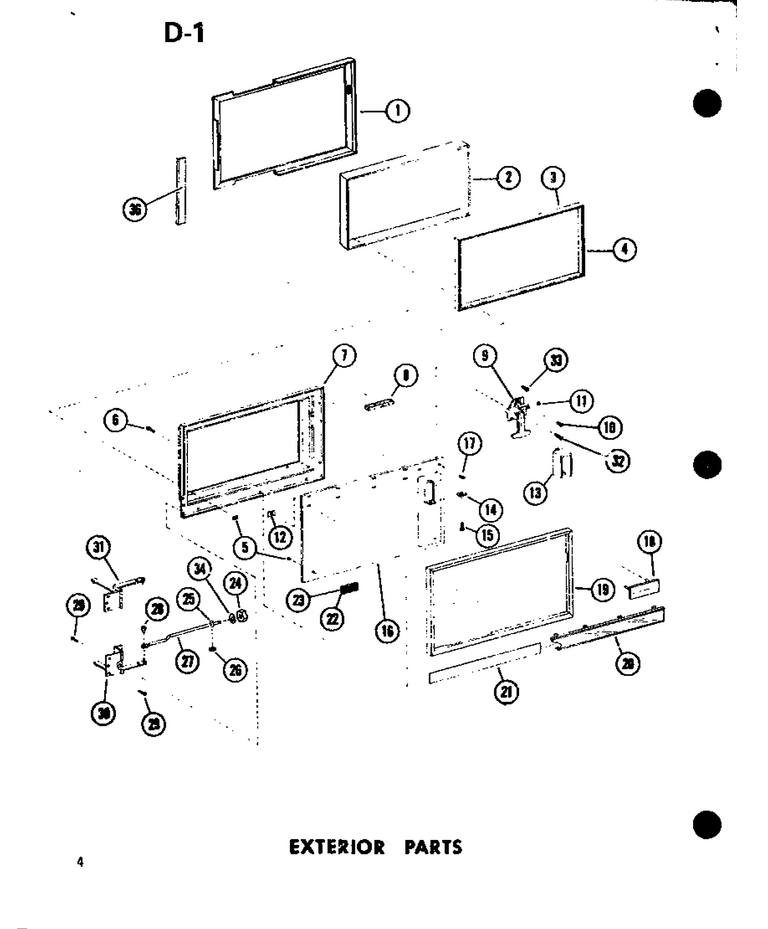

01 - Exterior Parts

...
...
1
Gasket WPL-C3669101
...
2
Inner Door Kit WPL-R0156665
...
3
Gasket WPL-B5686003
...
4
Gasket WPL-B5686004
...
5
Nut WPL-717488
...
6
Screw WPL-214597
...
7
Weldment, Inner Door Ring WPL-D7132501
...
8
Gasket WPL-A4591128
...
9
Door Latch Assy WPL-R0157316
...
10
Screw WPL-WPW10068250
...
11
Guides Hndl K WPL-A3195701
...
12
Clip WPL-M0286401
...
13
Bezel-Door Handle WPL-B5671901
...
14
Speed Nut WPL-M0288102
...
15
Screw, No.6x18x1/4 (3) WPL-487010
...
16
Panel Outer Door K WPL-D7178601
...
17
Clip-Push WPL-M0118905
...
18
Esc-Logo WPL-C3668803
...
19
Outer Door Ring WPL-D7667701
...
20
Lens-Menu Guide WPL-B5674501
...
21
Menu Guide WPL-C8713301
...
22
Insert-Medallion WPL-B5694719
...
23
Medallion WPL-B5694901
...
24
Nut WPL-WP488130
...
25
Guide-Door Stop WPL-A3181801
...
26
Bushing WPL-A3182101
...
27
Arm, Dr Stop K WPL-B5748702
...
28
Bushing-Door Arm WPL-A3185001
...
29
Screw WPL-M0253230
...
30
Hinge-Bottom WPL-C3666306
...
31
Hinge-Top WPL-C3666305
...
32
Screw WPL-M0234030
...
33
Rivet, Pop (Wht) WPL-B5642901
...
34
Washer WPL-M0270501
...
36
Tape Per Roll WPL-M0275163

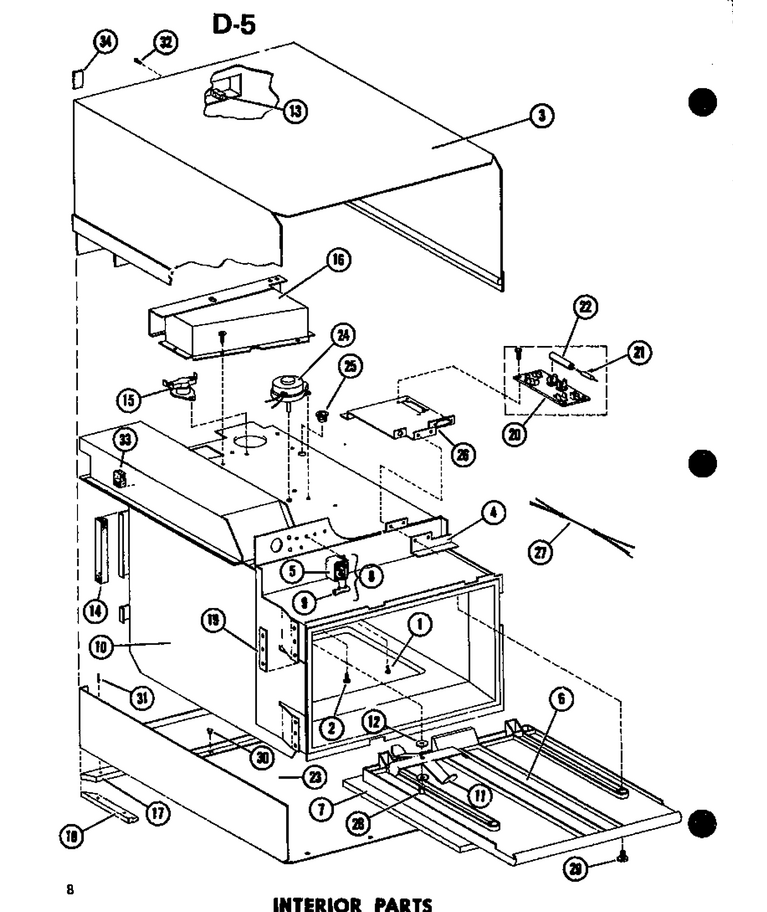

03 - Interior Parts

...
...
1
Screw WPL-M0230015
...
2
Screw WPL-WP90767
...
3
Top Assy WPL-C8757503
...
4
Brkt Supt-Interlock WPL-B5756101
...
5
Relay Kit WPL-C3669601
...
6
Grease Shi WPL-R0157214
...
7
Tray, Oven WPL-A3183704
...
8
Relay Kit WPL-R0159006
...
9
Resistor, Relay A WPL-M0305007
...
10
Oven Wld WPL-D7265706
...
11
Stirrer Blade (Antenna) WPL-C8708601
...
12
Washer WPL-A3109101
...
13
Gasket-Cavity Top WPL-10839709
...
14
Gasket (Per Foot) WPL-A3030303
...
15
Thermal Cut Out WPL-B5703002
...
16
Air Duct Wld WPL-D7262902
...
17
Gasket WPL-C8732602
...
18
Gasket WPL-C8732601
...
19
Shim-Hinge WPL-A3250301
...
20
Board-Multiprotector WPL-B5751401
...
21
Fuse WPL-M0308101
...
22
Resistor Fuse Kit WPL-R0157332
...
23
Oc Bottom Wld WPL-D7262403
...
24
Motor WPL-B5602809
...
25
Snap Bushing WPL-A4554806
...
26
Mtg Plate WPL-C8756501
...
27
Jumper Wire WPL-C3655860
...
28
Clip WPL-M0114002
...
29
Screw WPL-A1002301
...
30
Plug WPL-M0310010
...
31
Pop Rivet WPL-A4539602
...
32
Screw WPL-WP3388228
...
33
Gasket-Cavity Top WPL-10839709
...
34
Seal K WPL-B5738501

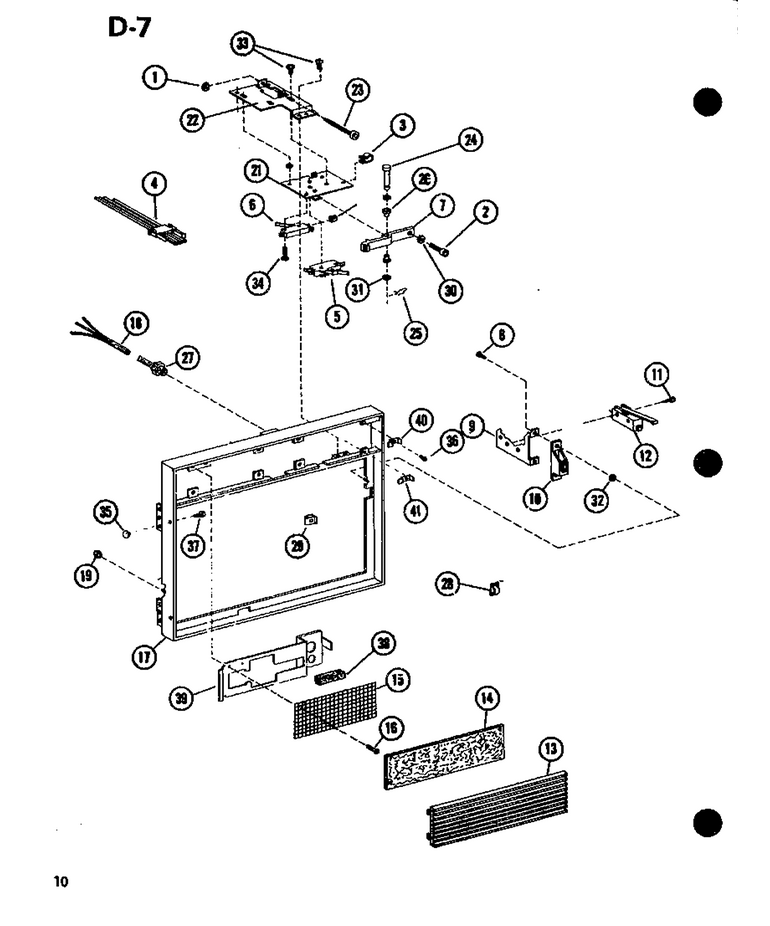

05 - Page 4

...
...
1
E Ring External K WPL-M0274301
...
2
Screw WPL-M0204617
...
3
Clamp WPL-M0102301
...
4
Wiring Harness WPL-C8739801
...
5
Switch-Interlock (Limit) WPL-C3670014
...
6
Switch-Interlock (Limit) WPL-C3670014
...
7
Actuating Arm WPL-B5755701
...
8
Screw WPL-M0218117
...
9
Bracket-Latch WPL-B5675403
...
10
Strike-Latch WPL-C3680202
...
11
Screw WPL-M0227520
...
12
Switch Preform WPL-A3163406
...
13
Grill, Air Inlet WPL-C3678403
...
14
Filter WPL-A3094903
...
15
Screen WPL-B5672305
...
16
Screw WPL-WP59002061
...
17
Bezel, Outer Case WPL-D7293501
...
18
Wiring Harness WPL-D7265501
...
19
Nut, Self Thread WPL-M0283801
...
21
Mtg Plate-Interlock WPL-B5747502
...
22
Adj Brkt-Switch WPL-B5747201
...
23
Adj Screw WPL-A3262501
...
24
Pin-Retainer WPL-A3260201
...
25
Clip,hairpin WPL-A3171501
...
26
See Svc Ltr Cr-163d WPL-A3168101
...
27
Socket Assy-Rc7a WPL-R0164118
...
28
Clip WPL-M0114901
...
29
Speed Nut WPL-M0288119
...
30
Nut K WPL-M0282005
...
31
Washer Non-Metal WPL-M0274032
...
32
Washer WPL-M0270524
...
33
Screw WPL-M0230015
...
34
Screw WPL-M0227520
...
35
T Nut WPL-M0285902
...
36
Clip A WPL-M0113006
...
37
Screw, Nylock WPL-M0205442
...
38
Gasket, Condenser Cover, 2`` X WPL-A3030334
...
39
Bezel Insert WPL-D7292701
...
40
Brkt-Escutcheon WPL-B5760401
...
41
Bracket Escutch WPL-B5760402

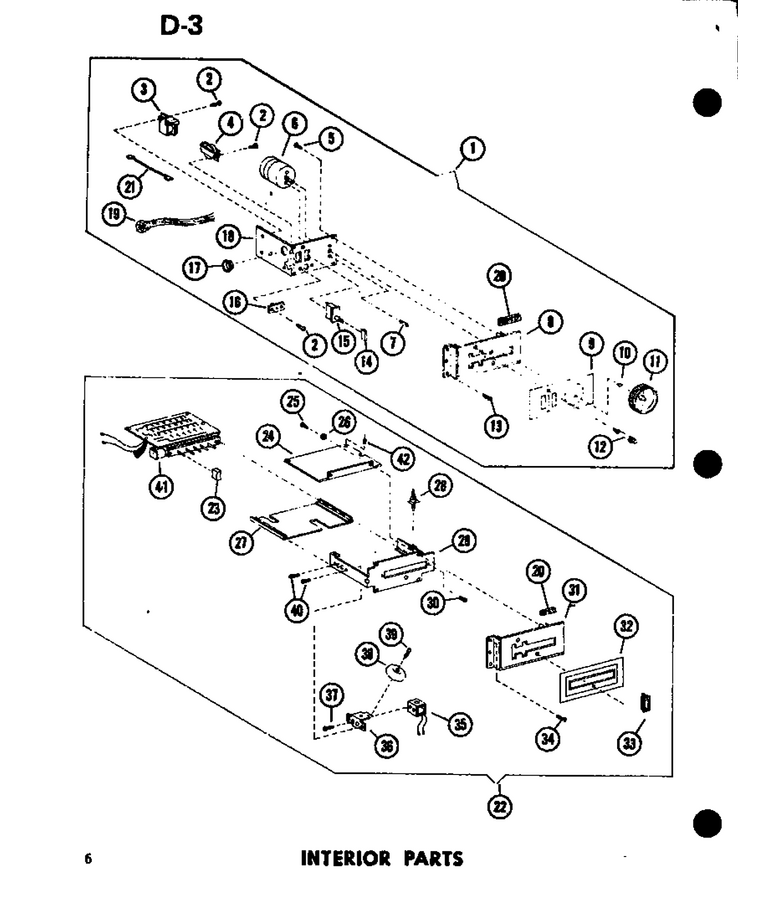

02 - Interior Parts

...
...
22
Assy, Timer Electric WPL-D7217005
...
23
Button Timer A-K WPL-B5674201
...
24
Insulation A WPL-C3679301
...
25
Screw WPL-WP59002061
...
26
Washer WPL-M0270524
...
27
Cover Timer A WPL-B5674601
...
28
Supt Ckt Bd A WPL-B5675501
...
29
Bracket, Timer Mtg. WPL-C3666102
...
30
Screw WPL-W11084238
...
31
Escutcheon Timer A WPL-C8868702
...
32
Thin Plate-El Time WPL-B5722501
...
33
Light-Indicator WPL-B5751901
...
34
Screw WPL-M0253218
...
35
Solenoid Bell A WPL-B5677301
...
36
Bracket Solenoid A WPL-C3670601
...
37
Screw WPL-M0201414
...
38
Bell A WPL-A3183801
...
39
Screw A WPL-M0202513
...
40
Screw WPL-M0218115
...
41
Timer Assy WPL-D7210901
...
42
Rivet-Drive WPL-M0560103

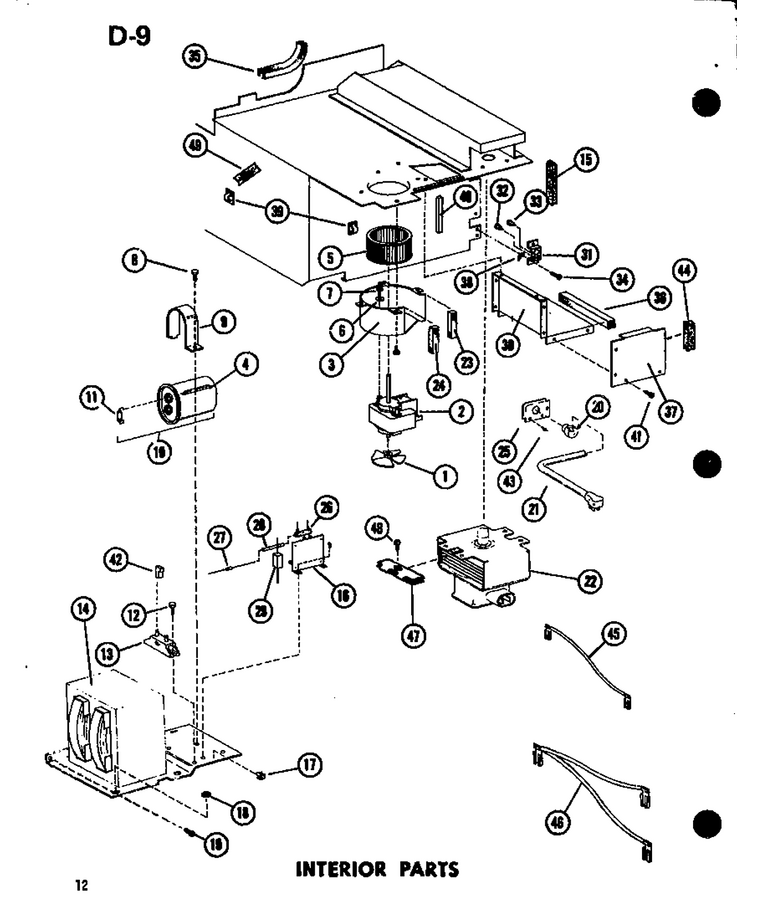

04 - Interior Parts

...
...
1
Fan Blade-Blower WPL-B5706702
...
2
Motor Kit WPL-C3670906
...
3
Scroll Wld WPL-C8710703
...
4
Capacitor Assy WPL-R0160021
...
5
Blower Wheel WPL-B5602202
...
6
Washer WPL-M0272605
...
7
Screw WPL-M0202642
...
8
Screw WPL-M0218116
...
9
Strap-Capacitor A WPL-A3197101
...
10
Capacitor Assy WPL-R0160021
...
11
Resistor A WPL-M0305202
...
12
Screw-Sm/hex WPL-12990523
...
13
Kit, Diode WPL-M3D71
...
14
Transformer WPL-D7152103
...
15
Gasket-Cavity Top WPL-10839709
...
16
Terminal Board WPL-B5687402
...
17
Clip K WPL-M0110501
...
18
Nut WPL-WP487939
...
19
Screw WPL-WP489464
...
20
Strain Relief WPL-M0371301
...
21
Cord-Power WPL-B5674404
...
22
Magnetron WPL-10794402
...
23
Gasket (Per Foot) WPL-10839706
...
24
Gasket (Per Foot) WPL-A3030303
...
25
Panel-Strain Relief WPL-B5722801
...
26
Resistor A WPL-M0305009
...
27
Fuse WPL-M0308110
...
28
Sleeve WPL-M0321701
...
29
Resistor WPL-M0305204
...
30
Plenum Wld WPL-C8807901
...
31
Bracket-Connector WPL-A3230601
...
32
Bushing,terminal WPL-M0325402
...
33
Bushing,terminal WPL-M0325401
...
34
Screw WPL-M0218115
...
35
Grommet Per In. WPL-A3261703
...
36
Gasket WPL-A3030302
...
37
Cover-Plenum WPL-A3230302
...
38
Terminal WPL-M0320901
...
39
Clip WPL-WPM0104106
...
40
Gasket-Per Inch WPL-A3030311
...
41
Screw WPL-M0218115
...
42
Insulator, Term. K WPL-M0325301
...
43
Rivet-Pop WPL-59002054
...
44
Gasket (Per Foot) WPL-A3030303
...
45
Jumper Wire WPL-D7292663
...
46
Jumper Wire WPL-D7365101
...
47
Brkt-Mag Tube WPL-B5774401
...
48
Screw (3) WPL-67006425
...
49
Tape-Cloth Roll WPL-M0275014
