Amana RC7A-D (BOM: P7265102M)

Model: RC7A-D (BOM: P7265102M)

Save Part Not Listed?
product name

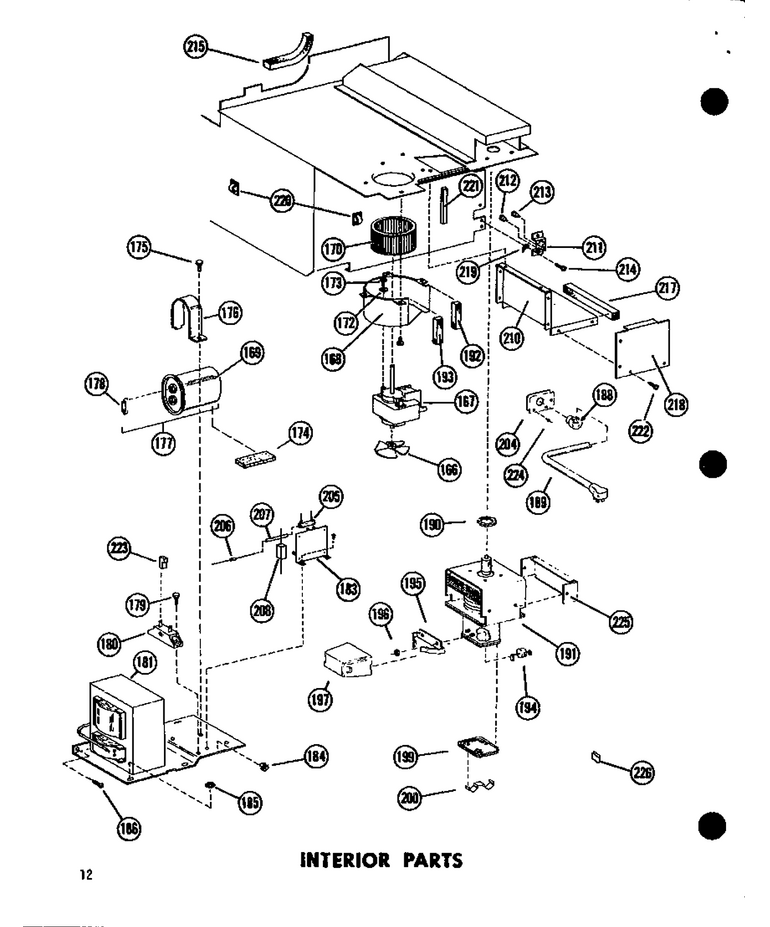

05 - Interior Parts

...
...
166
Fan Blade-Blower WPL-B5706702
...
167
Motor Kit WPL-C3670903
...
168
Scroll Wld WPL-C8710703
...
169
Capacitor Assy WPL-R0160021
...
170
Blower Wheel WPL-B5602202
...
172
Washer WPL-M0272605
...
173
Screw WPL-M0204701
...
174
X$x Pad WPL-M0050902
...
175
Screw WPL-M0218116
...
176
Strap-Capacitor A WPL-A3197101
...
177
Capacitor Assy WPL-R0160021
...
178
Resistor A WPL-M0305202
...
179
Screw-Sm/hex WPL-12990523
...
180
Kit, Diode WPL-M3D71
...
181
Transformer WPL-D7152101
...
183
Terminal Board WPL-B5687402
...
184
Clip K WPL-M0110501
...
185
Nut WPL-WP487939
...
186
Screw WPL-WP489464
...
188
Strain Relief WPL-M0371301
...
189
Cord-Power WPL-B5674404
...
190
Gasket, Magnetron WPL-A3185102
...
191
Assembly, Magnetron WPL-D7203101
...
192
Gasket (Per Foot) WPL-10839706
...
193
Gasket (Per Foot) WPL-A3030303
...
194
Capacitor K WPL-A3148801
...
195
Clip K WPL-B5655902
...
196
Hex Nut WPL-M0281901
...
197
Clip K WPL-B5655902
...
199
Cover Cap Box K WPL-B5647901
...
200
Bale Strap K WPL-A3145401
...
204
Panel-Strain Relief WPL-B5722801
...
205
Resistor A WPL-M0305009
...
206
Fuse WPL-M0308110
...
207
Sleeve WPL-M0321701
...
208
Resistor WPL-M0305204
...
210
Plenum-Magnetron WPL-C8714302
...
211
Bracket-Connector WPL-A3230601
...
212
Bushing,terminal WPL-M0325402
...
213
Bushing,terminal WPL-M0325401
...
214
Screw WPL-M0218115
...
215
Grommet Per In. WPL-A3261703
...
217
Gasket WPL-A3030302
...
218
Cover-Plenum WPL-A3230301
...
219
Terminal WPL-M0320901
...
220
Clip WPL-WPM0104106
...
221
Gasket WPL-10839712
...
222
Screw WPL-M0218115
...
223
Insulator, Term. K WPL-M0325301
...
224
Rivet-Pop WPL-59002054
...
225
Baffle WPL-B5679101
...
226
Clip K WPL-M0113504

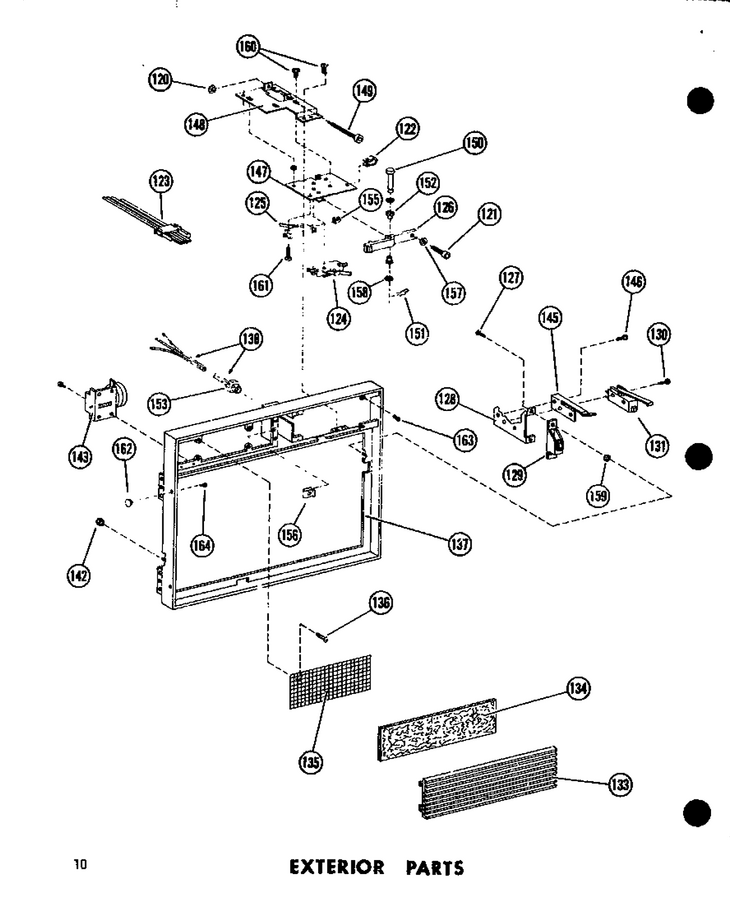

02 - Exterior Parts

...
...
120
E Ring External K WPL-M0274301
...
121
Screw WPL-M0204617
...
122
Clamp WPL-M0102301
...
123
Wiring Harness WPL-C8739801
...
124
Switch-Interlock (Limit) WPL-C3670014
...
125
Switch-Interlock (Limit) WPL-C3670014
...
126
Actuating Arm WPL-B5755701
...
127
Screw WPL-M0218117
...
128
Bracket-Latch WPL-B5675403
...
129
Strike-Latch WPL-C3680202
...
130
Screw WPL-M0227520
...
131
Switch Preform WPL-A3163406
...
133
Grill, Air Inlet WPL-C3678403
...
134
Filter WPL-A3094903
...
135
Screen-Air Inlet WPL-B5672303
...
136
Screw WPL-WP59002061
...
137
Bezel, Outer Case WPL-D7133404
...
138
Wiring Harness WPL-D7265501
...
142
Nut, Self Thread WPL-M0283801
...
143
Meter WPL-C8701101
...
145
Spring-Latch WPL-A3186401
...
146
Screw WPL-M0232012
...
147
Mtg Plate-Interlock WPL-B5747502
...
148
Adj Brkt-Switch WPL-B5747201
...
149
Adj Screw WPL-A3262501
...
150
Pin-Retainer WPL-A3260201
...
151
Clip,hairpin WPL-A3171501
...
152
See Svc Ltr Cr-163d WPL-A3168101
...
153
Socket Assy-Rc7a WPL-R0164118
...
155
Clip WPL-M0114901
...
156
Speed Nut WPL-M0288119
...
157
Nut K WPL-M0282005
...
158
Washer Non-Metal WPL-M0274032
...
159
Washer WPL-M0270524
...
160
Screw WPL-M0230015
...
161
Screw WPL-M0227520
...
162
T Nut WPL-M0285902
...
163
Clip A WPL-M0113006
...
164
Screw, Nylock WPL-M0205442

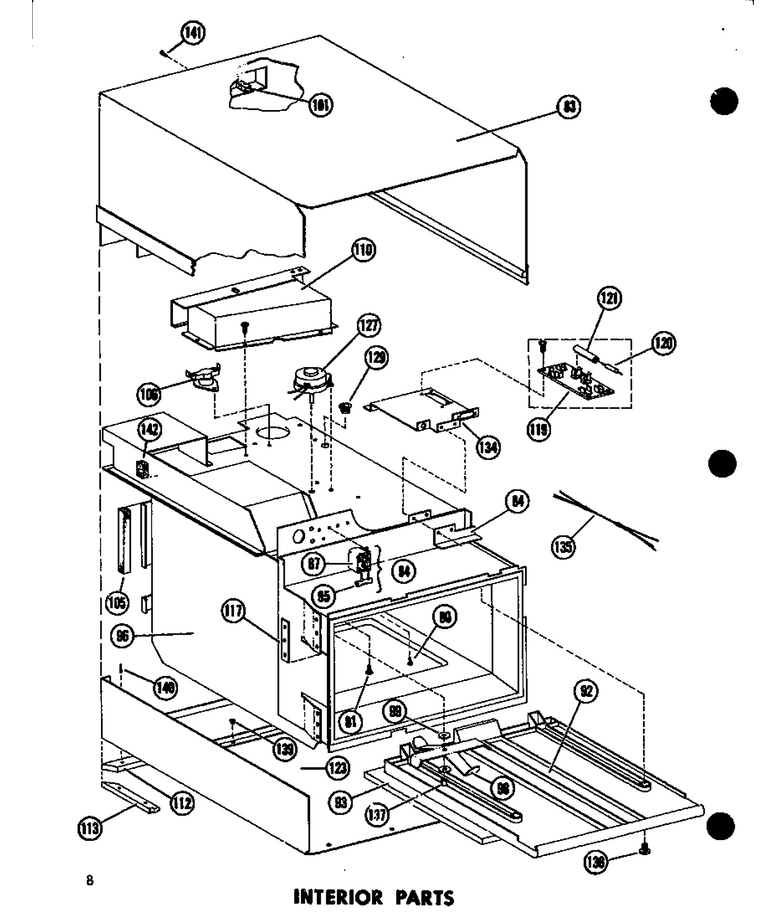

04 - Interior Parts

...
...
80
Screw WPL-M0230015
...
81
Screw WPL-WP90767
...
83
Top Assy-Oc WPL-C8757501
...
84
Brkt Supt-Interlock WPL-B5756101
...
87
Relay Kit WPL-C3669601
...
92
Grease Shi WPL-R0157214
...
93
Tray, Oven WPL-B5748801
...
94
Relay Kit WPL-R0159006
...
95
Resistor, Relay A WPL-M0305007
...
96
Oven Wld WPL-D7265702
...
98
Stirrer Blade (Antenna) WPL-C8708601
...
99
Washer WPL-A3109101
...
101
Gasket-Cavity Top WPL-10839709
...
105
Gasket (Per Foot) WPL-A3030303
...
106
Thermal Cut Out WPL-B5703002
...
110
Air Duct Wld WPL-D7262901
...
112
Gasket WPL-C8732602
...
113
Gasket WPL-C8732601
...
117
Shim-Hinge WPL-A3250301
...
119
Board-Multiprotector WPL-B5751401
...
120
Fuse WPL-M0308101
...
121
Resistor Fuse Kit WPL-R0157332
...
123
Oc Bottom Wld WPL-D7262403
...
127
Motor WPL-B5602809
...
129
Snap Bushing WPL-A4554806
...
134
Mtg Plate WPL-C8756501
...
135
Jumper Wire WPL-C3655860
...
137
Clip WPL-M0114002
...
138
Screw Retainer WPL-A3245601
...
139
Plug WPL-M0310010
...
140
Pop Rivet WPL-A4539602
...
141
Screw WPL-WP3388228
...
142
Gasket-Cavity Top WPL-10839709

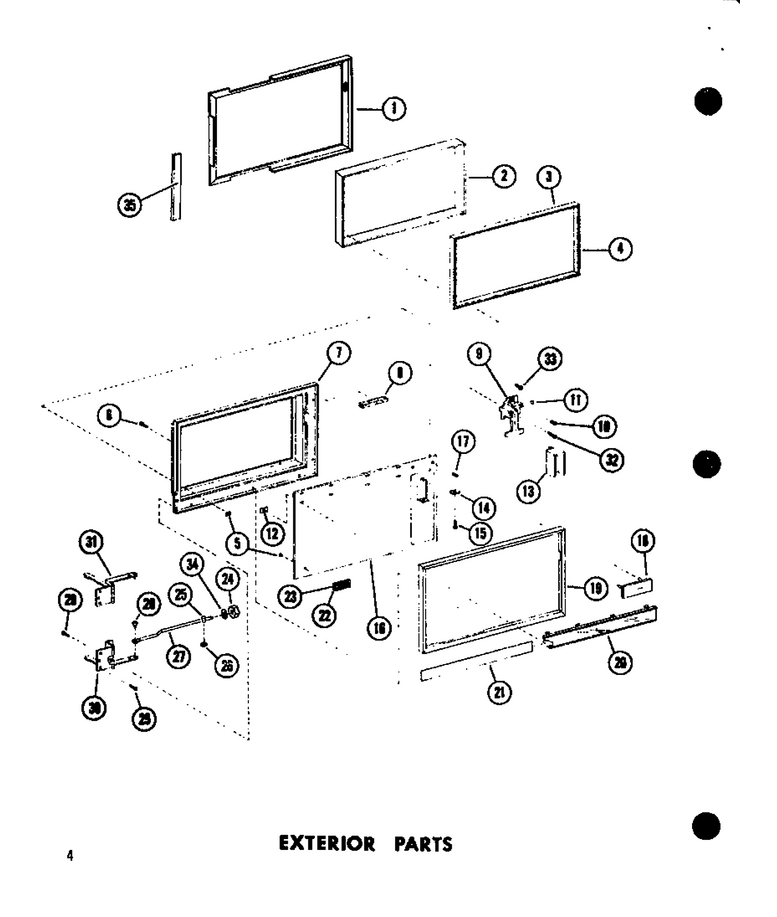

01 - Exterior Parts

...
...
NI
Tape Per Roll WPL-M0275163
...
1
Tape Per Roll WPL-M0275163
...
2
Inner Door Kit WPL-R0156665
...
3
Gasket WPL-B5686003
...
4
Gasket WPL-B5686004
...
5
Nut WPL-717488
...
6
Screw WPL-214597
...
7
Weldment, Inner Door Ring WPL-D7132501
...
8
Gasket WPL-A4591128
...
9
Door Latch Assy WPL-R0157316
...
10
Screw WPL-WPW10068250
...
11
Guides Hndl K WPL-A3195701
...
12
Clip WPL-M0286401
...
13
Bezel-Door Handle WPL-B5671901
...
14
Nut K WPL-M0288001
...
15
Screw, No.6x18x1/4 (3) WPL-487010
...
16
Panel Outer Door K WPL-D7178601
...
17
Clip-Push WPL-M0118905
...
18
Esc-Logo WPL-C3668803
...
19
Outer Door Ring WPL-D7667701
...
20
Lens-Menu Guide WPL-B5674501
...
21
Menu Guide WPL-C8713302
...
22
Insert-Medallion WPL-B5694719
...
23
Medallion WPL-B5694901
...
24
Nut WPL-WP488130
...
25
Guide-Door Stop WPL-A3181801
...
26
Bushing WPL-A3182101
...
27
Arm, Dr Stop K WPL-B5748702
...
28
Bushing-Door Arm WPL-A3185001
...
29
Screw WPL-M0253230
...
30
Hinge-Bottom WPL-C3666306
...
31
Hinge-Top WPL-C3666305
...
32
Screw WPL-M0234030
...
33
Rivet, Pop (Wht) WPL-B5642901
...
34
Washer WPL-M0270501
...
35
Tape Per Roll WPL-M0275163

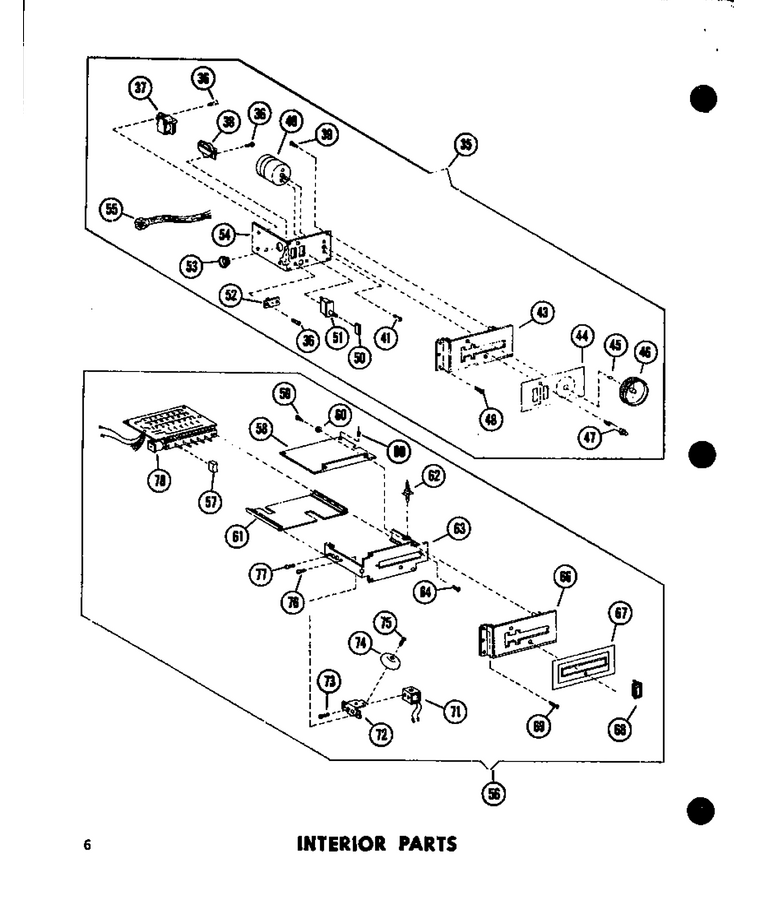

03 - Interior Parts

...
...
35
Dial Timer Assy WPL-D7279601
...
36
Screw WPL-M0230015
...
37
Relay K WPL-B5674301
...
38
Buzzer A WPL-A3152502
...
39
Screw WPL-WP59002061
...
40
Timer-Dial A WPL-C3680404
...
41
Screw WPL-W11084238
...
43
Escutcheon Timer A WPL-C8868702
...
44
Thin Plate A WPL-B5744101
...
45
Clip WPL-M0117001
...
46
Knob A WPL-D7028702
...
47
Pilot Light A WPL-A3184401
...
48
Screw WPL-M0253218
...
50
Button Start A WPL-B5674002
...
51
Switch WPL-B5674703
...
52
Terminal Board A WPL-A3186901
...
53
Snap Bushing WPL-A4554802
...
54
Bracket-Dial Timer WPL-C3676801
...
55
Wiring Harness A WPL-C8758601
