Amana RC5MDTM2 (BOM: P1332826M)

Model: RC5MDTM2 (BOM: P1332826M)

Save Part Not Listed?
product name

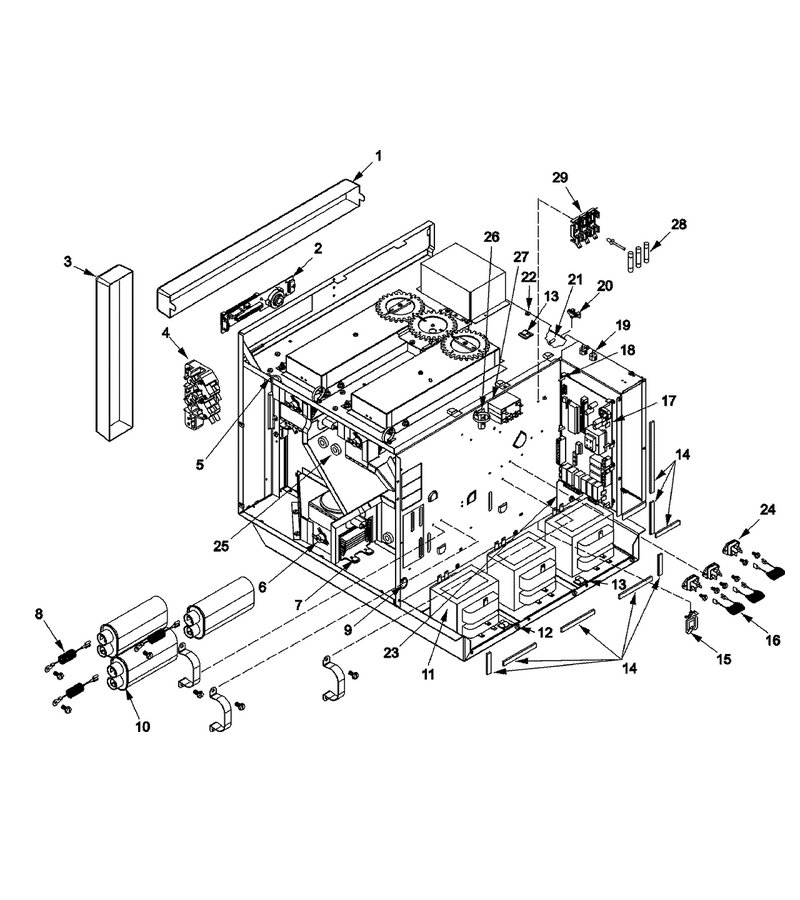

01 - Electrical Components

...
...
1
Screw, Tf WPL-M0231704
...
2
Board,display WPL-12502404
...
3
Screw, Tf WPL-M0231704
...
4
Switch, Interlock Kit WPL-12002647
...
5
Grommet-Rubber WPL-59002007
...
6
Screw T.c WPL-M0229916
...
7
Magnetron-T WPL-59001484
...
8
Screw WPL-WP489349
...
9
Bushing, Snap WPL-59001128
...
10
Strap, Capacitor WPL-A4055406
...
11
Transformer-Hv 230v 50 Hz WPL-10788620
...
12
Screw WPL-WP90767
...
13
Clip WPL-WPM0104106
...
14
Gasket (Inch) WPL-A3030301
...
15
Wire Clip WPL-B5667304
...
16
Snubber Assembly WPL-59002017
...
17
Board,hv WPL-59001002
...
18
Support P-C Bd A WPL-M0590602
...
19
Bushing,terminal WPL-M0325401
...
20
Screw WPL-WP488234
...
21
Cap, Protective-Threaded (Red) WPL-M0308801
...
22
Screw,tf WPL-M0231617
...
23
Screw WPL-WPW10001160
...
24
Kit, Triac Assy WPL-R0157373
...
25
Toroid (Arc Suppressor) WPL-44780P01
...
26
Tie Wire WPL-WPM0322202
...
27
Relay WPL-12492202
...
28
Fuse WPL-WPM0805102
...
29
Rivet-Pop WPL-59002054

...
...
NI
Tech Sht Comm Micro WPL-16027028

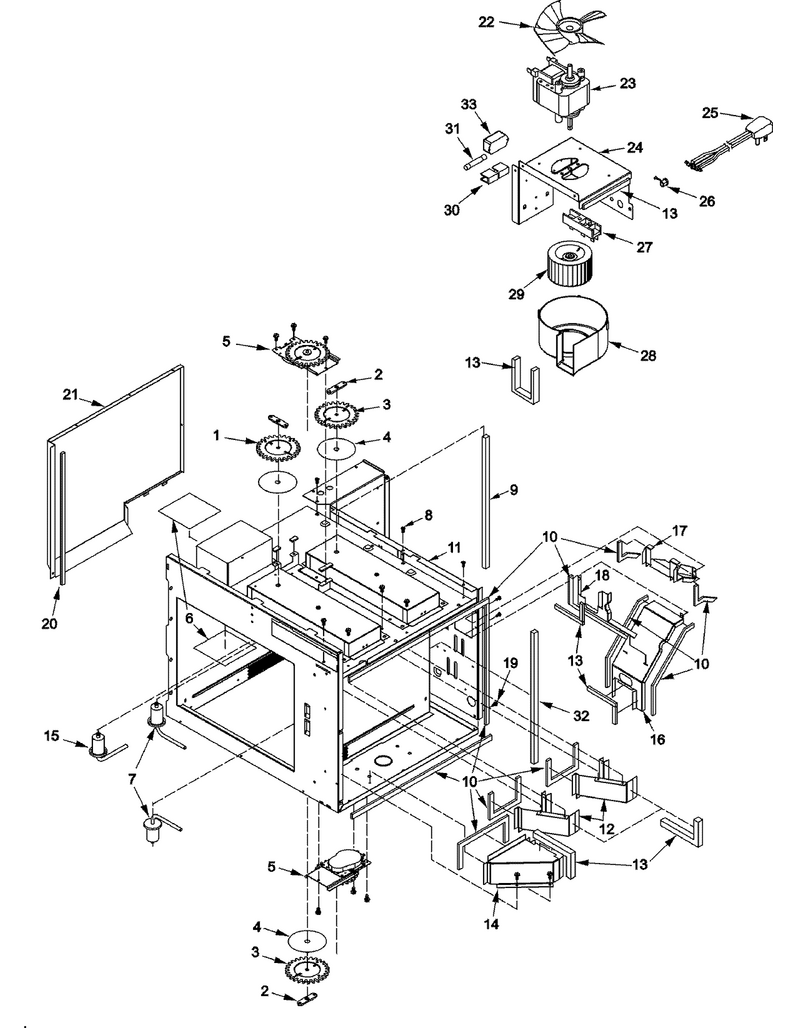

02 - Fuses, Antennas, Blower, Ducts,

...
...
1
Gear,spur (Gray) WPL-12570102
...
2
Retainer,gear Shaft WPL-12570201
...
3
Gear,spur WPL-12570101
...
4
Washer, Spur Gear WPL-10903002
...
5
Screw, Tf WPL-M0231704
...
6
Window, Oven Light WPL-B8367701
...
7
Antenna (Stirrer) WPL-R0130262
...
8
Screw WPL-WPW10001160
...
9
Gasket, Neoprene WPL-10966601
...
10
Gasket,per Ft WPL-A30303-30
...
11
Panel, Partition WPL-59001204
...
12
Screw WPL-WP3388228
...
13
Gasket (Per Foot) WPL-A3030303
...
14
Bottom Exhaust Duct-W/gasket WPL-10989301
...
15
Antenna, Top Front (Blue) WPL-R0130261
...
16
Divider-Bot Flow WPL-10989401
...
17
Screw WPL-WP489349
...
18
Screw WPL-WP489349
...
19
Screw WPL-5078-CC
...
20
Gasket (Inch) WPL-A3030301
...
21
Duct, Exhaust WPL-10781901
...
22
Fan Blade WPL-B5706704
...
23
Motor, Blower WPL-59001482
...
24
Screw WPL-WP489349
...
25
Power Cord WPL-59001663
...
26
Relief-Strain WPL-59001664
...
27
Terminal Block WPL-B5677203
...
28
Scroll,blower WPL-12552001
...
29
Wheel, Blower WPL-C3670809
...
30
Fuse Holder WPL-10091101
...
31
Fuse- 30a WPL-M0805205
...
32
Gasket (Inch) WPL-A3030301
...
33
Screw WPL-WP3388228

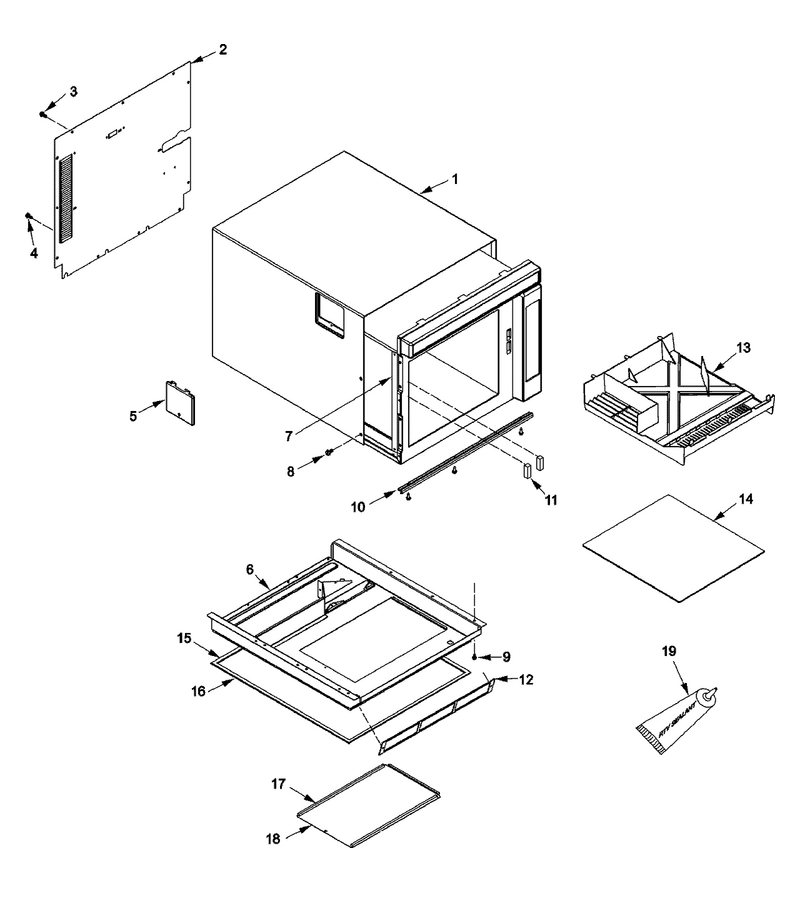

04 - Tray, Grease Shield, Cabinet,

...
...
1
Wrapper-Oc (Ss) WPL-10908901Q
...
2
Assy, Access Panel (Rear) WPL-R0156970
...
3
Screw WPL-WP3388228
...
4
Screw WPL-WP90767
...
5
Clip WPL-M0288213
...
6
Base Assy-Gaskets, Access Pnl WPL-10790304Q
...
7
Bracket,hinge Support WPL-12189003
...
8
Screw-Tf/oval WPL-13042002
...
9
Screw WPL-WP489128
...
10
Screw-Tf/oval WPL-13042002
...
11
Support-Tray WPL-3010003001
...
12
Washer, Nylon WPL-M0274066
...
13
Shield, Grease WPL-10766601
...
14
Tray-Ceramic Floor W/sealer WPL-R0156942
...
15
Basepan Gasket-Cut WPL-59001646
...
16
Basepan Gasket-Cut WPL-59001647
...
17
Gasket (Inch) WPL-A3030301
...
18
Bottom Access Panel WPL-10782402
...
19
Adhesive WPL-W10841140
