Amana RC5MCTP2 (BOM: P1331425M)

Model: RC5MCTP2 (BOM: P1331425M)

Save Part Not Listed?
product name

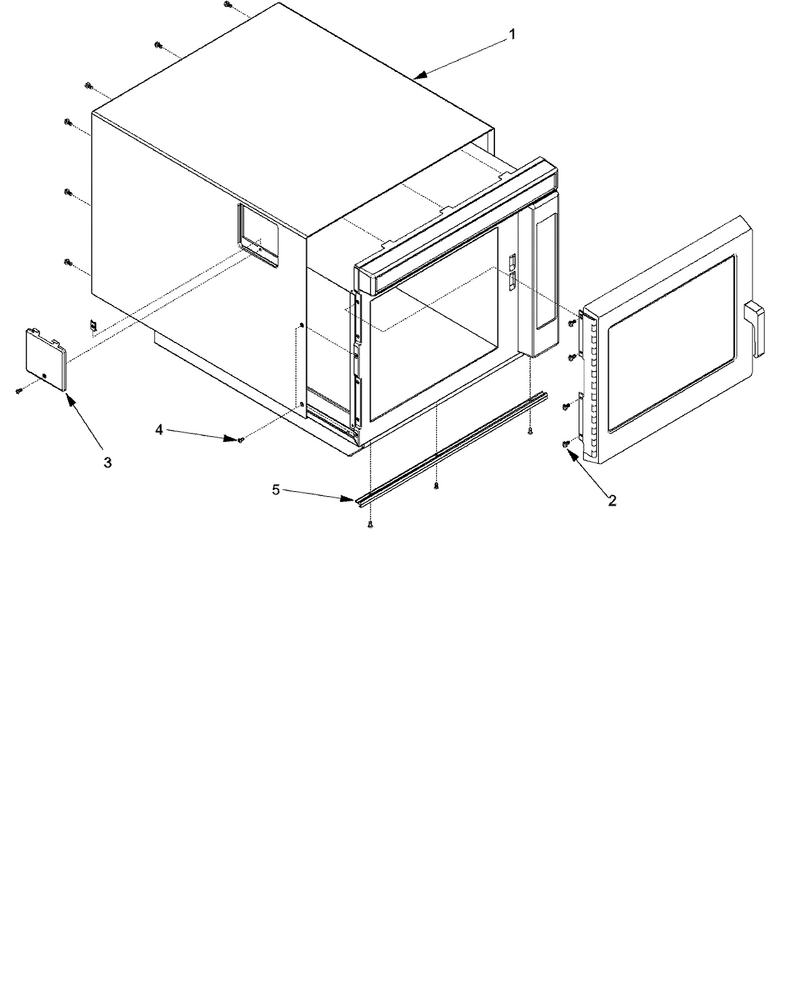

07 - Outercase

...
...
1
Screw WPL-WP3388228
...
2
Gasket WPL-A3263904
...
3
Cover Light (Ss) WPL-10785608
...
4
Screw-Tf/oval WPL-13042002
...
5
Screw-Tf/oval WPL-13042002

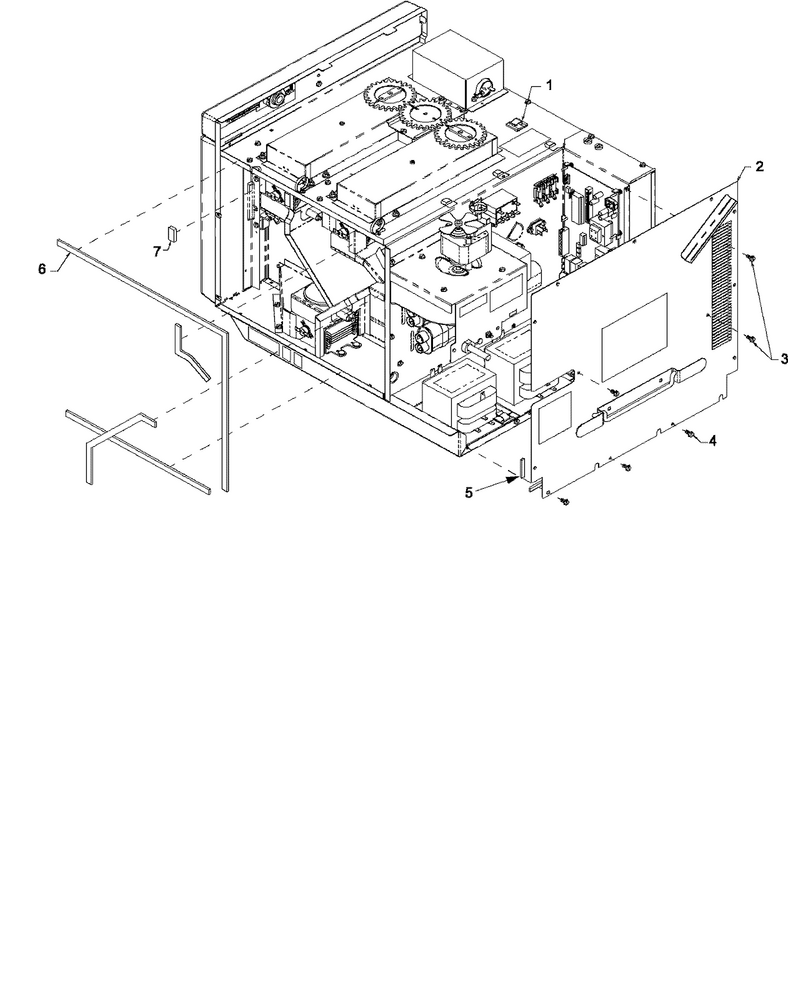

08 - Rear Panel

...
...
1
Clip WPL-WPM0104106
...
2
Assy, Access Panel (Rear) WPL-R0156970
...
3
Screw WPL-WP3388228
...
4
Screw WPL-WP90767
...
5
Gasket (Inch) WPL-A3030301
...
6
Gasket,per Ft WPL-A30303-30
...
7
Gasket (Per Foot) WPL-10839706

...
...
NI
Manual, Product Safety WPL-59001487

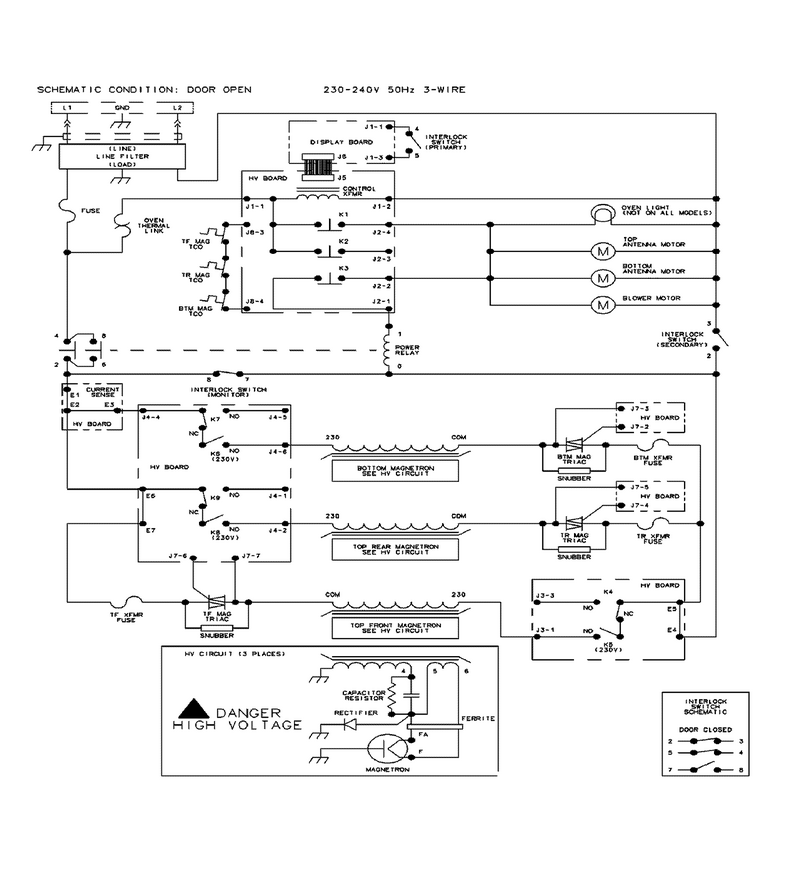

10 - Wiring Information

...
...
NI
Wiring Information WPL-15003202

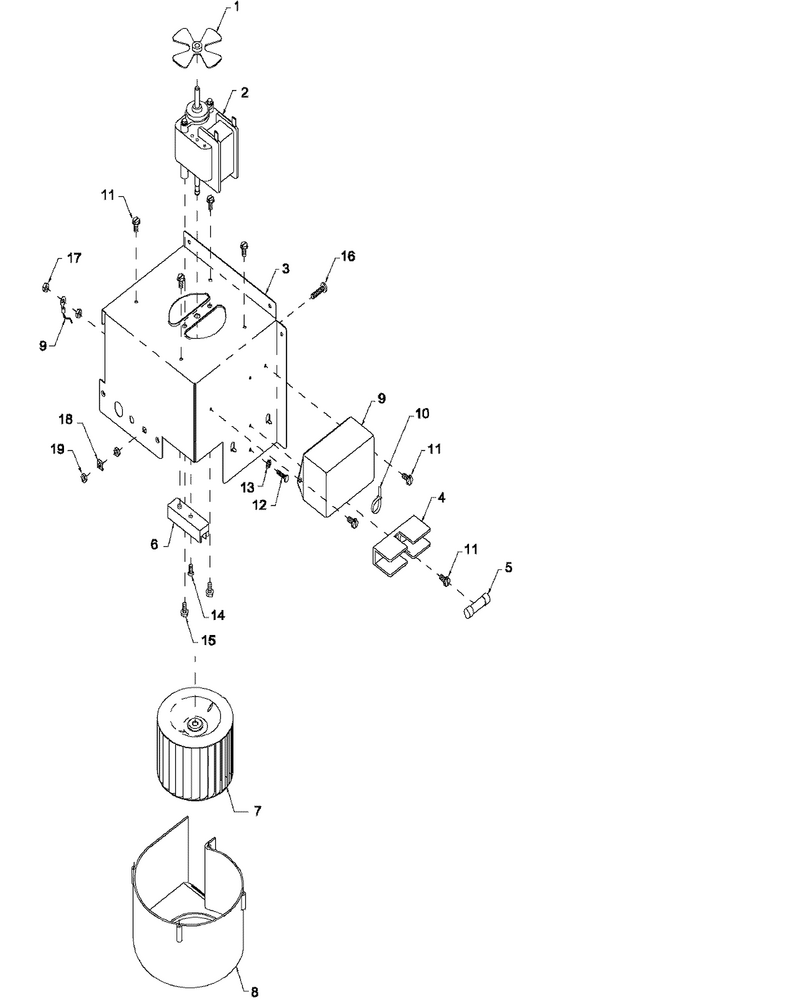

01 - Blower

...
...
1
Fan Blade WPL-B5706704
...
2
Motor, Blower WPL-59001482
...
3
Bracket, Blower WPL-59001495
...
4
Fuse Holder WPL-10091101
...
5
Fuse- 30a WPL-M0805205
...
6
Terminal Block WPL-B5677203
...
7
Wheel, Blower WPL-C3670809
...
8
Scroll,blower WPL-12552001
...
9
Line Filter WPL-59001212
...
10
Tie-Wire WPL-WPW10339879
...
11
Screw-Sm/hex WPL-12990523
...
12
Stud-Self Clinch WPL-M0293502
...
13
Nut WPL-WP3195558
...
14
Screw, No.6x18x1/4 (3) WPL-487010
...
15
Screw WPL-WP3400094
...
16
Stud- Sc WPL-M0293507
...
17
Nut K WPL-M0282005
...
18
Washer-U Type WPL-12152201
...
19
Nut-Keps WPL-M0282021

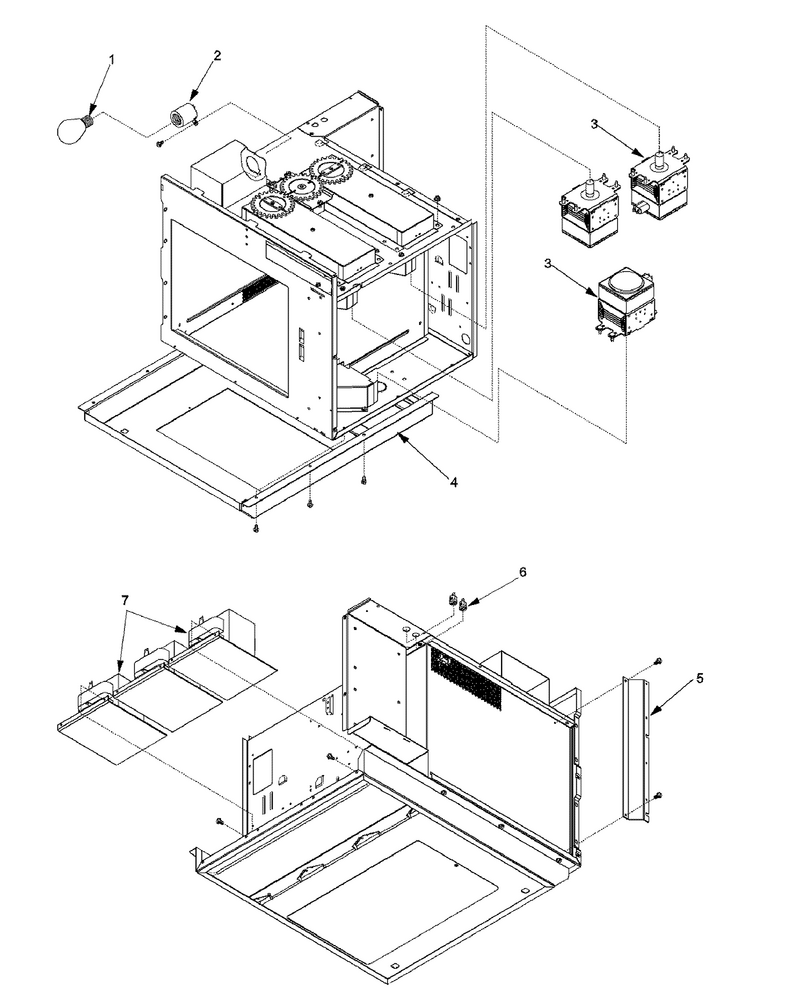

06 - Interior

...
...
3
Magnetron-T WPL-59001484
...
4
Base Assy-Gaskets, Access Pnl WPL-10790304Q
...
5
Bracket,hinge Support WPL-12189003
...
6
Bushing,terminal WPL-M0325401
...
7
Transformer-Hv 230v 50 Hz WPL-10788620

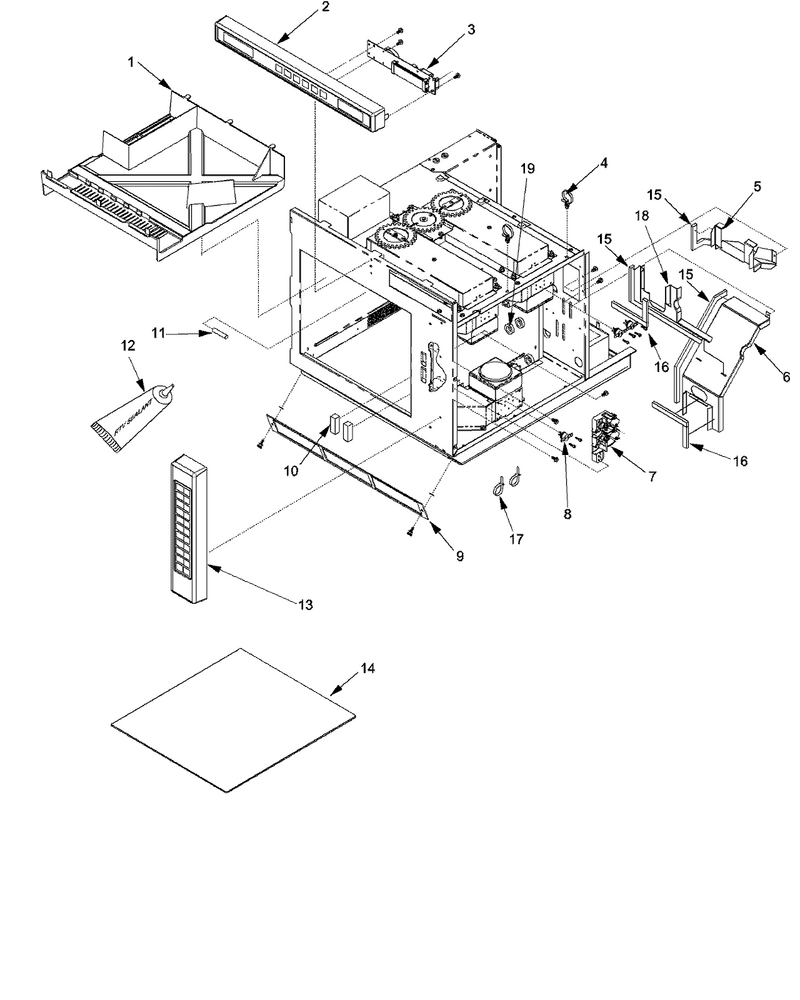

03 - Control

...
...
1
Shield, Grease WPL-10766601
...
2
Screw, Tf WPL-M0231704
...
3
Board,display WPL-12502404
...
4
Tie Wire WPL-WPM0322202
...
5
Rear Divider Duct-W/gasket WPL-R0156986
...
6
Divider-Bot Flow WPL-10989401
...
7
Switch, Interlock Kit WPL-12002647
...
8
Thermal Cut-Off WPL-59001211
...
9
Washer, Nylon WPL-M0274066
...
10
Support-Tray WPL-3010003001
...
11
Cap, Protective-Threaded (Red) WPL-M0308801
...
12
Adhesive WPL-W10841140
...
13
Label Rc5mctp WPL-59001501
...
14
Tray-Ceramic Floor W/sealer WPL-R0156942
...
15
Gasket,per Ft WPL-A30303-30
...
16
Gasket (Per Foot) WPL-A3030303
...
17
Tie-Wire WPL-WPW10339879
...
18
Divider, Top Flow WPL-10989601
...
19
Toroid (Arc Suppressor) WPL-44780P01

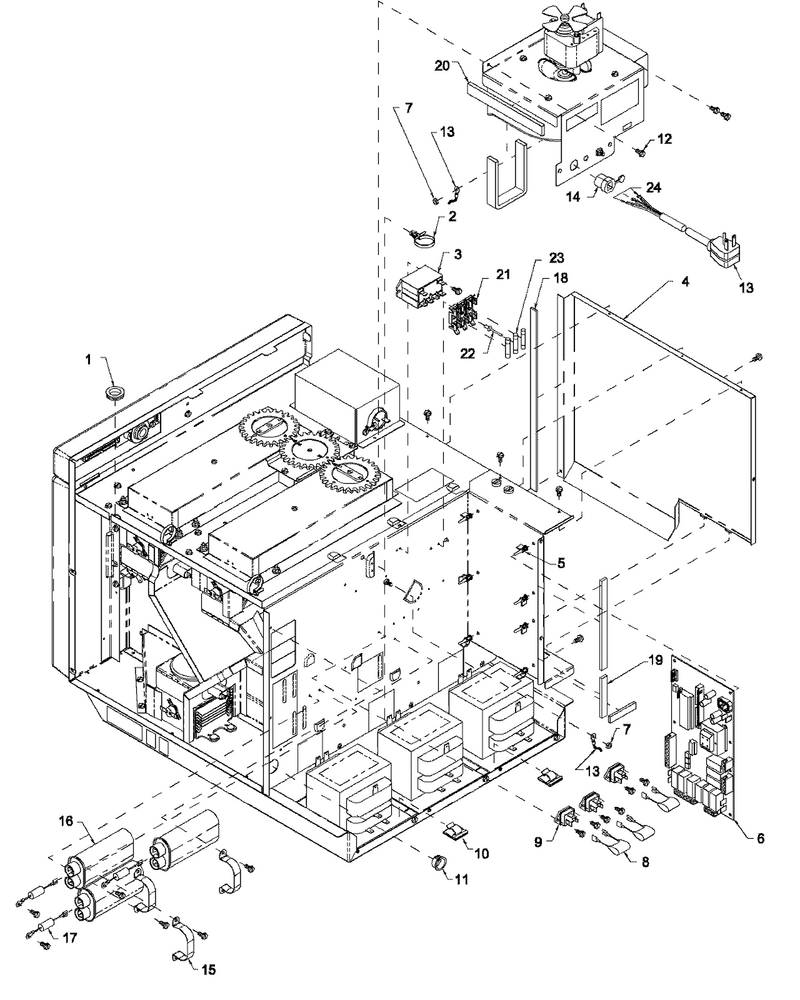

05 - Electrical Components

...
...
1
Grommet-Rubber WPL-59002007
...
2
Tie Wire WPL-WPM0322202
...
3
Relay WPL-12492202
...
4
Screw,tf WPL-M0231617
...
5
Support P-C Bd A WPL-M0590602
...
6
Hv Board-Amana Prog-Mc 50 Hz WPL-59001497
...
7
Insulator, Pod K WPL-M0325501
...
8
Snubber Assembly WPL-59002017
...
9
Kit, Triac Assy WPL-R0157373
...
10
Clip WPL-WPM0104106
...
11
Bushing, Snap WPL-59001128
...
12
Screw WPL-WP489349
...
13
Cord-Power WPL-59001498
...
14
Relief- Strain WPL-M0370009
...
15
Strap, Capacitor WPL-A4055406
...
16
Capacitor-.74 WPL-59001162
...
17
Rectifier WPL-WP13091701
...
18
Gasket (Inch) WPL-A3030301
...
19
Gasket (Inch) WPL-A3030301
...
20
Gasket (Per Foot) WPL-A3030303
...
21
Block-3 Pole Fuse WPL-59001682
...
22
Rivet-Pop WPL-59002054
...
23
Fuse WPL-WPM0805102
...
24
Insulator, Pod K WPL-M0325501

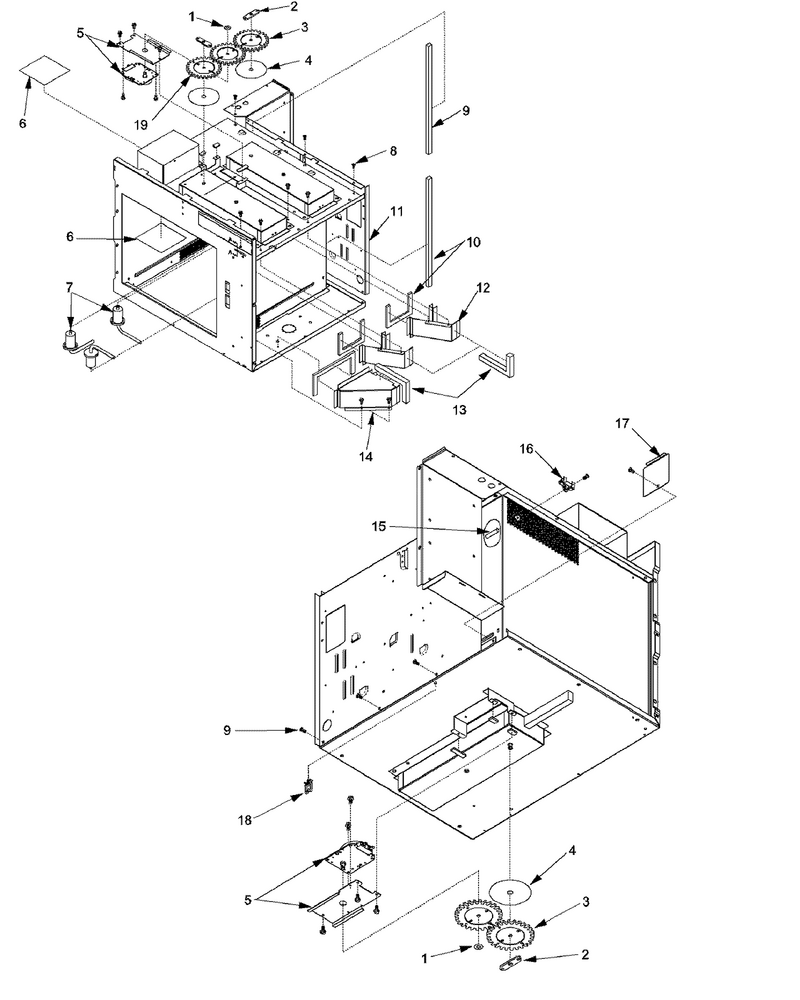

02 - Cavity

...
...
1
Ring,retainer WPL-M0274702
...
2
Retainer,gear Shaft WPL-12570201
...
3
Gear,spur WPL-12570101
...
4
Washer, Spur Gear WPL-10903002
...
5
Screw, Tf WPL-M0231704
...
6
Window, Oven Light WPL-B8367701
...
7
Antenna (Stirrer) WPL-R0130262
...
8
Screw WPL-WPW10001160
...
9
Gasket, Neoprene WPL-10966601
...
10
Gasket,per Ft WPL-A30303-30
...
12
Duct-Top Exhaust WPL-10989201
...
13
Gasket (Per Foot) WPL-A3030303
...
14
Bottom Exhaust Duct-W/gasket WPL-10989301
...
15
Cap, Protective-Threaded (Red) WPL-M0308801
...
16
Thermal Cut-Off WPL-59001211
...
17
Screw WPL-WPW10001160
...
18
Wire Clip WPL-B5667304
...
19
Gear,spur (Gray) WPL-12570102

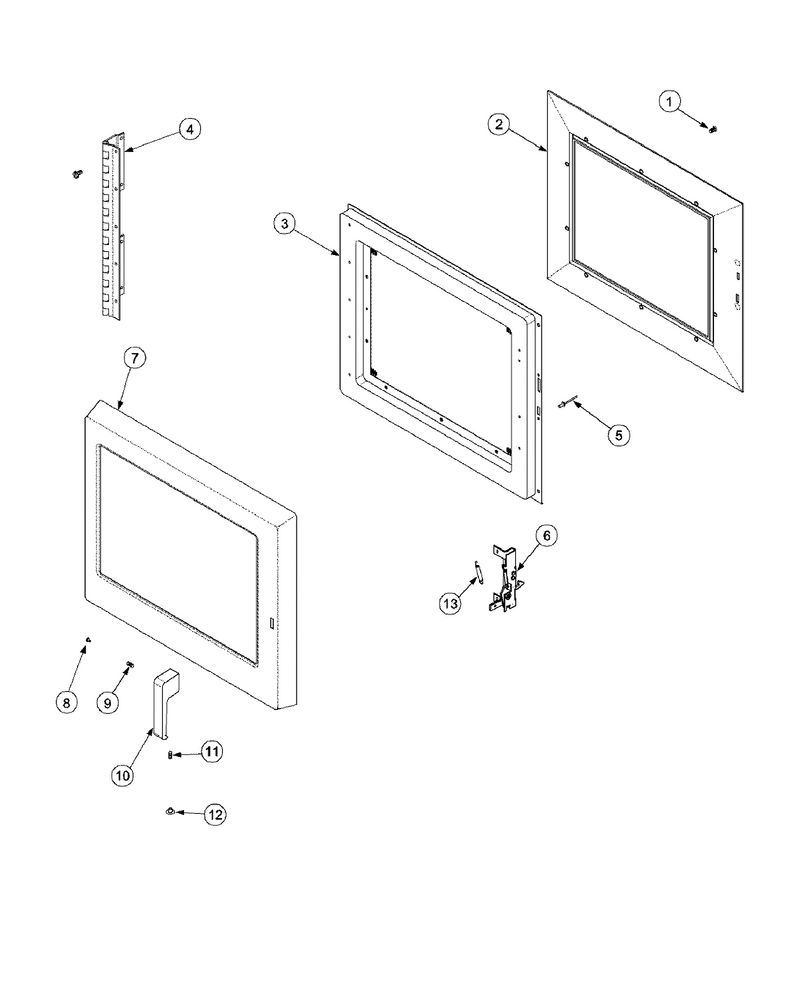

04 - Door

...
...
1
Screw-Hi Lo Y-Drive Head WPL-67003392
...
2
Kit, Inner Door/window Assy WPL-12002103
...
3
Door Ring Weld WPL-59002013
...
4
Screw WPL-WP3388228
...
5
Rivet-Pop WPL-59002054
...
6
Latch Kit WPL-R0000282
...
7
Outer Door/lens Retainer Assy WPL-R0156920
...
8
Plug, Button (Blk) WPL-12360703
...
9
Screw WPL-WP8533976
...
10
Handle, Door WPL-12490901
...
11
Screw WPL-WP8533976
...
12
Plug, Button (Wht) WPL-M0310305
...
13
Spring, Door Latch WPL-C8893502
