Amana RC5MCTP (BOM P1327603M)

Model: RC5MCTP (BOM P1327603M)

Save Part Not Listed?
product name

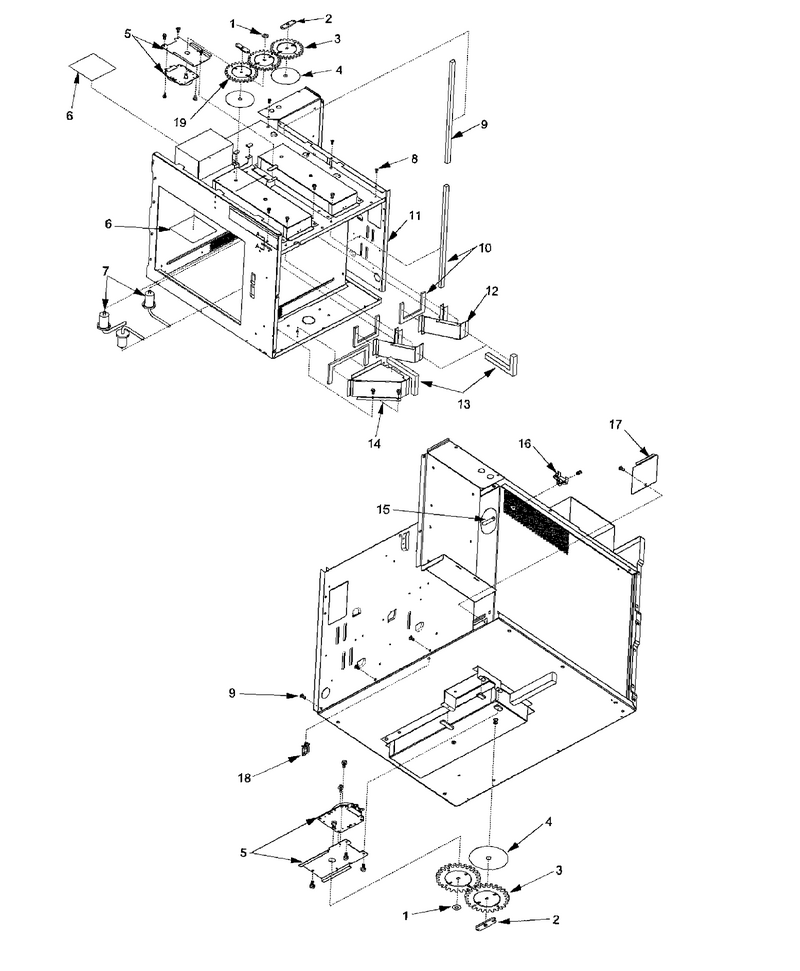

05 - Cavity

...
...
001
Ring,retainer WPL-M0274702
...
002
Retainer,gear Shaft WPL-12570201
...
003
Gear,spur--++xxx WPL-12570101
...
004
Washer, Spur Gear WPL-10903002
...
005
Screw, Tf WPL-M0231704
...
006
Window, Oven Light WPL-B8367701
...
007
Antenna (Stirrer) WPL-R0130262
...
008
Screw WPL-WPW10001160
...
009
Gasket, Neoprene WPL-10966601
...
010
Gasket,per Ft WPL-A30303-30
...
012
Duct-Top Exhaust WPL-10989201
...
013
Gasket (Per Foot) WPL-A3030303
...
014
Bottom Exhaust Duct-W/gasket WPL-10989301
...
015
Cap, Protective-Threaded (Red) WPL-M0308801
...
016
Screw WPL-WP488234
...
017
Plate, Partition WPL-10847601
...
018
Wire Clip WPL-B5667304
...
019
Gear,spur (Gray) WPL-12570102

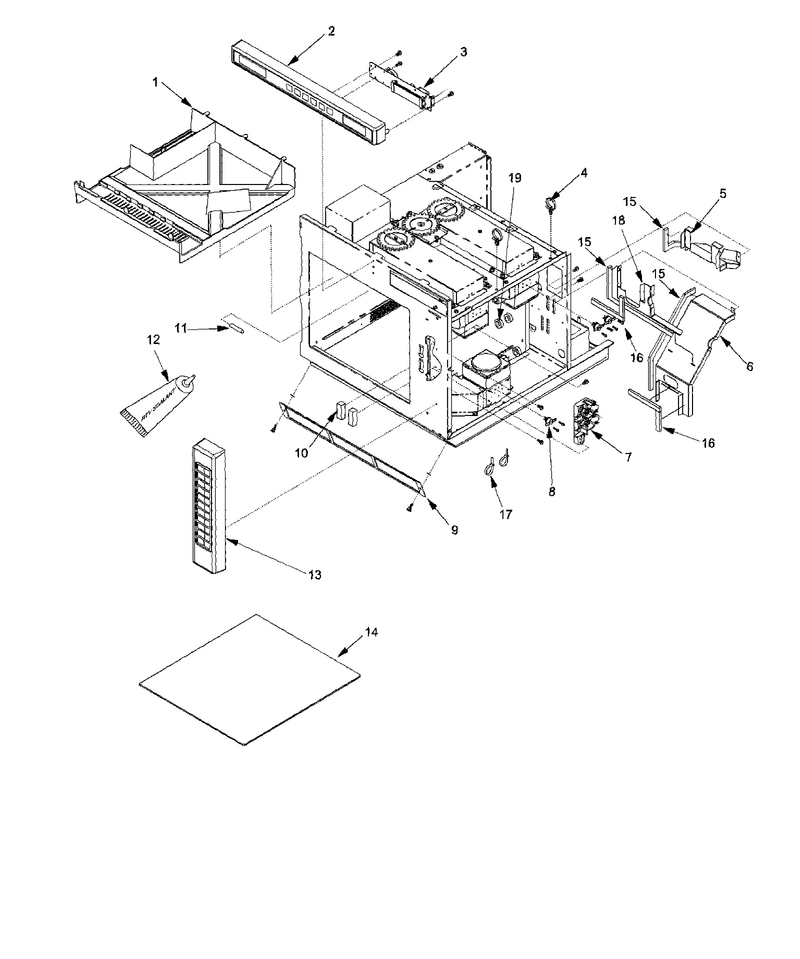

06 - Control

...
...
001
Shield, Grease WPL-10766601
...
002
Touch Panel(Top) WPL-R0130110
...
003
Board,display WPL-12502404
...
004
Tie Wire WPL-WPM0322202
...
005
Rear Divider Duct-W/gasket WPL-R0156986
...
006
Divider-Bot Flow WPL-10989401
...
007
Switch, Interlock Kit WPL-12002647
...
008
Thermal Cut-Off WPL-59001211
...
009
Screw-Thumb WPL-13042901
...
010
Support-Tray WPL-3010003001
...
011
Cap, Protective-Threaded (Red) WPL-M0308801
...
012
Adhesive WPL-W10841140
...
013
Touch Panel(Side) WPL-R0130109
...
014
Tray-Ceramic Floor W/sealer Includes Items 12 & 10 WPL-R0156942
...
015
Gasket,per Ft WPL-A30303-30
...
016
Gasket (Per Foot) WPL-A3030303
...
017
Tie-Wire WPL-WPW10339879
...
018
Divider, Top Flow WPL-10989601
...
019
Toroid (Arc Suppressor) WPL-44780P01

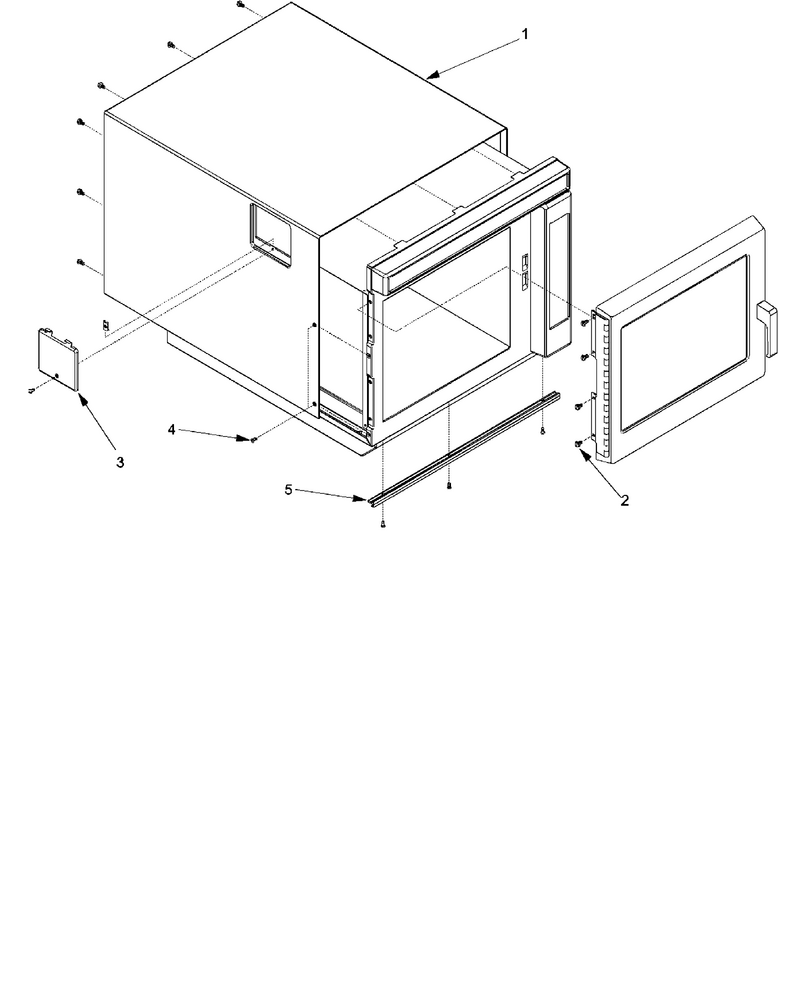

03 - Outercase

...
...
001
Screw WPL-WP3388228
...
002
Screw,tf WPL-M0231617
...
003
Clip WPL-NLA
...
004
Screw-Tf/oval WPL-13042002
...
005
Screw-Tf/oval WPL-13042002

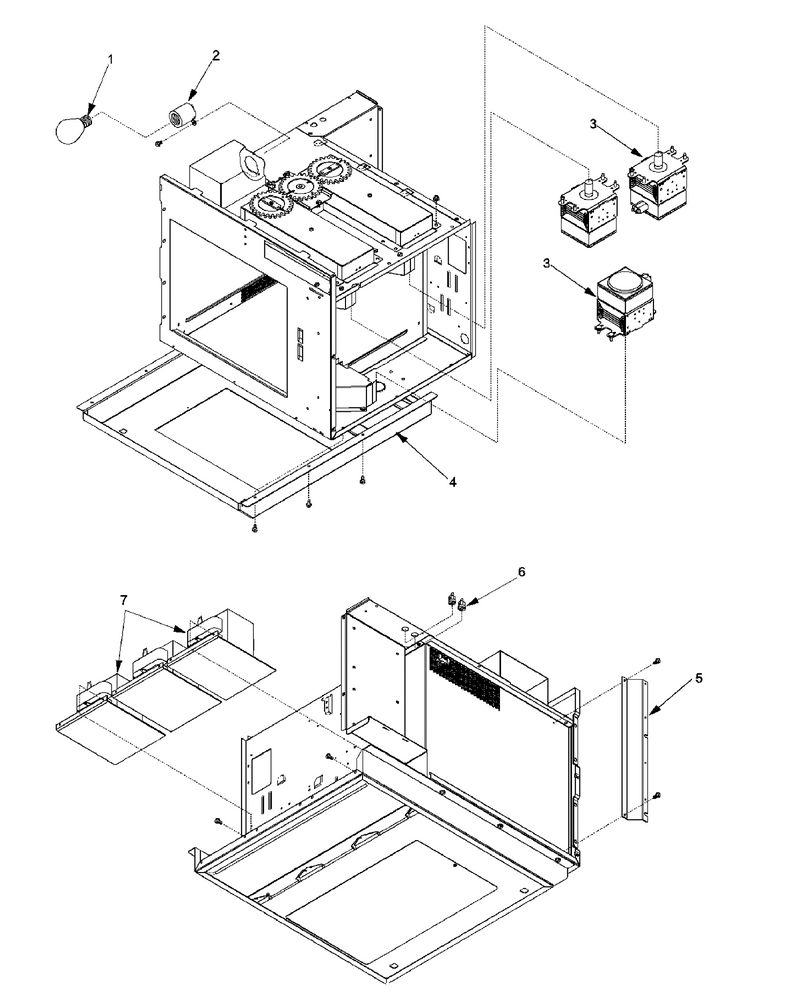

04 - Interior

...
...
001
Bulb-Light WPL-WP67002552
...
002
Socket, Light WPL-B8376801
...
003
Magnetron-T WPL-59001484
...
004
Screw WPL-WP489128
...
005
Bracket,hinge Support WPL-12189003
...
006
Bushing,terminal WPL-M0325401
...
007
Transformer-Hv 230v 50 Hz WPL-10788620

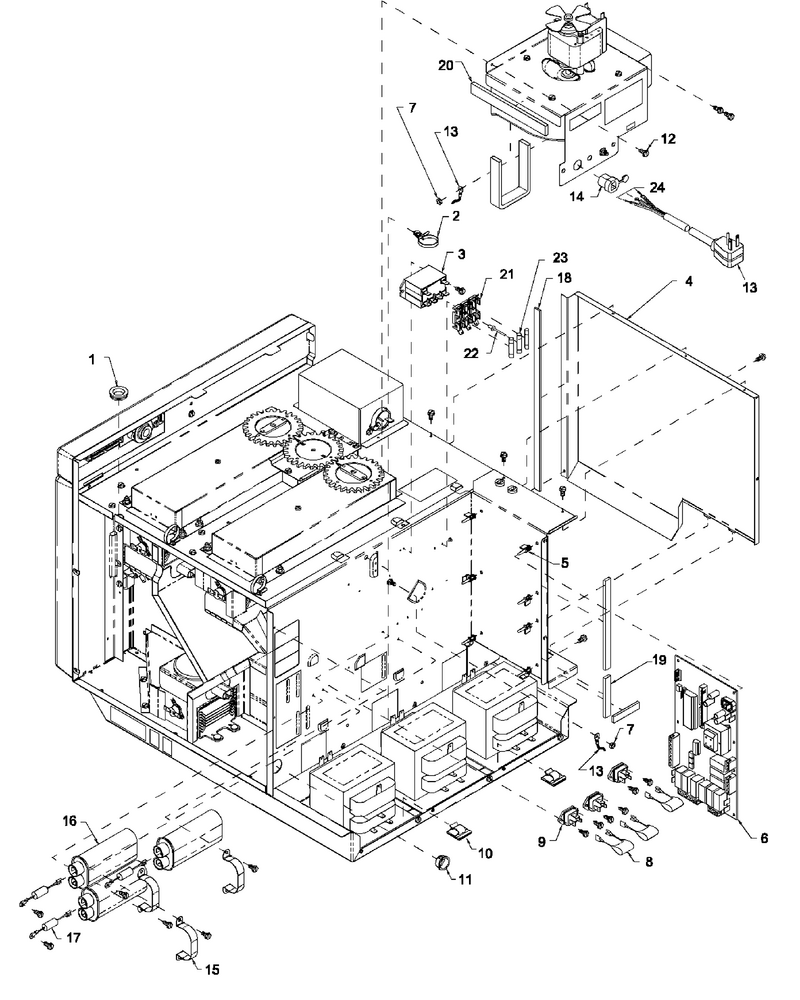

07 - Electrical Components

...
...
001
Grommet-Rubber WPL-59002007
...
002
Tie Wire WPL-WPM0322202
...
003
Relay WPL-12492202
...
004
Screw,tf WPL-M0231617
...
005
Support P-C Bd A WPL-M0590602
...
006
Hv Board-Amana Prog-Mc 50 Hz WPL-59001497
...
007
Insulator, Pod K WPL-M0325501
...
008
Snubber Assembly WPL-59002017
...
009
Screw WPL-WP489349
...
010
Clip WPL-WPM0104106
...
011
Bushing, Snap WPL-59001128
...
012
Screw WPL-WP489349
...
013
Cord-Power WPL-59001498
...
014
Relief-Strain WPL-59001500
...
015
Strap, Capacitor WPL-A4055406
...
016
Capacitor- WPL-WP59001168
...
017
Screw WPL-WP489349
...
018
Gasket (Inch) WPL-A3030301
...
019
Gasket (Inch) WPL-A3030301
...
020
Gasket (Per Foot) WPL-A3030303
...
021
Block-3 Pole Fuse WPL-59001682
...
022
Rivet-Pop WPL-59002054
...
023
Fuse WPL-WPM0805102
...
024
Insulator, Pod K WPL-M0325501

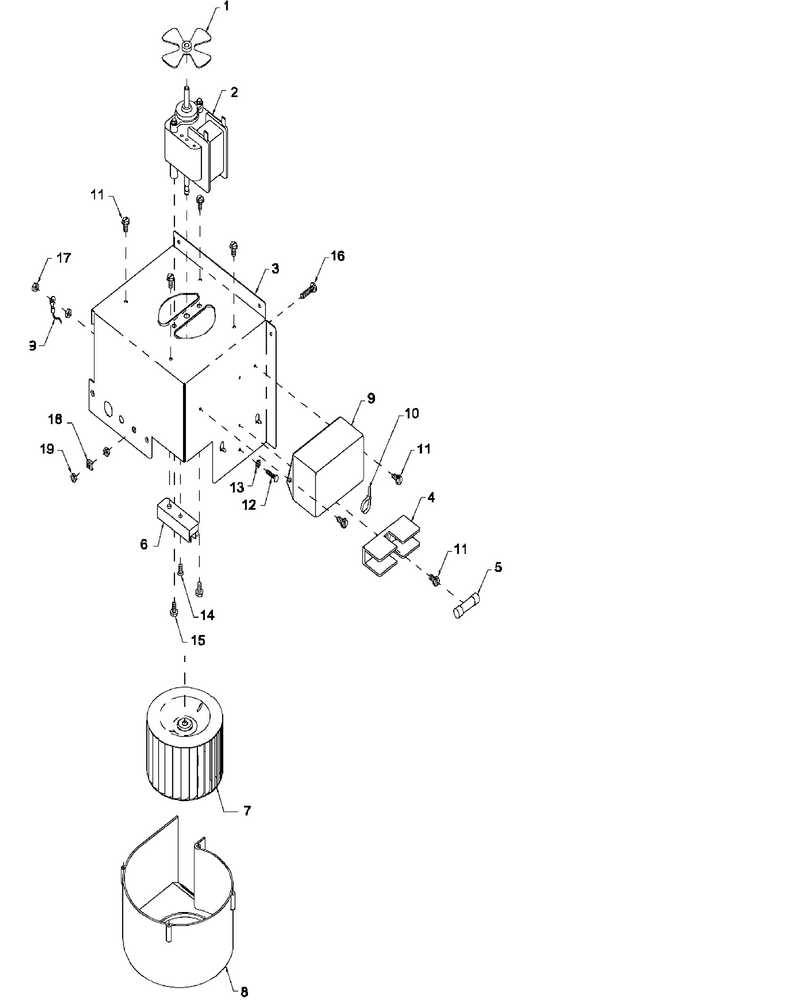

01 - Blower

...
...
001
Fan Blade WPL-B5706704
...
002
Motor, Blower WPL-59001482
...
003
Bracket,blower WPL-59001483
...
004
Fuse Holder WPL-10091101
...
005
Fuse- 30a WPL-M0805205
...
006
Terminal Block WPL-B5677203
...
007
Wheel, Blower WPL-C3670809
...
008
Scroll,blower WPL-12552001
...
009
Line Filter WPL-59001212
...
010
Tie-Wire WPL-WPW10339879
...
011
Screw-Sm/hex WPL-12990523
...
012
Stud-Self Clinch WPL-NLA
...
013
Nut WPL-WP3195558
...
014
Screw, No.6x18x1/4 (3) WPL-487010
...
015
Screw WPL-WP3400094
...
016
Stud- Sc WPL-M0293507
...
017
Nut K WPL-M0282005
...
018
Washer-U Type WPL-12152201
...
019
Nut-Keps WPL-M0282021

...
...
001
Manual, Part Intl Comm Micro WPL-NLA
...
002
Use & Care-Amana Com Microwave WPL-59001488
...
003
Svc Man, Intl Comm Micro WPL-16022149
...
004
Tech Sht Comm Micro WPL-16027028
...
005
Manual, Product Safety WPL-59001487
...
006
Instructions, Quick Star WPL-59001489
...
007
Harness-Pc Board WPL-12543202
...
008
Harness-Interlock WPL-13018201
...
009
Harness, Lower Antenna Motor WPL-12598201
...
010
Harness-Oven Light WPL-59001492
...
011
Harness-Oven WPL-59001494
...
012
Harness-Hi Volt WPL-59001491

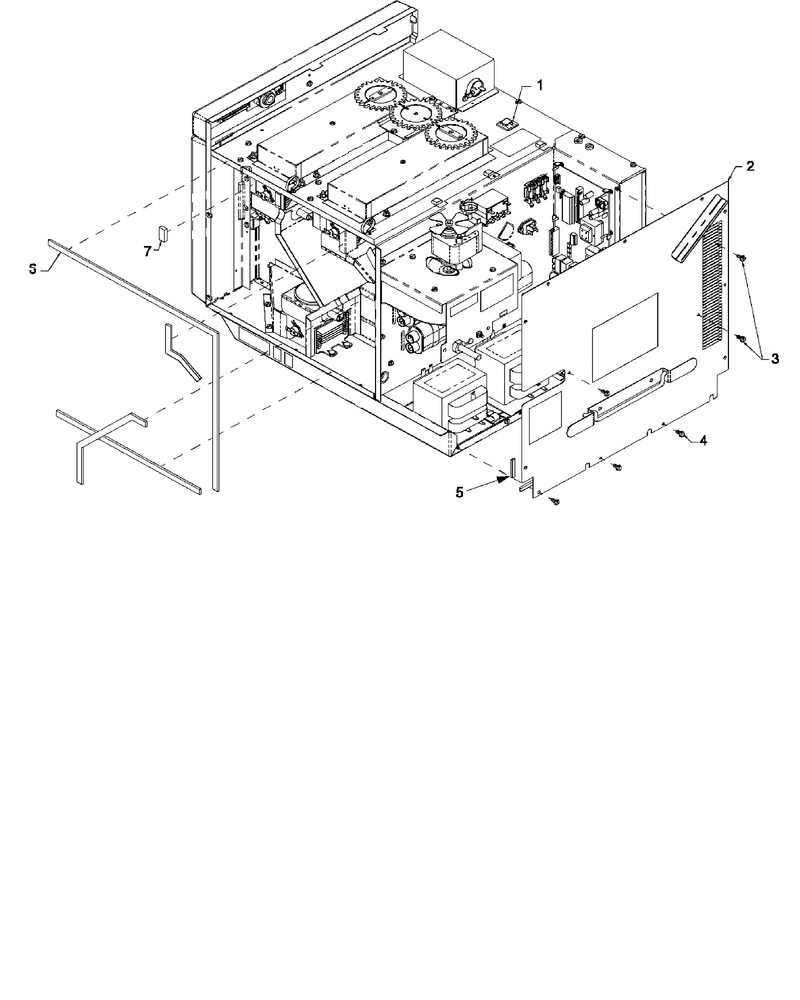

10 - Rear Panel

...
...
001
Clip WPL-WPM0104106
...
002
Assy, Access Panel (Rear) WPL-R0156970
...
003
Screw WPL-WP3388228
...
004
Screw WPL-WP90767
...
005
Gasket (Inch) WPL-A3030301
...
006
Gasket,per Ft WPL-A30303-30
...
007
Gasket (Per Foot) WPL-10839706

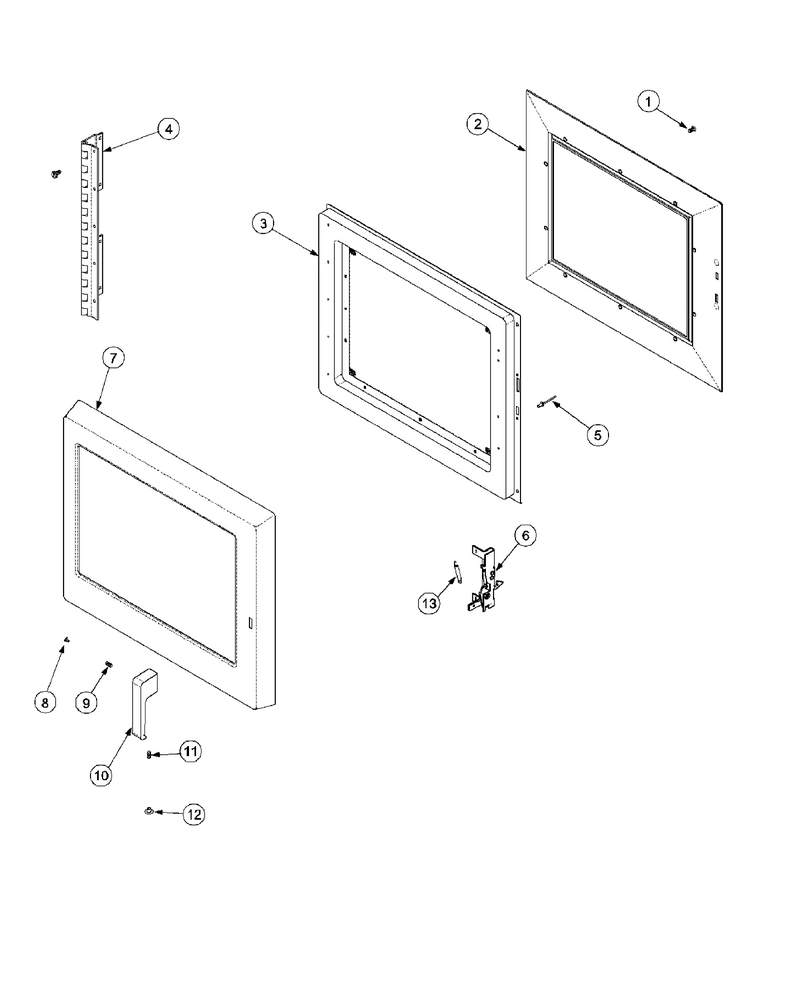

02 - Door

...
...
001
Magnetic Y-Drive Bit WPL-NLA
...
002
Kit, Inner Door/window Assy WPL-12002103
...
003
Door Ring Weld WPL-59002013
...
004
Screw WPL-WP3388228
...
005
Rivet-Pop WPL-59002054
...
006
Latch Kit WPL-R0000282
...
007
Outer Door/lens Retainer Assy WPL-R0156918
...
008
Plug, Button (Blk) WPL-12360703
...
009
Screw WPL-WP8533976
...
010
Handle, Door WPL-12490901
...
011
Screw WPL-WP8533976
...
012
Hole, Plug WPL-59001007
...
013
Spring, Door Latch WPL-C8893502

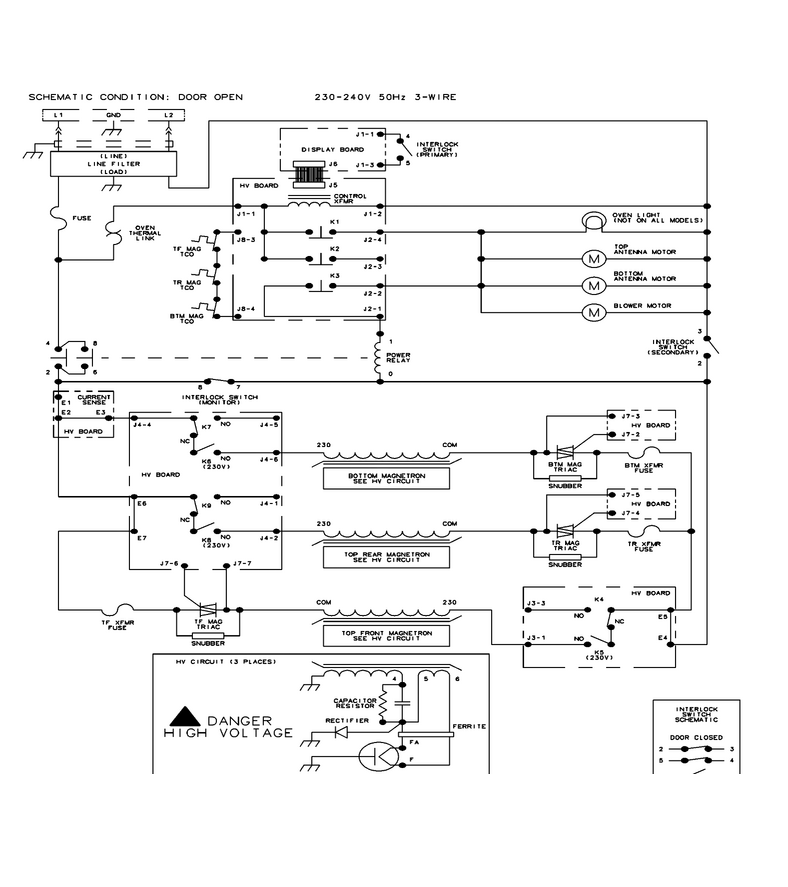

09 - Wiring Information

...
...
001
Wiring Information WPL-NLA
