Amana RC520SC2 (BOM: P1332839M)

Model: RC520SC2 (BOM: P1332839M)

Save Part Not Listed?
product name

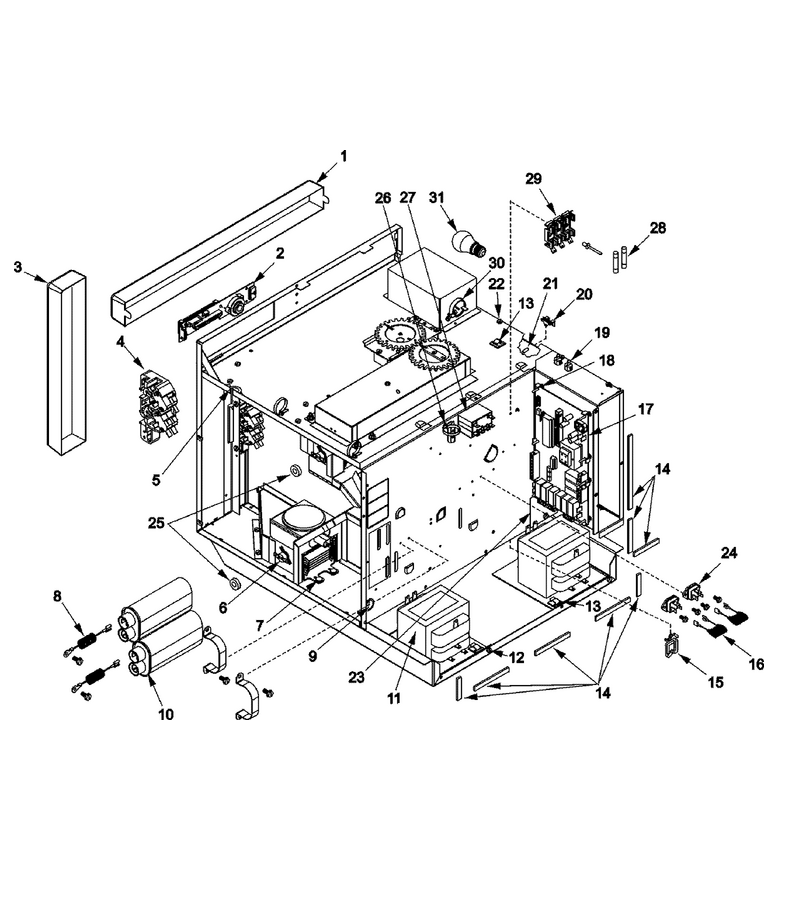

03 - Electrical Components

...
...
1
Screw-Tf/hex Rohs WPL-59002047
...
2
Board,display WPL-12502404
...
3
Screw-Tf/hex Rohs WPL-59002047
...
4
Switch, Interlock Kit WPL-12002636
...
5
Bushing-Snap WPL-A3293505
...
6
Screw T.c WPL-M0229916
...
7
Magnetron-T WPL-59001862
...
8
Rectifier WPL-WP13091701
...
9
Bushing, Snap WPL-59001128
...
10
Capacitor-1.15 WPL-59001170
...
11
Transformer-Hv 230v 50 Hz WPL-10788620
...
12
Screw WPL-WP3388228
...
13
Clip WPL-WPM0104106
...
14
Gasket,per Ft WPL-A30303-30
...
15
Wire Clip WPL-B5667304
...
16
Snubber Assembly WPL-59002017
...
17
Hv Bd-Amana Prog WPL-12559142
...
18
Support P-C Bd A WPL-M0590602
...
19
Bushing,terminal WPL-M0325401
...
20
Screw T.c WPL-M0229916
...
21
Cap, Protective-Threaded (Red) WPL-M0308801
...
22
Screw-Tf/hex Rohs WPL-59002047
...
23
Screw WPL-67007110
...
24
Screw-Sm/hex WPL-12990522
...
25
Toroid (Arc Suppressor) WPL-44780P01
...
26
Tie Wire WPL-WPM0322202
...
27
Relay WPL-59001981
...
28
Fuse WPL-WPM0805102
...
29
Rivet-Pop WPL-59002054
...
30
Screw-Tf/hex Rohs WPL-59002047
...
31
Bulb-Light WPL-WP67002552

...
...
NI
Tech Sht, Comm Micro WPL-16027608

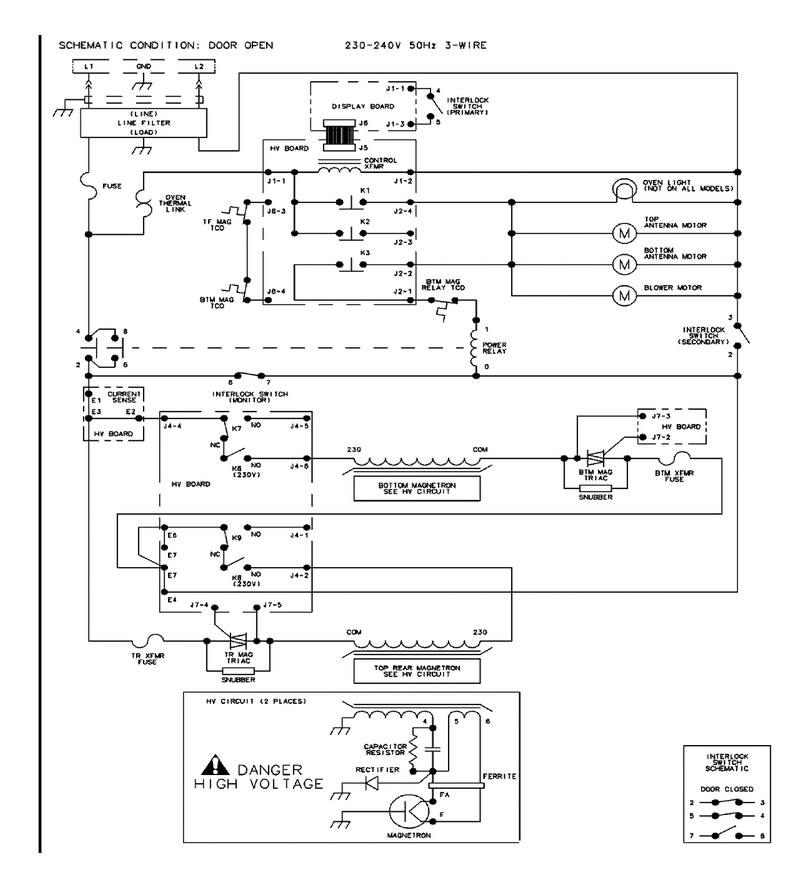

06 - Wiring Information

...
...
NI
Wiring Information WPL-15003260

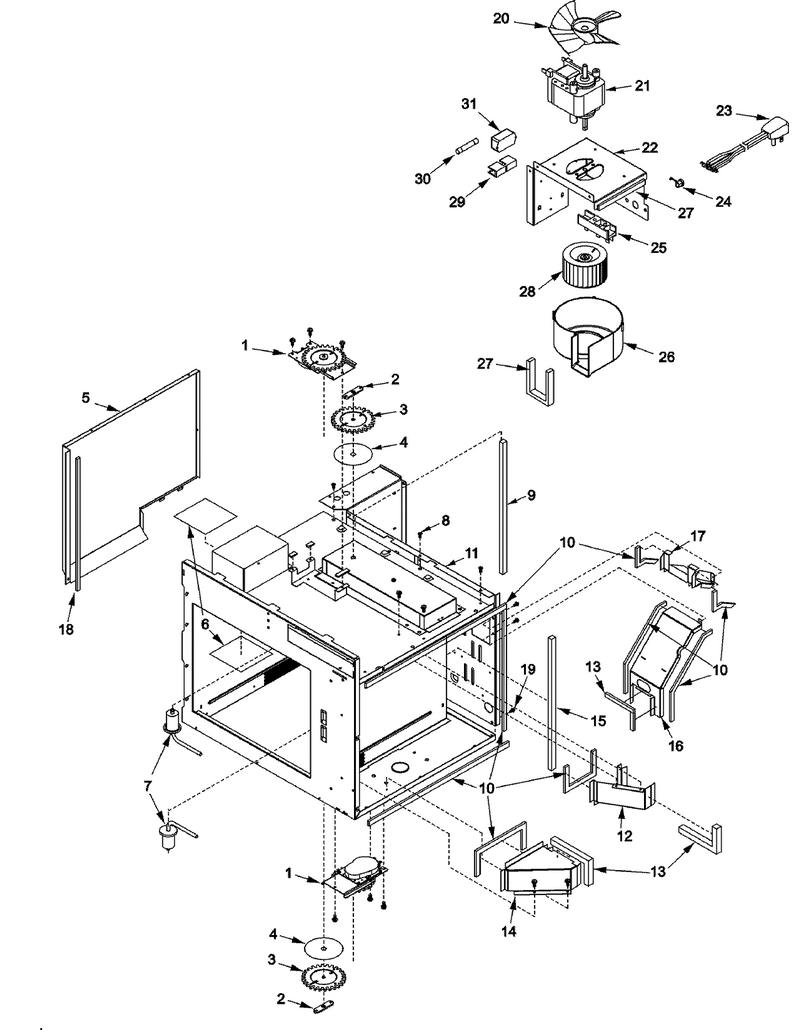

01 - Antennas, Blower, Ducts,

...
...
1
Screw-Tf/hex Rohs WPL-59002047
...
2
Shaft, Ret-Gear WPL-59001205
...
3
Gear,spur WPL-12570101
...
4
Washer, Spur Gear WPL-10903002
...
5
Duct, Exhaust WPL-10781901
...
6
Window, Oven Light WPL-B8367701
...
7
Antenna (Stirrer) WPL-R0130262
...
8
Screw WPL-67007110
...
9
Gasket, Neoprene WPL-10966601
...
10
Gasket,per Ft WPL-A30303-30
...
11
Panel, Partition WPL-59001204
...
12
Duct-Top Exhaust WPL-10989201
...
13
Gasket,per Ft WPL-A30303-30
...
14
Bottom Exhaust Duct-W/gasket WPL-10989301
...
15
Gasket-Per Inch WPL-A3030311
...
16
Divider-Bot Flow WPL-10989401
...
17
Screw-Sm/hex WPL-12990522
...
18
Gasket,per Ft WPL-A30303-30
...
19
Screw-Tf/hex Rohs WPL-59002047
...
20
Fan Blade WPL-B5706704
...
21
Motor, Blower WPL-59001482
...
22
Bracket,blower WPL-59001483
...
23
Cord-Power WPL-13033801
...
24
Relief- Strain WPL-M0370009
...
25
Screw, No.6x18x1/4 (3) WPL-487010
...
26
Screw-Sm/hex WPL-12990523
...
27
Gasket,per Ft WPL-A30303-30
...
28
Wheel, Blower WPL-C3670809
...
29
Fuse Holder WPL-10091101
...
30
Fuse- 30a WPL-M0805205
...
31
Line Filter WPL-59001496

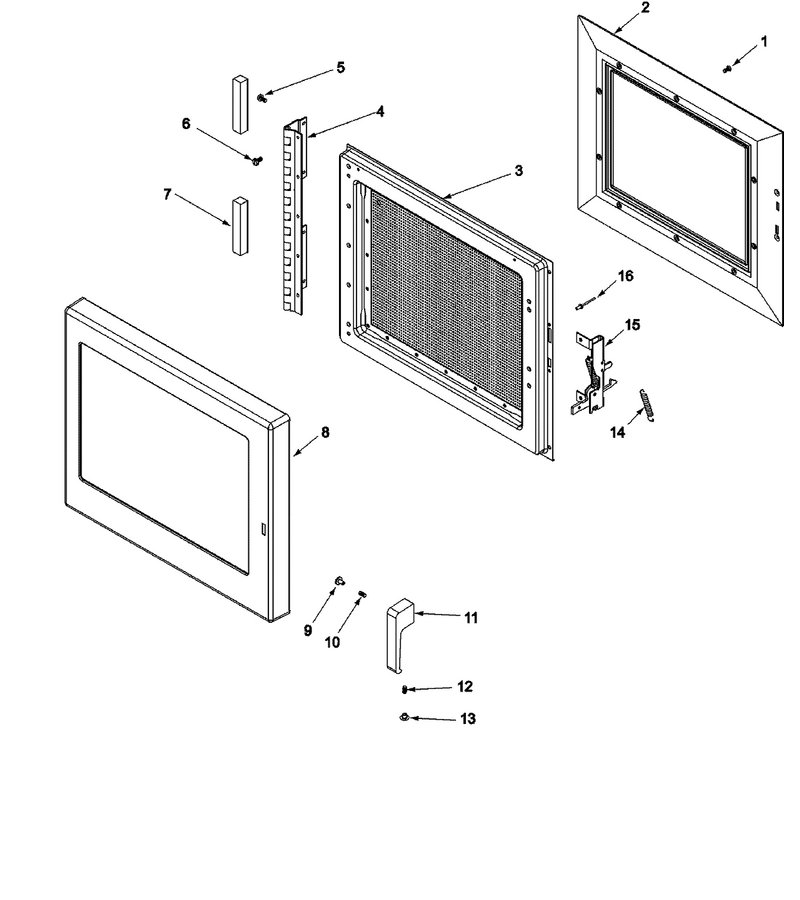

02 - Door

...
...
1
Screw-Hi Lo Y-Drive Head WPL-67003392
...
2
Door, Inner WPL-59002015
...
3
Door Ring Weld WPL-59002013
...
4
Hinge-Door WPL-C8961811
...
5
Screw WPL-WP90767
...
6
Screw WPL-WP12990527
...
7
Gasket WPL-A3263904
...
8
Outer Door/lens Retainer Assy WPL-R0156918
...
9
Plug, Button (Blk) WPL-12360703
...
10
Screw WPL-WP8533976
...
11
Handle, Door WPL-12490901
...
12
Screw WPL-WP8533976
...
13
Plug, Button (Wht) WPL-M0310305
...
14
Spring, Door Latch WPL-C8893502
...
15
Latch Kit- Rc Chassis WPL-12002757
...
16
Rivet-Pop WPL-59002054

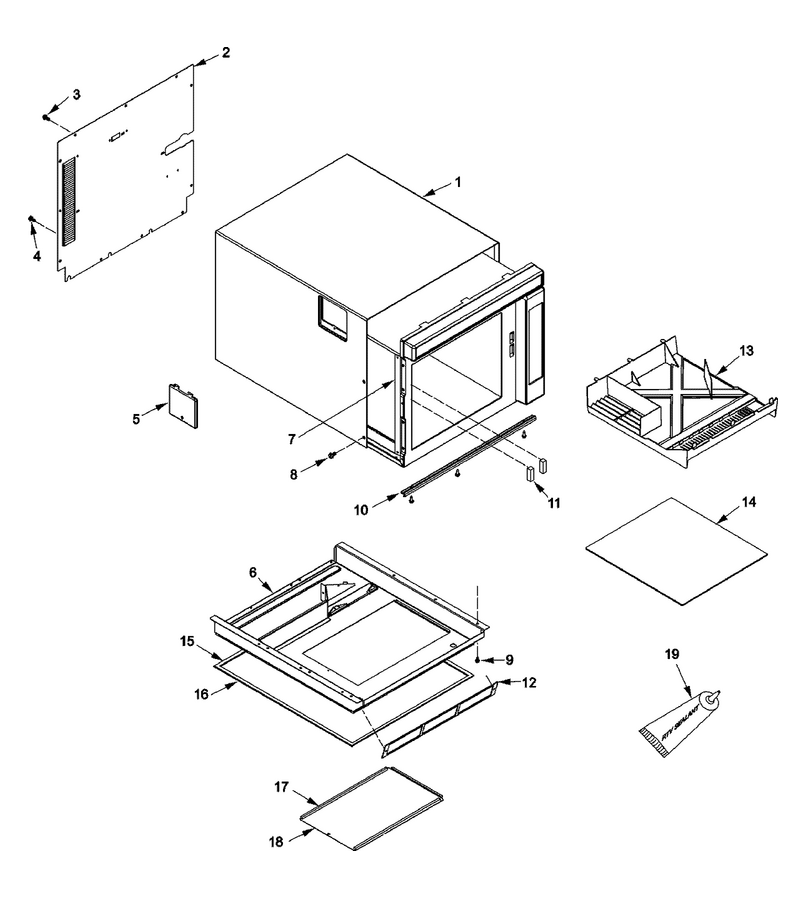

05 - Tray, Grease Shield, Cabinet,

...
...
1
Wrapper-Oc (Ss) WPL-10908901Q
...
2
Assy, Access Panel (Rear) WPL-R0156970
...
3
Screw WPL-489392
...
4
Screw WPL-WP3388228
...
5
Cover Light (Ss) WPL-10785608
...
6
Assy, Base Pan WPL-59001130
...
7
Bracket,hinge Support WPL-12189003
...
8
Screw-Tf/oval WPL-13042002
...
9
Screw WPL-67007110
...
10
Trim-Oc WPL-10909005
...
11
Support-Tray WPL-3010003001
...
12
Washer, Nylon WPL-M0274066
...
13
Shield, Grease WPL-10766601
...
14
Tray-Ceramic Floor W/sealer WPL-R0156942
...
15
Gasket,basepan WPL-R0000413
...
16
Gasket,basepan WPL-R0000413
...
17
Gasket,per Ft WPL-A30303-30
...
18
Screw WPL-WP12990527
...
19
Adhesive WPL-W10841140
