Amana RC520S2 (BOM: P1332819M)

Model: RC520S2 (BOM: P1332819M)

Save Part Not Listed?
product name

...
...
NI
Harness-Interlock WPL-13018201

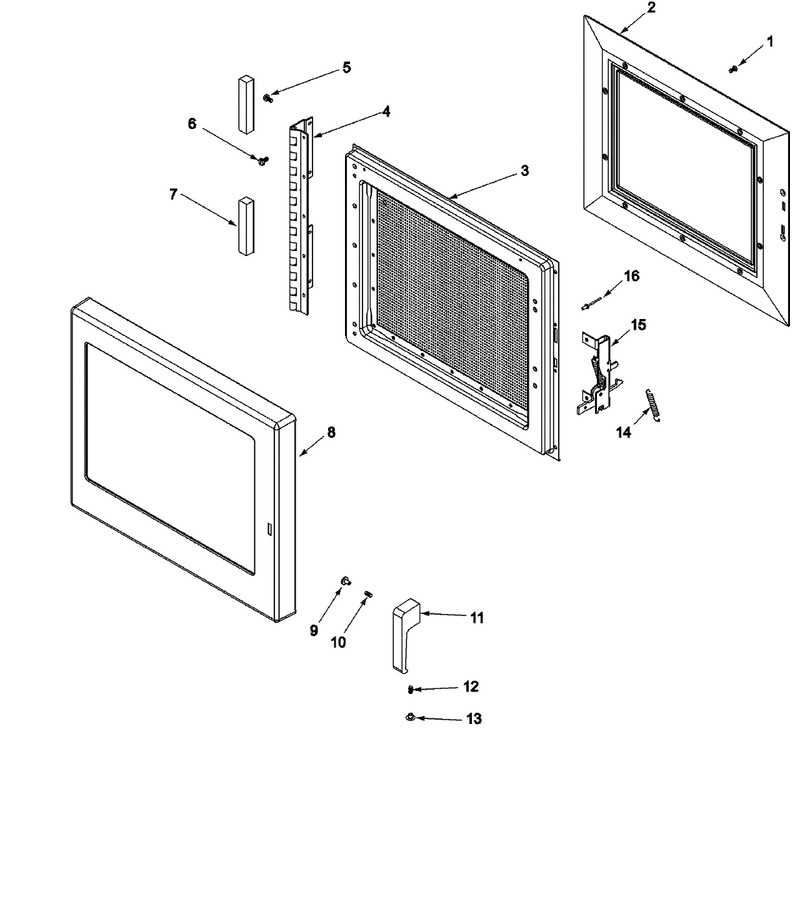

02 - Door

...
...
1
Screw-Hi Lo Y-Drive Head WPL-67003392
...
2
Door, Inner WPL-59002015
...
3
Door Ring Weld WPL-59002013
...
4
Hinge-Door WPL-C8961811
...
5
Screw WPL-WP90767
...
6
Screw WPL-WP3388228
...
7
Gasket WPL-A3263904
...
8
Outer Door/lens Retainer Assy WPL-R0156918
...
9
Plug, Button (Blk) WPL-12360703
...
10
Screw WPL-WP8533976
...
11
Handle, Door WPL-12490901
...
12
Screw WPL-WP8533976
...
13
Plug, Button (Wht) WPL-M0310305
...
14
Spring, Door Latch WPL-C8893502
...
15
Latch Kit- Rc Chassis WPL-12002757
...
16
Rivet-Pop WPL-59002054

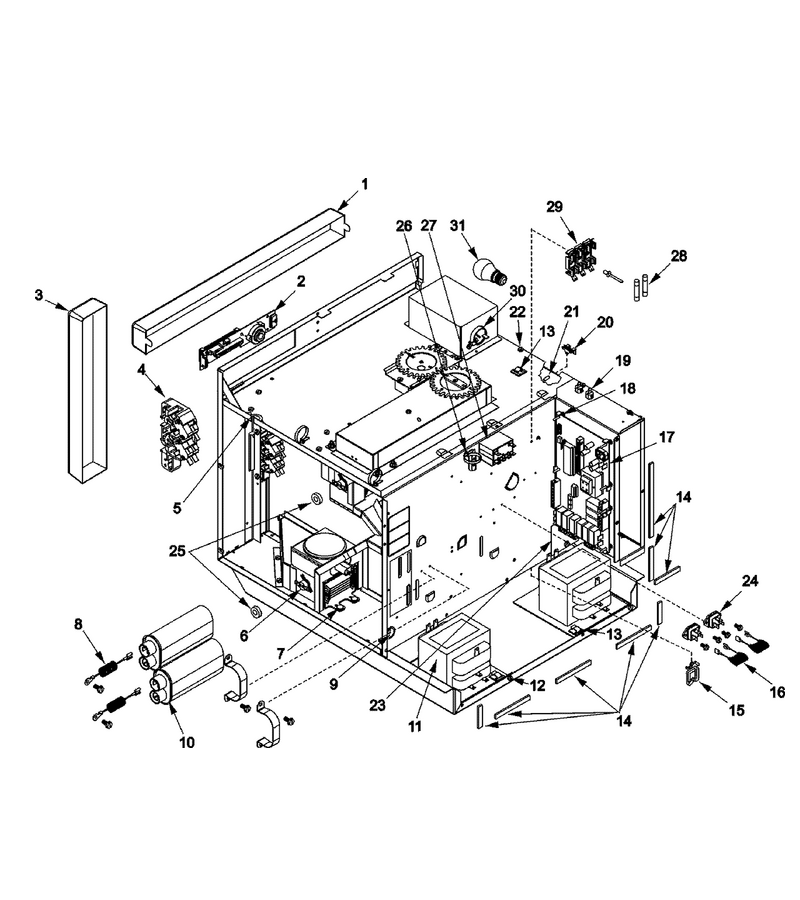

03 - Electrical Components

...
...
1
Screw, Tf WPL-M0231704
...
2
Board,display WPL-12502404
...
3
Screw, Tf WPL-M0231704
...
4
Switch, Interlock Kit WPL-12002636
...
5
Grommet-Rubber WPL-59002007
...
6
Screw T.c WPL-M0229916
...
7
Magnetron-T WPL-10489402
...
8
Rectifier WPL-WP13091701
...
9
Bushing, Snap WPL-59001128
...
10
Capacitor-1.15 WPL-59001170
...
11
Transformer-Hv 230v 50 Hz WPL-10788620
...
12
Screw WPL-WP90767
...
13
Clip WPL-WPM0104106
...
14
Gasket (Inch) WPL-A3030301
...
15
Wire Clip WPL-B5667304
...
16
Snubber Assembly WPL-59002017
...
17
Hv Board-Amana Program WPL-59001561
...
18
Support P-C Bd A WPL-M0590602
...
19
Bushing,terminal WPL-M0325401
...
20
Screw WPL-WP488234
...
21
Cap, Protective-Threaded (Red) WPL-M0308801
...
22
Screw,tf WPL-M0231617
...
23
Plate, Partition WPL-10847601
...
24
Screw WPL-WP489349
...
25
Toroid (Arc Suppressor) WPL-44780P01
...
26
Tie Wire WPL-WPM0322202
...
27
Relay WPL-12492202
...
28
Fuse WPL-WPM0805102
...
29
Rivet-Pop WPL-59002054
...
30
Socket, Light WPL-B8376801
...
31
Bulb-Light WPL-WP67002552

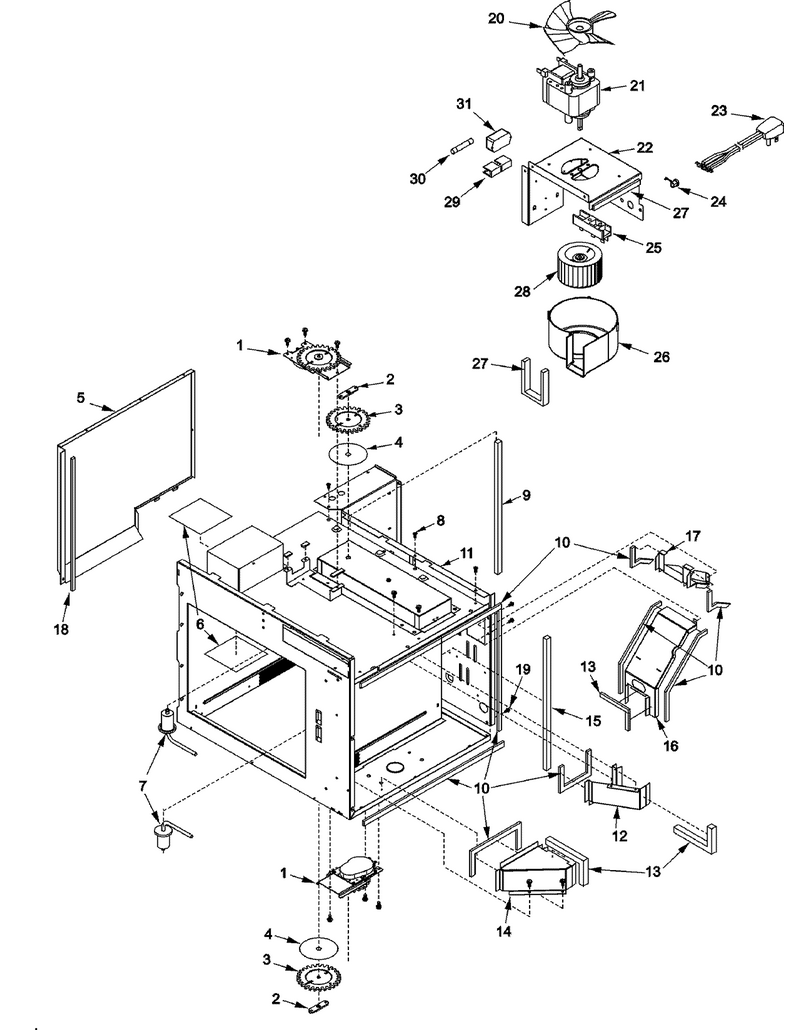

01 - Antennas, Blower, Ducts,

...
...
1
Motor-Antenna Stirrer (230v) WPL-R0130263
...
2
Retainer,gear Shaft WPL-12570201
...
3
Gear,spur--++xxx WPL-12570101
...
4
Washer, Spur Gear WPL-10903002
...
5
Duct, Exhaust WPL-10781901
...
6
Window, Oven Light WPL-B8367701
...
7
Antenna (Stirrer) WPL-R0130262
...
8
Screw WPL-WPW10001160
...
9
Gasket, Neoprene WPL-10966601
...
10
Gasket,per Ft WPL-A30303-30
...
11
Panel, Partition WPL-59001204
...
12
Screw WPL-WP3388228
...
13
Gasket (Per Foot) WPL-A3030303
...
14
Screw WPL-WP3388228
...
15
Gasket-Per Inch WPL-A3030311
...
16
Divider-Bot Flow WPL-10989401
...
17
Screw WPL-WP489349
...
18
Gasket (Inch) WPL-A3030301
...
19
Screw WPL-5078-CC
...
20
Fan Blade WPL-B5706704
...
21
Motor, Blower WPL-59001482
...
22
Bracket,blower WPL-59001483
...
23
Cord, Power WPL-59002001
...
24
Relief- Strain WPL-M0370009
...
25
Terminal Block WPL-B5677203
...
26
Scroll,blower WPL-12552001
...
27
Gasket (Per Foot) WPL-A3030303
...
28
Wheel, Blower WPL-C3670809
...
29
Fuse Holder WPL-10091101
...
30
Fuse- 30a WPL-M0805205
...
31
Screw WPL-WP489349

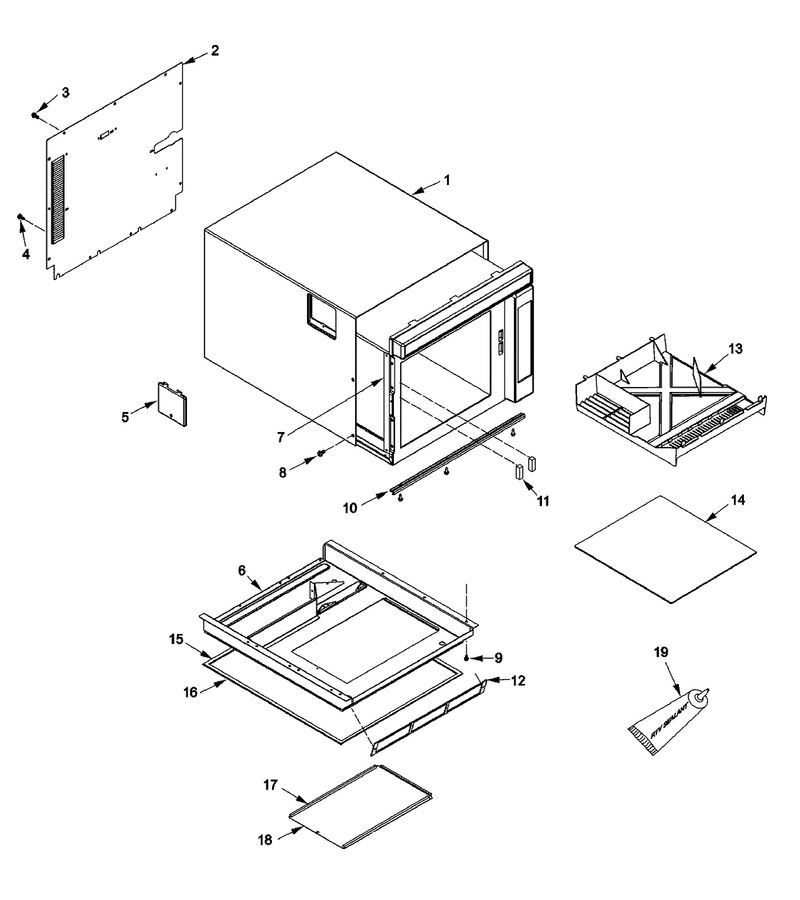

05 - Tray, Grease Shield, Cabinet,

...
...
1
Wrapper-Oc (Ss) WPL-10908901Q
...
2
Assy, Access Panel (Rear) WPL-R0156970
...
3
Screw WPL-WP3388228
...
4
Screw WPL-WP90767
...
5
Clip WPL-M0288213
...
6
Assy, Base Pan WPL-59001130
...
7
Bracket,hinge Support WPL-12189003
...
8
Screw-Tf/oval WPL-13042002
...
9
Screw WPL-WP489128
...
10
Screw-Tf/oval WPL-13042002
...
11
Support-Tray WPL-3010003001
...
12
Screw-Thumb WPL-13042901
...
13
Shield, Grease WPL-10766601
...
14
Tray-Ceramic Floor W/sealer WPL-R0156942
...
15
Basepan Gasket-Cut WPL-59001646
...
16
Basepan Gasket-Cut WPL-59001647
...
17
Gasket (Inch) WPL-A3030301
...
18
Bottom Access Panel WPL-10782402
...
19
Adhesive WPL-W10841140
