Amana RC520S2 (BOM P1332819M)-

Model: RC520S2 (BOM P1332819M)-

Save Part Not Listed?
product name

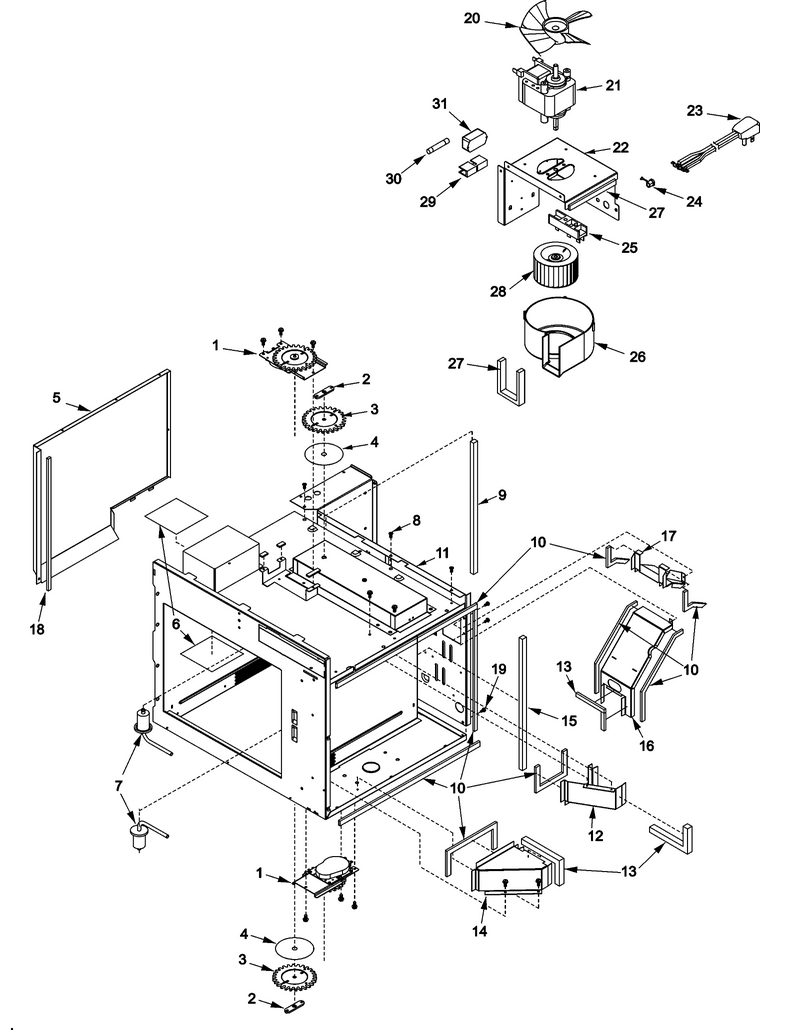

02 - Antennas, Blower, Ducts,

...
...
001
Screw, Tf WPL-M0231704
...
002
Retainer,gear Shaft WPL-12570201
...
003
Gear,spur--++xxx WPL-12570101
...
004
Washer, Spur Gear WPL-10903002
...
005
Duct, Exhaust WPL-10781901
...
006
Window, Oven Light WPL-B8367701
...
007
Antenna (Stirrer) WPL-R0130262
...
008
Screw WPL-WPW10001160
...
009
Gasket, Neoprene WPL-10966601
...
010
Gasket,per Ft WPL-A30303-30
...
011
Panel, Partition WPL-59001204
...
012
Screw WPL-WP3388228
...
013
Gasket (Per Foot) WPL-A3030303
...
014
Screw WPL-WP3388228
...
015
Gasket-Per Inch WPL-A3030311
...
016
Divider-Bot Flow WPL-10989401
...
017
Rear Divider Duct-W/gasket WPL-R0156986
...
018
Gasket (Inch) WPL-A3030301
...
019
Screw WPL-5078-CC
...
020
Fan Blade WPL-B5706704
...
021
Motor, Blower WPL-59001482
...
022
Bracket,blower WPL-59001483
...
023
Cord, Power WPL-59002001
...
024
Relief- Strain WPL-M0370009
...
025
Terminal Block WPL-B5677203
...
026
Screw-Sm/hex WPL-12990523
...
027
Gasket (Per Foot) WPL-A3030303
...
028
Wheel, Blower WPL-C3670809
...
029
Fuse Holder WPL-10091101
...
030
Fuse- 30a WPL-M0805205
...
031
Screw WPL-WP489349

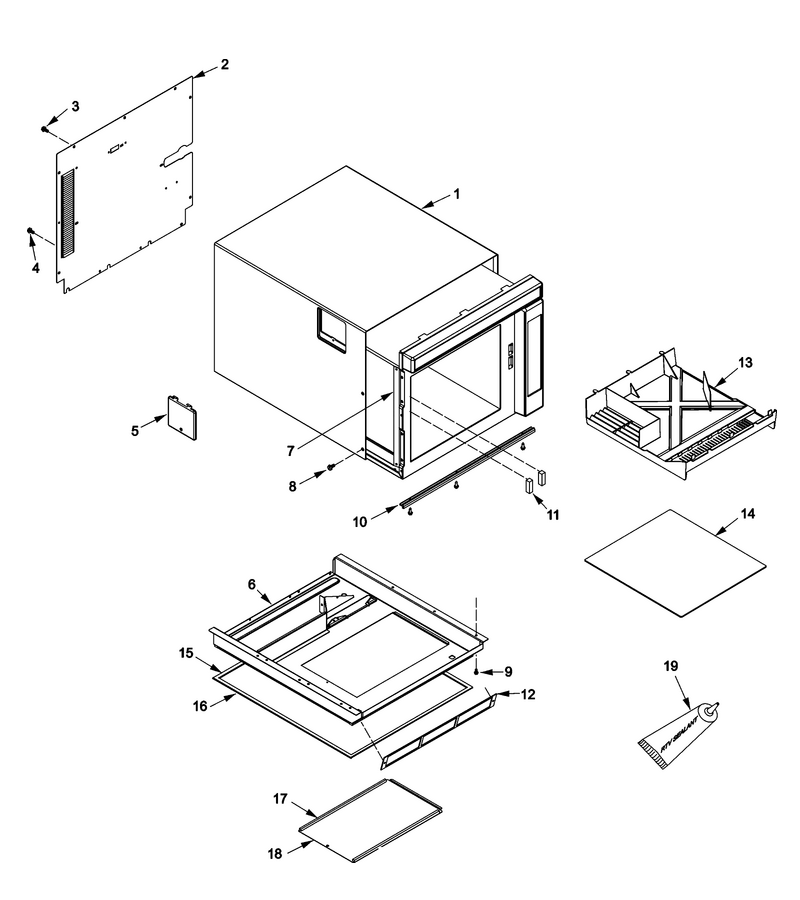

01 - Tray, Grease Shield, Cabinet,

...
...
001
Wrapper-Oc (Ss) WPL-10908901Q
...
002
Assy, Access Panel (Rear) WPL-R0156970
...
003
Screw WPL-WP3388228
...
004
Screw WPL-WP90767
...
005
Screw-Tf/oval WPL-13042002
...
006
Assy, Base Pan WPL-59001130
...
007
Screw, Tf WPL-M0231704
...
008
Screw-Tf/oval WPL-13042002
...
009
Screw WPL-WP489128
...
010
Screw-Tf/oval WPL-13042002
...
011
Support-Tray WPL-3010003001
...
012
Screw-Thumb WPL-13042901
...
013
Shield, Grease WPL-10766601
...
014
Tray-Ceramic Floor W/sealer WPL-R0156942
...
015
Basepan Gasket-Cut WPL-59001646
...
016
Basepan Gasket-Cut WPL-59001647
...
017
Gasket (Inch) WPL-A3030301
...
018
Bottom Access Panel WPL-10782402
...
019
Adhesive WPL-W10841140

...
...
001
Svc Man, Intl Comm Micro WPL-16022149
...
002
Use & Care-Amana Com Microwave WPL-59001488
...
003
Tech Sht Comm Micro WPL-16027028
...
004
Instr-Quick Start WPL-59001562
...
005
Manual, Product Safety WPL-59001487
...
006
Magnetic Y-Drive Bit WPL-NLA
...
007
Harness, Hv Board To Display WPL-R0130265
...
008
Harness-Interlock WPL-13018201
...
009
Harness-Oven Light WPL-59001492
...
010
Harness, Lower Antenna Motor WPL-12598201
...
011
Harness, Oven WPL-59001173
...
012
Harness, Hi Volt WPL-59001563
...
013
Kit-Cav- 2 Tube ``s`` Chassis WPL-12002483

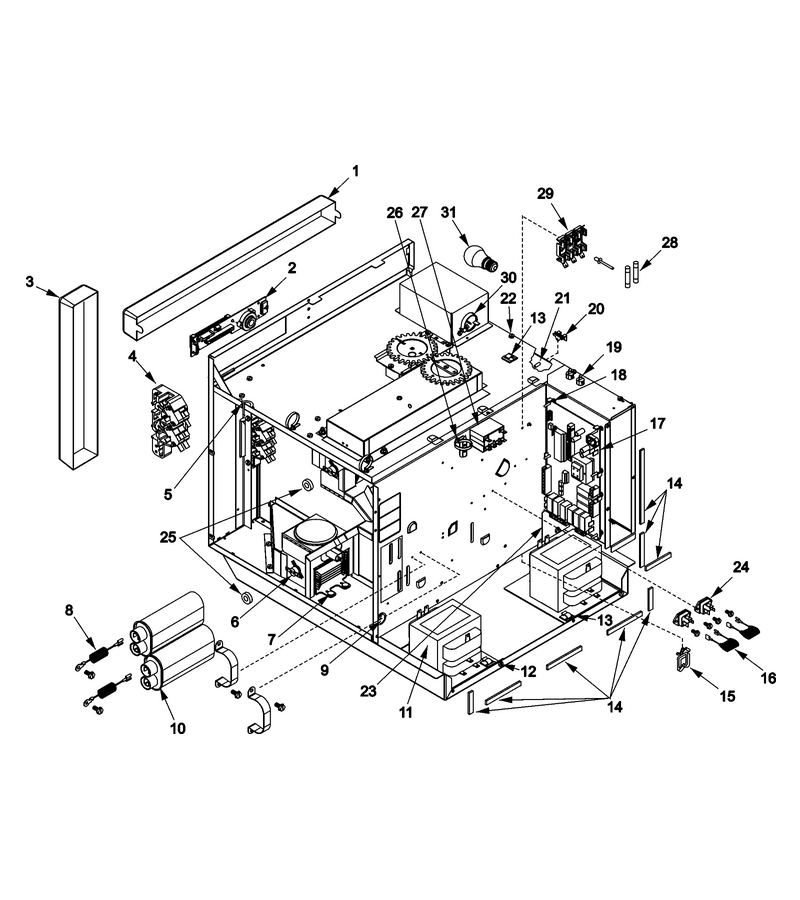

03 - Electrical Components

...
...
001
Touch Panel(Top) WPL-R0130108
...
002
Board,display WPL-12502404
...
003
Screw, Tf WPL-M0231704
...
004
Switch, Interlock Kit WPL-12002636
...
005
Grommet-Rubber WPL-59002007
...
006
Thermal Protector WPL-B5684106
...
007
Magnetron-T WPL-10489402
...
008
Screw WPL-WP489349
...
009
Bushing, Snap WPL-59001128
...
010
Capacitor-1.15 WPL-59001170
...
011
Transformer-Hv 230v 50 Hz WPL-10788620
...
012
Screw WPL-WP90767
...
013
Clip WPL-WPM0104106
...
014
Gasket (Inch) WPL-A3030301
...
015
Wire Clip WPL-B5667304
...
016
Snubber Assembly WPL-59002017
...
017
Hv Board-Amana Program WPL-59001561
...
018
Support P-C Bd A WPL-M0590602
...
019
Bushing,terminal WPL-M0325401
...
020
Screw WPL-WP488234
...
021
Cap, Protective-Threaded (Red) WPL-M0308801
...
022
Screw,tf WPL-M0231617
...
023
Plate, Partition WPL-10847601
...
024
Screw WPL-WP489349
...
025
Toroid (Arc Suppressor) WPL-44780P01
...
026
Tie Wire WPL-WPM0322202
...
027
Relay WPL-12492202
...
028
Fuse WPL-WPM0805102
...
029
Rivet-Pop WPL-59002054
...
030
Screw, Tf WPL-M0231704
...
031
Bulb-Light WPL-WP67002552
