Amana RC27S2 (BOM P1331414M)

Model: RC27S2 (BOM P1331414M)

Save Part Not Listed?
product name

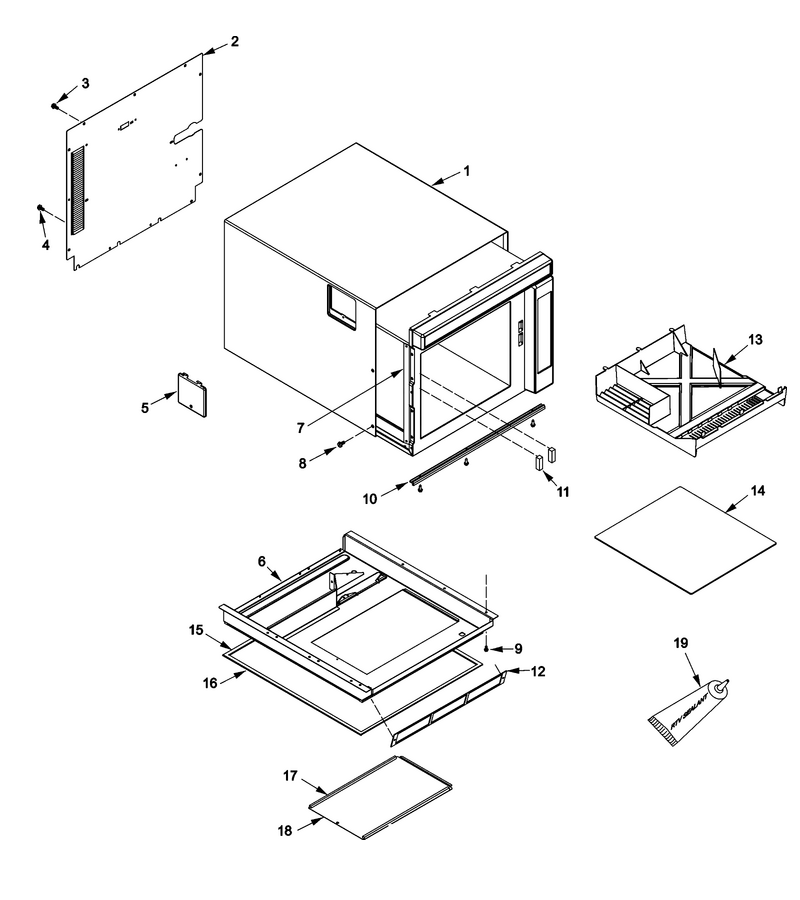

01 - Tray, Grease Shield, Cabinet,

...
...
001
Wrapper-Oc (Ss) WPL-10908901Q
...
002
Assy, Access Panel (Rear) WPL-R0156970
...
003
Screw WPL-WP3388228
...
004
Screw WPL-WP90767
...
005
Screw-Tf/oval WPL-13042002
...
006
Base Assy-Gaskets, Access Pnl WPL-10790304Q
...
007
Bracket,hinge Support WPL-12189003
...
008
Screw-Tf/oval WPL-13042002
...
009
Screw WPL-WP489128
...
010
Screw-Tf/oval WPL-13042002
...
011
Support-Tray WPL-3010003001
...
012
Washer, Nylon WPL-M0274066
...
013
Shield, Grease WPL-10766601
...
014
Tray-Ceramic Floor W/sealer WPL-R0156942
...
015
Basepan Gasket-Cut WPL-59001646
...
016
Basepan Gasket-Cut WPL-59001647
...
017
Gasket (Inch) WPL-A3030301
...
018
Bottom Access Panel WPL-10782402
...
019
Adhesive WPL-W10841140

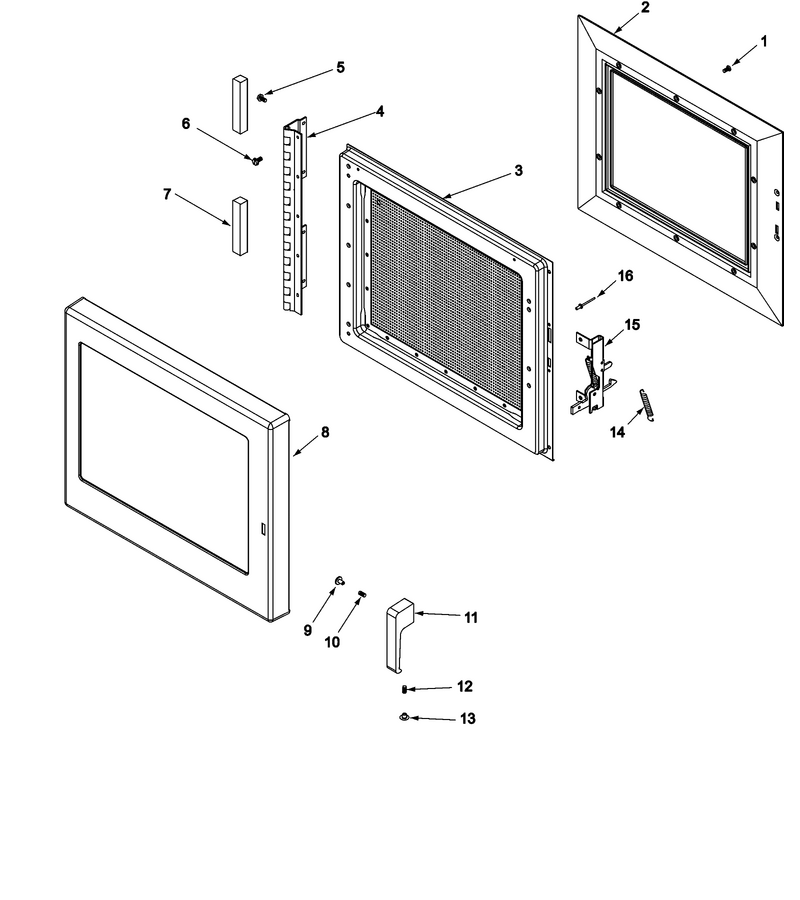

02 - Door

...
...
001
Screw-Hi Lo Y-Drive Head WPL-67003392
...
002
Kit, Inner Door/window Assy WPL-12002103
...
003
Door Ring Weld WPL-59002013
...
004
Hinge-Door WPL-C8961811
...
005
Screw WPL-WP90767
...
006
Screw WPL-WP3388228
...
007
Gasket WPL-A3263904
...
008
Outer Door/lens Retainer Assy WPL-R0156918
...
009
Plug, Button (Blk) (Side) WPL-12360703
...
010
Screw WPL-WP8533976
...
011
Handle, Door WPL-12490901
...
012
Screw WPL-WP8533976
...
013
Plug, Button (Wht) (Bottom) WPL-M0310305
...
014
Spring, Door Latch WPL-C8893502
...
015
Latch Kit WPL-R0000282
...
016
Rivet-Pop WPL-59002054
