Amana RC27S (BOM: P1330117M)

Model: RC27S (BOM: P1330117M)

Save Part Not Listed?
product name

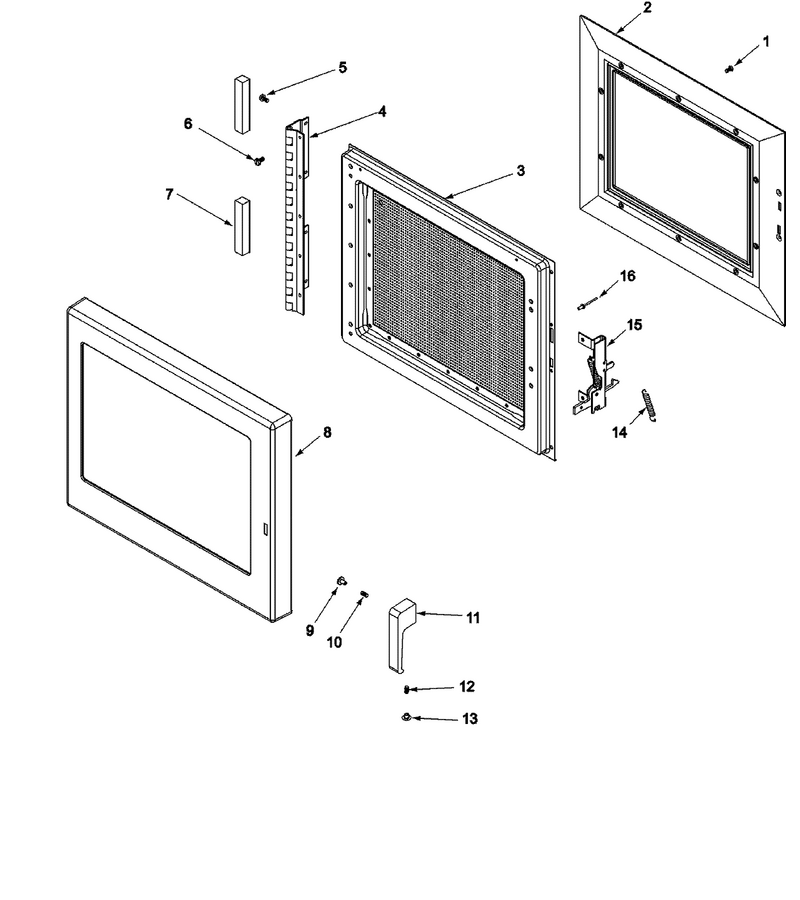

01 - Door

...
...
1
Screw-Hi Lo Y-Drive Head WPL-67003392
...
2
Kit, Inner Door/window Assy WPL-12002103
...
3
Door Ring Weld WPL-59002013
...
4
Hinge-Door WPL-C8961811
...
5
Screw WPL-WP90767
...
6
Screw WPL-WP3388228
...
7
Gasket WPL-A3263904
...
8
Outer Door/lens Retainer Assy WPL-R0156918
...
9
Plug, Button (Blk) WPL-12360703
...
10
Screw WPL-WP8533976
...
11
Handle, Door WPL-12490901
...
12
Screw WPL-WP8533976
...
13
Plug, Button (Wht) WPL-M0310305
...
14
Spring, Door Latch WPL-C8893502
...
15
Latch Kit WPL-R0000282
...
16
Rivet-Pop WPL-59002054

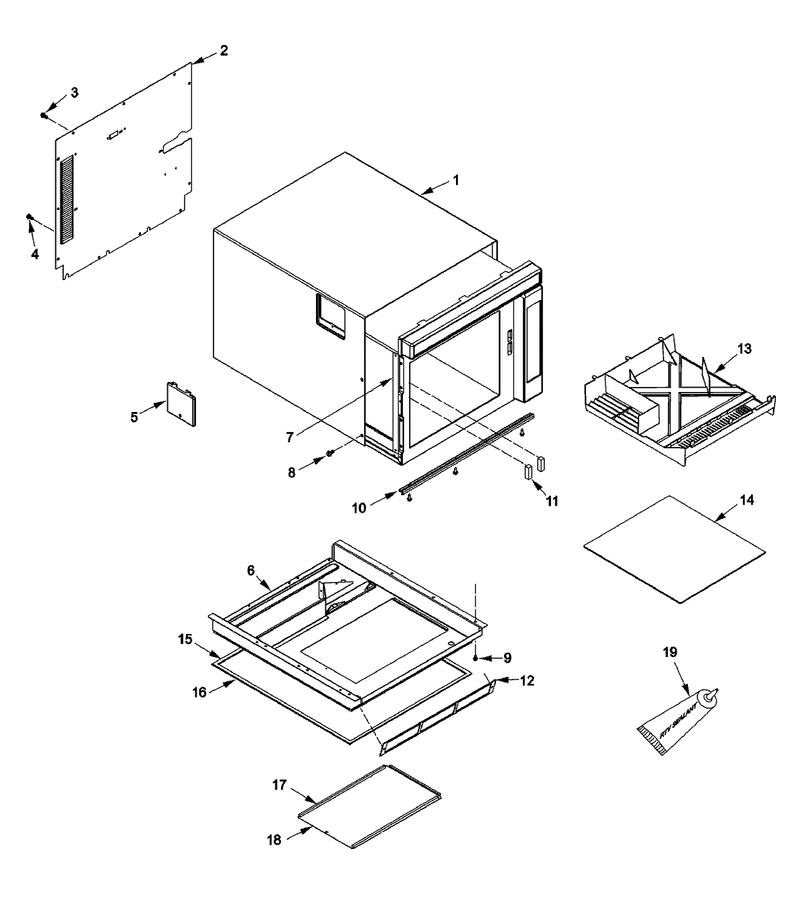

02 - Tray, Grease Shield, Cabinet,

...
...
1
Wrapper-Oc (Ss) WPL-10908901Q
...
2
Assy, Access Panel (Rear) WPL-R0156970
...
3
Screw WPL-WP3388228
...
4
Screw WPL-WP90767
...
5
Clip WPL-M0288213
...
6
Base Assy-Gaskets, Access Pnl WPL-10790304Q
...
7
Bracket,hinge Support WPL-12189003
...
8
Screw-Tf/oval WPL-13042002
...
9
Screw WPL-WP489128
...
10
Screw-Tf/oval WPL-13042002
...
11
Support-Tray WPL-3010003001
...
12
Washer, Nylon WPL-M0274066
...
13
Shield, Grease WPL-10766601
...
14
Tray-Ceramic Floor W/sealer WPL-R0156942
...
15
Basepan Gasket-Cut WPL-59001646
...
16
Basepan Gasket-Cut WPL-59001647
...
17
Gasket (Inch) WPL-A3030301
...
18
Bottom Access Panel WPL-10782402
...
19
Adhesive WPL-W10841140
