Amana RC24085C2E REV (BOM: RC24085C2E B)

Model: RC24085C2E REV (BOM: RC24085C2E B)

Save Part Not Listed?

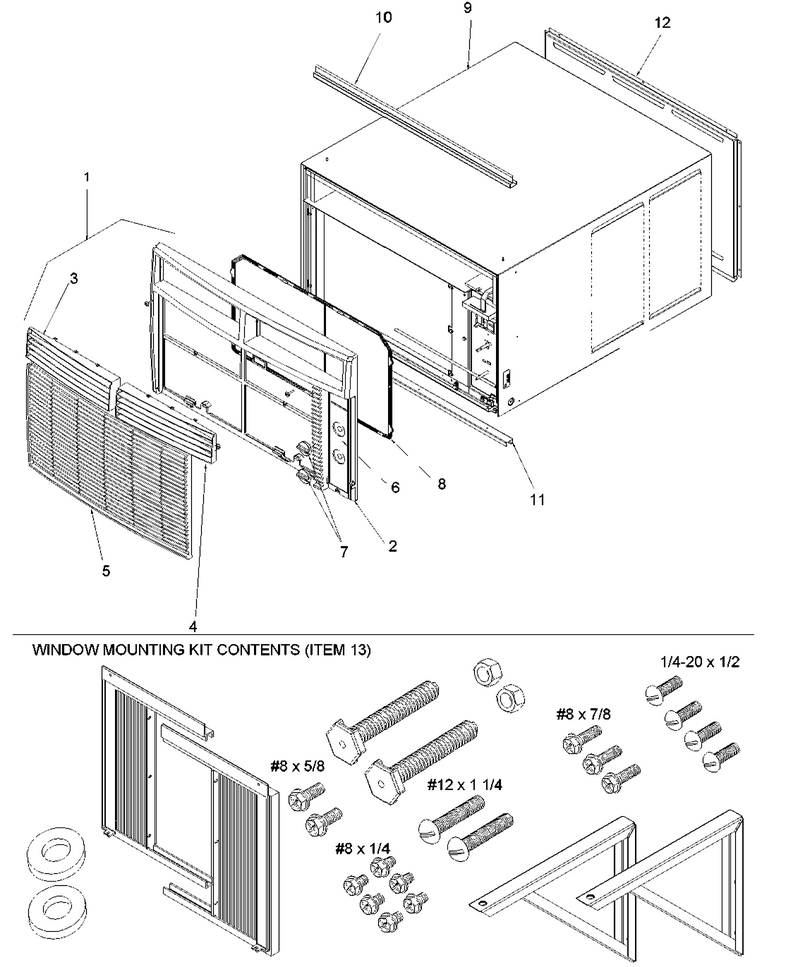

03 - Outercase, Curtains And Front Assy

Gasket WPL-10839702

Assy,front Lrg Ldr WPL-BT3075030

Frame WPL-BT3075104

Assy Front WPL-BT3075029

Label, Control (goodman) WPL-BT1493354

Knob- Rac WPL-WPBT3075631

Filter, Air (serv) WPL-BT1369602

Assy, Wrapper WPL-3050801

Support, Top (w/paint Lrg) WPL-3003002P

Support, Bottom (brk/paint Lrg WPL-3003102P

Pnl, Rear Louver (w/paint Lrg) WPL-3002206P

Kit, Window Install (large) WPL-WMK-LRG

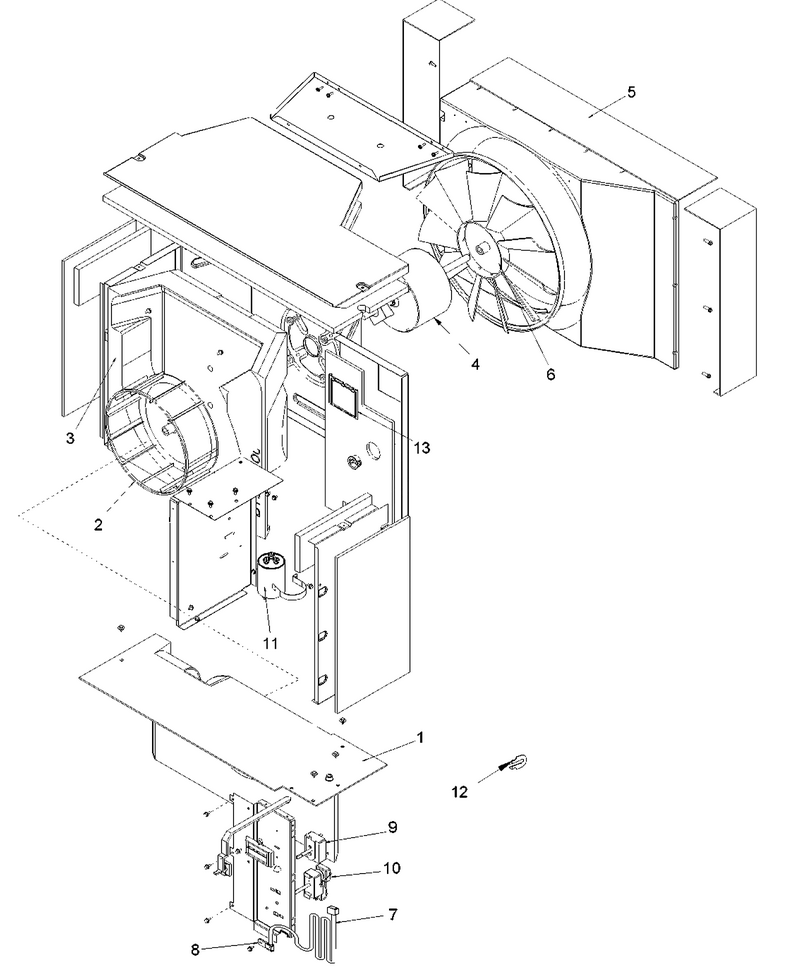

01 - Center Partition Assy And Controls

Service Ha WPL-BT1292201

Venturi, Fan WPL-BT3010004

Wheel, Blower WPL-BT1368016

Styrofoam Scroll WPL-BT3006004

Motor, 1/4hp 208/230v (serv) WPL-BT1340005S

Shroud, Fan (large) WPL-BT3011002

Fan Blade- WPL-BT1086702

Cord, Power 230v 20 Amp 65`` WPL-BT1210006

Relief, Power Cord (large) WPL-BT1393401

Switch, Power (5 Pos) WPL-BT1370806

Thermostat, Long Shaft (serv) WPL-BT1370805

Capacitor WPL-BT9457005

Clip, Bulb WPL-BT1531802

Plug, Damper WPL-BT3076000

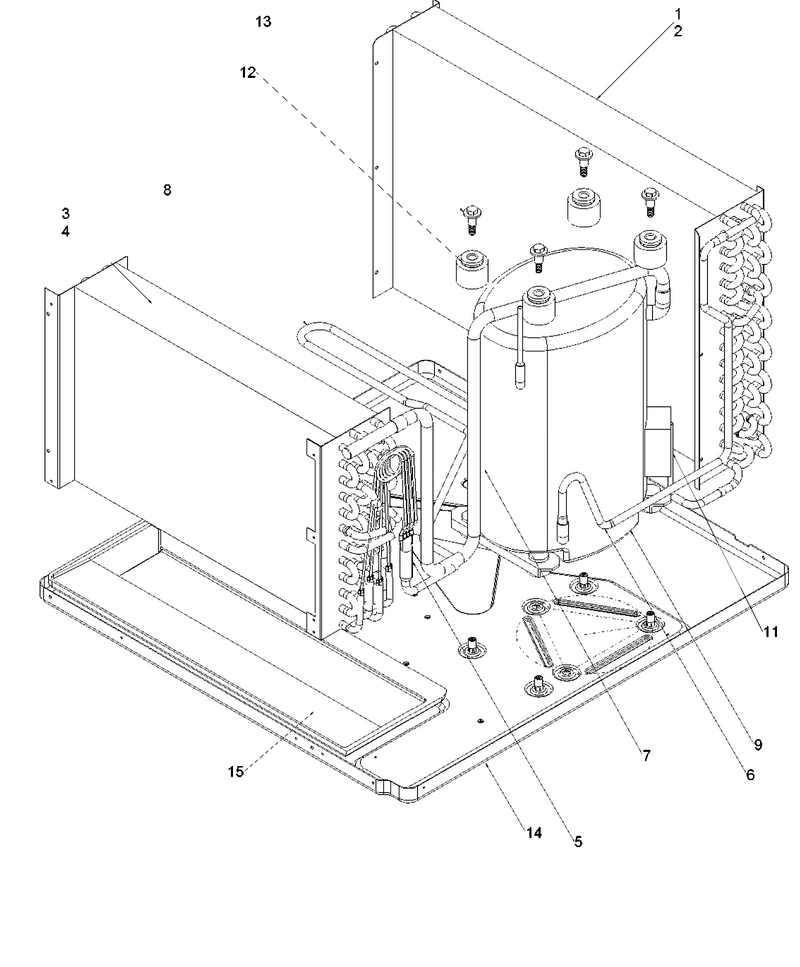

02 - Evaporator, Condenser And Compressor

Plug Wire,compressor WPL-BT3068516

Coil, Condenser (serv) WPL-3064911

Coil, Evaporator WPL-3064606

Tube, Discharge WPL-3093690

Tube, Suction WPL-3093647

Assy, Liquid Line WPL-3093807

Compressor WPL-BT9266204S

Clip, Retainer WPL-BT1392311

Grommet. Comp WPL-A3448601

Bolt, Comp. Shoulder 5/16-18 WPL-BT1393704

Assy,basepan Service WPL-3050208S

Pan, Drain (styrofoam Large) WPL-BT3005002
