Amana RC22S (BOM: P1329610M)

Model: RC22S (BOM: P1329610M)

Save Part Not Listed?
product name

06 - Wiring Information

...
...
NI

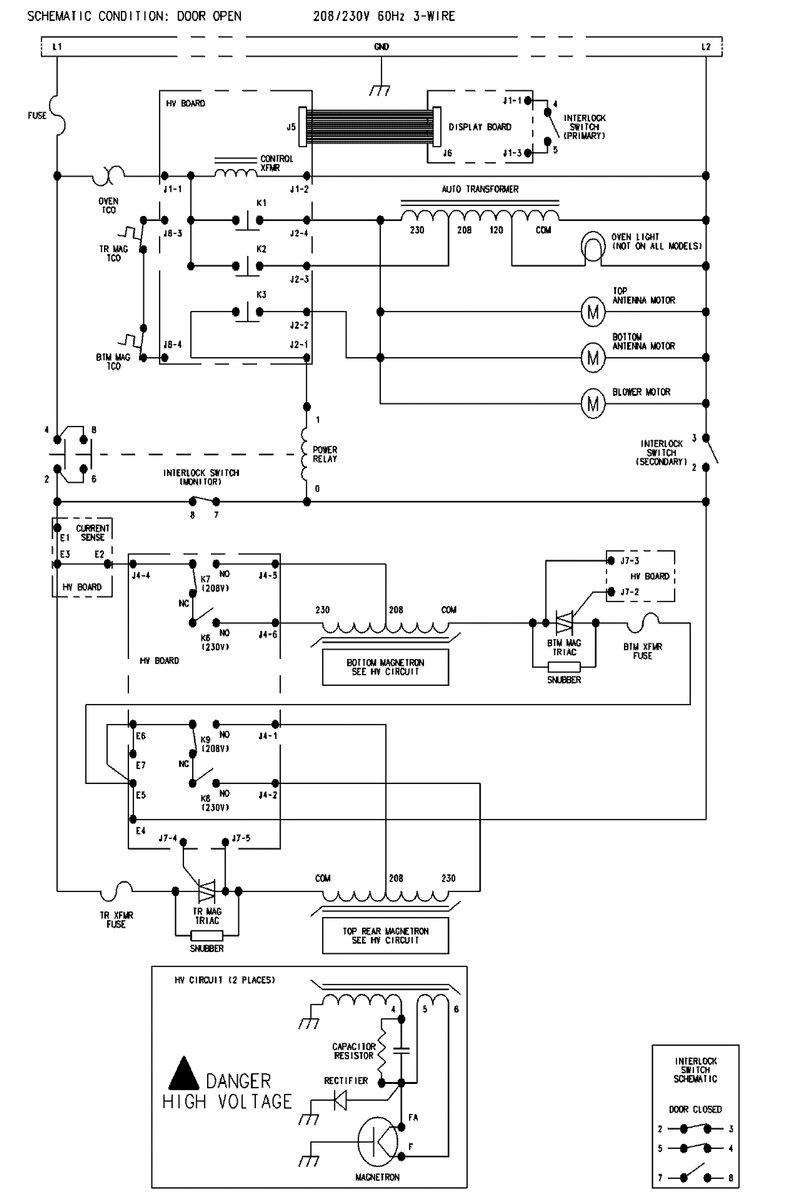

Wiring Information WPL-15003153

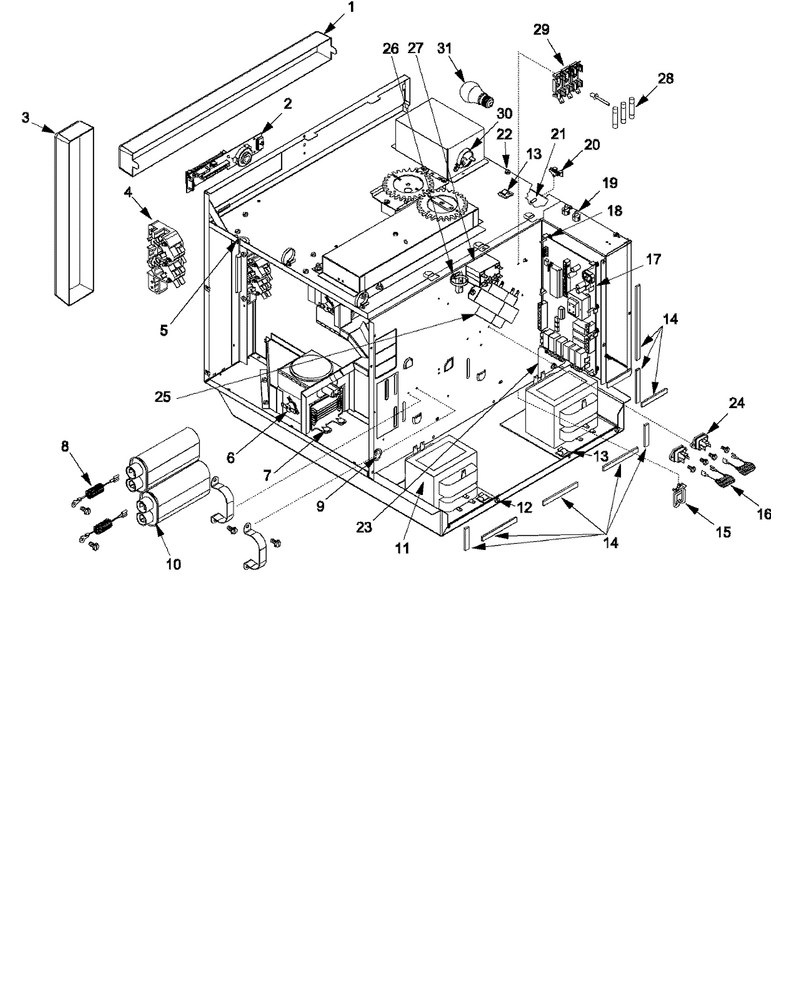

03 - Electrical Components

...
...
1
Screw, Tf WPL-M0231704
...
2
Screw WPL-M0234114
...
3
Screw, Tf WPL-M0231704
...
4
Switch, Interlock WPL-59001114
...
5
Bushing-Snap WPL-A3293505
...
6
Screw T.c WPL-M0229916
...
7
Magnetron-T WPL-10489402
...
8
Rectifier WPL-WP13091701
...
9
Bushing, Snap WPL-59001128
...
10
Strap, Capacitor WPL-A4055405
...
11
Transformer-Hv WPL-59001626
...
12
Screw WPL-WP90767
...
13
Clip WPL-WPM0104106
...
14
Gasket (Inch) WPL-A3030301
...
15
Wire Clip WPL-B5667304
...
16
Snubber Assembly WPL-59002017
...
17
Board,hv WPL-59001002
...
18
Support P-C Bd A WPL-M0590602
...
19
Bushing,terminal WPL-M0325401
...
20
Thermal Cutout WPL-B5795306
...
21
Cap, Protective-Threaded (Red) WPL-M0308801
...
22
Screw,tf WPL-M0231617
...
23
Screw WPL-WPW10001160
...
24
Screw WPL-WP489349
...
25
Screw WPL-WP489349
...
26
Tie Wire WPL-WPM0322202
...
27
Relay WPL-12492202
...
28
Fuse WPL-WPM0805102
...
29
Rivet-Pop WPL-59002054
...
30
Screw, Tf WPL-M0231704
...
31
Light Bulb WPL-8009

...
...
1
Mnl,svc-Comm`l Micro WPL-RS2240003
...
2
Use & Care-Amana Com Microwave WPL-59001488
...
3
Tech Sht Comm. Microwave WPL-16022019
...
4
Instr-Quick Start WPL-59001132
...
5
Manual-Prod Safety WPL-16021751
...
6
Magnetic Y-Drive Bit WPL-R0193574
...
7
Harness, Hv Board To Display WPL-R0130265
...
8
Harness-Interlock WPL-13018201
...
9
Harness-Oven Light WPL-12543401
...
10
Harness, Lower Antenna Motor WPL-12598201
...
11
Harness, Oven WPL-59001229
...
12
Harness, Hi Volt WPL-59001020
...
13
Menu Label WPL-12155701
...
14
Kit-Cav- 2 Tube ``s`` Chassis WPL-12002483

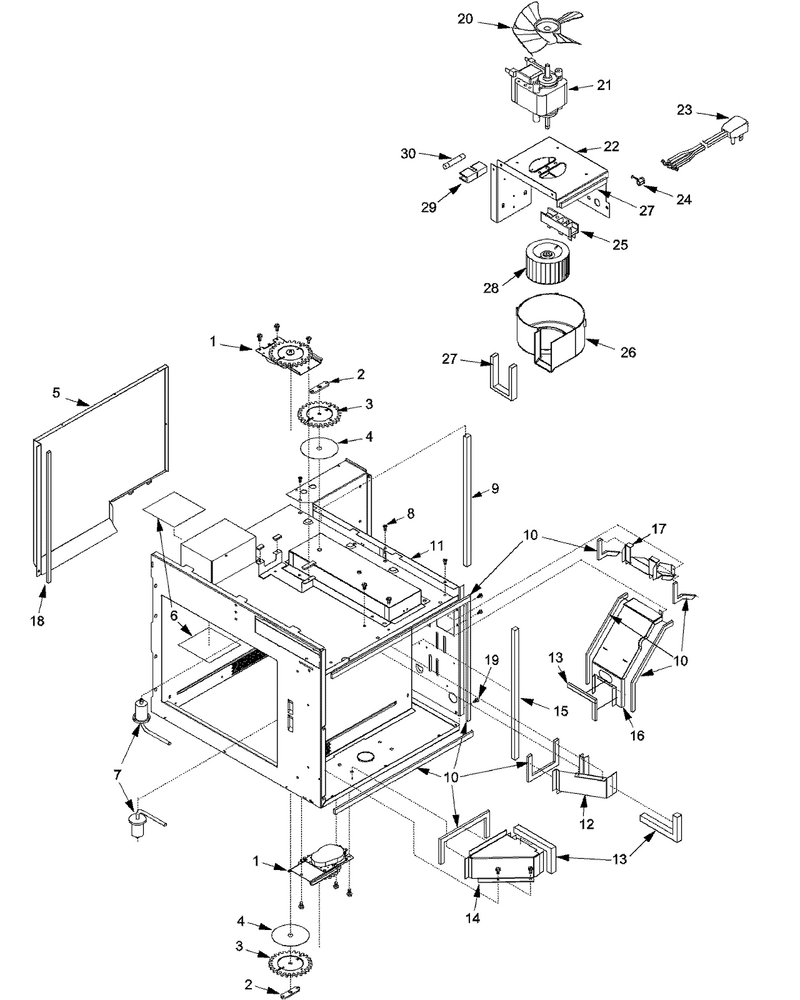

01 - Antennas, Blower, Ducts,

...
...
1
Motor-Antenna Stirrer (230v) WPL-R0130263
...
2
Retainer,gear Shaft WPL-12570201
...
3
Gear,spur WPL-12570101
...
4
Washer, Spur Gear WPL-10903002
...
5
Duct, Exhaust WPL-10781901
...
6
Window, Oven Light WPL-B8367701
...
7
Antenna (Stirrer) WPL-R0130262
...
8
Screw WPL-WPW10001160
...
9
Gasket, Neoprene WPL-10966601
...
10
Gasket,per Ft WPL-A30303-30
...
11
Panel, Partition WPL-59001204
...
12
Screw WPL-WP3388228
...
13
Gasket (Per Foot) WPL-A3030303
...
14
Bottom Exhaust Duct-W/gasket WPL-10989301
...
15
Gasket-Per Inch WPL-A3030311
...
16
Divider-Bot Flow WPL-10989401
...
17
Screw WPL-WP489349
...
18
Gasket (Inch) WPL-A3030301
...
19
Screw WPL-5078-CC
...
20
Fan Blade WPL-B5706704
...
21
Motor,blower WPL-12138106
...
22
Bracket,blower WPL-12567701
...
23
Power Cord Kit WPL-R0131016
...
24
Strain Relief WPL-8536977
...
25
Screw, No.6x18x1/4 (3) WPL-487010
...
26
Screw-Sm/hex WPL-12990523
...
27
Gasket (Per Foot) WPL-A3030303
...
28
Wheel, Blower WPL-C3670809
...
29
Fuse Holder WPL-10091101
...
30
Fuse- 30a WPL-M0805205

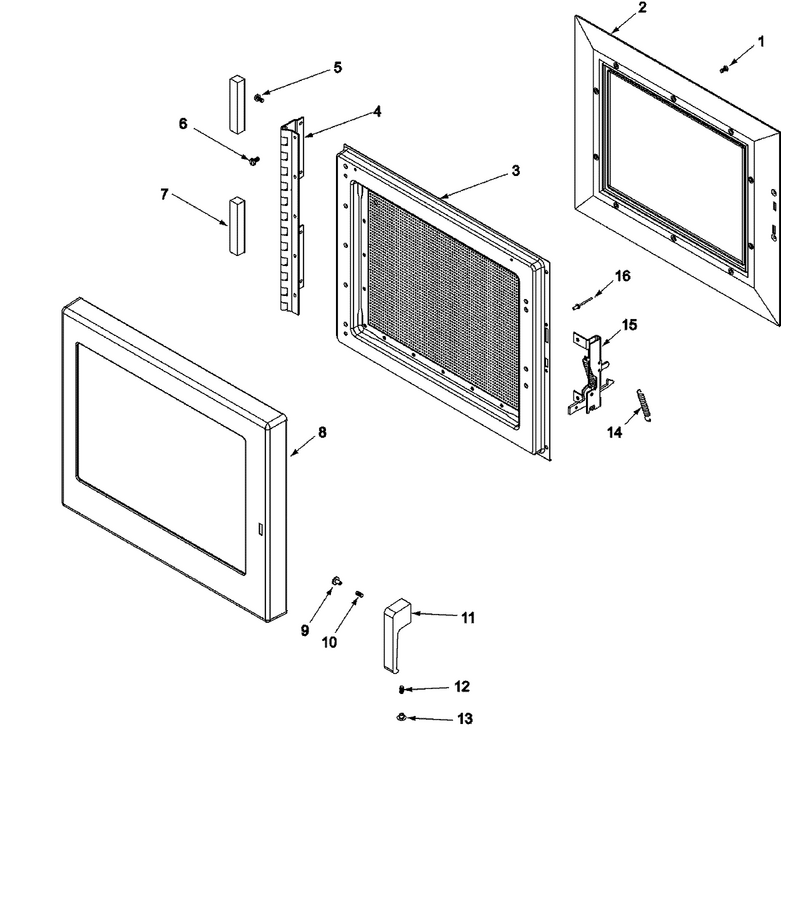

02 - Door

...
...
1
Screw-Hi Lo Y-Drive Head WPL-67003392
...
2
Inner Door/glass Assy WPL-D7784901
...
3
Kit-Door R WPL-R0131710
...
4
Hinge-Door WPL-C8961811
...
5
Screw WPL-WP90767
...
6
Screw WPL-WP3388228
...
7
Gasket WPL-A3263904
...
8
Outer Door/lens Retainer Assy WPL-R0156918
...
9
Plug, Button (Wht) WPL-M0310305
...
10
Screw WPL-WP8533976
...
11
Handle, Door WPL-12490901
...
12
Screw WPL-WP8533976
...
13
Plug, Button (Blk) WPL-12360703
...
14
Spring, Door Latch WPL-C8893502
...
15
Latch Kit WPL-R0000282
...
16
Rivet-Pop WPL-59002054

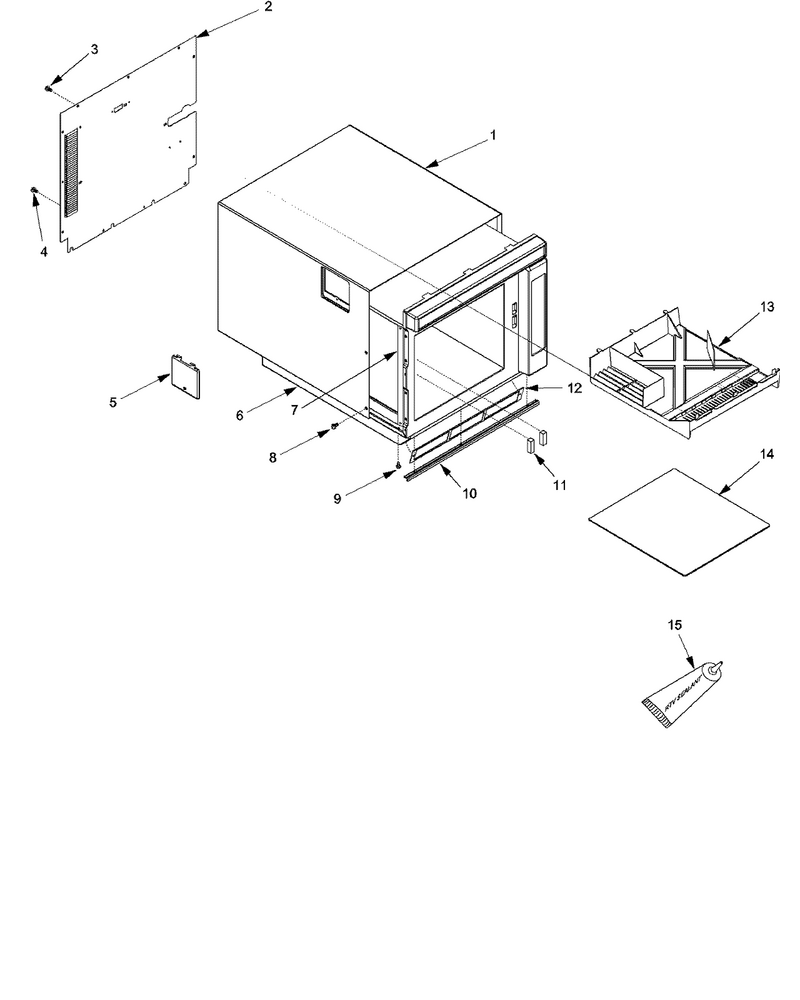

05 - Tray, Grease Shield, Cabinet,

...
...
1
Wrapper-Oc (Ss) WPL-10908901Q
...
2
Assy, Access Panel (Rear) WPL-R0156970
...
3
Screw WPL-WP3388228
...
4
Screw WPL-WP90767
...
5
Screw-Tf/oval WPL-13042002
...
6
Assy, Base Pan WPL-59001130
...
7
Screw, Tf WPL-M0231704
...
8
Screw-Tf/oval WPL-13042002
...
9
Screw WPL-WP489128
...
10
Screw-Tf/oval WPL-13042002
...
11
Support-Tray WPL-3010003001
...
12
Washer, Nylon WPL-M0274066
...
13
Shield, Grease WPL-10766601
...
14
Tray-Ceramic Floor W/sealer WPL-R0156942
...
15
Adhesive WPL-W10841140
