Amana RC18090C2LR REV (BOM: RC18090C2LR C)

Amana RC18090C2LR REV (BOM: RC18090C2LR C)

Model: RC18090C2LR REV (BOM: RC18090C2LR C)

Save Part Not Listed?

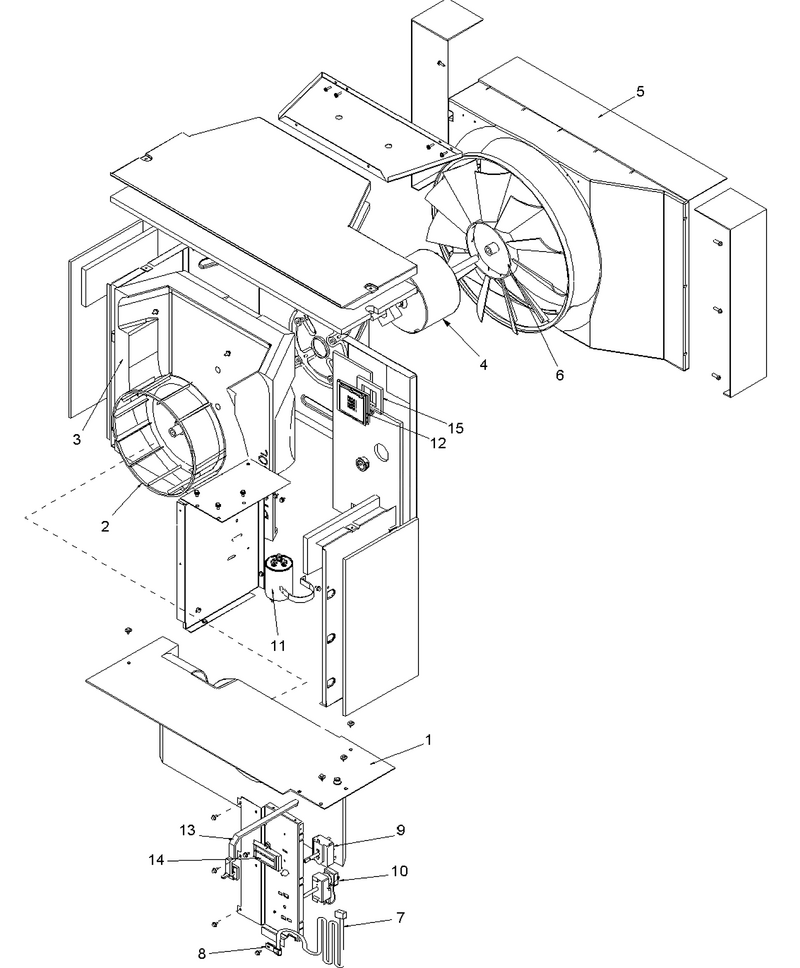

02 - Fan And Control Assy

NI

Service Ha WPL-BT1292201

1

Venturi, Fan WPL-BT3010004

2

Wheel, Blower WPL-BT1368002

3

Scroll WPL-BT3006005

4

Motor, 1/4hp 208/230v (serv) WPL-BT1340005S

5

Shroud, Fan (large) WPL-BT3011002

6

Fan Blade- WPL-BT1086702

7

Cord, Power (serv) WPL-BT1210005

8

Relief, Power Cord (large) WPL-BT1393401

9

Switch, Power (5 Pos) WPL-BT1370806

10

Thermostat, Long Shaft (serv) WPL-BT1370805

11

Capacitor WPL-4388208

12

Plug, Damper WPL-BT3076000

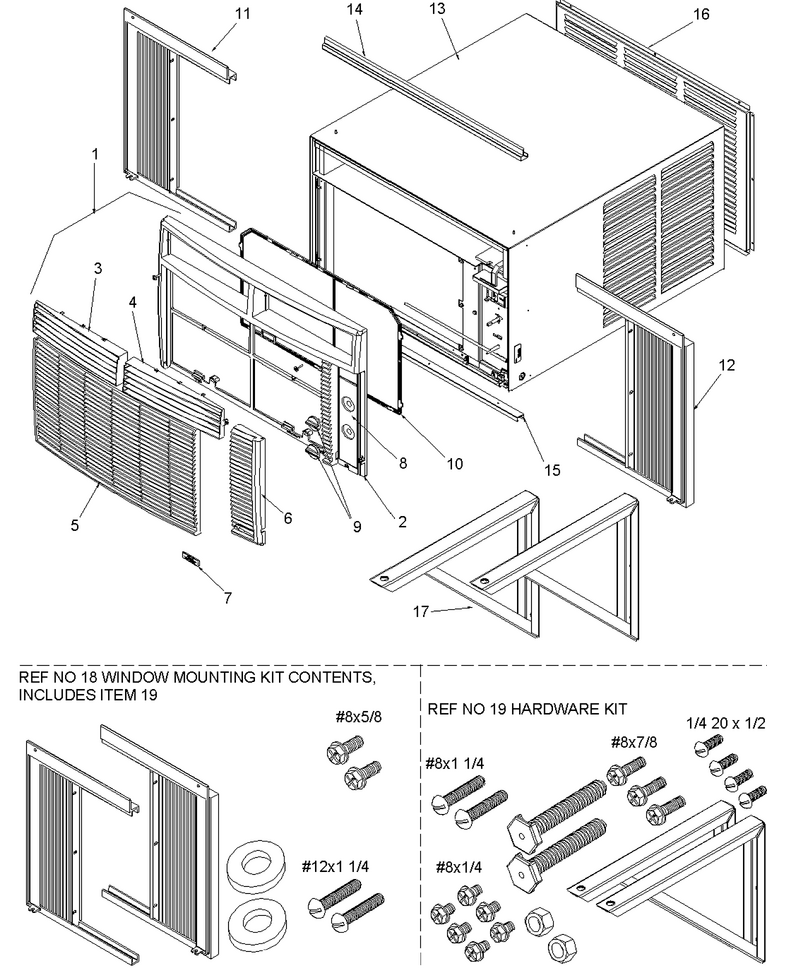

03 - Outer Case Assy

NI

Foam .25 X .50 (7.0 Ft) WPL-BT1392601

1

Assy,front Lrg Ldr WPL-BT3075030

2

Frame WPL-BT3075104

3

Assy Front WPL-BT3075029

4

Assy Front WPL-BT3075029

5

Assy Front WPL-BT3075029

8

Label, Control (goodman) WPL-BT1493354

9

Knob- Rac WPL-WPBT3075631

10

Filter, Air (serv) WPL-BT1369602

11

Assy, Shutter Lg-Lt WPL-BT3074113

12

Assy, Shutter Lg-Rt WPL-BT3074112

13

Assy, Wrapper WPL-3050801

14

Support, Top (w/paint Lrg) WPL-3003002P

15

Support, Bottom (brk/paint Lrg WPL-3003102P

16

Pnl, Rear Louver (w/paint Lrg) WPL-3002206P

17

Brkt, Support (lrg Serv) WPL-3084002

19

Kit,hardware (large) WPL-BT1393205

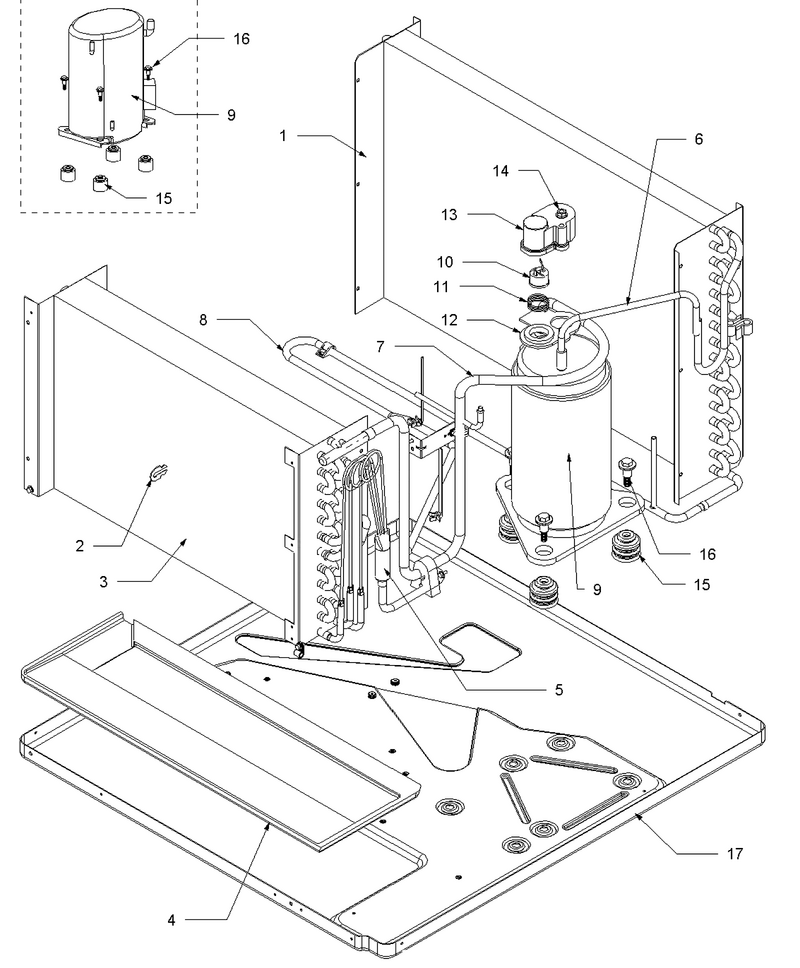

01 - Compressor Assy

NI

Plug Wire, Compressor WPL-BT3068517

1

Assy, Cond. Coil WPL-3096518

2

Clip, Bulb WPL-BT1531802

3

Assy, Evap Coil Tubing WPL-3096014

4

Pan, Drain (styrofoam Large) WPL-BT3005002

5

Assy, Capillary Tube WPL-3093843

6

Discharge Line WPL-30936268

7

Suction Line WPL-30936269

8

Assy, Liquid Line WPL-3093836

9

Compressor Bristol WPL-BT9266201S

15

Grommet. Comp WPL-A3448601

16

Bolt, Comp. Shoulder 5/16-18 WPL-BT1393704

17

Assy,basepan Service WPL-3050208S
