Amana RC17SD2 (BOM P1330102M)

Model: RC17SD2 (BOM P1330102M)

Save Part Not Listed?
product name

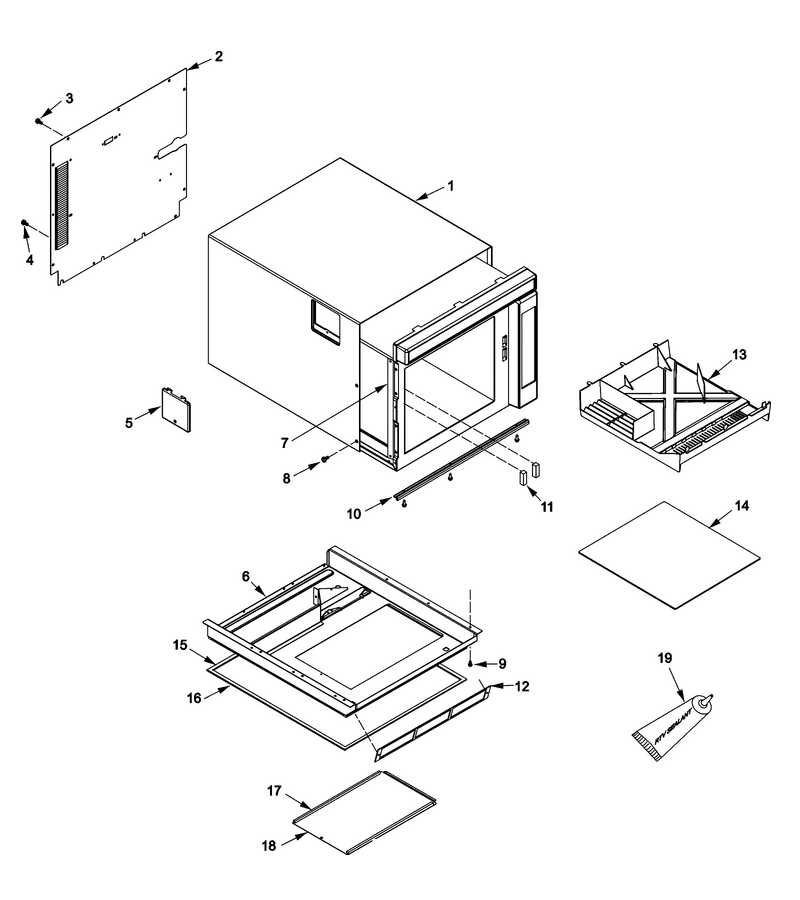

01 - Tray, Grease Shield, Cabinet,

...
...
001
Wrapper-Oc (Ss) WPL-10908901Q
...
002
Assy, Access Panel (Rear) WPL-R0156970
...
003
Screw WPL-WP3388228
...
004
Screw WPL-WP90767
...
005
Clip WPL-NLA
...
006
Assy, Base Pan WPL-59001130
...
007
Screw, Tf WPL-M0231704
...
008
Screw-Tf/oval WPL-13042002
...
009
Screw WPL-WP489128
...
010
Screw-Tf/oval WPL-13042002
...
011
Support-Tray WPL-3010003001
...
012
Washer, Nylon WPL-M0274066
...
013
Shield, Grease WPL-10766601
...
014
Tray-Ceramic Floor W/sealer WPL-R0156942
...
015
Basepan Gasket-Cut WPL-59001646
...
016
Basepan Gasket-Cut WPL-59001647
...
017
Gasket (Inch) WPL-A3030301
...
018
Bottom Access Panel WPL-10782402
...
019
Adhesive WPL-W10841140

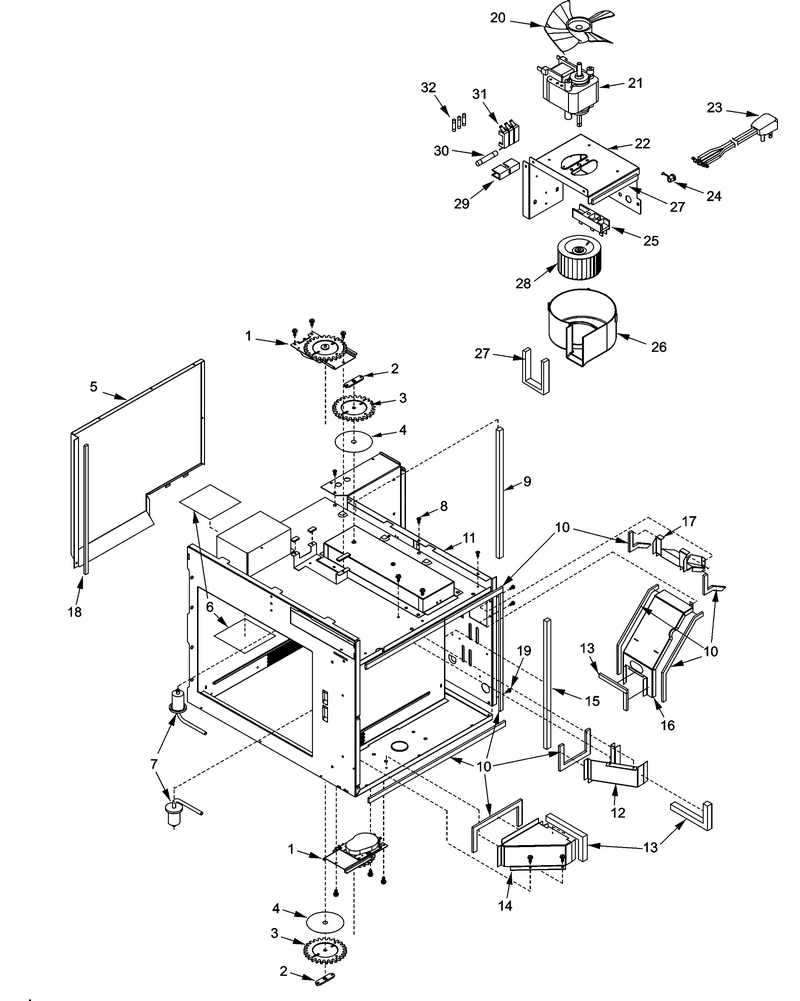

03 - Fuses, Antennas, Blower, Ducts,

...
...
001
Screw, Tf WPL-M0231704
...
002
Retainer,gear Shaft WPL-12570201
...
003
Gear,spur--++xxx WPL-12570101
...
004
Washer, Spur Gear WPL-10903002
...
005
Duct, Exhaust WPL-10781901
...
006
Window, Oven Light WPL-B8367701
...
007
Antenna (Stirrer) WPL-R0130262
...
008
Screw WPL-WPW10001160
...
009
Gasket, Neoprene WPL-10966601
...
010
Gasket,per Ft WPL-A30303-30
...
011
Panel, Partition WPL-59001129
...
012
Screw WPL-WP3388228
...
013
Gasket (Per Foot) WPL-A3030303
...
014
Screw WPL-WP3388228
...
015
Gasket-Per Inch WPL-A3030311
...
016
Divider-Bot Flow WPL-10989401
...
017
Screw WPL-WP489349
...
018
Gasket (Inch) WPL-A3030301
...
019
Screw WPL-5078-CC
...
020
Fan Blade WPL-B5706704
...
021
Motor,blower WPL-12138106
...
022
Bracket,blower WPL-59001629
...
023
Power Cord Kit WPL-R0131016
...
024
Strain Relief WPL-8536977
...
025
Terminal Block WPL-B5677203
...
026
Scroll,blower WPL-12552001
...
027
Gasket (Per Foot) WPL-A3030303
...
028
Wheel, Blower WPL-C3670809
...
029
Fuse Holder WPL-10091101
...
030
Fuse- 30a WPL-M0805205
...
031
Block-3 Pole Fuse WPL-59001682
...
032
Fuse WPL-WPM0805102

...
...
001
Mnl,svc-Comm`l Micro WPL-RS2240003
...
002
Use & Care-Amana Com Microwave WPL-59001488
...
003
Tech Sht Comm. Microwave WPL-16022019
...
004
Instr-Quick Start WPL-59001132
...
005
Manual-Prod Safety WPL-16021751
...
006
Magnetic Y-Drive Bit WPL-NLA
...
007
Harness, Hv Board To Display WPL-R0130265
...
008
Harness-Interlock WPL-13018201
...
009
Harness-Oven Light WPL-12543401
...
010
Harness, Lower Antenna Motor WPL-12598201
...
011
Harness, Oven WPL-59001637
...
012
Harness, Hi Volt WPL-59001020
...
013
Menu Label WPL-12155701
...
014
Kit-Cav- 2 Tube ``s`` Chassis WPL-12002483
...
015
Kit, Fuse (15 Amp) WPL-12001916

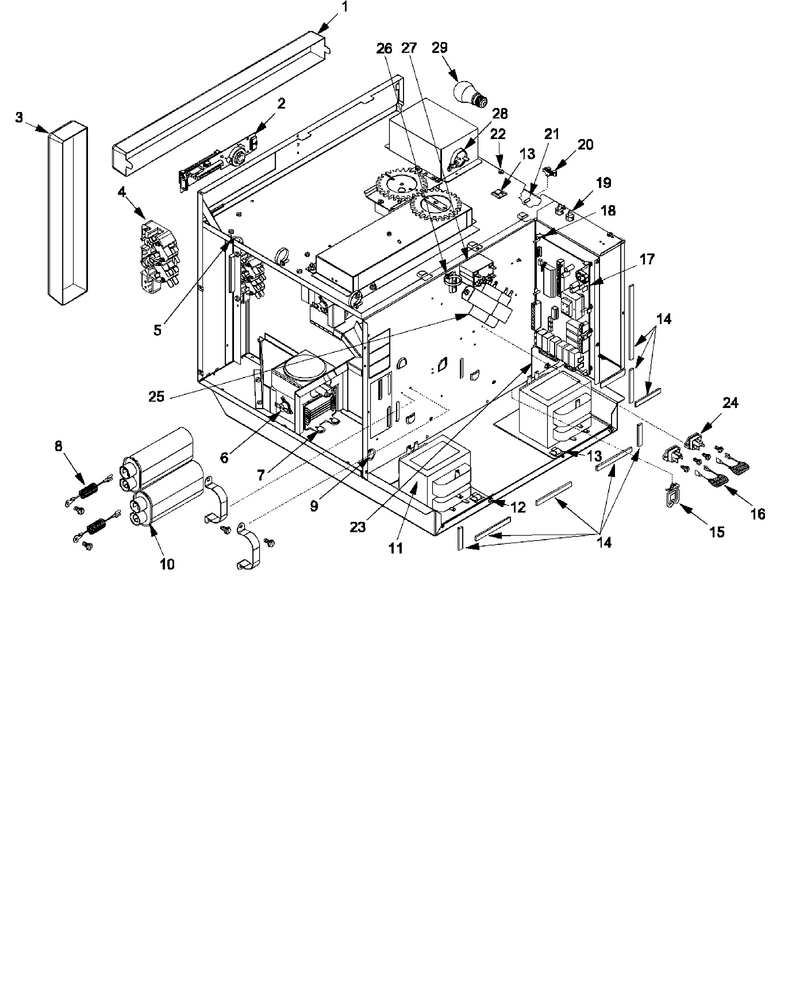

04 - Electrical Components

...
...
001
Touch Panel(Top) WPL-R0130108
...
002
Screw WPL-M0234114
...
003
Touch Panel(Side) WPL-R0130109
...
004
Screw-Sm/hex WPL-12990523
...
005
Bushing-Snap WPL-A3293505
...
006
Cutout-Thermal Magnetron WPL-B5684130
...
007
Magnetron-T WPL-10489402
...
008
Screw WPL-WP489349
...
009
Bushing, Snap WPL-59001128
...
010
Capacitor-.69 WPL-59001160
...
011
Transformer-Hv WPL-59001626
...
012
Screw WPL-WP90767
...
013
Clip WPL-WPM0104106
...
014
Gasket (Inch) WPL-A3030301
...
015
Wire Clip WPL-B5667304
...
016
Snubber Assembly WPL-59002017
...
017
Board,hv WPL-59001002
...
018
Support P-C Bd A WPL-M0590602
...
019
Bushing,terminal WPL-M0325401
...
020
Thermal Cutout WPL-B5795306
...
021
Cap, Protective-Threaded (Red) WPL-M0308801
...
022
Screw,tf WPL-M0231617
...
023
Screw WPL-WPW10001160
...
024
Screw WPL-WP489349
...
025
Screw WPL-WP489349
...
026
Tie Wire WPL-WPM0322202
...
027
Relay WPL-12492202
...
028
Receptacle, Lamp WPL-B8371401
...
029
Light Bulb WPL-8009

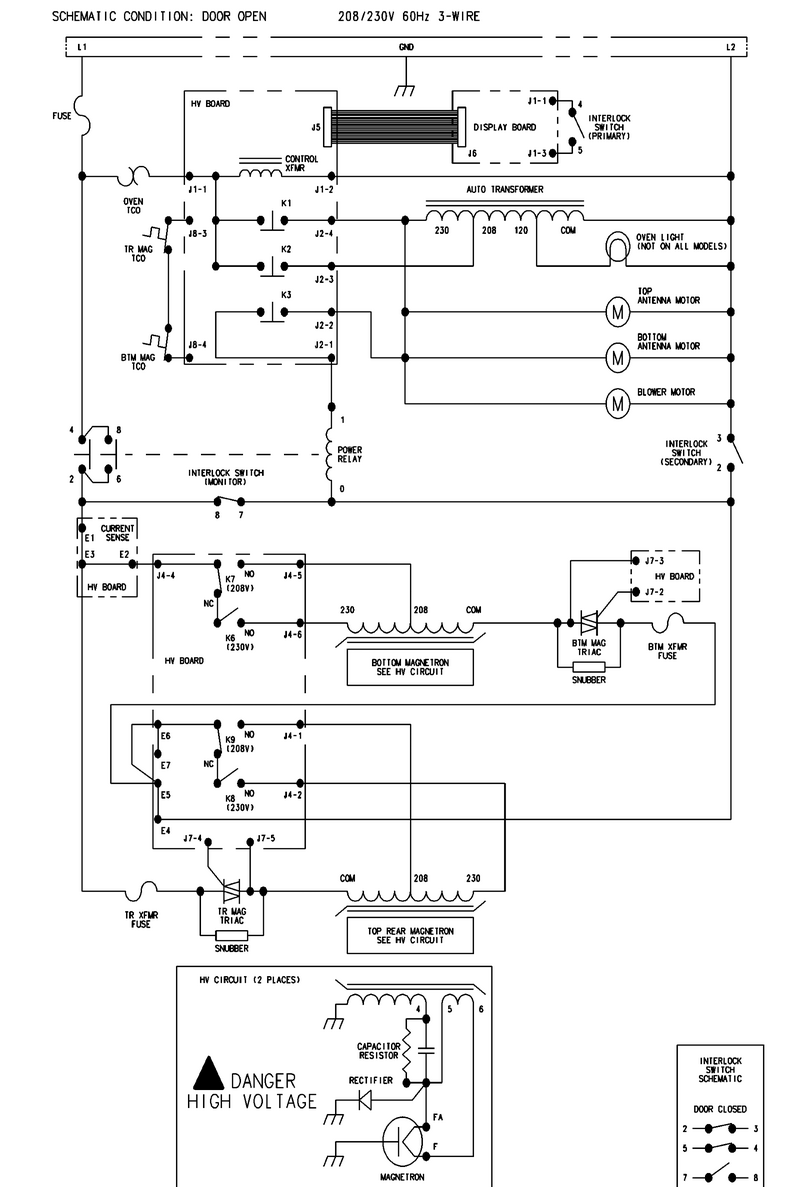

06 - Wiring Information

...
...
001
Wiring Information WPL-NLA

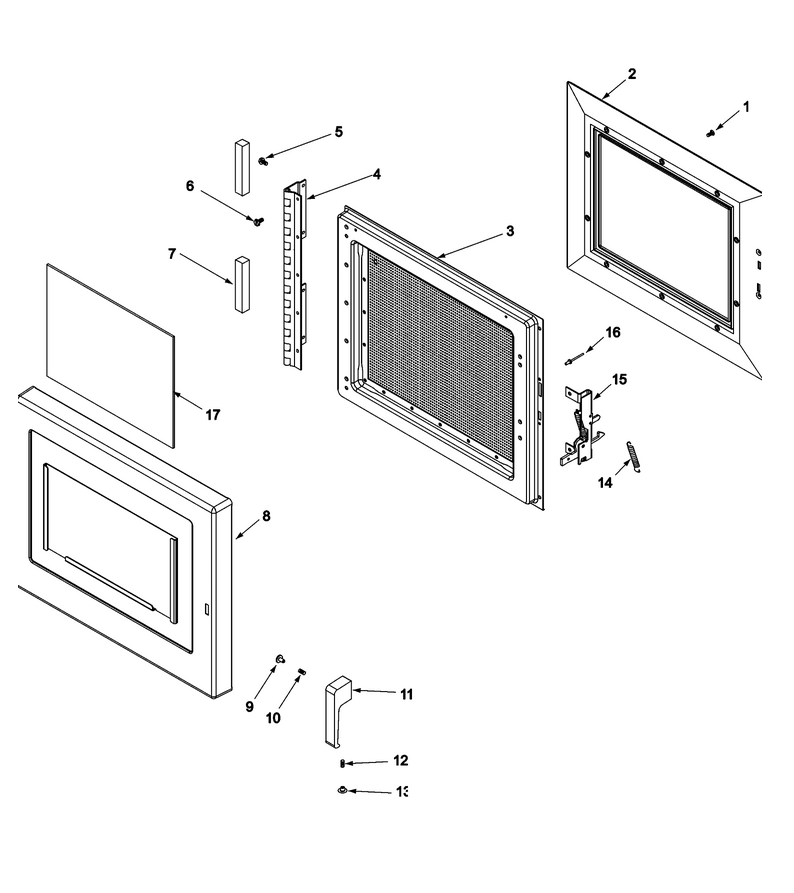

02 - Door

...
...
001
Screw-Hi Lo Y-Drive Head WPL-67003392
...
002
Kit, Inner Door/window Assy WPL-12002103
...
003
Door Ring Weld WPL-59002013
...
004
Hinge-Door WPL-C8961811
...
005
Screw WPL-WP90767
...
006
Screw WPL-WP3388228
...
007
Gasket WPL-A3263904
...
008
Outer Door/lens Retainer Assy WPL-R0156920
...
009
Plug, Button (Blk) (Side) WPL-12360703
...
010
Screw WPL-WP8533976
...
011
Handle, Door WPL-12490901
...
012
Screw WPL-WP8533976
...
013
Plug, Button (Wht) (Bottom) WPL-M0310305
...
014
Spring, Door Latch WPL-C8893502
...
015
Latch Kit WPL-R0000282
...
016
Rivet-Pop WPL-59002054
...
017
Menu Panel WPL-10432501
