Amana RC14SE (BOM: P1104104M)

Model: RC14SE (BOM: P1104104M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

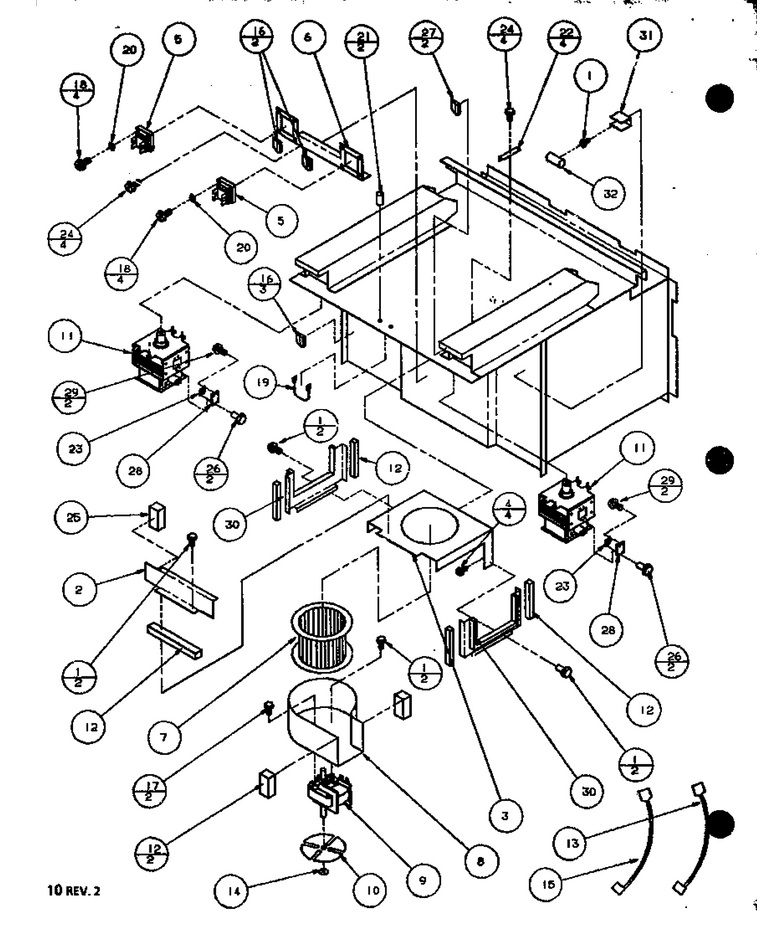

04 - Page 4

...
...
1
Screw WPL-WP489349
...
2
End Plate WPL-B5778001
...
3
Bracket WPL-C8707804
...
4
Screw WPL-WP90767
...
5
Transformer, Filament WPL-C8807807
...
6
Bracket Frame WPL-C8902001
...
7
Wheel, Blower WPL-C3670809
...
8
Wldmt-Blower Scroll WPL-C8710701
...
9
Kit, Motor WPL-R0156503
...
11
Magnetron WPL-10794402
...
12
Gasket 1/2 By 3/8 WPL-10839716
...
13
Jumper-Wire, Fil Xfmer To Mag. (Filament Transformer To Magne WPL-D7365130
...
15
Jumper-Wire, Fil Xfmer To Mag. (Filament Transformer To Magne WPL-D7365130
...
16
Clip, Cord WPL-M0104102
...
17
Screw WPL-WP3400094
...
18
Screw WPL-M0216522
...
19
Thermal Fuse W/terminals WPL-B8353203Q
...
20
Washer Lock WPL-M0272802
...
21
Bushing,terminal WPL-M0325401
...
22
Brkt-Mag Tube WPL-B5774402
...
23
Protector, Thermal WPL-B5684109
...
24
Screw WPL-M0216531
...
27
Clip WPL-M0118801
...
29
Screw T.c WPL-M0229916
...
30
End Plate, Air Duct. WPL-D7832201
...
31
Fuse Holder WPL-10091101
...
32
Fuse, 25 Amp WPL-M0805201

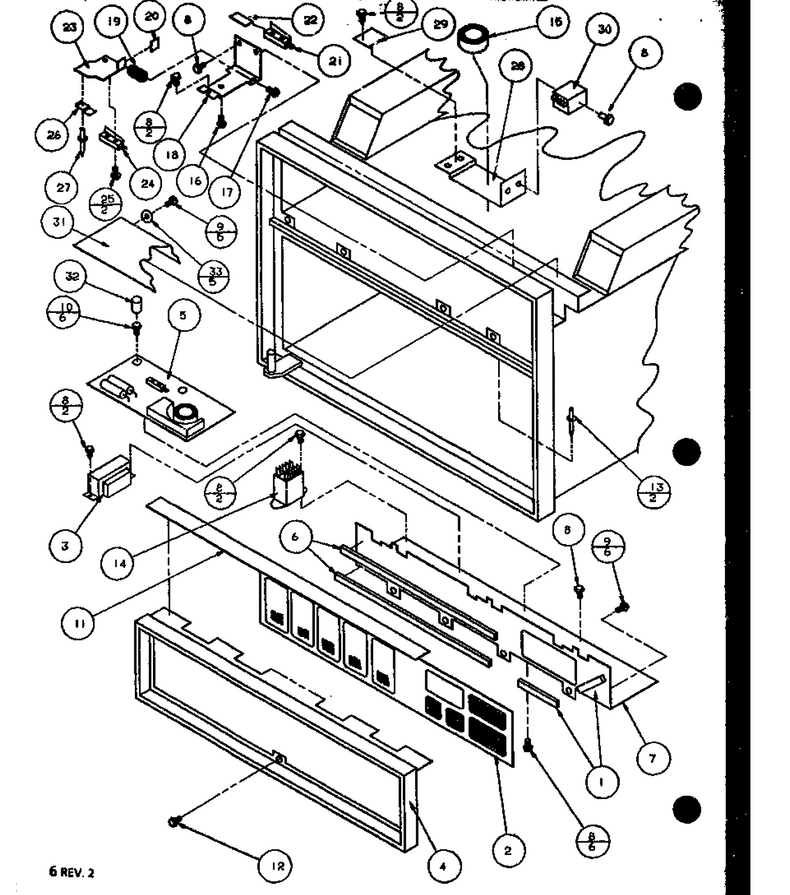

02 - Page 2

...
...
1
Gasket WPL-A4591128
...
2
Assy, Switch &ind. WPL-D7577807
...
3
Transformer Control WPL-C8901202
...
4
Frame-Timer WPL-D7292202
...
5
Digital Timer WPL-D7755101
...
6
Gasket WPL-A4591136
...
7
Bracket WPL-D7571304
...
8
Screw WPL-WP489349
...
9
Screw A K WPL-M0253704
...
10
Support P-C Bd A WPL-M0590602
...
11
Gasket WPL-A3030344
...
12
Screw WPL-M0230820
...
13
Rivet WPL-WP210720
...
14
Relay WPL-C8845502
...
15
Motor WPL-B5602811
...
16
Rivet A-K WPL-M1205109
...
17
Screw WPL-M0216539
...
18
Bracket Interlock WPL-B8332501
...
19
Spring A WPL-A3277701
...
20
Speed Nut WPL-M0288010
...
21
Switch-Interlock (Limit) WPL-C3670014
...
22
Speednut WPL-M0289505
...
23
Bracket WPL-C8875301
...
24
Intlk Sw-Weld WPL-B8324002
...
25
Screw WPL-M0213123
...
26
Clip WPL-B8321802
...
27
Rivet-Pop WPL-59002054
...
28
Plate Mtg WPL-D7695901
...
29
Terminal Board WPL-C8988704
...
30
Relay WPL-C8873928
...
31
Spill Shield WPL-10020101
...
32
Cap, Protective-Threaded (Red) WPL-M0308801
...
33
Washer WPL-M0272503

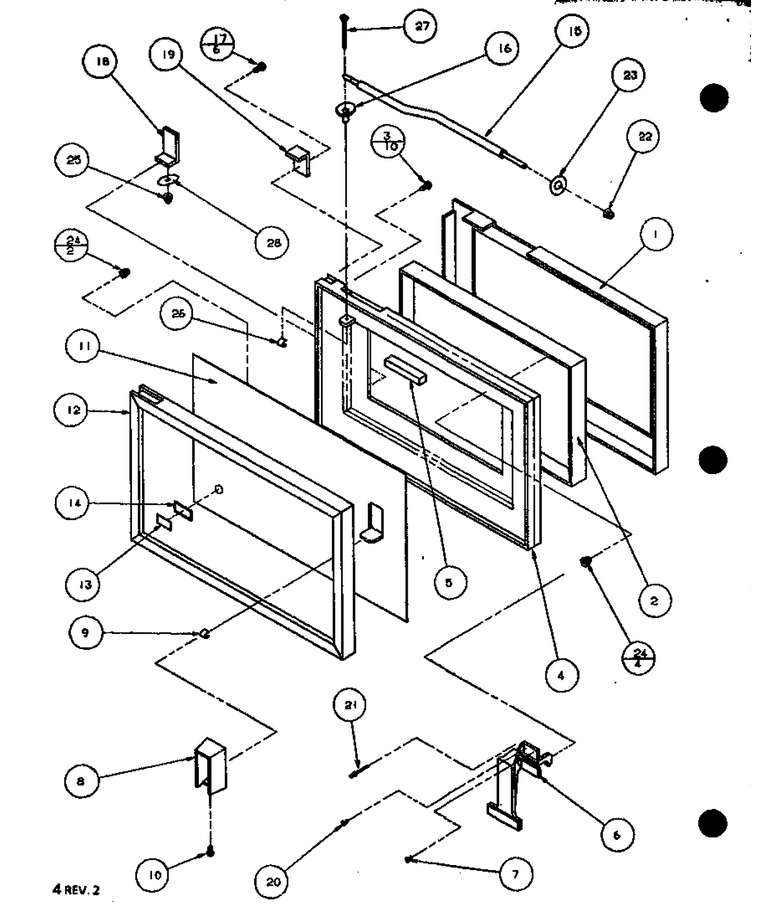

01 - Page 1

...
...
NI
Sealer WPL-M0275501
...
1
Gasket, Door WPL-D7670501
...
2
Inner Door Kit WPL-R0156665
...
3
Screw T.c WPL-M0229916
...
4
Inner Dr Ring Weld WPL-D7132505
...
5
Gasket WPL-A4591128
...
6
Door Latch Assembly WPL-D7178504
...
7
Screw WPL-WPW10068250
...
8
Bezel-Door Handle WPL-B5671901
...
9
Speed Nut WPL-M0288102
...
10
Screw,tc WPL-M0230017
...
11
Panel, Outer Door WPL-D7578101
...
12
Ring, Outer Door WPL-D7667702
...
13
Insert Medal Cfc 113 WPL-C8904612
...
14
Escutcheon WPL-C3668803
...
15
Arm, Dr Stop K WPL-B5748702
...
16
Bushing-Door Arm WPL-A3185001
...
17
Screw WPL-M0253230
...
18
Door Hinge Kit (Includes All Upper & Lower Hi WPL-R0156889
...
19
Door Hinge Kit (Includes All Upper & Lower Hi WPL-R0156889
...
20
Screw WPL-M0234030
...
21
Rivet, Pop (Wht) WPL-B5642901
...
22
Nut WPL-WP488130
...
23
Washer WPL-M0270501
...
24
Nut WPL-717488
...
25
See Svc Ltr Cr-163d WPL-A3168101
...
26
Clip Push On WPL-M0118905
...
27
Pin Mtg WPL-B8372701
...
28
Washer Non-Metal WPL-M0274032

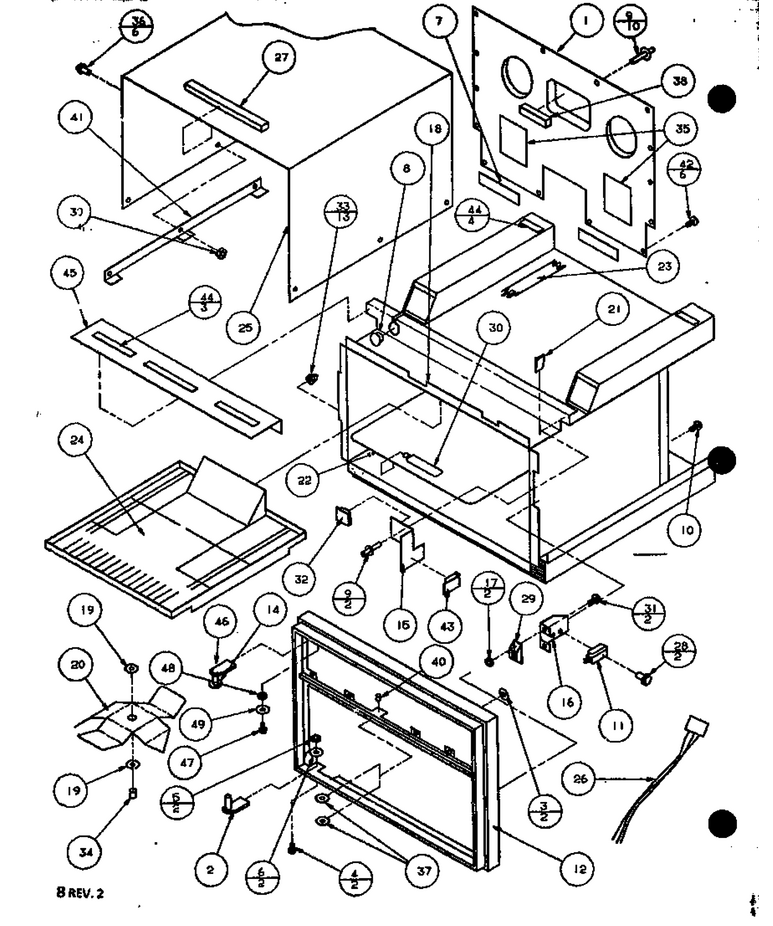

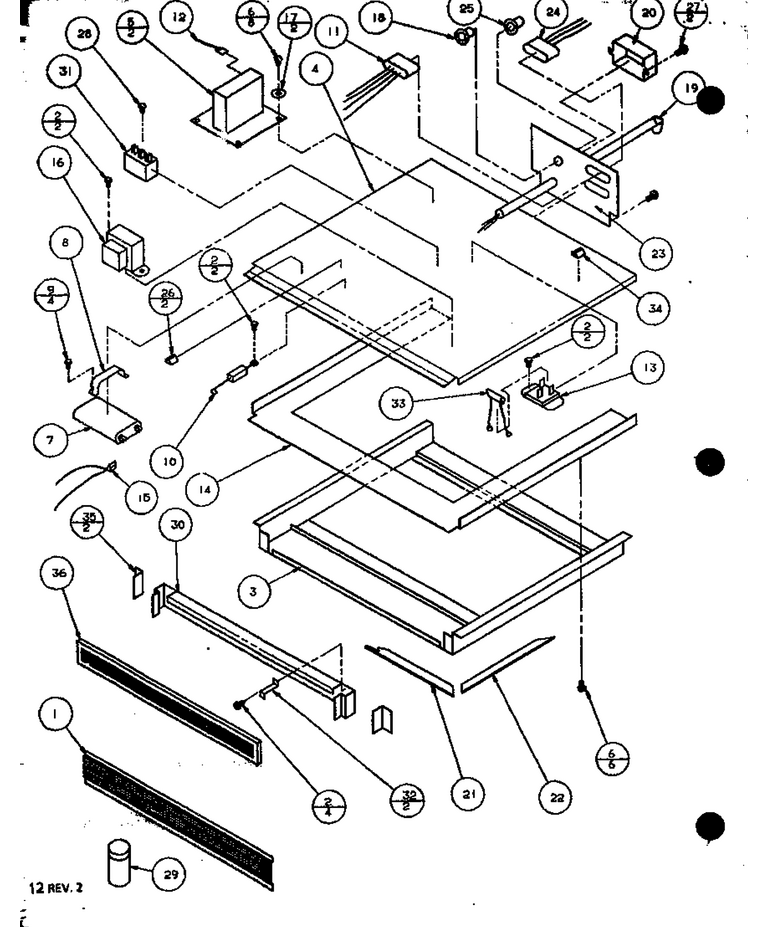

05 - Page 5

...
...
1
Grille Air Inlet WPL-C8708502
...
2
Screw WPL-WP489349
...
3
Basepan Weld WPL-D7732802
...
4
Chassis WPL-D7573603
...
5
Transformer-High Voltage, 208/ WPL-R0114320
...
6
Screw K WPL-M0253543
...
7
Capacitor-.69 WPL-59001160
...
8
Strap, Capacitor WPL-A4055405
...
9
Screw-Sm/hex WPL-12990523
...
10
Rectifier WPL-WP13091701
...
11
Wire Assy WPL-B8393101
...
12
Wire-Jumper, Filament Transfor (Filament Transformer No.4 To Ca WPL-D7365139
...
13
Triac WPL-D7681501
...
14
Oven Mtg Plate WPL-C8775302
...
15
Wire Jumper WPL-D7365139
...
16
Transformer, Auto WPL-C8901507
...
17
Lock Washer WPL-M0272805
...
18
Bushing WPL-A3293501
...
19
Power Cord Kit WPL-R0131016
...
20
Can, Capacitor WPL-B8334701
...
21
Gasket, Base Pan WPL-C8870702
...
22
Gasket, Base Pan WPL-C8870703
...
23
Strain Releif WPL-C8988802
...
24
Wire Assy WPL-B8393001Q
...
25
Strain Relief WPL-M0370007
...
26
Clip, Cord WPL-M0104102
...
27
Screw WPL-WP3388228
...
28
Screw, No.6x18x1/4 (3) WPL-487010
...
29
Compound WPL-R0195031
...
30
Ass`y, Air Inlet WPL-C8890002
...
31
Terminal Block WPL-B5677203
...
32
Spring WPL-B8364201
...
33
Snubber Assembly WPL-59002017
...
34
Clip, Cord WPL-M0104104
...
35
Guide, Filter WPL-B8392501
...
36
Filter WPL-B5714801

03 - Page 3

...
...
1
Access Panel-Weld E-Coat WPL-C8801117
...
2
See Svc Ltr Cr-163c WPL-C8937601
...
3
Nut K WPL-M0120002
...
4
Screw WPL-WPW10001160
...
5
Nut WPL-WP488130
...
6
Lock Washer WPL-M0272402
...
7
Gasket-Per Ft WPL-A30303-35
...
8
Snap Bushing WPL-A3293503
...
9
Rivet-Pop WPL-59002054
...
10
Screw WPL-WP489464
...
11
Switch, Preform WPL-A3163415Q
...
12
Bezel-Outercase WPL-D7666402
...
14
Washer WPL-M0274046
...
15
Bracket, Harness WPL-B8349201
...
16
Bracket-Latch WPL-B5675403
...
17
Washer WPL-M0270502
...
18
Weld, Oven Cavity WPL-D7518606
...
19
Washer WPL-A3109101
...
20
Stirrer Blade (Antenna) WPL-C8708601
...
21
Clip WPL-M0118801
...
22
Tray-Oven WPL-B5795002
...
23
Tape-K WPL-M0275036
...
24
Shield,splatter WPL-D7457103
...
25
Wrapper, Outer Case WPL-D7379601
...
26
Wire Harness WPL-10091701
...
27
Gasket (Inch) WPL-A3030301
...
28
Screw WPL-M0227520
...
29
Strike-Latch WPL-C3680202
...
30
Sealer WPL-M0275501
...
31
Screw-Sm/hex WPL-12990523
...
32
Clip, Cord WPL-M0104102
...
33
Nut, Self Thread WPL-M0283801
...
34
Clip WPL-M0114002
...
35
Insulation WPL-A3205602
...
36
Screw WPL-M0207943
...
37
Bushing WPL-A3182101
...
38
Gasket WPL-B8343701
...
39
Nut WPL-WP3400029
...
40
Guide-Door Stop WPL-A3181801
...
41
Guide-Strip WPL-C8812901
...
42
Screw WPL-WP3388228
...
43
Clip, Cord WPL-M0104104
...
44
Gasket K WPL-A4591129
...
45
Shield, Drip WPL-C8933801
...
46
See Srvc Ltr Cr-163c WPL-C8937702
...
47
Screw WPL-M0294459
...
48
Nut WPL-WP487939
...
49
Washer, Star WPL-M0272405
