Amana RC14SD1 (BOM: P7575007M)

Model: RC14SD1 (BOM: P7575007M)

Save Part Not Listed?
product name

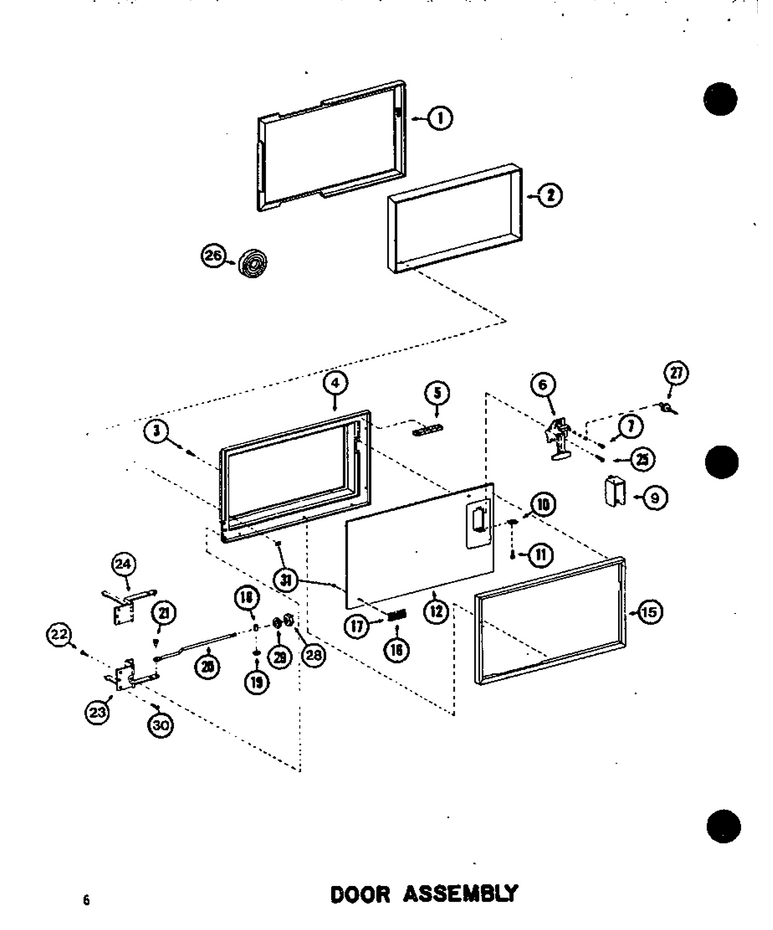

02 - Door Assy

...
...
1
Gasket WPL-D7396401
...
2
Inner Door Kit WPL-R0156665
...
3
Screw T.c WPL-M0229916
...
4
Weldment, Inner Door Ring WPL-D7132501
...
5
Gasket WPL-A4591128
...
6
Door Latch Assembly WPL-D7178504
...
7
Screw WPL-WPW10068250
...
9
Bezel-Door Handle WPL-B5671901
...
10
Speed Nut WPL-M0288102
...
11
Screw WPL-8169474
...
12
Panel, Outer Door WPL-D7578101
...
15
Outer Door Ring WPL-D7667701
...
16
Insert Medallion WPL-C8904601
...
17
Escutcheon WPL-C3668803
...
18
Guide-Door Stop WPL-A3181801
...
19
Bushing WPL-A3182101
...
20
Arm, Dr Stop K WPL-B5748702
...
21
Bushing-Door Arm WPL-A3185001
...
22
Screw WPL-M0253230
...
23
Hinge-Bottom WPL-C3666306
...
24
Hinge-Top WPL-C3666305
...
25
Screw WPL-M0234030
...
26
Tape Per Roll WPL-M0275163
...
27
Rivet, Pop (Wht) WPL-B5642901
...
28
Nut WPL-WP488130
...
29
Washer WPL-M0270501
...
30
Machine Screw WPL-M0205631
...
31
Nut WPL-717488

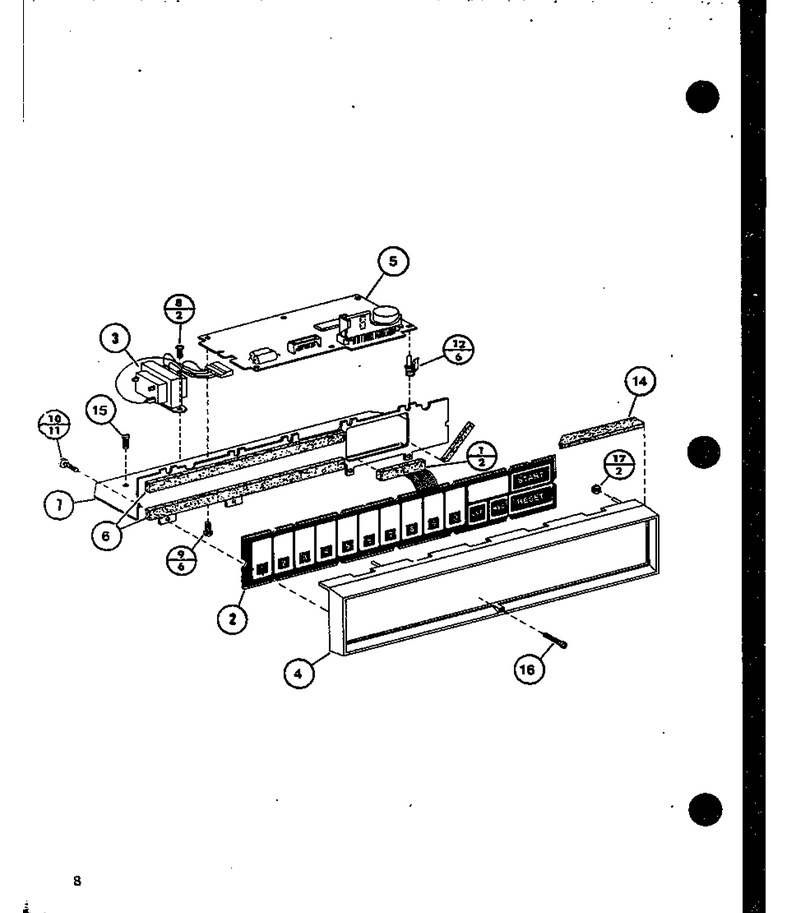

04 - Page 2

...
...
1
Gasket WPL-A4591128
...
2
Assy, Switch &ind. WPL-D7577807
...
3
Transformer Control WPL-C8901202
...
4
Frame-Timer WPL-D7292202
...
5
Digital Timer WPL-D7568501
...
6
Gasket WPL-A4591136
...
7
Bracket, Timer Mounting WPL-D7571301
...
8
Screw WPL-M0213815
...
9
Screw WPL-WP489349
...
10
Screw WPL-M0234403
...
12
Support P-C Bd A WPL-M0590602
...
14
Gasket (Inch) WPL-A3030301
...
15
Screw WPL-M0213815
...
16
Screw WPL-M0230820
...
17
Nut K WPL-M0120002

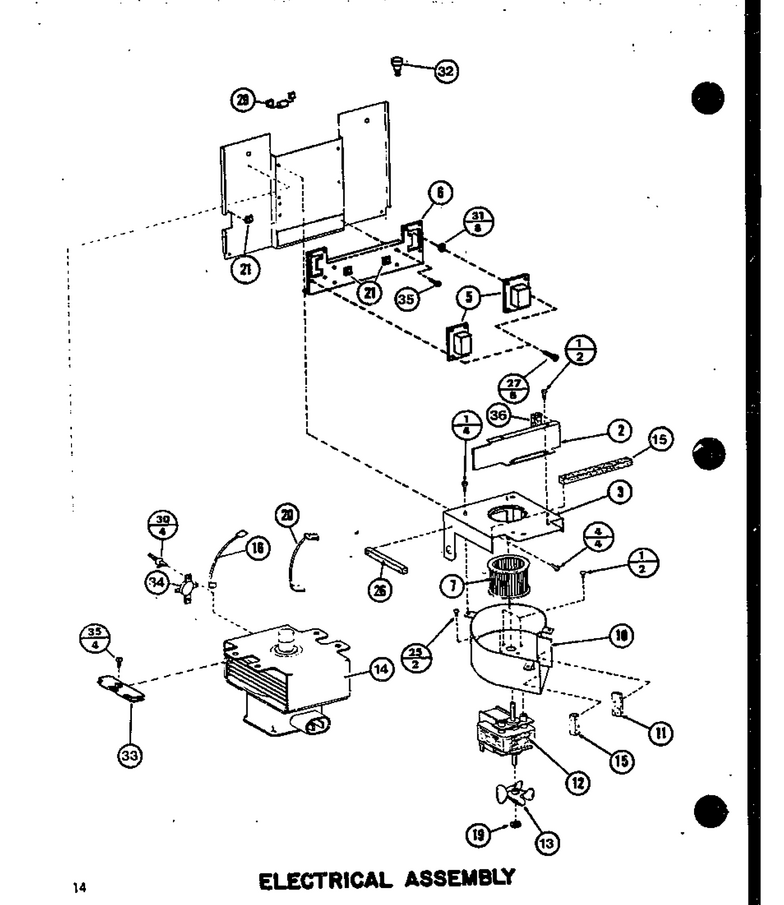

03 - Electrical Assy

...
...
1
Screw WPL-WP489349
...
2
End Plate WPL-B5778001
...
3
Brkt-Blower Scroll WPL-C8707801
...
4
Screw WPL-WP90767
...
5
Transformer, Filament WPL-C8807807
...
6
Bracket Frame WPL-C8902001
...
7
Wheel, Blower WPL-C3670809
...
10
Wldmt-Blower Scroll WPL-C8710701
...
11
Gasket (Per Foot) WPL-10839706
...
12
Kit, Motor WPL-R0156503
...
13
Fan Blade-Blower WPL-B5706702
...
14
Magnetron WPL-10794402
...
15
Gasket (Per Foot) WPL-A3030303
...
16
Jumper-Wire, Fil Xfmer To Mag. (Filament Transformer To Magne WPL-D7365130
...
19
Clip WPL-M0118901
...
20
Jumper-Wire, Fil Xfmer To Mag. (Filament Transformer To Magne WPL-D7365130
...
21
Clip, Cord WPL-M0104102
...
25
Screw WPL-WP3400094
...
26
Gasket WPL-B8343705
...
27
Screw WPL-M0216522
...
29
Thermal Fuse W/terminals WPL-B8353203Q
...
30
.094 Dia Pop Rivet Alum WPL-A4539610
...
31
Washer Lock WPL-M0272802
...
32
Bushing,terminal WPL-M0325401
...
33
Brkt-Mag Tube WPL-B5774402
...
34
Protector, Thermal WPL-B5684109
...
35
Screw WPL-M0216531
...
36
Gasket WPL-B8343704

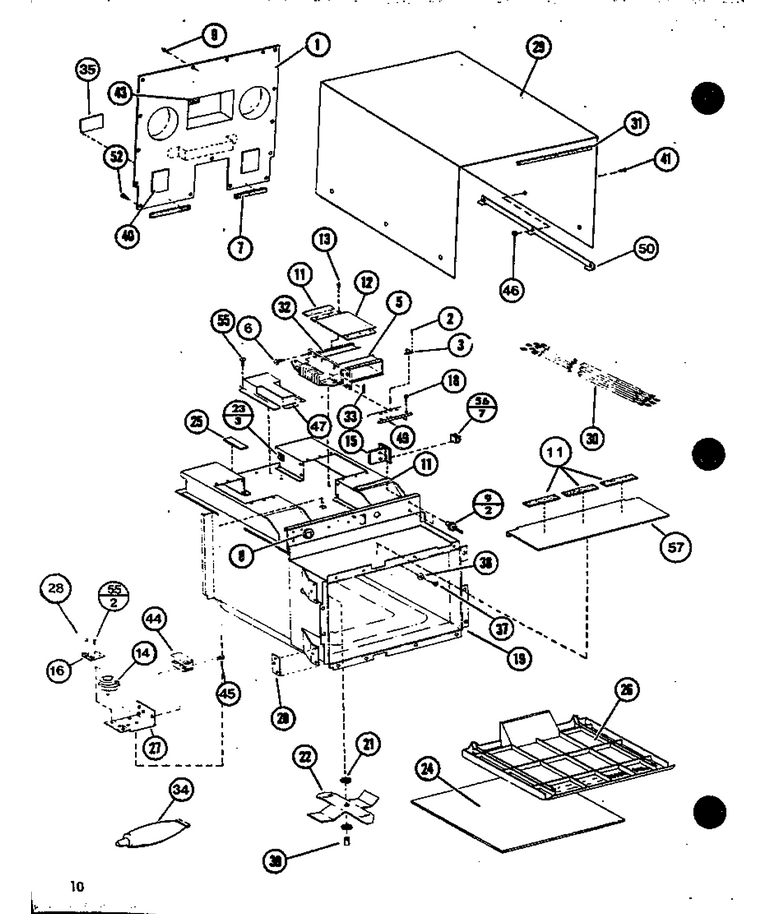

05 - Page 3

...
...
1
Access Panel-Weld E-Coat WPL-C8801117
...
2
Screw WPL-M0232012
...
3
Thermal Protector K WPL-B5684105
...
6
Screw-Sm/hex WPL-12990523
...
7
Gasket-Per Ft WPL-A30303-35
...
8
Snap Bushing WPL-A3293503
...
9
Rivet-Pop WPL-59002054
...
11
Gasket K WPL-A4591129
...
13
Rivet WPL-WP210720
...
14
Motor WPL-B5602811
...
15
Brkt-Mag Tube WPL-B5774402
...
16
Board-Term WPL-C8988701
...
18
Screw WPL-WP59002061
...
19
Oven Weld WPL-D7518603
...
20
Shim-Hinge WPL-A3250301
...
21
Washer WPL-A3109101
...
22
Stirrer Blade (Antenna) WPL-C8708601
...
23
Clip WPL-M0118801
...
24
Tray-Oven WPL-B5795002
...
25
Tape-K WPL-M0275036
...
26
Shield,splatter WPL-D7457103
...
27
Plate Relay Mtg WPL-C8766003
...
28
Fuse 20 A WPL-WPM0805101
...
29
Wrapper, Outer Case WPL-D7379601
...
30
Wiring Harness WPL-D7701701
...
31
Gasket (Inch) WPL-A3030301
...
34
Sealer WPL-M0275501
...
35
Seal K WPL-B5738501
...
37
Screw WPL-M0253504
...
38
Washer WPL-M0273612
...
39
Clip WPL-M0114002
...
40
Insulation WPL-A3205602
...
41
Screw WPL-M0207943
...
43
Gasket WPL-B8343701
...
44
Relay, Control WPL-C8873903
...
45
Screw WPL-M0213815
...
46
Nut WPL-WP3400029
...
47
Air Duct Isolator WPL-C8822301
...
50
Guide-Strip WPL-C8812901
...
52
Screw WPL-WP3388228
...
55
Screw WPL-WP489349
...
56
Clip, Cord WPL-M0104102
...
57
Shield, Drip WPL-C8933801

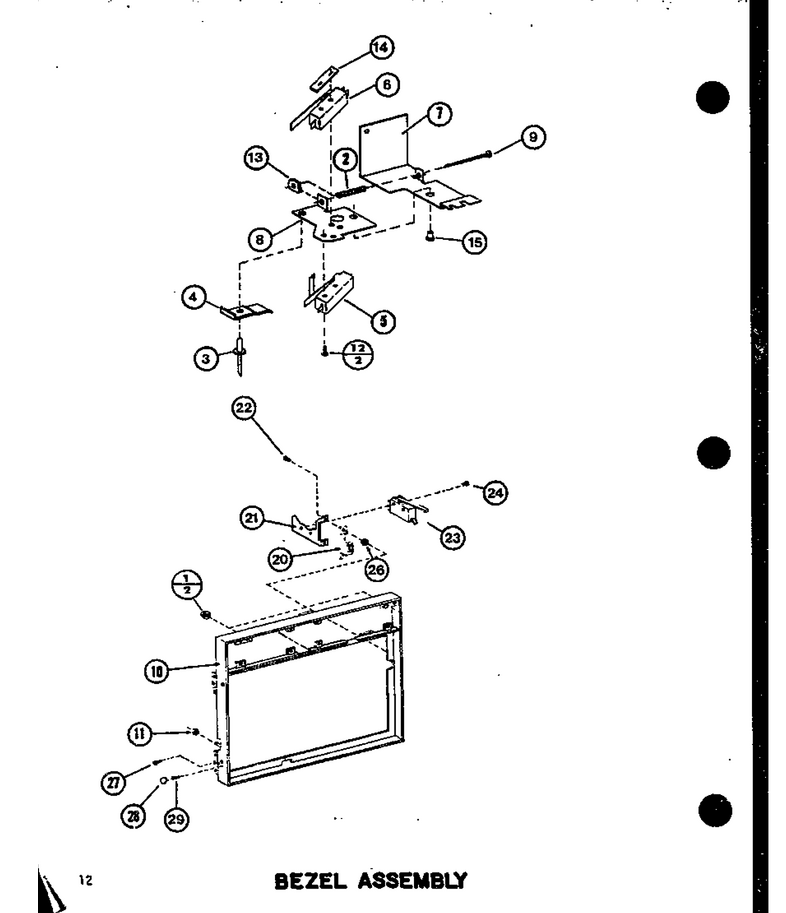

01 - Bezel Assy

...
...
1
Nut K WPL-M0120002
...
2
Spring A WPL-A3277701
...
3
Rivet-Pop WPL-59002054
...
4
Clip WPL-B8321802
...
5
Intlk Sw-Weld WPL-B8324002
...
6
Switch-Interlock (Limit) WPL-C3670014
...
7
Bracket Interlock WPL-B8332501
...
8
Bracket WPL-C8875301
...
9
Screw WPL-M0216539
...
10
Bezel-Outer Case WPL-D7293502
...
11
Nut, Self Thread WPL-M0283801
...
12
Screw WPL-M0213123
...
13
Speed Nut WPL-M0288010
...
14
Speednut WPL-M0289505
...
15
Rivet A-K WPL-M1205109
...
20
Strike-Latch WPL-C3680202
...
21
Bracket-Latch WPL-B5675403
...
22
Screw-Sm/hex WPL-12990523
...
23
Switch, Preform WPL-A3163415Q
...
24
Screw WPL-M0227520
...
26
Washer WPL-M0270502
...
27
Machine Screw WPL-M0205631
...
28
Tee Nut WPL-M0285903
...
29
Screw K WPL-M0205441

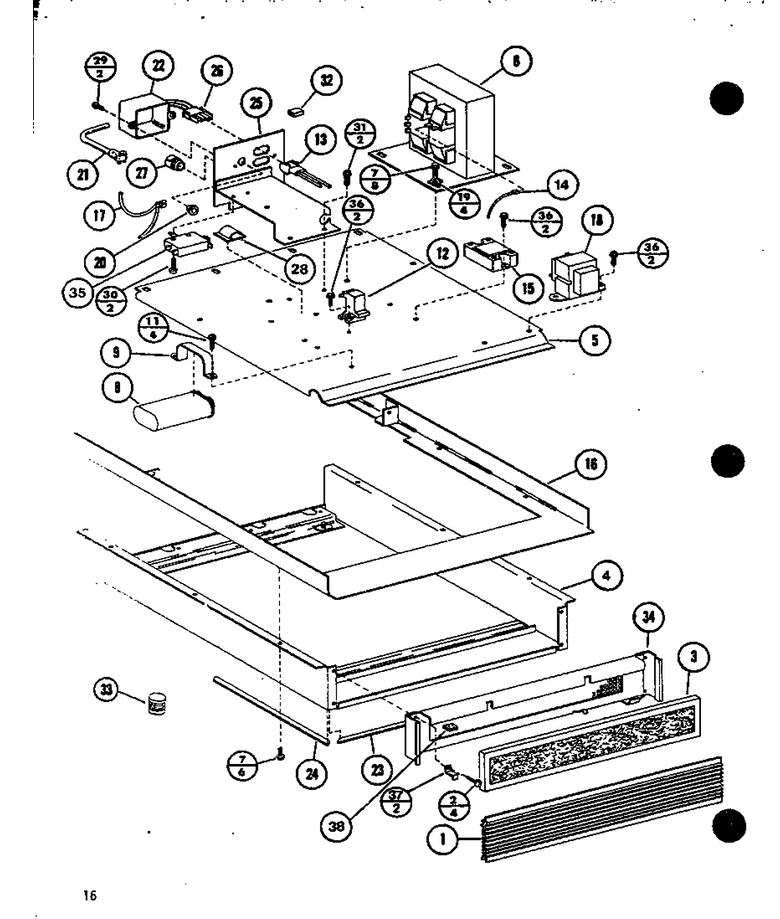

06 - Page 6

...
...
1
Grille Air Inlet WPL-C8708502
...
2
Screw WPL-M0213815
...
3
Filter WPL-B5714801
...
4
Base Pan Assembly WPL-C8709107
...
5
Chassis WPL-D7573603
...
6
Transformer-High Voltage, 208/ WPL-R0114320
...
7
Screw K WPL-M0253543
...
8
Capacitor-.85 WPL-59001651
...
9
Strap, Capacitor WPL-A4055405
...
11
Screw-Sm/hex WPL-12990523
...
12
Kit, Diode WPL-M3D71
...
13
Wiring Harness WPL-D7546101
...
14
Wire-Jumper, Filament Transfor (Filament Transformer No.4 To Ca WPL-D7365139
...
15
Relay WPL-R0150203
...
16
Oven Mtg Plate WPL-C8775302
...
17
Jumper Wire WPL-D7292683
...
18
Transformer, Auto WPL-C8901507
...
19
Lock Washer WPL-M0272805
...
20
Bushing WPL-A3293501
...
21
Power Cord Kit WPL-R0131016
...
22
Can, Capacitor WPL-B8334701
...
23
Gasket, Base Pan WPL-C8870702
...
24
Gasket, Base Pan WPL-C8870703
...
25
Strain Rel-Weld-Pntd WPL-C8879103
...
26
Wiring Harness WPL-C8899801
...
27
Strain Relief WPL-M0370007
...
28
Clip, Cord WPL-M0104102
...
29
Screw WPL-M0213815
...
30
Screw WPL-M0227520
...
31
Screw WPL-WP90767
...
32
Insulator, Term. K WPL-M0325301
...
33
Compound WPL-R0195031
...
34
Air Inlet Weld WPL-C8847903
...
35
Switch WPL-C8715203
...
36
Screw WPL-WP489349
...
37
Spring WPL-B8364201
...
38
Gasket WPL-C8870701
