Amana RC12090C2DR REV (BOM: RC12090C2DR B)

Model: RC12090C2DR REV (BOM: RC12090C2DR B)

Save Part Not Listed?
product name

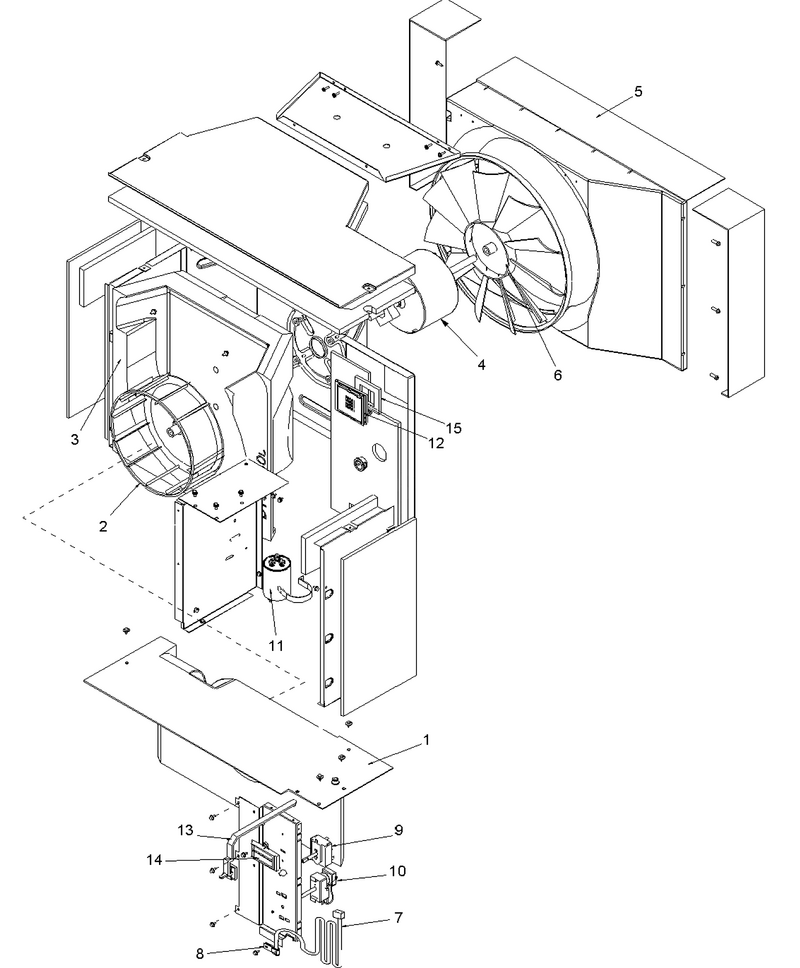

02 - Fan And Control Assy

...
...
NI
Service Ha WPL-BT1292201
...
1
Venturi, Fan WPL-BT3010004
...
2
Wheel, Blower WPL-BT1368002
...
3
Scroll WPL-BT3006005
...
4
Motor, 1/8hp 208/230v (serv) WPL-BT1340003S
...
5
Shroud, Fan (large) WPL-BT3011002
...
6
Fan Blade- WPL-BT1086702
...
7
Cord, Power (serv) WPL-BT1210005
...
8
Relief, Cord Power (small) WPL-BT1393400
...
9
Switch, Power (serv) WPL-BT1370803
...
10
Thermostat, Short Shaft (serv) WPL-BT1370801
...
11
Capacitor WPL-BT9457004
...
12
Door, Exhaust (rac) WPL-BT3076100
...
13
Linkage- WPL-BT3076202
...
14
Slide, Damper Control WPL-BT3076302
...
15
Foam Gasket WPL-BT1392611

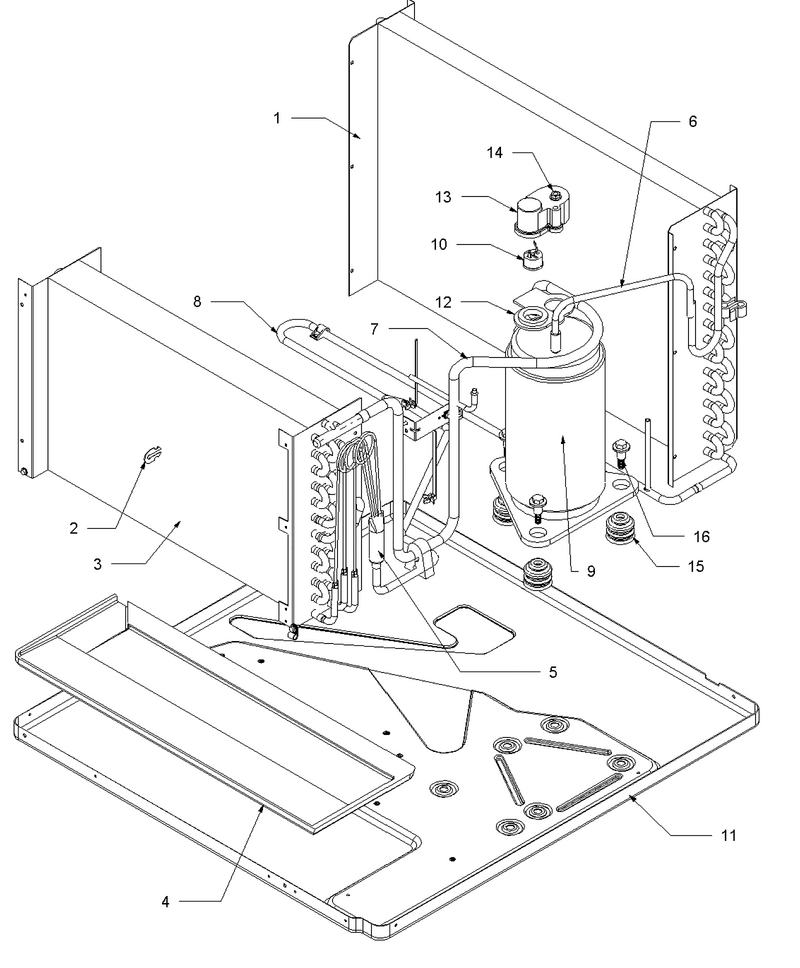

01 - Compressor Assy

...
...
1
Assy, Condenser Coil WPL-3096511
...
2
Clip, Bulb WPL-BT1531802
...
3
Assy, Evap Coil Tubing WPL-3096018
...
4
Pan, Drain (styrofoam Large) WPL-BT3005002
...
5
Assy, Capillary Tube WPL-3093854
...
6
Discharge Line WPL-30936257
...
7
Assy, Suction Line WPL-3093861
...
8
Assy, Liquid Line WPL-3093860
...
9
Compressor WPL-D9831804
...
10
Switch, Overload (serv) WPL-BT1243703
...
11
Assy, Basepan (large) WPL-3050209
...
12
Gasket, Compressor (tec) WPL-BT1392604
...
13
Plastic Cover WPL-BT3055505
...
14
Nut, (tecumseh) WPL-BT1393000
...
15
Grommet. Comp WPL-A3448601
...
16
Bolt, Comp. Shoulder 5/16-18 WPL-BT1393704

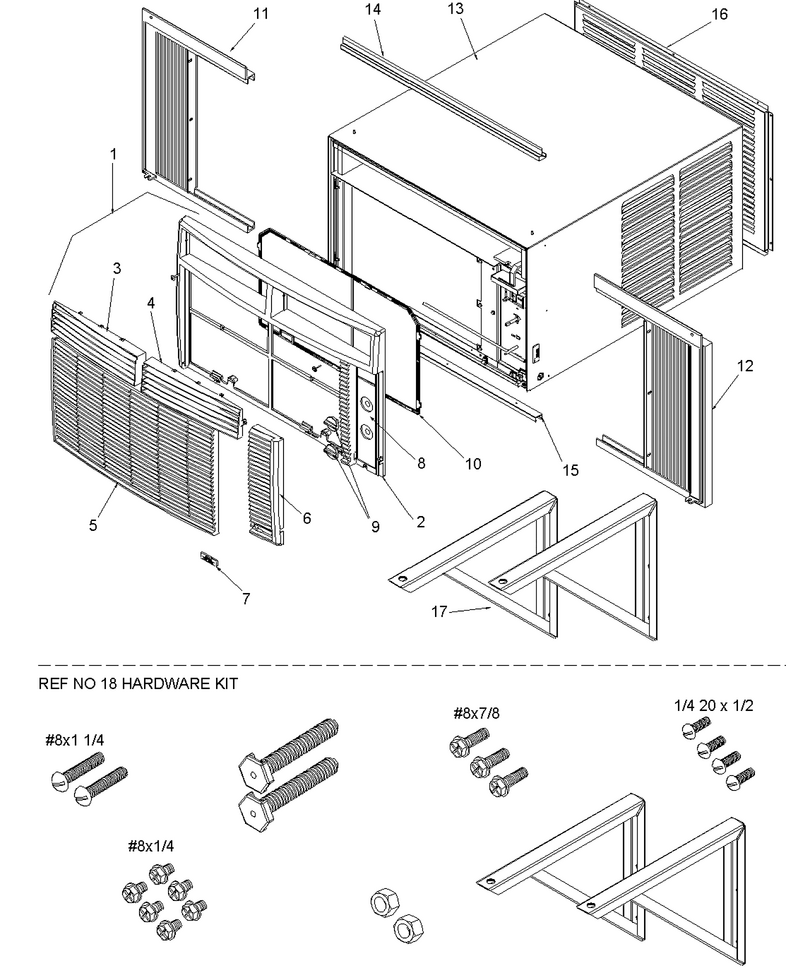

03 - Outer Case Assy

...
...
NI
Gasket WPL-10839702
...
1
Assy Front WPL-BT3075029
...
2
Assy Front WPL-BT3075029
...
3
Assy Front WPL-BT3075029
...
4
Assy Front WPL-BT3075029
...
5
Assy Front WPL-BT3075029
...
6
Door, Control (large) WPL-BT3075302
...
7
Logo, Plastic (goodman) WPL-BT3075913
...
8
Label, Control WPL-BT1493364
...
9
Knob- Rac WPL-WPBT3075631
...
10
Filter, Air (serv) WPL-BT1369602
...
11
Assy, Shutter Lg-Lt WPL-BT3074113
...
12
Assy, Shutter Lg-Rt WPL-BT3074112
...
13
Assy, Wrapper WPL-3050801
...
14
Support, Top (w/paint Lrg) WPL-3003002P
...
15
Support, Bottom (brk/paint Lrg WPL-3003102P
...
16
Pnl, Rear Louver (w/paint Lrg) WPL-3002206P
...
17
Brkt, Support (lrg Serv) WPL-3084002
...
18
Kit,hardware (large) WPL-BT1393205
