Amana RC10B-PB (BOM: P7458202M)

Model: RC10B-PB (BOM: P7458202M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

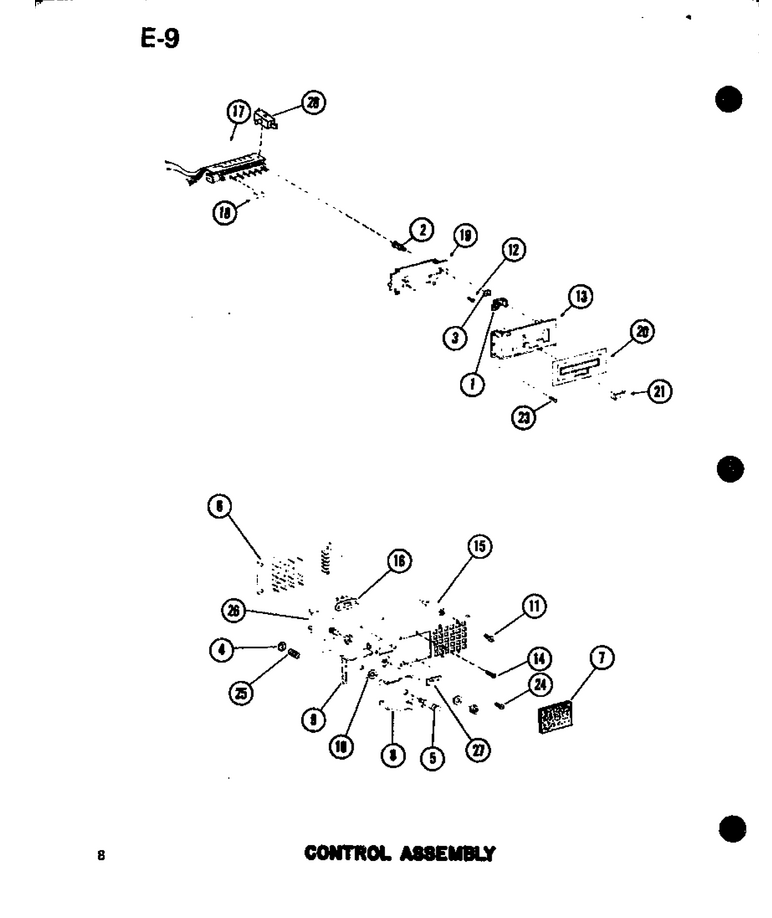

01 - Control Assy

...
...
1
Bracket Escutch WPL-B5760402
...
2
Screw WPL-M0234402
...
3
Speed Nut WPL-M0287713
...
4
Clip-Pin WPL-B8311801
...
5
Pin-Spring Retainer WPL-B8312001
...
6
Timer, Electronic WPL-D7443801
...
7
Screen, Air Inlet WPL-B8315701
...
8
Retainer-Grille WPL-B8317301
...
9
Pnl-Air Inlet WPL-D7457801
...
10
Clip-Guide WPL-M0118702
...
11
Screw WPL-M0213815
...
12
Screw A WPL-M0202513
...
13
Escutcheon, Timer WPL-C8868701
...
14
Screw WPL-WP489349
...
15
Support-Pc Board WPL-M0580503
...
16
Switch-Slide WPL-B8312101
...
17
Switch Assy Kit WPL-R0163042
...
18
Button Timer A-K WPL-B5674203
...
19
Plate-Switch WPL-B8313501
...
20
Thin Plate-El Time WPL-B5722501
...
21
Sight-Indicator WPL-B5723501
...
23
Screw WPL-M0253218
...
24
Screw A WPL-M0202516
...
25
Spring-Grille Ret WPL-B8315601
...
26
Circuit Brkr WPL-M0341302
...
27
Label-On Off WPL-A1008601
...
28
Switch WPL-B8327101

04 - Page 4

...
...
1

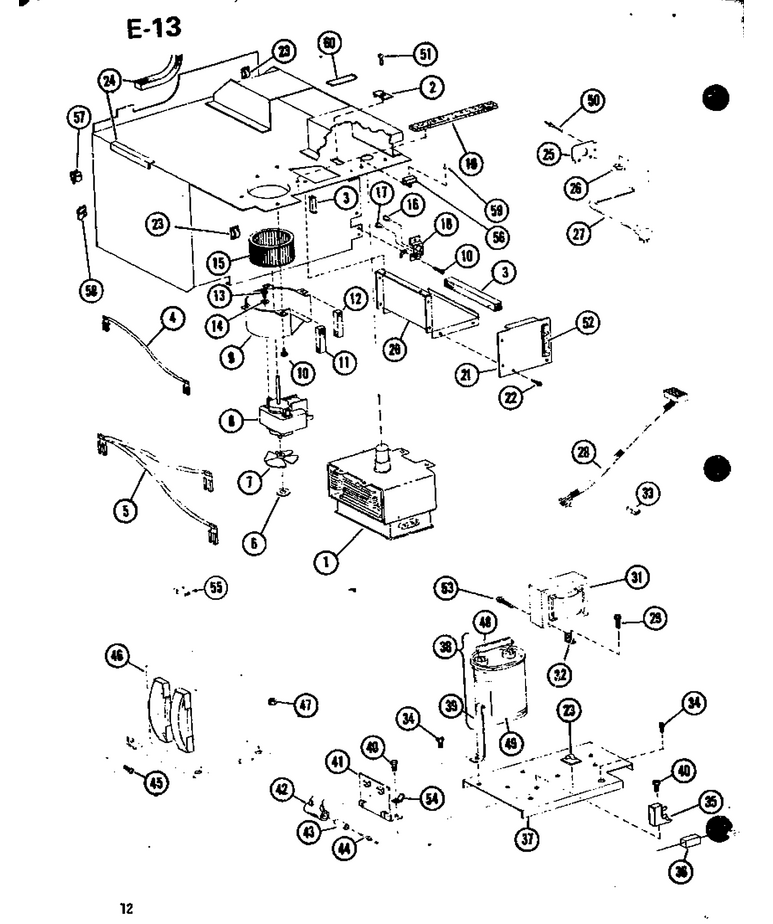

Kit, Magnetron WPL-C8798601
...
2
Brkt-Mag Tube WPL-B5774402
...
3
Gasket-Per Inch WPL-A3030311
...
4
Jumper Wire WPL-D7292627
...
5
Jumper Wire WPL-D7292650
...
6
Clip WPL-M0118901
...
7
Fan Blade-Blower WPL-B5706702
...
8
Motor Kit WPL-C8811601
...
9
Blower Scroll Wld WPL-C8710705
...
10
Screw WPL-WP489349
...
11
Gasket (Per Foot) WPL-A3030303
...
12
Gasket (Per Foot) WPL-10839706
...
13
Screw WPL-M0202642
...
14
Washer WPL-M0272605
...
15
Blower Wheel WPL-C3670805
...
16
Bushing,terminal WPL-M0325401
...
17
Bushing,terminal WPL-M0325402
...
18
Bracket-Connector WPL-A3230601
...
19
Gasket WPL-A3030302
...
20
Plenum Wld WPL-C8807901
...
21
Cover-Plenum WPL-A3230302
...
22
Screw WPL-WP489349
...
23
Clip WPL-M0118801
...
24
Grommet Per In. WPL-A3261703
...
25
Panel-Strain Relief WPL-B5722801
...
26
Strain Relief WPL-M0371301
...
27
Power Cord WPL-59001672
...
28
Wire Harness WPL-D7474001
...
29
Screw WPL-WP90767
...
31
Trans Filament WPL-C8798801
...
32
Brkt-Transformer WPL-B5779401
...
33
Insulator, Pod K WPL-M0325501
...
34
Screw-Sm/hex WPL-12990523
...
35
Kit, Diode WPL-M3D71
...
36
Resistor WPL-M0308502
...
37
Chassis-Pwr Supply WPL-C8714402
...
38
Capacitor Assy WPL-R0160027
...
39
Strap-Capacitor WPL-A3204505
...
40
Screw WPL-WP489349
...
41
Terminal Board WPL-B5780901
...
42
Resistor WPL-M0308604
...
43
Sleeve WPL-M0321701
...
44
Fuse WPL-M0308108
...
45
Screw WPL-WP489464
...
46
Transformer WPL-D7374901
...
47
Nut WPL-WP487939
...
48
Resistor A WPL-M0305202
...
49
Oil-Filled Capacitor WPL-C8790510
...
50
Rivet-Pop WPL-59002054
...
51
Screw WPL-M0216531
...
52
Gasket (Per Foot) WPL-A3030303
...
53
Screw WPL-M0218136
...
54
Terminal WPL-M0320901
...
55
Insulator, Term. K WPL-M0325301
...
56
Thermal Cut Out WPL-B5795302
...
57
Clip K WPL-M0110501
...
58
Clip WPL-M0118801
...
59
Screw WPL-M0234402
...
60
Tape-Per Roll WPL-M0275012

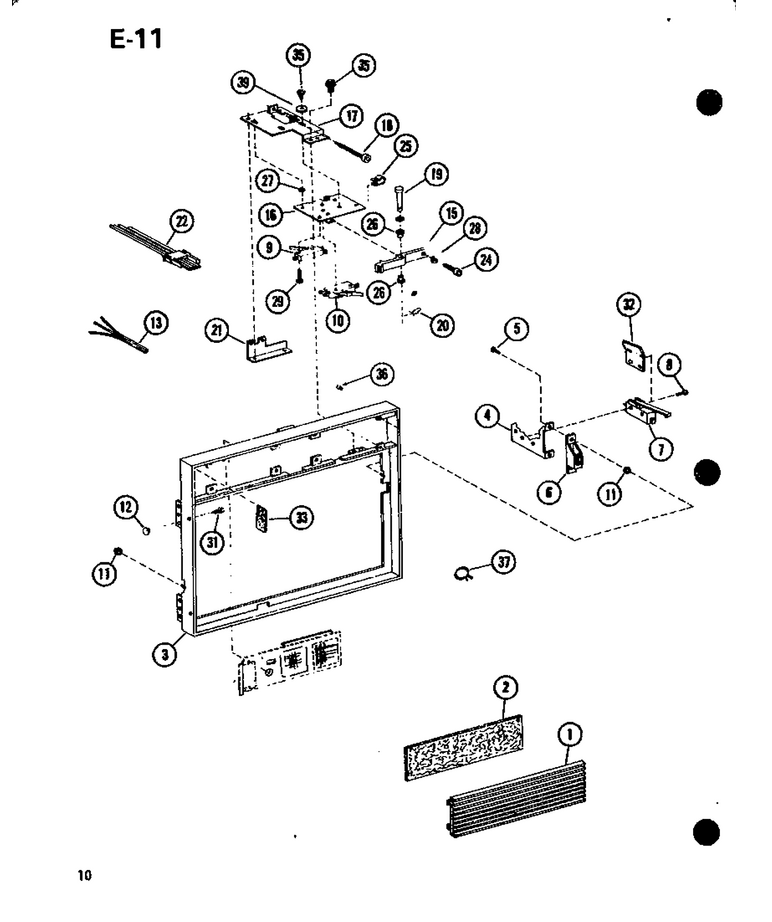

03 - Page 3

...
...
NI
Clip WPL-M0114901
...
1
Grille-Air Inlet WPL-C8853301
...
2
Filter WPL-A3094904
...
3
Bezel-Outer Case WPL-D7293502
...
4
Bracket-Latch WPL-B5675403
...
5
Screw-Sm/hex WPL-12990523
...
6
Strike-Latch WPL-C3680202
...
7
Switch-Preform WPL-A3163414
...
8
Screw WPL-M0227520
...
9
Switch-Interlock (Limit) WPL-C3670014
...
10
Switch-Interlock (Limit) WPL-C3670014
...
11
Nut, Self Thread WPL-M0283801
...
12
T Nut WPL-M0285902
...
13
Wire Harness Assy WPL-A1020801
...
14
Washer WPL-M0270524
...
15
Actuating Arm WPL-B5755701
...
16
Mtg Plate-Interlock WPL-B5747502
...
17
Adj Brkt-Switch WPL-B5747201
...
18
Screw WPL-M0231249
...
19
Pin-Retainer WPL-A3260201
...
20
Clip,hairpin WPL-A3171501
...
21
Brkt Supt-Interlock WPL-B5756101
...
22
Wiring Harness WPL-C8739801
...
24
Screw WPL-M0204617
...
25
Clamp WPL-M0102301
...
26
See Svc Ltr Cr-163d WPL-A3168101
...
27
Washer Non-Metal WPL-M0274032
...
28
Nut K WPL-M0282005
...
29
Screw WPL-M0227520
...
31
Screw, Nylock WPL-M0205442
...
32
Guard-Switch WPL-A1013901
...
33
Gasket WPL-B5107619
...
35
Screw WPL-M0213815
...
36
Screw WPL-WP489349
...
37
Wire Tie WPL-M0321204
...
39
Washer Non-Metal WPL-M0274032

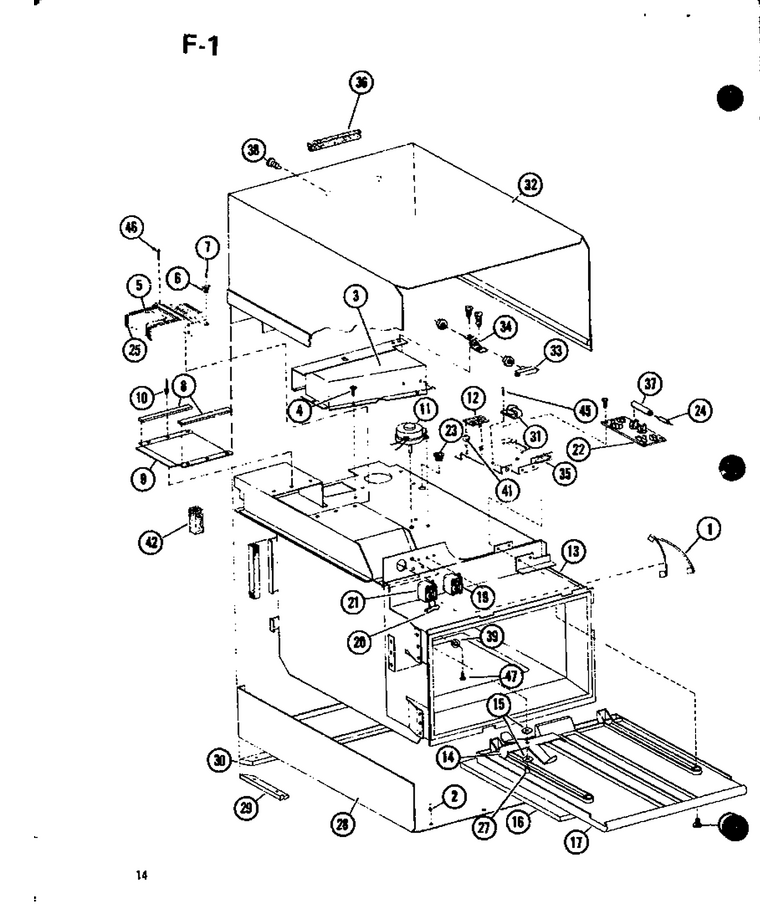

05 - Page 5

...
...
NI
Sealer WPL-M0275501
...
1
Jumper Wire WPL-C3655860
...
2
Pop Rivet WPL-A4539602
...
3
Air Duct Wld WPL-D7262902
...
4
Screw WPL-WP489349
...
5
Assy, Isolator, With Gaskets A WPL-C8720509
...
6
Thermal Protector WPL-B5684102
...
7
Screw WPL-M0234114
...
8
Gasket K WPL-A4591129
...
9
Cover-Isolator WPL-B5714101
...
10
Rivet WPL-WP210720
...
11
Motor WPL-B5602809
...
12
Buzzer Control WPL-C8770601
...
13
Weldment, Oven WPL-D7265708
...
14
Stirrer Blade (Antenna) WPL-C8708601
...
15
Washer WPL-A3109101
...
16
Tray-Oven WPL-B5795002
...
17
Grease Shi WPL-R0157214
...
18
Screw WPL-A1002301
...
19
Gasket WPL-C3669101
...
20
Resistor, Relay A WPL-M0305007
...
21
Relay Kit WPL-R0159006
...
22
Terminal Board WPL-C8844701
...
23
Snap Bushing WPL-A3293503
...
24
Fuse Resistor K WPL-M0308109
...
25
Gasket K WPL-A3225402
...
27
Clip WPL-M0114002
...
28
0c Bottom Wld WPL-D7262401
...
29
Gasket WPL-C8732601
...
30
Gasket WPL-C8732602
...
31
Buzzer WPL-B5787001
...
32
Top Assy WPL-C8757503
...
33
Switch Oc Intlk K WPL-C8715202
...
34
Bracket-Switch WPL-B5743701
...
35
Plate-Mult Mtg WPL-C8756502
...
36
Gasket-Cavity Top WPL-10839709
...
37
Resistor K WPL-M0308607
...
38
Screw WPL-WP3388228
...
39
Washer WPL-M0273612
...
41
Supt Ckt Bd A WPL-B5675501
...
42
Gasket-Cavity Top WPL-10839709
...
45
Screw WPL-M0218115
...
46
Screw WPL-M0234114
...
47
Screw WPL-WP90767

02 - Page 1

...
...
1

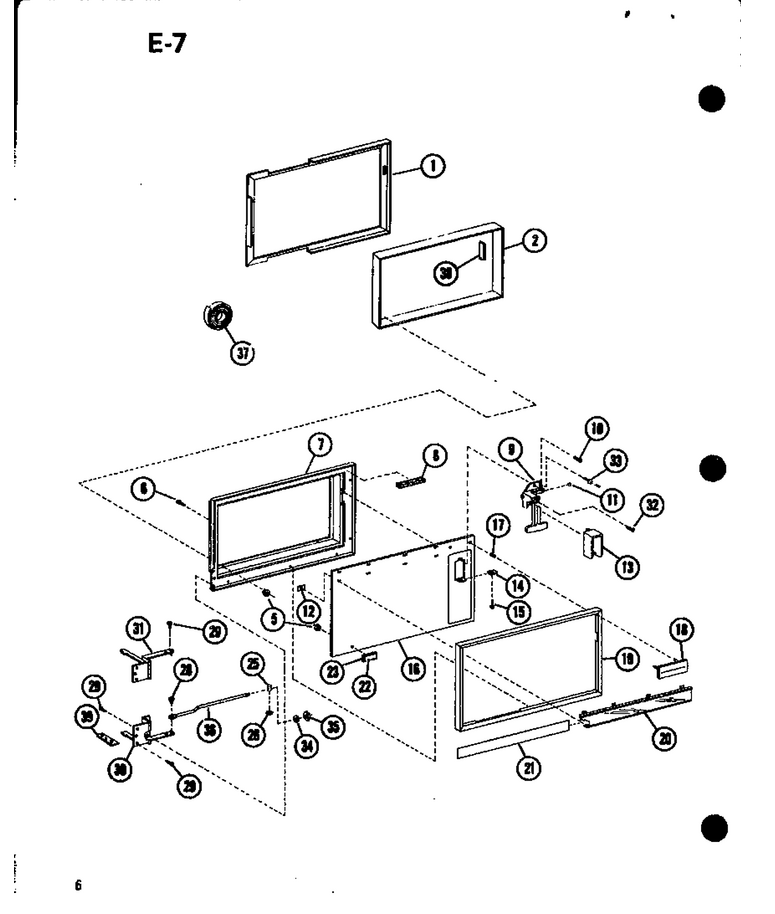

Gasket WPL-D7396401
...
2
Door, Inner WPL-D7413802
...
5
Nut WPL-717488
...
6
Screw T.c WPL-M0229916
...
7
Weldment, Inner Door Ring WPL-D7132501
...
8
Gasket WPL-A4591128
...
9
Door Latch Assembly WPL-D7178504
...
10
Screw WPL-WPW10068250
...
11
Guides Hndl K WPL-A3195701
...
12
Clip WPL-M0286401
...
13
Bezel-Door Handle WPL-B5671901
...
14
Speed Nut WPL-M0288102
...
15
Screw, No.6x18x1/4 (3) WPL-487010
...
16
Panel Outer Door K WPL-D7178601
...
17
Clip-Push WPL-M0118905
...
18
Esc-Logo WPL-C3668803
...
19
Outer Door Ring WPL-D7667701
...
20
Lens-Menu Guide WPL-B5674501
...
21
Menu Guide WPL-C8713301
...
22
Insert-Medallion WPL-B5694718
...
23
Medallion WPL-B5694901
...
25
Guide-Door Stop WPL-A3181801
...
26
Bushing WPL-A3182101
...
28
Bushing-Door Arm WPL-A3185001
...
29
Screw WPL-M0253230
...
30
Hinge-Bottom WPL-C3666306
...
31
Hinge-Top WPL-C3666305
...
32
Screw WPL-M0234030
...
33
Rivet, Pop (Wht) WPL-B5642901
...
34
Washer WPL-M0270501
...
35
Nut WPL-WP488130
...
36
Arm, Dr Stop K WPL-B5748702
...
37
Tape Per Roll WPL-M0275163
...
38
Sealer WPL-M0275501
...
39
Shim-Hinge WPL-A3250301
