Amana RC10B-PB (BOM: P7354701M)

Model: RC10B-PB (BOM: P7354701M)

Save Part Not Listed?
product name

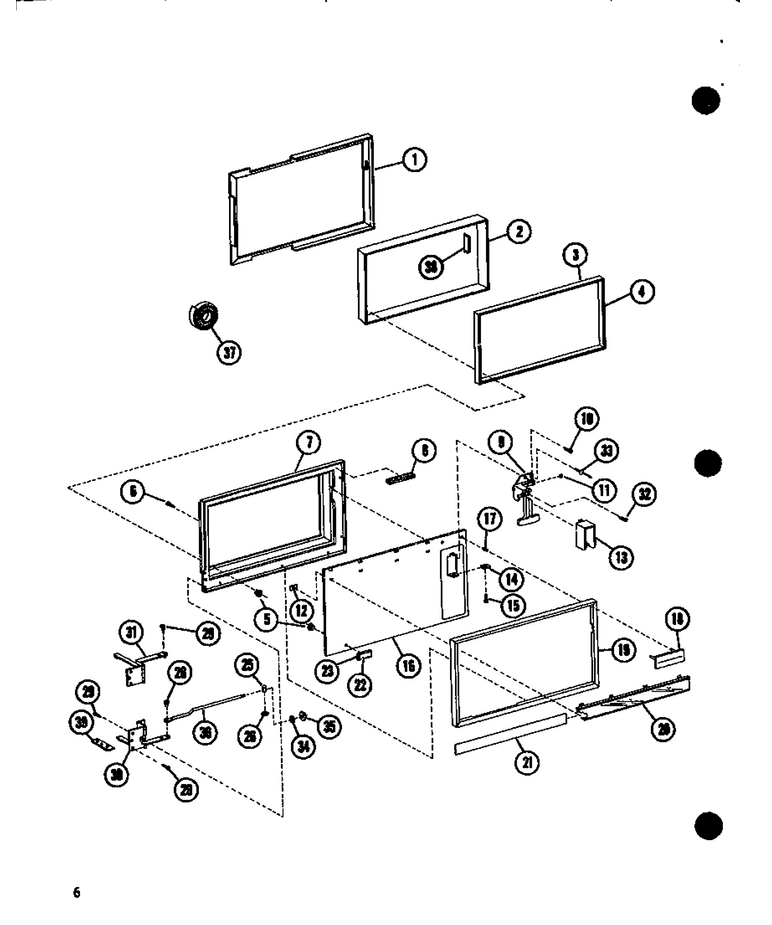

02 - Page 1

...
...
1
Gasket WPL-C3669101
...
2
Inner Door Kit WPL-R0156665
...
3
Gasket WPL-B5686004
...
4
Gasket WPL-B5686003
...
5
Nut WPL-717488
...
6
Screw WPL-214597
...
7
Weldment, Inner Door Ring WPL-D7132501
...
8
Gasket WPL-A4591128
...
9
Door Latch Assy WPL-R0157316
...
10
Screw WPL-WPW10068250
...
11
Guides Hndl K WPL-A3195701
...
12
Clip WPL-M0286401
...
13
Bezel-Door Handle WPL-B5671901
...
14
Speed Nut WPL-M0288102
...
15
Screw, No.6x18x1/4 (3) WPL-487010
...
16
Panel Outer Door K WPL-D7178601
...
17
Clip-Push WPL-M0118905
...
18
Esc-Logo WPL-C3668803
...
19
Outer Door Ring WPL-D7667701
...
20
Lens-Menu Guide WPL-B5674501
...
21
Menu Guide WPL-C8713301
...
22
Insert-Medallion WPL-B5694718
...
23
Medallion WPL-B5694901
...
25
Guide-Door Stop WPL-A3181801
...
26
Bushing WPL-A3182101
...
28
Bushing-Door Arm WPL-A3185001
...
29
Screw WPL-M0253230
...
30
Hinge-Bottom WPL-C3666306
...
31
Hinge-Top WPL-C3666305
...
32
Screw WPL-M0234030
...
33
Rivet, Pop (Wht) WPL-B5642901
...
34
Washer WPL-M0270501
...
35
Nut WPL-WP488130
...
36
Arm, Dr Stop K WPL-B5748702
...
37
Tape Per Roll WPL-M0275163
...
38
Sealer WPL-M0275501
...
39
Shim-Hinge WPL-A3250301

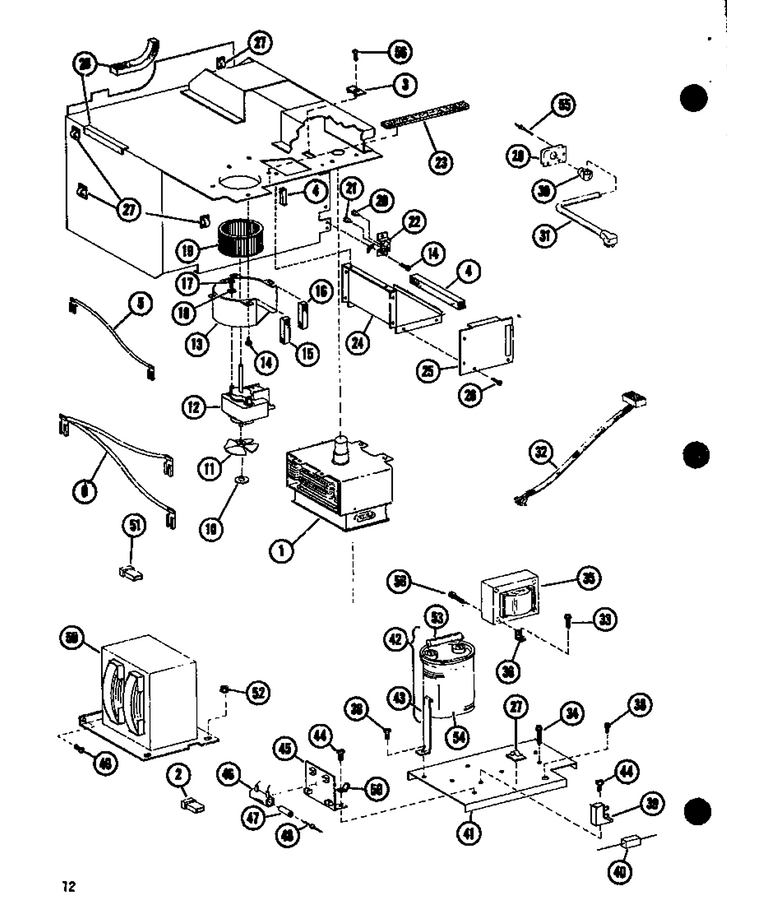

04 - Page 4

...
...
1
Kit, Magnetron WPL-C8798601
...
2
Insulator, Term. K WPL-M0325301
...
3
Brkt-Mag Tube WPL-B5774401
...
4
Gasket-Per Inch WPL-A3030311
...
5
Jumper Wire WPL-D7292656
...
6
Jumper Wire WPL-D7292650
...
10
Clip WPL-M0118901
...
11
Fan Blade-Blower WPL-B5706702
...
12
Motor Kit WPL-C8811601
...
13
Blower Scroll Wld WPL-C8710705
...
14
Screw WPL-M0218115
...
15
Gasket (Per Foot) WPL-A3030303
...
16
Gasket (Per Foot) WPL-10839706
...
17
Screw WPL-M0204701
...
18
Washer WPL-M0272605
...
19
Blower Wheel WPL-C3670805
...
20
Bushing,terminal WPL-M0325401
...
21
Bushing,terminal WPL-M0325402
...
22
Bracket-Connector WPL-A3230601
...
23
Gasket WPL-A3030302
...
24
Plenum Wld WPL-C8807901
...
25
Cover-Plenum WPL-A3230302
...
26
Screw WPL-M0218115
...
27
Clip WPL-WPM0104106
...
28
Grommet Per In. WPL-A3261703
...
29
Panel-Strain Relief WPL-B5722801
...
30
Strain Relief WPL-M0371301
...
31
Power Cord WPL-59001672
...
32
Wiring Harness WPL-D7378301
...
33
Screw WPL-WP90767
...
34
Screw WPL-M0204315
...
35
Trans Filament WPL-C8798801
...
36
Brkt-Transformer WPL-B5779401
...
38
Screw-Sm/hex WPL-12990523
...
39
Kit, Diode WPL-M3D71
...
40
Resistor WPL-M0308502
...
41
Chassis-Pwr Supply WPL-C8714402
...
42
Capacitor Assy WPL-R0160027
...
43
Strap-Capacitor WPL-A3204504
...
44
Screw WPL-M0218116
...
45
Terminal Board WPL-B5780901
...
46
Resistor WPL-M0308604
...
47
Sleeve WPL-M0321701
...
48
Fuse WPL-M0308110
...
49
Screw WPL-WP489464
...
50
Transformer WPL-D7374901
...
51
Insulator, Pod K WPL-M0325501
...
52
Nut WPL-WP487939
...
53
Resistor A WPL-M0305202
...
54
Oil-Filled Capacitor WPL-C8790510
...
55
Rivet-Pop WPL-59002054
...
56
Screw (3) WPL-67006425
...
58
Screw WPL-M0218136
...
59
Terminal WPL-M0320901

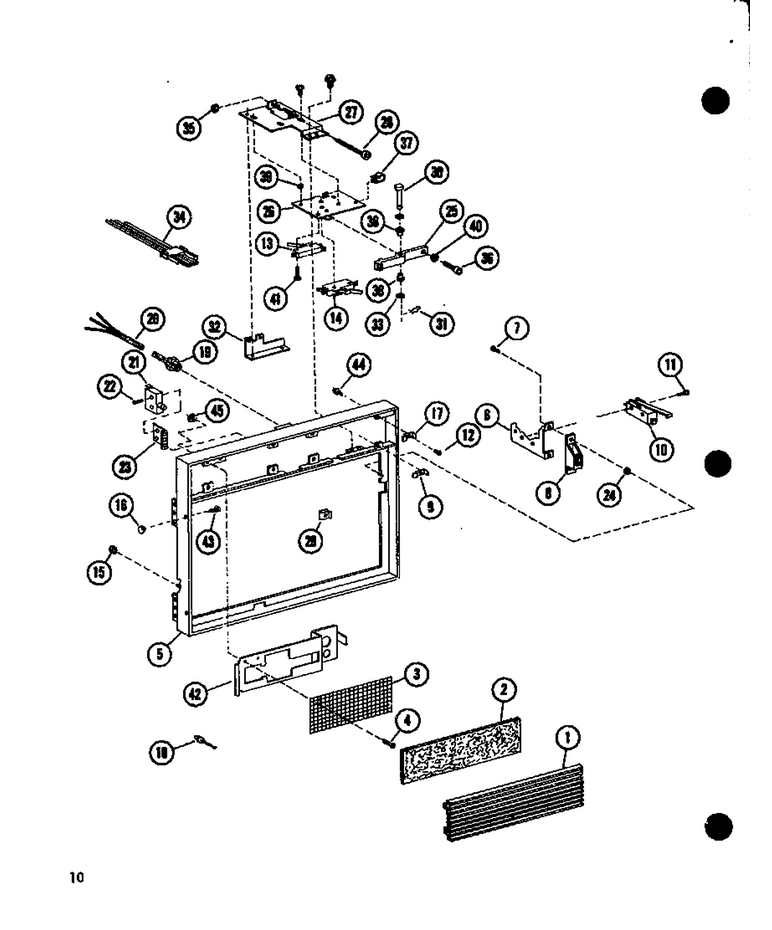

03 - Page 3

...
...
NI
Screw WPL-M0230015
...
1
Grill, Air Inlet WPL-C3678403
...
2
Filter WPL-A3094903
...
3
Screen WPL-B5672305
...
4
Screw WPL-WP59002061
...
5
Bezel, Outer Case WPL-D7293501
...
6
Bracket-Latch WPL-B5675403
...
7
Screw WPL-M0218117
...
8
Strike-Latch WPL-C3680202
...
9
Bracket Escutch WPL-B5760402
...
10
Switch Preform WPL-A3163406
...
11
Screw WPL-M0227520
...
12
Clip A WPL-M0113006
...
13
Switch-Interlock (Limit) WPL-C3670014
...
14
Switch-Interlock (Limit) WPL-C3670014
...
15
Nut, Self Thread WPL-M0283801
...
16
T Nut WPL-M0285902
...
17
Brkt-Escutcheon WPL-B5760401
...
18
Pop Rivet WPL-A4539607
...
19
Socket Assy K WPL-R0164101
...
20
Wiring Harness WPL-D7378401
...
21
Limit Switch WPL-C8715201
...
22
Screw WPL-M0227520
...
23
Bracket-Panel WPL-A3230201
...
24
Washer WPL-M0270524
...
25
Actuating Arm WPL-B5755701
...
26
Mtg Plate-Interlock WPL-B5747502
...
27
Adj Brkt-Switch WPL-B5747201
...
28
Adj Screw WPL-A3262501
...
29
Nut K WPL-M0288001
...
30
Pin-Retainer WPL-A3260201
...
31
Clip,hairpin WPL-A3171501
...
32
Brkt Supt-Interlock WPL-B5756101
...
33
Washer WPL-M0270524
...
34
Wiring Harness WPL-C8739801
...
35
E Ring External K WPL-M0274301
...
36
Screw WPL-M0204617
...
37
Clamp WPL-M0102301
...
38
See Svc Ltr Cr-163d WPL-A3168101
...
39
Washer Non-Metal WPL-M0274032
...
40
Nut K WPL-M0282005
...
41
Screw WPL-M0227520
...
42
Bezel Insert WPL-D7292701
...
43
Screw, Nylock WPL-M0205442
...
44
Screw-Sm/hex WPL-12990523
...
45
Washer WPL-M0270502

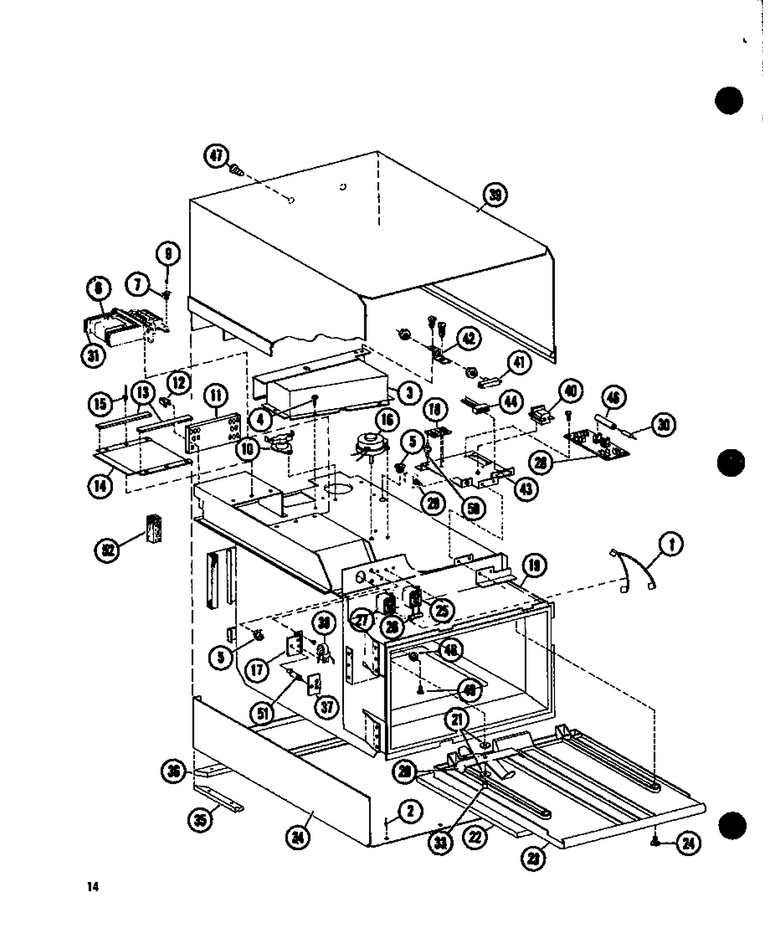

05 - Page 5

...
...
NI
Rtv (Blk) WPL-M0275560
...
1
Jumper Wire WPL-C3655860
...
2
Pop Rivet WPL-A4539602
...
3
Air Duct Wld WPL-D7262902
...
4
Screw WPL-M0218115
...
5
Snap Bushing WPL-A4554806
...
6
Assembly, Isolator, With Gaske WPL-C8720505
...
7
Thermal Protector WPL-B5684102
...
9
Screw WPL-M0234114
...
10
Screw WPL-WP489349
...
11
X$x End W-G WPL-A3184901
...
12
Clip WPL-M0113503
...
13
Gasket K WPL-A4591129
...
14
Cover-Isolator WPL-B5714101
...
15
Rivet WPL-WP210720
...
16
Motor WPL-B5602809
...
17
Brkt-Time Delay WPL-A3230402
...
18
Time Delay WPL-B5691003
...
19
Oven Wld WPL-D7265703
...
20
Stirrer Blade (Antenna) WPL-C8708601
...
21
Washer WPL-A3109101
...
22
Tray, Oven WPL-B5748801
...
23
Grease Shi WPL-R0157214
...
24
Screw Retainer WPL-A3245601
...
25
Relay Kit WPL-R0159006
...
26
Resistor, Relay A WPL-M0305007
...
27
Relay Kit WPL-C3669601
...
28
Board-Multiprotector WPL-B5751401
...
29
Circuit Breaker WPL-M0341301
...
30
Fuse WPL-M0308101
...
31
Gasket K WPL-A3225401
...
33
Clip WPL-M0114002
...
34
0c Bottom Wld WPL-D7262401
...
35
Gasket WPL-C8732601
...
36
Gasket WPL-C8732602
...
37
Buzzer Control WPL-C8770601
...
38
Buzzer WPL-B5787001
...
39
Top Assy WPL-C8757503
...
40
Relay WPL-B5674306
...
41
Switch Oc Intlk K WPL-C8715202
...
42
Bracket-Switch WPL-B5743701
...
43
Mtg Plate WPL-C8756501
...
44
Wiring Harness WPL-B5788301
...
46
Resistor Fuse Kit WPL-R0157332
...
47
Screw WPL-WP3388228
...
48
Washer WPL-M0273612
...
49
Screw WPL-M0234025
...
50
Supt Ckt Bd A WPL-B5675501
...
51
Support WPL-B5763401
...
52
Gasket-Cavity Top WPL-10839709

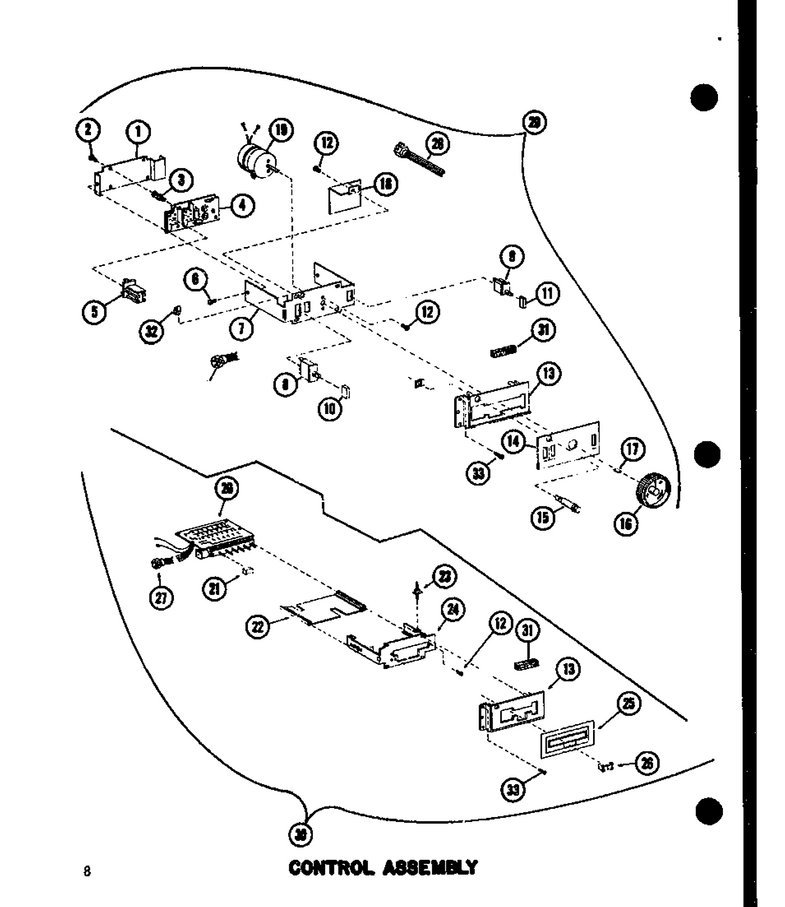

01 - Control Assy

...
...
NI
Adhensive, Door Insert WPL-A4591601
...
6
Screw WPL-M0218115
...
12
Screw WPL-W11084238
...
13
Escutcheon Timer A WPL-C8868702
...
20
Timer Assy WPL-D7210901
...
21
Button Timer A-K WPL-B5674201
...
22
Cover Timer A WPL-B5674601
...
23
Supt Ckt Bd A WPL-B5675501
...
24
Brkt-Timer WPL-C3666103
...
25
Thin Plate-El Time WPL-B5722501
...
26
Sight-Indicator WPL-B5723501
...
27
Socket Assy WPL-R0164011
...
30
Timer Assy WPL-D7217008
...
31
Gasket WPL-10839712
...
33
Screw WPL-M0253218
