Amana RC10B-PB (BOM: P7265001M)

Model: RC10B-PB (BOM: P7265001M)

Save Part Not Listed?
product name

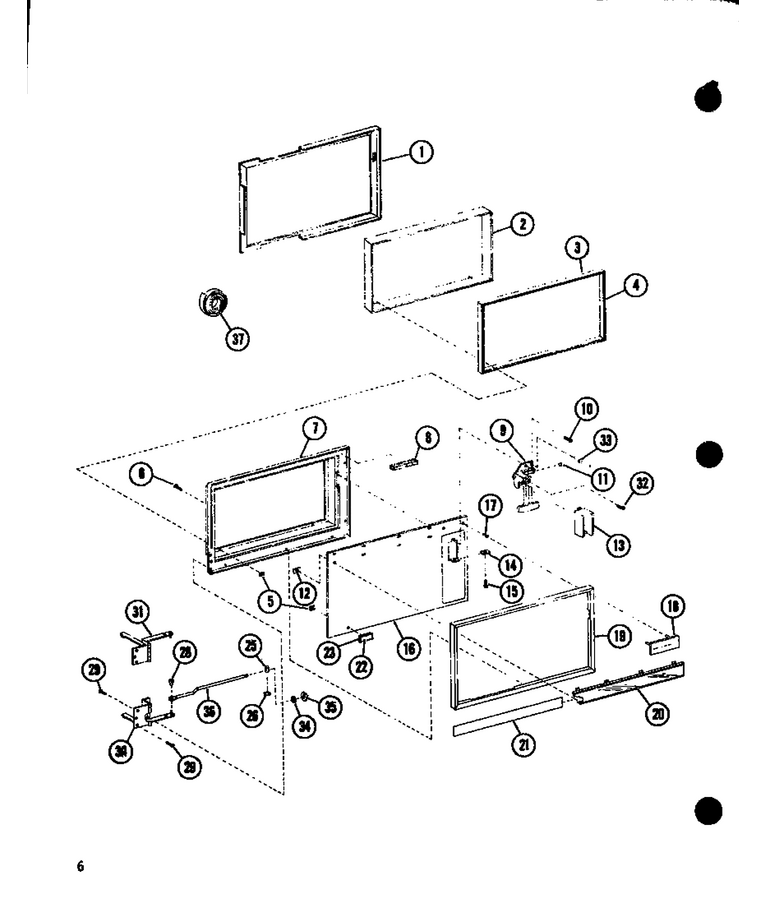

02 - Page 1

...
...
1
Gasket WPL-C3669101
...
2
Inner Door Kit WPL-R0156665
...
3
Gasket WPL-B5686003
...
4
Gasket WPL-B5686004
...
5
Nut WPL-717488
...
6
Screw WPL-214597
...
7
Weldment, Inner Door Ring WPL-D7132501
...
8
Gasket WPL-A4591128
...
9
Door Latch Assy WPL-R0157316
...
10
Screw WPL-WPW10068250
...
11
Guides Hndl K WPL-A3195701
...
12
Clip WPL-M0286401
...
13
Bezel-Door Handle WPL-B5671901
...
14
Nut K WPL-M0288001
...
15
Screw, No.6x18x1/4 (3) WPL-487010
...
16
Panel Outer Door K WPL-D7178601
...
17
Clip-Push WPL-M0118905
...
18
Esc-Logo WPL-C3668803
...
19
Outer Door Ring WPL-D7667701
...
20
Lens-Menu Guide WPL-B5674501
...
21
Menu Guide WPL-C8713301
...
22
Insert-Medallion WPL-B5694718
...
23
Medallion WPL-B5694901
...
25
Guide-Door Stop WPL-A3181801
...
26
Bushing WPL-A3182101
...
28
Bushing-Door Arm WPL-A3185001
...
29
Screw WPL-M0253230
...
30
Hinge-Bottom WPL-C3666306
...
31
Hinge-Top WPL-C3666305
...
32
Screw WPL-M0234030
...
33
Rivet, Pop (Wht) WPL-B5642901
...
34
Washer WPL-M0270501
...
35
Nut WPL-WP488130
...
36
Arm, Dr Stop K WPL-B5748702
...
37
Tape Per Roll WPL-M0275163

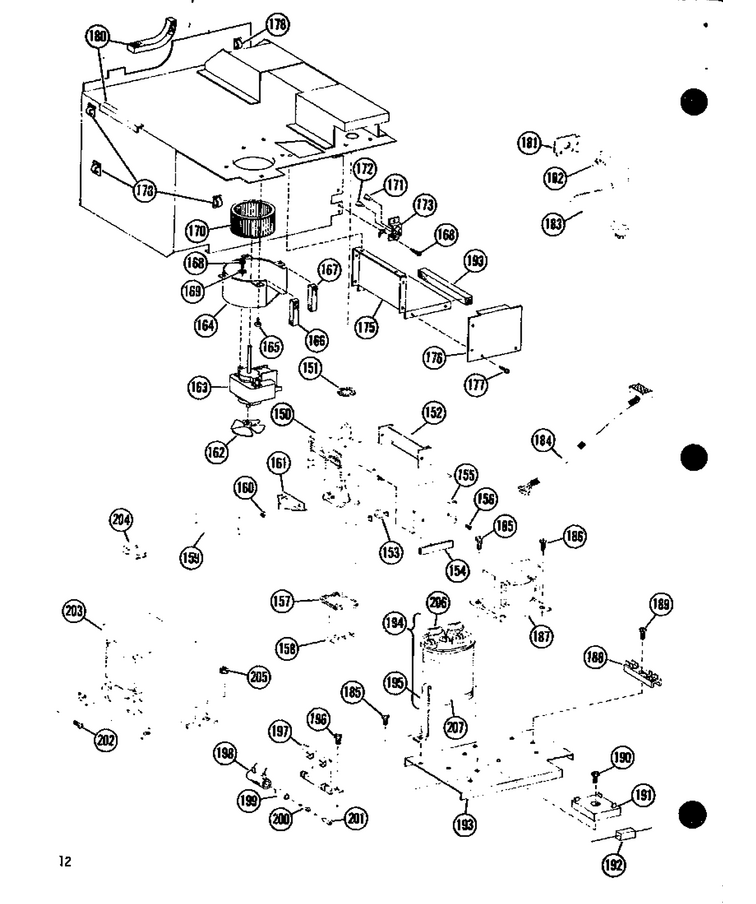

04 - Page 4

...
...
150
Assembly, Magnetron WPL-D7138201
...
151
Gasket, Magnetron WPL-A3185102
...
152
Baffle WPL-B5694001
...
153
Capacitor K WPL-A3148801
...
154
High Voltage Sticker WPL-A3097301
...
155
Plate WPL-B5694101
...
156
Screw WPL-WP90767
...
157
Cover Cap Box K WPL-B5647901
...
158
Bale Strap K WPL-A3145401
...
159
Shield Hv K WPL-B5656001
...
160
Hex Nut WPL-M0281901
...
161
Clip K WPL-B5655902
...
162
Fan Blade-Blower WPL-B5706702
...
163
Motor Kit WPL-C3670903
...
164
Blower Scroll Wld WPL-C8710705
...
165
Screw WPL-M0218115
...
166
Gasket (Per Foot) WPL-A3030303
...
167
Gasket (Per Foot) WPL-10839706
...
168
Screw WPL-M0204701
...
169
Washer WPL-M0272605
...
170
Blower Wheel WPL-C3670805
...
171
Bushing,terminal WPL-M0325401
...
172
Bushing,terminal WPL-M0325402
...
173
Bracket-Connector WPL-A3230601
...
174
Gasket WPL-A3030302
...
175
Plenum-Magnetron WPL-C8714302
...
176
Cover-Plenum WPL-A3230301
...
177
Screw WPL-M0218115
...
178
Clip WPL-WPM0104106
...
180
Grommet Per In. WPL-A3261703
...
181
Panel-Strain Relief WPL-B5722801
...
182
Strain Relief WPL-M0371301
...
183
Power Cord WPL-59001672
...
184
Wiring Harness WPL-D7214301
...
185
Screw WPL-WP90767
...
186
Screw WPL-M0204315
...
187
Transformer-Filament WPL-C3663905
...
188
Terminal Block WPL-B5677203
...
189
Screw, No.6x18x1/4 (3) WPL-487010
...
190
Screw-Sm/hex WPL-12990523
...
191
Rectifier WPL-B5672401
...
192
Resistor-5w Gr WPL-A3232901
...
193
Chassis, Power Supply WPL-C8714401
...
194
Capacitor, H.v. With M3052-2 R WPL-R0160003
...
195
Strap-Capacitor WPL-A3204504
...
196
Screw WPL-M0218116
...
197
Terminal Board WPL-B5687401
...
198
Resistor, 4 Ohm, 8 Watt WPL-M0305010
...
199
Sleeve WPL-M0321701
...
200
Fuse WPL-M0308110
...
201
Sleeve K WPL-M0321702
...
202
Screw WPL-WP489464
...
203
Transformer Plate WPL-D7309401
...
204
Insulator, Term. K WPL-M0325301
...
205
Nut WPL-WP487939
...
206
Resistor A WPL-M0305202
...
207
Capacitor WPL-C3666504

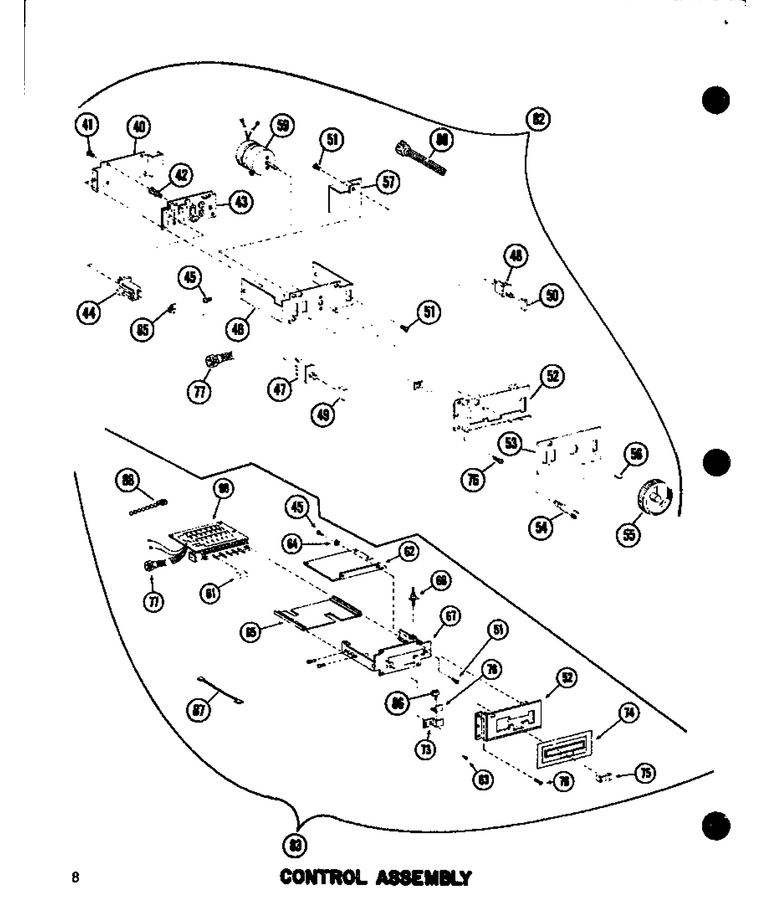

01 - Control Assy

...
...
NI
Rivet-Drive WPL-M0560103
...
45
Screw WPL-M0218115
...
51
Screw WPL-W11084238
...
52
Escutcheon Timer A WPL-C8868702
...
59
Timer-Dial A WPL-C3680404
...
60
Timer Assy WPL-D7210901
...
61
Button Timer A-K WPL-B5674201
...
62
Insulation A WPL-C3679301
...
64
Washer WPL-M0270524
...
65
Cover Timer A WPL-B5674601
...
66
Supt Ckt Bd A WPL-B5675501
...
67
Bracket, Timer Mtg. WPL-C3666102
...
73
Bracket Timer WPL-A3230101
...
74
Thin Plate-El Time WPL-B5722501
...
75
Sight-Indicator WPL-B5723501
...
77
Socket Assy WPL-R0164011
...
78
Insulator Sheet WPL-A3230701
...
83
Timer Assy WPL-D7217003
...
86
Switch-Toggle WPL-M0341701
...
87
Jumper Wire WPL-C3655866
...
88
Wire Tie WPL-M0321204

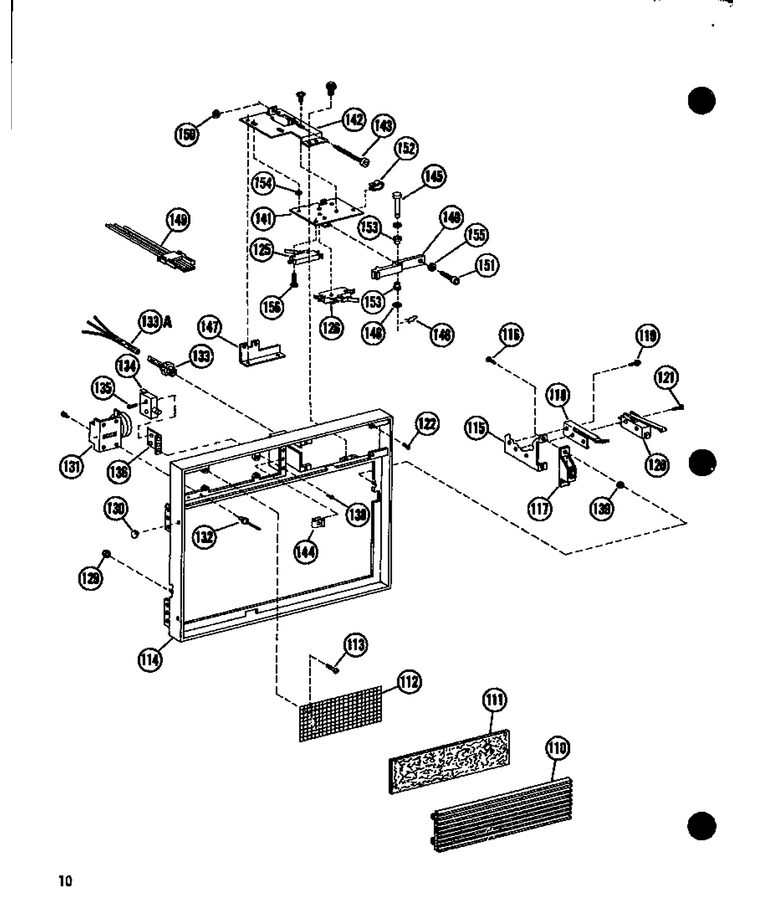

03 - Page 3

...
...
NI
Screw WPL-M0230015
...
110
Grill, Air Inlet WPL-C3678403
...
111
Filter WPL-A3094903
...
112
Screen-Air Inlet WPL-B5672303
...
113
Screw WPL-WP59002061
...
114
Bezel, Outer Case WPL-D7133404
...
115
Bracket-Latch WPL-B5675403
...
116
Screw WPL-M0218117
...
117
Strike-Latch WPL-C3680202
...
118
Spring-Latch WPL-A3186401
...
119
Screw WPL-M0232012
...
120
Switch Preform WPL-A3163406
...
121
Screw WPL-M0227520
...
122
Clip A WPL-M0113006
...
125
Switch-Interlock (Limit) WPL-C3670014
...
126
Switch-Interlock (Limit) WPL-C3670014
...
129
Nut, Self Thread WPL-M0283801
...
130
T Nut WPL-M0285902
...
131
Meter WPL-C8701101
...
132
Pop Rivet WPL-A4539602
...
133
Wiring Harness-Oven WPL-D7279301
...
134
Limit Switch WPL-C8715201
...
135
Screw WPL-M0227520
...
136
Bracket-Panel WPL-A3230201
...
138
Screw WPL-M0230816
...
139
Washer WPL-M0270524
...
140
Actuating Arm WPL-B5755701
...
141
Mtg Plate-Interlock WPL-B5747502
...
142
Adj Brkt-Switch WPL-B5747201
...
143
Adj Screw WPL-A3262501
...
144
Speed Nut WPL-M0288119
...
145
Pin-Retainer WPL-A3260201
...
146
Clip,hairpin WPL-A3171501
...
147
Brkt Supt-Interlock WPL-B5756101
...
148
Washer WPL-M0270524
...
149
Wiring Harness WPL-C8739801
...
150
E Ring External K WPL-M0274301
...
151
Screw WPL-M0204617
...
152
Clamp WPL-M0102301
...
153
See Svc Ltr Cr-163d WPL-A3168101
...
154
Washer Non-Metal WPL-M0274032
...
155
Nut K WPL-M0282005
...
156
Screw WPL-M0227520

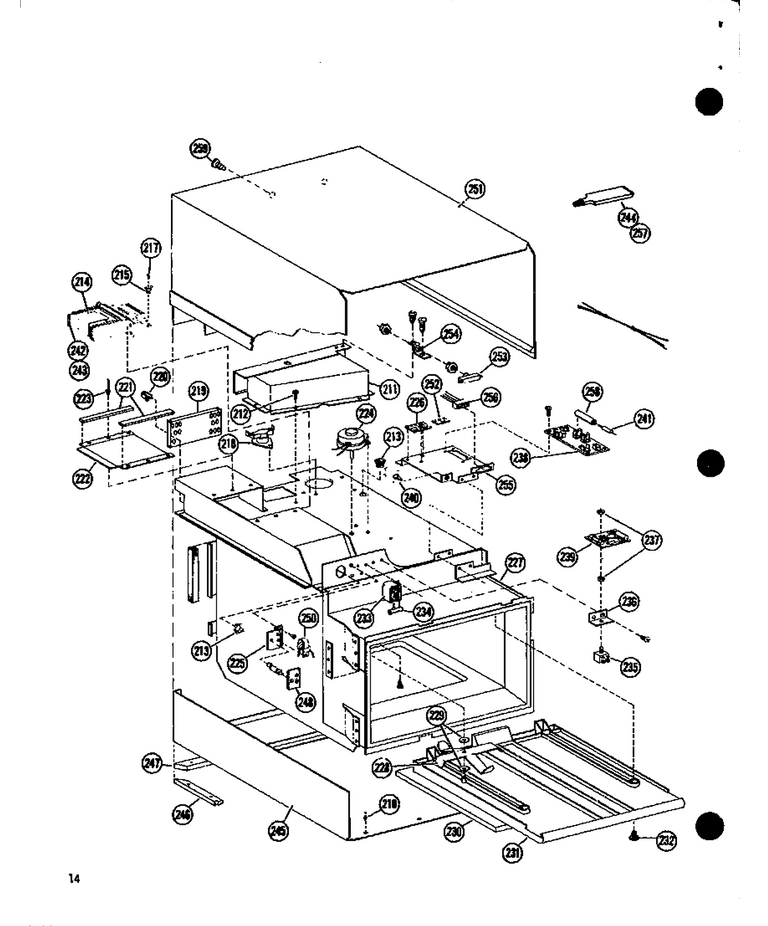

05 - Page 5

...
...
NI
Clip WPL-M0114002
...
210
Pop Rivet WPL-A4539602
...
211
Air Duct Wld WPL-D7262901
...
212
Screw WPL-M0218115
...
213
Snap Bushing WPL-A4554806
...
214
Assembly, Isolator WPL-C8720506
...
215
Thermal Protector WPL-B5684102
...
217
Screw WPL-M0234114
...
218
Thermal Cut Out WPL-B5703002
...
219
X$x End W-G WPL-A3184901
...
220
Clip WPL-M0113503
...
221
Gasket K WPL-A4591129
...
222
Cover-Isolator WPL-B5714101
...
223
Rivet WPL-WP210720
...
224
Motor WPL-B5602809
...
225
Brkt-Time Delay WPL-A3230401
...
226
Time Delay WPL-B5691003
...
227
Oven Wld WPL-D7265701
...
228
Stirrer Blade (Antenna) WPL-C8708601
...
229
Washer WPL-A3109101
...
230
Tray, Oven WPL-B5748801
...
231
Grease Shi WPL-R0157214
...
232
Screw Retainer WPL-A3245601
...
233
Relay Kit WPL-R0159006
...
234
Resistor, Relay A WPL-M0305007
...
235
Relay K WPL-C8709606
...
236
Bracket Pwr Relay K WPL-A3230501
...
237
Nut WPL-WP488130
...
238
Board-Multiprotector WPL-B5751401
...
239
Terminal Bd Assy WPL-B5747301
...
240
Circuit Breaker WPL-M0341301
...
241
Fuse WPL-M0308101
...
242
Gasket K WPL-A3225401
...
243
Gasket K WPL-A3225402
...
244
Sealer WPL-M0275501
...
245
0c Bottom Wld WPL-D7262401
...
246
Gasket WPL-C8732601
...
247
Gasket WPL-C8732602
...
248
Buzzer Control WPL-C8770601
...
250
Buzzer K WPL-A3152504
...
251
Top Assy-Oc WPL-C8757501
...
252
Relay A WPL-C8710302
...
253
Switch Oc Intlk K WPL-C8715202
...
254
Bracket-Switch WPL-B5743701
...
255
Mtg Plate WPL-C8756501
...
256
Wiring Harness WPL-B5752201
...
257
Rtv (Blk) WPL-M0275560
...
258
Resistor Fuse Kit WPL-R0157332
...
259
Screw WPL-WP3388228
