Amana RC10A-DD (BOM: P7209102M)

Model: RC10A-DD (BOM: P7209102M)

Save Part Not Listed?
product name

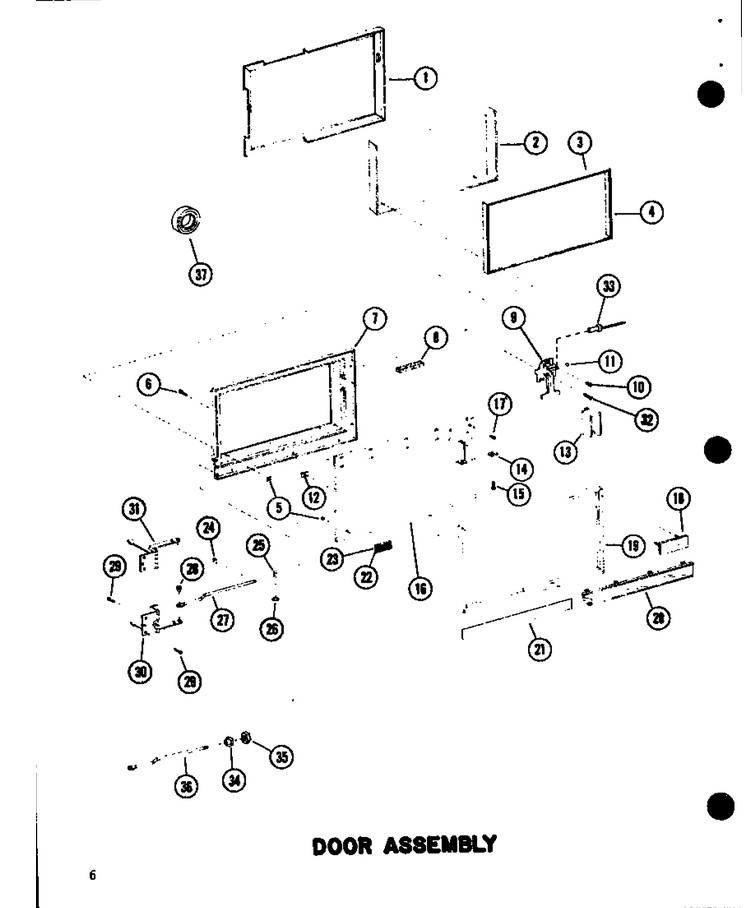

03 - Door Assy

...
...
1
Gasket WPL-C3669101
...
2
Inner Door Kit WPL-R0156665
...
3
Gasket WPL-B5686003
...
4
Gasket WPL-B5686004
...
5
Nut WPL-717488
...
6
Screw WPL-214597
...
7
Weldment, Inner Door Ring WPL-D7132501
...
8
Gasket WPL-A4591128
...
9
Door Latch Assy WPL-R0157316
...
10
Screw WPL-WPW10068250
...
11
Guides Hndl K WPL-A3195701
...
12
Clip WPL-M0286401
...
13
Bezel-Door Handle WPL-B5671901
...
14
Nut K WPL-M0288001
...
15
Screw, No.6x18x1/4 (3) WPL-487010
...
16
Panel Outer Door K WPL-D7178601
...
17
Clip-Push WPL-M0118905
...
18
Esc-Logo WPL-C3668803
...
19
Outer Door Ring WPL-D7667701
...
20
Lens-Menu Guide WPL-B5674501
...
21
Menu Guide WPL-C8713302
...
22
Insert-Medallion WPL-B5694713
...
23
Medallion WPL-B5694901
...
24
Snap Ring, Door Arm WPL-M0274101
...
25
Guide-Door Stop WPL-A3181801
...
26
Bushing WPL-A3182101
...
27
Door Stop Kit WPL-R0157157
...
28
Bushing-Door Arm WPL-A3185001
...
29
Screw WPL-M0253230
...
30
Hinge-Bottom WPL-C3666306
...
31
Hinge-Top WPL-C3666305
...
32
Screw WPL-M0234030
...
33
Rivet, Pop (Wht) WPL-B5642901
...
34
Washer WPL-M0270501
...
35
Nut WPL-WP488130
...
36
Arm-Door Stop WPL-B5748702
...
37
Tape Per Roll WPL-M0275163

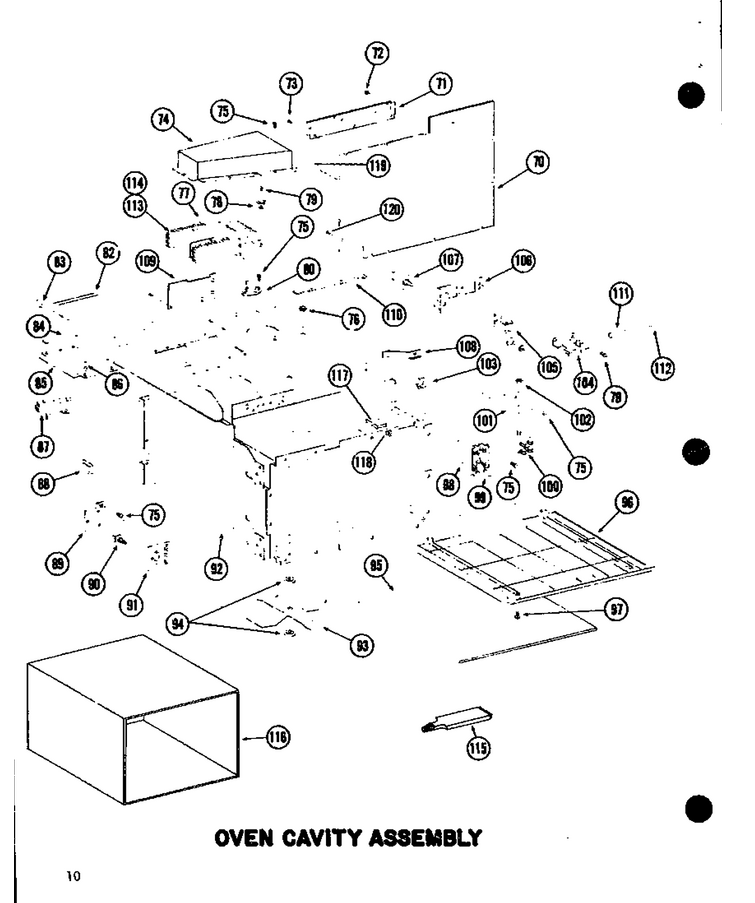

05 - Oven Cavity Assy

...
...
NI
Gasket WPL-B5734501
...
70
Access Panel Weld WPL-C8714601
...
71
Panel-Nameplate WPL-B5722701
...
72
Rivet-Pop WPL-59002054
...
73
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
74
Cover-Air Duct WPL-D7224901
...
75
Screw WPL-WP489349
...
76
Snap Bushing WPL-A4554806
...
77
Assembly, Isolator WPL-C8720501
...
78
Thermal Protector WPL-B5684102
...
79
Screw WPL-M0234114
...
80
Thermal Cut Out WPL-B5703002
...
82
X$x End W-G WPL-A3184901
...
83
Clip WPL-M0113503
...
84
Gasket K WPL-A4591129
...
85
Cover-Isolator WPL-B5714101
...
86
Rivet WPL-WP210720
...
87
Motor WPL-B5602807
...
88
Clip-Cord WPL-M0104401
...
89
Brkt-Time Delay WPL-A3230401
...
90
Supt Ckt Bd A WPL-B5675501
...
91
Time Delay WPL-B5691003
...
92
Wldmt-Oven WPL-D7213101
...
93
Stirrer Blade (Antenna) WPL-C8708601
...
94
Washer WPL-A3109101
...
95
(+) Use A3183704 WPL-A3183701
...
96
Grease Shi WPL-R0157214
...
97
Screw Retainer WPL-A3245601
...
98
Relay Kit WPL-R0159006
...
99
Resistor, Relay A WPL-M0305007
...
100
Power Relay Kit WPL-R0157165
...
101
Bracket Pwr Relay K WPL-A3230501
...
102
Nut WPL-WP488130
...
103
Bushing-Wiring WPL-A3196402
...
104
Terminal Board A WPL-B5722001
...
105
Relay A WPL-C8710302
...
106
Bracket-Relay WPL-B5722601
...
107
Circuit Breaker WPL-M0341301
...
108
Spring-Door Stop WPL-B5718701
...
109
Cover-Plenum WPL-A3230301
...
110
Gasket WPL-A3030302
...
111
Resistor Fuse Kit WPL-R0157332
...
112
Fuse WPL-M0308101
...
113
Gasket K WPL-A3225401
...
114
Gasket K WPL-A3225402
...
115
Sealer WPL-M0275501
...
116
Oc Wldmt WPL-D7110605
...
117
X$x Pad WPL-M0050902
...
118
Clip WPL-M0114901
...
119
Seal, Warranty WPL-B5758101
...
120
Rivet-Pop WPL-59002054

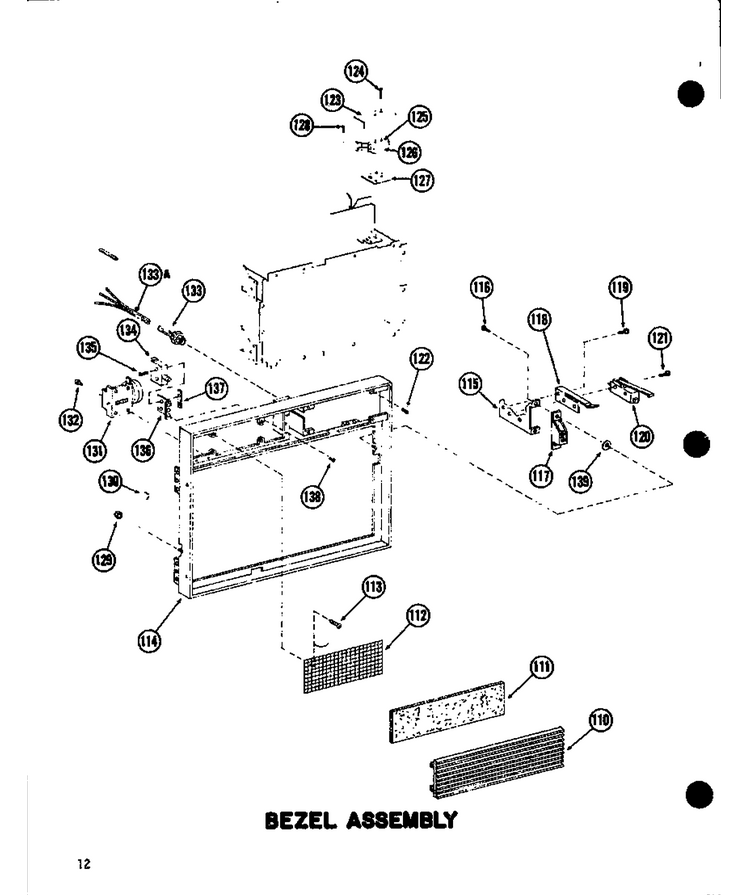

01 - Bezel Assy

...
...
110
Grill-Air Inlet WPL-C3678402
...
111
Filter WPL-A3094903
...
112
Screen-Air Inlet WPL-B5672303
...
113
Screw WPL-WP59002061
...
114
Bezel, Outer Case WPL-D7133404
...
115
Bracket-Latch WPL-B5675403
...
116
Screw,tc WPL-M0230017
...
117
Strike-Latch WPL-C3680202
...
118
Spring-Latch WPL-A3186401
...
119
Screw WPL-M0232012
...
120
Switch Preform WPL-A3163406
...
121
Screw A-K WPL-M0227525
...
122
Clip A WPL-M0113006
...
123
Pad Insulation A WPL-B5685603
...
124
Screw WPL-M0213123
...
125
Switch, Interlock, Top WPL-B5721301
...
126
Switch, Interlock Sensing, Bot WPL-C3670011
...
127
Bracket-Switch WPL-B5719701
...
128
Screw WPL-M0234114
...
129
Nut, Self Thread WPL-M0283801
...
130
T Nut WPL-M0285902
...
131
Meter WPL-C8701101
...
132
Pop Rivet WPL-A4539602
...
133
Socket Assy K WPL-R0164101
...
134
Limit Switch WPL-C8715201
...
135
Screw WPL-M0227520
...
136
Bracket-Panel WPL-A3230201
...
137
Speed Nut WPL-M0289502
...
138
Screw WPL-M0230816
...
139
Washer WPL-M0270524

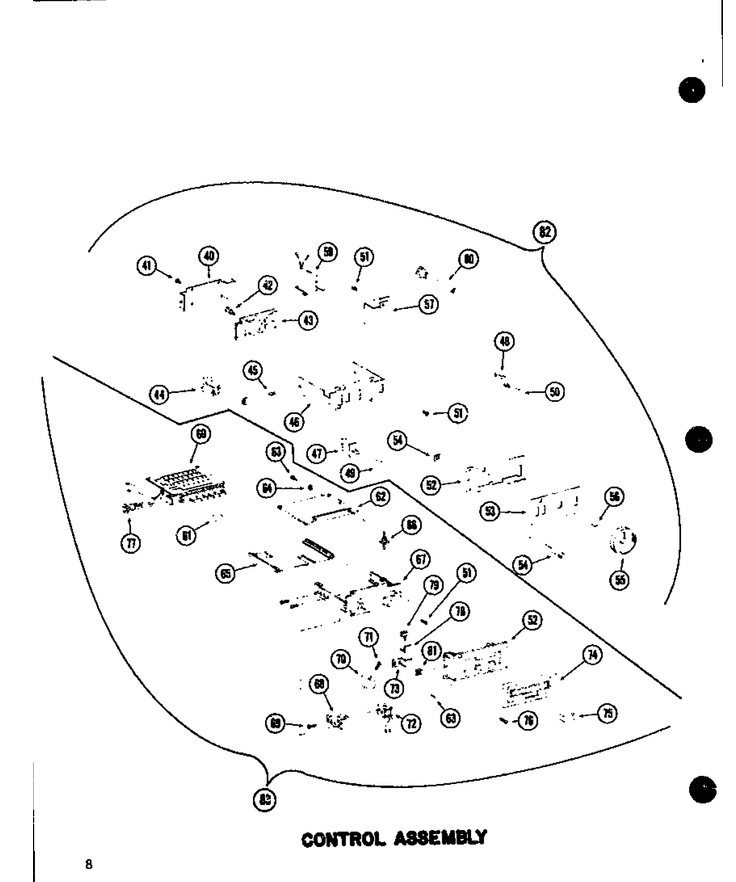

02 - Control Assy

...
...
40
Bracket-Pc Board A WPL-B5722201
...
41
Screw A WPL-M0202515
...
42
Support K WPL-M0580502
...
43
Circuit Board A WPL-C8714101
...
44
Relay A WPL-C8710302
...
45
Screw WPL-M0230015
...
46
Bracket-Dial Timer WPL-C8714001
...
47
Switch Pb A WPL-B5715401
...
48
Switch WPL-B5674703
...
49
Button Defrost WPL-B5674003
...
50
Button Stop A WPL-B5674001
...
51
Screw WPL-W11084238
...
52
Escutcheon Timer A WPL-C8868702
...
53
Thinplate-Timer WPL-B5722401
...
54
Pilot Light A WPL-A3184401
...
55
Knob A WPL-D7028702
...
56
Clip WPL-M0117001
...
57
Barrier WPL-B5735801
...
59
Timer WPL-C8701202
...
76
Screw WPL-M0253218
...
77
Socket Assy WPL-R0164011
...
80
Wiring Harness WPL-C8717301
...
81
Speed Nut WPL-M0288102
...
82
Dial Timer Assy WPL-D7249601

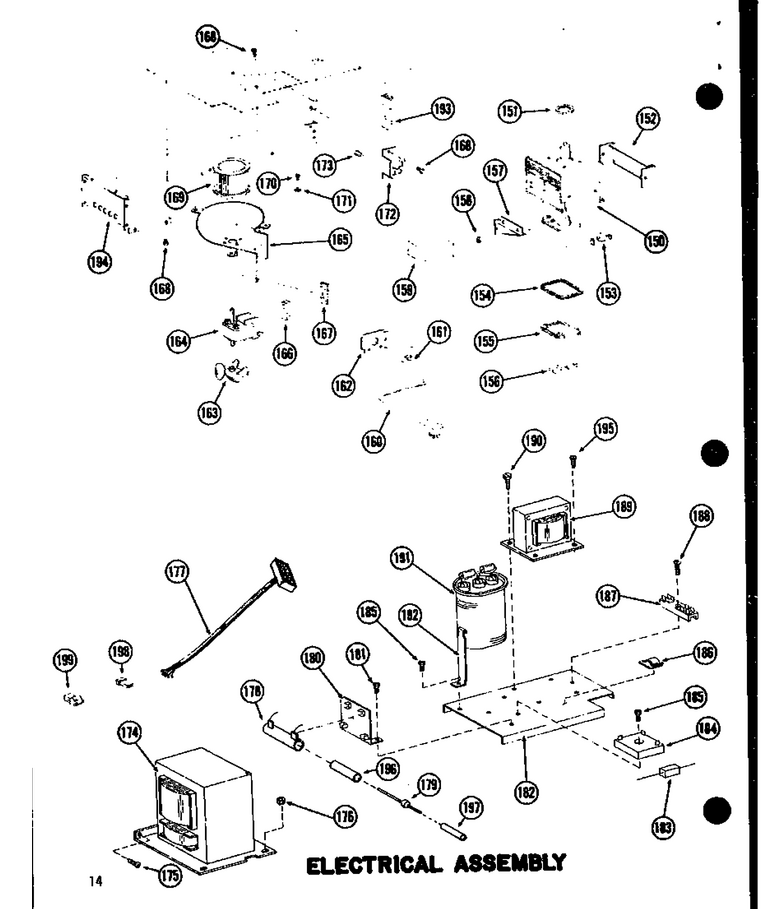

04 - Electrical Assy

...
...
NI
Jumper Wire K WPL-C3655880
...
150
Assembly, Magnetron WPL-D7138201
...
151
Gasket, Magnetron WPL-A3185102
...
152
Baffle WPL-B5694001
...
153
Capacitor K WPL-A3148801
...
154
Gasket WPL-A3148701
...
155
Cover Cap Box K WPL-B5647901
...
156
Bale Strap K WPL-A3145401
...
157
Clip K WPL-B5655902
...
158
Hex Nut WPL-M0281901
...
159
Shield Hv K WPL-B5656001
...
160
Power Cord WPL-59001672
...
161
Strain Relief WPL-M0371301
...
162
Panel-Strain Relief WPL-B5722801
...
163
Fan Blade-Blower WPL-B5706702
...
164
Motor Kit WPL-C3670903
...
165
Wldmt-Blower Scroll WPL-C8710702
...
166
Gasket (Per Foot) WPL-A3030303
...
167
Gasket (Per Foot) WPL-10839706
...
168
Screw WPL-WP489349
...
169
Blower Wheel WPL-B5602202
...
170
Screw WPL-M0202642
...
171
Washer WPL-M0272605
...
172
Bracket-Connector WPL-A3230601
...
173
Bushing,terminal WPL-M0325401
...
174
Transformer WPL-D7132401
...
175
Screw WPL-WP489464
...
176
Nut WPL-WP487939
...
177
Wiring Harness WPL-D7214301
...
178
Resistor, 4 Ohm, 8 Watt WPL-M0305010
...
179
Fuse WPL-M0308110
...
180
Terminal Board WPL-B5687401
...
181
Screw WPL-M0218116
...
182
Chassis, Power Supply WPL-C8714401
...
183
Resistor-5w Gr WPL-A3232901
...
184
Rectifier WPL-B5672401
...
185
Screw-Sm/hex WPL-12990523
...
186
Clip WPL-WPM0104106
...
187
Terminal Block WPL-B5677203
...
188
Screw, No.6x18x1/4 (3) WPL-487010
...
189
Transformer-Filament WPL-C3663905
...
190
Screw WPL-WP90767
...
191
Capacitor, H.v. With M3052-2 R WPL-R0160003
...
192
Strap-Capacitor WPL-A3204504
...
193
Gasket WPL-10839712
...
194
Plenum-Magnatron WPL-C8714301
...
195
Screw WPL-M0202543
...
196
Sleeve WPL-M0321701
...
197
Sleeve K WPL-M0321702
...
198
Insulator, Term. K WPL-M0325301
...
199
Insulator, Pod K WPL-M0325501
