Amana RC10091A1DR REV (BOM: RC10091A1DR A)

Model: RC10091A1DR REV (BOM: RC10091A1DR A)

Save Part Not Listed?
product name

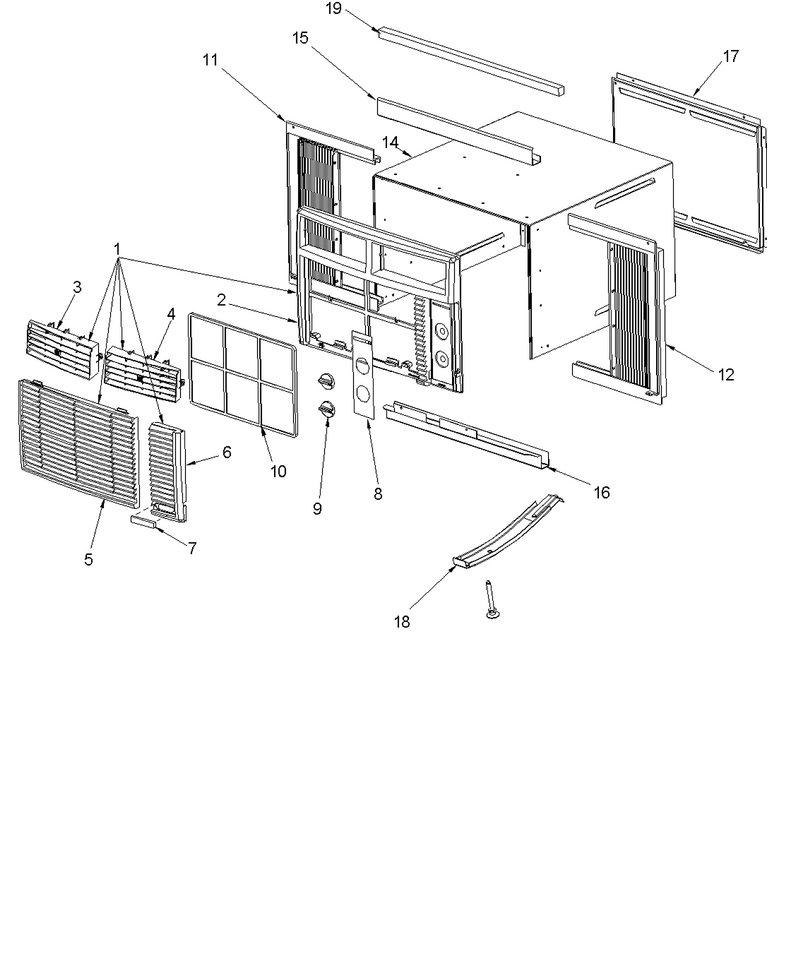

03 - Outercase, Curtains And Front Assy

...
...
NI
Kit, Hardware (small) WPL-BT1393200
...
1
Grill - Front WPL-BT3075021
...
2
Grill - Front WPL-BT3075021
...
3
Assy, Vent L. (small) WPL-BT3075504
...
4
Assy, Vent R (small) WPL-BT3075505
...
5
Grill - Front WPL-BT3075021
...
6
Grill - Front WPL-BT3075021
...
7
Logo, Plastic (goodman) WPL-BT3075913
...
8
Grill - Front WPL-BT3075021
...
9
Knob- Rac WPL-WPBT3075631
...
10
Filter, Air (serv) WPL-BT1369600
...
11
Assy,shutter-Sml Lft WPL-BT3074115
...
12
Assy,shutter-Sml Rght WPL-BT3074114
...
14
Wrapper Assy WPL-3050802
...
15
Support, Top (w/paint Small) WPL-3003000P
...
16
Guide, Bottom (w/paint Sm) WPL-3003103P
...
17
Panel, Rear Louver (service) WPL-3002200P
...
18
Bracket, Support WPL-3084003
...
19
Gasket WPL-10839702

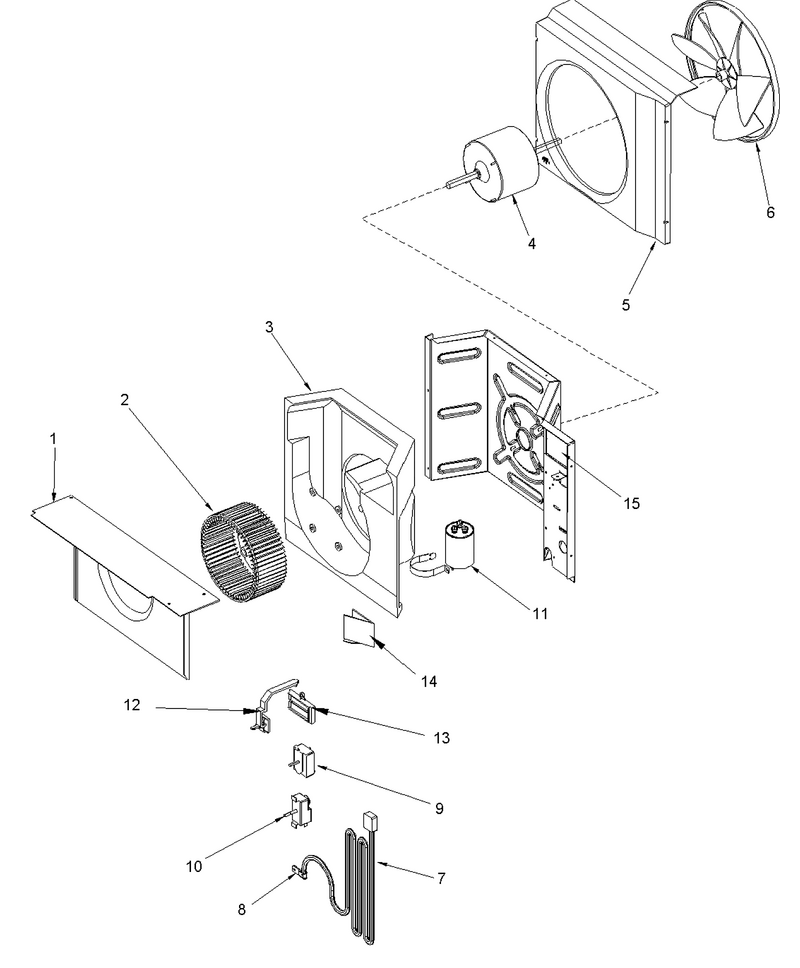

01 - Center Partition Assy And Controls

...
...
NI
Service Ha WPL-BT1292201
...
1
Partition, Blower (small) WPL-BT3010000
...
2
Wheel, Blower (serv) WPL-BT1368000
...
3
Scroll, Styrofoam (small) WPL-BT3006000
...
4
Motor 1/8 Hp 115 WPL-BT1340001C
...
5
Shroud, Fan (small Rac) WPL-BT3011000
...
6
Fan Blade, Plastic WPL-C6379801
...
7
Cord, Power WPL-Y20057501
...
8
Relief, Power Cord (large) WPL-BT1393401
...
9
Switch, Power (serv) WPL-BT1370803
...
10
Thermostat, Short Shaft (serv) WPL-BT1370801
...
11
Capacitor WPL-BT9457002
...
12
Lever-Cool Gray (small) WPL-BT3076220
...
13
Slide, Damper Control WPL-BT3076302
...
14
Door, Exhaust (rac) WPL-BT3076100
...
15
Foam Gasket WPL-BT1392611

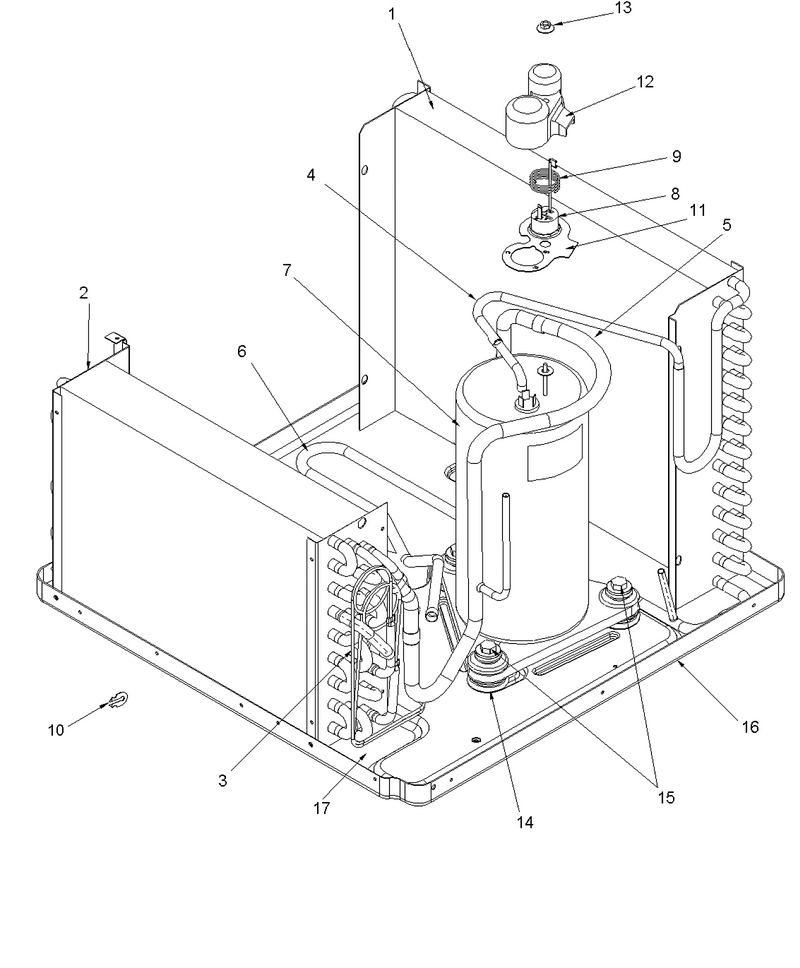

02 - Evaporator, Condenser And Compressor

...
...
1
Assy, Cond Coil Tubing WPL-3096504
...
2
Assy, Evap Coil Tubing (serv) WPL-3096011
...
3
Assy Cap Tube WPL-3093835
...
4
Tube, Discharge WPL-30936203
...
5
Tube, Suction WPL-3093723
...
6
Assy, Liquid Line WPL-3093833
...
7
Compressor WPL-D9831802
...
8
Overload WPL-D6961630
...
10
Clip, Bulb WPL-BT1531802
...
11
Gasket, Compressor (tec) WPL-BT1392604
...
12
Cap Compressor WPL-BT3055500
...
13
Nut, (tecumseh) WPL-BT1393000
...
14
Grommet WPL-C6466001
...
15
Bolt, Comp. Shoulder 5/16-18 WPL-BT1393704
...
17
Pan, Drain (styrofoam Small) WPL-BT3005000
