Amana RC08090A1DR REV (BOM: RC08090A1DR F)

Model: RC08090A1DR REV (BOM: RC08090A1DR F)

Save Part Not Listed?
product name

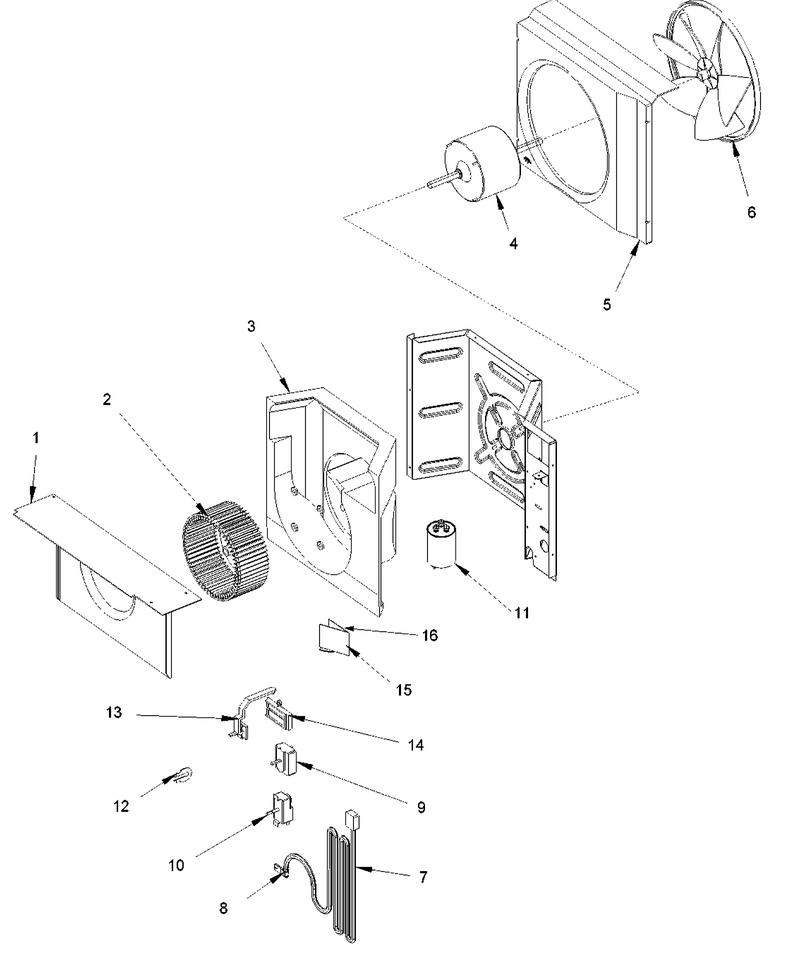

02 - Fan And Control Assy

...
...
NI
Service Ha WPL-BT1292201
...
1
Partition, Blower (small) WPL-BT3010000
...
2
Wheel, Blower (serv) WPL-BT1368000
...
3
Scroll, Styrofoam (small) WPL-BT3006000
...
4
Motor 1/8 Hp 115 WPL-BT1340001C
...
5
Shroud, Fan (small Rac) WPL-BT3011000
...
6
Fan Blade, Plastic WPL-C6379801
...
7
Cord, Power WPL-Y20057501
...
8
Relief, Power Cord (large) WPL-BT1393401
...
9
Switch, Power (serv) WPL-BT1370803
...
10
Thermostat, Short Shaft (serv) WPL-BT1370801
...
11
Capacitor WPL-BT9457002
...
12
Clip, Bulb WPL-BT1531802
...
13
Lever-Cool Gray (small) WPL-BT3076220
...
14
Slide, Damper Control WPL-BT3076302
...
15
Door, Exhaust (rac) WPL-BT3076100
...
16
Foam Gasket WPL-BT1392611

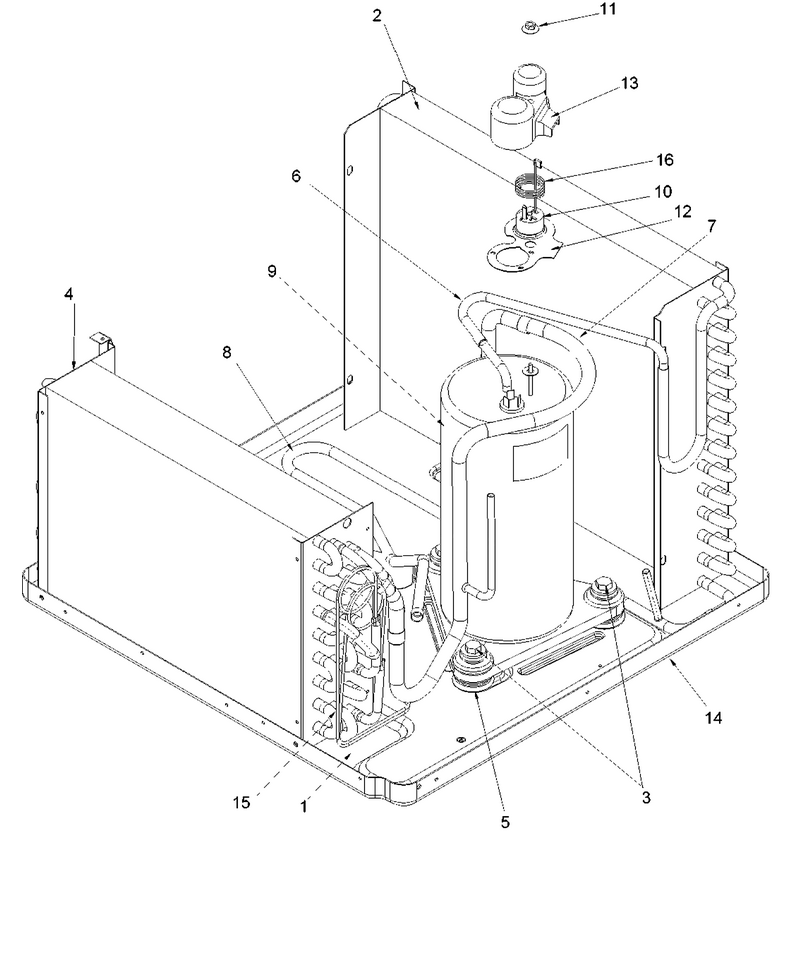

01 - Compressor Assy

...
...
Note: If Replacing Basepan On Older Models It Will Be Necessary To Order New Compressor Bolts. Evap Coil Tubing Assy Includes Cap Tube Assy. For Models With N WPL-NOTE:
...
1
Pan, Drain (styrofoam Small) WPL-BT3005000
...
2
Assy, Cond Coil Tubing WPL-3096509
...
3
Bolt, Comp. Shoulder 5/16-18 WPL-BT1393704
...
4
Assy,evap Coil Tubing WPL-3096038
...
5
Grommet WPL-C6466001
...
6
Tube, Discharge WPL-30936301
...
7
Tube, Suction WPL-3093733
...
8
Assy, Liquid Line WPL-3093859
...
9
Compressor WPL-BT9266102S
...
10
Overload WPL-D4976682
...
11
Nut WPL-WP776338
...
12
Gasket, Compressor (tec) WPL-BT1392604
...
13
Plastic Cover WPL-BT3055505
...
14
Assy,basepan(small) WPL-3050210
...
15
Assy, Capillary Tube WPL-3093852
...
16
Spring, Overload WPL-A3436901

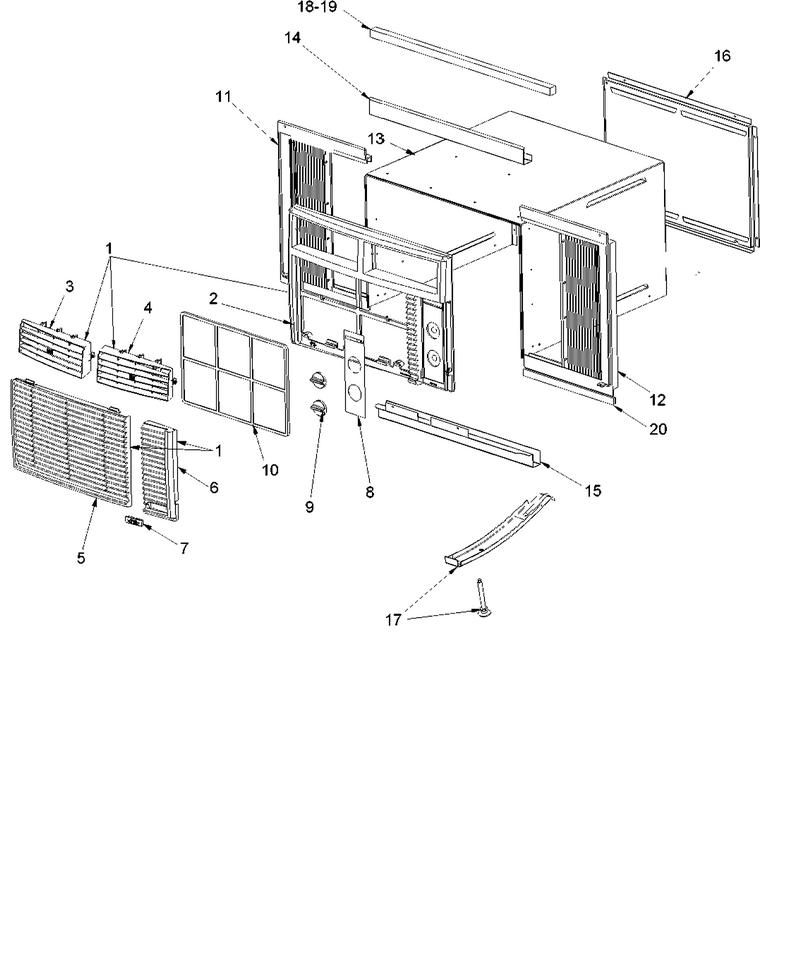

03 - Outer Case Assy

...
...
Note: If Adjusting Hardware Is Required When Ordering Support Bracket, Order Hardware Kit Also. WPL-NOTE:
...
1
Grill - Front WPL-BT3075021
...
2
Grill - Front WPL-BT3075021
...
3
Assy, Vent L. (small) WPL-BT3075504
...
4
Assy, Vent R (small) WPL-BT3075505
...
5
Grill - Front WPL-BT3075021
...
6
Grill - Front WPL-BT3075021
...
7
Logo, Plastic (goodman) WPL-BT3075913
...
8
Grill - Front WPL-BT3075021
...
9
Knob- Rac WPL-WPBT3075631
...
10
Filter, Air (serv) WPL-BT1369600
...
11
Assy, Shutter (left) WPL-BT3074117
...
12
Assy,shutter-Sml Rght WPL-BT3074114
...
13
Wrapper Assy WPL-3050802
...
14
Support, Top (w/paint Small) WPL-3003000P
...
15
Guide, Bottom (w/paint Sm) WPL-3003103P
...
16
Panel, Rear Louver (service) WPL-3002200P
...
17
Bracket, Support WPL-3084003
...
18
Gasket WPL-10839702
...
19
Foam .25 X .50 (7.0 Ft) WPL-BT1392601
...
20
I-Beam WPL-BT3077700
