Amana RC07087M1DR Rev (BOM: RC07087M1DR B)

Model: RC07087M1DR Rev (BOM: RC07087M1DR B)

Save Part Not Listed?
product name

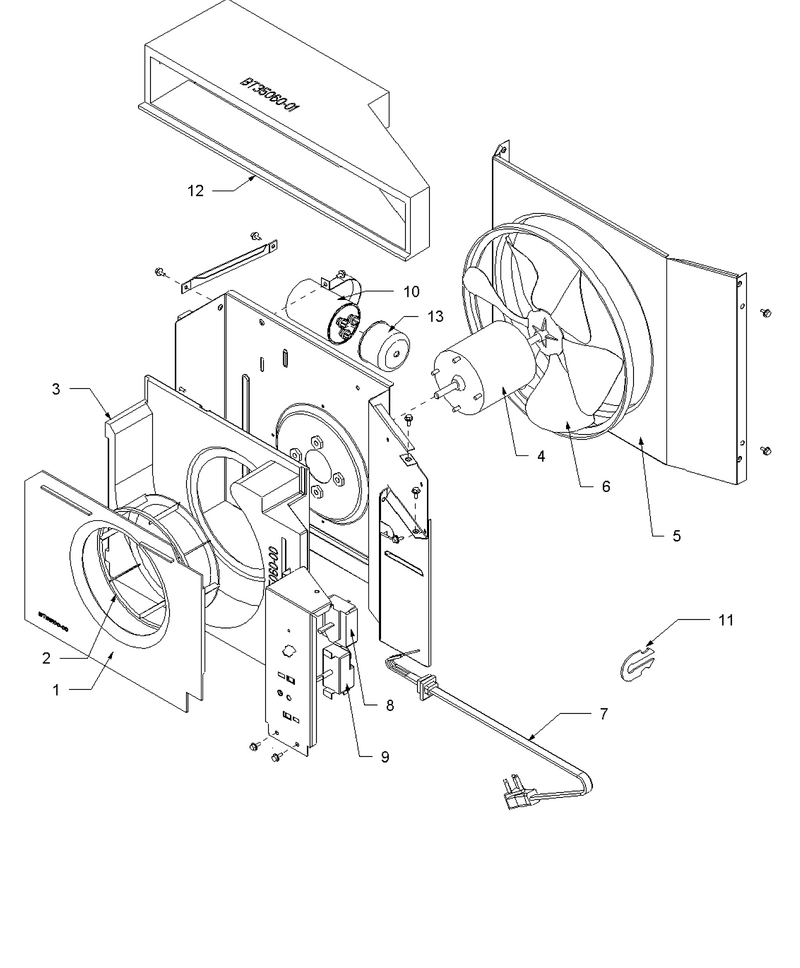

02 - Fan And Control Assy

...
...
NI
Service Ha WPL-BT1292201
...
1
Partition, Blower WPL-BT3510000
...
2
Wheel, Blower WPL-BT1368015
...
3
Scroll, Blower (styrofoam) WPL-BT3506000
...
4
Motor, (fasco) WPL-BT1340022
...
5
Shroud, Fan WPL-3511000P
...
6
Blade, Fan WPL-BT1086707
...
7
Cord, Power WPL-BT1210007
...
8
Switch, Power (serv) WPL-BT1370803
...
9
Thermostat, Short Shaft (serv) WPL-BT1370801
...
10
Capacitor, Dual (service) WPL-BT9457001
...
11
Clip, Bulb WPL-BT1531802
...
12
Top, Blower (styrofoam) WPL-BT3506001
...
13
Cap, Capacitor WPL-BT1392623

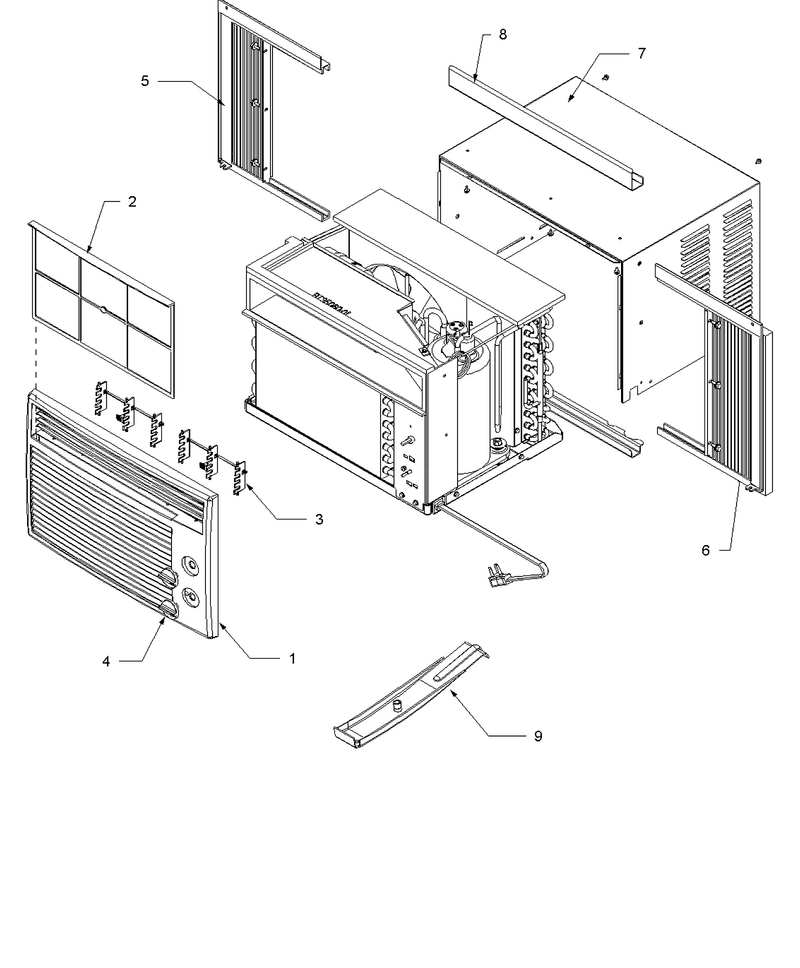

03 - Outer Case Assy

...
...
NI
Gasket WPL-10839702
...
1
Front, Goodman WPL-BT3575000
...
2
Filter WPL-BT3575101
...
3
Assy, Vent (mini) WPL-BT3075414
...
4
Knob- Rac WPL-WPBT3075631
...
5
Assy, Curtain (lt) WPL-BT3074119
...
6
Assy, Curtain (rt) WPL-BT3074118
...
7
Assy, Wrapper WPL-3550800
...
8
Guide,top WPL-3003005P
...
9
Bracket, Support WPL-3084005

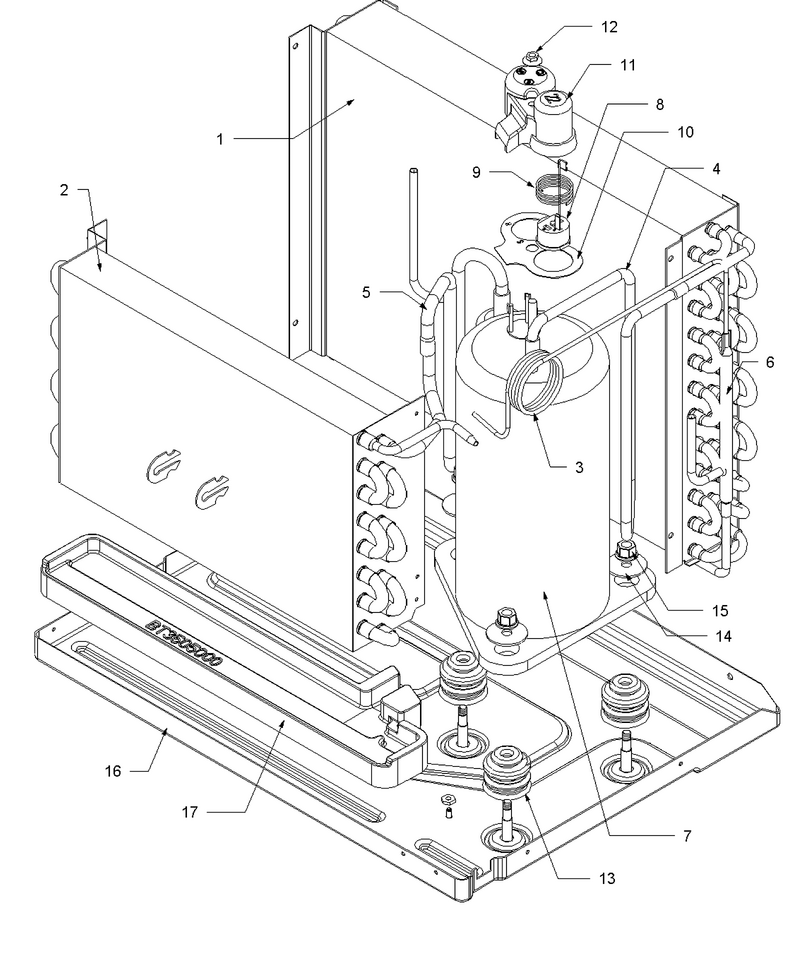

01 - Compressor Assy

...
...
1
Assy, Condensor Coil WPL-3596505
...
2
Assy, Evap Coil Tubing WPL-3596000
...
3
Capillary, Formed WPL-3593631
...
4
Tubing, Discharge WPL-3593636
...
5
Assy, Suction Line WPL-3593705
...
6
Assy, Strainer WPL-3593805
...
7
Compressor WPL-10812701H
...
8
Overload WPL-D4976682
...
9
Spring, Overload WPL-A3436901
...
10
Gasket Comp Cap WPL-BT1392619
...
11
Cover, Compressor WPL-BT3055504
...
12
Nut WPL-WP776338
...
13
Grommet WPL-A4622801
...
14
Washer. Fender WPL-BT1392904
...
15
Locknut, Nylon WPL-BT1393007
...
16
Assy, Base Pan WPL-3550200
...
17
Pan, Drain (styrofoam) WPL-BT3505000
