Amana RC06090M1DR Rev (BOM: RC06090M1DR A)

Model: RC06090M1DR Rev (BOM: RC06090M1DR A)

Save Part Not Listed?
product name

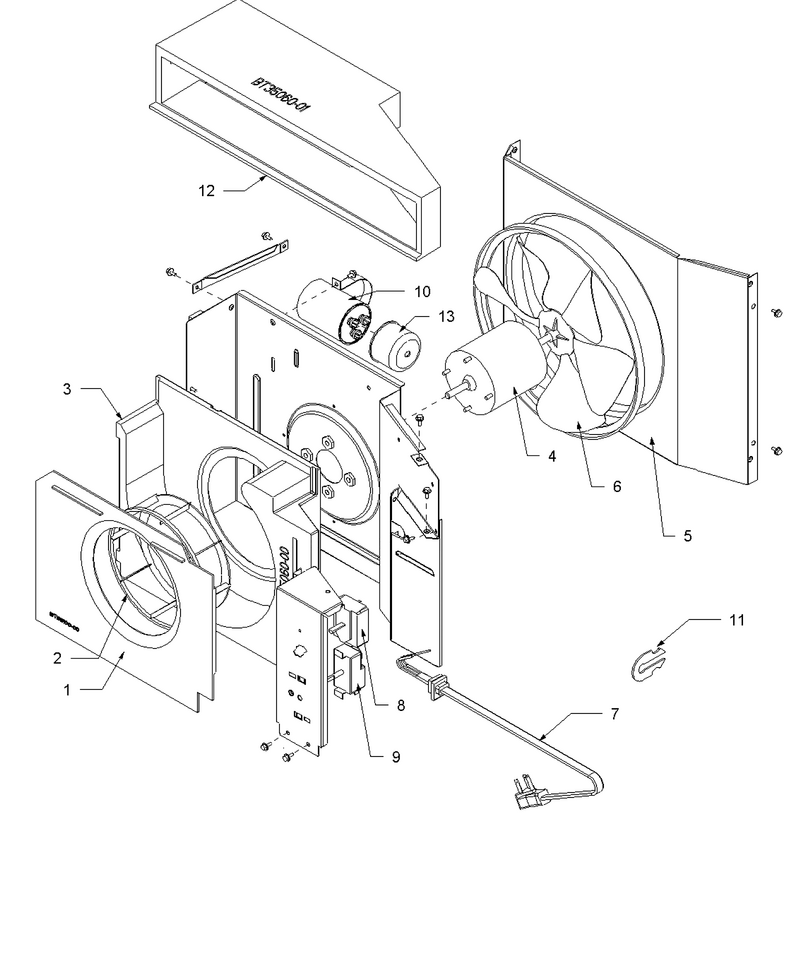

02 - Fan And Control Assy

...
...
NI
Service Ha WPL-BT1292201
...
1
Partition, Blower WPL-BT3510000
...
2
Wheel, Blower WPL-BT1368015
...
3
Scroll, Blower (styrofoam) WPL-BT3506000
...
4
Motor, Fuji WPL-BT1340029
...
5
Shroud, Fan WPL-3511000P
...
6
Blade, Fan WPL-BT1086707
...
7
Cord, Power WPL-BT1210007
...
8
Switch, Power (serv) WPL-BT1370803
...
9
Thermostat, Short Shaft (serv) WPL-BT1370801
...
10
Capacitor,35/5/370 WPL-BT9457009
...
11
Clip, Bulb WPL-BT1531802
...
12
Top, Blower (styrofoam) WPL-BT3506001

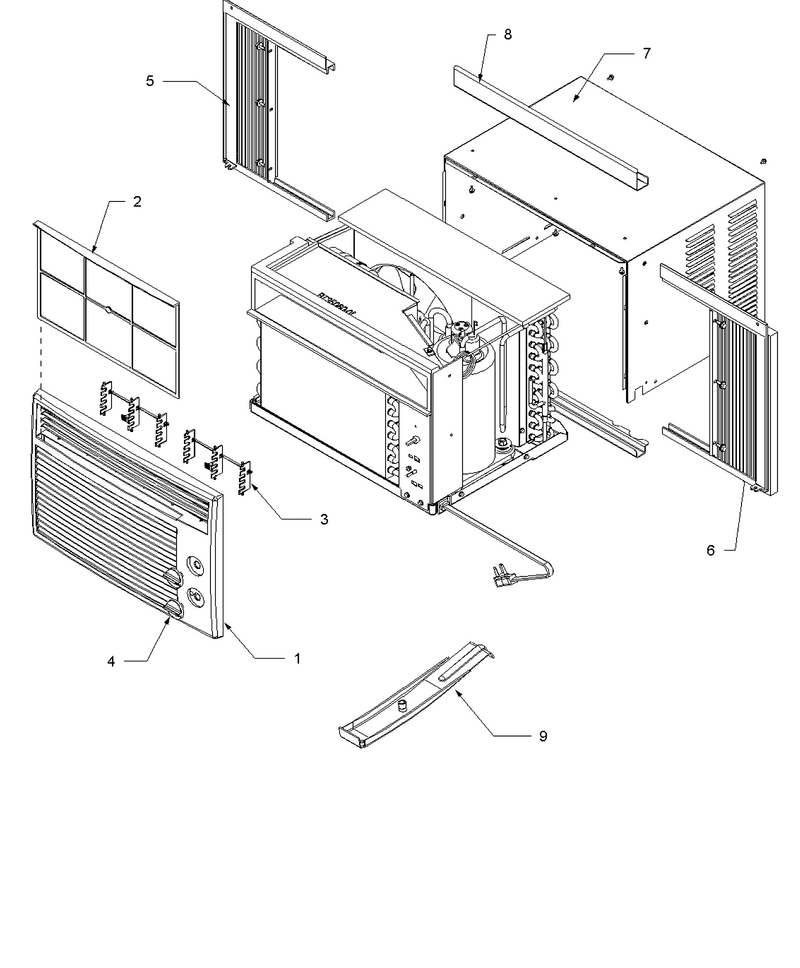

03 - Outer Case Assy

...
...
NI
Foam .25 X .50 (7.0 Ft) WPL-BT1392601
...
1
Front, Goodman WPL-BT3575000
...
2
Filter WPL-BT3575101
...
3
Assy, Vent (mini) WPL-BT3075414
...
4
Knob- Rac WPL-WPBT3075631
...
5
Assy, Curtain (lt) WPL-BT3074119
...
6
Assy, Curtain (rt) WPL-BT3074118
...
7
Assy, Wrapper WPL-3550800
...
8
Guide,top WPL-3003005P
...
9
Bracket, Support WPL-3084005

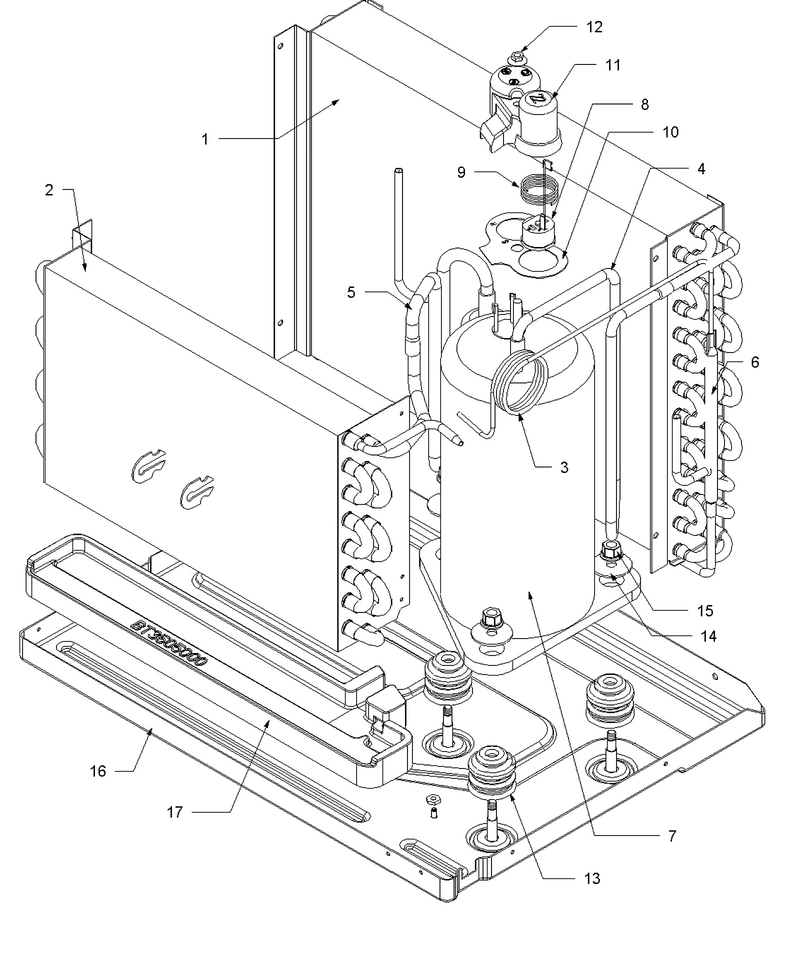

01 - Compressor Assy

...
...
1
Assy, Condensor Coil WPL-3596505
...
2
Assy, Evap Coil Tubing WPL-3596001
...
3
Capillary, Formed WPL-3593629
...
4
Tubing, Discharge WPL-3593638
...
5
Assy, Suction Line WPL-3593707
...
6
Assy, Strainer WPL-3593805
...
7
Compressor (goldstar) WPL-BT9266308
...
8
Switch, Overload WPL-BT1243739
...
9
Spring WPL-BT1393708
...
10
Gasket, Comp. WPL-BT1392629
...
11
Cover, Compressor (plastic) WPL-BT3055502
...
12
Nut WPL-BT1393010
...
13
Grommet WPL-A4622801
...
15
Nut, Palnut WPL-BT1393011
...
16
Assy, Base Pan WPL-3550200
...
17
Pan, Drain (styrofoam) WPL-BT3505000
