Amana RC-8 (BOM: P7526003M)

Model: RC-8 (BOM: P7526003M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

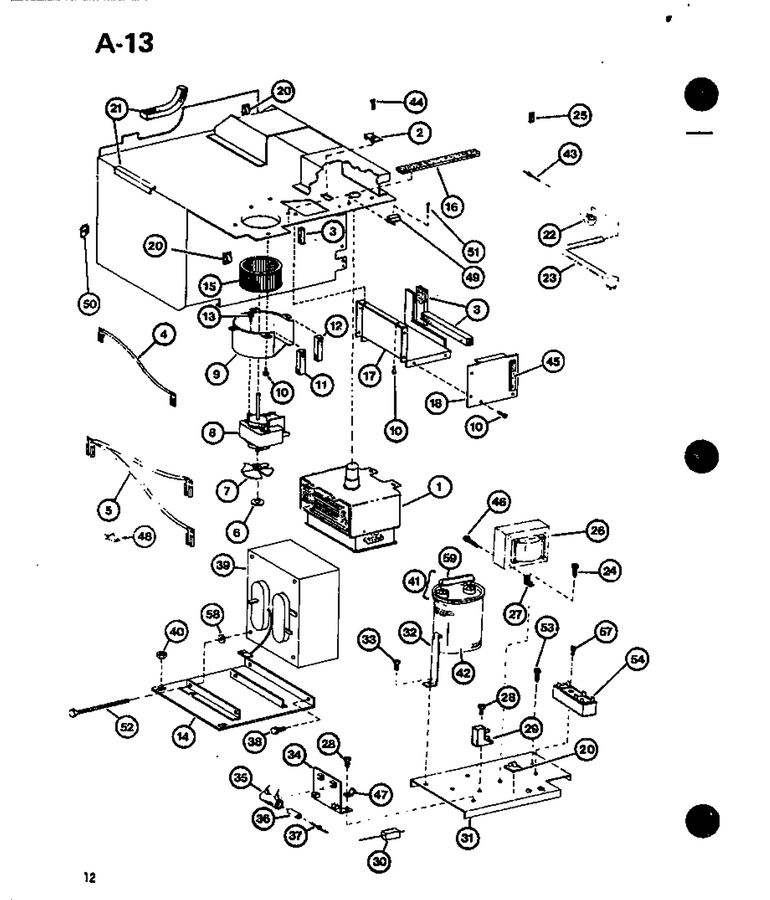

04 - Page 4

...
...
1
Magnetron WPL-C8798603
...
2
Brkt-Mag Tube WPL-B5774402
...
3
Gasket WPL-B8343706
...
4
Jumper Wire WPL-D7384624
...
5
Jumper Wire WPL-D7292650
...
6
Clip WPL-M0118901
...
7
Fan Blade-Blower WPL-B5706702
...
8
Motor Kit WPL-C8811601
...
9
Blower Scroll Weld WPL-C8710708
...
10
Screw WPL-WP489349
...
11
Gasket (Per Foot) WPL-A3030303
...
12
Gasket (Per Foot) WPL-10839706
...
13
Screw WPL-WP3400094
...
14
Transformer Plate WPL-C8882001
...
15
Blower Wheel WPL-C3670805
...
16
Gasket WPL-A3030302
...
17
Plenum Weld WPL-C8934201
...
18
Cover-Plenum WPL-A3230302
...
20
Clip WPL-WPM0104106
...
21
Grommet Per In. WPL-A3261703
...
22
Strain Relief WPL-M0370007
...
23
Cord-Power WPL-B5674404
...
24
Screw WPL-WP90767
...
25
Gasket WPL-B5107619
...
26
Trans Filament WPL-C8798801
...
27
Brkt-Transformer WPL-B5779401
...
28
Screw WPL-WP489349
...
29
Kit, Diode WPL-M3D71
...
30
Resistor WPL-M0308502
...
31
Chassis-Pwr Supply WPL-C8714402
...
32
Strap-Capacitor WPL-A3204505
...
33
Screw-Sm/hex WPL-12990523
...
34
Terminal Board WPL-B5780901
...
35
Resistor A WPL-M0308601
...
36
Sleeve WPL-M0321703
...
37
Fuse WPL-M0308110
...
38
Screw WPL-WP489464
...
39
Transformer WPL-D7369203
...
40
Nut WPL-WP487939
...
41
Resistor Assy WPL-A1001901
...
42
Capacitor Kit WPL-C8790515
...
43
Rivet-Pop WPL-59002054
...
44
Screw WPL-M0216531
...
45
Gasket (Per Foot) WPL-A3030303
...
46
Screw WPL-M0218136
...
47
Terminal WPL-M0320901
...
48
Insulator, Term. K WPL-M0325301
...
49
Thermal Cut Out WPL-B5795302
...
50
Clip WPL-M0118801
...
51
Screw WPL-M0234114
...
52
Screw WPL-M0254452
...
53
Screw WPL-M0258015
...
54
Terminal Block WPL-B5677208
...
57
Screw, No.6x18x1/4 (3) WPL-487010
...
58
Lock Washer WPL-M0272805
...
59
Resistor A WPL-M0305202

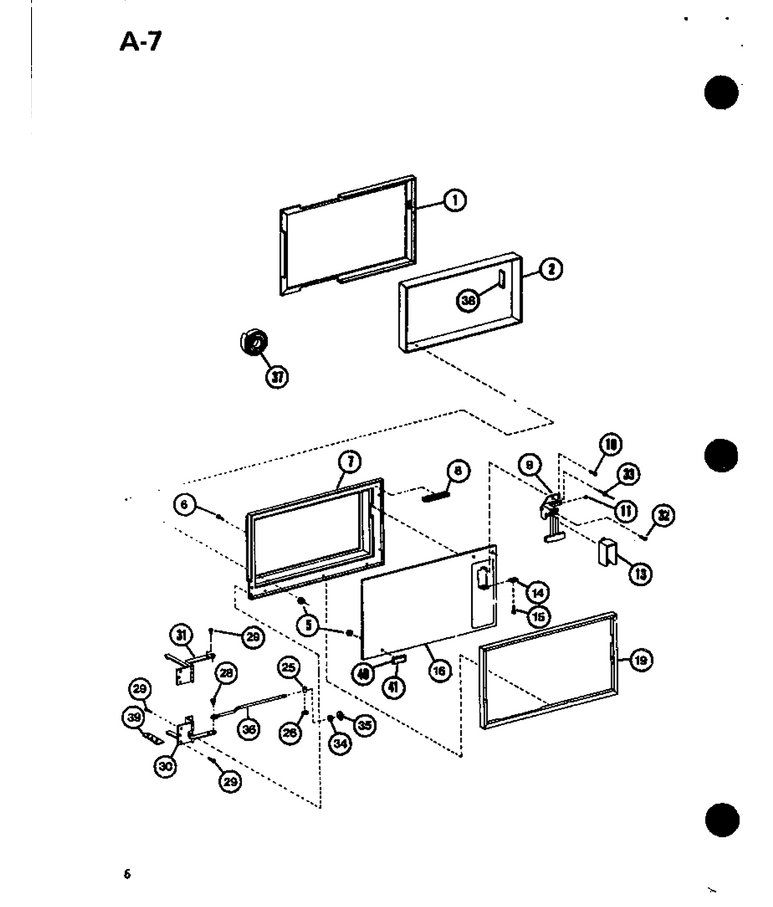

02 - Page 1

...
...
1
Gasket WPL-D7396401
...
2
Inner Door Kit WPL-R0156665
...
5
Nut WPL-717488
...
6
Screw T.c WPL-M0229916
...
7
Weldment, Inner Door Ring WPL-D7132501
...
8
Gasket WPL-A4591128
...
9
Door Latch Assembly WPL-D7178504
...
10
Screw WPL-WPW10068250
...
11
Guides Hndl K WPL-A3195701
...
13
Bezel-Door Handle WPL-B5671901
...
14
Speed Nut WPL-M0288102
...
15
Screw,tc WPL-M0230017
...
16
Panel-Outer Door WPL-D7178603
...
19
Outer Door Ring WPL-D7667701
...
25
Guide-Door Stop WPL-A3181801
...
26
Bushing WPL-A3182101
...
28
Bushing-Door Arm WPL-A3185001
...
29
Screw WPL-M0253230
...
30
Hinge-Bottom WPL-C3666306
...
31
Hinge-Top WPL-C3666305
...
32
Screw WPL-M0234030
...
33
Rivet, Pop (Wht) WPL-B5642901
...
34
Washer WPL-M0270501
...
35
Nut WPL-WP488130
...
36
Arm, Dr Stop K WPL-B5748702
...
37
Tape Per Roll WPL-M0275163
...
38
Sealer WPL-M0275501
...
39
Shim-Hinge WPL-A3250301
...
40
Medallion WPL-B5694901
...
41
Medallion Insert WPL-C8883501

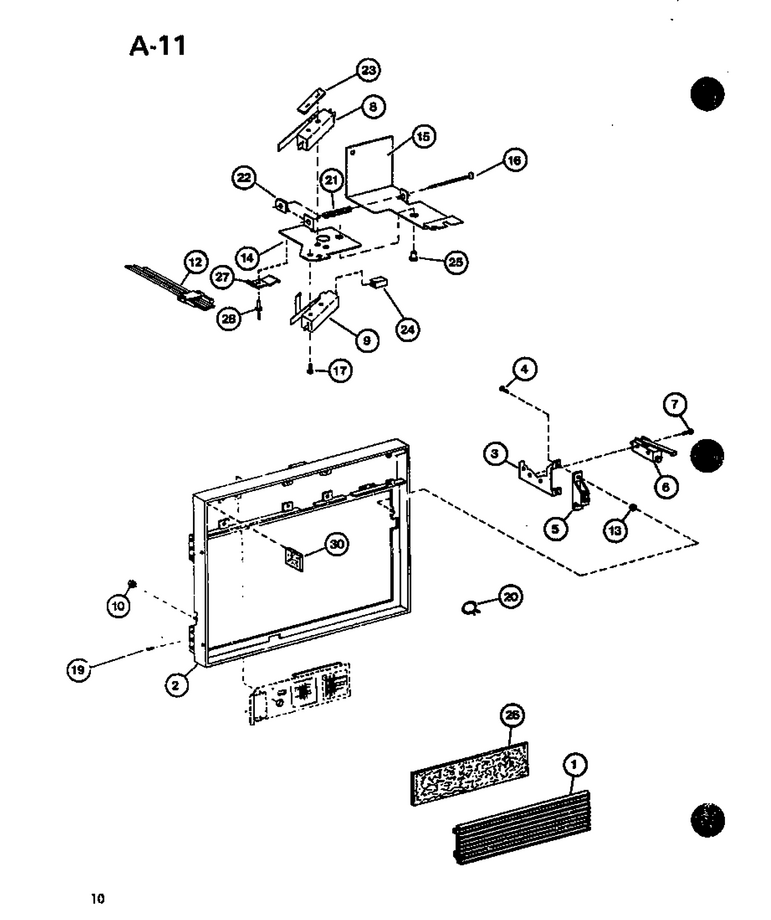

03 - Page 3

...
...
NI
Bushing WPL-A3293501
...
1
Grille-Air Inlet WPL-C8853301
...
2
Bezel-Outer Case WPL-D7293502
...
3
Bracket-Latch WPL-B5675403
...
4
Screw-Sm/hex WPL-12990523
...
5
Strike-Latch WPL-C3680202
...
6
Switch-Preform WPL-A3163414
...
7
Screw WPL-M0227520
...
8
Switch-Interlock (Limit) WPL-C3670014
...
9
Intlk Sw-Weld WPL-B8324002
...
10
Nut, Self Thread WPL-M0283801
...
12
Wiring Harness WPL-D7525001
...
13
Washer WPL-M0270502
...
14
Bracket WPL-C8875301
...
15
Bracket Interlock WPL-B8332501
...
16
Screw WPL-M0216539
...
17
Screw WPL-M0213123
...
19
Machine Screw WPL-M0205631
...
20
Wire Tie WPL-M0321204
...
21
Spring A WPL-A3277701
...
22
Speed Nut WPL-M0288010
...
23
Speednut WPL-M0289505
...
24
Insulator, Term. K WPL-M0325301
...
25
Rivet A-K WPL-M1205109
...
26
Filter WPL-A3094904
...
27
Clip WPL-B8321802
...
28
Rivet-Pop WPL-59002054
...
30
Gasket WPL-B5107619

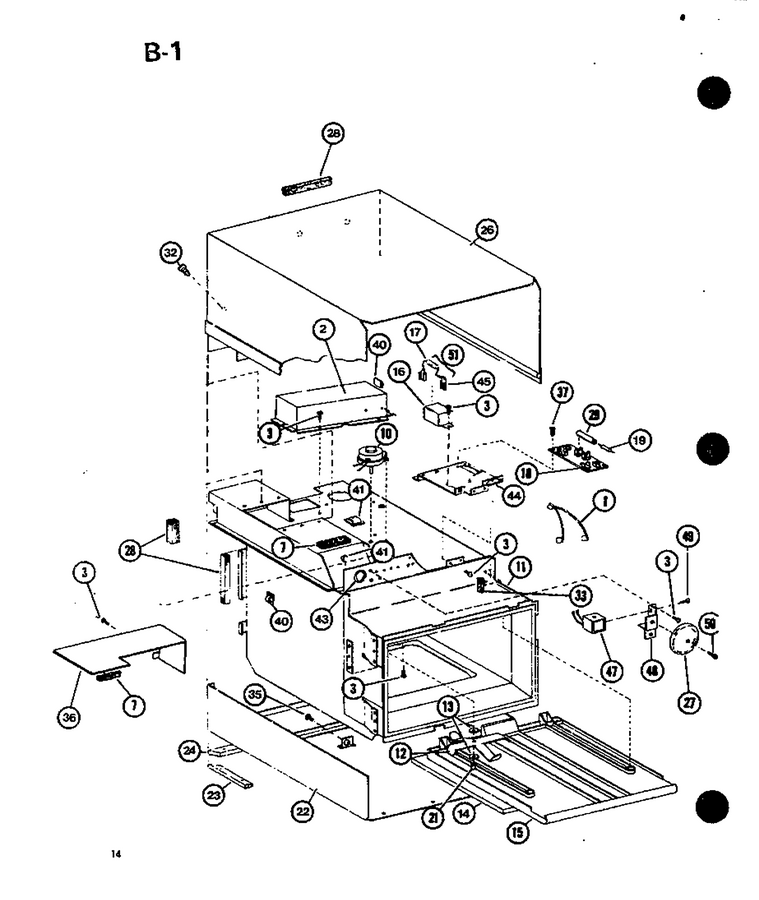

05 - Page 5

...
...
NI
Sealer WPL-M0275501
...
1
Jumper Wire WPL-D7365113
...
2
Cover-Air Duct WPL-D7224902
...
3
Screw WPL-WP489349
...
7
Gasket K WPL-A4591129
...
10
Motor WPL-B5602812
...
11
Oven Weldment WPL-D7265710
...
12
Stirrer Blade (Antenna) WPL-C8708601
...
13
Washer WPL-A3109101
...
14
Tray-Oven WPL-B5795002
...
15
Shield,splatter WPL-D7457103
...
16
Relay K WPL-C8873901
...
17
Resistor A WPL-M0308606
...
18
Terminal Board WPL-C8844701
...
19
Fuse Resistor K WPL-M0308109
...
21
Clip WPL-M0114002
...
22
O C Base Weld Pnd WPL-D7508806
...
23
Gasket,base Pan Q WPL-C8870705
...
24
Gasket,base Pan Q WPL-C8870704
...
26
Outer Case Pntd WPL-B8300009
...
27
Gong-Timer WPL-A3252901
...
28
Gasket-Cavity Top WPL-10839709
...
29
Resistor K WPL-M0308607
...
32
Screw WPL-WP3388228
...
33
Gasket White K WPL-A4591131
...
35
Screw WPL-WP489464
...
36
Shield Top WPL-D7500601
...
40
Clip WPL-WPM0104106
...
41
Clip, Cord WPL-M0104102
...
43
Snap Bushing WPL-A3293503
...
44
Plate WPL-C8756503
...
45
Terminal Pb A WPL-M0320704
...
47
Solenoid, Bell WPL-B5677302
...
48
Brkt-Solenoid WPL-B5737001
...
49
Screw WPL-M0201414
...
50
Screw WPL-WP488234
...
51
Resistor Assy WPL-B8320102

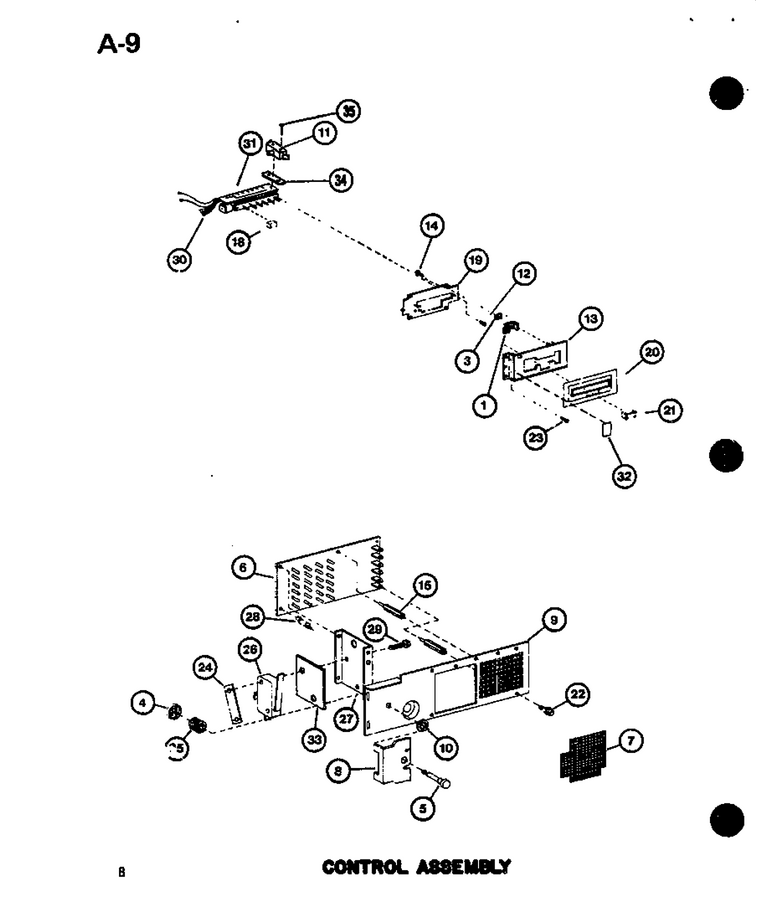

01 - Control Assy

...
...
1
Bracket Escutch WPL-B5760402
...
3
Speed Nut WPL-M0287713
...
4
Clip-Pin WPL-B8311801
...
5
Pin-Spring Retainer WPL-B8312001
...
6
Timer WPL-D7443803
...
7
Access Weld WPL-B8343601
...
8
Retainer-Grille WPL-B8317301
...
9
Panel, Air Inlet WPL-D7457803
...
10
Clip Push On WPL-M0118904
...
11
Sw Limit Aux A WPL-B8301903
...
12
Screw WPL-W11084238
...
13
Escutcheon Timer A WPL-C8868702
...
14
Screw WPL-WP489349
...
15
Support P.c. Board WPL-M0580506
...
18
Button, Timer WPL-B8323201
...
19
Plate Switch WPL-B8313502
...
20
Thinplate WPL-B8332902
...
21
Light-Indicator WPL-B5751901
...
22
Screw WPL-M0213815
...
23
Screw WPL-214597
...
24
Nut A WPL-M0289504
...
25
Spring-Grille Ret WPL-B8315601
...
26
Switch Interlock WPL-B8342901
...
27
Bracket WPL-B8343001
...
28
Support K WPL-B5763403
...
29
Screw K WPL-M0229005
...
30
Harness Switch K WPL-C8873601
...
31
Assy, Pb Switch K WPL-C8941602
...
32
Tape Alum. WPL-M0275130
...
33
Insul Inter Brk WPL-A1032301
...
34
Nut A WPL-M0289504
...
35
Screw A WPL-M0229008
