Amana RC-7PB (BOM: P7130002M)

Model: RC-7PB (BOM: P7130002M)

Save Part Not Listed?
product name

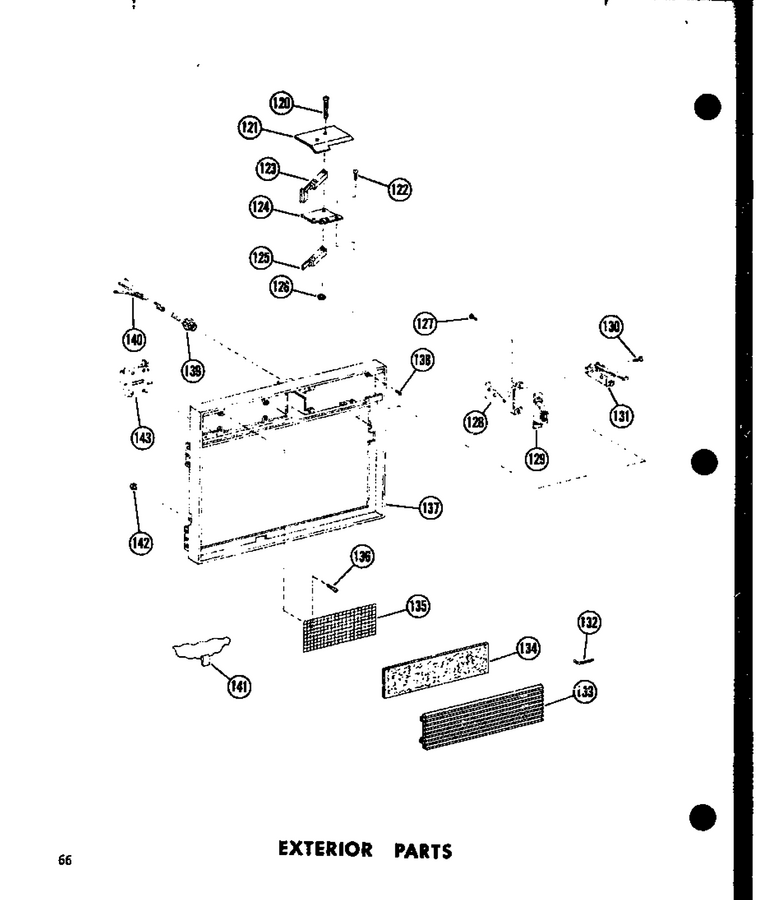

03 - Exterior Parts

...
...
120
Screw WPL-M0202523
...
121
Pad Insulation A WPL-B5685603
...
122
Screw WPL-WP59002061
...
123
Switch Wldmt WPL-B5671601
...
124
Bracket, Switch WPL-A3182501
...
125
Switch A WPL-C3670001
...
126
Nut K WPL-M0282005
...
127
Screw,tc WPL-M0230017
...
128
Bracket-Latch WPL-B5675403
...
129
Strike-Latch WPL-C3680202
...
130
Screw A-K WPL-M0227525
...
131
Switch Preform WPL-A3163406
...
132
Wrench-Hex WPL-A4696103
...
133
Grille, Air Inlet WPL-C3678401
...
134
Filter WPL-A3094902
...
135
Screen-Air Inlet WPL-B5672301
...
136
Screw WPL-WP59002061
...
137
Bezel, Outer Case WPL-D7133403
...
138
Clip A WPL-M0113006
...
139
Socket Assy WPL-R0164012
...
140
Wiring Harness WPL-D7157601
...
141
Seal K WPL-A3195801
...
142
Nut, Self Thread WPL-M0283801
...
143
Meter WPL-C8701101

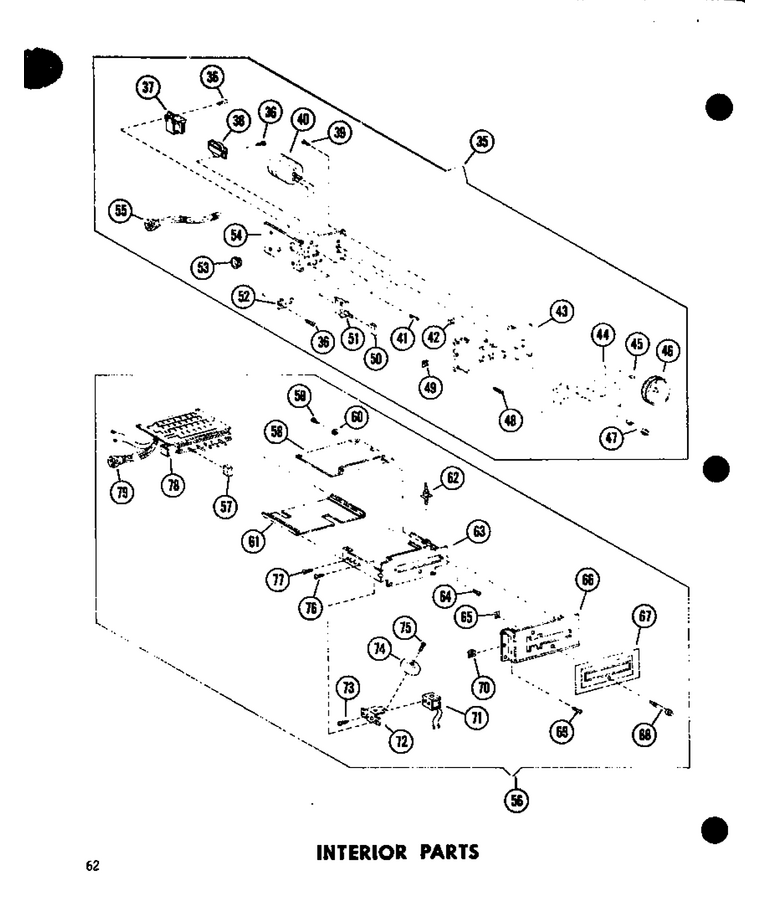

04 - Interior Parts

...
...
56
Electronic Timer Kit WPL-R0157113
...
57
Button Timer A-K WPL-B5674201
...
58
Insulation A WPL-C3679301
...
59
Screw WPL-WP59002061
...
60
Washer WPL-M0270524
...
61
Cover Timer A WPL-B5674601
...
62
Supt Ckt Bd A WPL-B5675501
...
63
Bracket-El Timer WPL-C3666101
...
64
Screw WPL-W11084238
...
65
Clip-Pilot Light K WPL-R0191015
...
66
Escutcheon Timer A WPL-C8868702
...
67
Thin Plate A WPL-B5675003
...
68
Pilot Light A WPL-A3184401
...
69
Screw WPL-M0253218
...
70
Speed Nut WPL-M0288102
...
71
Solenoid Bell A WPL-B5677301
...
72
Bracket Solenoid A WPL-C3670601
...
73
Screw WPL-M0201414
...
74
Bell A WPL-A3183801
...
75
Screw A WPL-M0202513
...
76
Screw WPL-M0230015
...
77
Screw WPL-M0227527
...
78
Timer-Electronic WPL-D7174801
...
79
Socket Assy WPL-R0164011

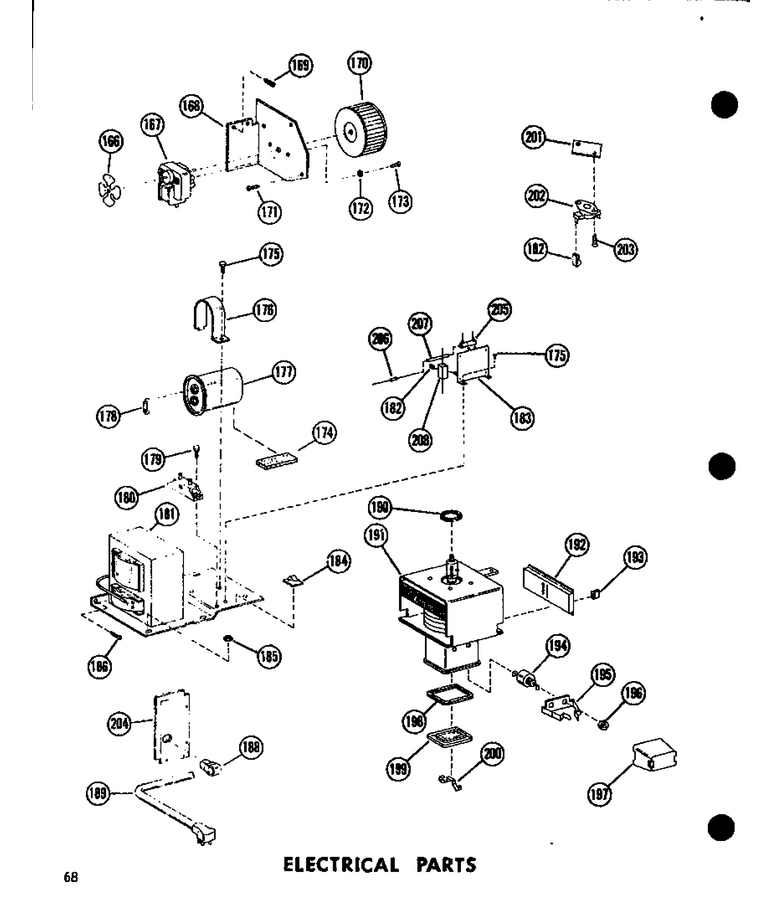

01 - Electrical Parts

...
...
166
Fan Blade WPL-B5661801
...
167
Motor WPL-M0306701
...
168
Bracket,motor Mount WPL-B5657501
...
169
Screw WPL-WP90767
...
170
Blower Wheel WPL-B5660901
...
171
Screw,tc WPL-M0230017
...
172
Washer WPL-M0272605
...
173
Screw WPL-M0202642
...
174
X$x Pad WPL-M0050902
...
175
Screw WPL-M0218116
...
176
Strap-Capacitor A WPL-A3197101
...
177
Capacitor Assy WPL-R0160021
...
178
Resistor A WPL-M0305202
...
179
Screw-Sm/hex WPL-12990523
...
180
Kit, Diode WPL-M3D71
...
181
Transformer WPL-D7152101
...
182
Insulator, Pod K WPL-M0325501
...
183
Terminal Board WPL-B5707301
...
184
Clip WPL-WPM0104106
...
185
Nut WPL-WP487939
...
186
Screw WPL-WP489464
...
188
Strain Relief WPL-M0371301
...
189
Cord-Power WPL-B5674404
...
190
Gasket, Magnetron WPL-A3185102
...
191
Magnetron Kit,700w WPL-D7157002
...
192
Baffle WPL-B5679101
...
193
Clip K WPL-M0113504
...
194
Capacitor K WPL-A3148801
...
195
Clip K WPL-B5655902
...
196
Hex Nut WPL-M0281901
...
197
Shield Hv K WPL-B5656001
...
198
Gasket WPL-A3148701
...
199
Cover Cap Box K WPL-B5647901
...
200
Bale Strap K WPL-A3145401
...
201
Plate K WPL-A3213901
...
202
Thermal Cut Out K WPL-B5703001
...
203
Screw WPL-M0230015
...
204
Panel-Serial Plate WPL-B5674101
...
205
Resistor A WPL-M0305009
...
206
Fuse WPL-M0308110
...
207
Sleeve WPL-M0321701
...
208
Resistor WPL-M0305204

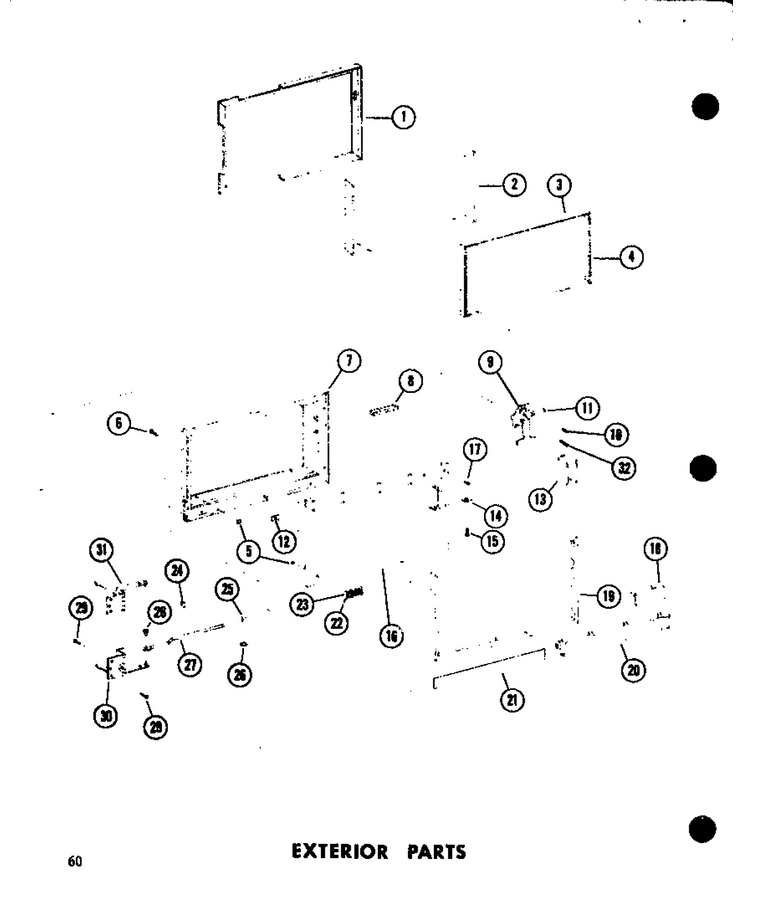

02 - Exterior Parts

...
...
1
Gasket WPL-C3669101
...
2
Inner Door Kit WPL-R0156665
...
3
Gasket WPL-B5686001
...
4
Gasket WPL-B5686002
...
5
Nut WPL-717488
...
6
Screw WPL-214597
...
7
Weldment, Inner Door Ring WPL-D7132501
...
8
Gasket WPL-A4591128
...
9
Door Latch Assy WPL-R0157316
...
10
Screw K WPL-M0228029
...
11
Guides Hndl K WPL-A3195701
...
12
Clip WPL-M0286401
...
13
Bezel-Door Handle WPL-B5671901
...
14
Nut K WPL-M0288001
...
15
Screw, No.6x18x1/4 (3) WPL-487010
...
16
Panel Outer Door K WPL-D7178601
...
17
Clip-Push WPL-M0118905
...
18
Esc-Logo WPL-C3668803
...
19
Outer Door Ring WPL-D7667701
...
20
Lens-Menu Guide WPL-B5674501
...
21
Menu Guide K WPL-D7131504
...
22
Insert K WPL-B5694708
...
23
Medallion WPL-B5694901
...
24
Snap Ring, Door Arm WPL-M0274101
...
25
Guide-Door Stop WPL-A3181801
...
26
Bushing WPL-A3182101
...
27
Door Stop Kit WPL-R0157157
...
28
Bushing-Door Arm WPL-A3185001
...
29
Screw WPL-M0253230
...
30
Hinge, Door Bottom WPL-C3666304
...
31
Hinge, Door Top WPL-C3666303
...
32
Screw-Tr No.8-32 X 1/2``, Door Handle WPL-M0234030

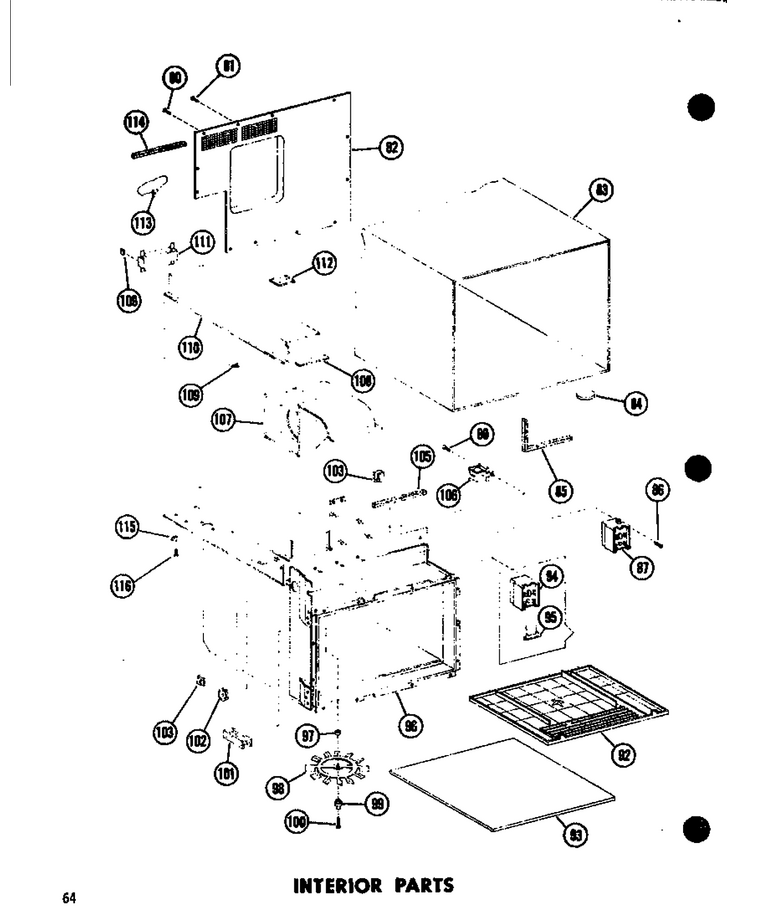

05 - Interior Parts

...
...
80
Screw WPL-M0230015
...
81
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
82
Back Panel WPL-D7132901
...
83
Wrapper, Outer Case WPL-D7110601
...
84
Foot,oc Wrapper WPL-A3173001
...
85
Gasket WPL-A3030302
...
86
Screw WPL-M0230015
...
87
Relay Kit WPL-C3669601
...
92
Grease Shield WPL-D7190901
...
93
Sealer WPL-M0275501
...
94
Relay Kit WPL-R0159006
...
95
Resistor, Relay A WPL-M0305007
...
96
Oven Cavity WPL-D7175103
...
97
Spacer,stirrer WPL-A3165901
...
98
Fan, Stirrer WPL-D7104401
...
99
Bushing,stirrer WPL-B5661601
...
100
Machine Screw WPL-M0201903
...
101
Gasket-Cavity Top WPL-10839709
...
102
Bushing-Wiring WPL-A3196402
...
103
Clip, Cord WPL-M0104102
...
105
Gasket (Per Foot) WPL-A3030303
...
106
Relay WPL-B5674302
...
107
Scroll WPL-D7181101
...
108
Gasket,per Ft WPL-A30303-30
...
109
Clip WPL-M0113503
...
110
Wldmt-Air Duct WPL-C3679002
...
111
Wldmt-Wg Shield WPL-B5675301
...
112
Gasket WPL-B5107602
...
113
Seal, Back Panel WPL-A3195802
...
114
Gasket WPL-A3030302
...
115
Terminal WPL-M0320901
...
116
Screw-Sm/hex WPL-12990523
