Amana RC-7PB (BOM: P7130001M)

Model: RC-7PB (BOM: P7130001M)

Save Part Not Listed?
product name

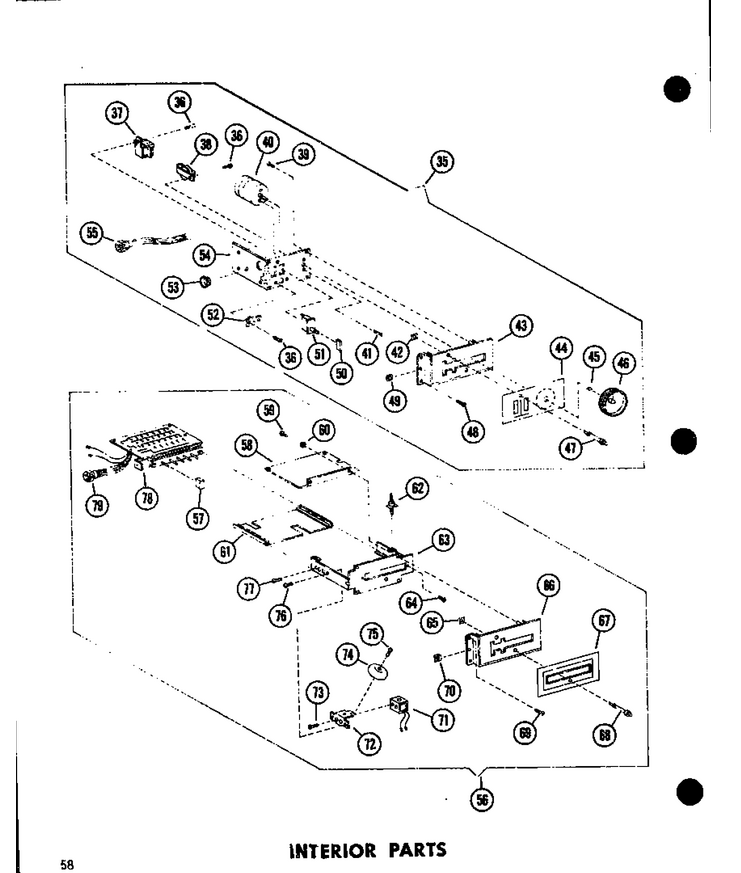

04 - Interior Parts

...
...
57
Button Timer A-K WPL-B5674201
...
58
Insulation A WPL-C3679301
...
59
Screw WPL-WP59002061
...
60
Washer WPL-M0270524
...
61
Cover Timer A WPL-B5674601
...
62
Supt Ckt Bd A WPL-B5675501
...
63
Bracket-El Timer WPL-C3666101
...
64
Screw WPL-W11084238
...
65
Clip-Pilot Light K WPL-R0191015
...
66
Escutcheon Timer A WPL-C8868702
...
67
Thin Plate-El Timer WPL-B5675001
...
68
Pilot Light A WPL-A3184401
...
69
Screw WPL-M0253218
...
70
Speed Nut WPL-M0288102
...
71
Solenoid Bell A WPL-B5677301
...
72
Bracket Solenoid A WPL-C3670601
...
73
Screw WPL-M0201414
...
74
Bell A WPL-A3183801
...
75
Screw A WPL-M0202513
...
76
Screw WPL-M0230015
...
77
Screw WPL-M0227527
...
78
Timer, Electronic WPL-C3665902
...
79
Socket Assy WPL-R0164011

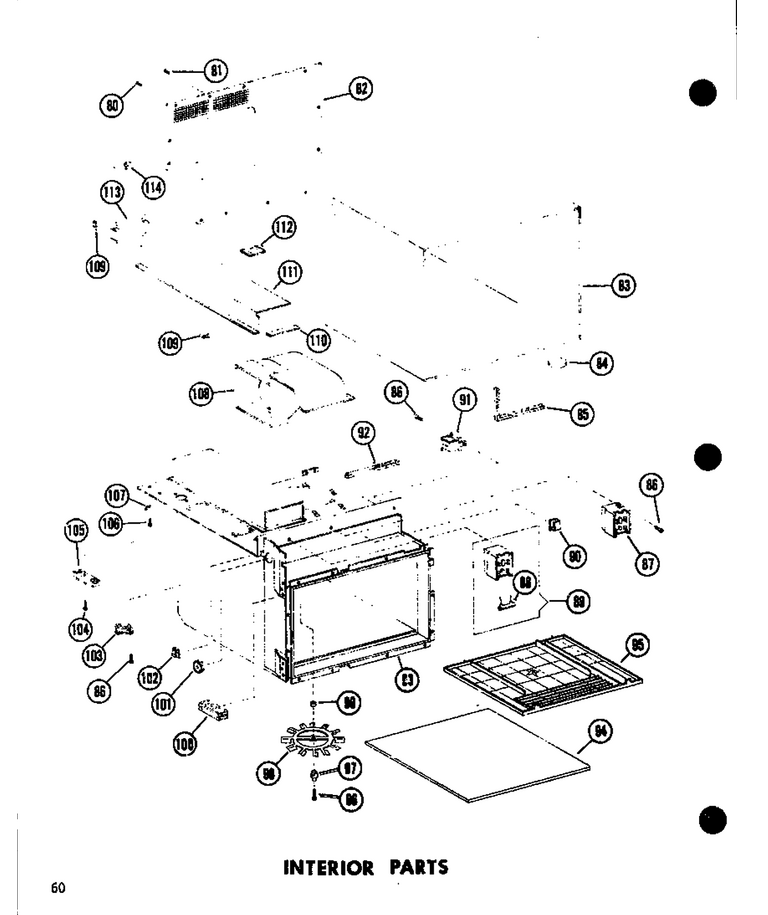

05 - Interior Parts

...
...
80
Screw WPL-M0230015
...
81
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
82
Back Panel WPL-D7132901
...
83
Wrapper, Outer Case WPL-D7110601
...
84
Foot,oc Wrapper WPL-A3173001
...
85
Gasket WPL-A3030302
...
86
Screw WPL-M0230015
...
87
Relay Kit WPL-C3669601
...
88
Resistor, Relay A WPL-M0305007
...
89
Relay Kit WPL-R0159006
...
90
Clip, Cord WPL-M0104102
...
91
Relay WPL-B5674302
...
92
Gasket (Per Foot) WPL-A3030303
...
93
Oven Cavity WPL-D7138101
...
94
Sealer WPL-M0275501
...
95
Grease Shield WPL-D7104602
...
96
Machine Screw WPL-M0201803
...
97
Bushing,stirrer WPL-B5661601
...
98
Fan, Stirrer WPL-D7104401
...
99
Spacer,stirrer WPL-A3165901
...
100
Gasket-Cavity Top WPL-10839709
...
101
Bushing-Wiring WPL-A3196402
...
102
Clip WPL-WPM0104106
...
103
Thermostat WPL-C3669501
...
104
Screw, No.6x18x1/4 (3) WPL-487010
...
105
Terminal Block WPL-B5677202
...
106
Screw-Sm/hex WPL-12990523
...
107
Terminal WPL-M0320901
...
108
Blower Scroll WPL-D7099001
...
109
Clip WPL-M0113503
...
110
Gasket,per Ft WPL-A30303-30
...
111
Wldmt-Air Duct WPL-C3679002
...
112
Gasket WPL-B5107602
...
113
Wldmt-Wg Shield WPL-B5675301
...
114
See Note Seal, Back Panel, Available From Service Representative WPL-Y00000000

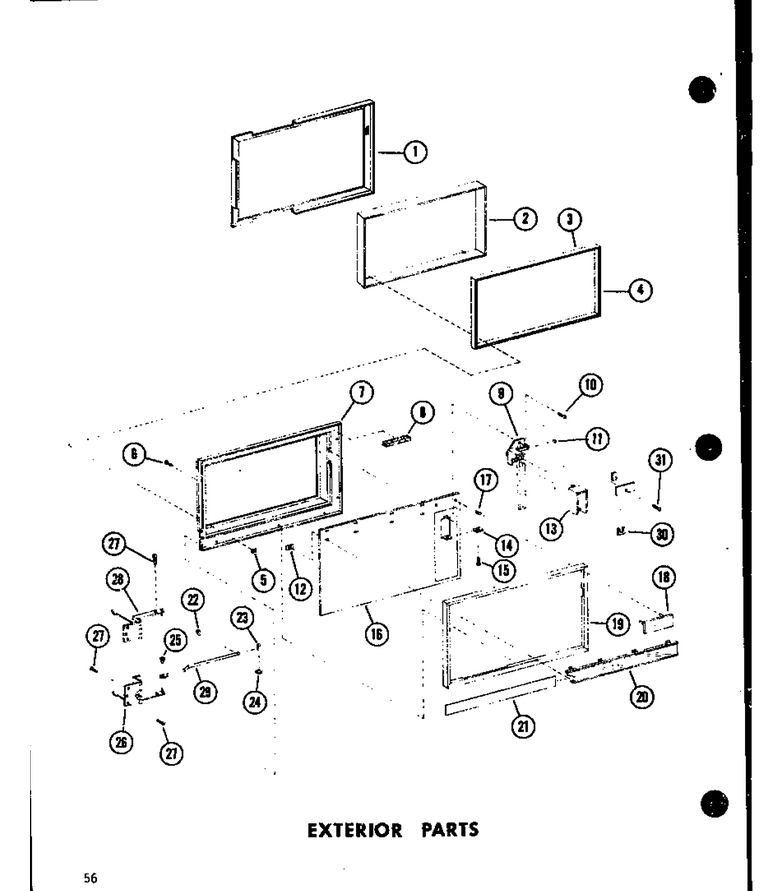

02 - Exterior Parts

...
...
1
Tape Per Roll WPL-M0275163
...
2
Inner Door Kit WPL-R0156665
...
3
Gasket WPL-B5686001
...
4
Gasket WPL-B5686002
...
5
Nut WPL-717488
...
6
Screw WPL-214597
...
7
Weldment, Inner Door Ring WPL-D7132501
...
8
Gasket WPL-A4591128
...
9
Door Latch Assy WPL-R0157316
...
10
Screw K WPL-M0228029
...
11
Guides Hndl K WPL-A3195701
...
12
Clip WPL-M0286401
...
13
Bezel-Door Handle WPL-B5671901
...
14
Nut K WPL-M0288001
...
15
Screw, No.6x18x1/4 (3) WPL-487010
...
16
Panel, Stainless Steel, Outer WPL-D7132801
...
17
Clip-Push WPL-M0118905
...
18
Esc-Logo WPL-C3668803
...
19
Outer Door Ring WPL-D7667701
...
20
Lens-Menu Guide WPL-B5674501
...
21
Menu Guide K WPL-D7131503
...
22
Snap Ring, Door Arm WPL-M0274101
...
23
Guide-Door Stop WPL-A3181801
...
24
Bushing WPL-A3182101
...
25
Bushing-Door Arm WPL-A3185001
...
26
Hinge, Door Bottom WPL-C3666304
...
27
Screw WPL-M0253230
...
28
Hinge, Door Top WPL-C3666303
...
29
Door Stop Kit WPL-R0157157
...
30
Clip WPL-M0115802
...
31
Screw-Tr No.8-32 X 1/2``, Door Handle WPL-M0234030

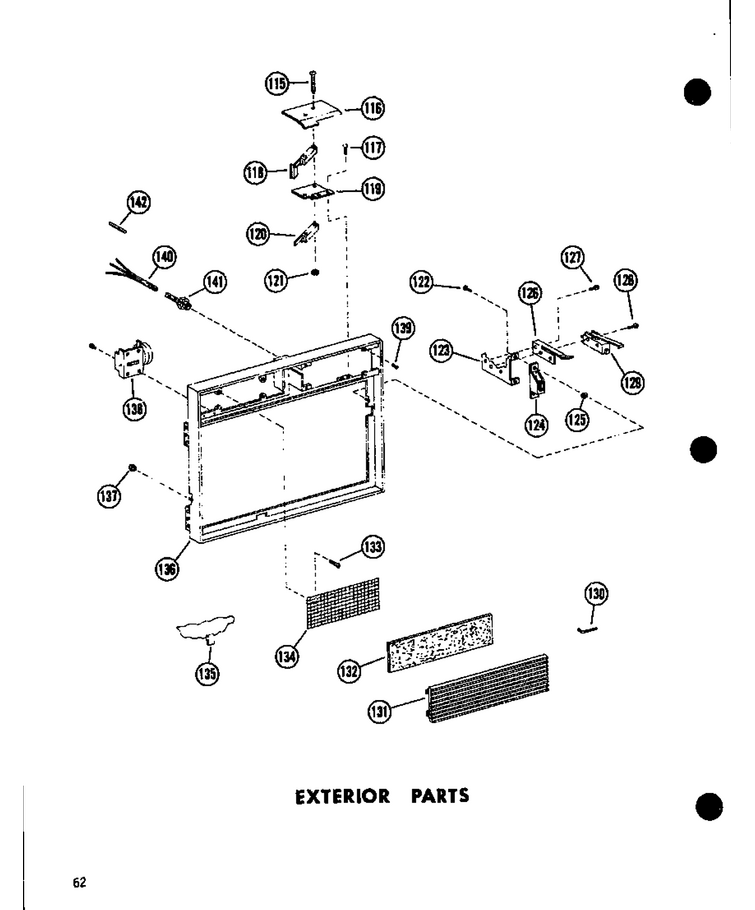

03 - Exterior Parts

...
...
115
Screw WPL-M0202525
...
116
Pad Insulation A WPL-B5685603
...
117
Screw WPL-M0230015
...
118
Switch Wldmt WPL-B5671601
...
119
Bracket, Switch WPL-A3182501
...
120
Switch A WPL-C3670001
...
121
Nut K WPL-M0282005
...
122
Screw,tc WPL-M0230017
...
123
Bracket-Latch WPL-B5675402
...
124
Strike-Latch WPL-C3680202
...
125
Washer WPL-M0270524
...
126
Spring-Latch WPL-A3186402
...
127
Screw WPL-M0232012
...
128
Screw A-K WPL-M0227525
...
129
Switch Preform WPL-A3163406
...
130
Wrench-Hex WPL-A4696103
...
131
Grille, Air Inlet WPL-C3678401
...
132
Filter WPL-A3094902
...
133
Screw WPL-WP59002061
...
134
Screen-Air Inlet WPL-B5672301
...
135
See Note Seal, Time Meter, Available From Service Representative WPL-Y00000000
...
136
Bezel, Outer Case WPL-D7133403
...
137
Nut, Self Thread WPL-M0283801
...
138
See Note Time Meter, Available From Service Representative. WPL-Y00000000
...
139
Clip A WPL-M0113006
...
140
Wiring Harness WPL-D7157601
...
141
Socket Assy WPL-R0164012
...
142
Connector WPL-WP75614

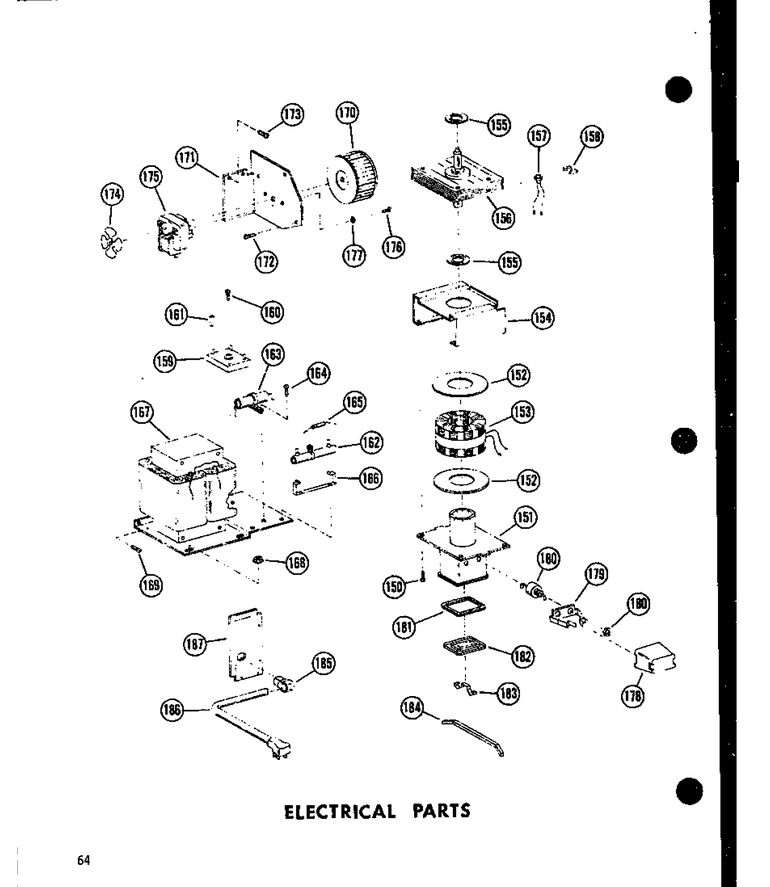

01 - Electrical Parts

...
...
150
Screw-Sm/hex WPL-12990523
...
151
Housing Plate Assy WPL-B5663702
...
152
Washer WPL-M0274028
...
153
Magnet Coil WPL-M0370602
...
154
Support WPL-C3596101
...
155
Washer WPL-B5621901
...
156
Magnetron WPL-M0371101
...
157
Thermal Prot WPL-M0370403
...
158
Clip WPL-M0115802
...
159
Rectifier-Bridge K WPL-A3165201
...
160
Screw WPL-M0218116
...
161
Insulator, Term. K WPL-M0325301
...
162
Resistor,adj WPL-M0305101
...
163
Capacitor WPL-M0300201
...
164
Screw WPL-M0218116
...
165
Resistor WPL-M0305201
...
166
Brkt-Adj-Resistor WPL-A3165001
...
167
Transformer WPL-C3639201
...
168
Nut WPL-WP487939
...
169
Screw WPL-WP489464
...
170
Blower Wheel WPL-B5660901
...
171
Bracket,motor Mount WPL-B5657501
...
172
Screw,tc WPL-M0230017
...
173
Screw WPL-WP90767
...
174
Fan Blade WPL-B5661801
...
175
Motor WPL-M0306701
...
176
Screw WPL-M0202642
...
177
Washer WPL-M0272605
...
178
Shield Hv K WPL-B5656001
...
179
Clip K WPL-B5655902
...
180
Capacitor K WPL-A3148801
...
181
Gasket WPL-A3148701
...
182
Cover Cap Box K WPL-B5647901
...
183
Bale Strap K WPL-A3145401
...
184
Retainer Bar WPL-A3164702
...
185
Strain Relief WPL-M0371301
...
186
Cord-Power WPL-B5674404
...
187
Panel-Serial Plate WPL-B5674101
