Amana RC-6PB (BOM: P7386004M)

Model: RC-6PB (BOM: P7386004M)

Save Part Not Listed?
product name

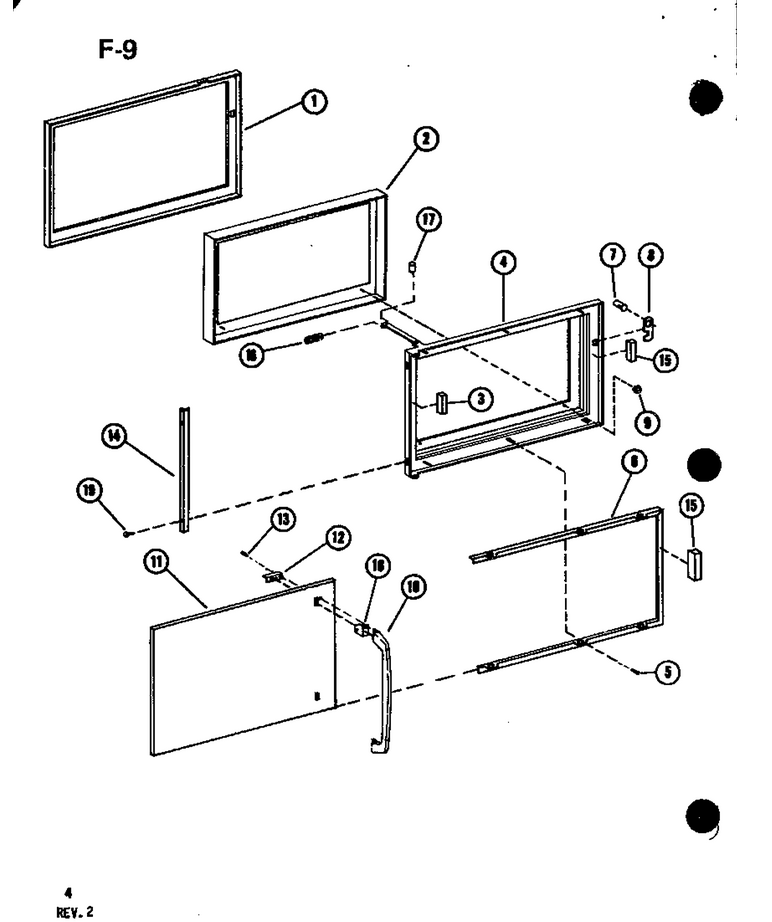

01 - Page 1

...
...
NI
Sealer WPL-M0275501
...
1
Gasket-Door WPL-D7407201
...
2
Inner Door Kit WPL-R0156665
...
3
Gasket WPL-A4591133
...
4
Inner Door Assembly WPL-D7110418
...
5
Screw WPL-M0234403
...
6
Trim WPL-D7408502
...
7
Pin WPL-M0119001
...
8
Latch, Door WPL-A3183001
...
9
Nut WPL-717488
...
10
Handle WPL-D7254203
...
11
Door Panel WPL-C8870901
...
12
Handle Stiffner WPL-B8329201
...
13
Screw A K WPL-M0211516
...
14
Trim-Door WPL-C8828701
...
15
X$x Pad Protect WPL-M0050903
...
16
Spring-Door WPL-A1012101
...
17
Roll Pin WPL-M1200101
...
18
Bracket WPL-B8329302
...
19
Screw T.c WPL-M0229916

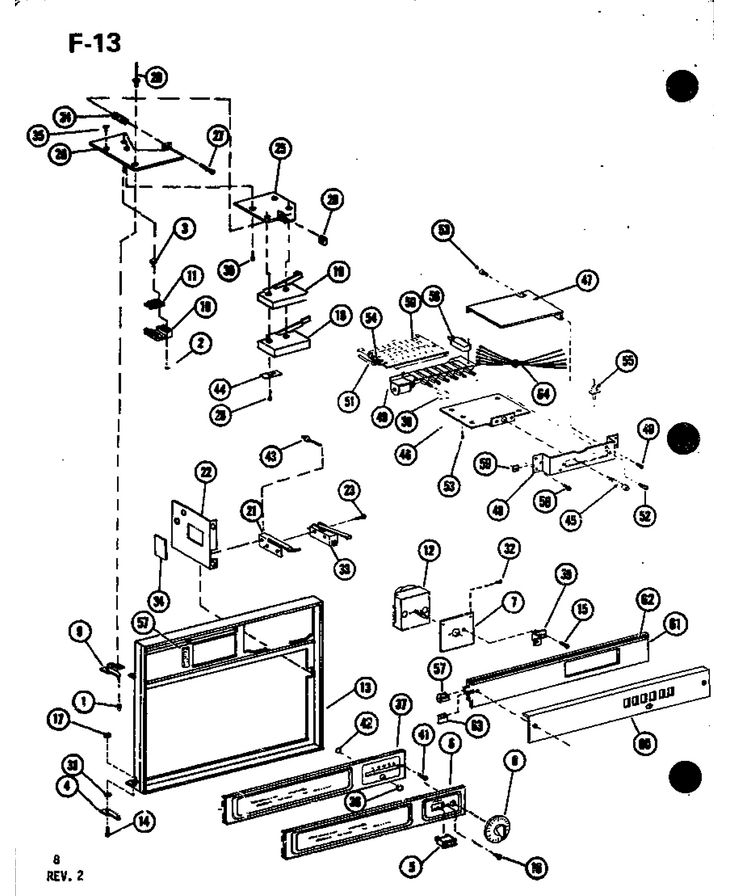

03 - Page 3

...
...
1
See Svc Ltr Cr-163d WPL-A3168101
...
2
Clip,hairpin WPL-A3171501
...
3
Pin-Dr Arm WPL-A1016401
...
4
Hinge Plate WPL-B5738701
...
9
Hinge Plate WPL-B8300501
...
10
Bushing-Door Stop WPL-C8710901
...
11
Bushing-Door Stop WPL-C8710902
...
13
Bezel, O.c. WPL-10292305
...
14
Screw WPL-WPW10001160
...
17
Nut WPL-WP488130
...
18
Limit Switch WPL-B8321101
...
19
Intlk Sw-Weld WPL-B8324002
...
20
Rivet-Pop WPL-59002054
...
21
Latch Spring WPL-B8330901
...
22
Bracket-Latch WPL-C8758001
...
23
Screw WPL-M0227520
...
24
Spring A WPL-A3277701
...
25
Bracket Intlh Assy WPL-B8320801
...
26
Bracket WPL-B8323301
...
27
Screw WPL-M0216539
...
28
Screw WPL-M0213123
...
29
Speed Nut WPL-M0288010
...
30
Rivet A-K WPL-M1205109
...
31
Lock Washer WPL-M0272402
...
33
Switch Preform A WPL-A3163412
...
34
X$x Pad Protect WPL-M0050903
...
35
Screw WPL-WP489128
...
36
Lens WPL-B5796701
...
37
Escutcheon WPL-B5793801
...
38
Button, Timer WPL-B8323201
...
41
Screw, Phillips Oval Head WPL-M0215102
...
42
O Ring WPL-M0500701
...
43
Pop Rivet WPL-B5642908
...
44
Speednut WPL-M0289505
...
45
Light Pilot WPL-B5786606
...
46
Plate K WPL-B8313601
...
47
Shield WPL-B8316201
...
48
Bracket Timer K WPL-C8875401
...
49
Assy, Pb Switch WPL-C8941601
...
50
Timer, Elect K WPL-D7443802
...
51
Harness WPL-D7451701
...
52
Screw WPL-W11084238
...
53
Screw WPL-M0213815
...
54
Wire Tie WPL-M0321204
...
55
Support WPL-M0580504
...
56
Spacer WPL-B8329001
...
57
Gasket-Per Ft WPL-A30303-35
...
58
Screw WPL-214597
...
59
Speed Nut K WPL-M0288301
...
64
Wiring Harness WPL-C8891901

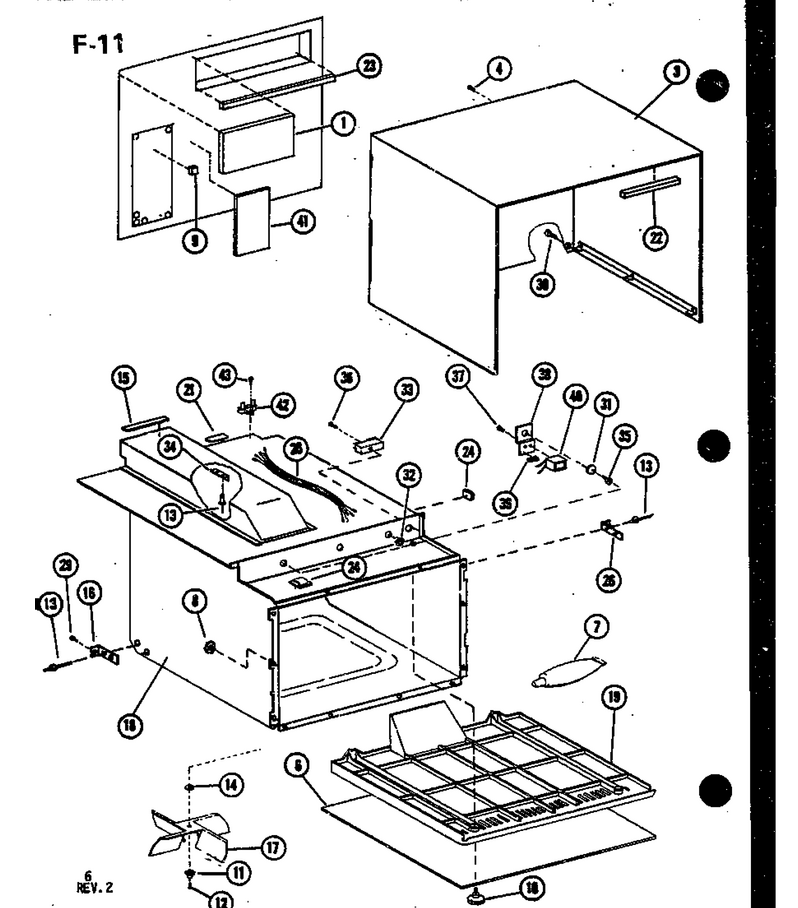

02 - Page 2

...
...
1
Gasket WPL-A1008002
...
3
Oc Weldmt WPL-B8300005
...
4
Screw WPL-WP90767
...
6
Tray, Oven WPL-A3183704
...
7
Sealer WPL-M0275501
...
8
Nut, Self Thread WPL-M0283801
...
9
Gasket WPL-A4591130
...
11
Bearing WPL-A3214801
...
12
Shoulder Screw WPL-A3214903
...
13
Rivet-Pop WPL-59002054
...
14
Bushing-Stirrer Mt WPL-B5704203
...
15
Gasket K WPL-A4591129
...
16
Brkt-Oven Retainer WPL-B5790801
...
17
Fan Blade WPL-C8815601
...
18
Oven Cavity WPL-D7385703
...
19
Shield,splatter WPL-D7457103
...
20
Harness WPL-D7451601
...
21
Gasket (1=1ft.) WPL-10839713
...
22
Gasket (Inch) WPL-A3030301
...
23
Gasket-Per Inch WPL-A3030311
...
24
Clip WPL-WPM0104106
...
26
Brkt-Oven Retainer WPL-B5790802
...
29
Screw WPL-WP12990527
...
30
Screw WPL-WP3388228
...
31
Gong-Timer WPL-A3252901
...
32
Snap Bushing WPL-A3293503
...
33
Terminal Block WPL-B5677203
...
34
Angle K WPL-B8321201
...
35
Screw WPL-M0211530
...
36
Screw, No.6x18x1/4 (3) WPL-487010
...
37
Screw WPL-M0201414
...
38
Bracket WPL-A1016601
...
39
Gasket WPL-A4591130
...
40
Solenoid, Bell WPL-B5677303
...
41
Insulation WPL-A3205602
...
42
Fuse- Ther WPL-59001951

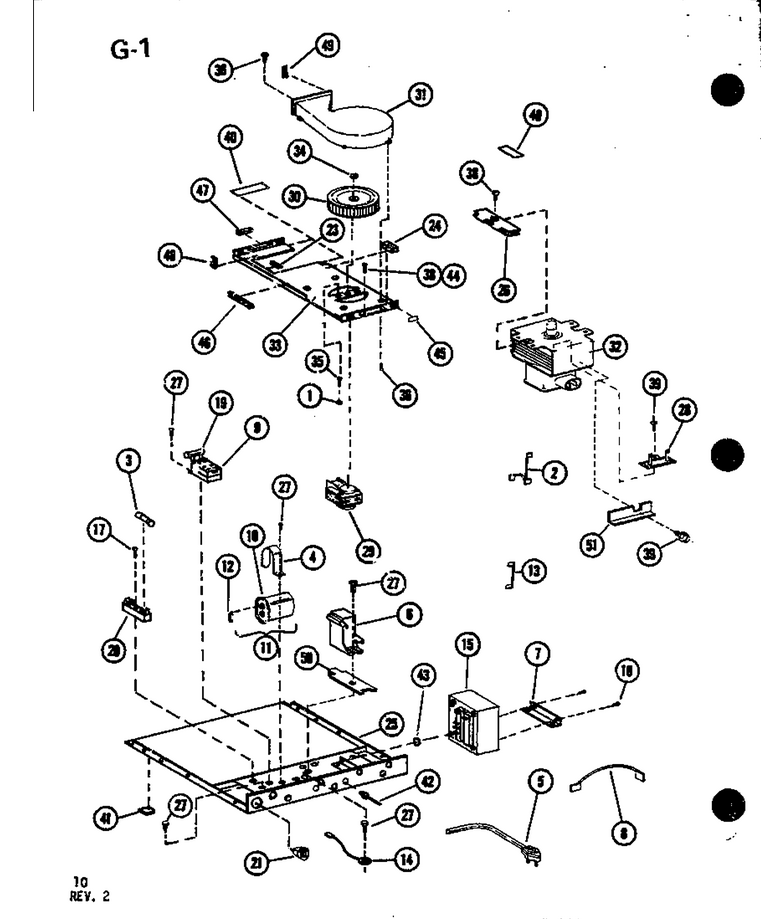

04 - Page 4

...
...
NI
Jumper Wire WPL-D7384629
...
1
Washer WPL-M0272605
...
2
Jumper Wire WPL-A1008201
...
3
Fuse WPL-WPM0805102
...
4
Strap-Capacitor WPL-A3257001
...
5
Cord-Power WPL-B5674404
...
6
Kit, Diode WPL-M3D71
...
7
Brkt-Chassis WPL-B5790401
...
8
Jumper Wire K WPL-C3655864
...
9
Relay WPL-B5773501
...
10
Capacitor Assy WPL-R0160021
...
11
Capacitor Assy WPL-R0160021
...
12
Resistor A WPL-M0305202
...
13
Jumper Wire WPL-D7292664
...
14
Jumper Wire WPL-D7384604
...
15
Transformer WPL-D7391401
...
17
Screw WPL-WP59002061
...
18
Screw WPL-M0254452
...
19
Resistor Assy WPL-B8320102
...
20
Fuse Block WPL-M0341401
...
21
Strain Relief WPL-M0370007
...
23
Gasket WPL-A4591132
...
24
Gasket (Per Foot) WPL-A3030303
...
25
Base Pan Pnt WPL-C8816002
...
26
Brkt-Mag Tube WPL-B5774402
...
27
Screw-Sm/hex WPL-12990523
...
29
Motor- Blo WPL-C8793205
...
30
Blower Wheel WPL-C8793501
...
31
Blower Scroll WPL-C8827501
...
32
Magnetron WPL-10794402
...
33
Plenum Weld WPL-C8848802
...
34
Nut WPL-WP3195558
...
35
Screw WPL-M0202642
...
36
Screw WPL-WP489349
...
39
Pop Rivet WPL-A4539602
...
40
Tape-Plastic WPL-M0275011
...
41
Bumper WPL-A3295901
...
43
Washer WPL-M0272506
...
44
Screw WPL-M0216531
...
46
Gasket (1=1ft.) WPL-10839713
...
47
Gasket K WPL-A4591129
...
48
Gasket White K WPL-A4591131
...
49
Gasket WPL-A4591133
