Amana RC-6D (BOM: P7386001M)

Model: RC-6D (BOM: P7386001M)

Save Part Not Listed?
product name

02 - Page 2

...
...
1
Gasket WPL-A1008001
...
2
Screw WPL-WP489349
...
3
O C Wld WPL-D7385504
...
4
Screw WPL-WP489464
...
5
Screw WPL-M0207943
...
6
Tray, Oven WPL-A3183704
...
7
Sealer WPL-M0275501
...
8
Nut, Self Thread WPL-M0283801
...
9
Gasket WPL-A4591130
...
10
Screw WPL-A1002301
...
11
Bearing WPL-A3214801
...
12
Shoulder Screw WPL-A3214903
...
13
Rivet-Pop WPL-59002054
...
14
Bushing-Stirrer Mt WPL-B5704203
...
15
Gasket K WPL-A4591129
...
16
Brkt-Oven Retainer WPL-B5790802
...
17
Fan Blade WPL-C8815601
...
18
Oven Weldment WPL-D7385701
...
19
Grease Shi WPL-R0157214
...
20
Wiring Harness WPL-D7435101
...
21
Gasket (1=1ft.) WPL-10839713
...
22
Gasket (Inch) WPL-A3030301
...
23
Gasket-Per Inch WPL-A3030311
...
24
Clip WPL-WPM0104106
...
25
Clip WPL-M0114901
...
26
Brkt-Oven Retainer WPL-B5790801
...
27
Guide-Strip WPL-C8812901
...
28
Nut WPL-WP3400029

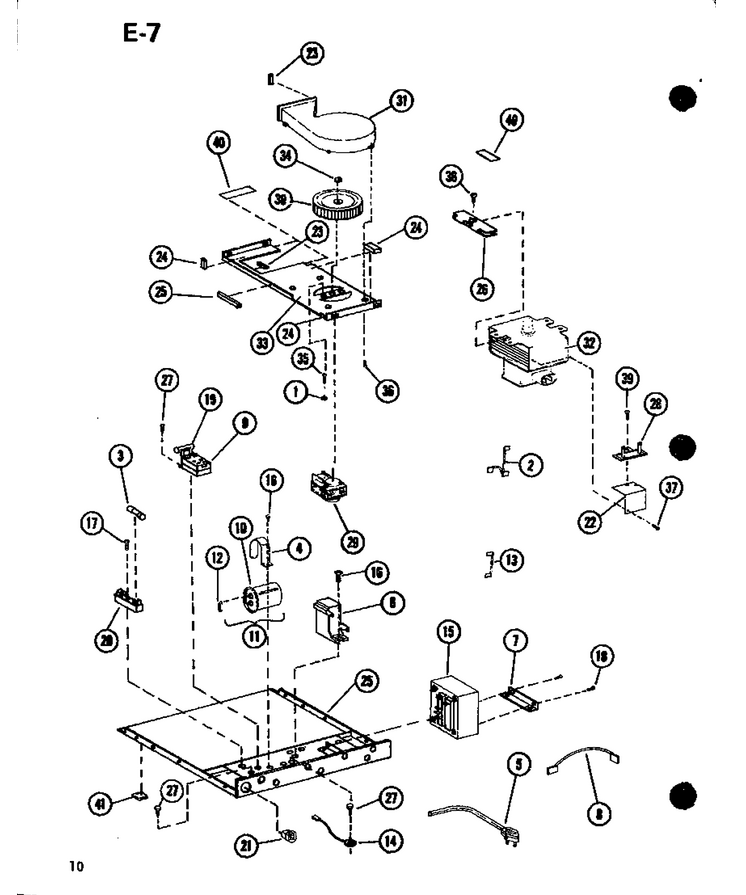

04 - Page 4

...
...
NI
Owners Manual Rc-6d WPL-B5790003
...
1
Washer WPL-M0272605
...
2
Jumper Wire WPL-A1008201
...
3
Fuse WPL-WPM0805102
...
4
Strap-Capacitor WPL-A3257001
...
5
Cord-Power WPL-B5674404
...
6
Kit, Diode WPL-M3D71
...
7
Brkt-Chassis WPL-B5790401
...
8
Jumper Wire K WPL-C3655864
...
9
Relay A WPL-C3656303
...
10
Capacitor Assy WPL-R0160021
...
11
Capacitor Assy WPL-R0160021
...
12
Resistor A WPL-M0305202
...
13
Jumper Wire WPL-D7292664
...
14
Jumper Wire WPL-D7384604
...
15
Transformer WPL-D7391401
...
16
Screw-Sm/hex WPL-12990523
...
17
Screw WPL-WP59002061
...
18
Screw WPL-M0254452
...
19
Resistor A WPL-M0308606
...
20
Fuse Block WPL-M0341401
...
21
Strain Relief WPL-M0370007
...
22
Brkt-Fuse Mtg WPL-A1003901
...
23
Gasket (Per Foot) WPL-A3030303
...
24
Gasket-Per Inch WPL-A3030311
...
25
Base Pan WPL-C8816001
...
26
Brkt-Mag Tube WPL-B5774401
...
27
Screw-Sm/hex WPL-12990523
...
28
Fuse, Thermal WPL-B5795301
...
29
Motor- Blo WPL-C8793205
...
30
Blower Wheel WPL-C8793501
...
31
Blower Scroll WPL-C8827501
...
32
Magnetron WPL-10794402
...
33
Plenum Weld WPL-C8848801
...
34
Nut WPL-WP3195558
...
35
Screw WPL-M0202642
...
36
Screw WPL-WP489349
...
37
Screw WPL-WP90767
...
38
Screw (3) WPL-67006425
...
39
Screw WPL-M0213815
...
40
Tape-Plastic WPL-M0275011
...
41
Bumper WPL-A3295901

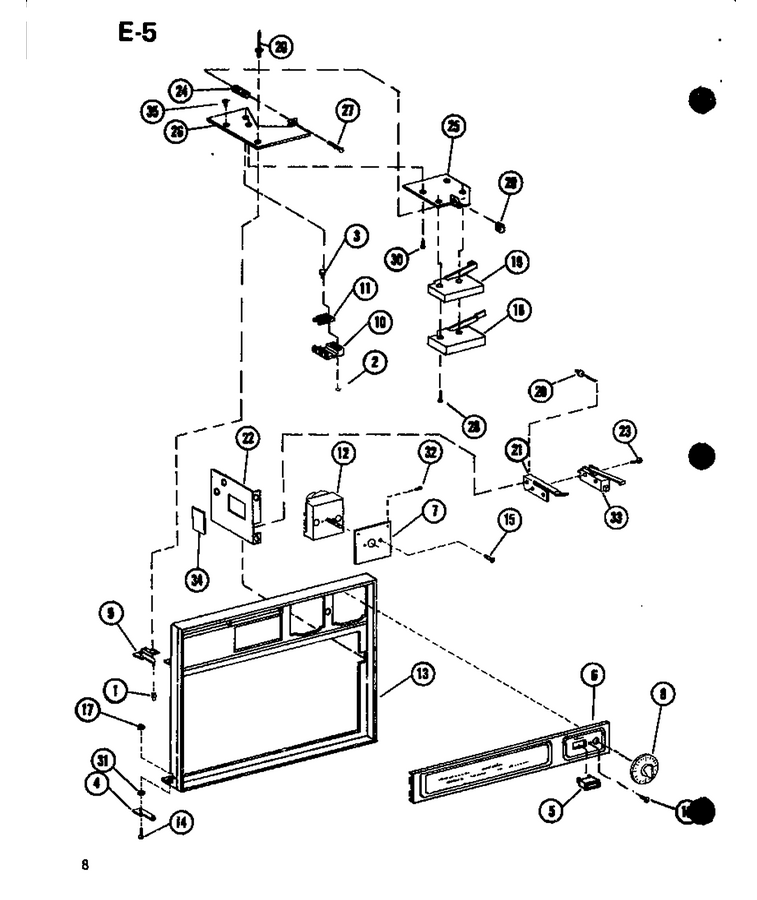

03 - Page 3

...
...
1
See Svc Ltr Cr-163d WPL-A3168101
...
2
Clip,hairpin WPL-A3171501
...
3
Pin-Dr Arm WPL-A1016401
...
4
Hinge Plate WPL-B5738701
...
5
Light-Indicator WPL-B5751901
...
6
Escutcheon WPL-B5793801
...
7
Brkt-Timer WPL-B5794901
...
8
Knob-Timer WPL-B5798003
...
9
Hinge Plate WPL-B8300501
...
10
Bushing-Door Stop WPL-C8710901
...
11
Bushing-Door Stop WPL-C8710902
...
12
Timer-5 Min WPL-C8834201
...
13
Bezel, O.c. WPL-10292305
...
14
Screw WPL-WPW10001160
...
15
Screw WPL-WPW10068250
...
16
Screw WPL-WP59002061
...
17
Nut WPL-WP488130
...
18
Switch Preform WPL-A1010901
...
19
Switch Weldment WPL-B5721303
...
20
Rivet-Pop WPL-59002054
...
21
Spring, Latch WPL-B5771401
...
22
Bracket-Latch WPL-C8758001
...
23
Screw WPL-M0227520
...
24
Spring A WPL-A3277701
...
25
Bracket WPL-B5768003
...
26
Brkt-Switch WPL-B8300601
...
27
Screw WPL-M0216539
...
28
Screw WPL-M0213123
...
29
Speed Nut WPL-M0288010
...
30
Rivet A-K WPL-M1205109
...
31
Lock Washer WPL-M0272402
...
32
Screw WPL-WP489349
...
33
Switch Preform A WPL-A3163412
...
34
X$x Pad Protect WPL-M0050903
...
35
Screw WPL-M0251017

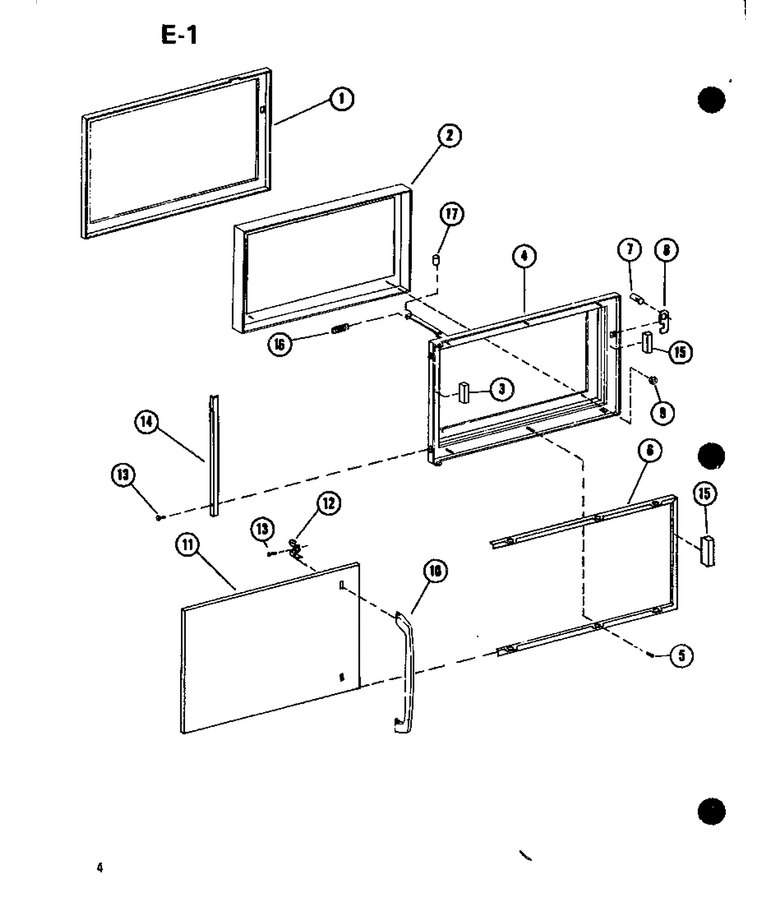

01 - Page 1

...
...
1
Gasket-Door WPL-D7407201
...
2
Inner Door Kit WPL-R0156665
...
3
Gasket WPL-A4591128
...
4
Inner Door Assembly WPL-D7110418
...
5
Screw WPL-M0234403
...
6
Trim, Door WPL-D7408501
...
7
Pin WPL-M0119001
...
8
Latch, Door WPL-A3183001
...
9
Nut WPL-717488
...
10
Handle WPL-D7254203
...
11
Panel-Outer Door WPL-C8815502
...
12
Clip WPL-A1010701
...
13
Screw T.c WPL-M0229916
...
14
Trim-Door WPL-C8828701
...
15
X$x Pad Protect WPL-M0050903
...
16
Spring-Door WPL-A1012101
...
17
Roll Pin WPL-M1200101
