Amana RC-20 (BOM: P7210008M)

Model: RC-20 (BOM: P7210008M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

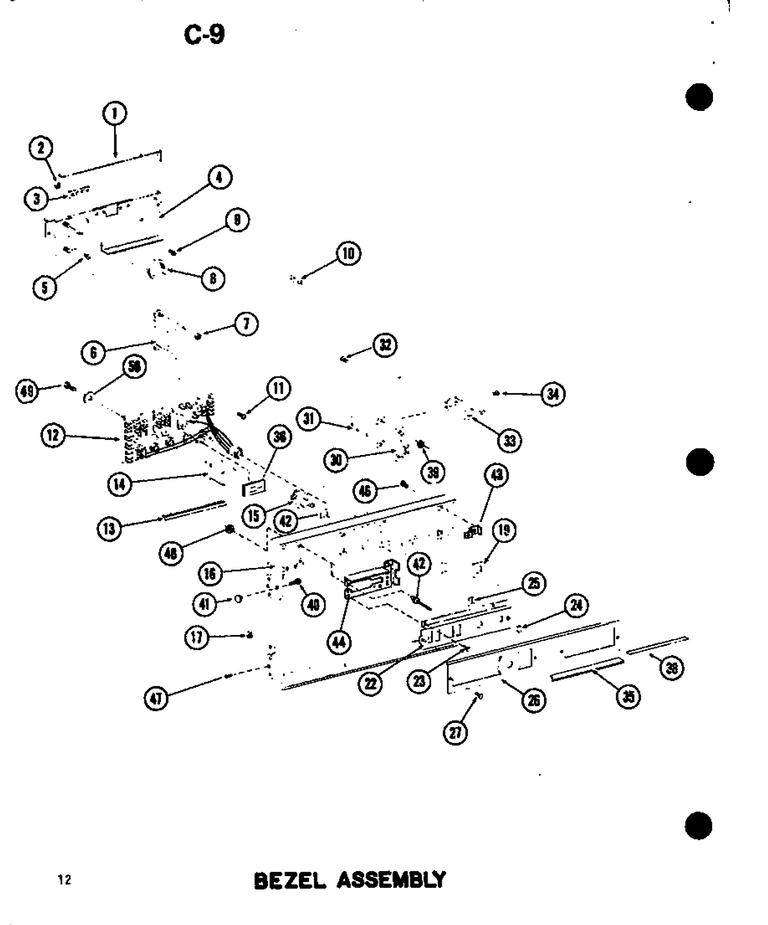

01 - Bezel Assy

...
...
NI
Support WPL-M0580501
...
1
Gasket K WPL-A4591129
...
2
Nut-Hex WPL-M0281001
...
3
Terminal Board WPL-A3225501
...
4
Wldmt-Pc Bracket WPL-B5719301
...
5
Screw WPL-WP489349
...
6
Transformer WPL-C3699401
...
7
Nut WPL-WP488130
...
8
Snap Bushing WPL-A4554802
...
9
Screw WPL-W11084238
...
10
Grommet WPL-M0580203
...
11
Screw, No.6x18x1/4 (3) WPL-487010
...
12
Pc Board K WPL-C8712203
...
13
Guide-Circuit Board WPL-B5715901
...
14
Relay-Pc Board WPL-C8710301
...
15
Toggle Switch WPL-B5730101
...
16
Bezel, Outer Case WPL-D7293501
...
17
Nut, Self Thread WPL-M0283801
...
19
Plate-Voltage WPL-A3225301
...
22
Escutcheon-Di Timer WPL-C8707701
...
23
Screw WPL-M0229004
...
24
Lens-Pilot Light WPL-A3229601
...
25
Clip WPL-M0285801
...
26
Escutcheon-Control WPL-C8708401
...
27
Screw, Phillips Oval Head WPL-M0215102
...
30
Strike-Latch WPL-C3680202
...
31
Bracket-Latch WPL-B5675403
...
32
Screw WPL-M0218117
...
33
Switch, Preform WPL-A3163415Q
...
34
Screw WPL-M0227520
...
35
Gasket-Esc WPL-B5735201
...
36
Time Delay WPL-B5691003
...
38
Tape Per Roll WPL-M0275163
...
39
Washer WPL-M0270524
...
40
Screw, Nylock WPL-M0205442
...
41
T Nut WPL-M0285902
...
42
Pop Rivet WPL-A4539607
...
43
Brkt-Escut WPL-B5760403
...
44
Bezel Insert WPL-D7292702
...
46
Screw-Sm/hex WPL-12990523
...
47
Screw WPL-M0253230
...
48
Washer WPL-M0270502
...
49
Screw WPL-214597
...
50
Washer Non-Metal WPL-M0274032

03 - Door Assy

...
...
1
Gasket WPL-D7396401
...
2
Inner Door Kit WPL-R0156665
...
5
Nut WPL-717488
...
6
Screw WPL-214597
...
7
Weldment, Inner Door Ring WPL-D7132501
...
8
Gasket WPL-A4591128
...
9
Door Latch Assy WPL-R0157316
...
10
Screw WPL-WPW10068250
...
11
Guides Hndl K WPL-A3195701
...
12
Clip WPL-M0286401
...
13
Bezel-Door Handle WPL-B5671901
...
14
Speed Nut WPL-M0288102
...
15
Screw, No.6x18x1/4 (3) WPL-487010
...
16
Panel Outer Door K WPL-D7178601
...
17
Clip-Push WPL-M0118905
...
18
Esc-Logo WPL-C3668803
...
19
Outer Door Ring WPL-D7667701
...
20
Lens-Menu Guide WPL-B5674501
...
21
Menu Guide WPL-C8713302
...
22
Insert-Medallion WPL-B5694714
...
23
Medallion WPL-B5694901
...
25
Guide-Door Stop WPL-A3181801
...
26
Bushing WPL-A3182101
...
27
Arm-Door Stop WPL-B5748702
...
28
Bushing-Door Arm WPL-A3185001
...
29
Screw WPL-M0253230
...
30
Hinge-Bottom WPL-C3666306
...
31
Hinge-Top WPL-C3666305
...
32
Screw WPL-M0234030
...
33
Tape Per Roll WPL-M0275163
...
34
Rivet, Pop (Wht) WPL-B5642901
...
35
Nut WPL-WP488130
...
36
Washer WPL-M0270501

05 - Interior Assy

...
...
1
Grille Air Inlet WPL-C8708501
...
2
Screen, Air Intake WPL-B5713901
...
3
Screw WPL-M0230015
...
4
Clip WPL-A3225202
...
6
Filter WPL-B5714801
...
7
End Cap-Grill WPL-B5714401
...
8
Base Pan Wld WPL-C8709102
...
9
Screw K WPL-M0253543
...
10
Chassis WPL-D7203601
...
11
Transformer-Hv Plate WPL-D7199701
...
12
Screw K WPL-M0253543
...
13
Transformer-Fil WPL-C8707501
...
14
Capacitor Assy WPL-C8790506
...
15
Bracket WPL-A3184702
...
16
Screw WPL-M0218116
...
17
Resistor A WPL-M0305202
...
18
Rectifier WPL-B5672401
...
20
Screw-Sm/hex WPL-12990523
...
21
Resistor WPL-M0305204
...
22
Clip WPL-WPM0104106
...
23
Nut WPL-WP488130
...
24
Relay-Power WPL-C8709603
...
25
Relay-Surge WPL-C8709602
...
26
Terminal Board WPL-A3225501
...
27
Screw WPL-M0227501
...
28
Terminal Block WPL-B5677203
...
29
Screw, No.6x18x1/4 (3) WPL-487010
...
30
Resistor, Relay A WPL-M0305007
...
31
Clip-Cord WPL-M0104401
...
32
Bracket-Relay WPL-B5713001
...
33
Sleeve WPL-M0321701
...
34
Resistor, 4 Ohm, 8 Watt WPL-M0305010
...
35
Fuse WPL-M0308110
...
36
Terminal Board WPL-B5687401
...
37
Bushing,terminal WPL-M0325401
...
38
Bushing,terminal WPL-M0325402
...
39
Brkt-Fuse Resistor WPL-C8706601
...
40
Rivet-Pop WPL-59002054
...
41
Clip K WPL-M0110501
...
42
Wiring Harness WPL-D7227201
...
43
Wiring Harness-Hv WPL-C8711201
...
44
Insulator, Pod K WPL-M0325501
...
45
Wire Tie WPL-M0321204
...
46
Sleeve K WPL-M0321702
...
47
Washer WPL-M0270524
...
48
Washer WPL-M0272503

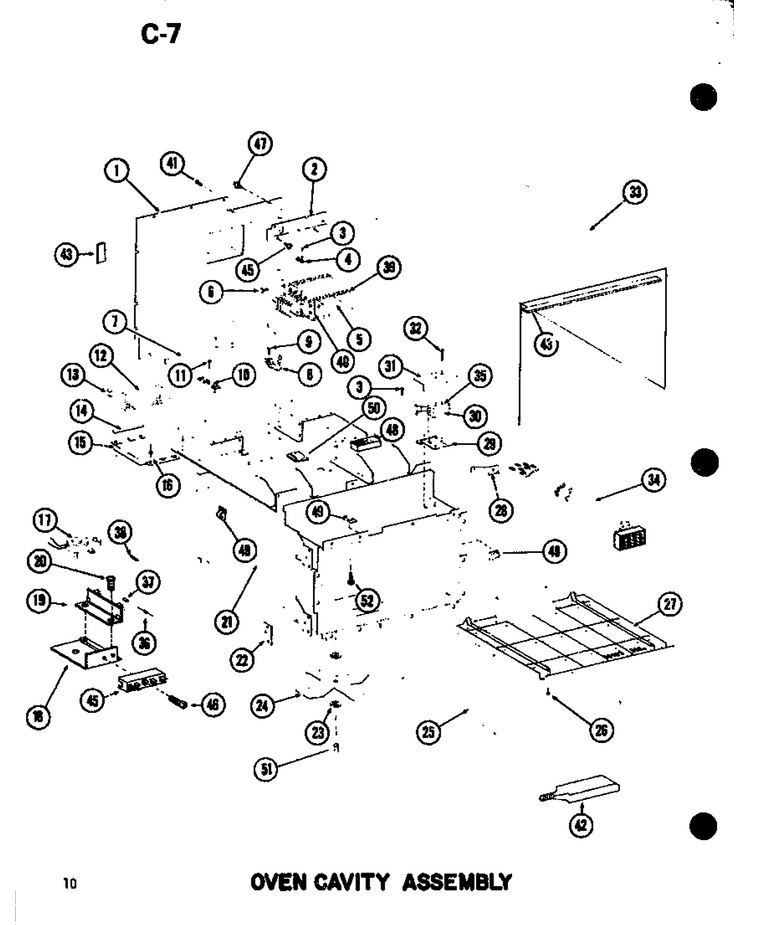

06 - Oven Cavity Assy

...
...
1
Wldmt-Access Panel WPL-C8708901
...
2
Panel-Strain Relief WPL-B5713802
...
3
Screw WPL-M0234114
...
4
Thermal Protector WPL-B5684102
...
5
Assembly, Isolator WPL-C8720503
...
6
Screw-Sm/hex WPL-12990523
...
7
Gasket-Per Ft WPL-A30303-35
...
8
Thermal Cut Out WPL-B5703002
...
9
Screw WPL-M0218116
...
10
Terminal Block WPL-B5677203
...
11
Screw, No.6x18x1/4 (3) WPL-487010
...
12
X$x End W-G WPL-A3184901
...
13
Clip WPL-M0113503
...
14
Gasket K WPL-A4591129
...
15
Cover-Isolator WPL-B5714101
...
16
Rivet WPL-WP210720
...
17
Motor WPL-B5602811
...
18
Bracket K WPL-B5737201
...
19
Terminal Board WPL-B5732601
...
20
Screw WPL-WP489349
...
21
Oven Weldment WPL-D7206404
...
22
Shim-Hinge WPL-A3250301
...
23
Washer WPL-A3109101
...
24
Stirrer Blade (Antenna) WPL-C8708601
...
25
Tray-Oven WPL-B5795002
...
26
Screw Retainer WPL-A3245601
...
27
Grease Shi WPL-R0157214
...
28
Spring-Door Stop WPL-B5718701
...
29
Brkt-Switch A WPL-B5765902
...
30
Switch, Interlock Sensing, Bot WPL-C3670011
...
31
Pad Insulation A WPL-B5685603
...
32
Screw WPL-M0213123
...
33
Wldmt-Oc WPL-C8709001
...
34
Wiring Harness WPL-D7231301
...
35
Switch, Interlock, Top WPL-B5671603
...
36
Fuse WPL-M0308101
...
37
Resistor Fuse Kit WPL-R0157332
...
38
Fuse, 12 Amp WPL-M0805105
...
39
Gasket K WPL-A3225401
...
40
Gasket K WPL-A3225402
...
41
Screw WPL-M0218115
...
42
Sealer WPL-M0275501
...
43
Seal K WPL-B5738501
...
45
Terminal Block WPL-B5677203
...
46
Screw, No.6x18x1/4 (3) WPL-487010
...
47
Screw WPL-M0218128
...
48
Gasket WPL-10839712
...
49
Clip WPL-WPM0104106
...
50
Clip-Cord WPL-M0104401
...
51
Clip WPL-M0114002
...
52
Screw WPL-WP90767

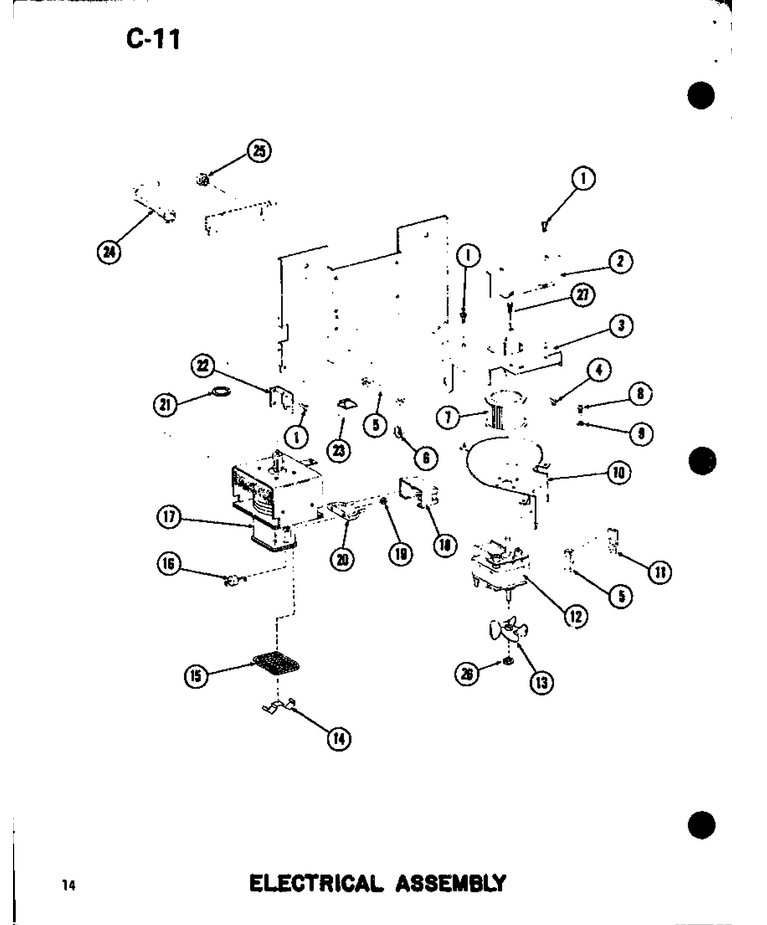

04 - Electrical Assy

...
...
1
Screw WPL-M0218116
...
2
End Plate-Plenum WPL-B5712301
...
3
Brkt-Blower Scroll WPL-C8707801
...
4
Screw WPL-WP90767
...
5
Gasket (Per Foot) WPL-A3030303
...
6
Snap Bushing WPL-A4554806
...
7
Wheel, Blower WPL-C3670809
...
8
Screw WPL-M0202642
...
9
Washer WPL-M0272605
...
10
Wldmt-Blower Scroll WPL-C8710701
...
11
Gasket (Per Foot) WPL-10839706
...
12
Kit, Motor WPL-R0156503
...
13
Fan Blade-Blower WPL-B5706702
...
14
Bale Strap K WPL-A3145401
...
15
Cover Cap Box K WPL-B5647901
...
16
Capacitor K WPL-A3148801
...
17
Assembly, Magnetron WPL-D7138201
...
18
Shield Hv K WPL-B5656001
...
19
Hex Nut WPL-M0281901
...
20
Clip K WPL-B5655902
...
21
Gasket, Magnetron WPL-A3185102
...
22
Bracket-Connector WPL-B5716901
...
23
Clip, Cord WPL-M0104102
...
24
Power Cord WPL-B5715501
...
25
Strain Relief WPL-M0371301
...
26
Clip WPL-M0118901
...
27
Screw WPL-WP489349

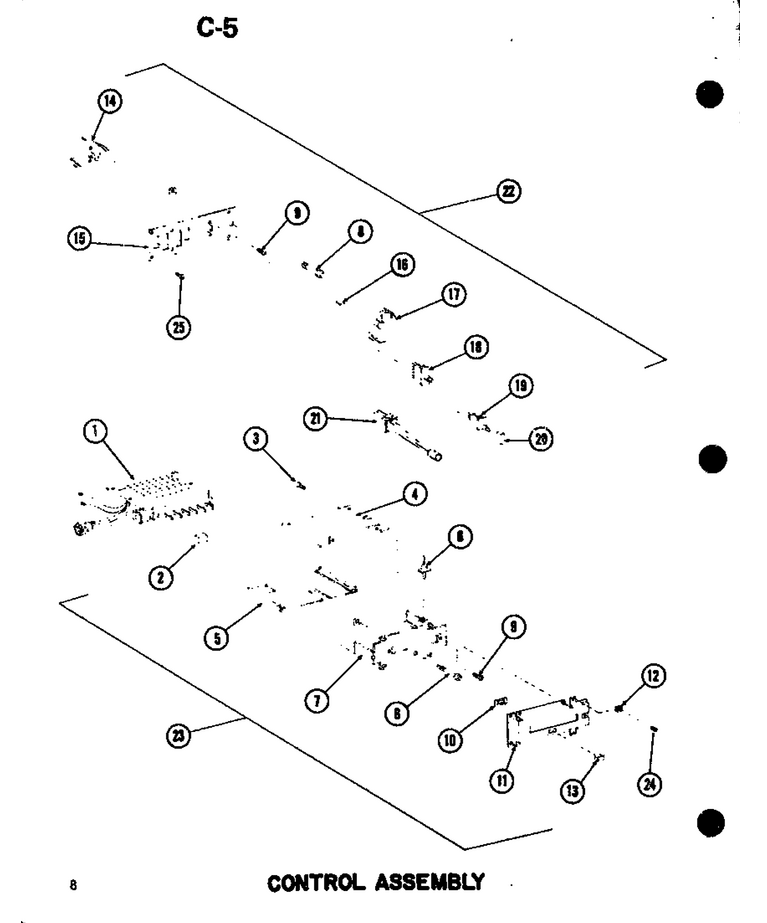

02 - Control Assy

...
...
1
Timer Assy WPL-D7210901
...
2
Button Timer A-K WPL-B5674201
...
3
Screw WPL-M0218115
...
4
Insulation A WPL-C3679301
...
5
Cover-Timer WPL-B5674602
...
6
Supt Ckt Bd A WPL-B5675501
...
7
Bracket Timer Mtg WPL-C8722203
...
8
Pilot Light A WPL-A3184401
...
9
Screw WPL-W11084238
...
10
Clip WPL-M0285801
...
11
Escutcheon-El Timer WPL-C8707601
...
12
Speed Nut K WPL-M0288301
...
13
Lens-Pilot Light WPL-A3229601
...
14
Timer-12 Min WPL-C8701201
...
15
Panel-Dial Timer WPL-B5712801
...
16
Clip WPL-M0117001
...
17
Knob A WPL-D7028702
...
18
Switch Pb A WPL-B5715401
...
19
Switch WPL-B5674703
...
20
Button Stop A WPL-B5674001
...
21
Wiring Harness WPL-C8712801
...
22
Timer Assy-Dial WPL-C8713201
...
23
Timer Assy-Elect WPL-C8712901
...
24
Screw WPL-WP489349
