Amana RC-20 (BOM: P7210004M)

Model: RC-20 (BOM: P7210004M)

Save Part Not Listed?
product name

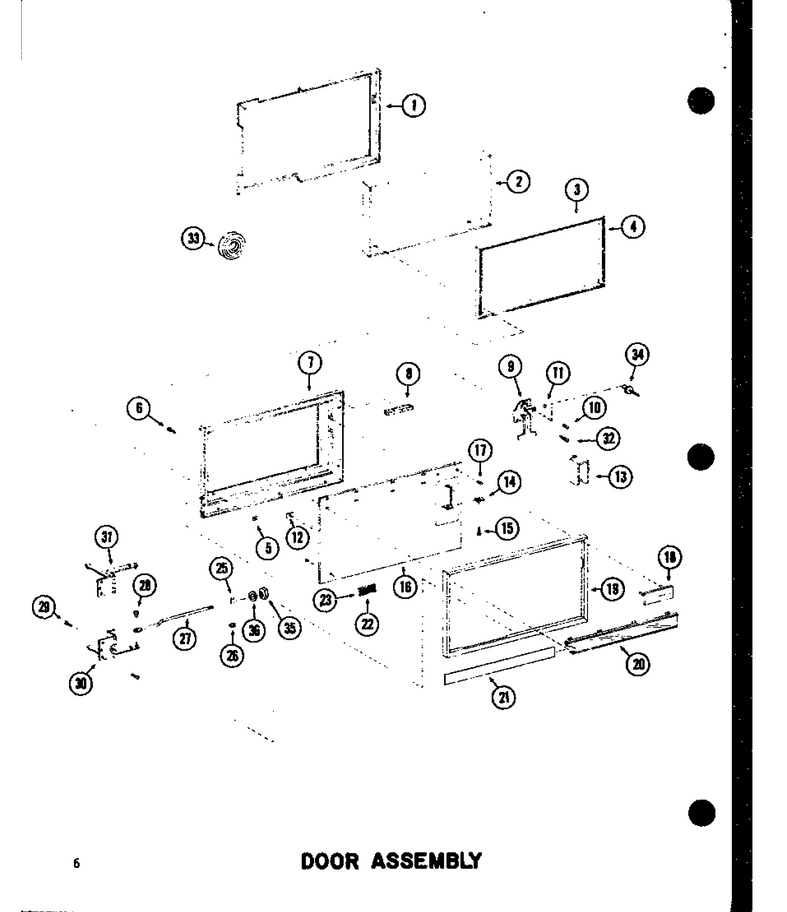

03 - Door Assy

...
...
Refer To Amana Kit R1571-55 For Instructions To Install Door Open Timer Cancel Feature On Original Model Rc-14; Mfg. No. P72100-1m Unit. Early Production Or F WPL-NOTE:
...
1
Gasket WPL-C3669101
...
2
Inner Door Kit WPL-R0156665
...
3
Gasket WPL-B5686004
...
4
Gasket WPL-B5686003
...
5
Nut WPL-717488
...
6
Screw WPL-214597
...
7
Weldment, Inner Door Ring WPL-D7132501
...
8
Gasket WPL-A4591128
...
9
Door Latch Assy WPL-R0157316
...
10
Screw WPL-WPW10068250
...
11
Guides Hndl K WPL-A3195701
...
12
Clip WPL-M0286401
...
13
Bezel-Door Handle WPL-B5671901
...
14
Nut K WPL-M0288001
...
15
Screw, No.6x18x1/4 (3) WPL-487010
...
16
Panel Outer Door K WPL-D7178601
...
17
Clip-Push WPL-M0118905
...
18
Esc-Logo WPL-C3668803
...
19
Outer Door Ring WPL-D7667701
...
20
Lens-Menu Guide WPL-B5674501
...
21
Menu Guide WPL-C8713301
...
22
Insert-Medallion WPL-B5694714
...
23
Medallion WPL-B5694901
...
25
Guide-Door Stop WPL-A3181801
...
26
Bushing WPL-A3182101
...
27
Arm-Door Stop WPL-B5748702
...
28
Bushing-Door Arm WPL-A3185001
...
29
Screw WPL-M0253230
...
30
Hinge-Bottom WPL-C3666306
...
31
Hinge-Top WPL-C3666305
...
32
Screw WPL-M0234030
...
33
Tape Per Roll WPL-M0275163
...
34
Rivet, Pop (Wht) WPL-B5642901
...
35
Nut WPL-WP488130
...
36
Washer WPL-M0270501

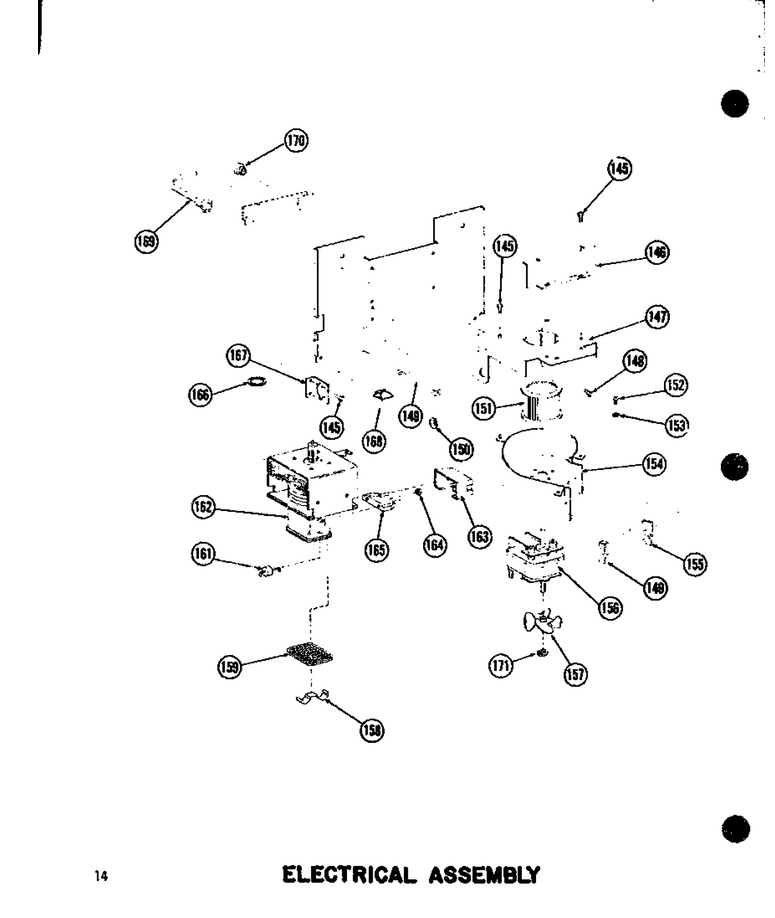

04 - Electrical Assy

...
...
Refer To Amana Kit R1571-55 For Instructions To Install Door Open Timer Cancel Feature To Original Model Rc-20; Mfg. No. P27100-2m Unit. WPL-NOTE:
...
145
Screw WPL-M0218116
...
146
End Plate-Plenum WPL-B5712301
...
147
Brkt-Blower Scroll WPL-C8707801
...
148
Screw WPL-WP90767
...
149
Gasket (Per Foot) WPL-A3030303
...
150
Snap Bushing WPL-A4554806
...
151
Wheel, Blower WPL-C3670809
...
152
Screw WPL-M0202642
...
153
Washer WPL-M0272605
...
154
Wldmt-Blower Scroll WPL-C8710701
...
155
Gasket (Per Foot) WPL-10839706
...
156
Kit, Motor WPL-R0156503
...
157
Fan Blade-Blower WPL-B5706702
...
158
Bale Strap K WPL-A3145401
...
159
Cover Cap Box K WPL-B5647901
...
161
Capacitor K WPL-A3148801
...
162
Assembly, Magnetron WPL-D7138201
...
163
Shield Hv K WPL-B5656001
...
164
Hex Nut WPL-M0281901
...
165
Clip K WPL-B5655902
...
166
Gasket, Magnetron WPL-A3185102
...
167
Bracket-Connector WPL-B5716901
...
168
Clip, Cord WPL-M0104102
...
169
Power Cord WPL-B5715501
...
170
Strain Relief WPL-M0371301
...
171
Clip WPL-M0118901

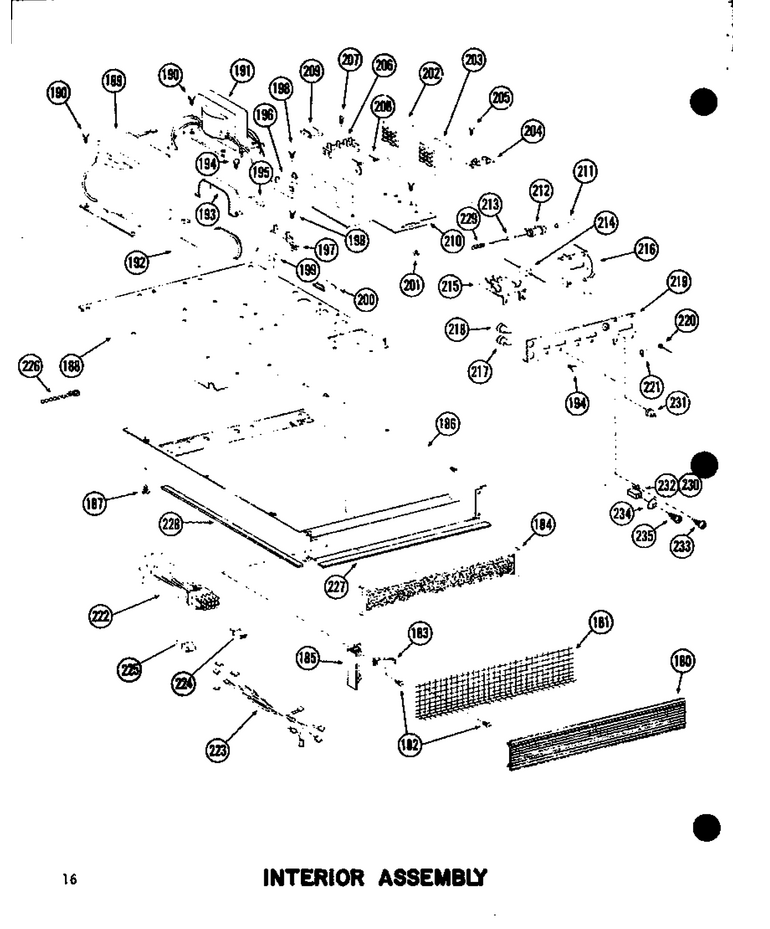

05 - Interior Assy

...
...
180
Grille Air Inlet WPL-C8708501
...
181
Screen, Air Intake WPL-B5713901
...
182
Screw WPL-M0230015
...
183
Clip WPL-A3225201
...
184
Filter WPL-B5714801
...
185
End Cap-Grill WPL-B5714401
...
186
Base Pan Weld WPL-C8709101
...
187
Screw K WPL-M0253543
...
188
Chassis WPL-D7203601
...
189
Transformer-Hv Plate WPL-D7199701
...
190
Screw K WPL-M0253543
...
191
Transformer-Fil WPL-C8707501
...
192
Capacitor, H.v. With M3052-2 R WPL-R0160010
...
193
Bracket WPL-A3184702
...
194
Screw WPL-M0218116
...
195
Resistor A WPL-M0305202
...
196
Rectifier WPL-B5672401
...
198
Screw-Sm/hex WPL-12990523
...
199
Resistor WPL-M0305204
...
200
Clip WPL-WPM0104106
...
201
Nut WPL-WP488130
...
202
Relay-Power WPL-C8709603
...
203
Relay-Surge WPL-C8709602
...
204
Terminal Board WPL-A3225501
...
205
Screw WPL-M0227501
...
206
Terminal Block WPL-B5677203
...
207
Screw, No.6x18x1/4 (3) WPL-487010
...
208
Resistor, Relay A WPL-M0305007
...
209
Clip-Cord WPL-M0104401
...
210
Bracket-Relay WPL-B5713001
...
211
Sleeve WPL-M0321701
...
212
Resistor, 4 Ohm, 8 Watt WPL-M0305010
...
213
Fuse WPL-M0308110
...
215
Terminal Board WPL-B5687401
...
216
Meter WPL-C8701101
...
217
Bushing,terminal WPL-M0325401
...
218
Bushing,terminal WPL-M0325402
...
219
Brkt-Fuse Resistor WPL-C8706601
...
220
Rivet-Pop WPL-59002054
...
221
Clip K WPL-M0110501
...
222
Wiring Harness WPL-D7227201
...
223
Wiring Harness-Hv WPL-C8711201
...
224
Insulator, Term. K WPL-M0325301
...
225
Insulator, Pod K WPL-M0325501
...
226
Wire Tie WPL-M0321204
...
227
Gasket-Base Pan WPL-B5718901
...
228
Gasket-Base Pan WPL-B5718902
...
229
Sleeve K WPL-M0321702

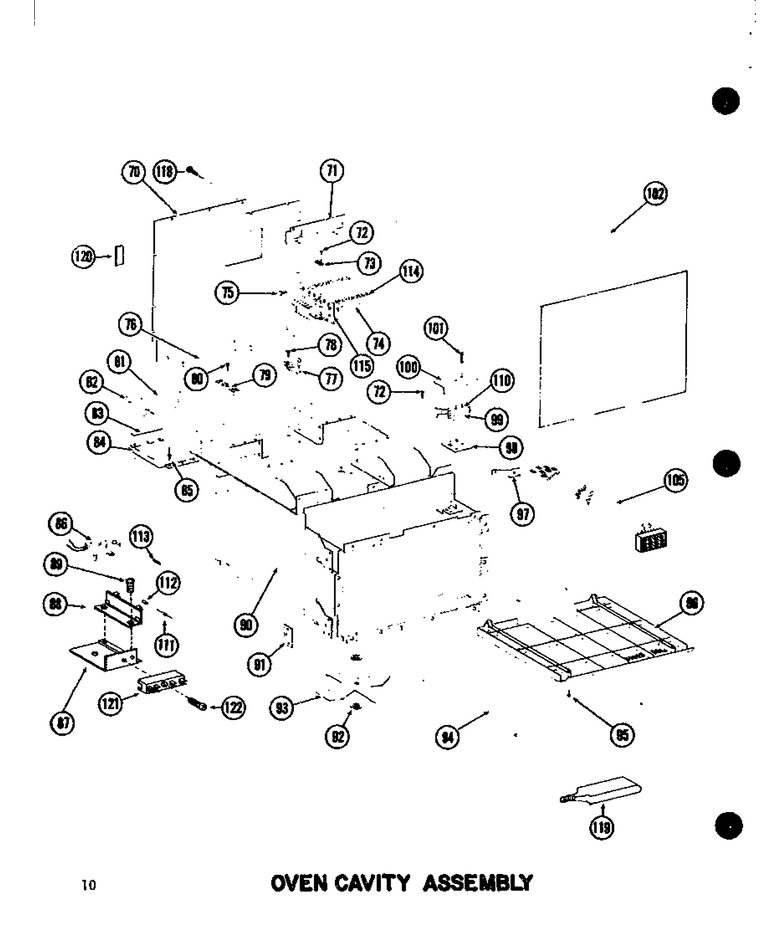

06 - Oven Cavity Assy

...
...
Rc-14/p72100-6m P2100-3m And P72100-6m Are Identical In Parts Useage. WPL-NOTE:
...
NI
Screw WPL-214597
...
70
Wldmt-Access Panel WPL-C8708901
...
71
Panel-Strain Relief WPL-B5713802
...
72
Screw WPL-M0234114
...
73
Thermal Protector WPL-B5684102
...
74
Assembly, Isolator WPL-C8720503
...
75
Screw-Sm/hex WPL-12990523
...
76
Gasket-Per Ft WPL-A30303-35
...
77
Thermal Cut Out WPL-B5703002
...
78
Screw WPL-M0218116
...
79
Terminal Block WPL-B5677203
...
80
Screw, No.6x18x1/4 (3) WPL-487010
...
81
X$x End W-G WPL-A3184901
...
82
Clip WPL-M0113503
...
83
Gasket K WPL-A4591129
...
84
Cover-Isolator WPL-B5714101
...
85
Rivet WPL-WP210720
...
86
Motor 50 Cy WPL-B5602810
...
87
Bracket K WPL-B5737201
...
88
Terminal Board WPL-B5732601
...
89
Screw WPL-WP489349
...
90
Wldmt-Oven WPL-D7206401
...
91
Shim-Hinge WPL-A3250301
...
92
Washer WPL-A3109101
...
93
Stirrer Blade (Antenna) WPL-C8708601
...
94
(+) Use A3183704 WPL-A3183701
...
95
Screw WPL-WP59002061
...
96
Grease Shi WPL-R0157214
...
97
Spring-Door Stop WPL-B5718701
...
98
Bracket-Switch WPL-B5719701
...
99
Switch, Interlock Sensing, Bot WPL-C3670011
...
100
Pad Insulation A WPL-B5685603
...
101
Screw WPL-M0213123
...
102
Wldmt-Oc WPL-C8709001
...
105
Wiring Harness WPL-D7231301
...
110
Switch, Interlock, Top WPL-B5671603
...
111
Fuse WPL-M0308101
...
112
Resistor Fuse Kit WPL-R0157332
...
113
Fuse, 12 Amp WPL-M0805105
...
114
Gasket K WPL-A3225401
...
115
Gasket K WPL-A3225402
...
118
Screw WPL-WP59002061
...
119
Sealer WPL-M0275501
...
120
Seal K WPL-B5738501
...
121
Terminal Block WPL-B5677203
...
122
Screw, No.6x18x1/4 (3) WPL-487010

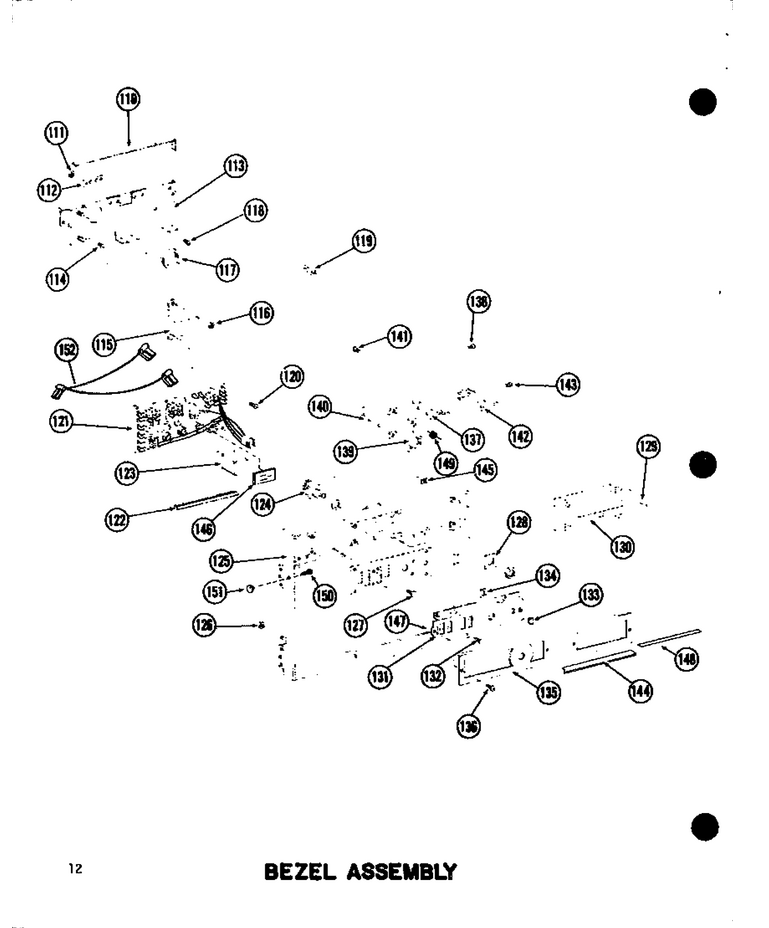

01 - Bezel Assy

...
...
Refer To Amana Kit R1571-55 For Instructions To Install Door Open Timer Cancel Feature To Original Model Rc-20; Mfg. No. P27100-2m Unit. WPL-NOTE:
...
NI
Support WPL-M0580501
...
110
Gasket K WPL-A4591129
...
111
Nut-Hex WPL-M0281001
...
112
Terminal Board WPL-A3225501
...
113
Wldmt-Pc Bracket WPL-B5719301
...
114
Screw WPL-M0218116
...
115
Transformer WPL-C3699401
...
116
Nut WPL-WP488130
...
117
Snap Bushing WPL-A4554802
...
118
Screw WPL-W11084238
...
119
Grommet WPL-M0580203
...
120
Screw, No.6x18x1/4 (3) WPL-487010
...
121
Pc Board K WPL-C8712203
...
122
Guide-Circuit Board WPL-B5715901
...
123
Relay-Pc Board WPL-C8710301
...
124
Toggle Switch WPL-B5730101
...
125
Bezel, Outer Case WPL-D7133404
...
126
Nut, Self Thread WPL-M0283801
...
127
Screw WPL-WP59002061
...
128
Plate-Voltage WPL-A3225301
...
129
Screw A WPL-M0202516
...
130
Escutcheon-El Timer WPL-C8707601
...
131
Escutcheon-Di Timer WPL-C8707701
...
132
Screw WPL-M0229004
...
133
Lens-Pilot Light WPL-A3229601
...
134
Clip WPL-M0285801
...
135
Escutcheon-Control WPL-C8708401
...
136
Screw, Phillips Oval Head WPL-M0215102
...
137
Spring-Latch WPL-A3186401
...
138
Screw WPL-M0232012
...
139
Strike-Latch WPL-C3680202
...
140
Bracket-Latch WPL-B5675403
...
141
Screw,tc WPL-M0230017
...
142
Switch, Preform WPL-A3163415Q
...
143
Screw A-K WPL-M0227525
...
144
Gasket-Esc WPL-B5735201
...
145
Speed Nut WPL-M0288414
...
146
Time Delay WPL-B5691003
...
147
Speed Nut K WPL-M0288301
...
148
Tape Per Roll WPL-M0275163
...
149
Washer WPL-M0270524
...
150
Screw, Nylock WPL-M0205442
...
151
T Nut WPL-M0285902

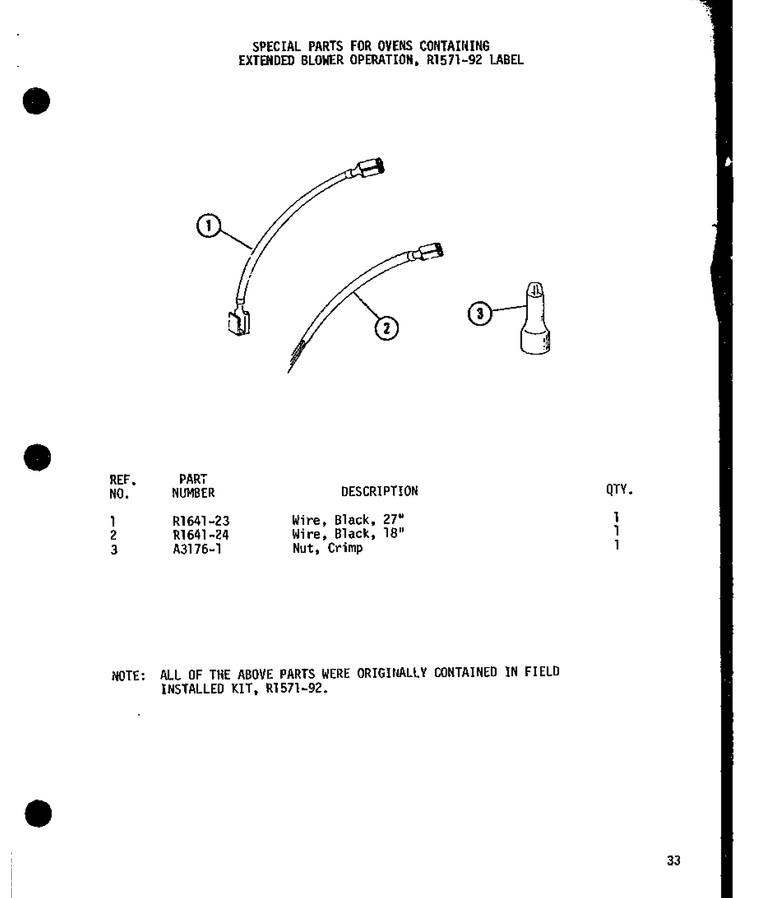

07 - Page 14

...
...
1
Jumper Wire K WPL-R0164123
...
2
Jumper Wire K WPL-R0164124
...
3
Sleeve WPL-WPA0317601

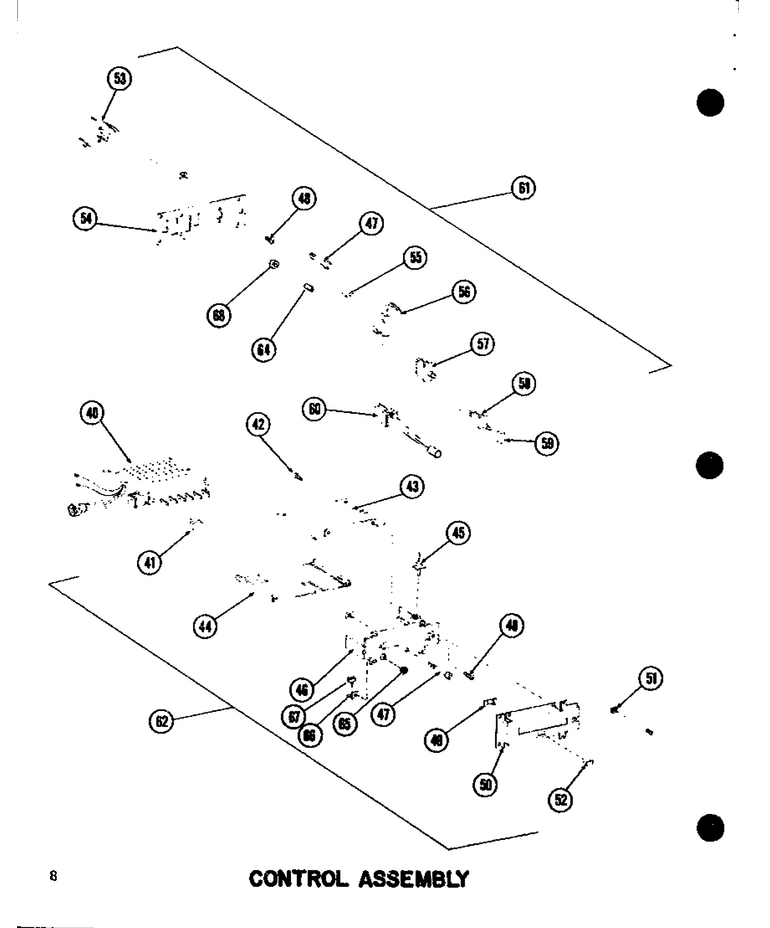

02 - Control Assemlby

...
...
Refer To Amana Kit R1571-55 For Instructions To Install Door Open Timer Cancel Feature On Original Model Rc-14; Mfg. No. P72100-1m Unit. Early Production On F WPL-NOTE:
...
40
Timer Assy WPL-D7210901
...
41
Button Timer A-K WPL-B5674201
...
42
Screw WPL-M0230015
...
43
Insulation A WPL-C3679301
...
44
Cover-Timer WPL-B5674602
...
45
Supt Ckt Bd A WPL-B5675501
...
46
Bracket-Timer WPL-C8722201
...
47
Pilot Light A WPL-A3184401
...
48
Screw WPL-W11084238
...
49
Clip WPL-M0285801
...
50
Escutcheon-El Timer WPL-C8707601
...
51
Speed Nut K WPL-M0288301
...
52
Lens-Pilot Light WPL-A3229601
...
53
Timer-12 Min WPL-C8701201
...
54
Panel-Dial Timer WPL-B5712801
...
55
Clip WPL-M0117001
...
56
Knob A WPL-D7028702
...
57
Switch Pb A WPL-B5715401
...
58
Switch WPL-B5674703
...
59
Button Defrost WPL-B5674003
...
60
Wiring Harness WPL-C8712801
...
61
Timer Assy-Dial WPL-C8713201
...
62
Timer Assy-Elect WPL-C8712901
