Amana RC-14T (BOM: P7382406M)

Model: RC-14T (BOM: P7382406M)

Save Part Not Listed?
product name

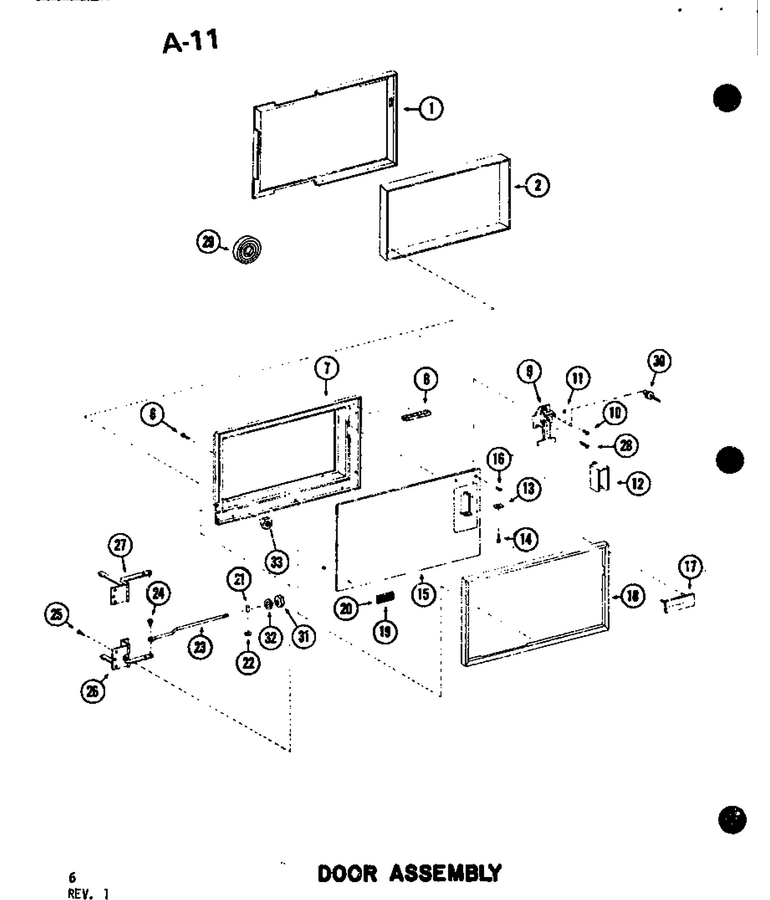

02 - Door Assy

...
...
1
Gasket WPL-D7396401
...
2
Inner Door Kit WPL-R0156665
...
6
Screw T.c WPL-M0229916
...
7
Weldment, Inner Door Ring WPL-D7132501
...
8
Gasket WPL-A4591128
...
9
Door Latch Assembly WPL-D7178504
...
10
Screw WPL-WPW10068250
...
11
Guides Hndl K WPL-A3195701
...
12
Bezel-Door Handle WPL-B5671901
...
13
Speed Nut WPL-M0288102
...
14
Screw WPL-8169474
...
15
Panel-Outer Door WPL-D7178604
...
16
Clip-Push WPL-M0118905
...
17
Esc-Logo WPL-C3668803
...
18
Outer Door Ring WPL-D7667701
...
19
Insert, Medallion WPL-B5694724
...
20
Medallion WPL-B5694901
...
21
Guide-Door Stop WPL-A3181801
...
22
Bushing WPL-A3182101
...
23
Arm, Dr Stop K WPL-B5748702
...
24
Bushing-Door Arm WPL-A3185001
...
25
Screw WPL-M0253230
...
26
Hinge-Bottom WPL-C3666306
...
27
Hinge-Top WPL-C3666305
...
28
Screw WPL-M0234030
...
29
Tape Per Roll WPL-M0275163
...
30
Rivet, Pop (Wht) WPL-B5642901
...
31
Nut WPL-WP488130
...
32
Washer WPL-M0270501
...
33
Nut WPL-717488

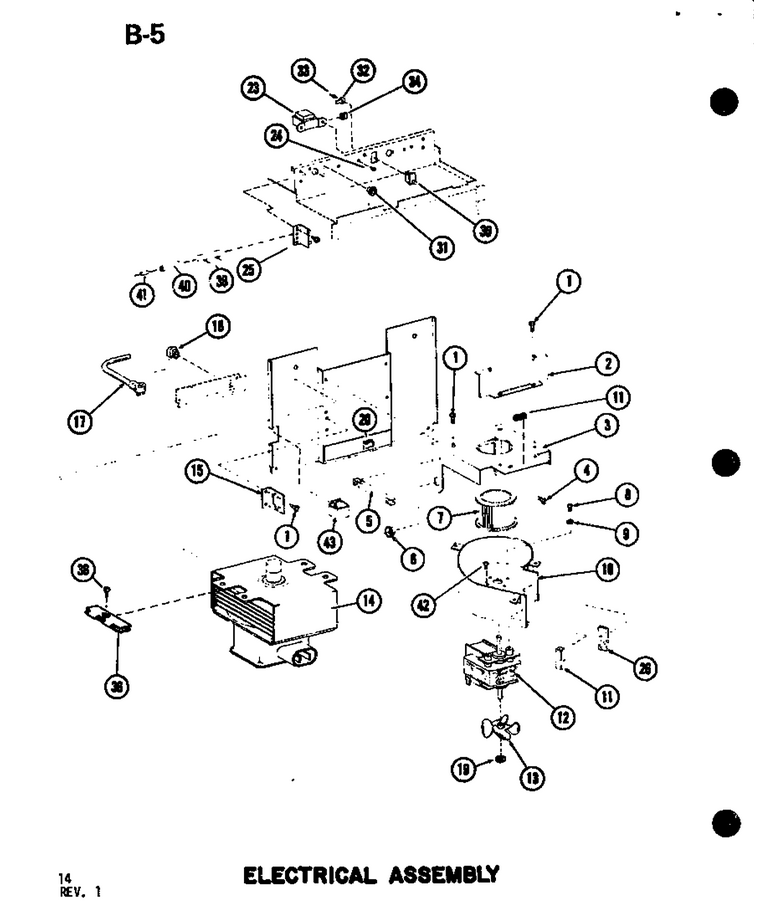

03 - Electrical Assy

...
...
1
Screw WPL-WP489349
...
2
End Plate WPL-B5778001
...
3
Brkt-Blower Scroll WPL-C8707801
...
4
Screw WPL-WP90767
...
5
Gasket-Cavity Top WPL-10839709
...
6
Snap Bushing WPL-A3293503
...
7
Wheel, Blower WPL-C3670809
...
8
Screw WPL-M0202642
...
9
Washer WPL-M0272605
...
10
Wldmt-Blower Scroll WPL-C8710701
...
11
Gasket (Per Foot) WPL-A3030303
...
12
Kit, Motor WPL-R0156503
...
13
Fan Blade-Blower WPL-B5706702
...
14
Magnetron WPL-10794402
...
15
Bracket-Connector WPL-B5716901
...
17
Power Cord Kit WPL-R0131016
...
18
Strain Relief WPL-M0370007
...
19
Clip WPL-M0118901
...
20
Clip-Cord WPL-M0104401
...
23
Transformer WPL-C8773503
...
24
Screw WPL-WP90767
...
25
Terminal Board WPL-B5764801
...
26
Gasket (Per Foot) WPL-10839706
...
30
Switch-Sensing WPL-B5674702
...
31
Snap Bushing WPL-A3293503
...
32
Terminal-Ground WPL-M0320903
...
33
Rivet-Pop WPL-59002054
...
34
Speed Nut WPL-M0288107
...
36
Brkt-Mag Tube WPL-B5774402
...
38
Screw (3) WPL-67006425
...
39
Resistor WPL-M0308602
...
40
Sleeve WPL-M0321703
...
41
Fuse Resistor K WPL-M0308109
...
42
Screw WPL-8169474
...
43
Clip WPL-WPM0104106

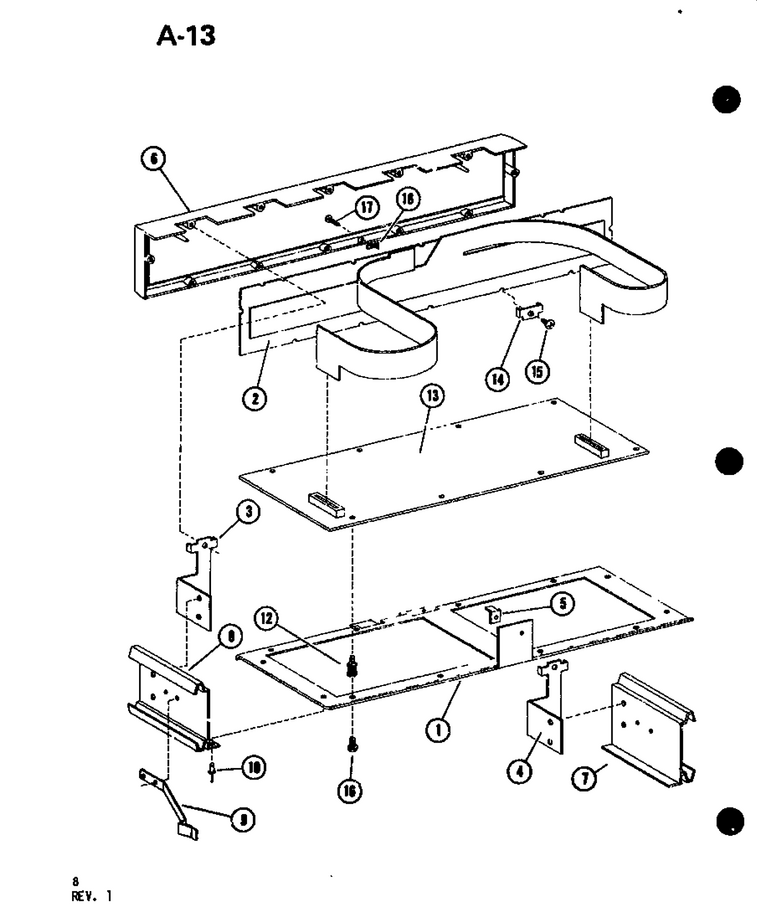

05 - Page 2

...
...
1
Plate-P C Board WPL-D7379501
...
2
Switch & Ind Assy WPL-D7292801
...
3
Brkt-Channel WPL-B5757901
...
4
Brkt-Channel WPL-B5757902
...
5
Terminal-Ground WPL-M0320903
...
6
Frame-Timer WPL-D7292202
...
7
Channel-Glide WPL-C8765405
...
8
Channel-Glide WPL-C8765406
...
9
Retainer-Spring WPL-A3268901
...
10
Rivet-Pop WPL-59002054
...
12
Support K WPL-M0580502
...
13
Elect Module-Kit WPL-D7293601
...
14
Brkt-Retainer WPL-A3268301
...
15
Screw A K WPL-M0253704
...
16
Screw WPL-WP489349
...
17
Screw WPL-M0230820
...
18
Clip WPL-M0287607

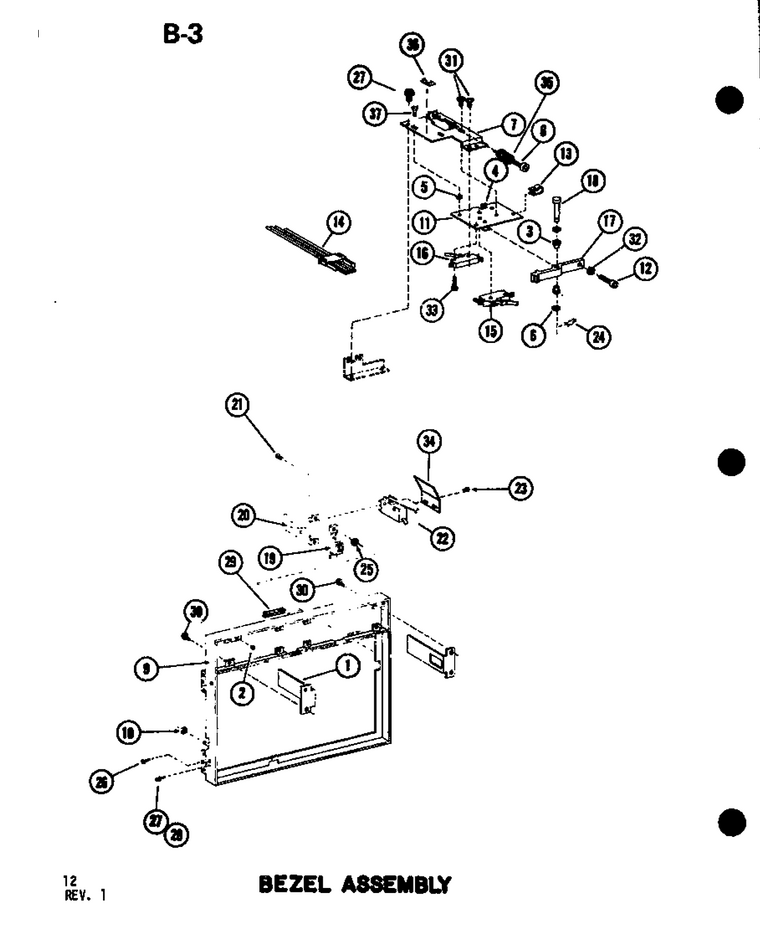

01 - Bezel Assy

...
...
1
Brkt-Frame WPL-B5758201
...
2
Clip A WPL-M0113006
...
3
See Svc Ltr Cr-163d WPL-A3168101
...
4
Clip WPL-M0118801
...
5
Washer Non-Metal WPL-M0274032
...
6
Washer WPL-M0270524
...
7
Adj Brkt-Switch WPL-B5747201
...
8
Screw WPL-M0231249
...
9
Bezel-Outer Case WPL-D7293502
...
10
Nut, Self Thread WPL-M0283801
...
11
Mtg Plate-Interlock WPL-B5747502
...
12
Screw WPL-M0204617
...
13
Clamp WPL-M0102301
...
14
Wire Harn-Interlock WPL-D7382601
...
15
Switch-Interlock (Limit) WPL-C3670014
...
16
Switch-Interlock (Limit) WPL-C3670014
...
17
Actuating Arm WPL-B5755701
...
18
Pin-Retainer WPL-A3260201
...
19
Strike-Latch WPL-C3680202
...
20
Bracket-Latch WPL-B5675403
...
21
Screw-Sm/hex WPL-12990523
...
22
Switch, Preform WPL-A3163415Q
...
23
Screw WPL-M0227520
...
24
Clip,hairpin WPL-A3171501
...
25
Washer WPL-M0270524
...
26
Screw WPL-M0253230
...
27
T Nut WPL-M0285902
...
28
Screw, Nylock WPL-M0205442
...
29
Gasket (Inch) WPL-A3030301
...
30
Screw WPL-WP489349
...
31
Screw WPL-M0213815
...
32
Nut K WPL-M0282005
...
33
Screw WPL-M0227520
...
34
Guard-Switch WPL-A1013901
...
35
Spring-Compression WPL-A1020601
...
36
Clip WPL-M0118801
...
37
Screw WPL-M0213815

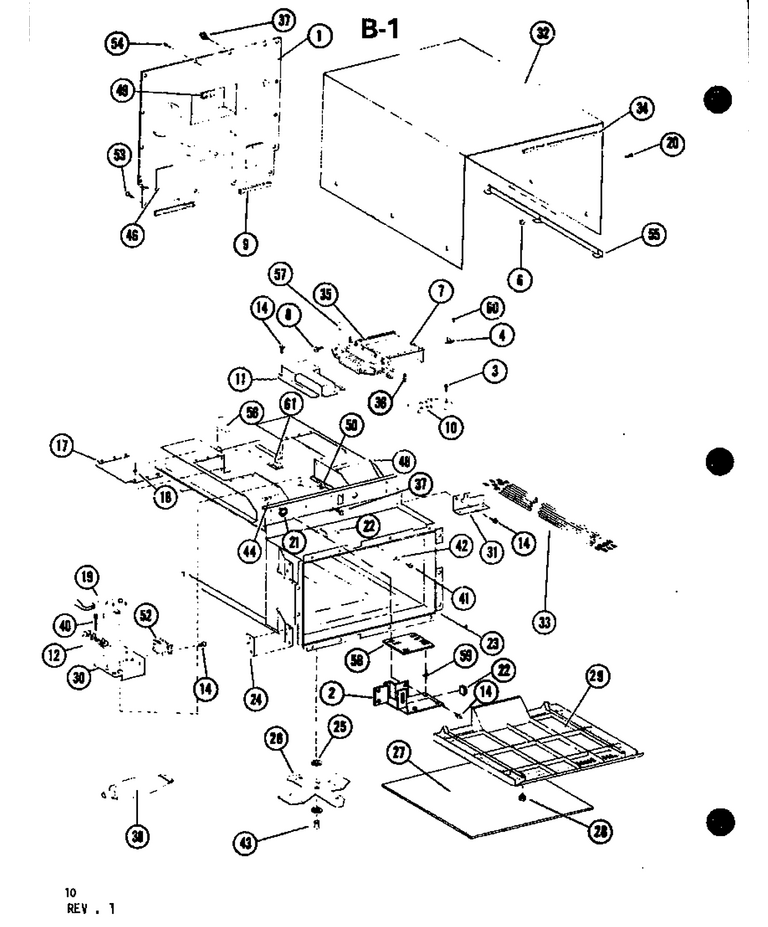

06 - Page 3

...
...
1
Access Panel Weld WPL-C8801104
...
2
Bracket K WPL-C8858801
...
3
Screw WPL-M0234114
...
4
Cutout-Thermal WPL-B5684113
...
6
Nut WPL-WP3400029
...
7
Assembly, Isolator WPL-C8720508
...
8
Screw-Sm/hex WPL-12990523
...
9
Gasket-Per Ft WPL-A30303-35
...
10
Thermal Plate WPL-B5793501
...
11
Air Duct Isolator WPL-C8822301
...
12
Terminal Block WPL-B5677203
...
14
Screw WPL-WP489349
...
17
Cover-Isolator WPL-B5714101
...
18
Rivet WPL-WP210720
...
19
Motor WPL-B5602811
...
20
Screw WPL-M0207943
...
21
Snap Bushing WPL-A3293503
...
22
Clip WPL-WPM0104106
...
23
Oven Cavity WPL-D7518602
...
24
Shim-Hinge WPL-A3250301
...
25
Washer WPL-A3109101
...
26
Stirrer Blade (Antenna) WPL-C8708601
...
27
Tray-Oven WPL-B5795002
...
28
Screw WPL-A1002301
...
29
Grease Shi WPL-R0157214
...
30
Plate, Relay Mounting WPL-C8766003
...
31
Brkt Supt-Interlock WPL-B5756101
...
32
Wrapper, Outer Case WPL-D7379601
...
33
Wire Harness WPL-D7471901
...
34
Gasket (Inch) WPL-A3030301
...
35
Gasket K WPL-A3225401
...
36
Gasket K WPL-A3225402
...
37
Screw WPL-WP90767
...
38
Sealer WPL-M0275501
...
40
Screw, No.6x18x1/4 (3) WPL-487010
...
41
Screw WPL-M0253504
...
42
Washer WPL-M0273612
...
43
Clip WPL-M0114002
...
44
Gasket WPL-B5718906
...
46
Insulation WPL-A3205601
...
48
Gasket K WPL-A4591129
...
49
Gasket WPL-10839707
...
50
Terminal-Ground WPL-M0320903
...
52
Relay K WPL-B5674309
...
53
Screw WPL-WP3388228
...
54
Rivet-Pop WPL-59002054
...
55
Guide-Strip WPL-C8812901
...
56
Tape-Plastic WPL-M0275011
...
57
Tape Per Roll WPL-M0275163
...
58
Power Enable Circuit Board WPL-C8858001
...
59
Support K WPL-B5763403
...
60
Screw WPL-WP59002061
...
61
Clip-Cord WPL-M0104701

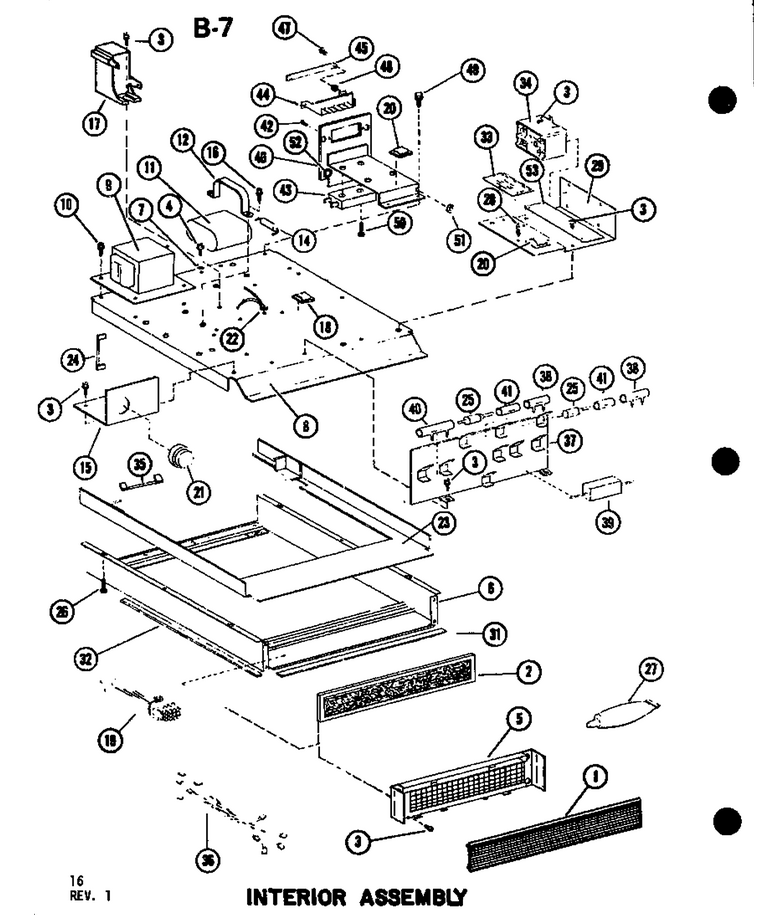

04 - Interior Assy

...
...
1
Stirrer Blade (Antenna) WPL-C8708601
...
2
Filter WPL-B5714801
...
3
Screw WPL-M0213815
...
4
Screw WPL-WP489349
...
5
Air Inlet Weld WPL-C8847901
...
6
Base Pan Weldment WPL-C8709104
...
7
Insulator, Term. K WPL-M0325301
...
8
Chassis WPL-D7203603
...
9
Transformer WPL-D7325301
...
10
Screw K WPL-M0253543
...
11
Capacitor Assy WPL-R0160021
...
12
Bracket WPL-A3184702
...
14
Resistor A WPL-M0305202
...
15
Brkt-Voltage Sel WPL-B5759401
...
16
Screw-Sm/hex WPL-12990523
...
17
Kit, Diode WPL-M3D71
...
18
Clip WPL-WPM0104106
...
19
Wiring Harness WPL-D7383101
...
20
Clip, Cord WPL-M0104102
...
21
Alarm WPL-A3276301
...
22
Terminal WPL-M0320904
...
23
Oven Mtg Plate WPL-C8775302
...
24
Jumper Wire WPL-D7292619
...
25
Fuse WPL-M0308110
...
26
Screw K WPL-M0253543
...
27
Sealer WPL-M0275501
...
28
Supt Ckt Bd A WPL-B5675501
...
29
Brkt-Surge Relay WPL-C8800001
...
31
Gasket, Base Pan WPL-C8737302
...
32
Gasket, Base Pan WPL-C8737301
...
33
Time Delay K WPL-B5691004
...
34
Kit, Relay WPL-C3669602
...
35
Jumper Wire WPL-D7292614
...
36
Wiring Harness WPL-C8814401
...
37
Terminal Board WPL-B5787601
...
38
Resistor A WPL-M0308601
...
39
Resistor WPL-M0308502
...
40
Resistor WPL-M0308603
...
41
Sleeve WPL-M0321701
...
42
Screw WPL-WP3388228
...
43
Switch WPL-C8715203
...
44
Switch WPL-B5790101
...
45
Switch Cover WPL-B5789401
...
46
Strain Relief Weld WPL-B5788001
...
47
Screw WPL-WP3388228
...
48
Spacer WPL-M0800006
...
49
Screw WPL-WP90767
...
50
Screw WPL-M0227520
...
51
Snap Bushing WPL-A3293503
...
52
Strain Relief WPL-M0370007
...
53
Insulation-Relay WPL-B5788401
