Amana RC-14SE (BOM: P7688102M)

Model: RC-14SE (BOM: P7688102M)

Save Part Not Listed?
product name

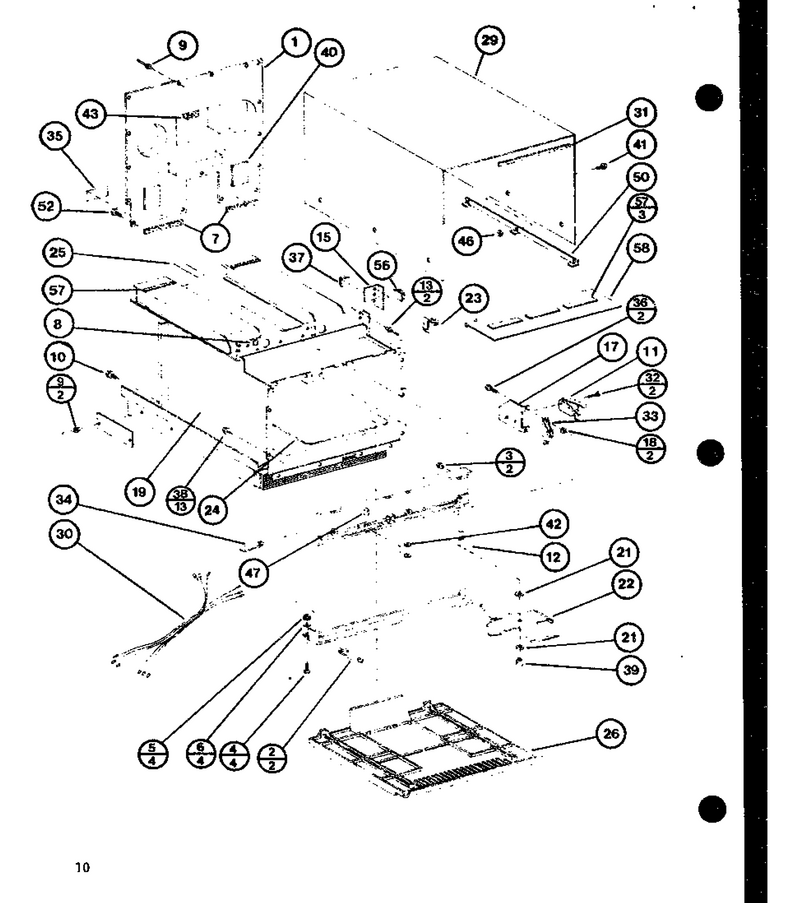

03 - Page 3

...
...
1
Access Panel-Weld E-Coat WPL-C8801117
...
2
See Svc Ltr Cr-163c WPL-C8937601
...
3
Nut K WPL-M0120002
...
4
Screw WPL-WPW10001160
...
5
Nut WPL-WP488130
...
6
Lock Washer WPL-M0272402
...
7
Gasket-Per Ft WPL-A30303-35
...
8
Snap Bushing WPL-A3293503
...
9
Rivet-Pop WPL-59002054
...
10
Screw WPL-WP489464
...
11
Switch, Preform WPL-A3163415Q
...
12
Bezel-Outercase WPL-D7666402
...
13
Rivet WPL-WP210720
...
15
Bracket, Harness WPL-B8349201
...
17
Bracket-Latch WPL-B5675403
...
18
Washer WPL-M0270502
...
19
Weld, Oven Cavity WPL-D7518604
...
21
Washer WPL-A3109101
...
22
Stirrer Blade (Antenna) WPL-C8708601
...
23
Clip WPL-M0118801
...
24
Tray-Oven WPL-B5795002
...
25
Tape-K WPL-M0275036
...
26
Shield,splatter WPL-D7457103
...
29
Wrapper, Outer Case WPL-D7379601
...
30
Harness, Oven WPL-D7691301
...
31
Gasket (Inch) WPL-A3030301
...
32
Screw WPL-M0227520
...
33
Strike-Latch WPL-C3680202
...
34
Sealer WPL-M0275501
...
35
Seal K WPL-B5738501
...
36
Screw-Sm/hex WPL-12990523
...
37
Clip, Cord WPL-M0104102
...
38
Nut, Self Thread WPL-M0283801
...
39
Clip WPL-M0114002
...
40
Insulation WPL-A3205602
...
41
Screw WPL-M0207943
...
42
Bushing WPL-A3182101
...
43
Gasket WPL-B8343701
...
46
Nut WPL-WP3400029
...
47
Guide-Door Stop WPL-A3181801
...
50
Guide-Strip WPL-C8812901
...
52
Screw WPL-WP3388228
...
56
Clip, Cord WPL-M0104104
...
57
Gasket K WPL-A4591129
...
58
Sheild, Drip WPL-10429301

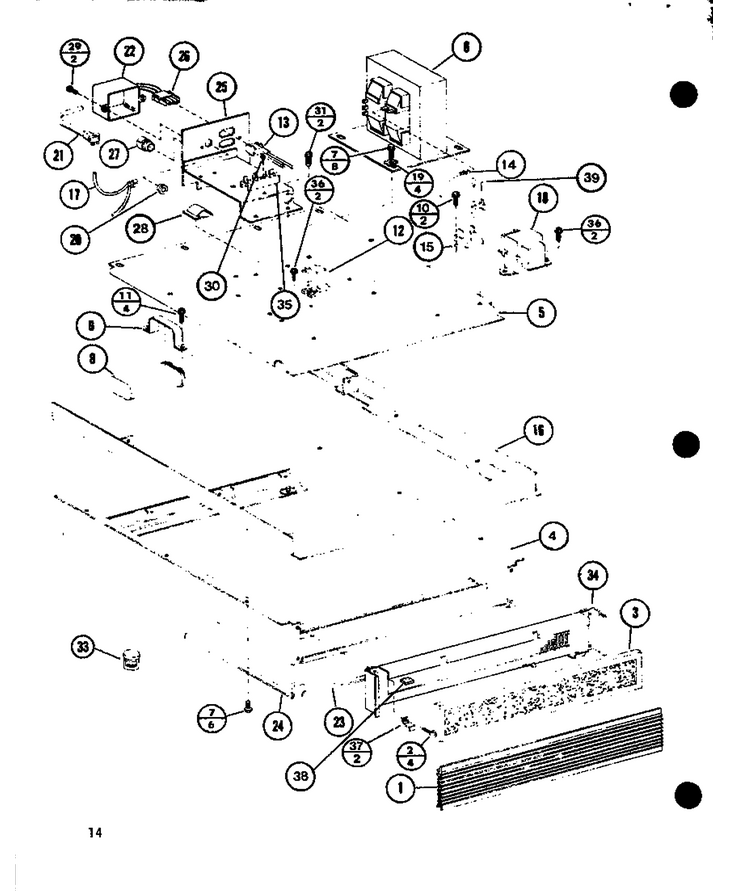

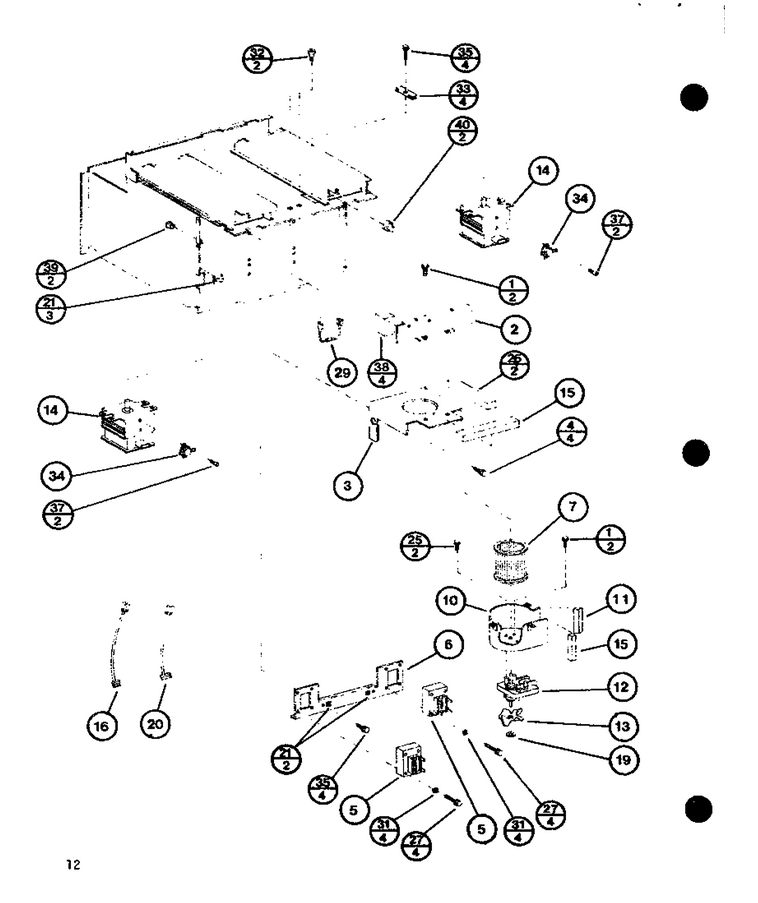

05 - Page 5

...
...
1
Grille Air Inlet WPL-C8708502
...
2
Screw WPL-M0213815
...
3
Filter WPL-B5714801
...
4
Base Pan Assembly WPL-C8709107
...
5
Chassis WPL-D7573603
...
6
Transformer-High Voltage, 208/ WPL-R0114320
...
7
Screw K WPL-M0253543
...
8
Capacitor-.85 WPL-59001651
...
9
Strap, Capacitor WPL-A4055405
...
10
Screw WPL-WP59002061
...
11
Screw-Sm/hex WPL-12990523
...
12
Kit, Diode WPL-M3D71
...
13
Wire Harness P.s. WPL-D7691601
...
14
Wire-Jumper, Filament Transfor (Filament Transformer No.4 To Ca WPL-D7365139
...
15
Triac WPL-D7681501
...
16
Oven Mtg Plate WPL-C8775302
...
17
Jumper Wire WPL-D7292683
...
18
Transformer, Auto WPL-C8901507
...
19
Lock Washer WPL-M0272805
...
20
Bushing WPL-A3293501
...
21
Power Cord Kit WPL-R0131016
...
22
Can, Capacitor WPL-B8334701
...
23
Gasket, Base Pan WPL-C8870702
...
24
Gasket, Base Pan WPL-C8870703
...
25
Strain Rel-Weld-Pntd WPL-C8879103
...
26
Wiring Harness WPL-C8944501
...
27
Strain Relief WPL-M0370007
...
28
Clip, Cord WPL-M0104102
...
29
Screw WPL-WP3388228
...
30
Screw, No.6x18x1/4 (3) WPL-487010
...
31
Screw WPL-WP90767
...
33
Relay WPL-R0150203
...
34
Air Inlet Weld WPL-C8847903
...
35
Terminal Block WPL-B5677203
...
36
Screw WPL-WP489349
...
37
Spring WPL-B8364201
...
38
Gasket WPL-C8870701
...
39
Snubber Assembly WPL-59002017

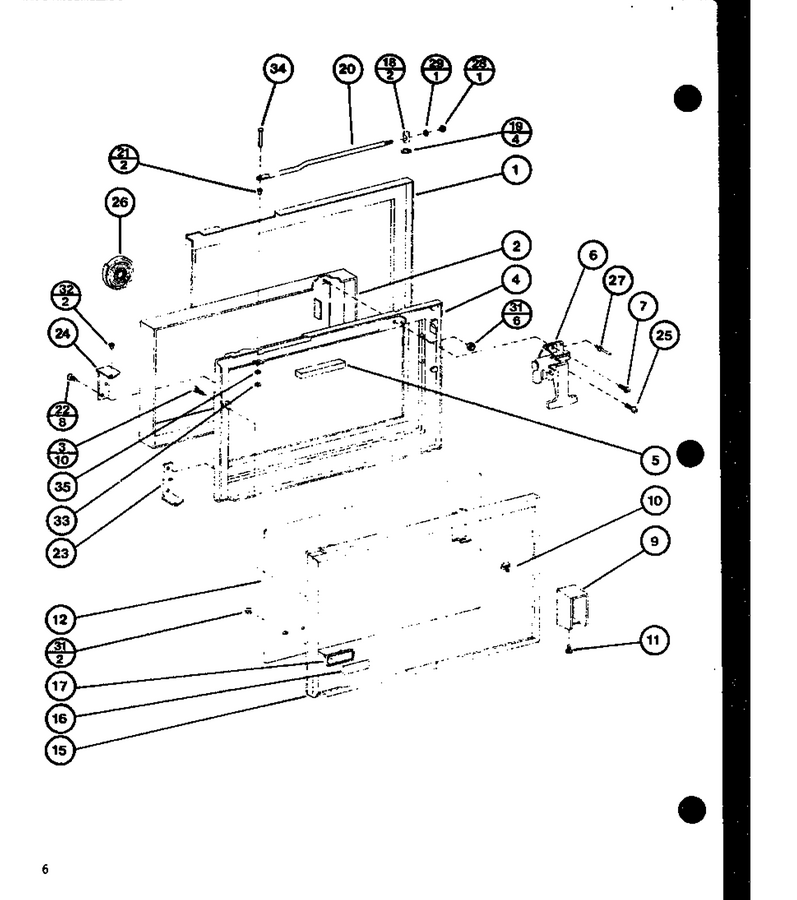

01 - Page 1

...
...
1
Gasket, Door WPL-D7670501
...
2
Inner Door Kit WPL-R0156665
...
3
Screw T.c WPL-M0229916
...
4
Inner Dr Ring Weld WPL-D7132505
...
5
Gasket WPL-A4591128
...
6
Door Latch Assembly WPL-D7178504
...
7
Screw WPL-WPW10068250
...
9
Bezel-Door Handle WPL-B5671901
...
10
Speed Nut WPL-M0288102
...
11
Screw,tc WPL-M0230017
...
12
Panel, Outer Door WPL-D7578101
...
15
Outer Door Ring WPL-D7667701
...
16
Insert Medal Cfc 113 WPL-C8904612
...
17
Escutcheon WPL-C3668803
...
18
Guide-Door Stop WPL-A3181801
...
19
Bushing WPL-A3182101
...
20
Arm, Dr Stop K WPL-B5748702
...
21
Bushing-Door Arm WPL-A3185001
...
22
Screw WPL-M0253230
...
23
Door Hinge Kit (Includes All Upper & Lower Hi WPL-R0156889
...
24
Door Hinge Kit (Includes All Upper & Lower Hi WPL-R0156889
...
25
Screw WPL-M0234030
...
26
Tape Per Roll WPL-M0275163
...
27
Rivet, Pop (Wht) WPL-B5642901
...
28
Nut WPL-WP488130
...
29
Washer WPL-M0270501
...
31
Nut WPL-717488
...
32
See Svc Ltr Cr-163d WPL-A3168101
...
33
Clip Push On WPL-M0118905
...
34
Pin Mtg WPL-B8372701
...
35
Washer WPL-M0270502

02 - Page 2

...
...
1
Gasket WPL-A4591128
...
2
Assy, Switch &ind. WPL-D7577807
...
3
Transformer Control WPL-C8901202
...
4
Frame-Timer WPL-D7292202
...
5
Digital Timer WPL-D7671301
...
6
Gasket WPL-A4591136
...
7
Bracket, Timer Mtg WPL-D7571303
...
9
Screw WPL-WP489349
...
10
Screw WPL-M0234403
...
12
Support P-C Bd A WPL-M0590602
...
14
Gasket (Inch) WPL-A3030301
...
16
Screw WPL-M0230820
...
17
Rivet WPL-WP210720
...
18
Relay WPL-C8845502
...
19
Motor WPL-B5602811
...
20
Rivet A-K WPL-M1205109
...
21
Screw WPL-M0216539
...
22
Bracket Interlock WPL-B8332501
...
23
Spring A WPL-A3277701
...
24
Speed Nut WPL-M0288010
...
25
Switch-Interlock (Limit) WPL-C3670014
...
26
Speednut WPL-M0289505
...
27
Bracket WPL-C8875301
...
28
Intlk Sw-Weld WPL-B8324002
...
29
Screw WPL-M0213123
...
30
Clip WPL-B8321802
...
31
Rivet-Pop WPL-59002054
...
32
Plate Relay Mtg WPL-C8766003
...
33
Fuse 20 A WPL-WPM0805101
...
34
Board-Term WPL-C8988701
...
35
Screw WPL-M0213815
...
36
Relay WPL-C8873928

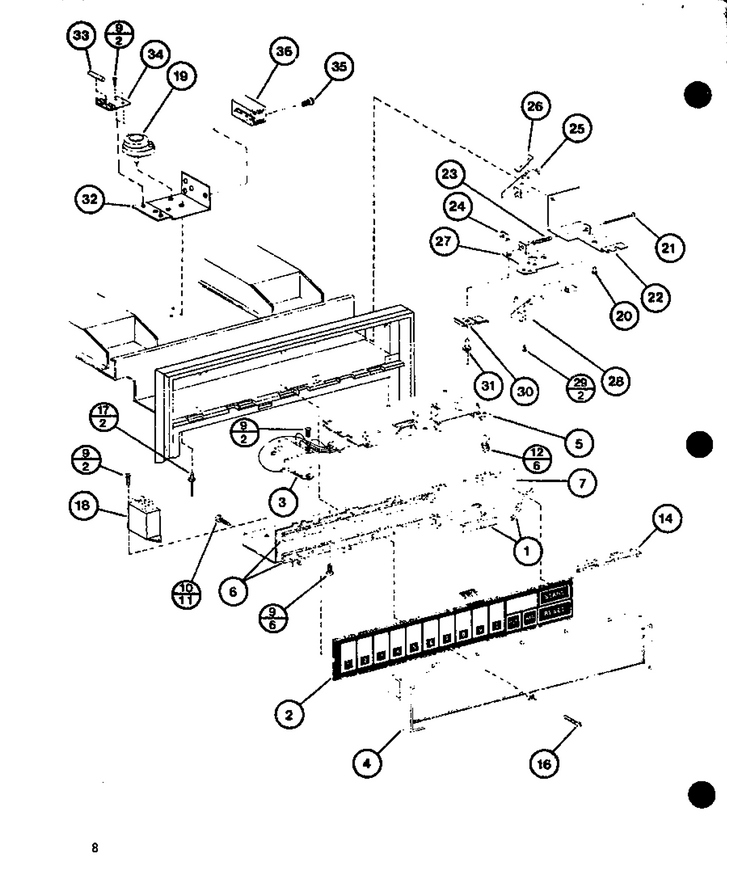

04 - Page 4

...
...
1
Screw WPL-WP489349
...
2
End Plate WPL-B5778001
...
3
Brkt-Blower Scroll WPL-C8707801
...
4
Screw WPL-WP90767
...
5
Transformer, Filament WPL-C8807807
...
6
Bracket Frame WPL-C8902001
...
7
Wheel, Blower WPL-C3670809
...
10
Wldmt-Blower Scroll WPL-C8710701
...
11
Gasket (Per Foot) WPL-10839706
...
12
Kit, Motor WPL-R0156503
...
13
Fan Blade-Blower WPL-B5706702
...
14
Magnetron WPL-10794402
...
15
Gasket (Per Foot) WPL-A3030303
...
16
Jumper-Wire, Fil Xfmer To Mag. (Filament Transformer To Magne WPL-D7365130
...
19
Clip WPL-M0118901
...
20
Jumper-Wire, Fil Xfmer To Mag. (Filament Transformer To Magne WPL-D7365130
...
21
Clip, Cord WPL-M0104102
...
25
Screw WPL-WP3400094
...
26
Gasket WPL-B8343705
...
27
Screw WPL-M0216522
...
29
Thermal Fuse W/terminals WPL-B8353203Q
...
31
Washer Lock WPL-M0272802
...
32
Bushing,terminal WPL-M0325401
...
33
Brkt-Mag Tube WPL-B5774402
...
34
Protector, Thermal WPL-B5684109
...
35
Screw WPL-M0216531
...
37
Screw T.c WPL-M0229916
...
38
Gasket WPL-B8343704
...
39
Snap Bushing WPL-A3293503
...
40
Clip WPL-M0118801
