Amana RC-14S (BOM: P7355101M)

Model: RC-14S (BOM: P7355101M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

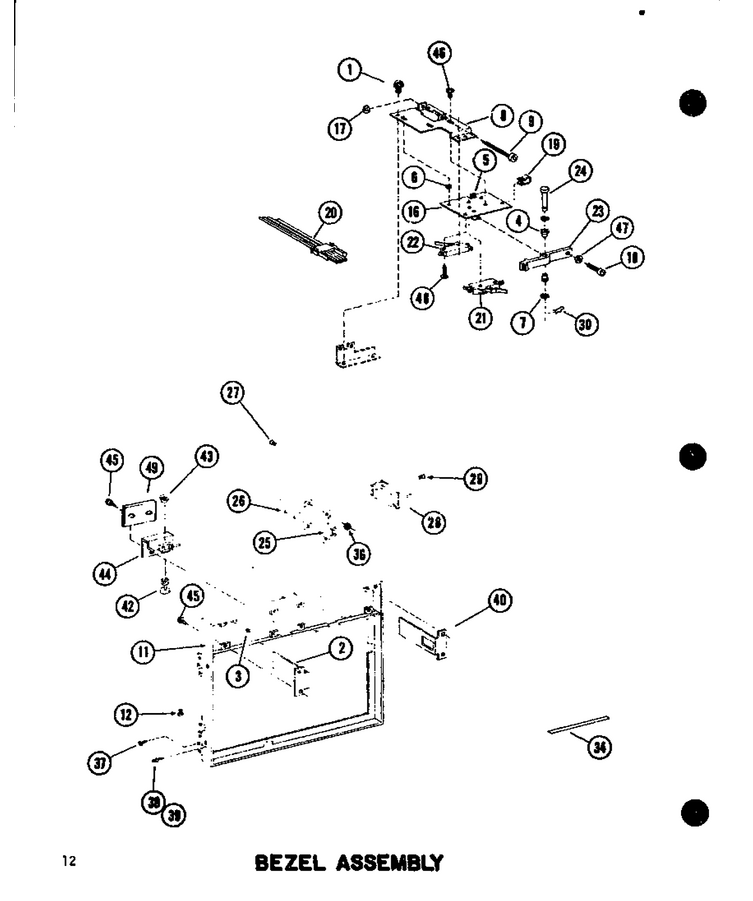

01 - Bezel Assy

...
...
1
Screw WPL-M0218116
...
2
Brkt-Frame WPL-B5758201
...
3
Clip A WPL-M0113006
...
4
See Svc Ltr Cr-163d WPL-A3168101
...
5
Clip WPL-M0118801
...
6
Washer Non-Metal WPL-M0274032
...
7
Washer WPL-M0270524
...
8
Adj Brkt-Switch WPL-B5747201
...
9
Adj Screw WPL-A3262501
...
11
Bezel, Outer Case WPL-D7293501
...
12
Nut, Self Thread WPL-M0283801
...
16
Mtg Plate-Interlock WPL-B5747502
...
17
E Ring External K WPL-M0274301
...
18
Screw WPL-M0204617
...
19
Clamp WPL-M0102301
...
20
Wiring Harness WPL-D7303501
...
21
Switch-Interlock (Limit) WPL-C3670014
...
22
Switch-Interlock (Limit) WPL-C3670014
...
23
Actuating Arm WPL-B5755701
...
24
Pin-Retainer WPL-A3260201
...
25
Strike-Latch WPL-C3680202
...
26
Bracket-Latch WPL-B5675403
...
27
Screw WPL-M0218117
...
28
Switch, Preform WPL-A3163415Q
...
29
Screw WPL-M0227520
...
30
Clip,hairpin WPL-A3171501
...
34
Tape Per Roll WPL-M0275163
...
36
Washer WPL-M0270524
...
37
Screw WPL-M0253230
...
38
T Nut WPL-M0285902
...
39
Screw WPL-M0205529
...
40
Brkt-Frame WPL-B5758201
...
42
Stud Fastener WPL-M0101302
...
43
Stud-Retainer WPL-M0101202
...
44
Brkt-Lock WPL-B5758901
...
45
Screw WPL-M0218115
...
46
Screw WPL-M0230015
...
47
Nut K WPL-M0282005
...
48
Screw WPL-M0227520

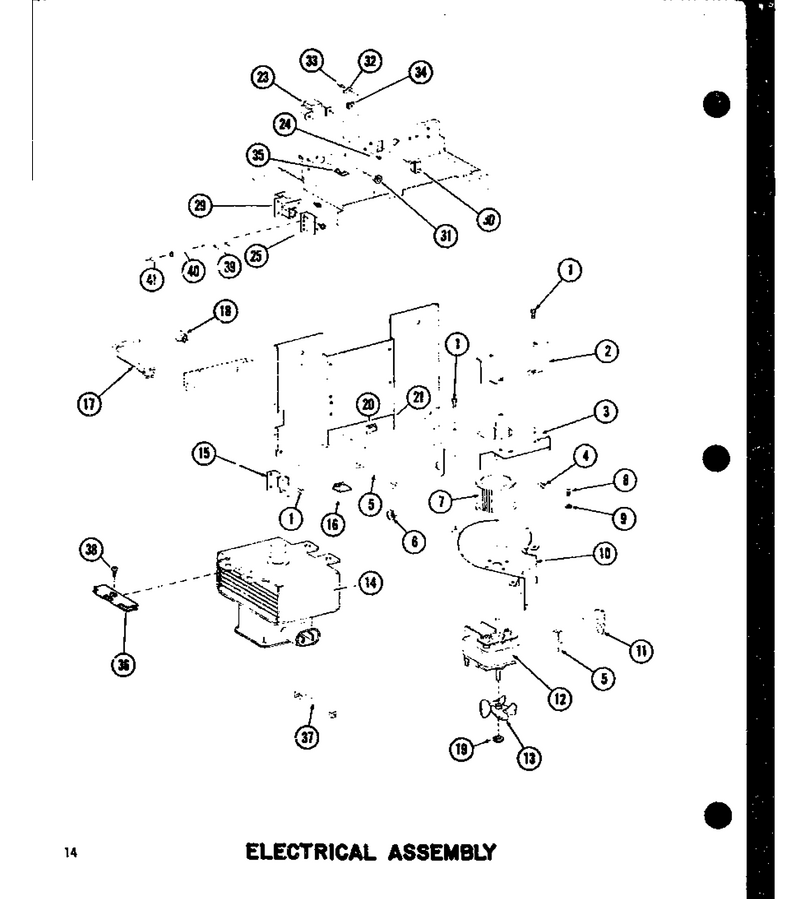

03 - Electrical Assy

...
...
1
Screw WPL-M0218116
...
2
End Plate WPL-B5778001
...
3
Brkt-Blower Scroll WPL-C8707801
...
4
Screw WPL-WP90767
...
5
Gasket (Per Foot) WPL-A3030303
...
6
Snap Bushing WPL-A3293503
...
7
Wheel, Blower WPL-C3670809
...
8
Screw WPL-M0202642
...
9
Washer WPL-M0272605
...
10
Wldmt-Blower Scroll WPL-C8710701
...
11
Gasket (Per Foot) WPL-10839706
...
12
Kit, Motor WPL-R0156503
...
13
Fan Blade-Blower WPL-B5706702
...
14
Magnetron WPL-10794402
...
15
Bracket-Connector WPL-B5716901
...
16
Clip, Cord WPL-M0104102
...
17
Power Cord Kit WPL-R0131016
...
18
Strain Relief WPL-M0371301
...
19
Clip WPL-M0118901
...
20
Clip-Cord WPL-M0104401
...
21
Tape-Per Roll WPL-M0275012
...
23
Transformer, Control WPL-C8773501
...
24
Screw WPL-WP90767
...
25
Terminal Board WPL-B5764801
...
29
Brkt WPL-B5761101
...
30
Switch-Sensing WPL-B5674702
...
31
Snap Bushing WPL-A3293503
...
32
Terminal-Ground WPL-M0320903
...
33
Rivet-Pop WPL-59002054
...
34
Speed Nut WPL-M0288107
...
35
Clip, Cord WPL-M0104102
...
36
Brkt-Mag Tube WPL-B5774401
...
37
Gasket-Cavity Top WPL-10839709
...
38
Screw (3) WPL-67006425
...
40
Sleeve WPL-M0321703
...
41
Fuse Resistor K WPL-M0308109

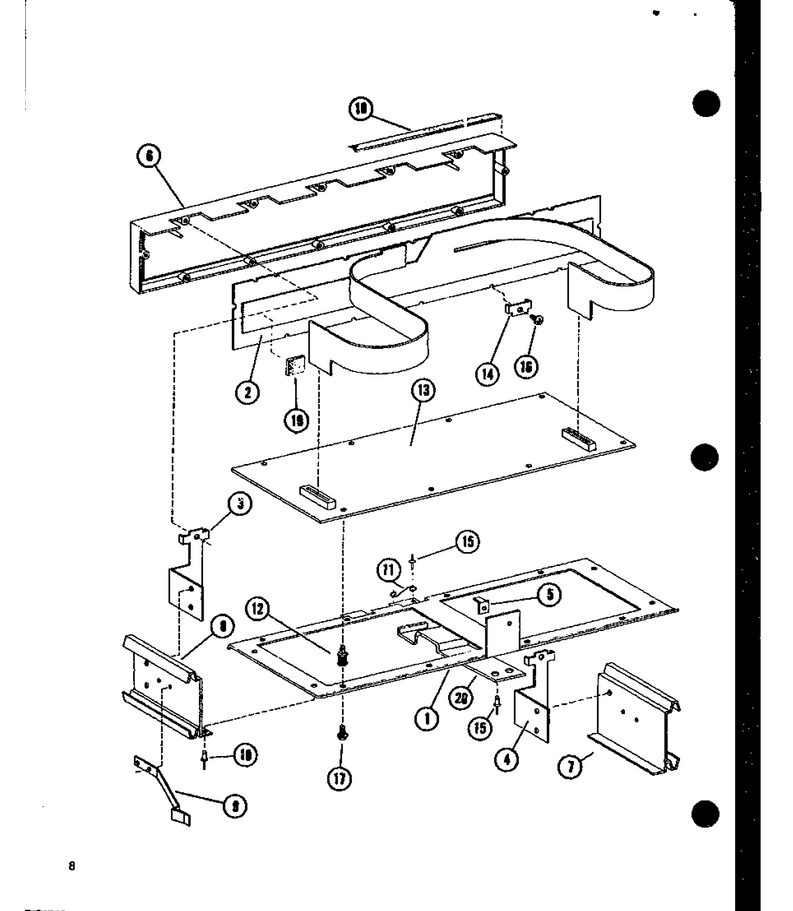

05 - Page 2

...
...
1
Plate-Pc Mtg WPL-D7292301
...
2
Switch & Ind Assy WPL-D7292801
...
3
Brkt-Channel WPL-B5757901
...
4
Brkt-Channel WPL-B5757902
...
5
Terminal-Ground WPL-M0320903
...
6
Frame-Timer WPL-D7292201
...
7
Channel-Glide WPL-C8765405
...
8
Channel-Glide WPL-C8765406
...
9
Retainer-Spring WPL-A3268901
...
10
Rivet-Pop WPL-59002054
...
11
Stud-Receptacle WPL-M0101102
...
12
Support K WPL-M0580502
...
13
Elect Module-Kit WPL-D7293601
...
14
Brkt-Retainer WPL-A3268301
...
15
.094 Dia Pop Rivet Alum WPL-A4539610
...
16
Screw A K WPL-M0253704
...
17
Screw WPL-WP489349
...
18
Gasket (Inch) WPL-A3030301
...
19
Gasket WPL-10839712

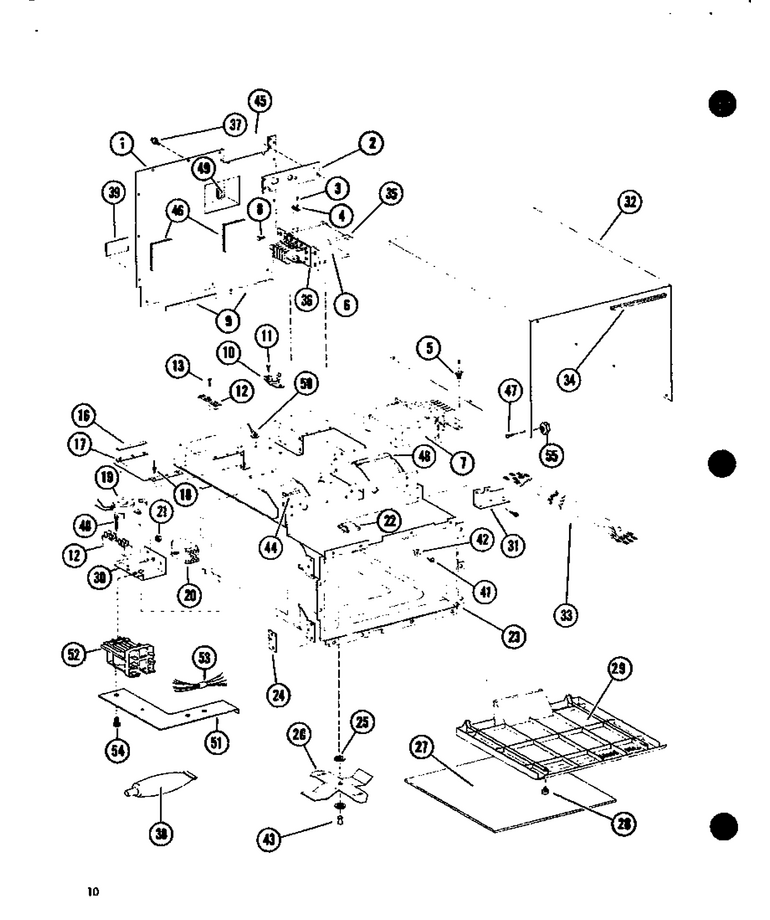

06 - Page 3

...
...
1
Weldment, Access Panel WPL-C8801101
...
2
Panel, Strain Relief WPL-B5763501
...
3
Screw WPL-M0234114
...
4
Thermal Protector WPL-B5684102
...
5
Thermal Protector K WPL-B5684105
...
6
Assembly, Isolator WPL-C8720507
...
7
Assembly, Isolator WPL-C8720506
...
8
Screw-Sm/hex WPL-12990523
...
9
Gasket-Per Ft WPL-A30303-35
...
10
Thermal Cut Out WPL-B5703002
...
11
Screw WPL-M0218116
...
12
Terminal Block WPL-B5677203
...
13
Screw, No.6x18x1/4 (3) WPL-487010
...
16
Gasket K WPL-A4591129
...
17
Cover-Isolator WPL-B5714101
...
18
Rivet WPL-WP210720
...
19
Motor WPL-B5602811
...
20
Relay WPL-C8709608
...
21
Nut WPL-WP488130
...
22
Clip WPL-WPM0104106
...
23
Oven Wld WPL-D7359403
...
24
Shim-Hinge WPL-A3250301
...
25
Washer WPL-A3109101
...
26
Stirrer Blade (Antenna) WPL-C8708601
...
27
Tray, Oven WPL-B5748801
...
28
Screw Retainer WPL-A3245601
...
29
Grease Shi WPL-R0157214
...
30
Plate, Relay Mounting WPL-C8766003
...
31
Brkt Supt-Interlock WPL-B5756101
...
32
Wrapper-Oc WPL-D7299901
...
33
Wiring Harness WPL-D7305701
...
34
Gasket (Inch) WPL-A3030301
...
35
Gasket K WPL-A3225401
...
36
Gasket K WPL-A3225402
...
37
Screw WPL-M0218116
...
38
Sealer WPL-M0275501
...
39
Seal K WPL-B5738501
...
40
Screw, No.6x18x1/4 (3) WPL-487010
...
41
Screw WPL-M0234025
...
42
Washer WPL-M0273612
...
43
Clip WPL-M0114002
...
44
Gasket WPL-B5718906
...
45
Screw WPL-M0218128
...
46
Insulation WPL-A3205601
...
47
Screw (3) WPL-67006425

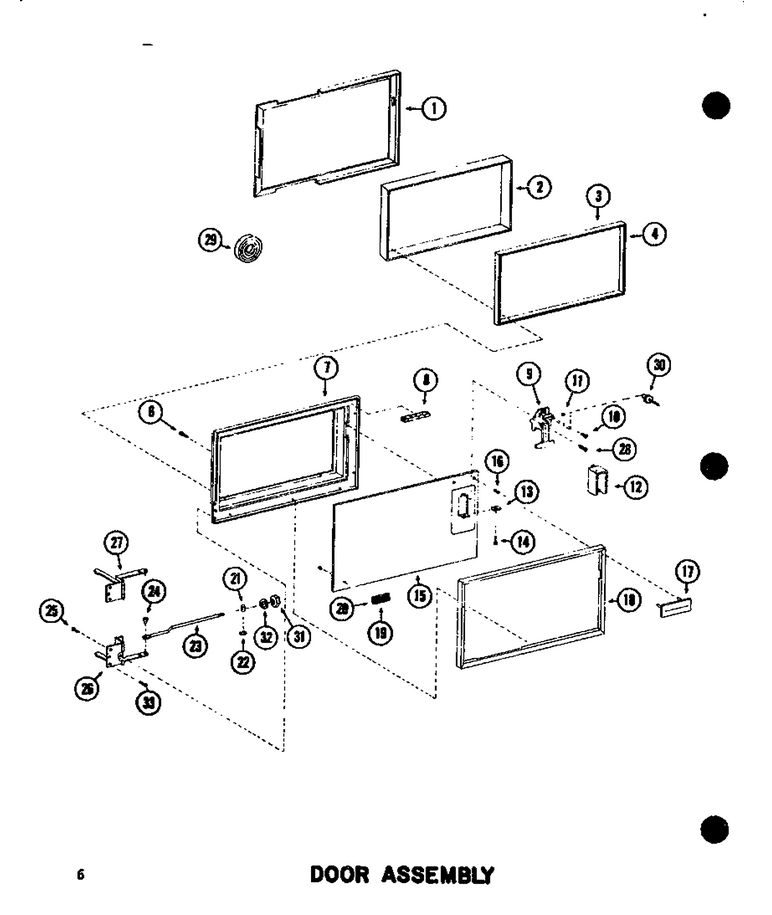

02 - Door Assy

...
...
1
Gasket WPL-C3669101
...
2
Inner Door Kit WPL-R0156665
...
3
Gasket WPL-B5686004
...
4
Gasket WPL-B5686003
...
6
Screw WPL-214597
...
7
Weldment, Inner Door Ring WPL-D7132501
...
8
Gasket WPL-A4591128
...
9
Door Latch Assy WPL-R0157316
...
10
Screw WPL-WPW10068250
...
11
Guides Hndl K WPL-A3195701
...
12
Bezel-Door Handle WPL-B5671901
...
13
Speed Nut WPL-M0288102
...
14
Screw, No.6x18x1/4 (3) WPL-487010
...
15
Panel-Outer Door WPL-D7178604
...
16
Clip-Push WPL-M0118905
...
17
Esc-Logo WPL-C3668803
...
18
Outer Door Ring WPL-D7667701
...
19
Insert-Medallion WPL-B5694721
...
20
Medallion WPL-B5694901
...
21
Guide-Door Stop WPL-A3181801
...
22
Bushing WPL-A3182101
...
23
Arm, Dr Stop K WPL-B5748702
...
24
Bushing-Door Arm WPL-A3185001
...
25
Screw WPL-M0253230
...
26
Hinge-Bottom WPL-C3666306
...
27
Hinge-Top WPL-C3666305
...
28
Screw WPL-M0234030
...
29
Tape Per Roll WPL-M0275163
...
30
Rivet, Pop (Wht) WPL-B5642901
...
31
Nut WPL-WP488130
...
32
Washer WPL-M0270501

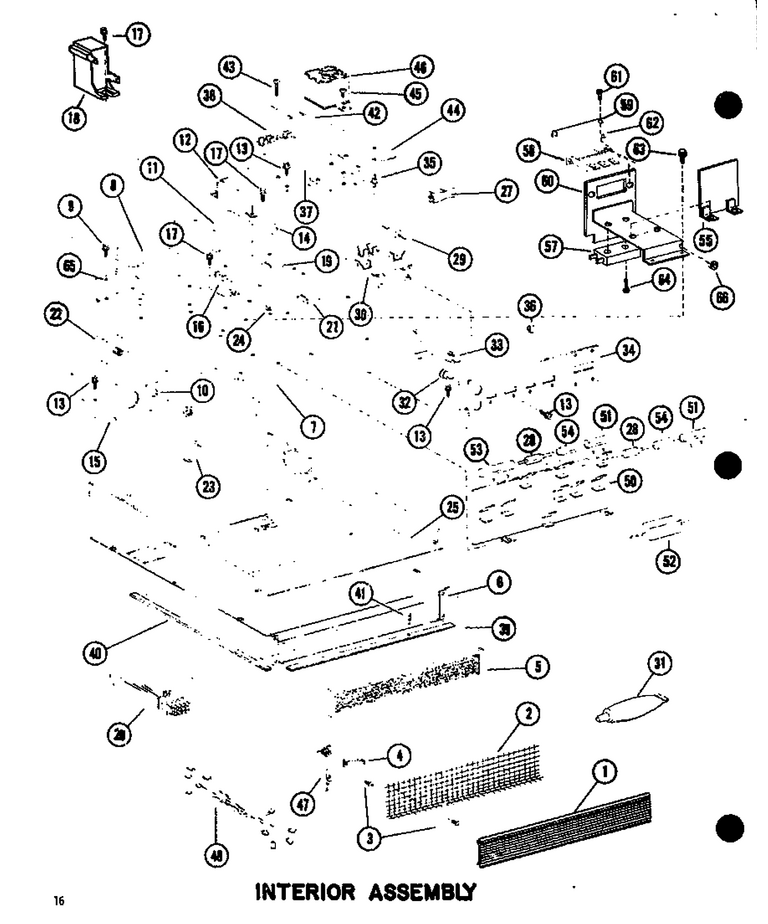

04 - Interior Assy

...
...
1
Grille Air Inlet WPL-C8708501
...
2
Screen, Air Intake WPL-B5713901
...
3
Screw WPL-M0230015
...
4
Clip WPL-A3225202
...
5
Filter WPL-B5714801
...
6
Base Pan Wld WPL-C8709102
...
7
Chassis WPL-D7203601
...
8
Transformer, H.v. 230/208 V., WPL-D7199602
...
9
Screw K WPL-M0253543
...
10
Plate-Voltage WPL-A3225301
...
11
Capacitor Assy WPL-R0160021
...
12
Bracket WPL-A3184702
...
13
Screw WPL-M0218116
...
14
Resistor A WPL-M0305202
...
15
Brkt-Voltage Sel WPL-B5759401
...
16
Kit, Diode WPL-M3D71
...
17
Screw-Sm/hex WPL-12990523
...
19
Clip WPL-WPM0104106
...
20
Wiring Harness WPL-D7305801
...
21
Clip, Cord WPL-M0104102
...
22
Toggle Switch WPL-B5730101
...
23
Alarm WPL-A3276301
...
24
Terminal WPL-M0320904
...
25
Oven Mtg Plate WPL-C8775301
...
27
Resistor A WPL-M0305009
...
28
Fuse WPL-M0308110
...
29
Resistor WPL-M0305204
...
30
Terminal Board WPL-B5687402
...
31
Rtv (Blk) WPL-M0275560
...
32
Bushing,terminal WPL-M0325401
...
33
Bushing,terminal WPL-M0325402
...
34
Brkt-Fuse Resistor WPL-C8706601
...
35
Supt Ckt Bd A WPL-B5675501
...
36
Clip K WPL-M0110501
...
37
Brkt-Surge Relay WPL-B5778301
...
38
Terminal Block WPL-B5677203
...
39
Gasket, Base Pan WPL-C8737302
...
40
Gasket, Base Pan WPL-C8737301
...
41
Pop Rivet WPL-A4539602
...
42
Resistor, 400 Ohm, 8 Watts WPL-M0308602
...
43
Screw, No.6x18x1/4 (3) WPL-487010
...
44
Time Delay K WPL-B5691004
...
45
Screw WPL-M0230015
...
46
Kit, Relay WPL-C3669603
...
47
End Cap-Grill WPL-B5714401
...
48
Wiring Harness WPL-C8711002
...
54
Sleeve WPL-M0321701
...
55
Terminal Board WPL-B5764801
