Amana RC-14B (BOM: P7355002M)

Model: RC-14B (BOM: P7355002M)

Save Part Not Listed?
product name

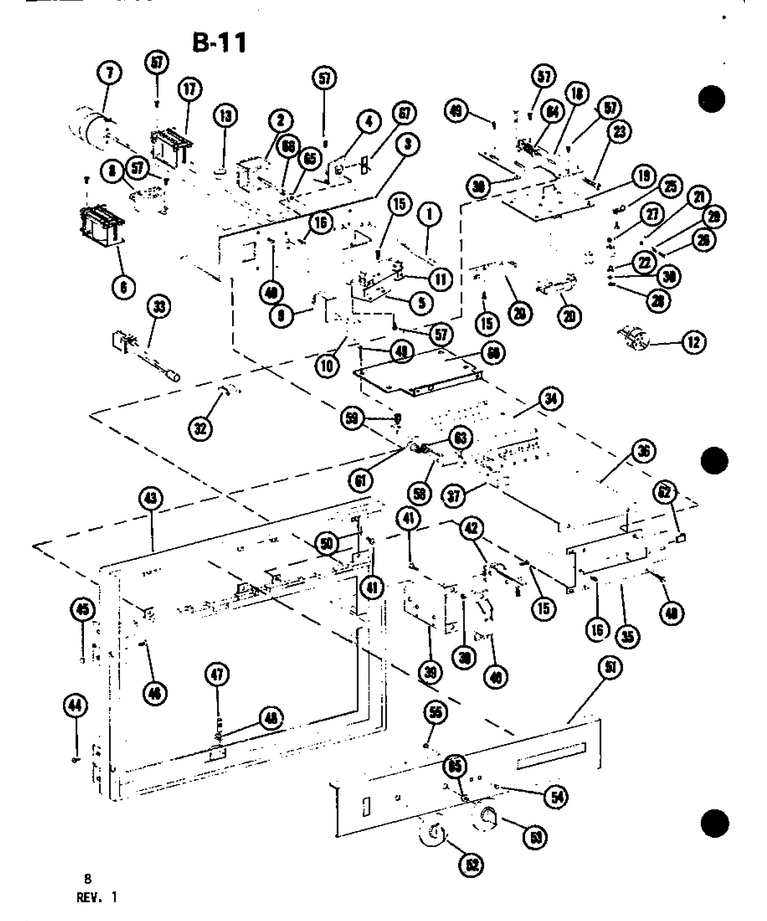

02 - Page 2

...
...
1
Light-Pilot WPL-B5786602
...
2
Switch-Selector WPL-B5786701
...
3
Bracket WPL-D7380401
...
4
Bracket WPL-B5788201
...
5
Bracket WPL-B5794001
...
6
Relay WPL-B5706404
...
7
Timer-12 Min WPL-C8701203
...
8
Timer-Defrost WPL-B5699804
...
9
Switch WPL-B5674703
...
10
Push-Button WPL-B5674004
...
11
Switch A WPL-B5731306
...
12
Wire Harness-Timer WPL-D7400101
...
13
Snap Bushing WPL-A3293503
...
15
Screw WPL-M0227520
...
16
Screw WPL-W11084238
...
17
Relay WPL-B5674306
...
18
Adj Brkt-Switch WPL-B5747201
...
19
Mtg Plate-Interlock WPL-B5747502
...
20
Switch-Interlock (Limit) WPL-C3670014
...
21
Actuating Arm WPL-B5755701
...
22
Pin-Retainer WPL-A3260201
...
23
Screw WPL-M0231249
...
25
Clamp WPL-M0102301
...
26
Screw WPL-M0204617
...
27
See Svc Ltr Cr-163d WPL-A3168101
...
28
Clip,hairpin WPL-A3171501
...
29
Nut K WPL-M0282005
...
30
Washer Non-Metal WPL-M0274032
...
32
Clip WPL-M0118801
...
33
Wire Harness WPL-D7406101
...
34
Timer, Elect K WPL-D7443802
...
35
Bracket WPL-C8847801
...
36
Wire Shield WPL-B5794102
...
37
Button, Timer WPL-B8323201
...
39
Bracket-Latch WPL-B5675403
...
40
Strike-Latch WPL-C3680202
...
41
Screw-Sm/hex WPL-12990523
...
42
Switch-Latch WPL-A3163413
...
43
Front Frame WPL-C8838201
...
44
Screw WPL-M0253230
...
45
T Nut WPL-M0285902
...
46
Screw, Nylock WPL-M0205442
...
47
Guide-Door Stop WPL-A3181801
...
48
Bushing WPL-A3182101
...
49
Screw WPL-WP489349
...
50
Support Timer WPL-B5785802
...
51
Escutcheon WPL-D7403202
...
52
Knob WPL-B5798001
...
53
Knob WPL-B5798002
...
54
Lens WPL-B5796701
...
55
O Ring WPL-M0500701
...
57
Screw WPL-M0213815
...
58
Assy, Pb Switch K WPL-D7429101
...
59
Support K WPL-M0580502
...
60
Plate K WPL-B8313601
...
61
Wire Harness-Pb WPL-D7451801
...
62
Clip WPL-M0288213
...
63
Wire Tie WPL-M0321204
...
64
Spring-Compression WPL-A1020601
...
65
Hex Nut On Switch WPL-Y312706
...
66
Spacer WPL-M0800009
...
67
Stud, Receiver WPL-M0270401

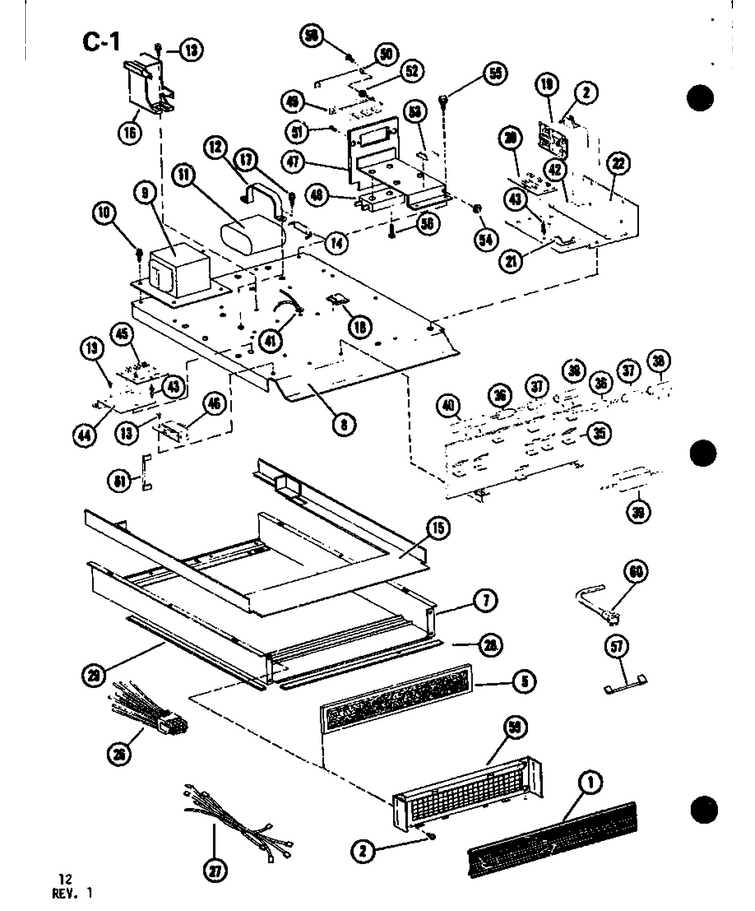

04 - Page 4

...
...
1
Grille Air Inlet WPL-C8708501
...
2
Screw WPL-M0213815
...
5
Filter WPL-B5714801
...
7
Base Pan Weldment WPL-C8709104
...
8
Chassis WPL-D7203603
...
9
Transformer WPL-D7325301
...
10
Screw K WPL-M0253543
...
11
Capacitor Assy WPL-R0160021
...
12
Bracket WPL-A3184702
...
13
Screw WPL-M0218116
...
14
Resistor A WPL-M0305202
...
15
Oven Mtg Plate WPL-C8775302
...
16
Kit, Diode WPL-M3D71
...
17
Screw-Sm/hex WPL-12990523
...
18
Clip WPL-WPM0104106
...
19
Kit, Relay WPL-C3669602
...
20
Time Delay K WPL-B5691004
...
21
Clip, Cord WPL-M0104102
...
22
Brkt-Surge Relay WPL-C8800001
...
26
Wire Harness-Ps WPL-D7400201
...
27
Wiring Harness WPL-C8814401
...
28
Gasket, Base Pan WPL-C8870702
...
29
Gasket, Base Pan WPL-C8870703
...
35
Terminal Board WPL-B5787601
...
36
Fuse WPL-M0308110
...
37
Sleeve WPL-M0321701
...
38
Resistor A WPL-M0308601
...
39
Resistor WPL-M0308502
...
40
Resistor WPL-M0308603
...
41
Jumper Wire WPL-D7384601
...
42
Insulation-Relay WPL-B5788401
...
43
Supt Ckt Bd A WPL-B5675501
...
44
Brkt-Time Delay WPL-A3230402
...
45
Buzzer Control Bd WPL-C8770602
...
46
Buzzer WPL-C8835701
...
47
Strain Relief Weld WPL-B5788001
...
48
Switch WPL-C8715203
...
49
Switch WPL-B5790101
...
50
Switch Cover WPL-B5789401
...
51
Screw WPL-M0202520
...
52
Spacer WPL-M0800006
...
53
Clip, Cord WPL-M0104102
...
54
Snap Bushing WPL-A3293503
...
55
Screw WPL-WP90767
...
56
Screw WPL-M0227520
...
57
Jumper Wire WPL-D7292619
...
58
Screw WPL-WP3388228
...
59
Air Inlet Weld WPL-C8847901
...
60
Power Cord Kit WPL-R0131016
...
61
Jumper Wire WPL-C3655878

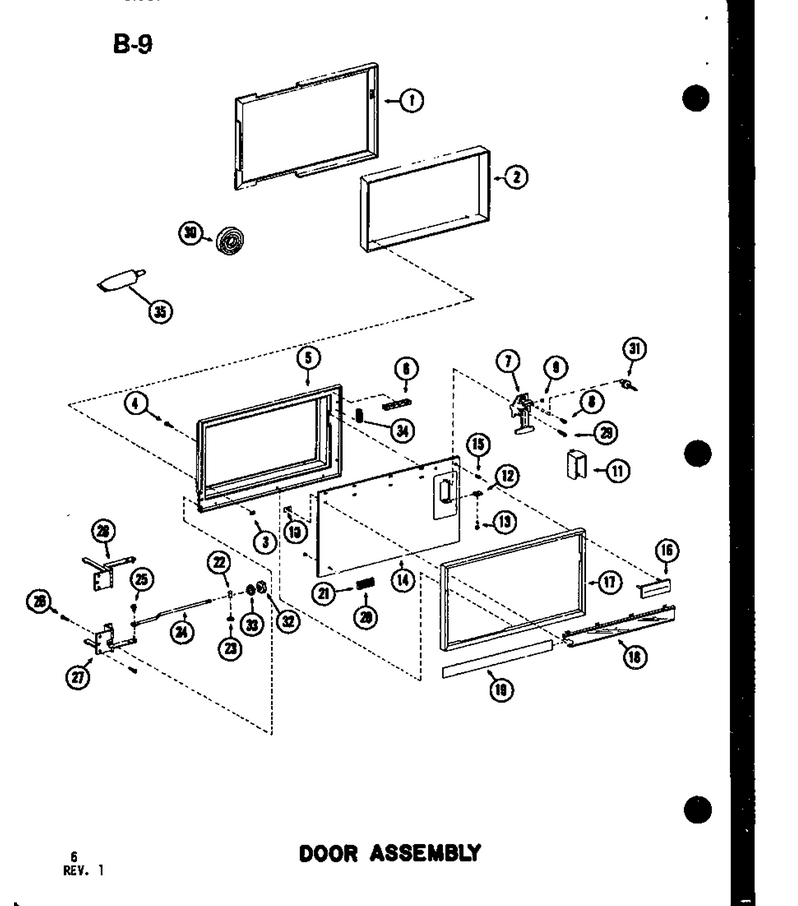

01 - Door Assy

...
...
1
Gasket WPL-D7396401
...
2
Inner Door Kit WPL-R0156665
...
3
Nut WPL-717488
...
4
Screw T.c WPL-M0229916
...
5
Weldment, Inner Door Ring WPL-D7132501
...
6
Gasket WPL-A4591128
...
7
Door Latch Assembly WPL-D7178504
...
8
Screw WPL-WPW10068250
...
9
Guides Hndl K WPL-A3195701
...
10
Clip WPL-M0286401
...
11
Bezel-Door Handle WPL-B5671901
...
12
Speed Nut WPL-M0288102
...
13
Screw WPL-8169474
...
14
Panel Outer Door K WPL-D7178601
...
15
Clip-Push WPL-M0118905
...
16
Esc-Logo WPL-C3668803
...
17
Outer Door Ring WPL-D7667701
...
18
Lens-Menu Guide WPL-B5674501
...
19
Menu Guide WPL-C8713302
...
20
Insert Medallion WPL-B5694723
...
21
Medallion WPL-B5694901
...
22
Guide-Door Stop WPL-A3181801
...
23
Bushing WPL-A3182101
...
24
Arm, Dr Stop K WPL-B5748702
...
25
Bushing-Door Arm WPL-A3185001
...
26
Screw WPL-M0253230
...
27
Hinge-Bottom WPL-C3666306
...
28
Hinge-Top WPL-C3666305
...
29
Screw WPL-M0234030
...
30
Tape Per Roll WPL-M0275163
...
31
Rivet, Pop (Wht) WPL-B5642901
...
32
Nut WPL-WP488130
...
33
Washer WPL-M0270501
...
34
Tape Per Roll WPL-M0275163
...
35
Sealer WPL-M0275501

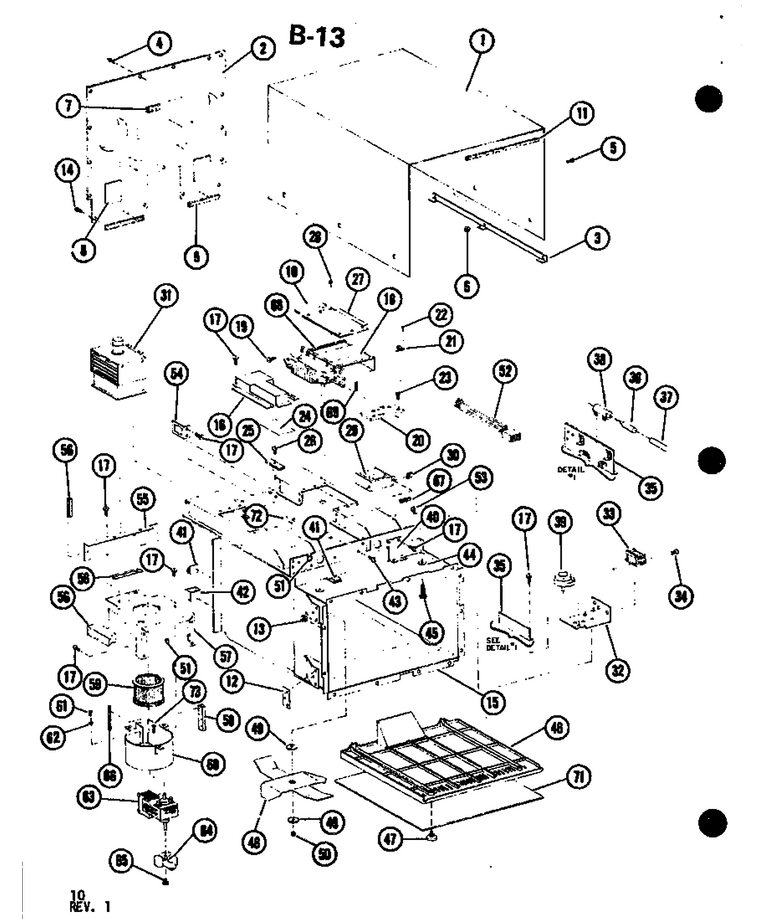

03 - Page 3

...
...
1
Wrapper, Outer Case WPL-D7379601
...
2
Access Panel Weld WPL-C8801104
...
3
Guide-Strip WPL-C8812901
...
4
Rivet-Pop WPL-59002054
...
5
Screw WPL-M0207943
...
6
Nut WPL-WP3400029
...
7
Gasket WPL-10839707
...
8
Insulation WPL-A3205601
...
9
Gasket-Per Ft WPL-A30303-35
...
10
Gasket K WPL-A4591129
...
11
Gasket (Inch) WPL-A3030301
...
12
Shim-Hinge WPL-A3250301
...
13
Nut, Self Thread WPL-M0283801
...
14
Screw WPL-WP3388228
...
15
Oven Cavity WPL-D7518602
...
16
Air Duct Isolator WPL-C8822301
...
17
Screw WPL-WP489349
...
18
Assembly, Isolator WPL-C8720508
...
19
Screw-Sm/hex WPL-12990523
...
20
Thermal Plate WPL-B5793501
...
21
Cutout-Thermal WPL-B5684113
...
22
Screw WPL-M0234114
...
23
Screw WPL-WP59002061
...
24
Tape-Plastic WPL-M0275011
...
25
Brkt-Mag Tube WPL-B5774402
...
26
Screw (3) WPL-67006425
...
27
Cover-Isolator WPL-B5714101
...
28
Rivet WPL-WP210720
...
29
Transformer WPL-C3699302
...
30
Speed Nut WPL-M0288107
...
31
Magnetron WPL-10794402
...
32
Plate, Relay Mounting WPL-C8766003
...
33
Relay-Pwr WPL-B5706403
...
34
Screw WPL-M0213815
...
35
Terminal Board WPL-B5793701
...
36
Fuse Resistor K WPL-M0308109
...
37
Sleeve WPL-M0321703
...
38
Resistor WPL-M0308602
...
39
Motor Stirrer, 240 V., 75 Rpm WPL-B6602811
...
40
Brkt Supt-Interlock WPL-B5756101
...
41
Clip WPL-WPM0104106
...
42
Clip-Cord WPL-M0104401
...
43
Screw WPL-WP90767
...
44
Washer WPL-M0273612
...
45
Screw WPL-M0253504
...
46
Shield,splatter WPL-D7457103
...
48
Stirrer Blade (Antenna) WPL-C8708601
...
49
Washer WPL-A3109101
...
50
Clip WPL-M0114002
...
51
Snap Bushing WPL-A3293503
...
52
Wire Harness-Oven WPL-D7400301
...
53
Clip, Cord WPL-M0104102
...
54
Bracket-Connector WPL-B5716901
...
55
End Plate WPL-B5778001
...
56
Gasket-Cavity Top WPL-10839709
...
57
Brkt-Blower Scroll WPL-C8707801
...
58
Gasket (Per Foot) WPL-A3030303
...
59
Wheel, Blower WPL-C3670809
...
60
Wldmt-Blower Scroll WPL-C8710701
...
61
Screw WPL-M0204701
...
62
Washer WPL-M0272605
...
63
Kit, Motor WPL-R0156503
...
64
Fan Blade WPL-B5766702
...
65
Clip WPL-M0118901
...
66
Gasket (Per Foot) WPL-10839706
...
67
Gasket Window A-K WPL-A3264602
...
68
Gasket K WPL-A3225401
...
69
Gasket K WPL-A3225402
...
71
Tray-Oven WPL-B5795002
...
72
Clip-Cord WPL-M0104701
...
73
Screw WPL-8169474
