Amana RC-14 (BOM: P7210007M)

Model: RC-14 (BOM: P7210007M)

Save Part Not Listed?
product name

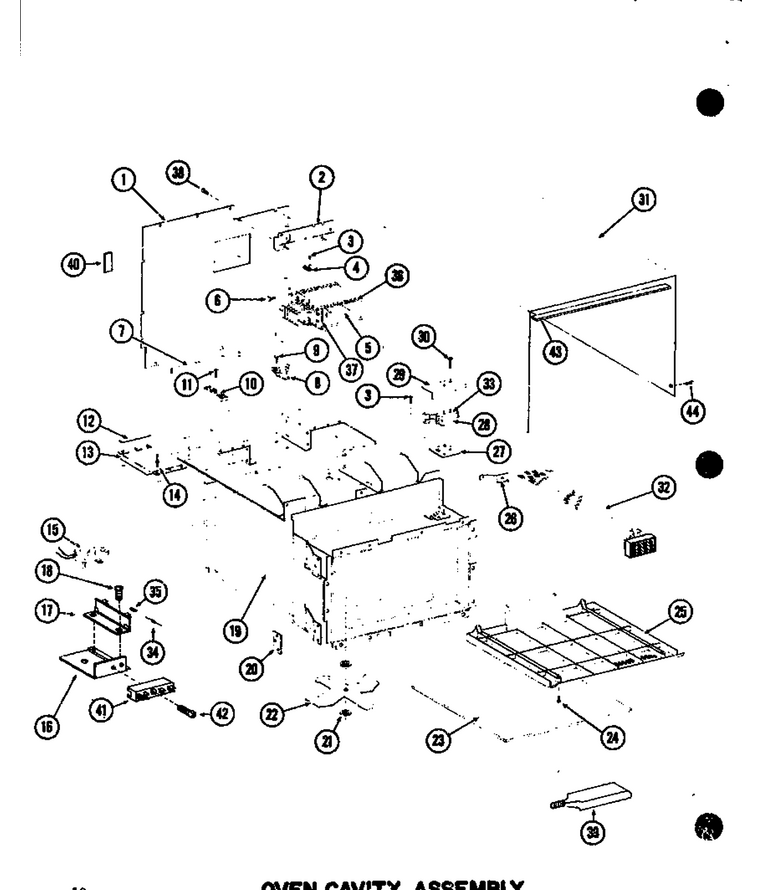

06 - Oven Cavity Assy

...
...
1
Weldment, Access Panel WPL-C8801101
...
2
Panel, Strain Relief WPL-B5763501
...
3
Screw WPL-M0234114
...
4
Thermal Cutout WPL-B5684112
...
5
Assembly, Isolator WPL-C8720502
...
6
Screw-Sm/hex WPL-12990523
...
7
Gasket-Per Ft WPL-A30303-35
...
8
Thermal Cut Out WPL-B5703002
...
9
Screw WPL-M0218116
...
10
Terminal Block WPL-B5677203
...
11
Screw, No.6x18x1/4 (3) WPL-487010
...
12
Gasket K WPL-A4591129
...
13
Cover-Isolator WPL-B5714101
...
14
Rivet WPL-WP210720
...
15
Motor WPL-B5602811
...
16
Bracket K WPL-B5737201
...
17
Terminal Board WPL-B5722002
...
18
Screw WPL-WP90767
...
19
Oven Wld WPL-D7359402
...
20
Shim-Hinge WPL-A3250301
...
21
Washer WPL-A3109101
...
22
Stirrer Blade (Antenna) WPL-C8708601
...
23
Tray, Oven WPL-B5748801
...
24
Screw Retainer WPL-A3245601
...
25
Grease Shi WPL-R0157214
...
26
Spring-Door Stop WPL-B5718701
...
27
Bracket-Switch WPL-B5719701
...
28
Switch, Interlock Sensing, Bot WPL-C3670011
...
29
Pad Insulation A WPL-B5685603
...
30
Screw WPL-M0213123
...
31
Wrapper-Oc WPL-D7299901
...
32
Wiring Harness WPL-D7208201
...
33
Switch, Interlock, Top WPL-B5671603
...
34
Fuse WPL-M0308101
...
35
Resistor Fuse Kit WPL-R0157332
...
36
Gasket K WPL-A3225401
...
37
Gasket K WPL-A3225402
...
38
Screw WPL-WP59002061
...
39
Sealer WPL-M0275501
...
40
Seal K WPL-B5738501
...
41
Terminal Block WPL-B5677203
...
42
Screw, No.6x18x1/4 (3) WPL-487010
...
43
Gasket WPL-A3030302
...
44
Screw (3) WPL-67006425

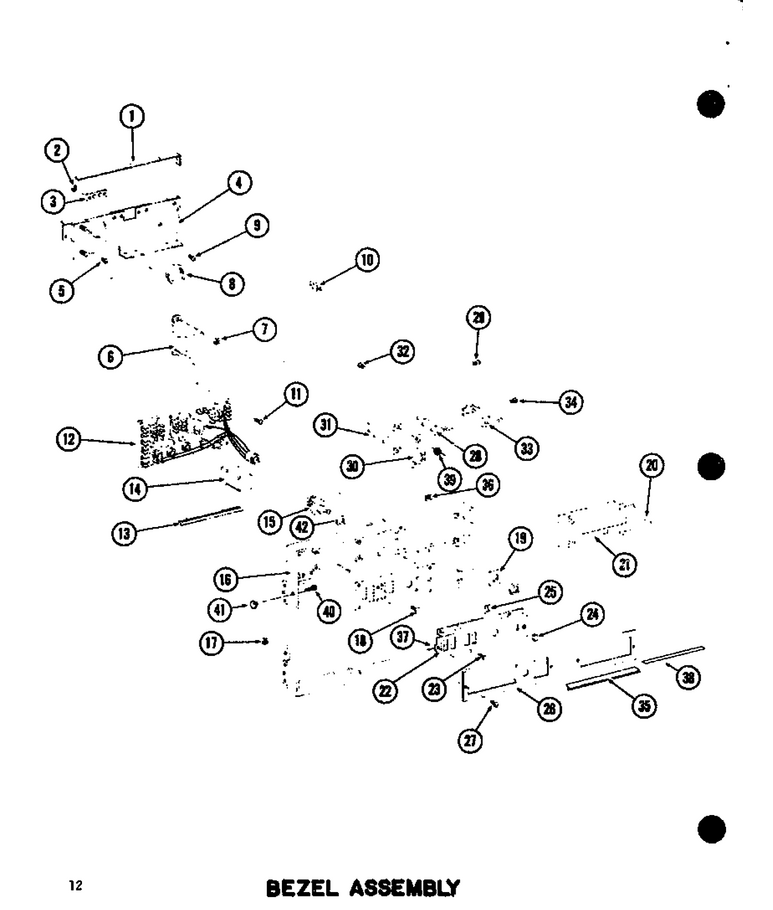

01 - Bezel Assy

...
...
1
Gasket K WPL-A4591129
...
2
Nut-Hex WPL-M0281001
...
3
Terminal Board WPL-A3225501
...
4
Wldmt-Pc Bracket WPL-B5719301
...
5
Screw WPL-M0218116
...
6
Transformer WPL-C3699401
...
7
Nut WPL-WP488130
...
8
Snap Bushing WPL-A4554802
...
9
Screw WPL-W11084238
...
10
Grommet WPL-M0580203
...
11
Screw, No.6x18x1/4 (3) WPL-487010
...
12
Pc Board K WPL-C8712203
...
13
Guide-Circuit Board WPL-B5715901
...
14
Relay-Pc Board WPL-C8710301
...
15
Toggle Switch WPL-B5730101
...
16
Bezel, Outer Case WPL-D7133404
...
17
Nut, Self Thread WPL-M0283801
...
18
Screw WPL-WP59002061
...
19
Plate-Voltage WPL-A3225301
...
20
Screw A WPL-M0202516
...
21
Escutcheon-El Timer WPL-C8707601
...
22
Escutcheon-Di Timer WPL-C8707701
...
23
Screw WPL-M0229004
...
24
Lens-Pilot Light WPL-A3229601
...
25
Clip WPL-M0285801
...
26
Escutcheon-Control WPL-C8708401
...
27
Screw, Phillips Oval Head WPL-M0215102
...
28
Spring-Latch WPL-A3186401
...
29
Screw WPL-M0232012
...
30
Strike-Latch WPL-C3680202
...
31
Bracket-Latch WPL-B5675403
...
32
Screw,tc WPL-M0230017
...
33
Switch, Preform WPL-A3163415Q
...
34
Screw A-K WPL-M0227525
...
35
Gasket-Esc WPL-B5735201
...
36
Speed Nut WPL-M0288414
...
37
Speed Nut K WPL-M0288301
...
38
Tape Per Roll WPL-M0275163
...
39
Washer WPL-M0270524
...
40
Screw, Nylock WPL-M0205442
...
41
T Nut WPL-M0285902
...
42
Plate-Voltage WPL-A3225301

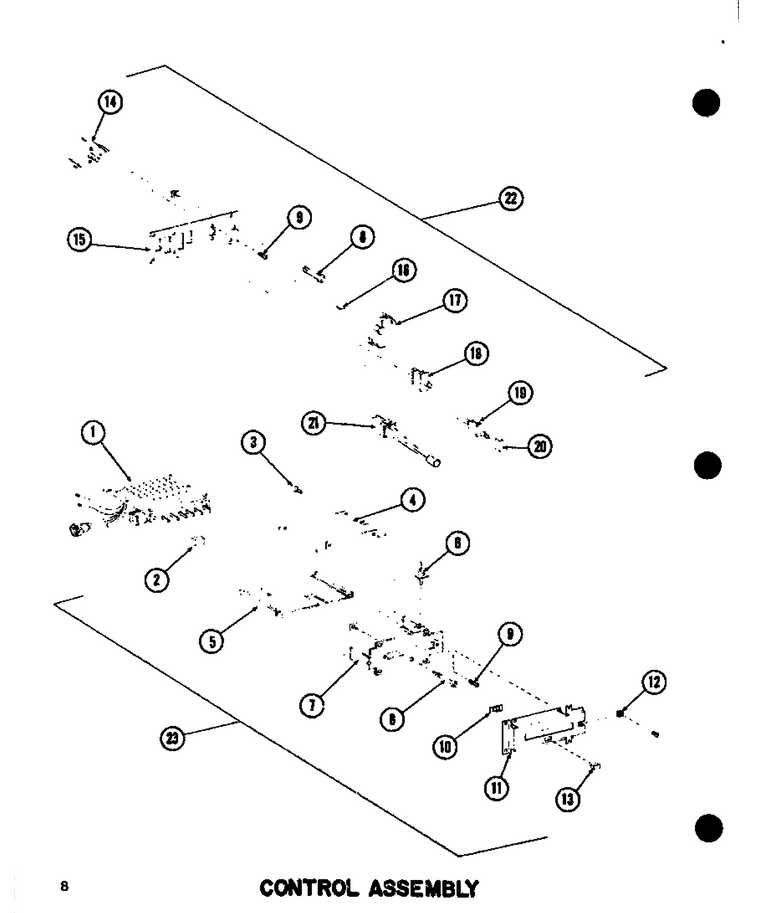

02 - Control Assy

...
...
1
Timer Assy WPL-D7210901
...
2
Button Timer A-K WPL-B5674201
...
3
Screw WPL-M0230015
...
4
Insulation A WPL-C3679301
...
5
Cover-Timer WPL-B5674602
...
6
Supt Ckt Bd A WPL-B5675501
...
7
Bracket Timer Mtg WPL-C8722203
...
8
Pilot Light A WPL-A3184401
...
9
Screw WPL-W11084238
...
10
Clip WPL-M0285801
...
11
Escutcheon-El Timer WPL-C8707601
...
12
Speed Nut K WPL-M0288301
...
13
Lens-Pilot Light WPL-A3229601
...
14
Timer-12 Min WPL-C8701201
...
15
Panel-Dial Timer WPL-B5712801
...
16
Clip WPL-M0117001
...
17
Knob A WPL-D7028702
...
18
Switch Pb A WPL-B5715401
...
19
Switch WPL-B5674703
...
20
Button Start A WPL-B5674002
...
21
Wiring Harness WPL-C8712801
...
22
Timer Assy-Dial WPL-C8713201
...
23
Timer Assy-Elect WPL-C8712901

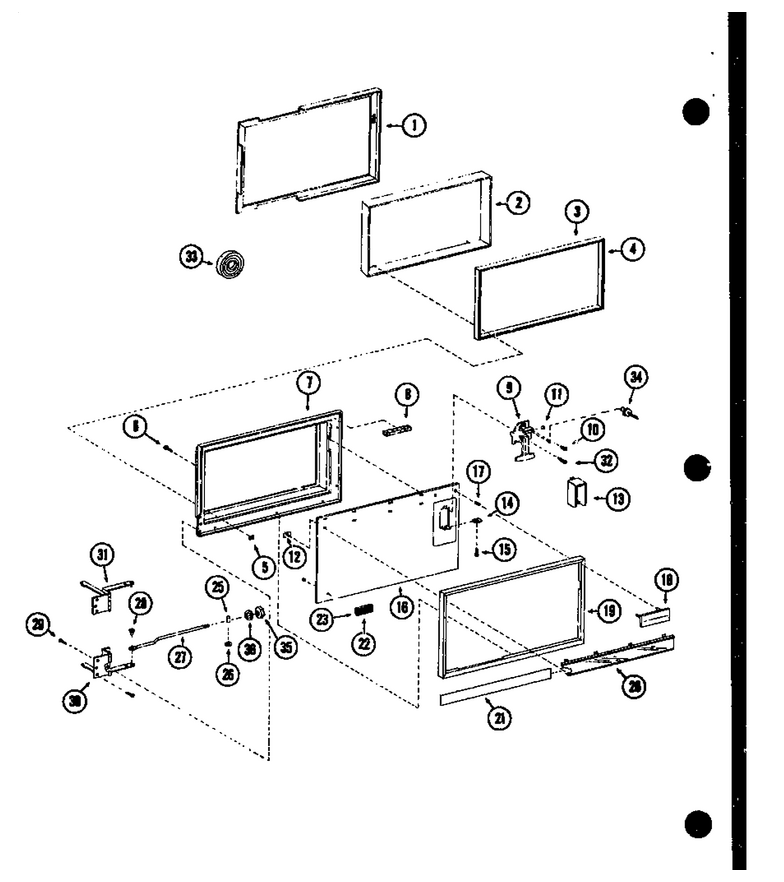

03 - Door Assy

...
...
1
Gasket WPL-C3669101
...
2
Inner Door Kit WPL-R0156665
...
3
Gasket WPL-B5686004
...
4
Gasket WPL-B5686003
...
5
Nut WPL-717488
...
6
Screw WPL-214597
...
7
Weldment, Inner Door Ring WPL-D7132501
...
8
Gasket WPL-A4591128
...
9
Door Latch Assy WPL-R0157316
...
10
Screw WPL-WPW10068250
...
11
Guides Hndl K WPL-A3195701
...
12
Clip WPL-M0286401
...
13
Bezel-Door Handle WPL-B5671901
...
14
Speed Nut WPL-M0288102
...
15
Screw, No.6x18x1/4 (3) WPL-487010
...
16
Panel Outer Door K WPL-D7178601
...
17
Clip-Push WPL-M0118905
...
18
Esc-Logo WPL-C3668803
...
19
Outer Door Ring WPL-D7667701
...
20
Lens-Menu Guide WPL-B5674501
...
21
Menu Guide WPL-C8713301
...
22
Insert-Medallion WPL-B5694715
...
23
Medallion WPL-B5694901
...
25
Guide-Door Stop WPL-A3181801
...
26
Bushing WPL-A3182101
...
27
Arm-Door Stop WPL-B5748702
...
28
Bushing-Door Arm WPL-A3185001
...
29
Screw WPL-M0253230
...
30
Hinge-Bottom WPL-C3666306
...
31
Hinge-Top WPL-C3666305
...
32
Screw WPL-M0234030
...
33
Tape Per Roll WPL-M0275163
...
34
Rivet, Pop (Wht) WPL-B5642901
...
35
Nut WPL-WP488130
...
36
Washer WPL-M0270501

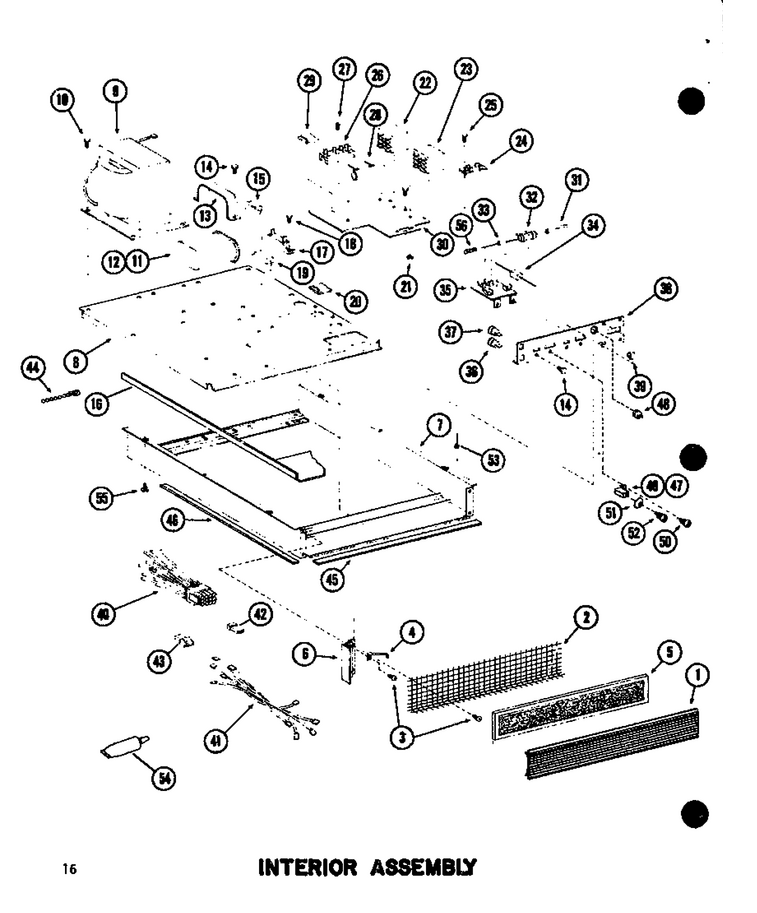

05 - Interior Assy

...
...
1
Grille Air Inlet WPL-C8708501
...
2
Screen, Air Intake WPL-B5713901
...
3
Screw WPL-M0230015
...
4
Clip WPL-A3225202
...
5
Filter WPL-B5714801
...
6
End Cap-Grill WPL-B5714401
...
7
Base Pan Wld WPL-C8709102
...
8
Chassis WPL-D7203601
...
9
Transformer, H.v. 230/208 V., WPL-D7199602
...
10
Screw K WPL-M0253543
...
11
Capacitor Assy WPL-R0160021
...
12
Capacitor Assy WPL-R0160021
...
13
Bracket WPL-A3184702
...
14
Screw WPL-M0218116
...
15
Resistor A WPL-M0305202
...
16
Oven Mtg Plate WPL-C8775301
...
17
Kit, Diode WPL-M3D71
...
18
Screw-Sm/hex WPL-12990523
...
19
Resistor WPL-M0305204
...
20
Clip WPL-WPM0104106
...
21
Nut WPL-WP488130
...
22
Relay-Power WPL-C8709603
...
23
Relay-Surge WPL-C8709602
...
24
Terminal Board WPL-A3225501
...
25
Screw WPL-M0227501
...
26
Terminal Block WPL-B5677203
...
27
Screw, No.6x18x1/4 (3) WPL-487010
...
28
Resistor, Relay A WPL-M0305007
...
29
Clip-Cord WPL-M0104401
...
30
Bracket-Relay WPL-B5713001
...
31
Sleeve WPL-M0321701
...
32
Resistor A WPL-M0305009
...
33
Fuse WPL-M0308110
...
34
Resistor WPL-M0305204
...
35
Terminal Board WPL-B5687402
...
36
Bushing,terminal WPL-M0325401
...
37
Bushing,terminal WPL-M0325402
...
38
Brkt-Fuse Resistor WPL-C8706601
...
39
Clip K WPL-M0110501
...
40
Wiring Harness WPL-D7227501
...
41
Wiring Harness WPL-C8711002
...
42
Insulator, Term. K WPL-M0325301
...
43
Insulator, Pod K WPL-M0325501
...
44
Wire Tie WPL-M0321204
...
45
Gasket, Base Pan WPL-C8737301
...
46
Gasket, Base Pan WPL-C8737302
...
47
Brkt-Solenoid WPL-B5737001
...
48
Bushing-Terminal WPL-A3252701
...
49
Solenoid, Bell WPL-B5677302
...
50
Screw WPL-M0201414
...
51
Gong-Timer WPL-A3252901
...
52
Screw WPL-M0227527
...
53
Pop Rivet WPL-A4539602
...
54
Rtv (Blk) WPL-M0275560
...
55
Screw K WPL-M0253543
...
56
Sleeve WPL-M0321701

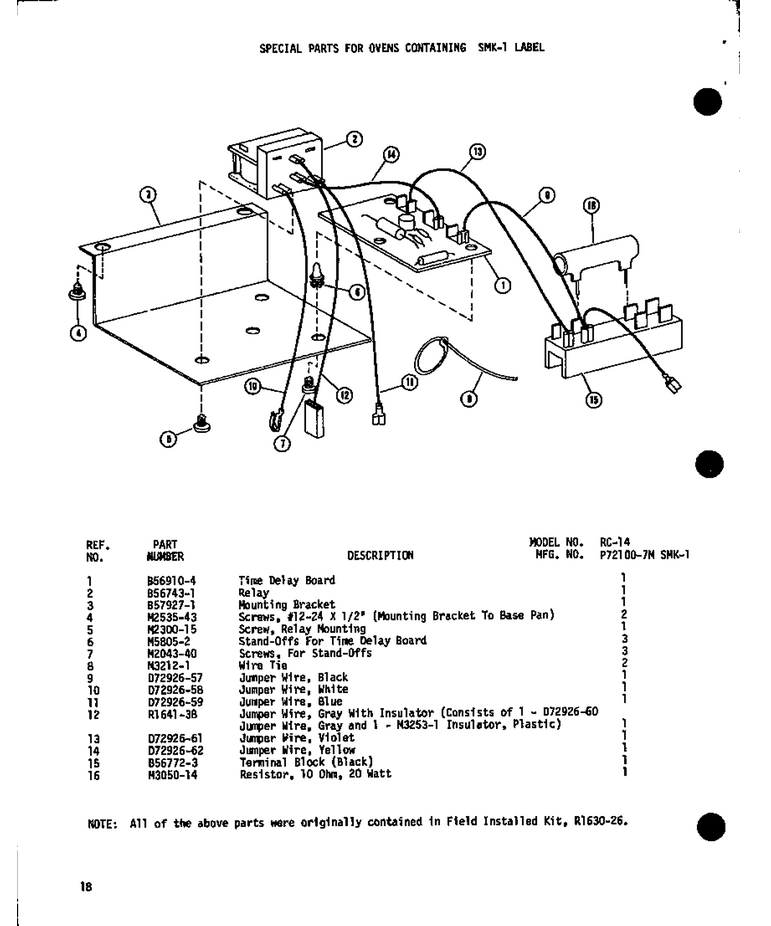

07 - Page 7

...
...
1
Time Delay K WPL-B5691004
...
2
Relay K WPL-B5674301
...
3
X$x Bracket K WPL-B5792701
...
4
Screw K WPL-M0253543
...
5
Screw WPL-M0230015
...
6
Support K WPL-M0580502
...
7
Screw K WPL-M0204340
...
8
Tie-Wire WPL-WPW10339879
...
9
Jumper Wire K WPL-D7292657
...
10
Jumper Wire K WPL-D7292658
...
11
Jumper Wire K WPL-D7292659
...
12
Jumper Wire K WPL-R0164138
...
13
Jumper Wire K WPL-D7292661
...
14
Jumper Wire K WPL-D7292662
...
15
Terminal Block WPL-B5677203
...
16
Resistor WPL-M0305014

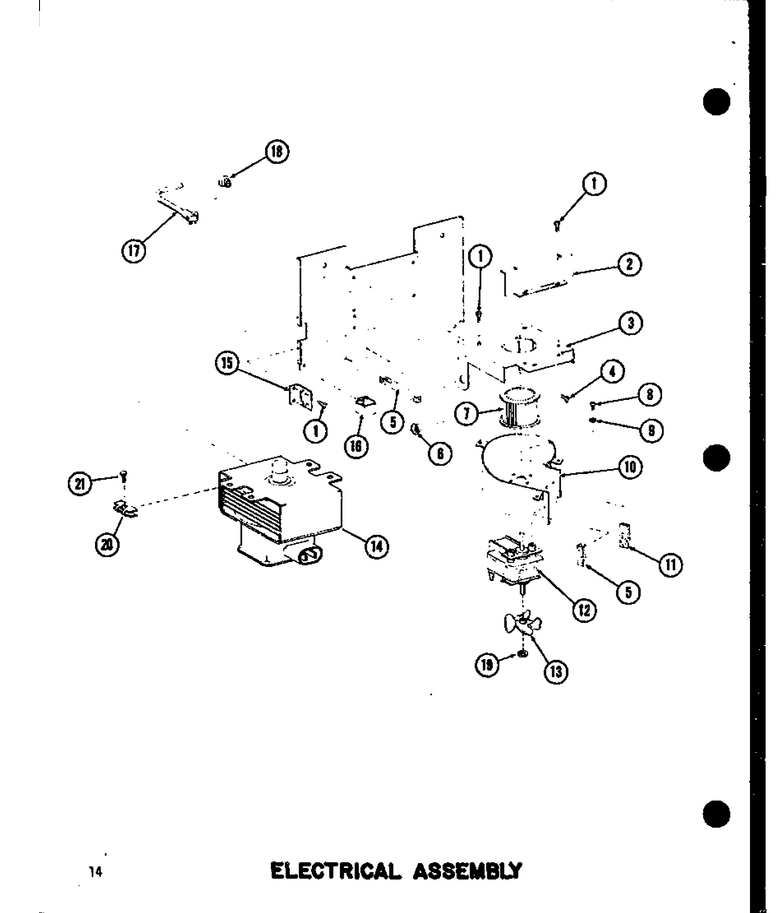

04 - Electrical Assy

...
...
1
Screw WPL-M0218116
...
2
End Plate WPL-B5778001
...
3
Brkt-Blower Scroll WPL-C8707801
...
4
Screw WPL-WP90767
...
5
Gasket (Per Foot) WPL-A3030303
...
6
Snap Bushing WPL-A4554806
...
7
Wheel, Blower WPL-C3670809
...
8
Screw WPL-M0202642
...
9
Washer WPL-M0272605
...
10
Wldmt-Blower Scroll WPL-C8710701
...
11
Gasket (Per Foot) WPL-10839706
...
12
Kit, Motor WPL-R0156503
...
13
Fan Blade-Blower WPL-B5706702
...
14
Magnetron WPL-10794402
...
15
Bracket-Connector WPL-B5716901
...
16
Clip, Cord WPL-M0104102
...
17
Power Cord Kit WPL-R0131016
...
18
Strain Relief WPL-M0371301
...
19
Clip WPL-M0118901
...
20
Brkt-Mag Tube WPL-B5774401
...
21
Screw (3) WPL-67006425
