Amana RC-10S (BOM: P7382901M)

Model: RC-10S (BOM: P7382901M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

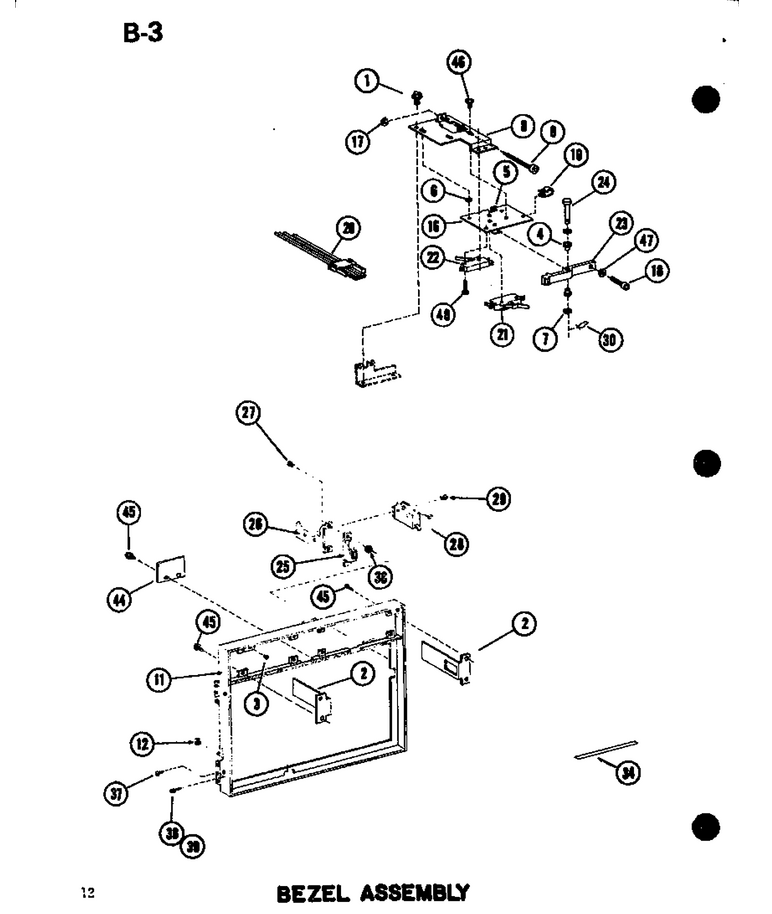

01 - Bezel Assy

...
...
1
Screw WPL-M0218116
...
2
Brkt-Frame WPL-B5758201
...
3
Clip A WPL-M0113006
...
4
See Svc Ltr Cr-163d WPL-A3168101
...
5
Clip WPL-M0118801
...
6
Washer Non-Metal WPL-M0274032
...
7
Washer WPL-M0270524
...
8
Adj Brkt-Switch WPL-B5747201
...
9
Adj Screw WPL-A3262501
...
11
Bezel, Outer Case WPL-D7293501
...
12
Nut, Self Thread WPL-M0283801
...
16
Mtg Plate-Interlock WPL-B5747502
...
17
E Ring External K WPL-M0274301
...
18
Screw WPL-M0204617
...
19
Clamp WPL-M0102301
...
20
Wiring Harness WPL-D7311501
...
21
Switch-Interlock (Limit) WPL-C3670014
...
22
Switch-Interlock (Limit) WPL-C3670014
...
23
Actuating Arm WPL-B5755701
...
24
Pin-Retainer WPL-A3260201
...
25
Strike-Latch WPL-C3680202
...
26
Bracket-Latch WPL-B5675403
...
27
Screw WPL-M0218117
...
28
Switch, Preform WPL-A3163415Q
...
29
Screw WPL-M0227520
...
30
Clip,hairpin WPL-A3171501
...
34
Tape Per Roll WPL-M0275163
...
36
Washer WPL-M0270524
...
37
Screw WPL-M0253230
...
38
T Nut WPL-M0285902
...
39
Screw, Nylock WPL-M0205442
...
44
Plate-Latch WPL-A3296201
...
45
Screw WPL-M0218115
...
46
Screw WPL-M0230015
...
47
Nut K WPL-M0282005
...
48
Screw WPL-M0227520

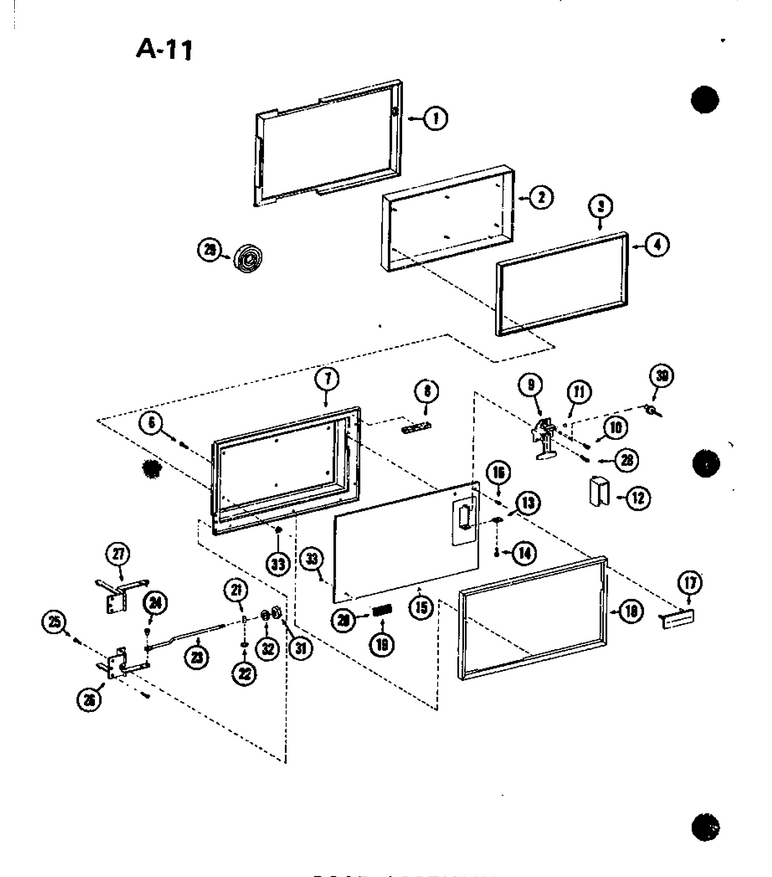

02 - Door Assy

...
...
1
Gasket WPL-C3669101
...
2
Inner Door Kit WPL-R0156665
...
3
Gasket WPL-B5686004
...
4
Gasket WPL-B5686003
...
6
Screw WPL-214597
...
7
Weldment, Inner Door Ring WPL-D7132501
...
8
Gasket WPL-A4591128
...
9
Door Latch Assy WPL-R0157316
...
10
Screw WPL-WPW10068250
...
11
Guides Hndl K WPL-A3195701
...
12
Bezel-Door Handle WPL-B5671901
...
13
Speed Nut WPL-M0288102
...
14
Screw, No.6x18x1/4 (3) WPL-487010
...
15
Panel-Outer Door WPL-D7178604
...
16
Clip-Push WPL-M0118905
...
17
Esc-Logo WPL-C3668803
...
18
Outer Door Ring WPL-D7667701
...
19
Insert-Medallion WPL-B5694722
...
20
Medallion WPL-B5694901
...
21
Guide-Door Stop WPL-A3181801
...
22
Bushing WPL-A3182101
...
23
Arm, Dr Stop K WPL-B5748702
...
24
Bushing-Door Arm WPL-A3185001
...
25
Screw WPL-M0253230
...
26
Hinge-Bottom WPL-C3666306
...
27
Hinge-Top WPL-C3666305
...
28
Screw WPL-M0234030
...
29
Tape Per Roll WPL-M0275163
...
30
Rivet, Pop (Wht) WPL-B5642901
...
31
Nut WPL-WP488130
...
32
Washer WPL-M0270501
...
33
Nut WPL-717488

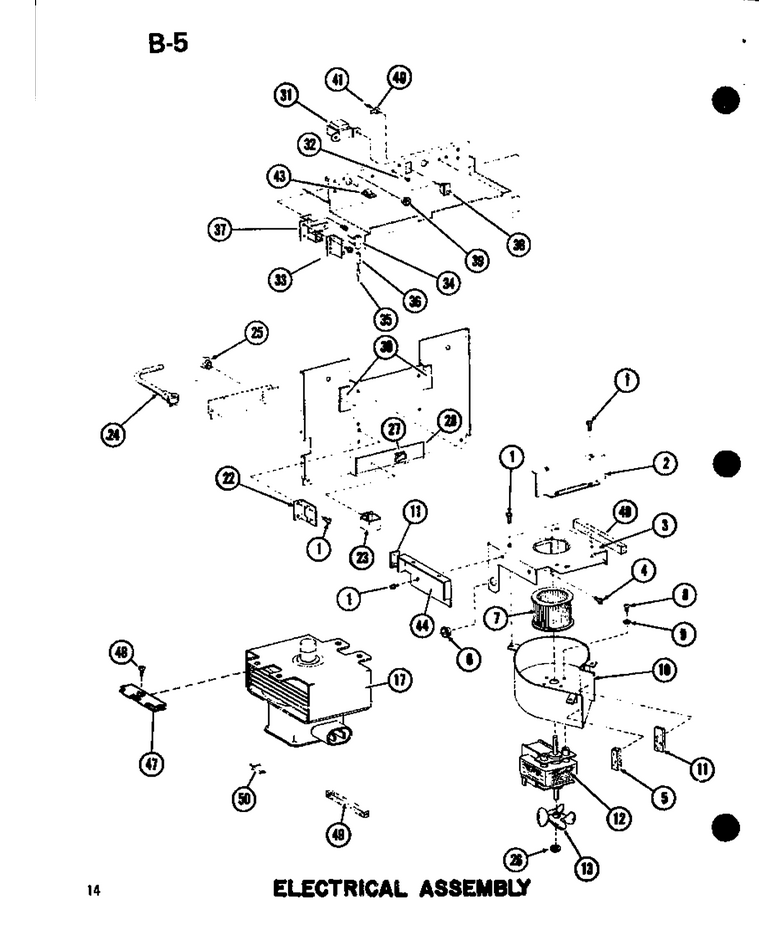

03 - Electrical Assy

...
...
1
Screw WPL-M0218116
...
2
End Plate WPL-B5778001
...
3
Brkt-Blower Scroll WPL-C8707802
...
4
Screw WPL-WP90767
...
5
Gasket (Per Foot) WPL-A3030303
...
6
Snap Bushing WPL-A3293503
...
7
Blower Wheel WPL-C3670805
...
8
Screw WPL-M0204701
...
9
Washer WPL-M0272605
...
10
Blower Scroll Wld WPL-C8710706
...
11
Gasket (Per Foot) WPL-10839706
...
12
Motor Kit WPL-C8811601
...
13
Fan Blade-Blower WPL-B5706702
...
17
Kit, Magnetron WPL-C8798601
...
22
Bracket-Connector WPL-B5716901
...
23
Clip, Cord WPL-M0104102
...
24
Power Cord WPL-59001672
...
25
Strain Relief WPL-M0370007
...
26
Clip WPL-M0118901
...
27
Clip-Cord WPL-M0104401
...
28
Tape-Per Roll WPL-M0275012
...
30
Gasket WPL-10839712
...
31
Trans-Auto WPL-C8779301
...
32
Screw WPL-WP90767
...
33
Terminal Board WPL-B5764801
...
34
Resistor WPL-M0308605
...
35
Fuse Resistor K WPL-M0308109
...
36
Sleeve WPL-M0321703
...
37
Brkt WPL-B5761101
...
38
Switch-Sensing WPL-B5674702
...
39
Snap Bushing WPL-A3293503
...
40
Terminal-Ground WPL-M0320903
...
41
Rivet-Pop WPL-59002054
...
43
Clip, Cord WPL-M0104102
...
44
Brkt-Plenum Cover WPL-B5767701
...
47
Brkt-Mag Tube WPL-B5774401
...
48
Screw (3) WPL-67006425
...
49
Gasket-Cavity Top WPL-10839709
...
50
Insulator, Term. K WPL-M0325301

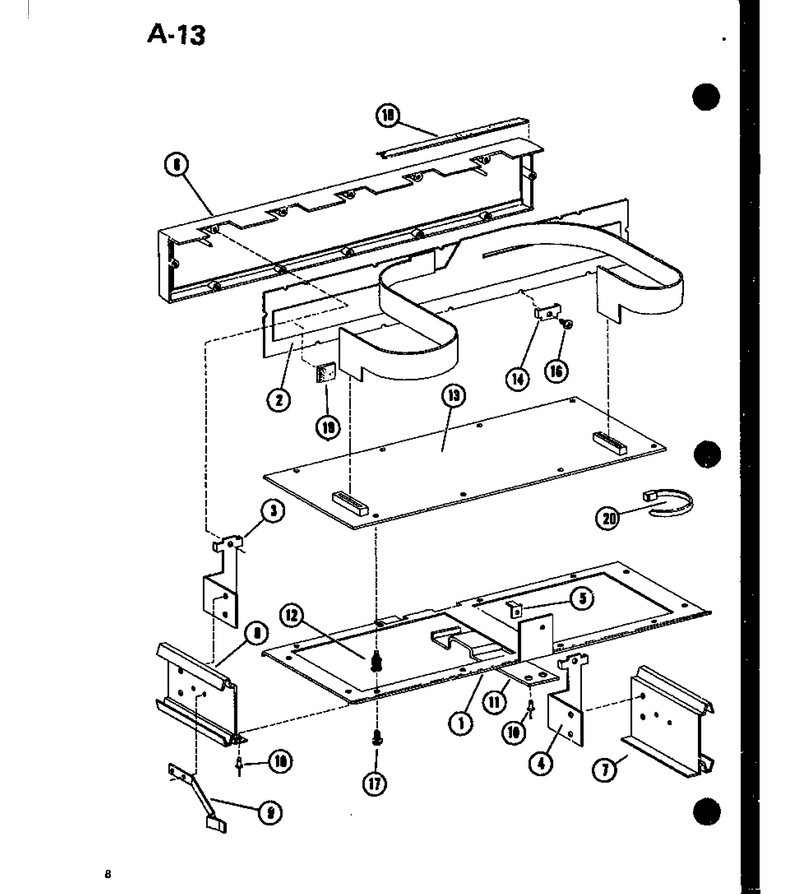

05 - Page 2

...
...
1
Plate-P C Board WPL-D7379501
...
2
Switch & Ind Assy WPL-D7292801
...
3
Brkt-Channel WPL-B5757901
...
4
Brkt-Channel WPL-B5757902
...
5
Terminal-Ground WPL-M0320903
...
6
Frame-Timer WPL-D7292201
...
7
Channel-Glide WPL-C8765405
...
8
Channel-Glide WPL-C8765406
...
9
Retainer-Spring WPL-A3268901
...
10
Rivet-Pop WPL-59002054
...
11
Spring WPL-B5787501
...
12
Support K WPL-M0580502
...
13
Elect Module-Kit WPL-R0163064
...
14
Brkt-Retainer WPL-A3268301
...
16
Screw A K WPL-M0253704
...
17
Screw WPL-WP489349
...
18
Gasket (Inch) WPL-A3030301
...
19
Gasket WPL-10839712
...
20
Wire Tie WPL-M0321204

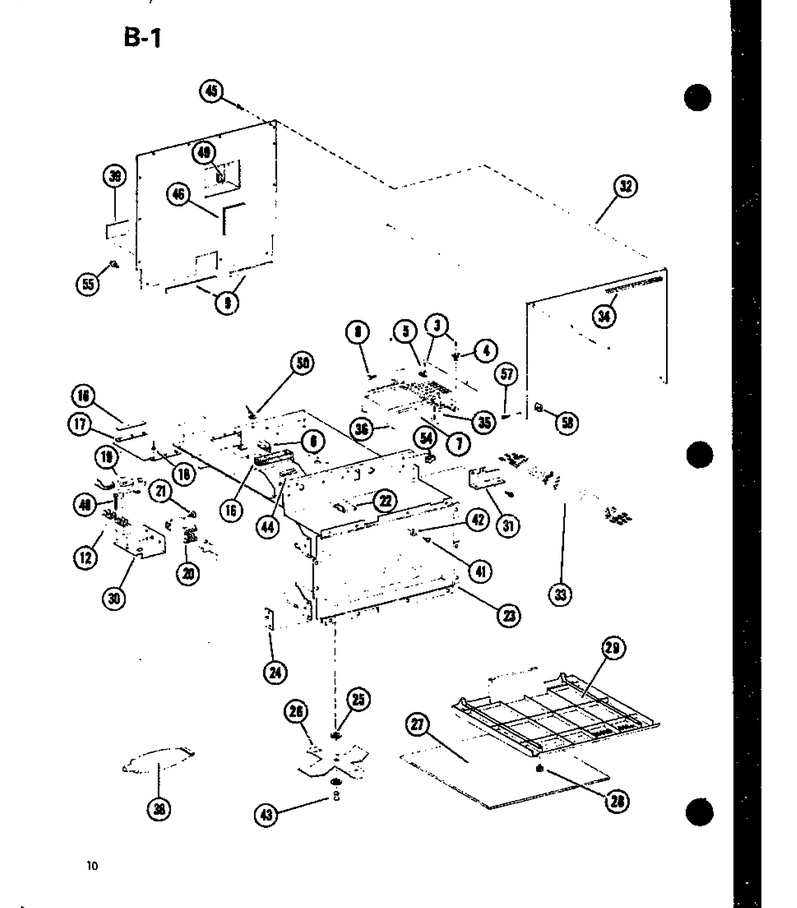

06 - Page 3

...
...
3
Screw WPL-M0234114
...
4
Thermal Protector WPL-B5684102
...
5
Thermal Protector WPL-B5684106
...
6
Clip WPL-WPM0104106
...
7
Assembly, Isolator, With Gaske WPL-C8720505
...
8
Screw WPL-M0218117
...
9
Gasket-Per Ft WPL-A30303-35
...
16
Gasket K WPL-A4591129
...
17
Cover-Isolator WPL-B5714101
...
18
Rivet WPL-WP210720
...
19
Motor WPL-B5602812
...
20
Relay WPL-B5674307
...
21
Screw WPL-M0218116
...
22
Clip WPL-WPM0104106
...
23
Oven, Weldment WPL-D7358901
...
24
Shim-Hinge WPL-A3250301
...
25
Washer WPL-A3109101
...
26
Stirrer Blade (Antenna) WPL-C8708601
...
27
Tray, Oven WPL-B5748801
...
28
Screw Retainer WPL-A3245601
...
29
Grease Shi WPL-R0157214
...
30
Plate, Relay Mounting WPL-C8766003
...
31
Brkt Supt-Interlock WPL-B5756101
...
32
Outer Case Weldment WPL-C8817601
...
33
Wire Harn-Oven WPL-D7389401
...
34
Gasket (Inch) WPL-A3030301
...
35
Gasket K WPL-A3225401
...
36
Gasket K WPL-A3225402
...
38
Sealer WPL-M0275501
...
39
Seal K WPL-B5738501
...
40
Screw, No.6x18x1/4 (3) WPL-487010
...
41
Screw WPL-M0234025
...
42
Washer WPL-M0273612
...
43
Clip WPL-M0114002
...
44
Gasket WPL-B5718906
...
45
Screw WPL-M0218128
...
46
Insulation WPL-A3205601
...
49
Gasket WPL-10839707
...
50
Terminal-Ground WPL-M0320903
...
54
Clip, Cord WPL-M0104102
...
55
Screw WPL-WP3388228
...
57
Screw WPL-M0207943
...
58
Nut WPL-WP3400029

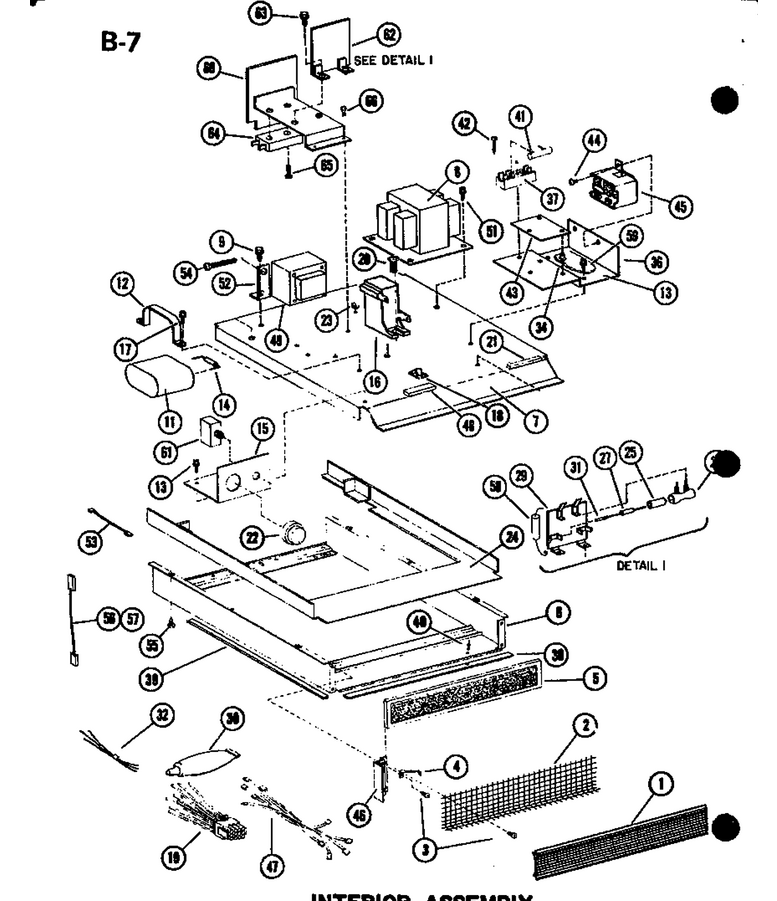

04 - Interior Assy

...
...
1
Grille Air Inlet WPL-C8708501
...
2
Screen, Air Intake WPL-B5713901
...
3
Screw WPL-M0230015
...
4
Clip WPL-A3225202
...
5
Filter WPL-B5714801
...
6
Base Pan Wld WPL-C8709102
...
7
Chassis WPL-D7203602
...
8
Transformer WPL-D7374902
...
9
Screw WPL-WP90767
...
11
Capacitor Assy WPL-R0160027
...
12
Bracket WPL-A3184702
...
13
Screw WPL-M0218116
...
14
Resistor A WPL-M0305202
...
15
Brkt-Voltage Sel WPL-B5759401
...
16
Kit, Diode WPL-M3D71
...
17
Screw-Sm/hex WPL-12990523
...
18
Clip WPL-WPM0104106
...
19
Wire Harn-Pwr Sup WPL-D7389301
...
20
Screw, No.6x18x1/4 (3) WPL-487010
...
21
Gasket, Base Pan WPL-B5718907
...
22
Alarm WPL-A3276301
...
23
Terminal WPL-M0320901
...
24
Oven Mtg Plate WPL-C8775302
...
25
Sleeve WPL-M0321701
...
26
Resistor WPL-M0308604
...
27
Fuse WPL-M0308110
...
29
Terminal Board WPL-B5780901
...
30
Sealer WPL-M0275501
...
31
Sleeve K WPL-M0321702
...
32
Wiring Harness WPL-C8800501
...
34
Supt Ckt Bd A WPL-B5675501
...
36
Brkt-Surge Relay WPL-C8800001
...
37
Terminal Block WPL-B5677203
...
38
Gasket, Base Pan WPL-C8737301
...
39
Gasket, Base Pan WPL-C8737302
...
40
Pop Rivet WPL-A4539602
...
41
Resistor, Relay A WPL-M0305007
...
42
Screw, No.6x18x1/4 (3) WPL-487010
...
43
Time Delay WPL-B5691003
...
44
Screw WPL-M0230015
...
45
Relay Kit WPL-C3669601
...
46
End Cap-Grill WPL-B5714401
...
47
Wiring Harness-Hv WPL-C8781601
...
48
Gasket-Per Ft WPL-A3030337
...
49
Trans Filament WPL-C8798801
...
51
Screw K WPL-M0253543
...
52
Brkt-Transformer WPL-B5779401
...
53
Jumper Wire WPL-D7292614
...
54
Screw WPL-M0218136
...
55
Screw K WPL-M0253543
...
56
Jumper Wire WPL-C3655856
...
57
Jumper Wire WPL-D7292656
...
58
Resistor WPL-M0308502
...
59
Insulation-Relay WPL-B5788401
...
60
Strain Relief, Weldment WPL-B5788003
...
61
Circuit Breaker WPL-M0341301
...
62
Fuse Resistor WPL-B5780801
...
63
Screw WPL-M0218116
...
64
Switch WPL-C8715203
...
65
Screw WPL-M0227520
...
66
Screw,sm WPL-M0233329
