Amana RBK29AAL (BOM: P1142383N L)

Model: RBK29AAL (BOM: P1142383N L)

Save Part Not Listed?
product name

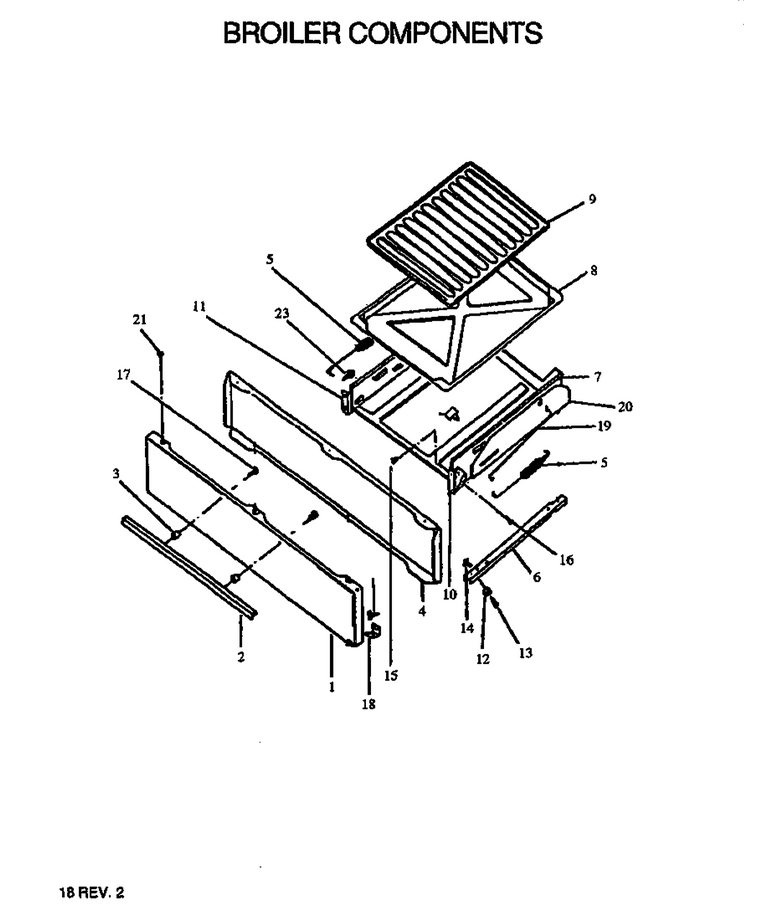

02 - Broiler Components

...
...
1
Panel, Broiler Door, 24`` WPL-311826W
...
2
Oven Door Handle, 18`` WPL-Y0088812
...
3
Handle Spacer, Plastic (J) WPL-Y0310818
...
4
Liner, Broiler Drawer WPL-0310660
...
5
Spring, Broiler Door WPL-Y07691100
...
6
Track, Lower L.h. WPL-Y0313760
...
7
Drawer, Broiler WPL-86908CG
...
8
Pan, Broiler WPL-87722CG
...
9
Procelain Broiler (Pan And Grid) WPL-4396923
...
10
Brkt, Spring & Rod WPL-Y06520700
...
11
Brkt, Spring & Rod WPL-Y06520700
...
14
Screw WPL-WP7101P126-60
...
15
Licon Swit WPL-Y07420600
...
16
Screw WPL-WP7101P126-60
...
17
Screw, Door Handle WPL-Y0311884
...
18
Hinge, Black WPL-Y0313773
...
19
Rod, Push-Broiler WPL-Y07685300
...
20
Support,body Carriage WPL-06522100
...
21
Screw No.10 X 1/2`` WPL-Y0310804
...
22
Glide-Drwr WPL-W10709871
...
23
Screw WPL-0310240
...
24
Screw WPL-0310239

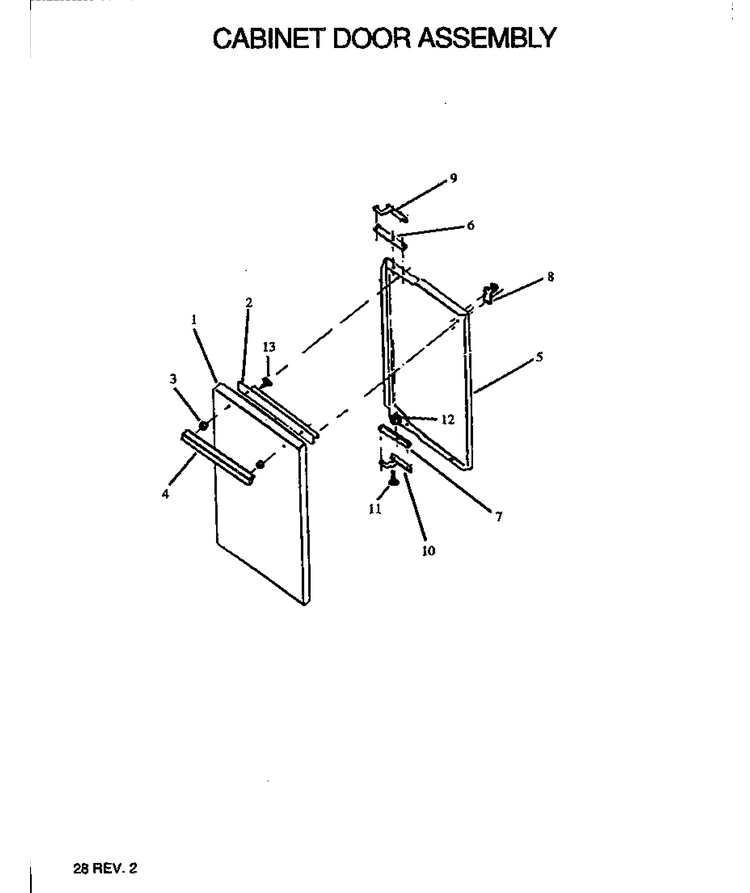

04 - Cabinet Door Assy

...
...
1
Panel, Cabinet Door WPL-311524L
...
2
Bracket, Handle WPL-0088073
...
3
Handle Spacer, Plastic (J) WPL-Y0310818
...
4
Handle, Oven Door (J) WPL-Y0052776
...
5
Liner, Door WPL-06546902
...
6
Hinge, Top WPL-0088075
...
7
Hinge, Bottom WPL-0088074
...
8
Catch WPL-0310014
...
9
Hinge Arm, Top WPL-0088078
...
10
Hinge Arm, Bottom WPL-0088077
...
11
Screw, No.10 X 3/8`` WPL-Y0087007
...
12
Nut-Sqr WPL-0310242
...
13
Screw, Door Handle WPL-Y0311884

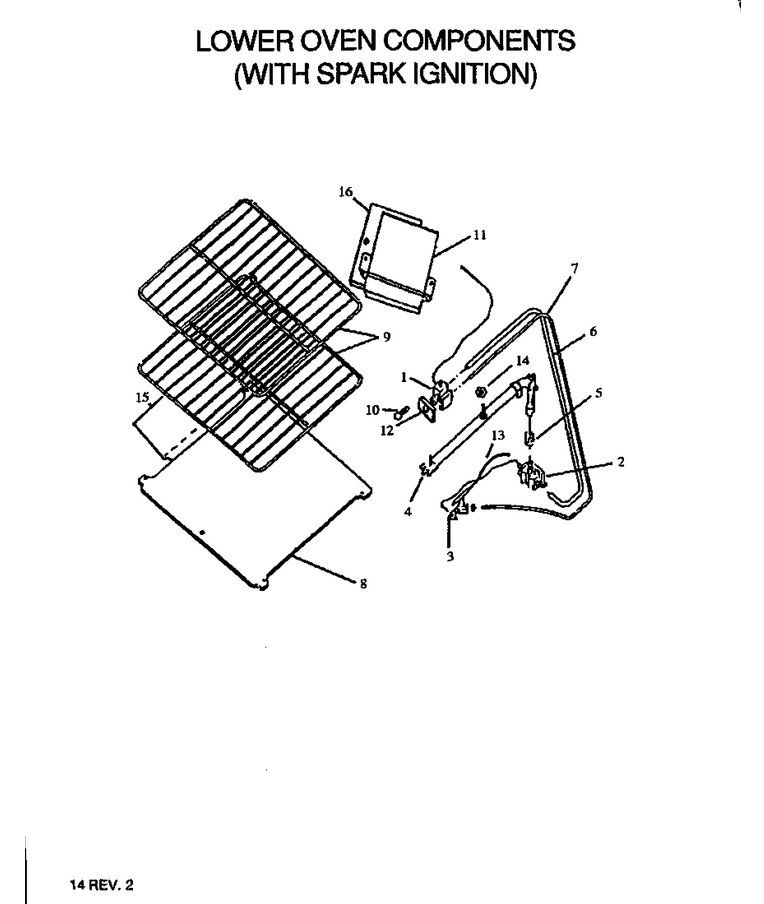

05 - Lower Oven Components

...
...
1
Therm-Ov,spark WPL-Y0057349
...
2
Valve, Safety WPL-4157094
...
3
Pilot, Oven Burner (Spark) WPL-Y07697300
...
4
Oven Burner WPL-0311865
...
6
Tubing, 3/8`` Od, 10 Ft. WPL-Y0090761
...
7
Tubing, Oven Pilot 3/16`` X 53`` WPL-Y03022901
...
8
Bottom, Oven (Enamel) WPL-0311867
...
9
Oven Rack, 24`` WPL-Y0312235
...
10
Bolt, T`stat Mtg (H/w) WPL-Y0056114
...
11
Module, 2+1 Spark WPL-Y0088870
...
12
Swtch-Ignr WPL-WP878009
...
13
Igniter-Spark Oven WPL-Y07698400
...
14
Nut WPL-M0282009
...
15
Spreader, Flame W/o Notch WPL-0311821
...
16
Plate, Spark Module WPL-Y0087725

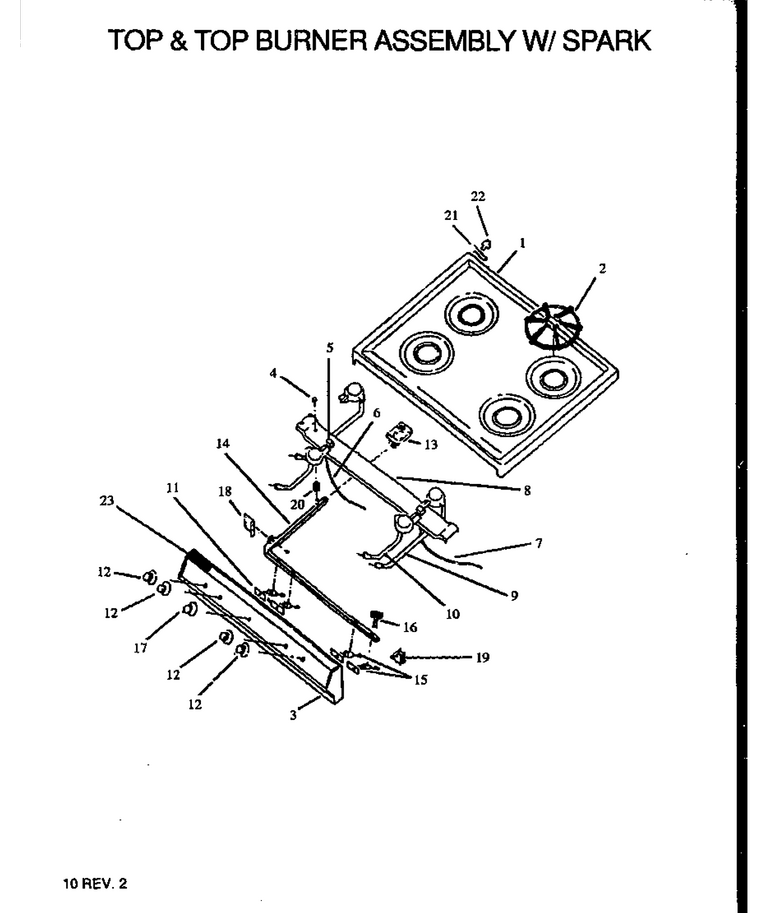

07 - Top & Top Burner Assy W/ Spark

...
...
1
Main Top White WPL-06460905W
...
2
Grate, 7`` Round Burner WPL-Y07540300
...
3
Panel,manifold(Gas 36) WPL-0310489
...
4
Square Nut {j} WPL-0088650
...
5
Ignitor, Ground Strap WPL-Y0312158
...
6
Ignitor- G WPL-Y07491203
...
7
Ignitor- G WPL-Y07491203
...
8
Support, Top Burner (36``) WPL-311025E
...
9
Burner - Top Rear (Glwd) WPL-Y07698900
...
10
Burner - Top Frt (Glwd) WPL-Y07698800
...
11
Swtch-Ignr WPL-WP4157180
...
12
Knob, Top Burner WPL-Y0311080
...
13
Pressure Regulator WPL-77001246
...
14
Pipe, Manifold (Gas 36) WPL-0057337
...
15
Burner - Top Rear (Glwd) WPL-Y07698900
...
16
Screw WPL-W10491986
...
17
Knob, T-Stat (Gasr WPL-Y0310525
...
18
Support, Manifold, L.h. {j} WPL-0086725
...
19
Support Bracket, Rh Manifold { WPL-0057340
...
20
Spacer, Manifold WPL-0310219
...
21
Nut, Speed, Flat WPL-Y0310032
...
22
Screw, Stud WPL-31750709
...
23
Label WPL-0311567

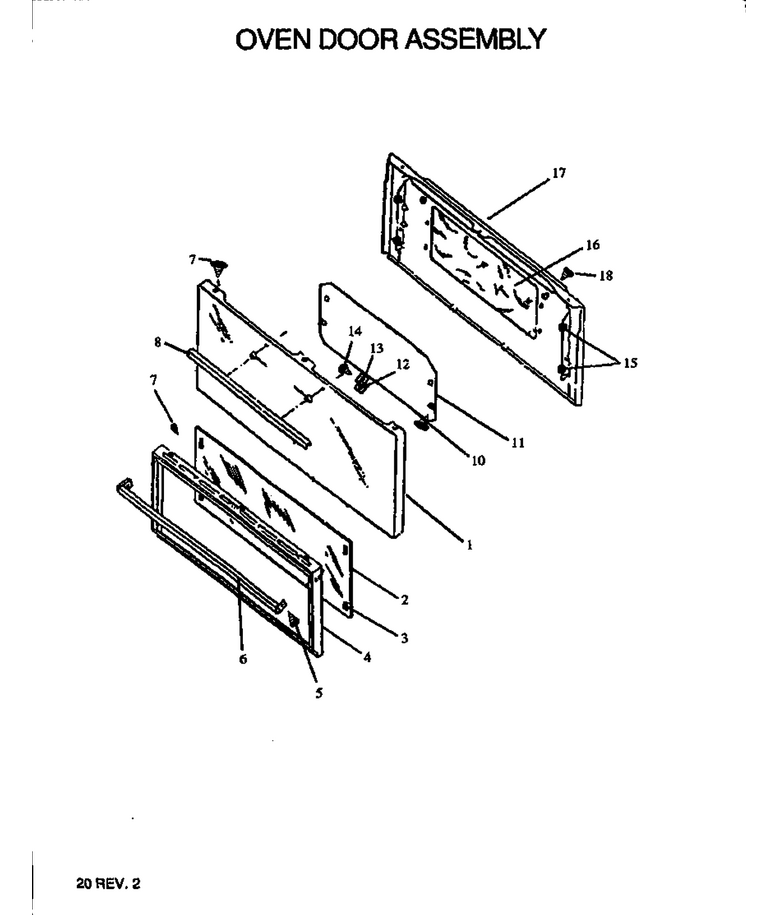

06 - Oven Door Assy

...
...
1
Door Panel Oven (White) WPL-312188W
...
7
Screw No.10 X 1/2`` WPL-Y0310804
...
8
Handle, Oven Door (J) WPL-Y0052776
...
9
Handle Spacer, Plastic (J) WPL-Y0310818
...
11
Baffle Door Backer WPL-0312825
...
16
Insulation, Wrapper WPL-31975801
...
17
Backer Oven Door WPL-312821E
...
18
Screw, Door Handle WPL-Y0311884

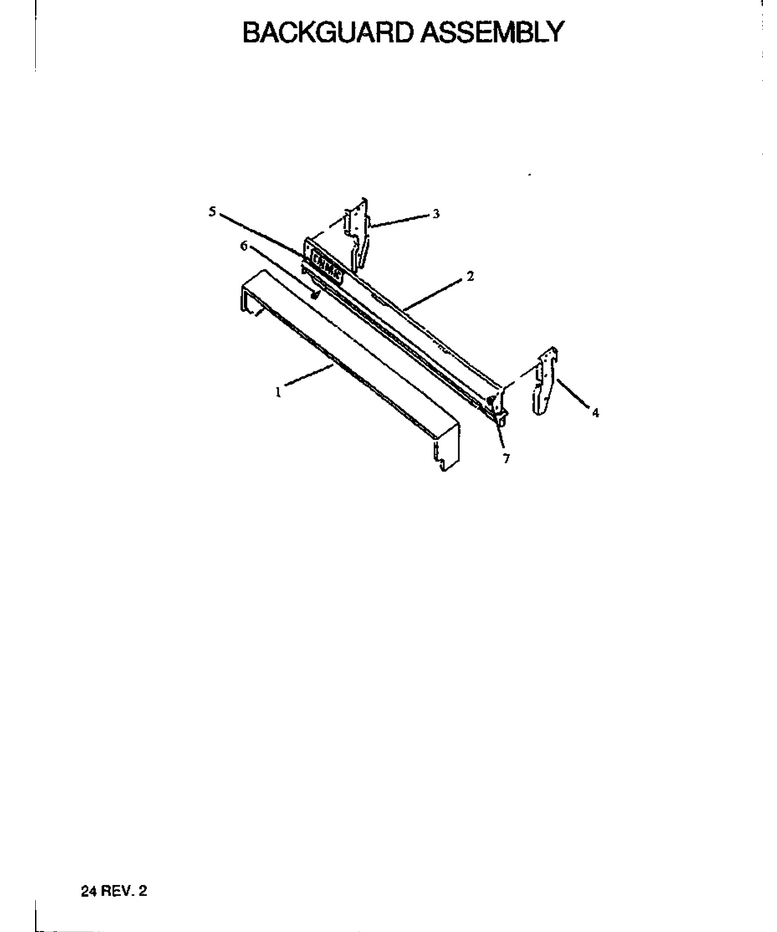

01 - Backguard Assy

...
...
1
Backguard Frame WPL-0057320
...
2
Kit, Panel 36`` Sunray WPL-R0708233
...
3
Support, Backguard, L.h. WPL-0088666
...
4
Support, Backguard, R.h. WPL-0088667
...
5
Label, Backguard WPL-07624808
...
6
Screw WPL-0310240
...
7
Screw No.10 X 5/16 WPL-0310234

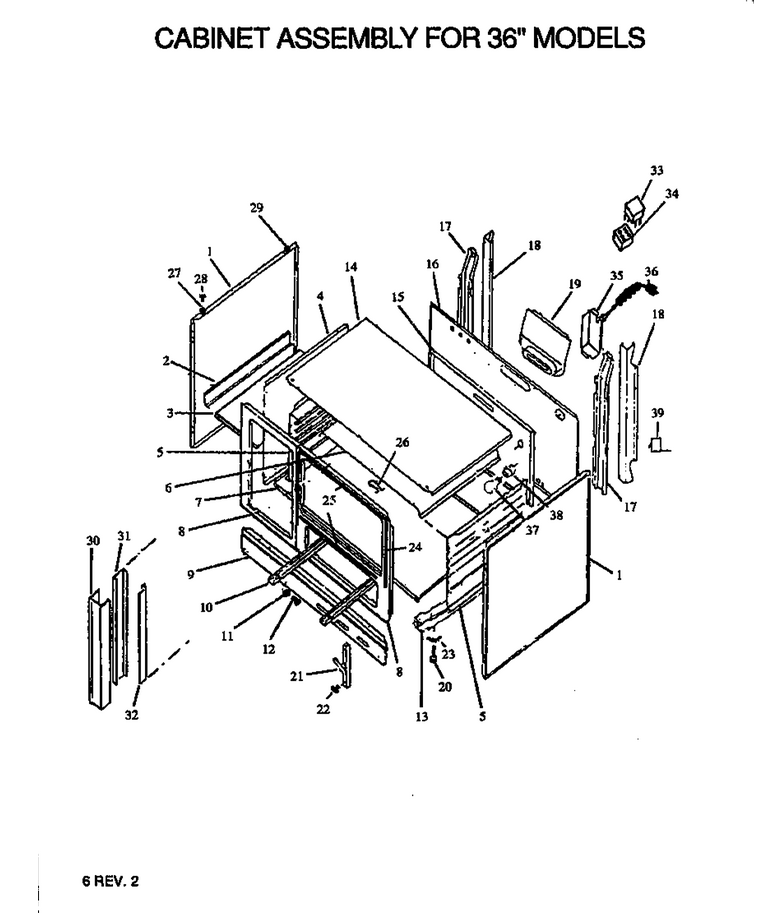

03 - Cabinet Assy For 36`` Models

...
...
1
Panel,body Side (Al) WPL-313762L
...
2
Support, Shelf WPL-Y0088076
...
3
Shelf, Cabinet WPL-0088058
...
4
Shield, Short Side Assy. WPL-0057201
...
5
Liner,oven Side WPL-0311807
...
6
Liner, Oven Top WPL-88546CG
...
7
Bottom Baffle WPL-0311052
...
9
Panel, Toe 36`` (Black) WPL-Y0057228
...
10
Track, Lower R.h. WPL-Y0313761
...
13
Rail, Base WPL-06554900
...
14
Burner Box, Bottom WPL-311007E
...
15
Back, Oven 24`` ( Cg) WPL-88550CG
...
16
Main Back WPL-Y0088533
...
17
Vertical Sup. (J) WPL-0052742
...
18
Support, Rear, Vertical {j} WPL-0056477
...
19
Flue Box WPL-0088718
...
20
Leg, Leveling WPL-Y0062362
...
21
Hinge WPL-Y0052778
...
22
Screw (J) WPL-0310233
...
23
Snap-In Tee Nut WPL-Y0088571
...
24
Seal, Oven-Sides WPL-Y0056090
...
25
Seal, Oven-Top & Bottom 24`` WPL-Y0056092
...
26
Clip, Capillary WPL-0310802
...
27
Stud, Locating - Nylon WPL-0311086
...
28
Screw WPL-Y0312844
...
29
Bumper, Oven Door WPL-Y0063661
...
33
Connector WPL-M0335314
...
34
Pin, Connector WPL-M0335315
...
36
Cord Set (J) WPL-0088884
...
39
Kit, Anti-Tip WPL-07687600
