Amana RBK28FGL (BOM: P1142379N L)

Model: RBK28FGL (BOM: P1142379N L)

Save Part Not Listed?
product name

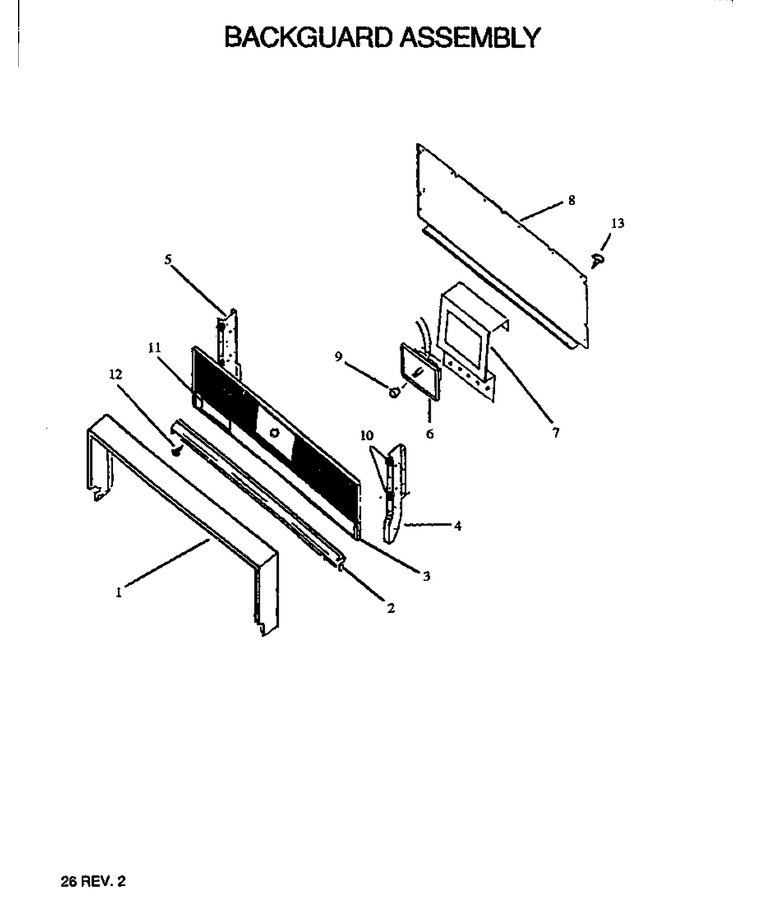

01 - Backguard Assy

...
...
1
Frame, Backguard 8`` WPL-Y0310470
...
2
Base, Backguard WPL-0311615
...
3
Glass, Backguard, 8`` WPL-Y0310506
...
4
Backguard Support-Rh WPL-Y0311038
...
5
Backguard Support-L.h. WPL-Y0311039
...
6
X Clock WPL-0310441
...
7
Clock Bracket WPL-Y0311034
...
8
Wire Cover, 8`` WPL-Y0310450
...
9
Knob, Clock WPL-Y0055020
...
10
Bumper-Rubber 1/4`` WPL-Y02068200
...
11
Label, Bkgrd WPL-07624008
...
12
Screw WPL-0310240
...
13
Screw No.10 X 5/16 WPL-0310234

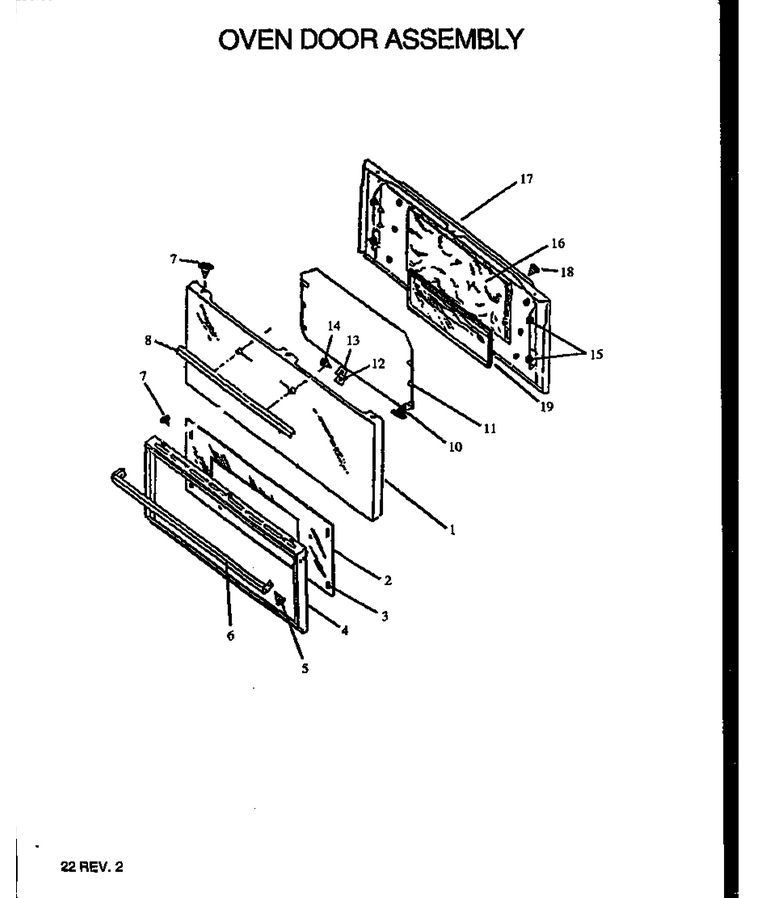

06 - Oven Door Assy

...
...
1
Glass, Oven Door 30`` WPL-Y07642602
...
3
Bumper ``l`` Shaped WPL-Y0312836
...
4
Frame, Oven Door, 30`` {j} WPL-Y0312047
...
5
Screw WPL-WP8281236
...
6
Handle, Door (J) WPL-Y0057315
...
7
Screw No.10 X 1/2`` WPL-Y07691400
...
10
Screw No.10 WPL-07596600
...
11
Baffle, Oven Door WPL-06511801
...
12
Bracket, Bumper Mount {j} WPL-Y0311752
...
13
Bumper-Rubber 1/4`` WPL-Y02068200
...
14
Screw WPL-WP7101P126-60
...
15
Bumper-Rubber 1/4`` WPL-Y02068200
...
16
Insulation, Wrapper WPL-31975801
...
17
Weld, Door Liner WPL-06540800
...
19
Window, Ov.dr.(2)pane WPL-Y0086785

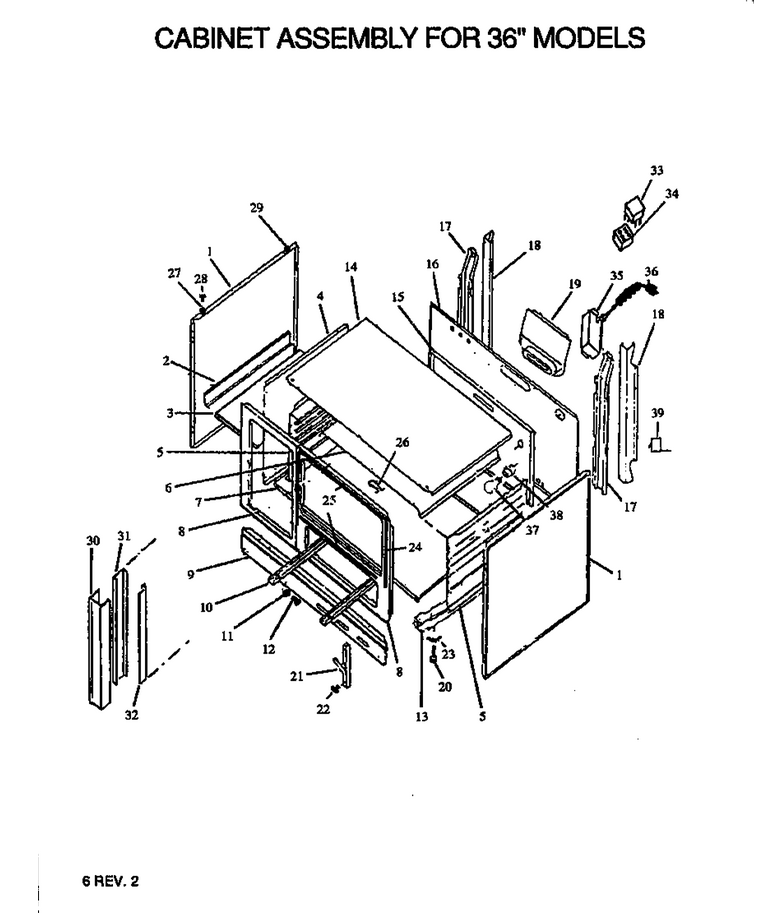

03 - Cabinet Assy For 36`` Models

...
...
1
Sub 311003w, Panel-Side, White WPL-Y06533800W
...
5
Liner,oven Side WPL-0311807
...
6
Liner, Oven Top - Porcelain WPL-88885CG
...
7
Baffle, Base (30``gas) WPL-Y0311051
...
9
Rail, Base WPL-06554900
...
10
Track, Lower R.h. WPL-Y0313761
...
13
Rail, Base WPL-06554900
...
14
Burner Box Bottom, 36`` Cg WPL-311008E
...
15
Liner, Oven Back WPL-88889CG
...
16
Main Back WPL-0311055
...
17
Vertical Sup. (J) WPL-0052742
...
18
Support, Rear, Vertical {j} WPL-0056477
...
19
Flue Box WPL-0088718
...
20
Leg, Leveling WPL-Y0062362
...
21
Hinge, Oven Door WPL-Y07489700
...
22
Screw (J) WPL-0310233
...
23
Snap-In Tee Nut WPL-Y0088571
...
24
Seal, Oven-Sides WPL-Y0056090
...
25
Seal, Oven-Top & Bottom 30`` WPL-Y0056091
...
26
Clip, Capillary WPL-0310802
...
27
Stud, Locating - Nylon WPL-0311086
...
28
Screw WPL-Y0312844
...
29
Bumper, Oven Door WPL-Y0063661
...
30
Panel, Back Filler, Black WPL-Y086957B
...
31
Side Trim WPL-Y0310354
...
32
Support, Side Filler WPL-Y0088594
...
33
Connector WPL-M0335314
...
34
Pin, Connector WPL-M0335315
...
35
Cover, Oven Light WPL-0088535
...
36
Cord Set (J) WPL-0088884
...
37
Light Bulb WPL-8009
...
38
Socket, Oven Light WPL-Y0316385
...
39
Kit, Anti-Tip WPL-07687600

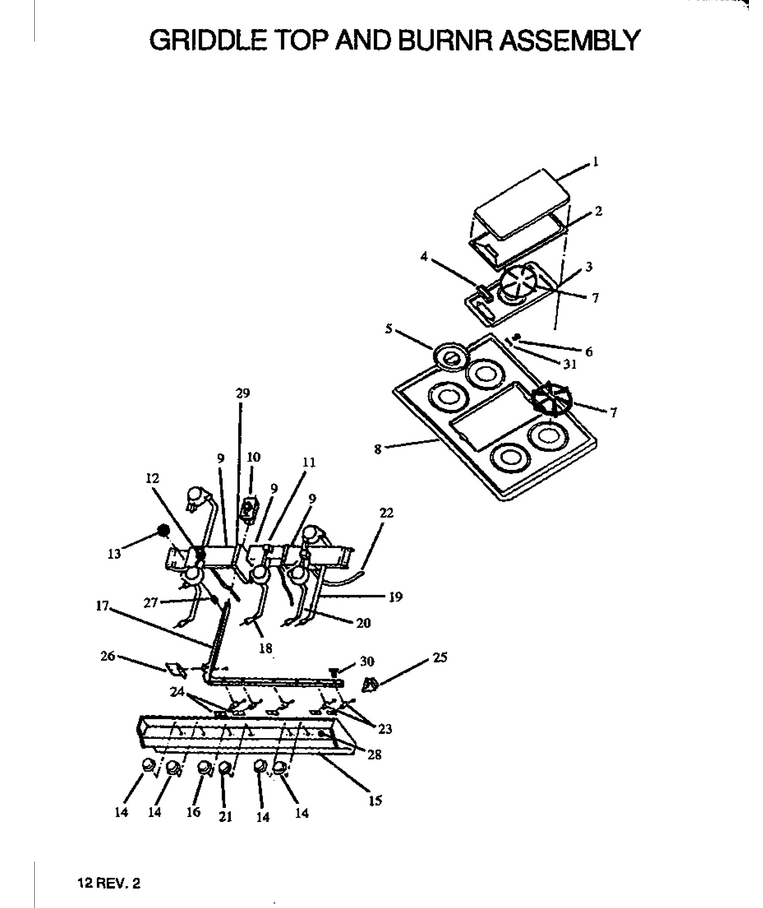

04 - Griddle Top And Burner Assy

...
...
1
Griddle, Cover (White) WPL-Y06430700W
...
2
Griddle WPL-Y0088634
...
3
Sub 88528n, Insert, Center,top WPL-088528L
...
4
Cup - Grease WPL-Y06554200E
...
5
Bowl-Drip WPL-Y07514500
...
6
Screw, Stud WPL-31750709
...
7
Grate, 7`` Round Burner WPL-Y07540300
...
8
Top Main, Almond WPL-311048L
...
9
Burner Support, L.h., 36`` WPL-Y0052774
...
10
Pressure Regulator WPL-77001246
...
11
Ignitor- G WPL-Y07491203
...
12
Ignitor- G WPL-Y07491203
...
13
Square Nut {j} WPL-0088650
...
14
Knob, Top Burner WPL-Y0086994
...
15
Manifold Panel WPL-07622025F
...
16
Knob, Top Burner WPL-Y0086994
...
17
Manifold Pipe WPL-0057341
...
18
Burner - Top Griddle (Glwd) WPL-Y07699000
...
19
Burner - Top Rear (Glwd) WPL-Y07698900
...
20
Burner - Top Frt (Glwd) WPL-Y07698800
...
21
Knob- Ther WPL-WPY07506601
...
22
Ignitor- G WPL-Y07491203
...
23
Valve, Top Burner WPL-Y0057338
...
24
Swtch-Ignr WPL-WP4157180
...
25
Support Bracket, Rh Manifold { WPL-0057340
...
26
Support, Manifold, L.h. {j} WPL-0086725
...
27
Spacer, Manifold WPL-0310219
...
28
Switch- Ov WPL-Y07625800
...
29
Support WPL-Y06445603
...
30
Screw WPL-W10491986
...
31
Nut, Speed, Flat WPL-Y0310032

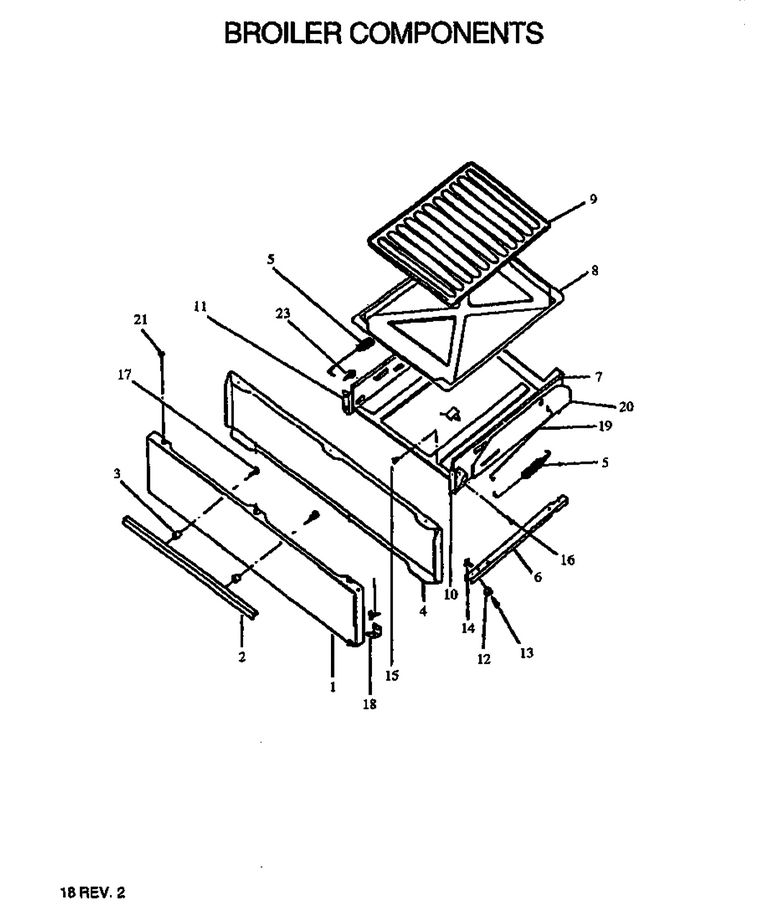

02 - Broiler Components

...
...
1
Panel, Brl Drawer Black WPL-06513100B
...
2
Oven Door Handle, 18`` WPL-Y0088812
...
3
Handle Spacer, Plastic (J) WPL-Y0310818
...
4
Liner, Broil Door,30`` WPL-312246E
...
5
Spring, Broiler Door WPL-Y07691100
...
6
Track, Lower L.h. WPL-Y0313760
...
7
Drawer, Broiler WPL-86908CG
...
8
Pan, Broiler WPL-87722CG
...
9
Procelain Broiler (Pan And Grid) WPL-4396923
...
10
Brkt, Spring & Rod WPL-Y06520700
...
11
Brkt, Spring & Rod WPL-Y06520700
...
14
Screw WPL-WP7101P126-60
...
15
Licon Swit WPL-Y07420600
...
16
Screw WPL-WP7101P126-60
...
17
Screw, Door Handle WPL-Y0311884
...
18
Hinge, Black WPL-Y0313773
...
19
Rod, Push-Broiler WPL-Y07685300
...
20
Support,body Carriage WPL-06522100
...
21
Screw No.10 X 1/2`` WPL-Y0310804
...
22
Glide-Drwr WPL-W10709871
...
23
Screw WPL-0310240
...
24
Screw WPL-0310239

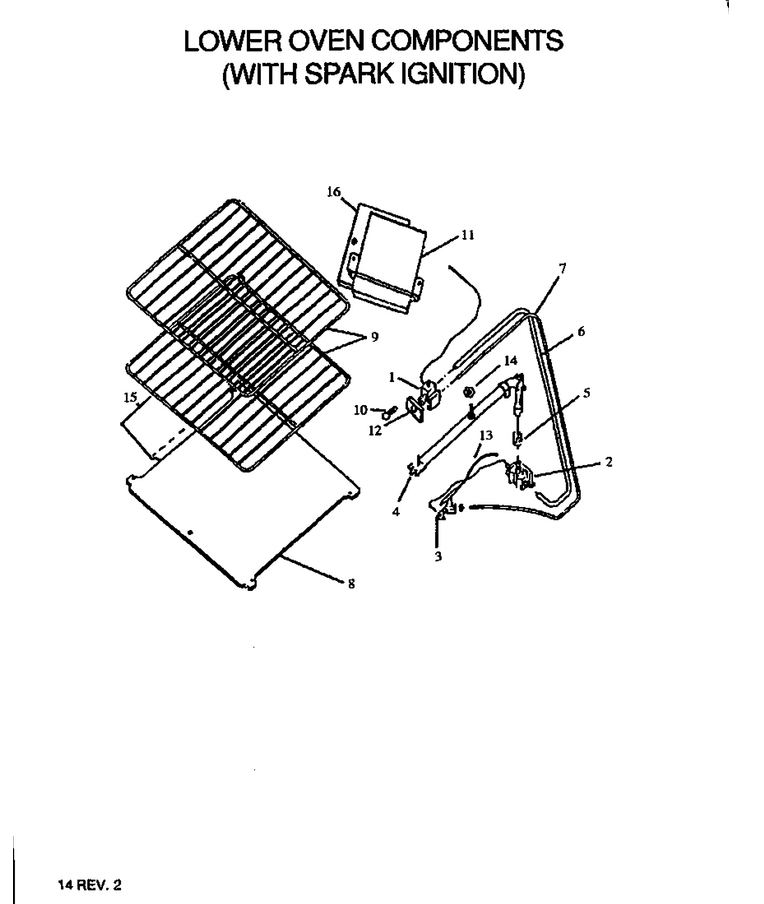

05 - Lower Oven Components

...
...
1
Therm-Ov,spark WPL-Y0057349
...
2
Valve, Safety WPL-4157094
...
3
Pilot, Oven Burner (Spark) WPL-Y07697300
...
4
Oven Burner WPL-0311865
...
6
Tubing, 3/8`` Od, 10 Ft. WPL-Y0090761
...
7
Tubing, Oven Pilot 3/16`` X 53`` WPL-Y03022901
...
8
Bottom, Oven (Enamel) WPL-311822E
...
9
Rack, Oven, 30`` WPL-Y07671200
...
10
Bolt, T`stat Mtg (H/w) WPL-Y0056114
...
11
Module, 3+1 Spark WPL-Y0087713
...
12
Swtch-Ignr WPL-WP878009
...
13
Igniter-Spark Oven WPL-Y07698400
...
14
Nut WPL-M0282009
...
15
Spreader, Flame W/o Notch WPL-0311821
...
16
Plate, Spark Module WPL-Y0087725
