product name

Amana RBK26CBW (BOM: P1142346N W)

Model: RBK26CBW (BOM: P1142346N W)

Save Part Not Listed?
product name

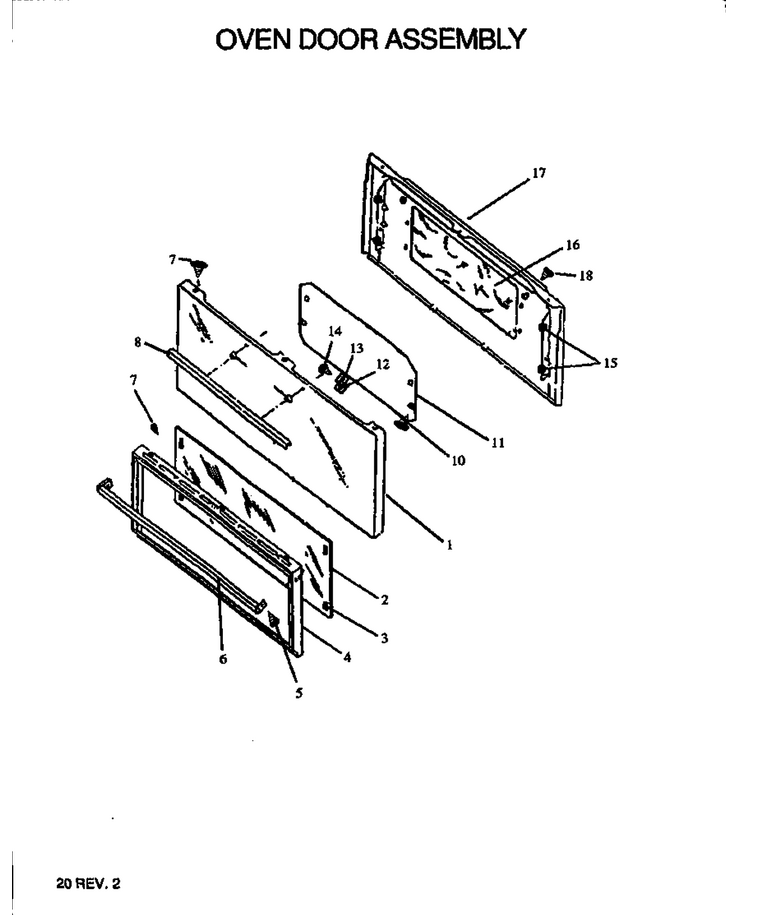

05 - Oven Door Assy

...
...
2
Glass, Oven Door 30`` WPL-Y07642502
...
3
Bumper ``l`` Shaped WPL-Y0312836
...
4
Frame, Oven Door, 30`` {j} WPL-Y0312047
...
5
Screw WPL-WP8281236
...
6
Handle, Door (J) WPL-Y0057315
...
7
Screw No.10 X 1/2`` WPL-Y0310804
...
10
Screw No.10 WPL-07596600
...
11
Ring, Insulation Hold Down WPL-0311754
...
12
Bracket, Bumper Mount {j} WPL-Y0311752
...
13
Bumper-Rubber 1/4`` WPL-Y02068200
...
14
Screw WPL-WP7101P126-60
...
15
Bumper-Rubber 1/4`` WPL-Y02068200
...
16
Insulation, Wrapper WPL-31975801
...
17
Backer, Oven Door WPL-312046E

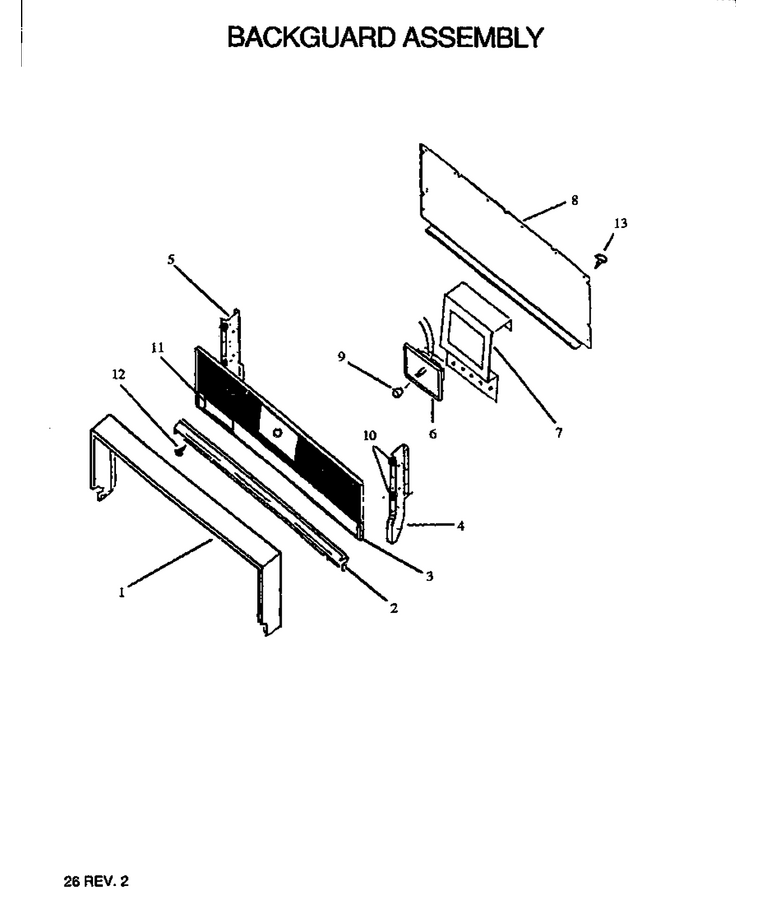

01 - Backguard Assy

...
...
1
Frame, Backguard, 6`` WPL-Y0310467
...
2
Base-Bkgd, 30`` W/holes WPL-Y02331026B
...
3
Glass, Backguard, 6`` WPL-Y0310510
...
4
Support, Backguard, 6`` Rh WPL-Y0310453
...
5
Support, Backguard, 6`` Lh WPL-Y0310454
...
10
Bumper-Rubber 1/4`` WPL-Y02068200
...
11
Label, Bkgrd WPL-07624008
...
12
Screw WPL-0310240
...
13
Screw No.10 X 5/16 WPL-0310234

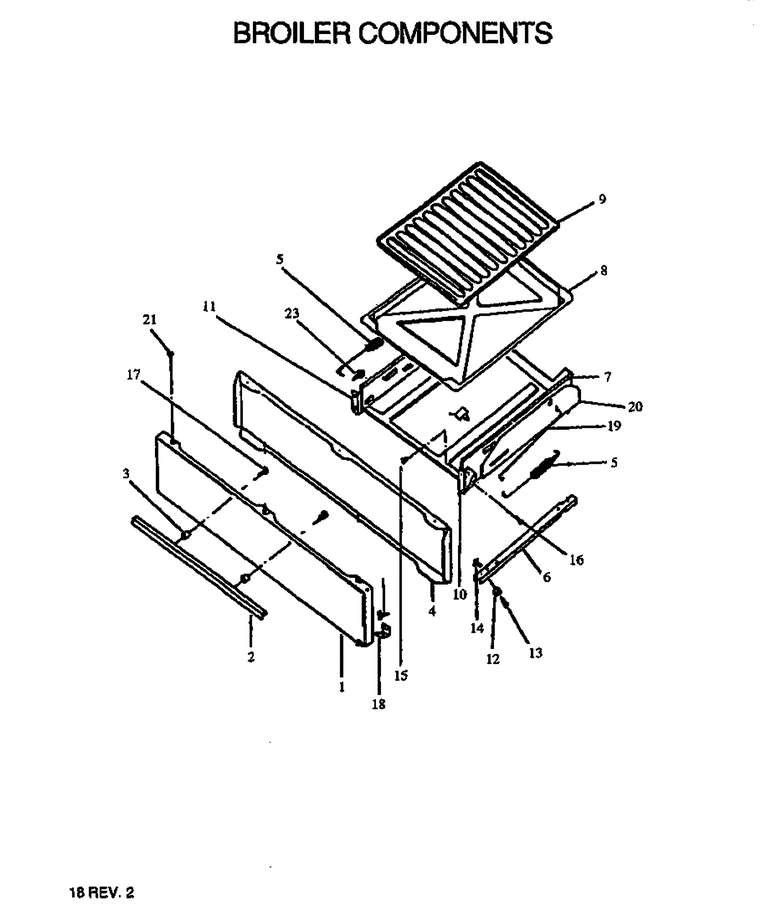

02 - Broiler Components

...
...
1
Panel-Broiler Drawer 30`` (Wht) WPL-Y06513101W
...
2
Oven Door Handle, 18`` WPL-Y0088812
...
3
Handle Spacer, Plastic (J) WPL-Y0310818
...
4
Liner, Broil Door,30`` WPL-312246E
...
5
Spring, Broiler Door WPL-Y07691100
...
6
Track, Lower L.h. WPL-Y0313760
...
7
Drawer, Broiler WPL-86908CG
...
8
Pan, Broiler WPL-87722CG
...
9
Procelain Broiler (Pan And Grid) WPL-4396923
...
10
Brkt, Spring & Rod WPL-Y06520700
...
11
Brkt, Spring & Rod WPL-Y06520700
...
14
Screw WPL-WP7101P126-60
...
15
Licon Swit WPL-Y07420600
...
16
Screw WPL-WP7101P126-60
...
17
Screw, Door Handle WPL-Y0311884
...
18
Hinge, Black WPL-Y0313773
...
19
Rod, Push-Broiler WPL-Y07685300
...
20
Support,body Carriage WPL-06522100
...
21
Screw No.10 X 1/2`` WPL-Y0310804
...
22
Glide-Drwr WPL-W10709871
...
23
Screw WPL-0310240
...
24
Screw WPL-0310239

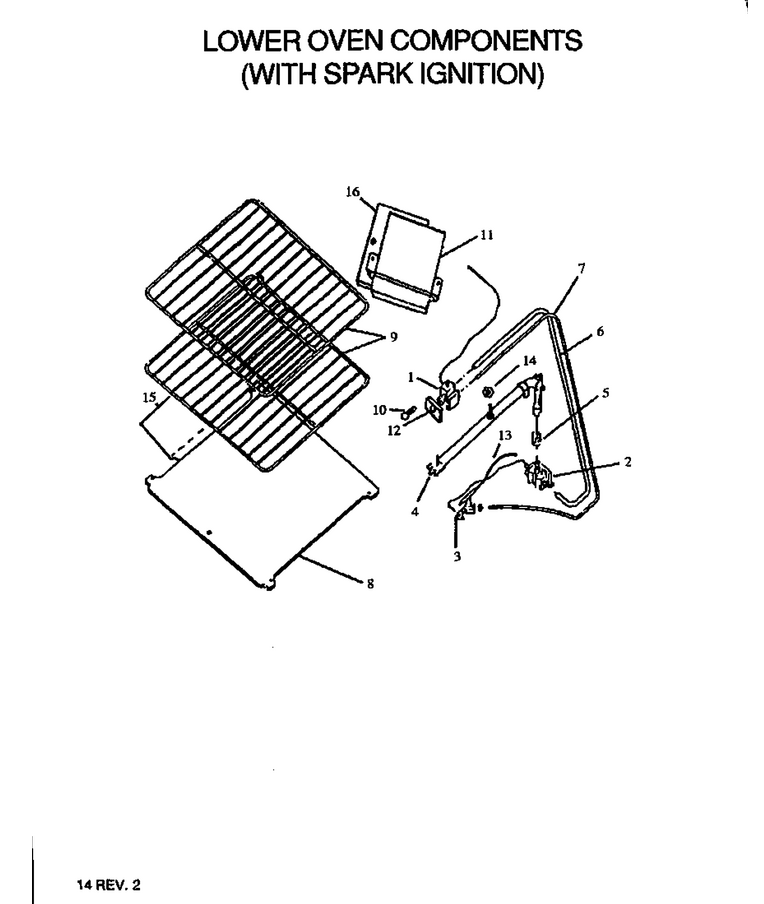

04 - Lower Oven Components

...
...
1
Therm-Ov,spark WPL-Y0057349
...
2
Valve, Safety WPL-4157094
...
3
Pilot, Oven Burner (Spark) WPL-Y07697300
...
4
Oven Burner WPL-0311865
...
6
Tubing, 3/8`` Od, 10 Ft. WPL-Y0090761
...
7
Tubing, Oven Pilot 3/16`` X 53`` WPL-Y03022901
...
8
Bottom, Oven (Enamel) WPL-311822E
...
9
Rack, Oven, 30`` WPL-Y07671200
...
10
Bolt, T`stat Mtg (H/w) WPL-Y0056114
...
11
Module, 2+1 Spark WPL-Y0088870
...
12
Swtch-Ignr WPL-WP878009
...
13
Igniter-Spark Oven WPL-Y07698400
...
14
Nut WPL-M0282009
...
15
Spreader, Flame W/o Notch WPL-0311821
...
16
Plate, Spark Module WPL-Y0087725

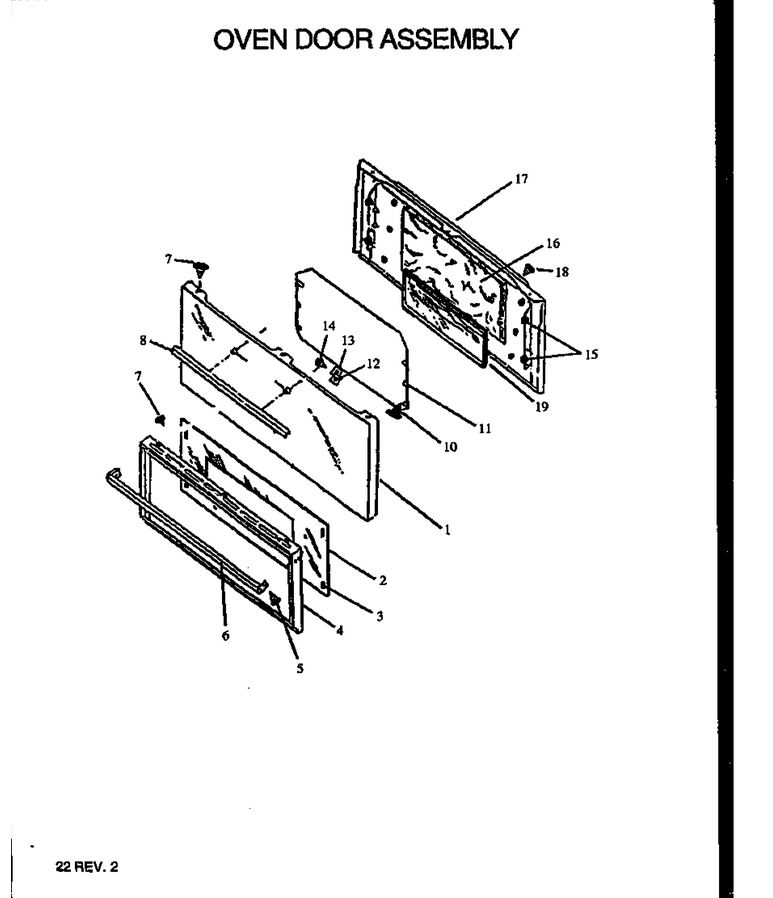

06 - Oven Door Assy

...
...
2
Glass, Oven Door 30`` WPL-Y07642502
...
3
Bumper ``l`` Shaped WPL-Y0312836
...
4
Frame, Oven Door, 30`` {j} WPL-Y0312047
...
5
Screw WPL-WP8281236
...
6
Handle, Door (J) WPL-Y0057315
...
7
Screw No.10 X 1/2`` WPL-Y07691400
...
10
Screw No.10 WPL-07596600
...
11
Baffle, Oven Door WPL-06511801
...
12
Bracket, Bumper Mount {j} WPL-Y0311752
...
13
Bumper-Rubber 1/4`` WPL-Y02068200
...
14
Screw WPL-WP7101P126-60
...
15
Bumper-Rubber 1/4`` WPL-Y02068200
...
16
Insulation, Wrapper WPL-31975801
...
17
Backer, Oven Door WPL-06540900

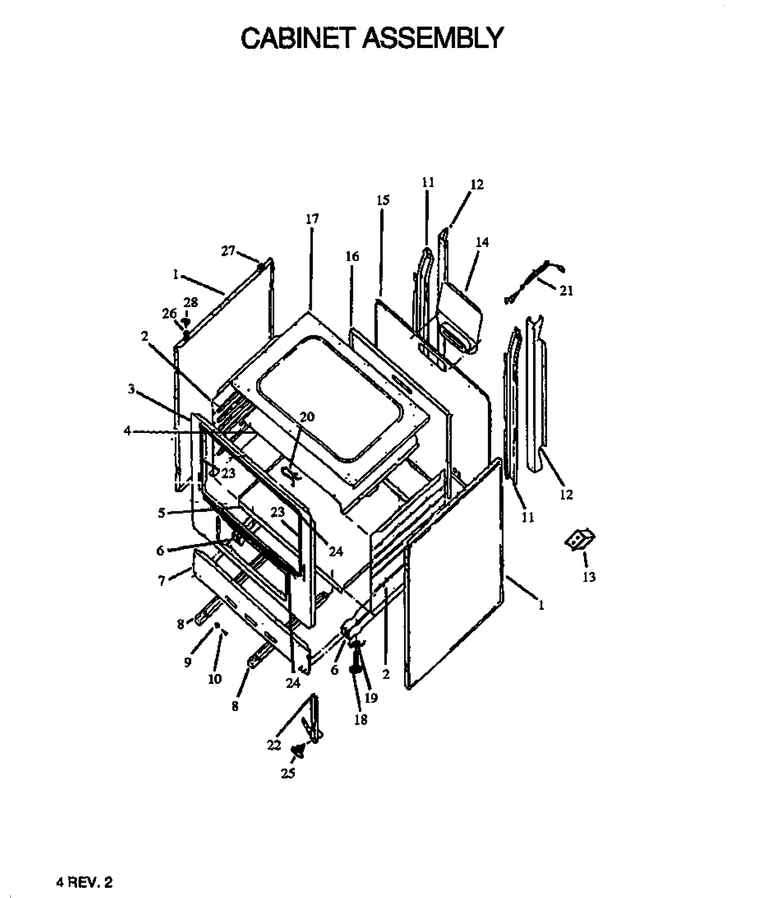

03 - Cabinet Assy

...
...
1
Sub 311003w, Panel-Side, White WPL-Y06533800W
...
2
Liner,oven Side WPL-0311807
...
4
Liner, Oven Top - Porcelain WPL-88885CG
...
5
Baffle, Base (30``gas) WPL-Y0311051
...
6
Rail, Base WPL-0312165
...
7
Toe Panel (J) WPL-0052744
...
8
Track, Lower L.h. WPL-Y0313760
...
11
Vertical Sup. (J) WPL-0052742
...
12
Support, Rear, Vertical {j} WPL-0056477
...
13
Kit, Anti-Tip WPL-07687600
...
14
Flue Box WPL-0310821
...
15
Main Back WPL-Y0088752
...
16
Liner, Oven Back WPL-88889CG
...
17
Box, Burner WPL-Y06469301E
...
18
Leg, Leveling WPL-Y0062362
...
19
Snap-In Tee Nut WPL-Y0088571
...
20
Clip, Capillary WPL-0310802
...
21
Ass`y Power Cord WPL-0313772
...
22
Hinge, Oven Door WPL-Y07489700
...
23
Seal, Oven-Sides WPL-Y0056090
...
24
Seal, Oven-Top & Bottom 30`` WPL-Y0056091
...
25
Screw (J) WPL-0310233
...
26
Stud, Locating - Nylon WPL-0311086
...
27
Bumper, Oven Door WPL-Y0063661
...
28
Screw WPL-Y0312844
