Amana RBK26AAL (BOM: P1142345N L)

Model: RBK26AAL (BOM: P1142345N L)

Save Part Not Listed?
product name

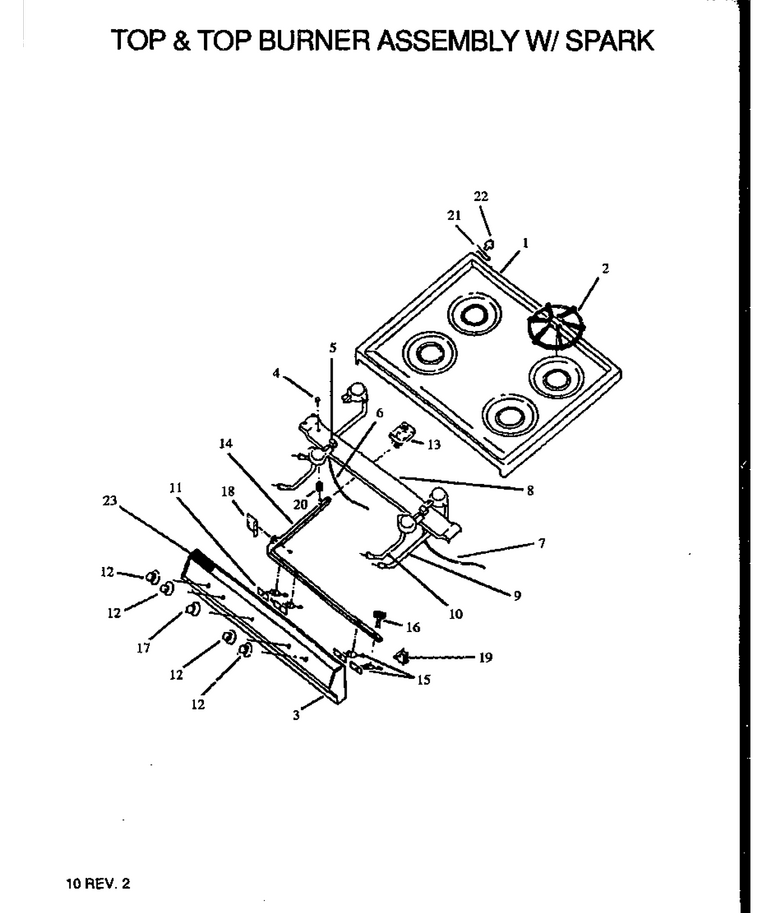

06 - Top & Top Burner Assy W/ Spark

...
...
1
Main Top, White WPL-057241W
...
2
Grate, 7`` Round Burner WPL-Y07540300
...
3
Panel, Manifold (Gas 30) WPL-Y07622003A
...
4
Square Nut {j} WPL-0088650
...
5
Ignitor, Ground Strap WPL-Y0312158
...
6
Ignitor- G WPL-Y07491203
...
7
Ignitor- G WPL-Y07491203
...
8
Burner Support WPL-Y0312239
...
9
Burner - Top Rear (Glwd) WPL-Y07698900
...
10
Burner - Top Frt (Glwd) WPL-Y07698800
...
11
Swtch-Ignr WPL-WP4157180
...
12
Knob, Top Burner WPL-Y0311080
...
13
Pressure Regulator WPL-77001246
...
15
Burner - Top Rear (Glwd) WPL-Y07698900
...
16
Screw WPL-W10491986
...
17
Knob, T-Stat (Gasr WPL-Y0310525
...
18
Support, Manifold, L.h. {j} WPL-0086725
...
19
Support Bracket, Rh Manifold { WPL-0057340
...
20
Spacer, Manifold WPL-0310219
...
21
Nut, Speed, Flat WPL-Y0310032
...
22
Screw, Stud WPL-31750709
...
23
Label WPL-0311567

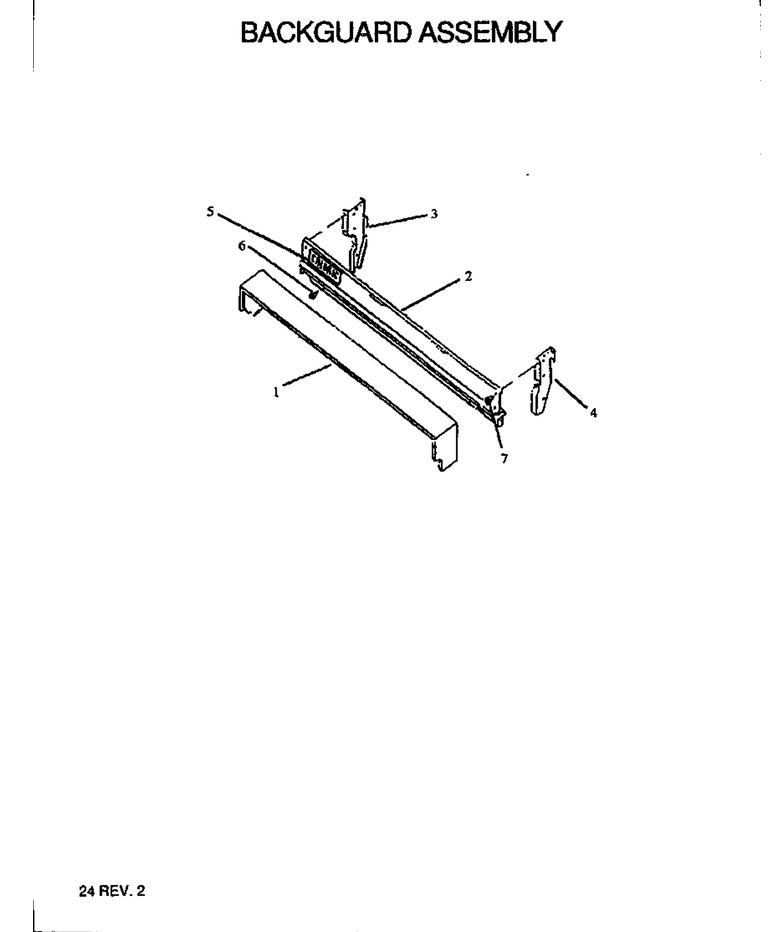

01 - Backguard Assy

...
...
1
Backguard Frame (J) WPL-0057319
...
2
Backguard Metal Panel WPL-R0708232
...
3
Support, Backguard, L.h. WPL-0088666
...
4
Support, Backguard, R.h. WPL-0088667
...
5
Label, Backguard WPL-07624808
...
6
Screw WPL-0310240
...
7
Screw No.10 X 5/16 WPL-0310234

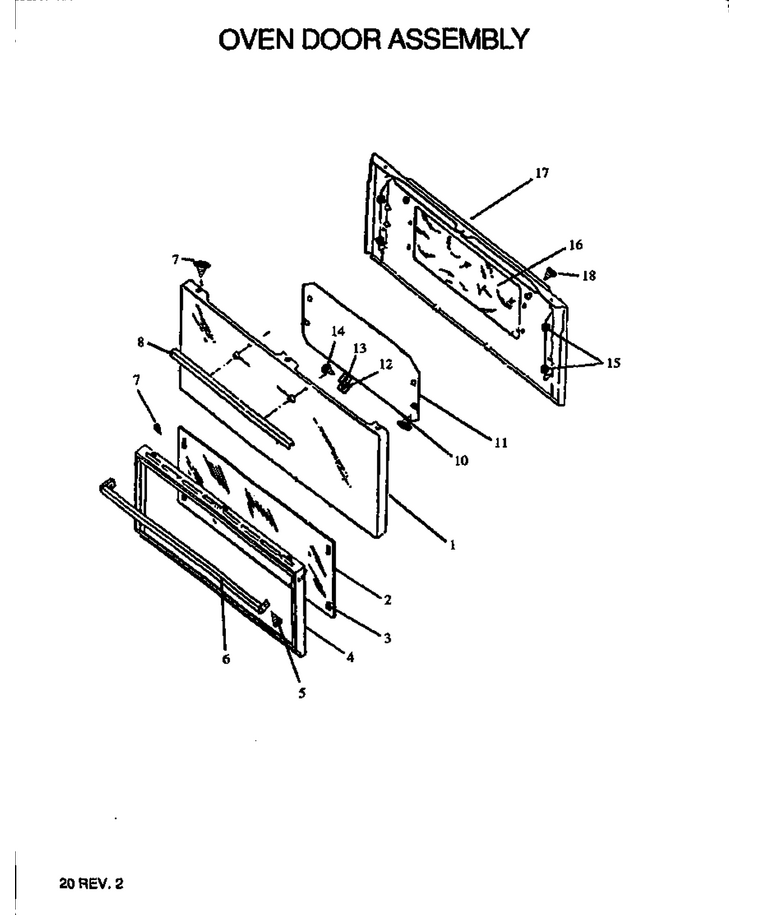

05 - Oven Door Assy

...
...
1
Panel (White) WPL-088681W
...
7
Screw No.10 X 1/2`` WPL-Y07691400
...
8
Oven Door Handle, 18`` WPL-Y0088812
...
9
Handle Spacer, Plastic (J) WPL-Y0310818
...
11
Baffle, Oven Door WPL-06511801
...
16
Insulation, Wrapper WPL-31975801
...
17
Backer, Oven Door WPL-06540900
...
18
Screw, Door Handle WPL-Y0311884

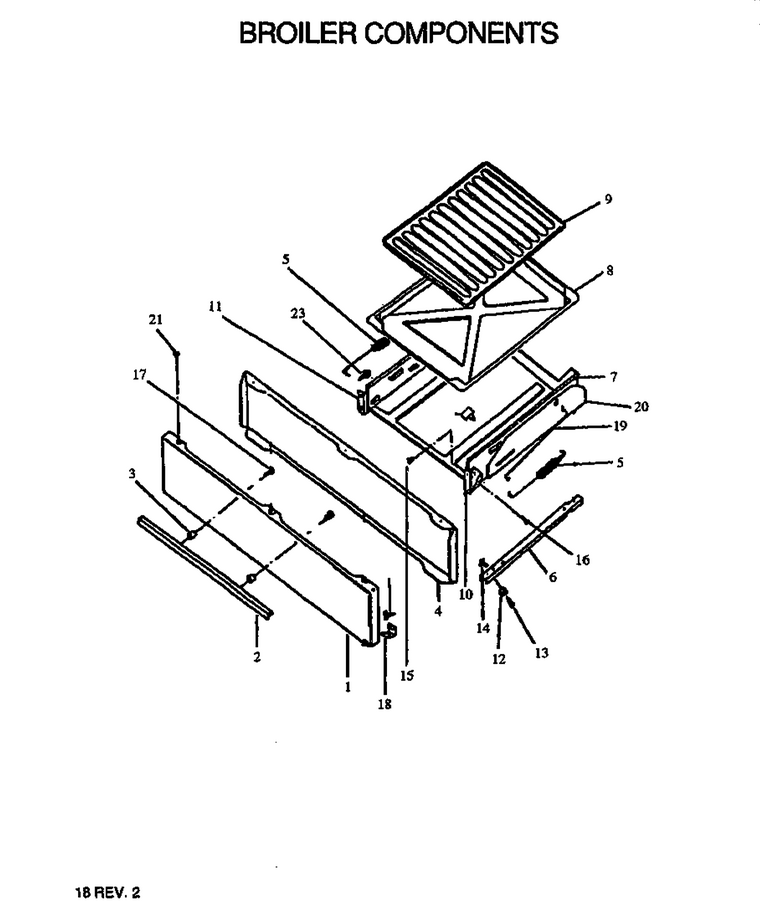

02 - Broiler Components

...
...
1
Panel-Broiler Drawer 30`` (Wht) WPL-Y06513101W
...
2
Oven Door Handle, 18`` WPL-Y0088812
...
3
Handle Spacer, Plastic (J) WPL-Y0310818
...
4
Liner, Broil Door,30`` WPL-312246E
...
5
Spring, Broiler Door WPL-Y07691100
...
6
Track, Lower L.h. WPL-Y0313760
...
7
Drawer, Broiler WPL-86908CG
...
8
Pan, Broiler WPL-87722CG
...
9
Procelain Broiler (Pan And Grid) WPL-4396923
...
10
Brkt, Spring & Rod WPL-Y06520700
...
11
Brkt, Spring & Rod WPL-Y06520700
...
14
Screw WPL-WP7101P126-60
...
15
Licon Swit WPL-Y07420600
...
16
Screw WPL-WP7101P126-60
...
17
Screw, Door Handle WPL-Y0311884
...
18
Hinge, Black WPL-Y0313773
...
19
Rod, Push-Broiler WPL-Y07685300
...
20
Support,body Carriage WPL-06522100
...
21
Screw No.10 X 1/2`` WPL-Y0310804
...
22
Glide-Drwr WPL-W10709871
...
23
Screw WPL-0310240
...
24
Screw WPL-0310239

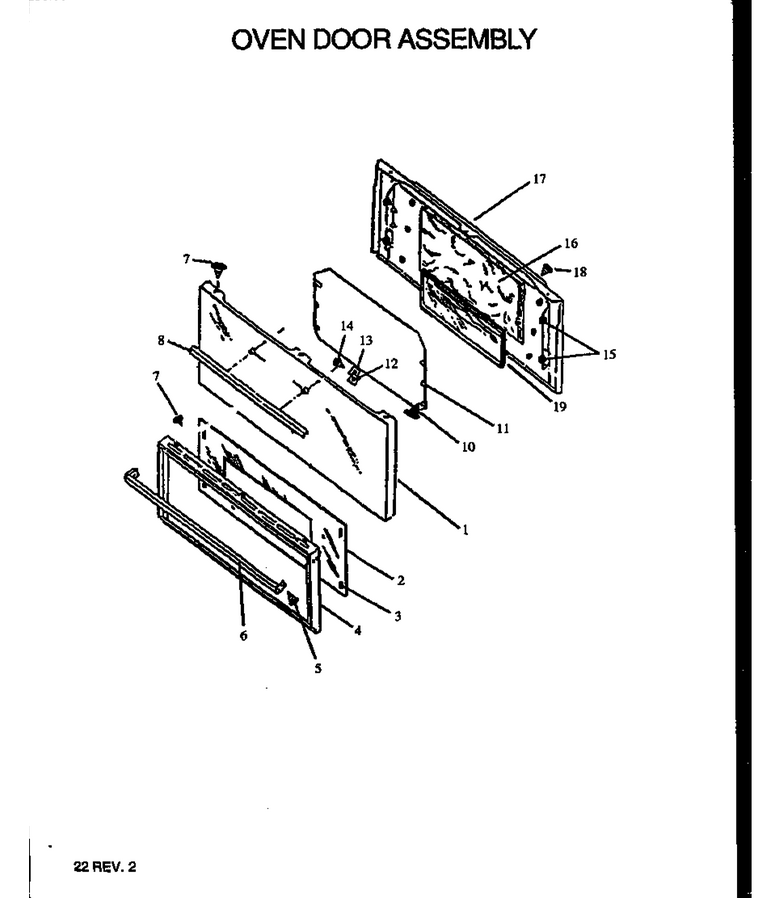

04 - Oven Door Assy

...
...
1
Panel (White) WPL-088681W
...
7
Screw No.10 X 1/2`` WPL-Y0310804
...
8
Oven Door Handle, 18`` WPL-Y0088812
...
9
Handle Spacer, Plastic (J) WPL-Y0310818
...
11
Ring, Insulation Hold Down WPL-0311754
...
16
Insulation, Wrapper WPL-31975801
...
17
Backer, Oven Door WPL-312046E
...
18
Screw, Door Handle WPL-Y0311884

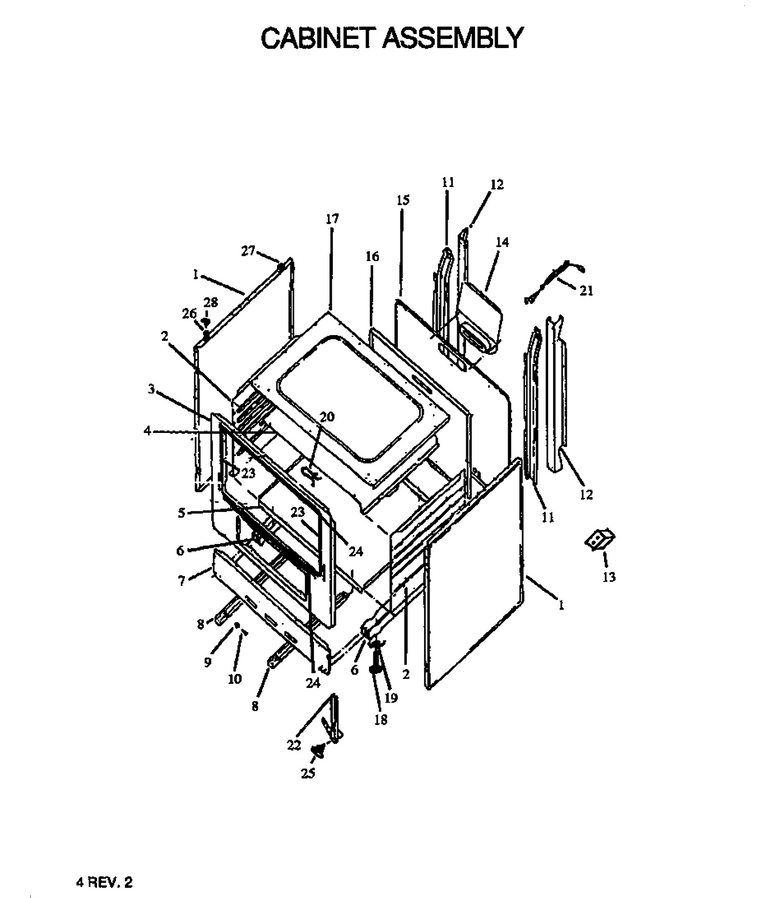

03 - Cabinet Assy

...
...
1
Sub 311003w, Panel-Side, White WPL-Y06533800W
...
2
Liner,oven Side WPL-0311807
...
4
Liner, Oven Top - Porcelain WPL-88885CG
...
5
Baffle, Base (30``gas) WPL-Y0311051
...
6
Rail, Base WPL-0312165
...
7
Toe Panel (J) WPL-0052744
...
8
Track, Lower L.h. WPL-Y0313760
...
11
Vertical Sup. (J) WPL-0052742
...
12
Support, Rear, Vertical {j} WPL-0056477
...
13
Kit, Anti-Tip WPL-07687600
...
14
Flue Box WPL-0310821
...
15
Main Back WPL-Y0088752
...
16
Liner, Oven Back WPL-88889CG
...
17
Box, Burner WPL-Y06469301E
...
18
Leg, Leveling WPL-Y0062362
...
19
Snap-In Tee Nut WPL-Y0088571
...
20
Clip, Capillary WPL-0310802
...
21
Ass`y Power Cord WPL-0313772
...
22
Hinge, Oven Door WPL-Y07489700
...
23
Seal, Oven-Sides WPL-Y0056090
...
24
Seal, Oven-Top & Bottom 30`` WPL-Y0056091
...
25
Screw WPL-WP4159193
...
26
Stud, Locating - Nylon WPL-0311086
...
27
Bumper, Oven Door WPL-Y0063661
...
28
Screw WPL-Y0312844
