Amana RBK24AA093M (BOM: P1143136N W)

Model: RBK24AA093M (BOM: P1143136N W)

Save Part Not Listed?
product name

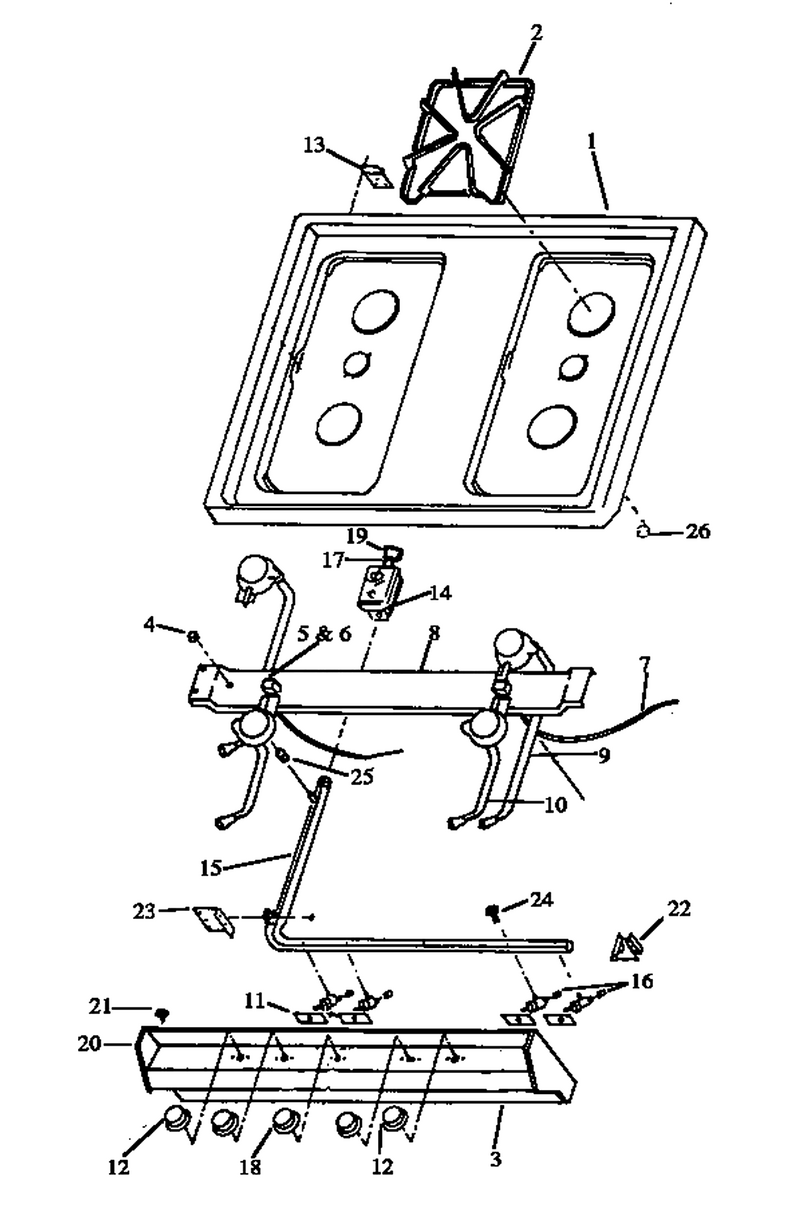

05 - Main Top

...
...
1
Top, Main 24`` (White) WPL-Y06461210W
...
2
Grate- Del WPL-Y07517400
...
3
Manifold Panel WPL-07588802
...
4
Square Nut {j} WPL-0088650
...
5
Ignitor, Ground Strap WPL-Y0312158
...
6
Ignitor- G WPL-Y07491203
...
7
Ignitor- G WPL-Y07491203
...
8
Support, Top Burner WPL-Y06451809
...
9
Burner - Top Rear (Cal) WPL-Y07699200
...
10
Burner - Top Front (Cal) WPL-Y07699100
...
11
Swtch-Ignr WPL-WP4157180
...
12
Knob WPL-W11032824
...
13
Hinge, Main Top WPL-0088782
...
14
Pressure Regulator WPL-77001246
...
15
Pipe, Manifold (Gas 24) WPL-Y07594901F
...
16
Valve, Gas WPL-Y07596400
...
17
Nipple, Pipe 1 1/8`` WPL-Y07580100
...
18
Knob, Thermostat WPL-Y0055029
...
19
Coupling, Reduction WPL-07580200
...
20
End Cap, Lh WPL-0086975
...
21
Screw WPL-0312238
...
22
Support-Sq Manifold Pipe-Rh WPL-0056118
...
23
Support, Manifold, L.h. {j} WPL-0086725
...
24
Screw WPL-W10491986
...
25
Spacer, Manifold WPL-0310219
...
26
Bumper, Oven Door WPL-Y0063661

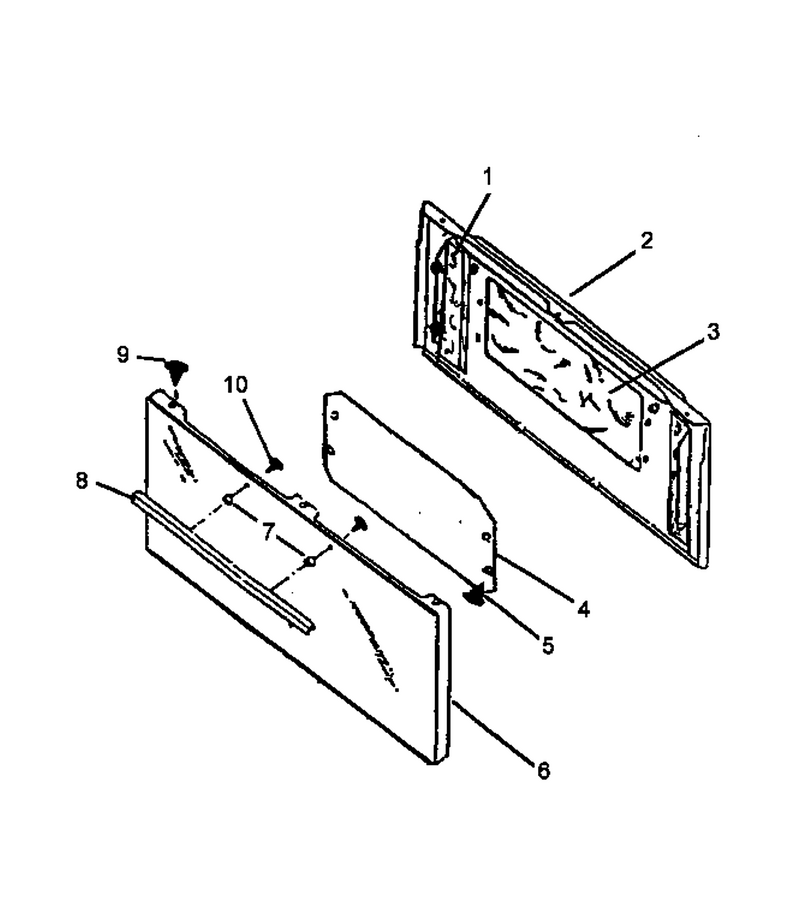

06 - Oven Door

...
...
2
Backer Oven Door WPL-312821E
...
3
Insulation, Wrapper WPL-31975801
...
4
Baffle Door Backer WPL-0312825
...
5
Screw No.10 WPL-07596600
...
6
Door Panel Oven (White) WPL-312188W
...
7
Handle Spacer, Plastic (J) WPL-Y0310818
...
8
Oven Door Handle, 18`` WPL-Y0088812
...
9
Screw No.10 X 1/2`` WPL-Y0310804
...
10
Screw, Door Handle WPL-Y0311884

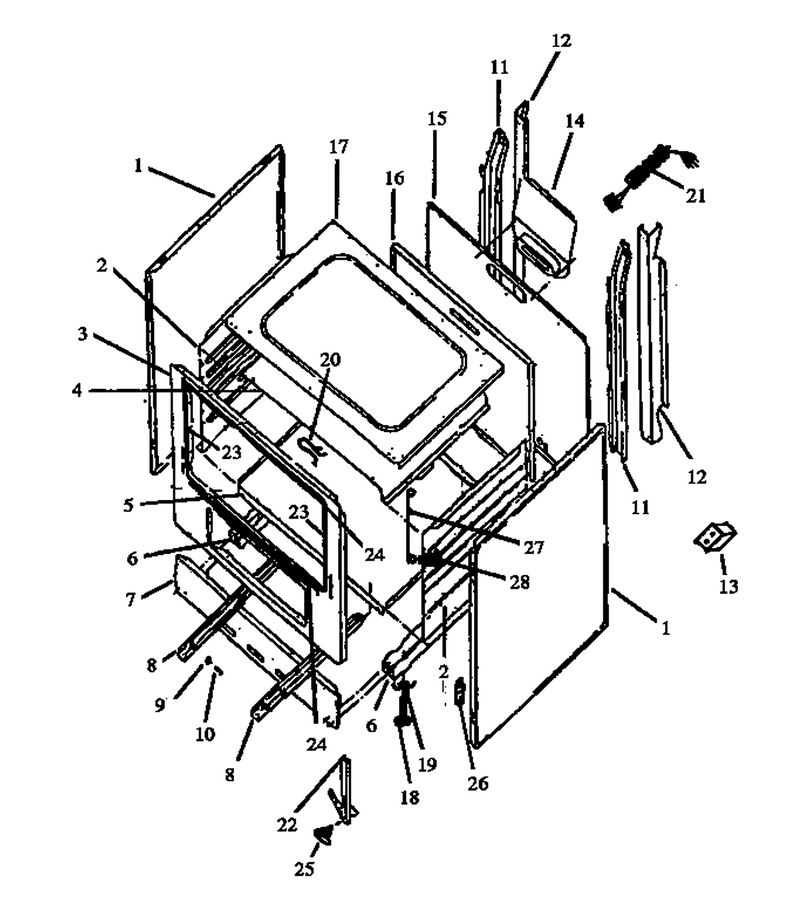

03 - Cabinet

...
...
1
Sub 311003w, Panel-Side, White WPL-Y06533800W
...
2
Liner,oven Side WPL-0311807
...
3
Frame, Main Front 24`` WPL-310104E
...
4
Liner, Oven Top 24`` WPL-Y06470901E
...
5
Bottom Baffle WPL-0311050
...
6
Rail, Base WPL-06554900
...
7
Panel, Base Toe 24`` WPL-Y0054693
...
8
Track, Lower R.h. WPL-Y0313761
...
11
Vertical Sup. (J) WPL-0052742
...
12
Support, Rear, Vertical {j} WPL-0056477
...
13
Kit, Anti-Tip WPL-07687600
...
14
Flue Box WPL-0310821
...
15
Main Back (24`` Gas) {j} WPL-Y0086756
...
16
Back, Oven 24`` ( Cg) WPL-88550CG
...
17
Bottom, Brnr Box 24`` WPL-Y06469101E
...
18
Leg, Leveling WPL-Y0062362
...
19
Snap-In Tee Nut WPL-Y0088571
...
20
Clip, Capillary WPL-0310802
...
21
Ass`y Power Cord WPL-0313772
...
22
Hinge WPL-Y0052778
...
23
Seal, Oven-Sides WPL-Y0056090
...
24
Seal, Oven-Top & Bottom 24`` WPL-Y0056092
...
25
Screw (J) WPL-0310233
...
26
Shield, Bodyside WPL-Y06557300
...
27
Support Rod WPL-0087023
...
28
Shoulder Screw WPL-0088779

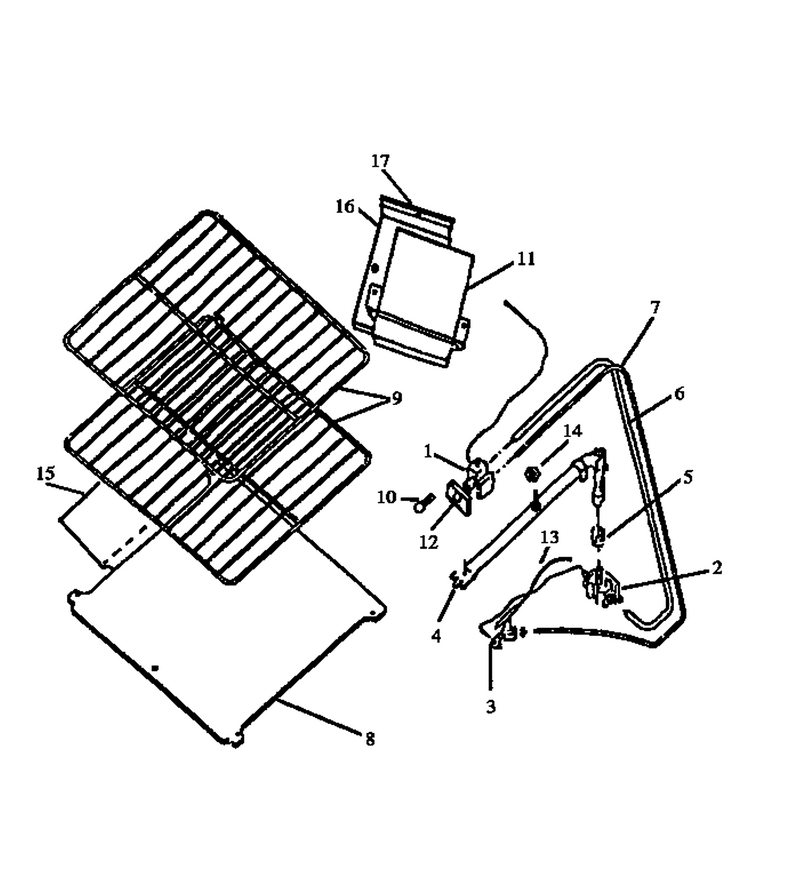

04 - Gas Components

...
...
NI
Screw No.10x1/2 Blunt WPL-Y0310363
...
1
Thermostat, Spark Oven Kit WPL-R0711029
...
2
Valve, Safety WPL-4157094
...
3
Pilot, Oven Burner (Spark) WPL-Y07697300
...
4
Oven Burner WPL-0311865
...
6
Tubing, 3/8`` Od, 10 Ft. WPL-Y0090761
...
7
Tubing, Oven Pilot 3/16`` X 53`` WPL-Y03022901
...
8
Bottom, Oven (Enamel) WPL-0311867
...
9
Oven Rack, 24`` WPL-Y0312235
...
10
Bolt, T`stat Mtg (H/w) WPL-Y0056114
...
11
Module-Spk,2+1,apco WPL-Y07727100
...
12
Swtch-Ignr WPL-WP878009
...
13
Igniter-Spark Oven WPL-Y07698400
...
14
Nut WPL-M0282009
...
15
Baffle, Oven Bottom WPL-Y00311821
...
17
Cover, Spark Module WPL-06462003

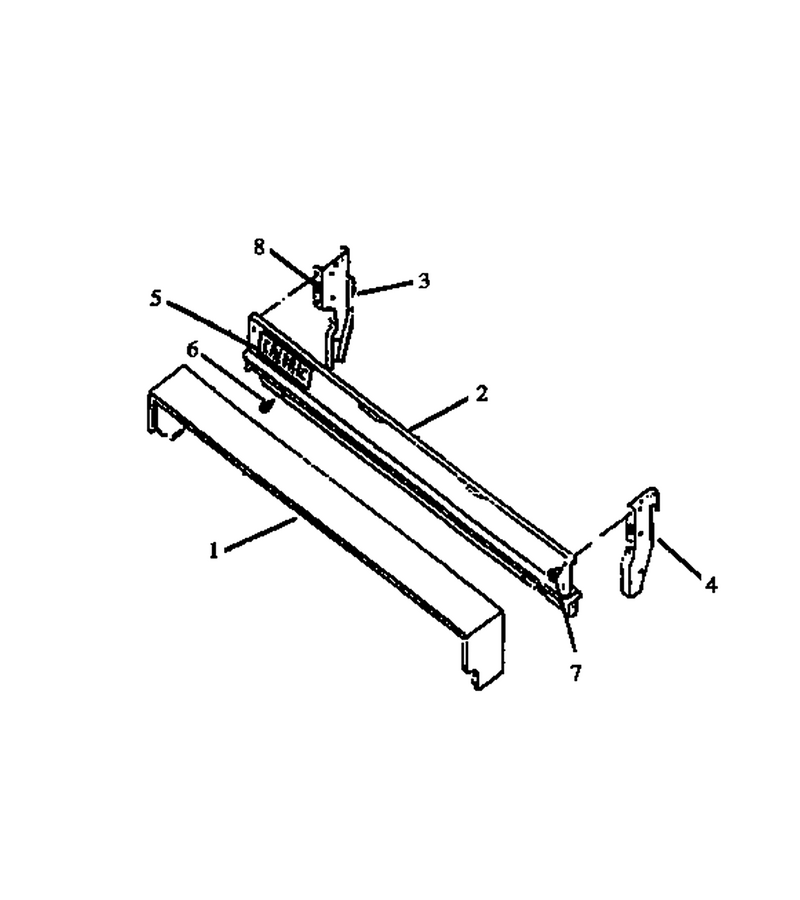

01 - Backguard

...
...
1
Backguard Frame (J) WPL-Y0057318
...
2
Filler Panel/24`` Standard WPL-R0708231
...
3
Support, Backguard, L.h. WPL-0088666
...
4
Support, Backguard, R.h. WPL-0088667
...
5
Label, Nameplate (Caloric) WPL-07704200
...
6
Screw WPL-0310240
...
7
Screw No.10 X 5/16 WPL-0310234
...
8
Bumper, Oven Door WPL-Y0063661

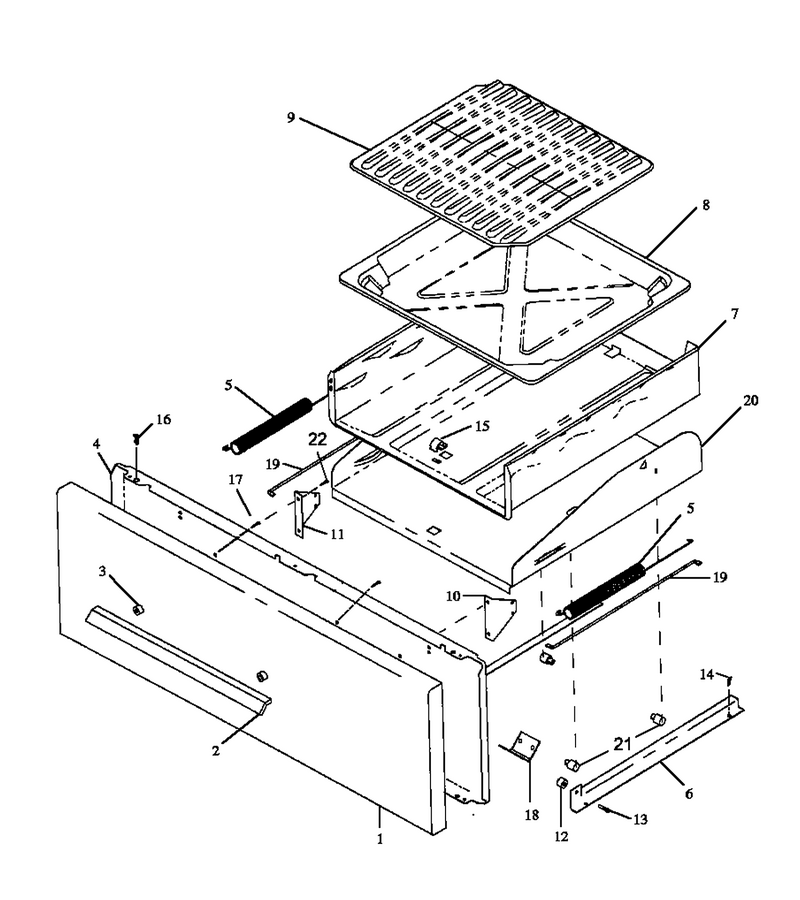

02 - Broiler Components

...
...
NI
Screw No.10 X 1/2`` WPL-Y0310804
...
1
Panel, Broiler Door, 24`` WPL-311862W
...
2
Oven Door Handle, 18`` WPL-Y0088812
...
3
Handle Spacer, Plastic (J) WPL-Y0310818
...
4
Liner, Broiler Drawer WPL-0310660
...
5
Spring, Broiler Door WPL-Y07691101
...
6
Track, Lower L.h. WPL-Y0313760
...
7
Drawer, Broiler WPL-86908CG
...
8
Pan, Broiler WPL-87722CG
...
9
Procelain Broiler (Pan And Grid) WPL-4396923
...
10
Brkt, Spring & Rod WPL-Y06520700
...
11
Brkt, Spring & Rod WPL-Y06520700
...
14
Screw WPL-WP7101P126-60
...
15
Spring Clip WPL-Y0088664
...
16
Screw WPL-WP7101P126-60
...
17
Screw, Door Handle WPL-Y0311884
...
18
Hinge, Black WPL-Y0313773
...
19
Rod, Push-Broiler WPL-Y07685300
...
20
Support,body Carriage WPL-06522100
...
21
Glide-Drwr WPL-W10709871
...
22
Screw WPL-0310240
