Amana PHU201UB1 (BOM: P1130740N)

Model: PHU201UB1 (BOM: P1130740N)

Save Part Not Listed?
product name

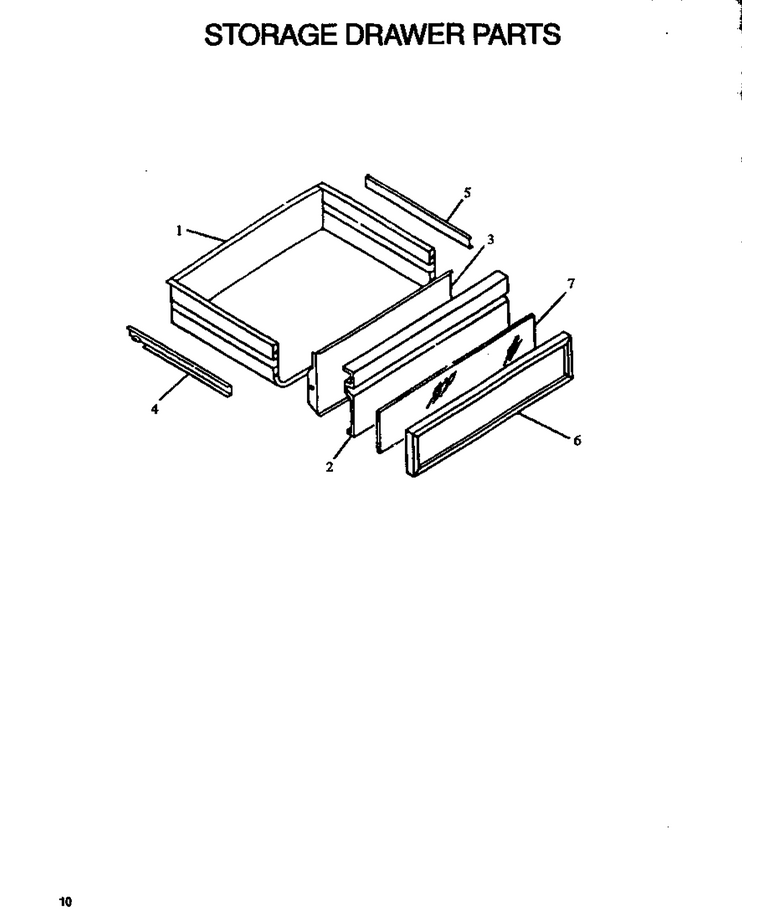

08 - Storage Drawer Parts

...
...
NI
Rivet, Pop WPL-Y0097822
...
1
Wrapper, Stor Drawer WPL-306519W
...
2
Panel, Drawer WPL-059499G
...
3
Liner, Drawer Panel WPL-301543E
...
4
Runner, Storage Door, L.h. WPL-Y0300476
...
5
Runner, Storage Door R.h. WPL-0300477
...
6
Door Panel Frame, Black WPL-0059498
...
7
Panel, Black Glass WPL-Y0063501

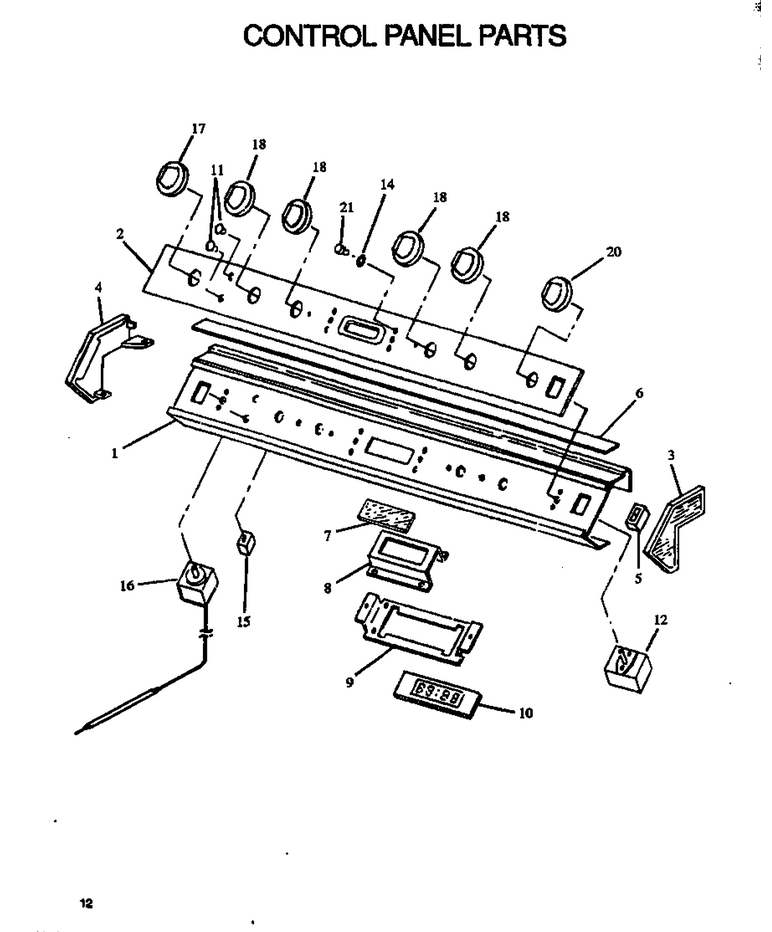

01 - Control Panel Parts

...
...
NI
Filter, Amber WPL-0302113
...
1
Extrusion, Cont Panel WPL-0306249
...
2
Inlay Control Panel WPL-0302386
...
3
End Cap WPL-306432B
...
4
End Cap, L.h. Black WPL-306433B
...
5
Switch- Ro WPL-WP31986601B
...
6
Insert, Top Control Panel WPL-0301131
...
7
Glass, Clock WPL-0300623
...
8
Mounting Bracket, Glass WPL-0300622
...
9
Mtg. Bracket, Clock WPL-Y0300382
...
10
Display Board (Clock) WPL-0301293
...
11
Lens, Indicator Light, Red WPL-Y0301209
...
12
Switch, Selector WPL-4179076
...
14
Bushing, Clock WPL-Y0301481
...
15
Light Indicator WPL-0306895
...
16
Oven Thermostat WPL-0307378
...
17
Knob Oven Control WPL-0302381
...
18
Knob Top Burner X WPL-0302382
...
20
Knob, Selector Switch, Black WPL-0300379
...
21
Button, W/cushion WPL-Y0300614

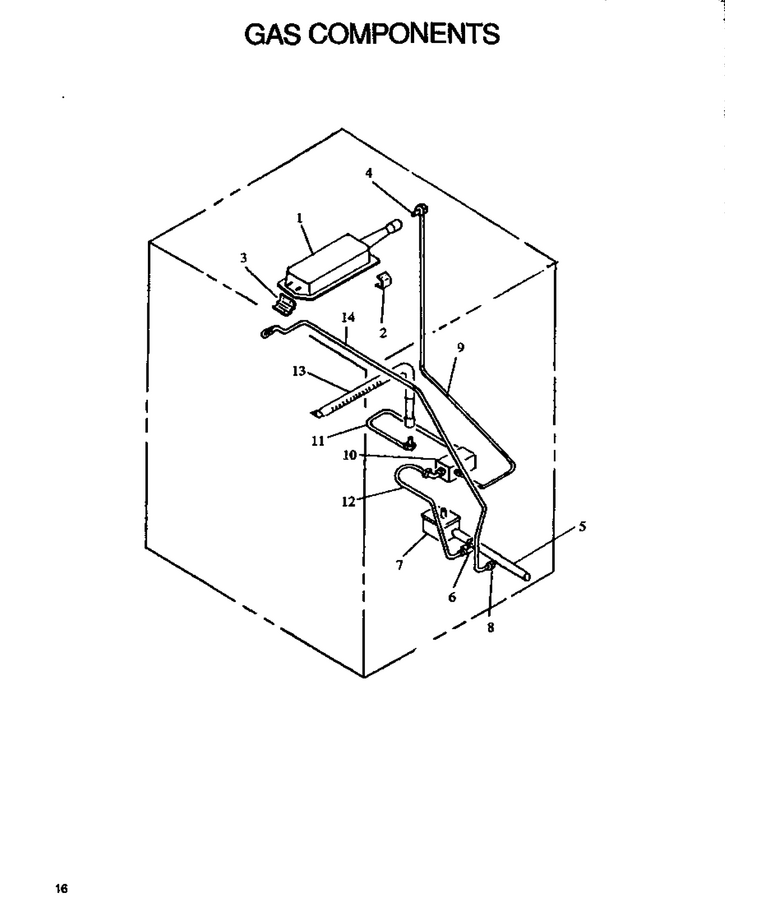

03 - Gas Components

...
...
NI
Shield, Ignitor WPL-0063780
...
1
Assy, Br. Burner WPL-Y0060691
...
2
Bracket, Ignitor WPL-0063785
...
3
Bracket, Mtg. Br. Support WPL-Y0060687
...
4
Orifice Spud, Nat. Gas No.50 WPL-Y0063060
...
5
Inlet Pipe WPL-0303247
...
6
Valve, Shut-Off WPL-Y0301361
...
7
Regulator-5``/10`` Side Inlet WPL-Y0063684
...
8
Fitting 1/4 Npt X 3/8 Comp WPL-Y0303219
...
9
Kit, Orifice,tubing,brkt WPL-R0710295
...
10
Valve, Gas WPL-Y0300664
...
11
Tubing, Oven Burner WPL-Y0300685
...
12
Tubing, Inlet To Gas Valve WPL-Y0300684
...
13
Oven Burner WPL-Y0063709
...
14
Tubing, Inlet Pipe To Right Ma WPL-0303034

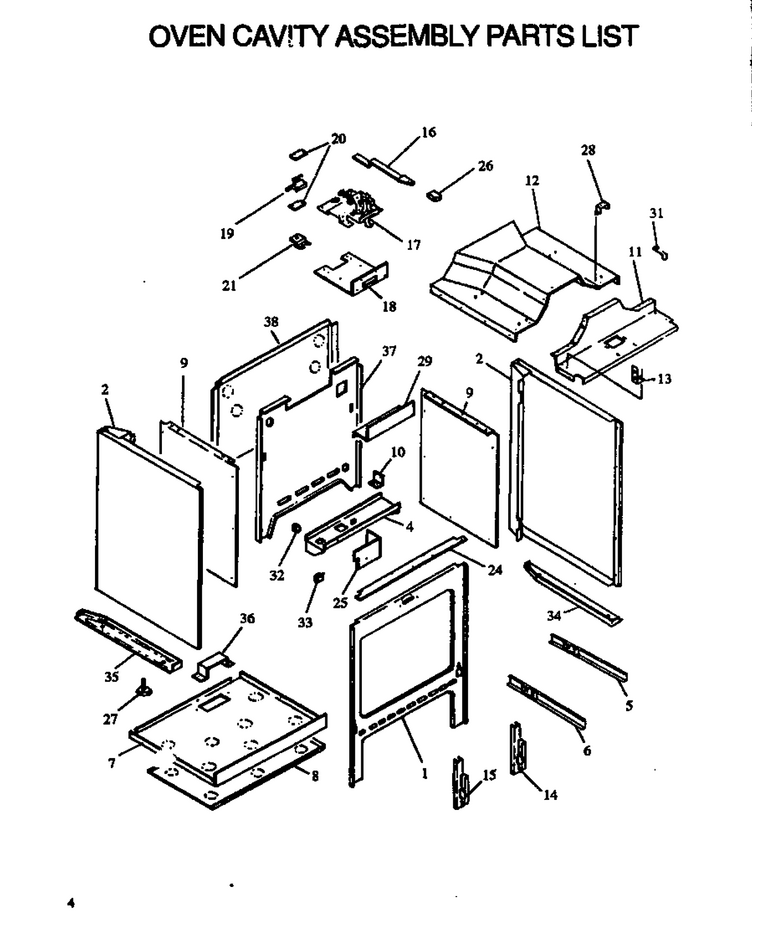

05 - Oven Cavity Assy Parts List

...
...
NI
Screw 4-40x1 WPL-Y0092365
...
2
Panel, Side (Wht) WPL-31825104W
...
4
Shelf, Gas Valve WPL-0307065
...
5
Track, Storage Drawer-R.h. WPL-0300475
...
6
Track, Storage Dwr Lh WPL-Y0314662
...
7
Insul, Ret.-Bottom WPL-Y0308317
...
8
Shield, Heat WPL-Y0315146
...
9
Side Insulation Retainer WPL-Y0303572
...
10
Bracket, Gas Valve WPL-0053182
...
11
Retainer Insulation WPL-Y0303571
...
12
Insulation Retainer Top X WPL-Y0303570
...
13
Brkt, Spark Module WPL-0302378
...
14
Hinge-Door WPL-R0706011
...
15
Kit, Door Hinge (Lh-Hs) WPL-Y0066952
...
16
Handle, Door Latch (Blk) WPL-303040B
...
17
Latch Assembly WPL-Y0063733
...
18
Bracket, Latch Mtg. WPL-Y0058918
...
19
Switch- La WPL-77001254
...
20
Insulation, Esm WPL-Y0091523
...
21
Bracket, Switch WPL-Y0302316
...
24
Filler, Front Frame WPL-302380B
...
25
Cover, Electrical WPL-Y0058916
...
26
Knob, Latch Handle (Blk) WPL-0302300
...
27
Leg, Leveling WPL-Y0300585
...
28
Bracket Venturi Mounting WPL-0303189
...
29
Cover, Elec. Wires WPL-Y0058834
...
31
Clamp, Wire-Insulate WPL-Y0068513
...
32
Snap Bushing WPL-Y0042659
...
33
Cable, Clip Esm WPL-Y0091587
...
34
Brace, Leveling Leg (Lt) WPL-31854501
...
35
Brace, Leveling Leg (Lt) WPL-31854501
...
36
Cover, Ig/bake Burner WPL-Y0302498
...
37
Retainer, Rear Insul WPL-0306515
...
38
Cover Plate, Rear WPL-Y0300026

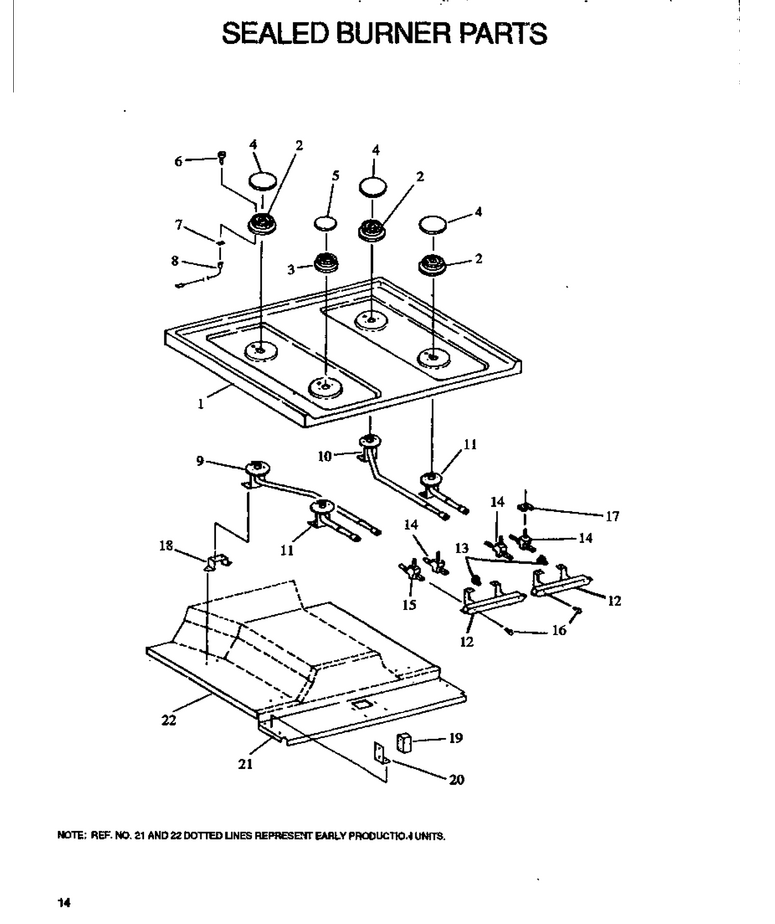

07 - Sealed Burner Parts

...
...
NI
Screw, Elbow WPL-0308368
...
1
Top, Main Sealed Burner WPL-304360B
...
2
Burner, 4`` Cast WPL-Y0306074
...
3
Burner 3`` Die Cast WPL-Y0306073
...
4
Cap, Burner (Large) WPL-314638B
...
5
Cap, Burner (Small) WPL-314637B
...
6
Elctr-Kit WPL-WP3185804
...
7
Clip, Electrode WPL-Y07714200
...
8
Harness,ign Wire 31`` WPL-Y0304442
...
9
Venturi Assy Lr Sealed Burner WPL-Y0304363
...
10
Venturi Assy Rr Sealed Burner WPL-Y0304362
...
11
Venturi Assy Front Sealed Burn WPL-Y0304364
...
12
Manifold Assy WPL-0304435
...
13
Elbow Manifold Inlet WPL-0302200
...
14
Valve Hi Med Adj Low WPL-0303429
...
15
Valve Hi Med Adj Low WPL-Y0304436
...
16
Screw WPL-W10491986
...
17
Spark Switch WPL-Y0303524
...
18
Bracket, Ventrui Mtg WPL-Y0304783
...
19
Spark Module Reignition WPL-Y0302244
...
20
Brkt, Spark Module WPL-0302378
...
21
Retainer Insulation WPL-Y0303571
...
22
Insulation Retainer Top X WPL-Y0303570

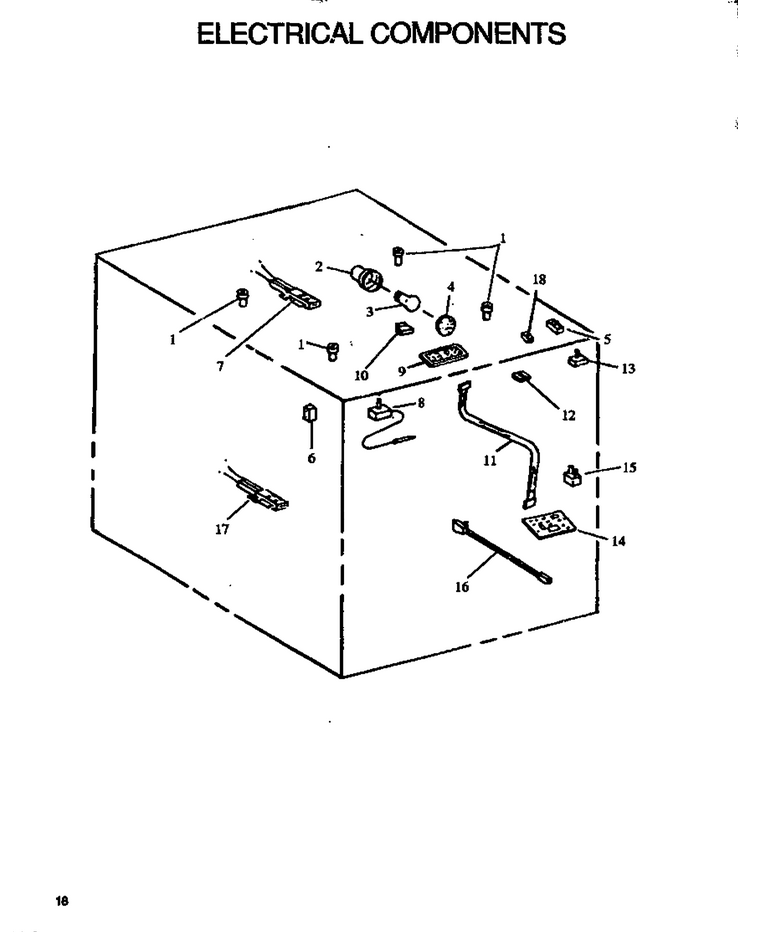

02 - Electrical Components

...
...
NI
Support-Circuit Board WPL-Y0306900
...
1
Elctr-Kit WPL-WP3185804
...
2
Light- Ove WPL-WP74011278
...
3
Light Bulb WPL-8009
...
4
Light- Ove WPL-WP74011278
...
5
Switch- Ro WPL-WP31986601B
...
6
Spark Module Reignition WPL-Y0302244
...
7
Kit, Ignitor WPL-786324
...
8
Oven Thermostat WPL-0307378
...
9
Display Board (Clock) WPL-0301293
...
10
Switch- La WPL-77001254
...
11
Cable WPL-Y0300808
...
12
Spark Switch WPL-Y0302242
...
13
Switch, Selector WPL-4179076
...
14
P.c. Board, Power Supply WPL-Y0300807
...
15
Male Loading Plug WPL-Y0068333
...
16
Supply Cord WPL-Y0063518
...
17
Kit, Ignitor WPL-786324
...
18
Light Indicator WPL-0065822

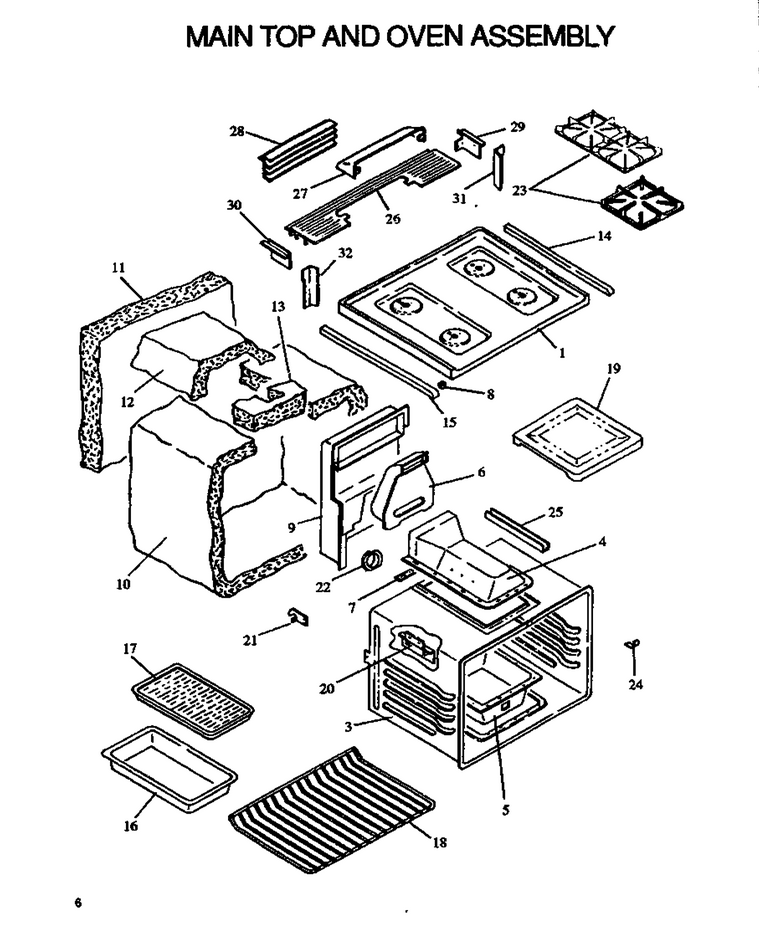

04 - Main Top And Oven Assy

...
...
NI
Probe Recept. Cover Stainless WPL-Y0040848
...
1
Top, Main Sealed Burner WPL-304360B
...
3
Kit,oven Cavity WPL-R0710290
...
4
Weldm`t, Broil Chamber WPL-0306651
...
5
Burner Box, Lower WPL-Y0063802
...
6
Flue WPL-0062770
...
7
Gasket, Oven Back WPL-0062754
...
8
Spacer, Nylon (.14``) WPL-Y0062445
...
9
Dilution Flue WPL-304578B
...
10
Insulation, Wrapper WPL-31975801
...
11
Insulation, Wrapper WPL-31975801
...
12
Insulation, Wrapper WPL-31975801
...
13
Insulation, Wrapper WPL-31975801
...
14
Top Trim Rh WPL-Y0304461
...
15
Top Trim Lh WPL-0304462
...
16
Procelain Broiler (Pan And Grid) WPL-4396923
...
17
Procelain Broiler (Pan And Grid) WPL-4396923
...
18
Rack-Oven WPL-WP314763J
...
19
Oven Bottom WPL-58625CG
...
20
Shield, Thermostat Bulb WPL-0062792
...
21
Bracket, Oven Cavity WPL-Y0058852
...
22
Cup, Duct WPL-Y0062799
...
23
Grate, Top Burner (Blk) WPL-305815B
...
24
Chip Cover WPL-0300278
...
25
Channel, Broil Burner WPL-Y0304019
...
26
Lo Backrail WPL-302719B
...
27
Dilution Flue Cover WPL-302098B
...
28
Trim Piece, Flue WPL-0302512
...
29
End Cap R.h. Bk. Rail WPL-0306114
...
30
End Cap L.h.bk. Rail WPL-0306113
...
31
Support, Backguard Rt WPL-Y0058912
...
32
Support, Backguard Lt WPL-Y0058913

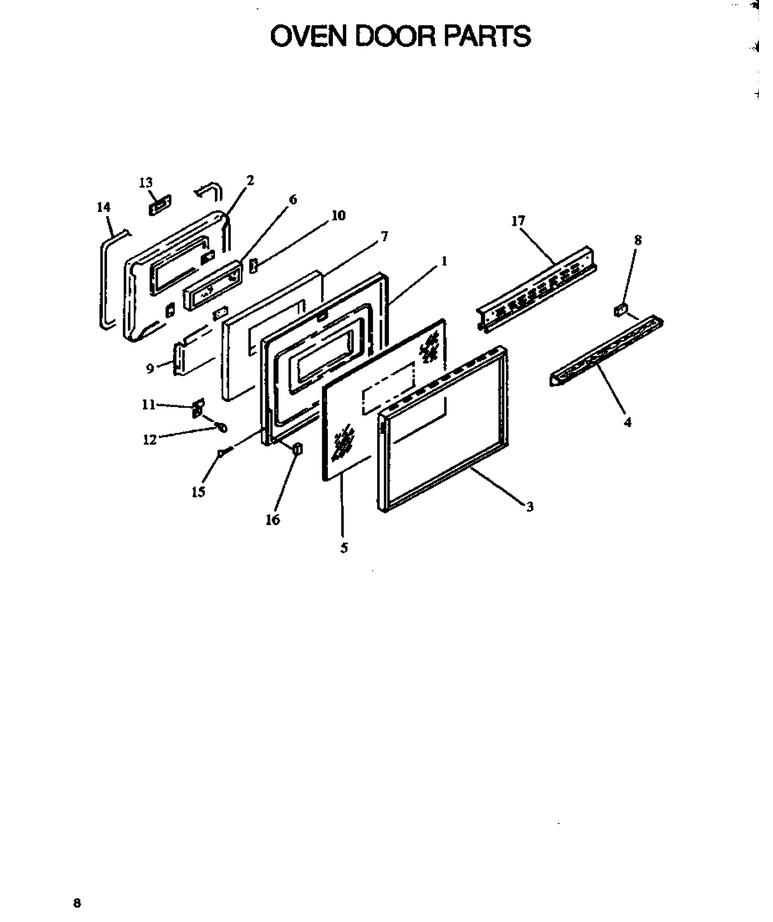

06 - Oven Door Parts

...
...
NI
Screw WPL-W11245710
...
1
Door Backer, Electric (Cg) WPL-302725E
...
2
Pad, Ov Dr W/window WPL-314693CG
...
3
X Frame, Oven Door WPL-063804B
...
4
Handle, Door WPL-0303773
...
5
Glass, Oven Door WPL-314510B
...
6
Window Assy WPL-0304831
...
7
Insulation,door-Sub Backer WPL-0062614
...
8
Spacer Door Handle WPL-Y0079978
...
9
Heat Baffle, Glass (Black) WPL-306449B
...
10
Retainer, Door Glass WPL-Y0052629
...
11
Support Bracket, Glass WPL-Y0062439
...
12
Bumper, Oven Door WPL-Y0063661
...
13
Latch Plate WPL-Y0052039
...
14
Gasket, Oven Dr 82`` WPL-Y0300432
...
15
Rivet, Pop WPL-Y0302648
...
16
Bumper, Rubber WPL-Y0060247
...
17
Trim, Oven Door WPL-0302259
