Amana PHU186NB (BOM: P1131810N)

Model: PHU186NB (BOM: P1131810N)

Save Part Not Listed?
product name

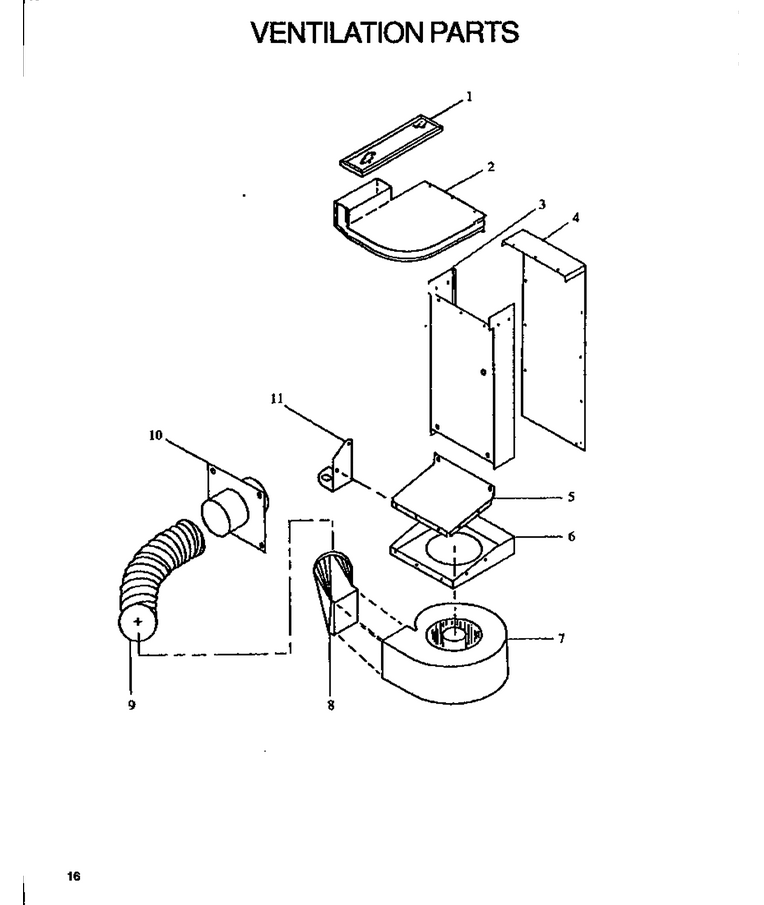

08 - Ventilation Parts

...
...
NI
Clamp, Hose WPL-Y702331
...
1
Filtr-Grse WPL-WPY0307363
...
2
Ass`y. Top Plenum WPL-302087CG
...
3
Plenum, Rear WPL-0307100
...
4
Cover, Rear Panel WPL-0307101
...
5
Assy- Blow WPL-Y0307923
...
6
Assy- Blow WPL-Y0307923
...
7
Assy- Blow WPL-Y0307923
...
8
Duct, Blower WPL-Y0307508
...
9
Duct, Flex WPL-Y0307945
...
10
Thimble, 6`` Duct WPL-Y0307592
...
11
Brkt, Oven Orifice WPL-0307176

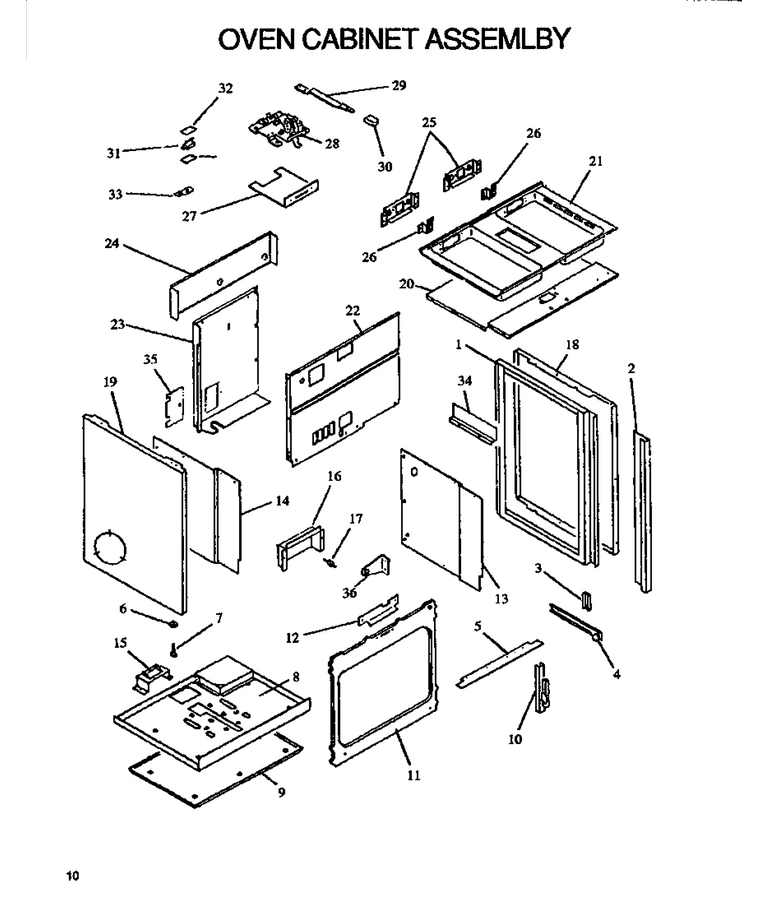

04 - Oven Cabinet Assy

...
...
NI
Screw, No.8-18 X 3/8 Pph WPL-31750425
...
1
Frame, Side Panel Rh WPL-61231CG
...
2
Trim, Side Panel (Blk) WPL-303144B
...
3
Support, Stg Dwr Trk WPL-Y0315150
...
4
Track, Drawer, L.h. WPL-Y0058558
...
5
Filler, Front Frame WPL-62750CG
...
6
Retainer Nut WPL-0076204
...
7
Leg, Leveling WPL-Y0307594
...
8
Retainer, Bot. Insulation WPL-Y0307240
...
9
Heat Shield, Storage Drawer WPL-Y0301706
...
10
Kit, Door Hinge (Lh-Hs) WPL-Y0066952
...
12
Bracket,erc Mount WPL-308085B
...
13
Retainer, Insul., Rh WPL-Y0057443
...
14
Retainer, Insul., Lh WPL-0057442
...
15
Cover,ignitor & Burner WPL-Y0301601
...
16
Cover, Control Board WPL-Y0308367
...
17
Support-Circuit Board WPL-Y0306900
...
18
Panel, Side Rt (Blk) WPL-Y063260B
...
19
Panel, Side Lt (Blk) WPL-058542B
...
20
Retainer Insulation Top X WPL-Y0301560
...
21
Box, Burner WPL-31898201CG
...
22
Panel, Rear WPL-0308186
...
23
Cover, Rear - Wire WPL-Y0058543
...
24
Shield, Rear WPL-Y0058544
...
25
Plate, Orifice Mtg WPL-31745201
...
26
Brkt, Plug Block Mtg WPL-Y0040983
...
27
Bracket, Latch Mounting WPL-0068101
...
28
Latch, Oven Door WPL-0302496
...
29
Handle, Latch (Black) WPL-063141B
...
30
Knob, Latch - Black WPL-Y0067844
...
31
Switch- La WPL-77001254
...
32
Insulation, Esm WPL-Y0091523
...
33
Bracket, Switch Mounting WPL-Y0068091
...
34
Shield WPL-0301955
...
35
Plate, Access WPL-31800001
...
36
Brkt, Oven Orifice WPL-0307176

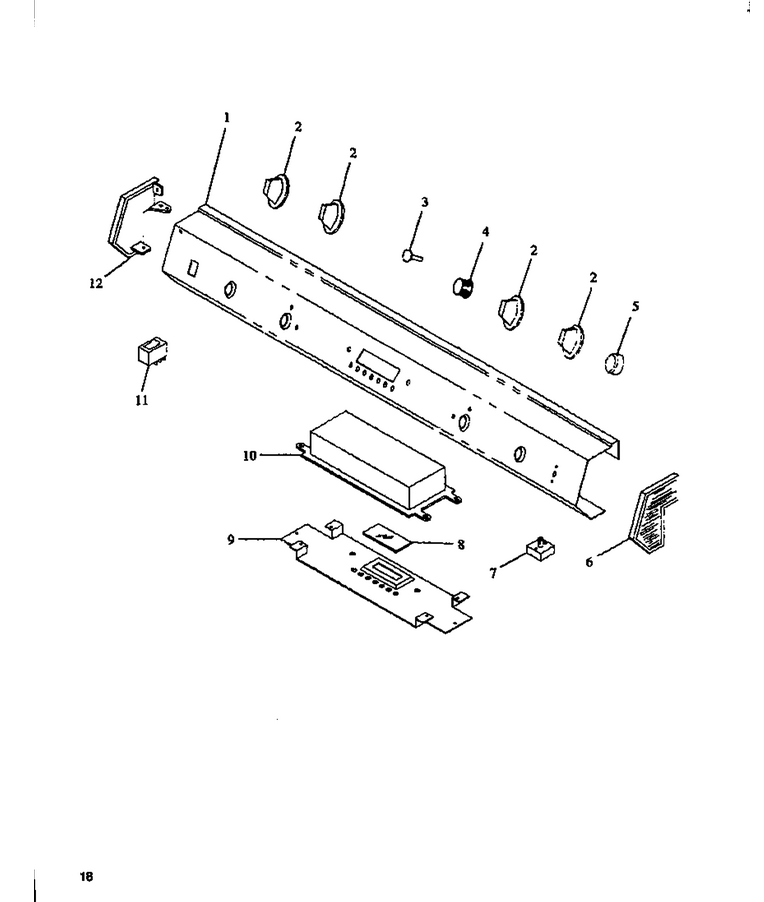

06 - Page 8

...
...
NI
Screw WPL-WP3400882
...
1
Panel, Control WPL-307982B
...
2
Knob, Top Burner WPL-0301600
...
3
Knob, Set Button (Blk) WPL-Y0305310
...
4
Knob, Clock (Blk) WPL-Y0305317
...
5
Knob, Fan Switch (Black) WPL-Y0300581
...
6
End Cap, Rt (Blk) WPL-308172B
...
7
Switch, Fan WPL-Y0300574
...
8
Glass, Clock WPL-Y0308107
...
9
Bracket,erc Mount WPL-308085B
...
10
Control, Erc WPL-Y0308481
...
11
Switch- Ro WPL-WP31986601B
...
12
End Cap, Lt (Blk) WPL-308171B

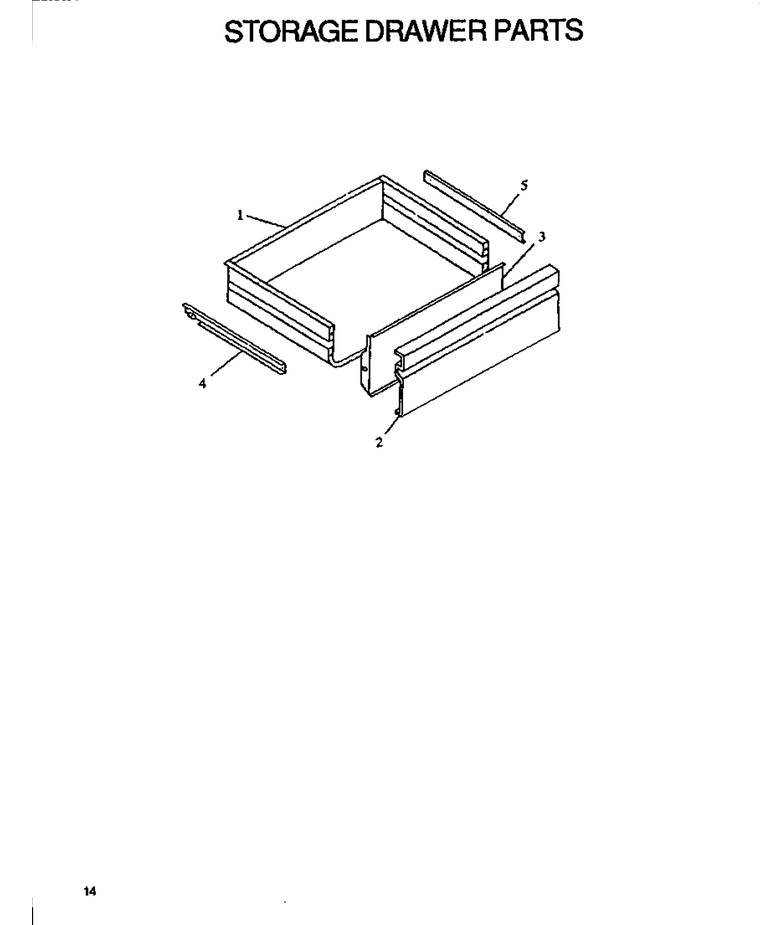

07 - Storage Drawer Parts

...
...
NI
Rivet, Pop WPL-Y0076357
...
1
Drawer, Storage (Blk) WPL-Y058562B
...
2
Drawer Panel Black WPL-Y063702B
...
3
Liner Drawer Panel WPL-057441G
...
4
Runner, Drawer, L.h. WPL-Y0058560
...
5
Runner, Storage Drawer Rt WPL-Y0314669

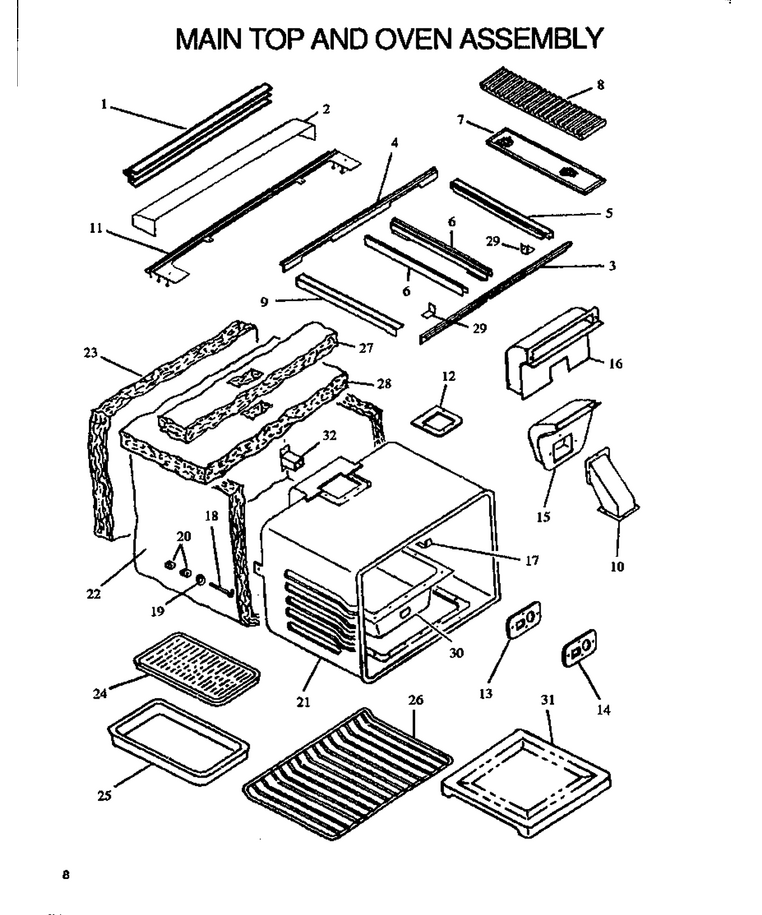

03 - Main Top And Oven Assy

...
...
NI
Screw WPL-8169479
...
1
Trim, Flue Cover WPL-Y0301859
...
3
Frame, Front-Main Top WPL-Y058528B
...
4
Frame, Rear, Main Top WPL-301815B
...
5
Frame, Side-Lt Main Top (Blk) WPL-31943802B
...
6
Frame, Center Main Top (Blk) WPL-31943701B
...
7
Filtr-Grse WPL-WPY0307363
...
8
Cover, Vent (Blk) WPL-Y0058902
...
9
Frame, Side-Rt Main Top (Blk) WPL-31943801B
...
10
Oven Vent WPL-Y0300082
...
11
Lo Backrail WPL-302719B
...
12
Gasket, Vent WPL-Y0301559
...
13
Gasket Plate WPL-Y0301736
...
14
Plate, Broil Burner WPL-Y0301532
...
15
Flue WPL-300081E
...
16
Dilution Flue, Black WPL-301707G
...
17
Cover, Chip WPL-Y0315022
...
18
Hook Bolt WPL-Y0091536
...
19
Washer WPL-Y0071876
...
20
Sub 41847, Hex Nut WPL-0071881
...
21
Liner Oven WPL-303927E
...
22
Insulation, Wrapper WPL-Y0301713
...
23
Insulation, Back WPL-0301712
...
24
Procelain Broiler (Pan And Grid) WPL-4396923
...
25
Procelain Broiler (Pan And Grid) WPL-4396923
...
26
Rack-Oven WPL-WP314763J
...
27
Insulation, Latch WPL-0058319
...
28
Insulation, Top WPL-0301711
...
29
Bracket, Frame Trim WPL-Y0301154
...
30
Burner Box, Lower WPL-Y0063802
...
31
Oven Bottom WPL-58625CG
...
32
Wire Raceway WPL-Y0301551

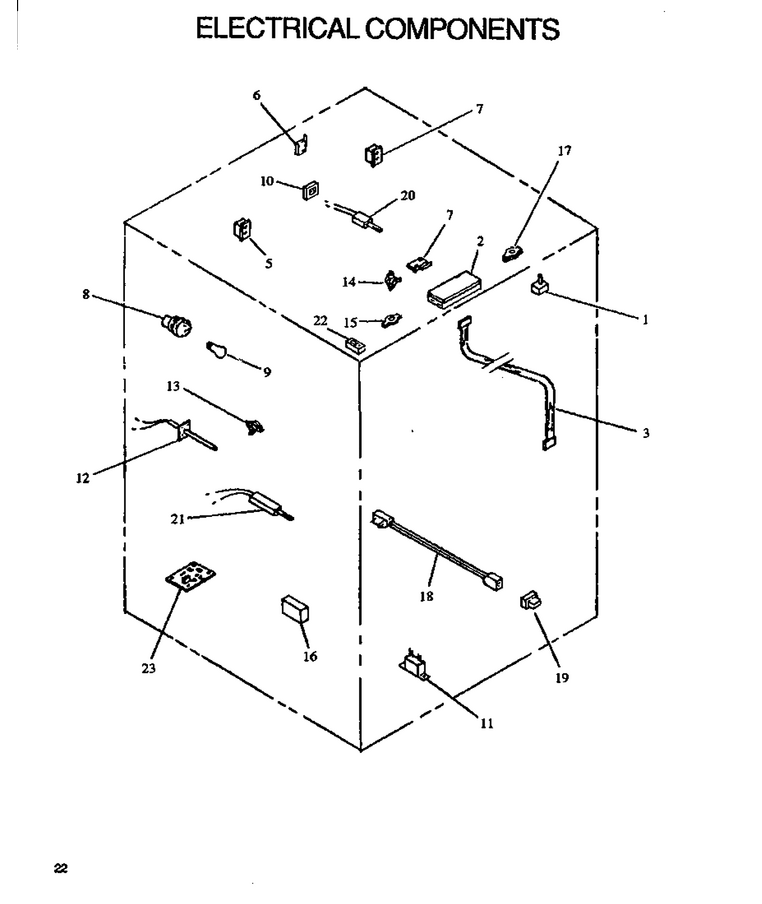

01 - Electrical Components

...
...
NI
Wire Harness, Sensor WPL-Y0300536
...
1
Switch, Fan WPL-Y0300574
...
2
Control, Erc WPL-Y0308481
...
3
Harness, Wire (Clock/pcb) WPL-Y0308189
...
4
Switch- La WPL-77001254
...
5
Assy., Plug Block, Rh WPL-Y0301841
...
6
Control, Fan WPL-Y0308417
...
7
Assy., Plug Block, Rh WPL-Y0301839
...
8
Light- Ove WPL-WP74011278
...
9
Light Bulb WPL-8009
...
10
Plug, Ignitor Wires WPL-Y0059417
...
11
Relay, Fan Switch WPL-Y0301962
...
12
Sensor WPL-WPY0314907
...
13
Control, Limit WPL-31933002
...
14
Control, Fan WPL-Y0308417
...
15
Spark Switch WPL-Y0061440
...
16
Module, Spark WPL-1430322
...
17
Switch, Fan & Spark WPL-Y0302009
...
18
Power Cord WPL-Y0302684
...
19
Male Loading Plug WPL-Y0068333
...
20
Assy, Svc Ignitor WPL-Y0060756
...
21
Kit, Ignitor WPL-786324
...
22
Switch- Ro WPL-WP31986601B
...
23
Circuit Board, Erc-Electric WPL-Y0301277

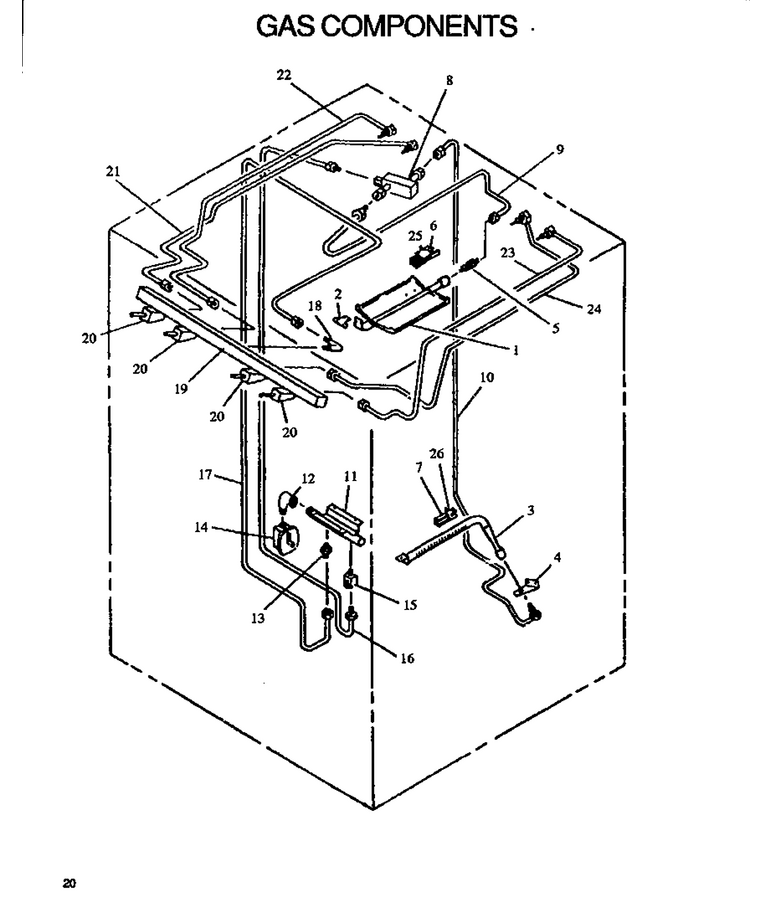

02 - Gas Components

...
...
NI
Screw WPL-W10491986
...
1
Reflector, Broil WPL-Y0054043
...
2
Support, Broil Burner WPL-0300072
...
3
Oven Burner WPL-Y0063709
...
4
Brkt, Oven Orifice WPL-0307176
...
5
Orifice Broil Burner-No.52 WPL-0302628
...
6
Assy, Svc Ignitor WPL-Y0060756
...
7
Kit, Ignitor WPL-786324
...
8
Valve, Gas, Dual WPL-Y0302706
...
9
Tubing, Gas WPL-0301744
...
10
Tubing, Bake Orifice-No.51 WPL-0307395
...
11
Pipe, Manifold WPL-0303976
...
12
Elbow WPL-0073084
...
13
Fitting, 1/8``x 3/8`` WPL-Y0301263
...
14
Pressure Regulator WPL-0302495
...
15
Valve, Shut-Off WPL-Y0301361
...
16
Tubing Shut Off To Gas Valve WPL-0301743
...
17
Tubing, Inlet Manifold WPL-0308333
...
18
Fitting 1/4 Npt X 3/8 Comp WPL-Y0303219
...
19
Manifold Pipe WPL-0308150
...
20
Valve, Top Burner WPL-0308165
...
21
Tubing, Orifice L.f.-No.55 WPL-0308146
...
22
Tubing, Orifice L.r. No.55 WPL-31918601
...
23
Tubing, Orifice R.f.-No.56 WPL-0308149
...
24
Tubing, Orifice R.r. No.56 WPL-31918701
...
25
Shield, Broiler Ignitor WPL-Y0314225
...
26
Bracket, Igniter Mounting WPL-31957101

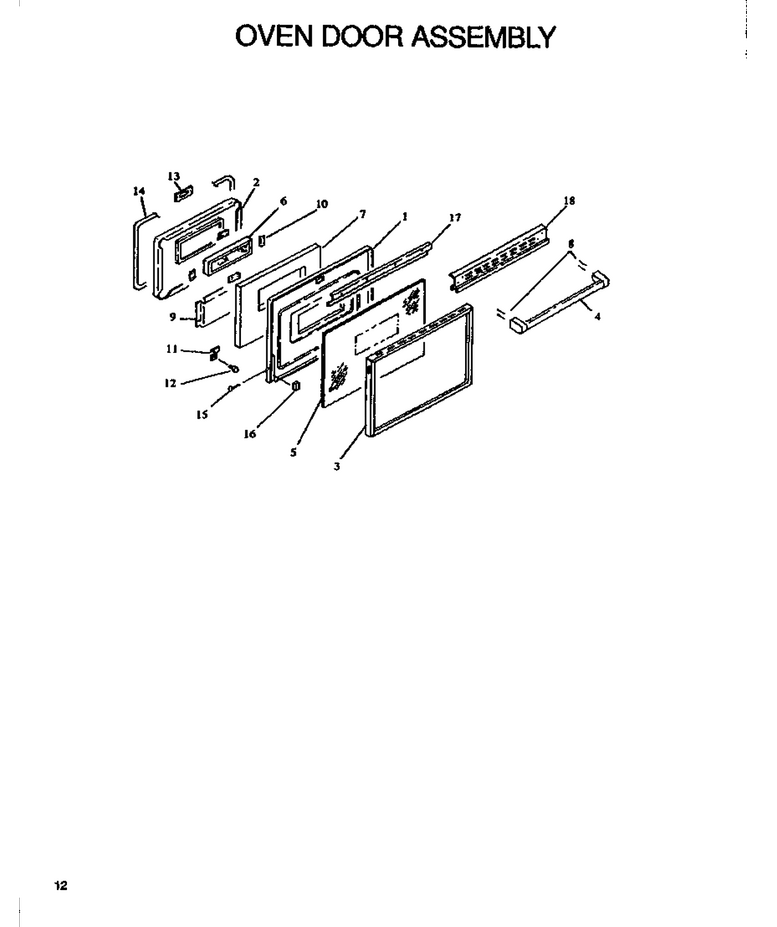

05 - Oven Door Assy

...
...
NI
Support, Door Glass WPL-Y0307910
...
1
Door Backer, Electric (Cg) WPL-302725E
...
2
Pad, Ov Dr W/window WPL-314693CG
...
3
Frame, Glass Door (White) WPL-306538W
...
4
Kit, Dr Hndl/trim (White) WPL-0305520
...
5
Glass, Oven Door, White WPL-Y0302446
...
6
Window Assy WPL-0304831
...
7
Insulation,door-Sub Backer WPL-0062614
...
8
Screw, No.10-24x3/8 (Ph Trs Hd) WPL-Y0079863
...
9
Heat Baffle, Glass (Black) WPL-306449B
...
10
Retainer, Door Glass WPL-Y0052629
...
11
Support Bracket, Glass WPL-Y0062439
...
12
Bumper, Oven Door WPL-Y0063661
...
13
Latch Plate WPL-Y0052039
...
14
Gasket, Oven Dr 82`` WPL-Y0300432
...
15
Rivet, Pop WPL-Y0302648
...
16
Bumper, Rubber WPL-Y0060247
...
17
Back, Heat Baffle (Black) WPL-306450B
...
18
Kit, Dr Hndl/trim (White) WPL-306499W
