Amana PHU-185-NWW

Model: PHU-185-NWW

Save Part Not Listed?
product name

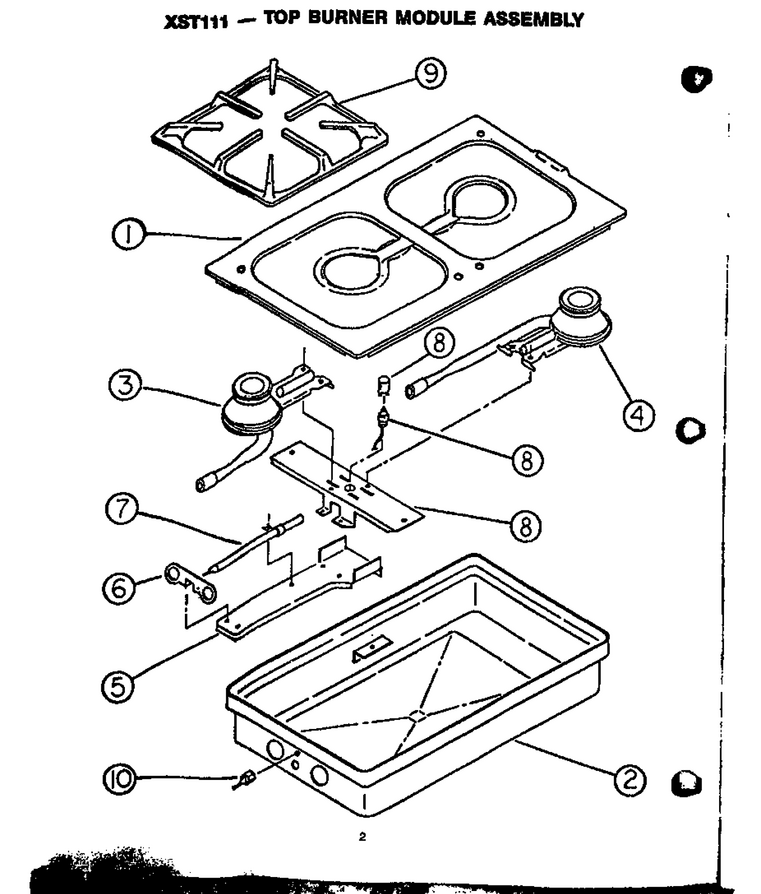

10 - Top Burner Module Assy

...
...
NI
Internal Lock Washer No.10 WPL-Y0041947
...
1
Module Top-Gas (Blk Enamel) WPL-300988B
...
2
Module Pan WPL-300756E
...
3
Burner, Front (Blk) WPL-0300181
...
4
Burner, Rear (Blk) WPL-Y0300180
...
5
Burner Support Base Gt591 WPL-Y0041043
...
6
Venturi Support Kgt591 WPL-Y0041044
...
7
Connector,electrode Xx WPL-0042216
...
8
Electrode And Cap Assy. WPL-Y0041500
...
9
Grate- Top WPL-WP305810B
...
10
Ground Pin Xst311 Kgt591 WPL-Y0041898

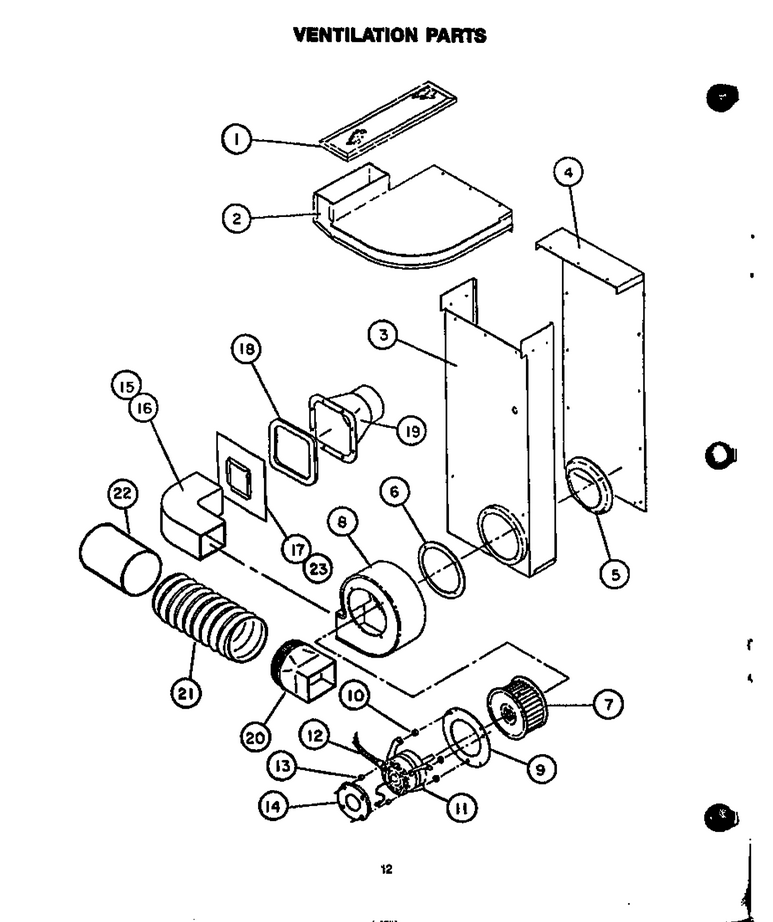

11 - Ventilation Parts

...
...
NI
Washer K WPL-0041933
...
1
Smoke Eliminator WPL-Y0058526
...
2
Top, Plenum WPL-302087B
...
3
Plenum, Rear WPL-Y0301705
...
4
Cover, Rear Plenum WPL-Y0058567
...
5
Orifice Assy. WPL-Y0059562
...
6
Gasket, Motor Mtg WPL-0059569
...
7
Fan Wheel Ket595 WPL-Y0042752
...
8
Blower Housing, Flat Black WPL-300618G
...
9
Plate, Motor Mtg WPL-0059470
...
10
Rubber Grommet WPL-0041981
...
11
Motor, Fan 115v 60hz WPL-Y0058327
...
12
Conduit (3/8 X 18) WPL-0042115
...
13
Spacer, Motor Cover WPL-0059120
...
14
Motor Cover WPL-0059471
...
15
Net-Duct, Wall WPL-Y0302680
...
16
Duct Floor WPL-Y0302678
...
17
Duct Plate, Wall WPL-Y0301405
...
18
Gasket, Bonded WPL-Y0301343
...
19
Transition,wall/floor/side Cab WPL-Y0310943
...
20
Transition WPL-Y0059493
...
21
Flexible Duct 15`` WPL-Y0300663
...
22
Trans. Side Duct Kit WPL-0301054
...
23
Plate, Duct Wall/floor WPL-0310945

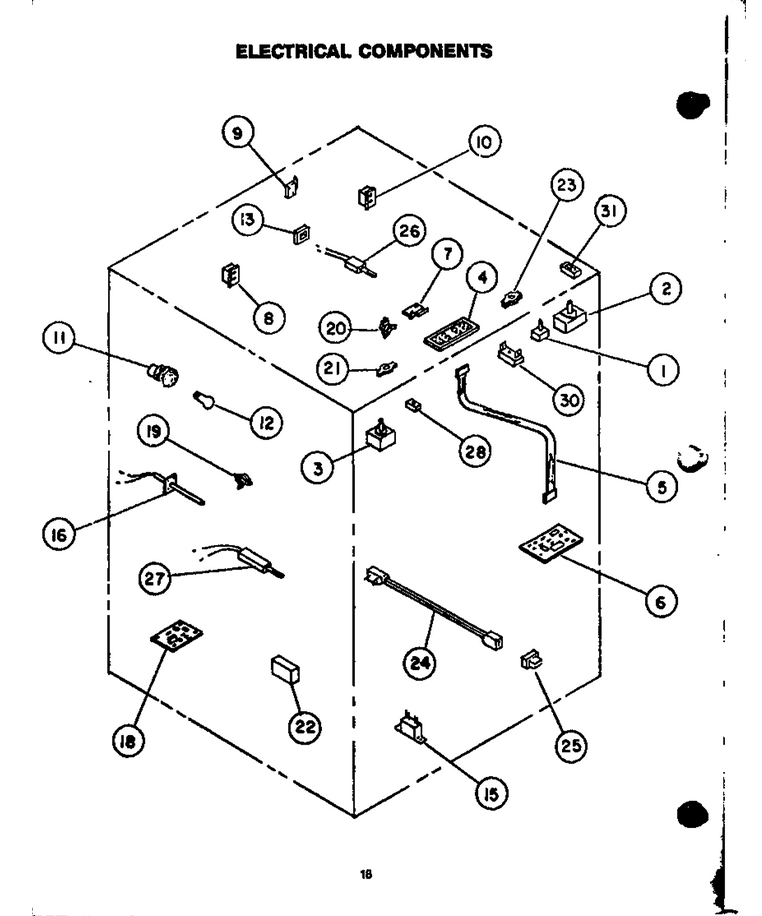

02 - Electrical Components

...
...
NI
Screw 6-32x1/2``ph Pn Hd WPL-Y0078419
...
1
Switch, Fan WPL-Y0300574
...
2
Switch, Selector WPL-4179076
...
3
Oven Thermostat, Push To Turn WPL-Y0303063
...
4
Display Board WPL-0300816
...
5
Cable WPL-Y0300808
...
6
P.c. Board, Power Supply WPL-Y0300807
...
7
Switch, Clean Circuit WPL-Y0065780
...
8
Assy., Plug Block, Rh WPL-Y0301841
...
9
Switch, Fan WPL-Y0054254
...
10
Assy., Plug Block, Rh WPL-Y0301839
...
11
Light- Ove WPL-WP74011278
...
12
Light Bulb WPL-8009
...
13
Plug, Ignitor Wires WPL-Y0059417
...
15
Relay, Fan Switch WPL-Y0301962
...
16
E.t.s. Sensor WPL-Y0060711
...
18
Circuit Board WPL-Y0060559
...
19
Switch, Hi Limit WPL-Y0053584
...
20
Limit Switch-Open 90 WPL-Y0042066
...
21
Spark Switch WPL-Y0061440
...
22
Spark Module WPL-Y0066564
...
23
Switch, Fan & Spark WPL-Y0302009
...
24
Power Cord WPL-Y0302684
...
25
Male Loading Plug WPL-Y0068333
...
26
Assy, Svc Ignitor WPL-Y0060756
...
27
Pkg 60 Ignitor WPL-X087699
...
28
Light Indicator WPL-0065822
...
30
Term Blk Eo&go 1m-2.5m-5m-10m WPL-Y0042191
...
31
Switch, Oven Light (Gray) WPL-Y0303167

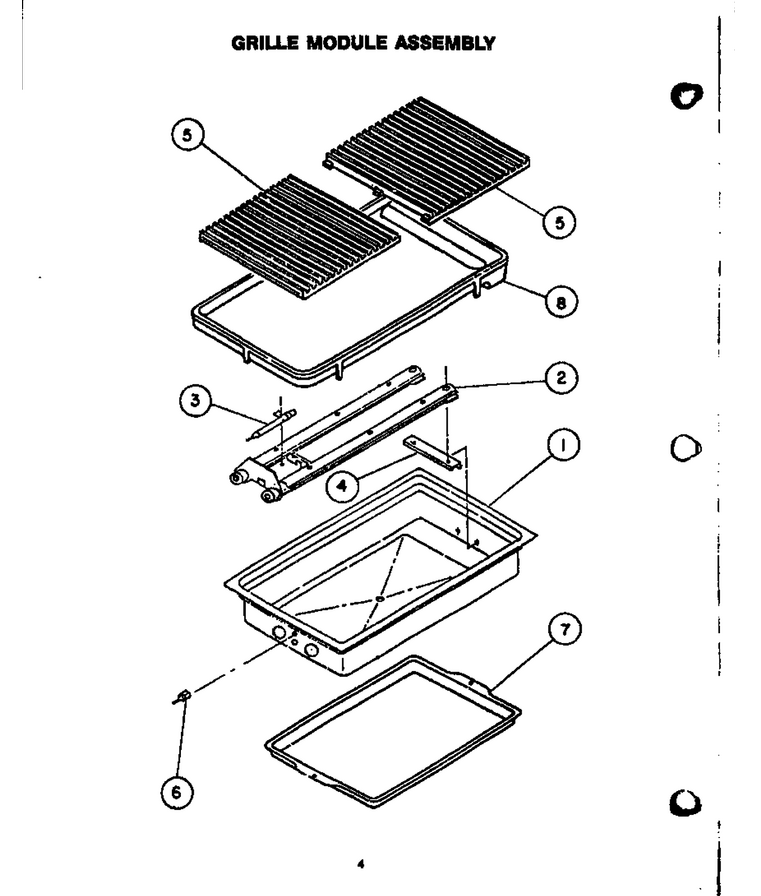

04 - Grille Module Assy

...
...
NI
Washer, Finishing WPL-0093681
...
1
Sub 300746b Grille Pan-Finish WPL-R0708267
...
2
Burner, Grille WPL-0046387
...
3
Grille, Electrode WPL-Y0042217
...
4
Grille Burner Rear Support WPL-Y0041041
...
5
Grate, Split Grille-Gas (Bl) WPL-307786G
...
6
Ground Pin Xst311 Kgt591 WPL-Y0041898
...
7
Pan, Grease Kgt591 WPL-32067501
...
8
Griddle, Silvertone WPL-Y0043500

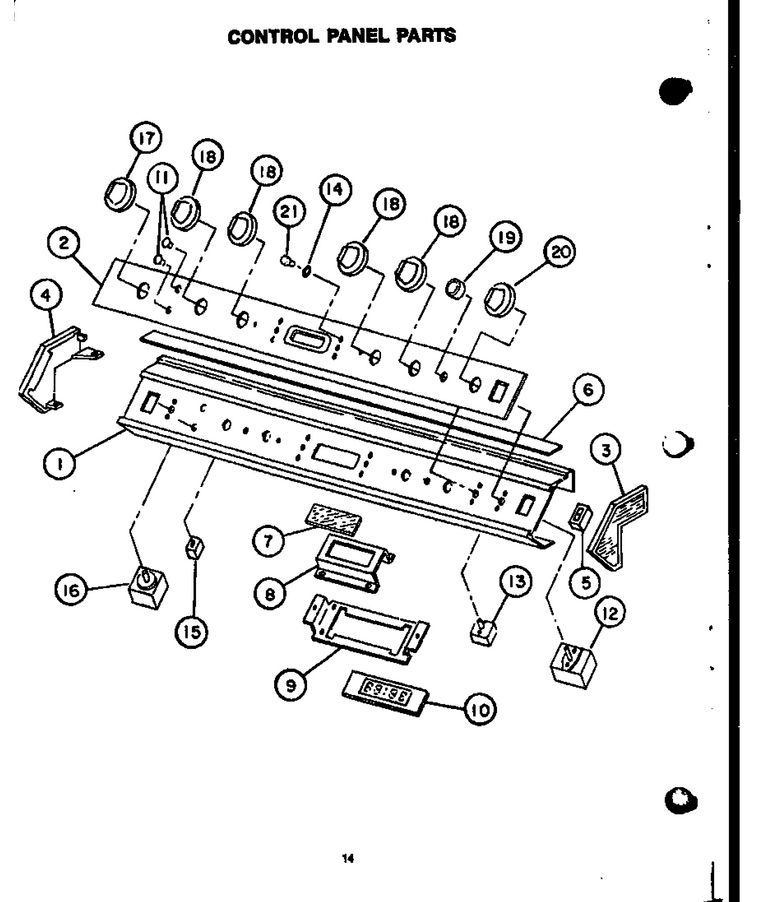

01 - Control Panel Parts

...
...
NI
Cont. Pnl Assg. Phu185 Nw WPL-Y0303157
...
1
Extrusion, Cont Panel WPL-0303178
...
2
Control Panel Insert WPL-0300109
...
3
End Cap, Control Panel, Rh WPL-Y0302547
...
4
End Cap - L.h. WPL-0058386
...
5
Switch, Oven Light (Gray) WPL-Y0303167
...
6
Insert, Top Control Panel WPL-0303166
...
7
Glass, Clock WPL-0300623
...
8
Mounting Bracket, Glass WPL-0300622
...
9
Screw, No.6-32 X .312 Pan Hd Ph WPL-31750317
...
10
Display Board WPL-0300816
...
11
Lens, Indicator Light, Red WPL-Y0301209
...
12
Switch, Selector WPL-4179076
...
13
Screw, No.3-32 X.187 Pan Hd Ph WPL-31750302
...
14
Bushing, Clock WPL-Y0301481
...
15
Light Indicator WPL-0065822
...
16
Oven Thermostat, Push To Turn WPL-Y0303063
...
17
Knob, Oven Control(Gray) WPL-Y0303162
...
18
Knob, Top Burner WPL-0301600
...
19
Knob, Fan Switch (Black) WPL-Y0300581
...
20
Knob, Selector Switch, Black WPL-0300379
...
21
Button, Timer WPL-0303164

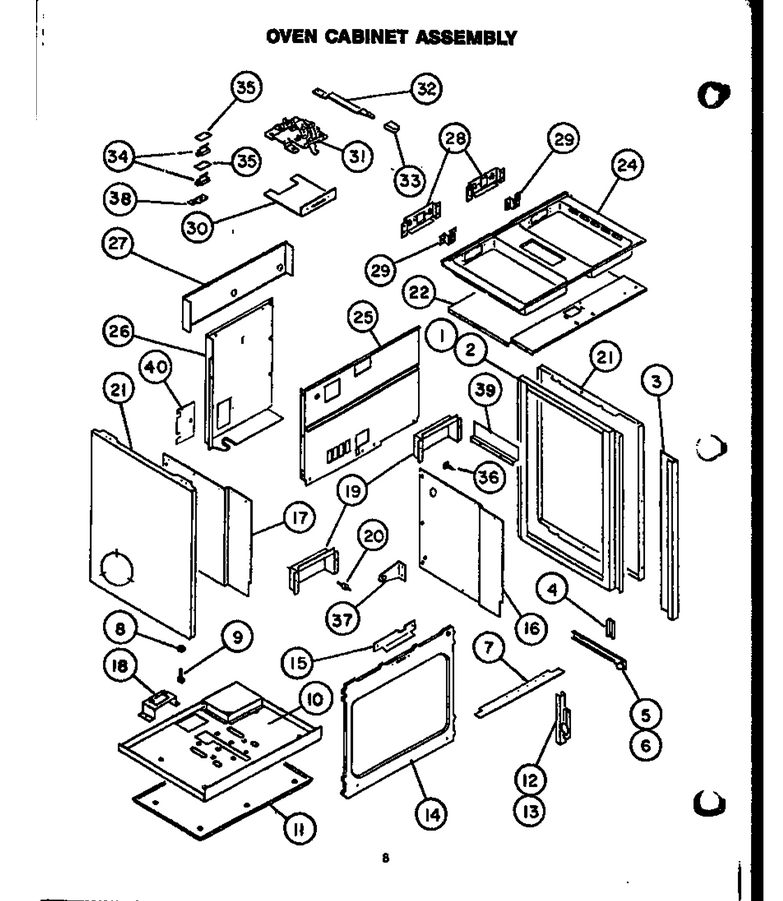

06 - Oven Cabinet Assy

...
...
NI
Screw No.23, No.6x5/16 Ph Fl. Hd. WPL-Y0074807
...
1
Side Frame - R.h. WPL-W10124816
...
2
Sub 61230cg, Frame Side Panel WPL-0061127
...
3
Trim, Side Panel (Wht) WPL-303144W
...
4
Support, Stg Dwr Trk WPL-Y0315150
...
5
Track, Storage Drawer Rt WPL-Y0314667
...
6
Track, Drawer, L.h. WPL-Y0058558
...
7
Sub 62750cg, Filler Front Fram WPL-0062750
...
8
Retainer Nut WPL-0076204
...
9
Leg, Leveling WPL-Y0062362
...
10
Retainer, Bottom Insulation WPL-Y0301602
...
11
Heat Shield, Storage Drawer WPL-Y0301706
...
12
Hinge-Door WPL-R0706011
...
13
Kit, Door Hinge (Lh-Hs) WPL-Y0066952
...
14
See Note Front Frame -- (Not Replaceable) WPL-Y00000000
...
15
Heat Shield, Clock WPL-Y0301819
...
16
Retainer, Insul., Rh WPL-Y0057443
...
17
Retainer, Insul., Lh WPL-0057442
...
18
Cover,ignitor & Burner WPL-Y0301601
...
19
Cover, Control Board WPL-Y0301831
...
20
Support, Circ Board WPL-0060237
...
21
Panel, Main End - L.h. - Almon WPL-W10124823
...
22
Retainer Insulation Top X WPL-Y0301560
...
24
Burner Box WPL-301814E
...
25
Rear Panel WPL-0301605
...
26
Cover, Rear - Wire WPL-Y0058543
...
27
Shield, Rear WPL-Y0058544
...
28
Plate, Orifice Mtg WPL-31745201
...
29
Brkt, Plug Block Mtg WPL-Y0040983
...
30
Bracket, Latch Mounting WPL-0068101
...
31
Latch, Oven Door WPL-0302496
...
32
Latch Arm WPL-303039W
...
33
Knob, Door Latch Lt Gray WPL-Y0300044
...
34
Switch, Clean Circuit WPL-Y0065780
...
35
Insulation, Esm WPL-Y0091523
...
36
Support-Circuit Board WPL-Y0306900
...
37
Bracket, Oven Orifice WPL-0300091
...
38
Bracket, Switch Mounting WPL-Y0068091
...
39
Shield WPL-0301955
...
40
Plate, Access WPL-31800001

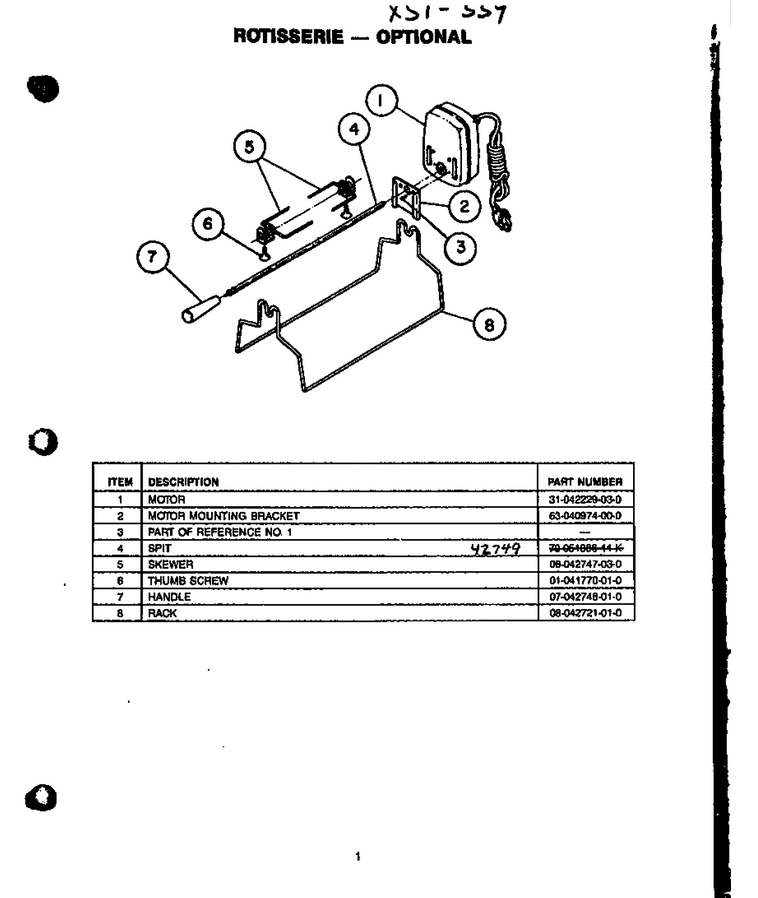

08 - Page 1

...
...
1
Rotiss Motor Xst310 WPL-Y0042229
...
2
Motor Mtg Blkt Xst310 WPL-0040974
...
3
See Note Part Of Reference No. 1 WPL-Y00000000
...
4
Spit Xst310 WPL-0042749
...
5
Skewer WPL-0042747
...
6
Screw 1/4 20x1/2 Thumb WPL-0041770
...
7
Rotisserie Handle WPL-0042748
...
8
Rotiss Rack Xst310 WPL-0042721

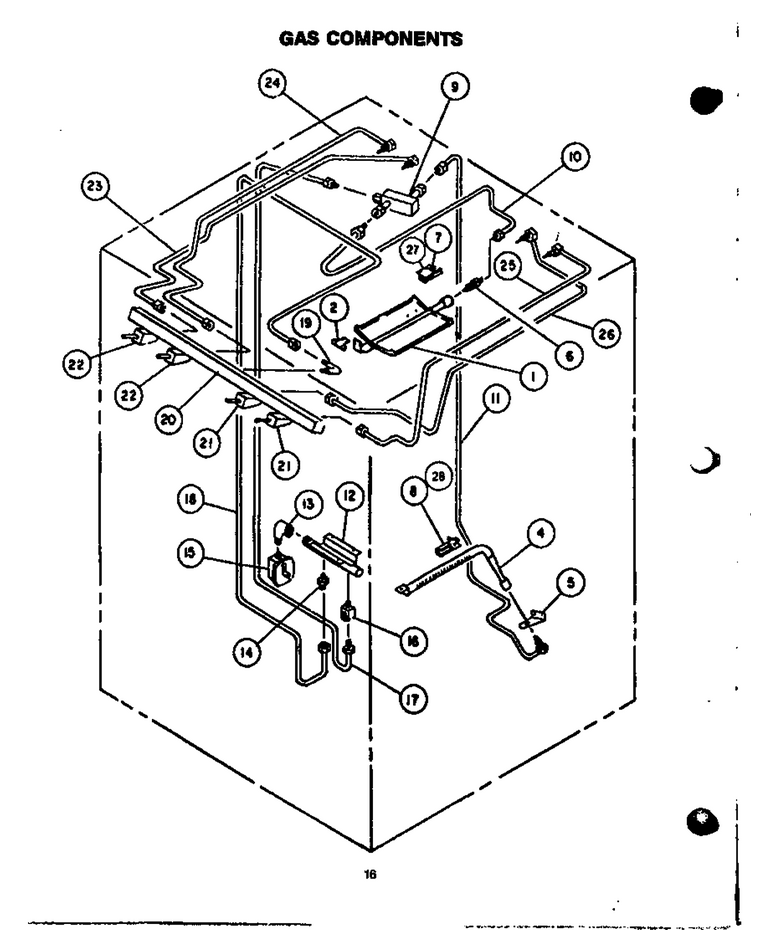

03 - Gas Components

...
...
NI
Brkt., Gas Valve Mtg. WPL-Y0300090
...
1
Kit Broil Burner Assy WPL-0312099
...
2
Support, Broil Burner WPL-0300072
...
4
Oven Burner WPL-0300075
...
5
Bracket, Oven Orifice WPL-0300091
...
6
Orifice Broil Burner-No.52 WPL-0302628
...
7
Assy, Svc Ignitor WPL-Y0060756
...
8
Pkg 60 Ignitor WPL-X087699
...
9
Valve, Gas, Dual WPL-Y0302706
...
10
Tubing, Gas WPL-0301744
...
11
Tubing Bake Orifice WPL-0302623
...
12
Inlet Pipe - Tapped WPL-301858B
...
13
Elbow WPL-0073084
...
14
Fitting, 1/8``x 3/8`` WPL-Y0301263
...
15
Pressure Regulator WPL-0302495
...
16
Valve, Shut-Off WPL-Y0301361
...
17
Tubing Shut Off To Gas Valve WPL-0301743
...
18
Inlet Pipe To Inlet Manifold WPL-Y0301742
...
19
Elbow, 1/4 Npt X 3/8 C WPL-Y0301864
...
20
Partition, Center (Large) WPL-3001004
...
21
Valve, Top Burner, Rh WPL-Y0301731
...
22
Valve, Top Burner, Lh WPL-Y0301732
...
23
Tubing, Orifice L.f.-No.55 WPL-0302624
...
24
Tubing, Orifice L.r. No.55 WPL-Y0302625
...
25
Tubing Orifice Rf WPL-Y0302626
...
26
Tubing Orifice Rr WPL-Y0302627
...
27
Shield, Broiler Ignitor WPL-Y0314225
...
28
Bracket, Igniter Mounting WPL-31957101

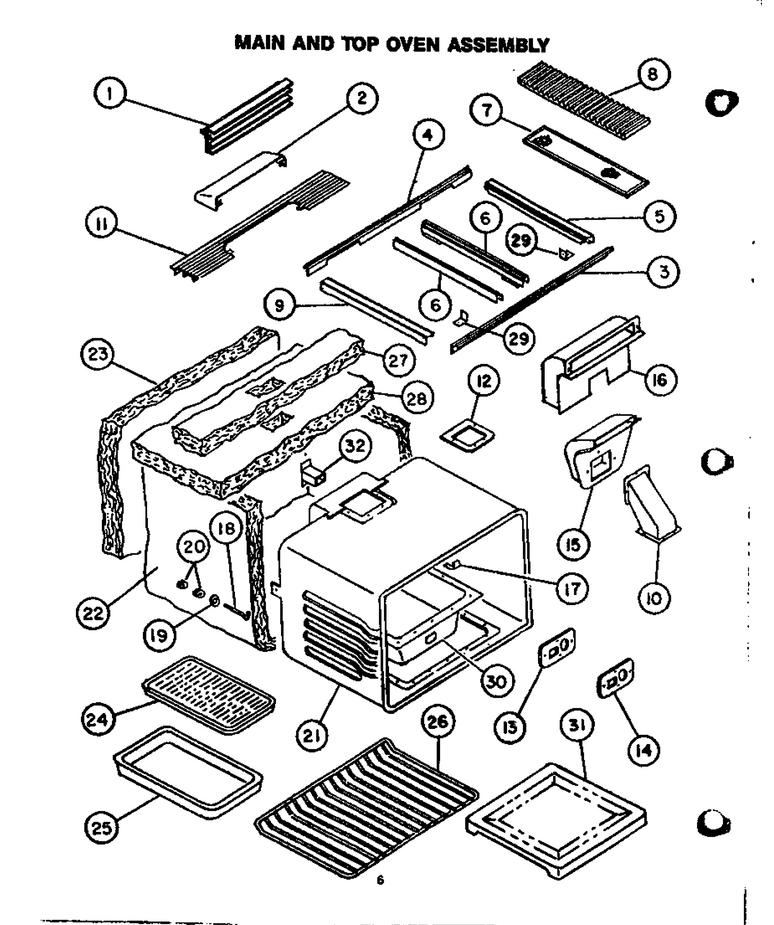

05 - Main And Top Oven Assy

...
...
NI
Spacer, Nylon (.14``) WPL-Y0062445
...
1
Trim Piece,flue WPL-0301547
...
2
Cover, Dilution Flue WPL-75-061373-41-G
...
3
Frame, Front-Main Top WPL-Y058528B
...
4
Frame, Rear, Main Top WPL-301815B
...
5
Frame Side, Right WPL-301225B
...
6
Frame, Center Main Top (Wht) WPL-31943702W
...
7
Filtr-Grse WPL-WPY0307363
...
8
Cover, Vent (Blk) WPL-Y0058902
...
9
Frame, Side-Lt Main Top (Blk) WPL-31943802B
...
10
Oven Vent WPL-Y0300082
...
11
Low Back Rail WPL-300105B
...
12
Gasket, Vent WPL-Y0301559
...
13
Gasket Plate WPL-Y0301736
...
14
Plate, Broil Burner WPL-Y0301532
...
15
Flue WPL-300081E
...
16
Dilution Flue, Black WPL-301707G
...
17
Chip Cover WPL-0060939
...
18
Hook Bolt WPL-Y0091536
...
19
Washer WPL-Y0071876
...
20
Sub 41847, Hex Nut WPL-0071881
...
21
See Note Oven Tank And Air Box Assembly WPL-Y00000000
...
22
Insulation, Wrapper WPL-Y0301713
...
23
Insulation, Back WPL-0301712
...
24
Procelain Broiler (Pan And Grid) WPL-4396923
...
25
Sub 11161cg, Broiler Pan WPL-Y0011161
...
26
Rack-Oven WPL-WP314763J
...
27
Insulation, Latch WPL-0058319
...
28
Insulation, Top WPL-0301711
...
29
Bracket, Frame Trim WPL-Y0301154
...
30
Burner Box, Lower WPL-Y0063802
...
31
Oven Bottom WPL-58625CG
...
32
Wire Raceway WPL-Y0301551

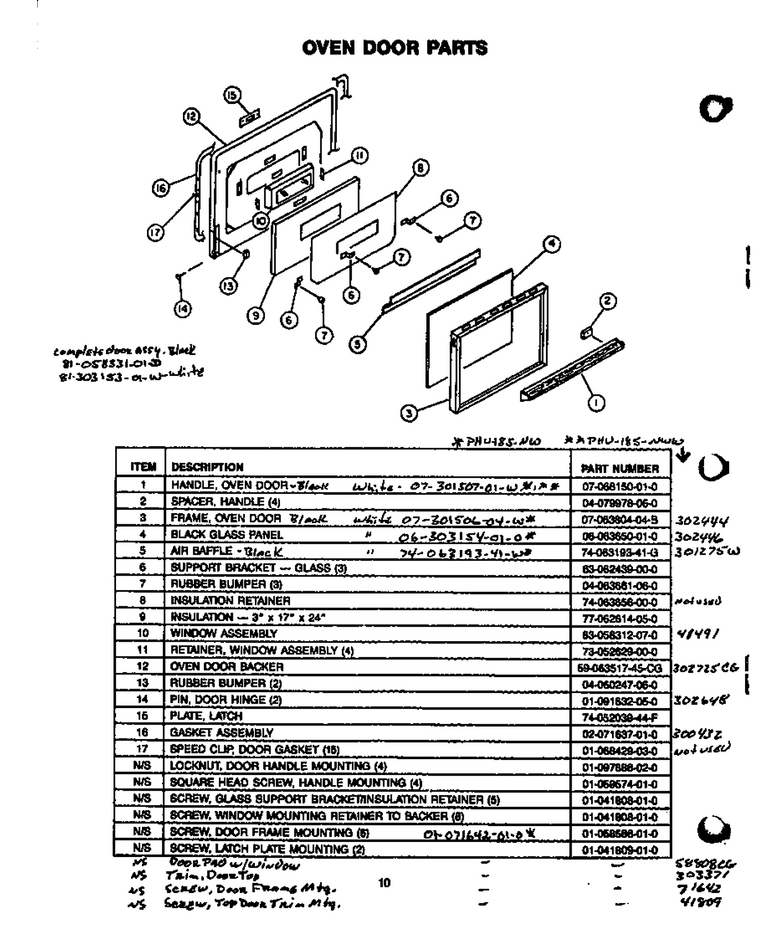

07 - Oven Door Parts

...
...
NI
Pad, Ov Dr W/window WPL-314693CG
...
1
Handle, Door WPL-0068150
...
2
Spacer Door Handle WPL-Y0079978
...
3
Frame,oven Door WPL-Y0302444
...
4
Panel, Black Glass WPL-Y0063650
...
5
Heat Baffle Oven Door White WPL-301275W
...
6
Support Bracket, Glass WPL-Y0062439
...
7
Bumper, Oven Door WPL-Y0063661
...
8
See Note Insulation Retainer WPL-Y00000000
...
9
Insulation,door-Sub Backer WPL-0062614
...
10
Window Assy WPL-Y0058312
...
11
Retainer, Door Glass WPL-Y0052629
...
12
Sub 63517y, Door Backer WPL-0063517
...
13
Bumper, Rubber WPL-Y0060247
...
14
Rivet WPL-0091632
...
15
Latch Plate WPL-Y0052039
...
16
Gasket, Oven Dr 82`` WPL-Y0300432

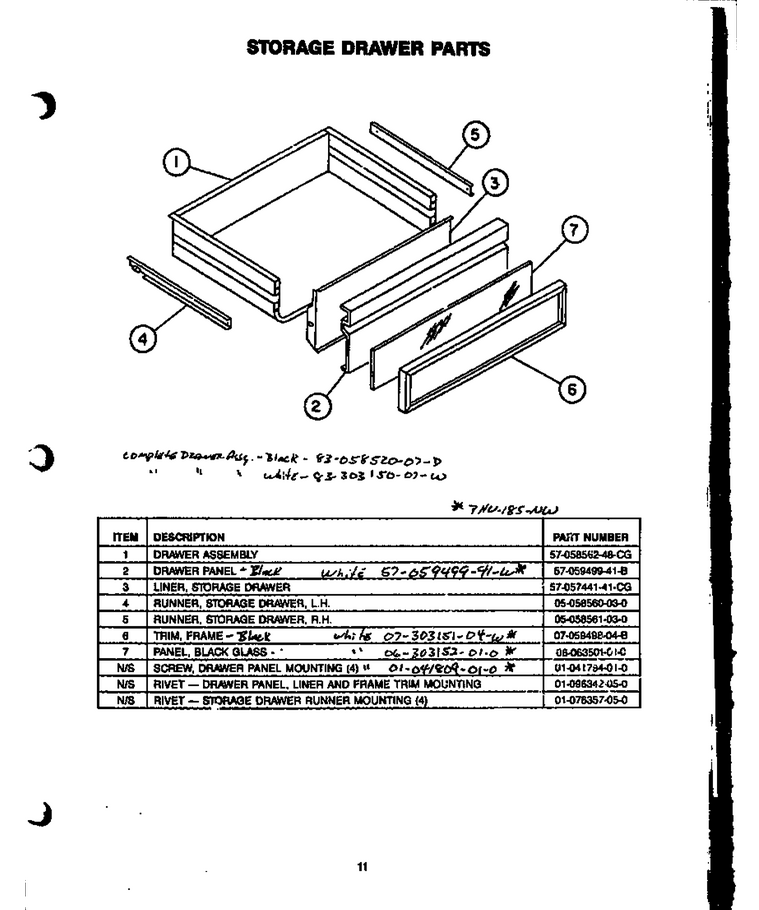

09 - Storage Drawer Parts

...
...
NI
Rivet, Pop WPL-Y0076357
...
1
Drawer, Storage (Blk) WPL-Y058562B
...
2
Panel, Drawer WPL-059499B
...
3
Liner Drawer Panel WPL-057441G
...
4
Runner, Drawer, L.h. WPL-Y0058560
...
5
Runner, Storage Drawer Rt WPL-Y0314669
...
6
Door Panel Frame, Black WPL-0059498
...
7
Panel, Black Glass WPL-Y0063501
