Amana PHO303UB (BOM: P1132513N)

Model: PHO303UB (BOM: P1132513N)

Save Part Not Listed?
product name

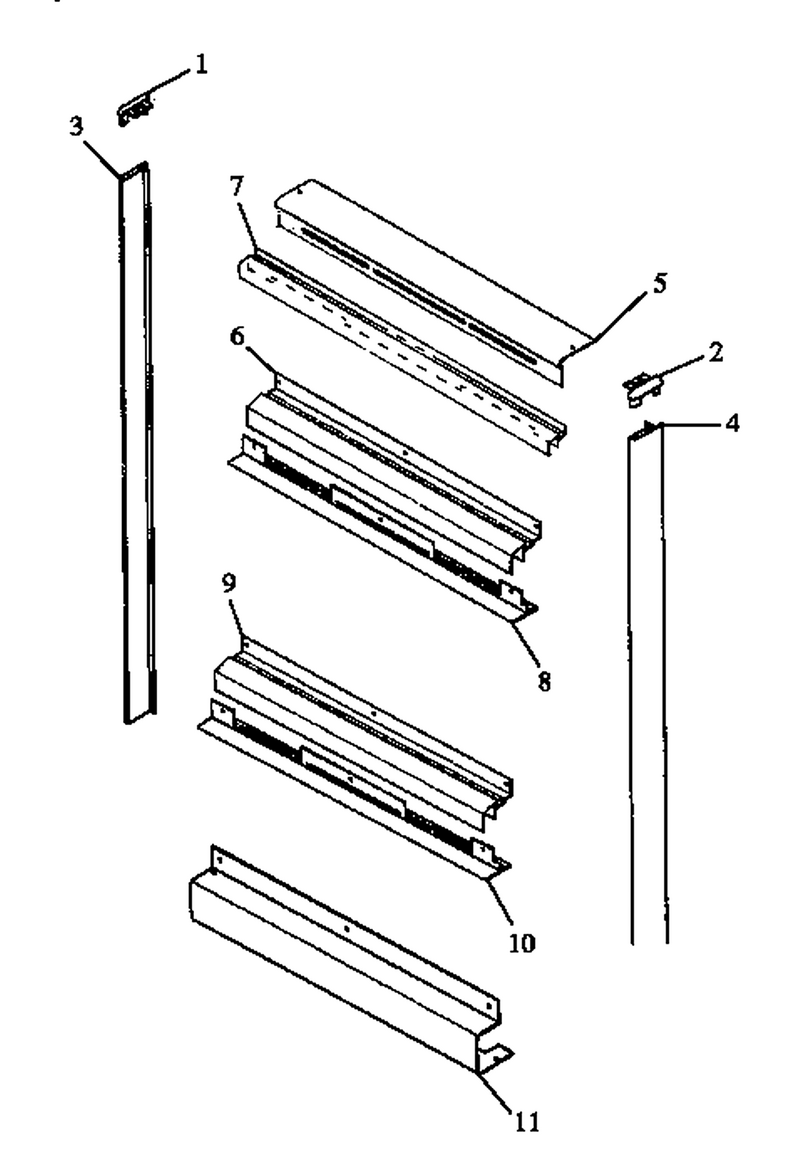

07 - Trim

...
...
1
Trim, Corner-Lt (Blk) WPL-307888B
...
2
Trim, Corner-Rt (Blk) WPL-307887B
...
3
Trim, Side Lt (Blk) WPL-308980B
...
4
Trim, Side Rt (Blk) WPL-308981B
...
5
Trim, Upper Top (Blk) WPL-308982B
...
6
Trim, Lower Top (Blk) WPL-308983B
...
7
Trim, Control Panel-Top (Blk) WPL-308159B
...
8
Trim, Control Panel-Bot (Blk) WPL-308160B
...
9
Trim, Upper Center (Blk) WPL-308979B
...
10
Trim, Center Lower (Blk) WPL-308155B
...
11
Trim, Bottom (Black) WPL-308978B

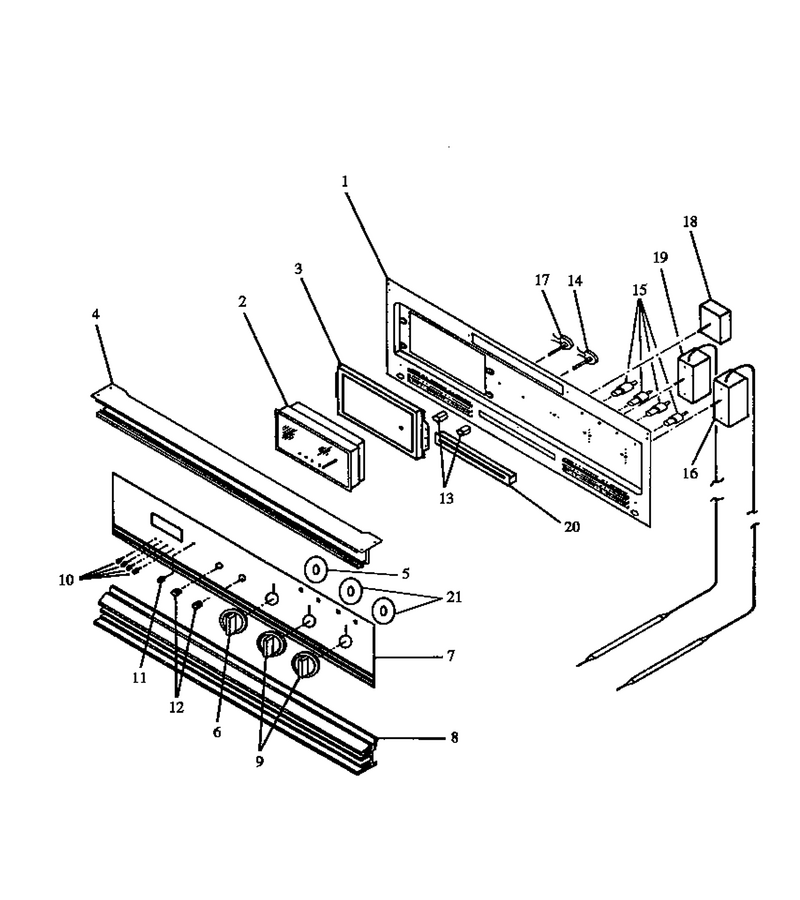

02 - Control Panel

...
...
NI
Screw No.8x3/8 Sq. Drive WPL-Y0041832
...
1
Brkt, Cont. Pnl WPL-0309109
...
2
Clock, Electronic WPL-Y0302106
...
3
Bracket, Clock Mounting WPL-0302133
...
4
Trim, Control Panel-Top (Blk) WPL-308159B
...
5
Disc. Sel. Therm. WPL-309189B
...
6
Knob, Control WPL-307372B
...
7
Glass, Control Panel WPL-309558B
...
8
Trim, Control Panel-Bot (Blk) WPL-308160B
...
9
Set- Cntl WPL-R0703592
...
10
Button, Set W/cushion (Blk) WPL-307821B
...
11
Knob, Clock (Black) WPL-308225B
...
12
Knob, Clock (Black) WPL-308225B
...
13
Switch Bushing ,metal WPL-Y0042012
...
14
Switch, Oven Light WPL-Y0308168
...
15
Indicator Light WPL-Y0042183
...
16
Thermostat WPL-Y0304805
...
17
Switch, Oven Light WPL-Y0308168
...
18
Switch, Selector WPL-Y0309432
...
19
Thermostat WPL-Y0304805
...
20
Latch Handle Guide Pyro WPL-Y0042015
...
21
Disc, Thermostat WPL-309190B

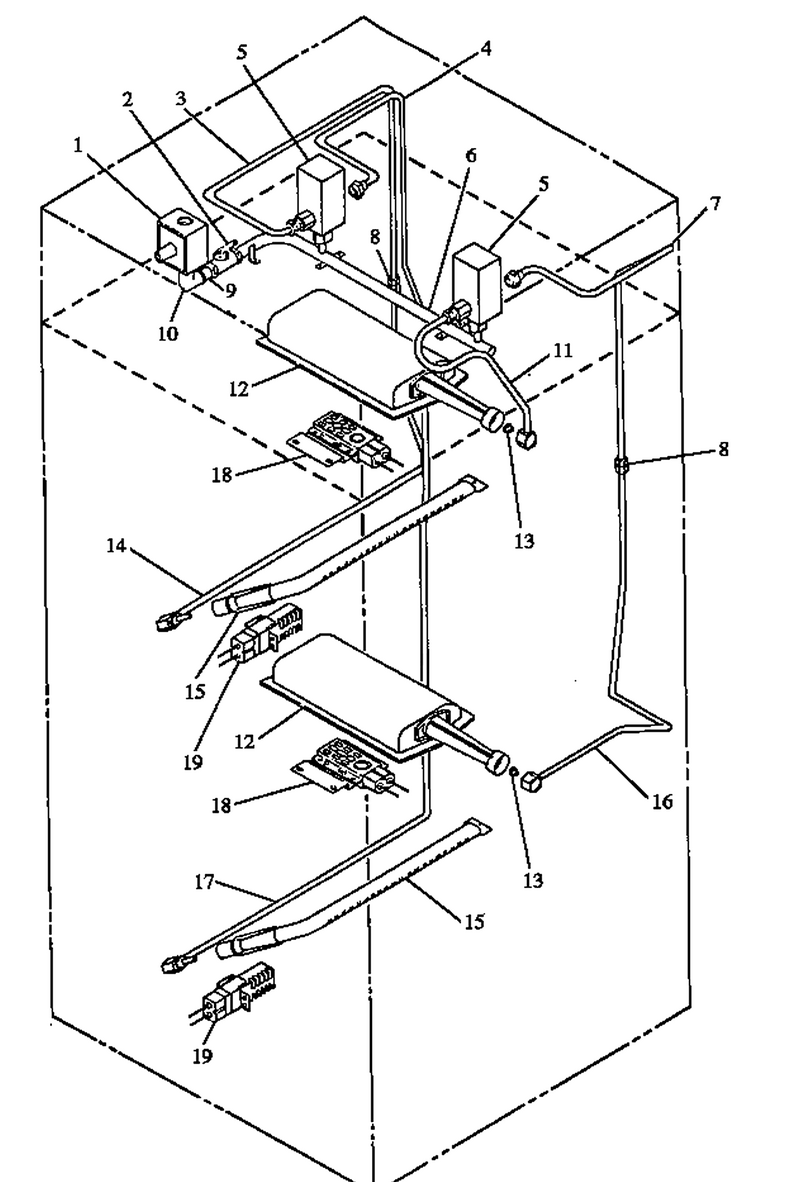

04 - Gas Components

...
...
1
Regulator-5``/10`` Side Inlet WPL-Y0063684
...
2
Valve, Shut-Off WPL-Y0314271
...
3
Tubing, Gas Valve WPL-0304099
...
4
Tubing-Lower Union To Valve WPL-0304098
...
5
Valve, Dual Thermal-Gas WPL-Y0060750
...
6
Manifold Assy. WPL-Y0060751
...
7
Tubing-Lower Union To Valve WPL-Y0304097
...
8
Union 3/8 Cc X 3/8 Cc WPL-0062738
...
9
Nipple-1/2``-Pressure Regulator WPL-Y0097320
...
10
Elbow, Pipe-1/2`` X 90 Degree WPL-Y0097408
...
11
Tubing-Upper Broil To Valve WPL-Y0054839
...
12
Broil Burner Assy WPL-Y0054070
...
13
Orifice, No.59 Lp WPL-31865001
...
14
Hood & Tubing Upper Bake WPL-Y0054834
...
15
Burner, Bake (Wall Oven) WPL-Y0060775
...
16
Tubing-Lower Burner To Union WPL-Y0054837
...
17
Hood & Tubing Upper Bake WPL-Y0054834
...
18
Ignitor- B WPL-WP31939701
...
19
Ignitor- B WPL-WP31939701

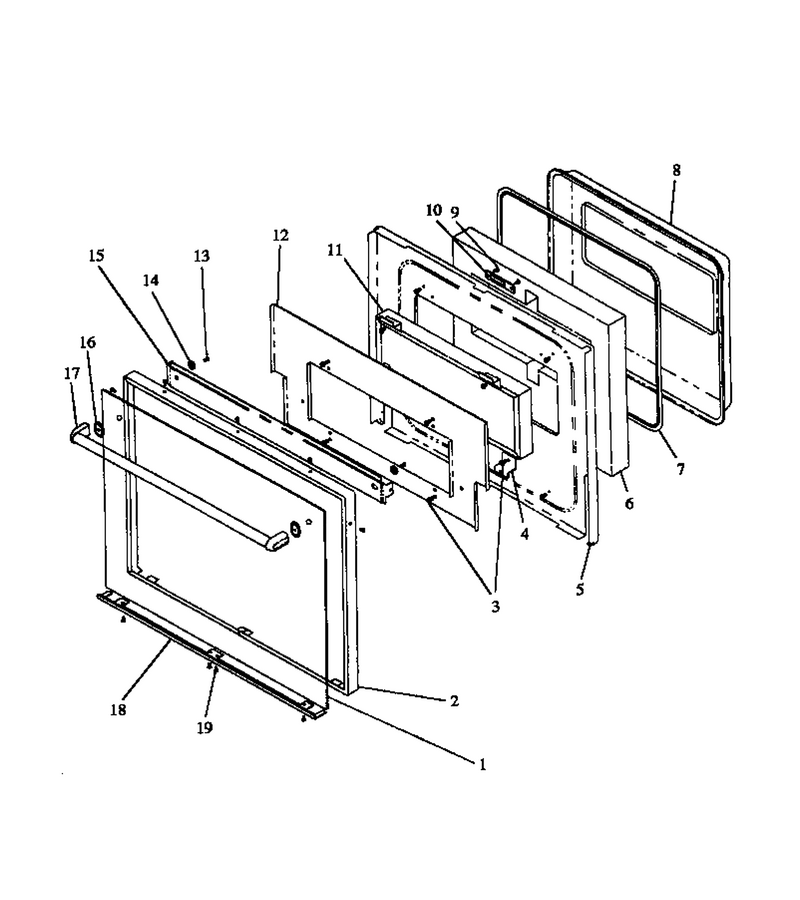

06 - Oven Door

...
...
NI
Label,cleaning Instr. WPL-0300584
...
1
Glass, Door (Blk) WPL-307885B
...
2
Frame, Oven Door (Blk) WPL-307886B
...
3
Screw No.8-18x3/8 Hex Hd. WPL-0305423
...
4
Window Mtg. Brkt. Pk411 WPL-Y0040955
...
5
Door Liner, Charcoal Gray WPL-303067CG
...
6
Insulation, Wrapper WPL-31975801
...
7
Gasket, Oven Dr 82`` WPL-Y0300432
...
8
Backer, Oven Door (Cg) WPL-40223CG
...
9
Screw WPL-W11245710
...
10
Latch Plate WPL-Y0052039
...
11
Window Assy WPL-0041491
...
12
Baffle, Inner WPL-Y0309286
...
13
Screw, Oven Door WPL-0098190
...
14
Bushing, Door Handle WPL-32031101
...
15
Bracket, Handle Mtg. WPL-0307891
...
16
Spacer, Handle (Black) WPL-R0759529
...
17
Handle, Oven Door (Blk) WPL-307884B
...
18
Angle, Glass Support (Blk) WPL-305587B
...
19
Screw No.8 18 X 1/2 Black WPL-0302844

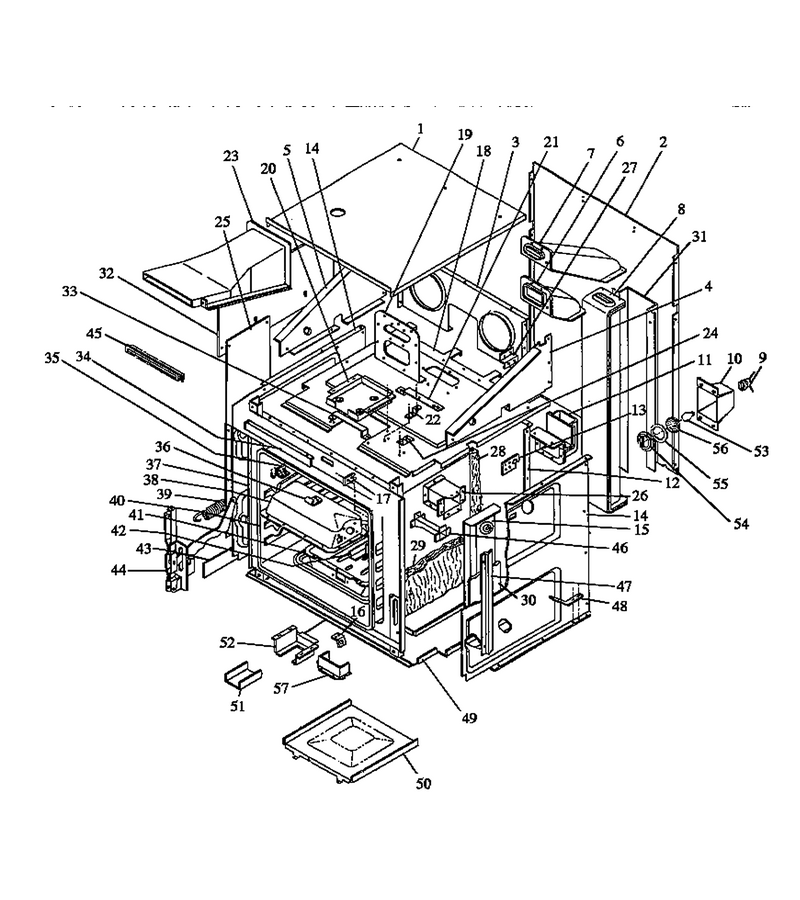

08 - Upper Cabinet

...
...
1
Panel, Cabinet Top WPL-Y0060843
...
2
Cabinet Back, Upper WPL-Y0059744
...
3
Panel, Back Control WPL-Y0060841
...
4
Control Compartment R.h. WPL-Y0305629
...
5
Compartment, Control Lt WPL-Y0314835
...
6
Flue, Upper Oven WPL-Y0060799
...
7
Flue, Lower Oven WPL-Y0060805
...
8
Vertical Flue WPL-Y0060808
...
9
Sub 90264,kit Light Socket WPL-0073028
...
10
Lamp, Cup WPL-0060778
...
11
Vertical Flue, Upper Oven WPL-Y0060802
...
12
Retainer, Insul-Rear WPL-Y0054079
...
13
Bracket, Oven Mounting-Pyro WPL-Y0041017
...
14
Retainer, Insulation-Side WPL-Y0316868
...
15
Vertical, Air Duct WPL-0060819
...
16
Bracket, Bake Orifice WPL-Y0060846
...
17
Capillary Hole Cover WPL-Y0063351
...
18
Oven Top, Upper Oven WPL-Y0060829
...
19
Bracket, Flue Support WPL-0060824
...
20
Bracket, Door Latch WPL-0060840
...
21
Lever, Solenoid WPL-Y0315542
...
22
Bracket, Solenoid Lever WPL-Y0060831
...
23
Flueway, Control Panel-Top WPL-31824201
...
24
Bracket, Solenoid WPL-Y0060830
...
25
Panel, Side WPL-Y0052366
...
26
Air Duct WPL-0060822
...
27
Mtg. Bracket, Relay WPL-0054085
...
28
Insulation, Wrapper WPL-31975801
...
29
Insulation, 4``x20x80`` WPL-Y0054296
...
30
Insulation, Vertical Flue WPL-Y0054700
...
31
Retainer, Insulation WPL-Y0054295
...
32
Panel, Cabinet Side WPL-Y0060770
...
33
Shield, Terminal WPL-0060827
...
34
Chip Cover Pyro Wo WPL-0040405
...
35
Bracket, Broil Chamb. WPL-0060783
...
36
Cover, Chip WPL-Y0315022
...
37
See Note Front Frame -- (Not Field Replaceable WPL-Y00000000
...
38
Chamber Broil Burner WPL-Y0059415
...
39
Spring, Oven Door-Pyro W/o WPL-Y0042740
...
40
Oven Shell WPL-60796CG
...
41
Kit, Lwr Burner Box WPL-0060847
...
42
Shield, Thermostat Bulb WPL-Y0060752
...
43
Front Frame WPL-40147CG
...
44
Hinge Assy WPL-Y0052095
...
45
Latch Handle Guide Pyro WPL-Y0042015
...
46
Wire Protector WPL-Y0060787
...
47
Cover, Capillary WPL-0053137
...
48
Retainer, Spring WPL-Y0060759
...
49
Oven Bottom-Upper WPL-Y0059593
...
50
Oven Bottom (Cg) WPL-315521CG
...
51
Air Channel, Upper Bake WPL-0054274
...
52
Shield, Bake Orifice WPL-Y0060814
...
53
Light Bulb WPL-8009
...
54
Lens Retainer Stainless Steel WPL-0040995
...
55
Gasket,oven Light WPL-Y0041987
...
56
Lens, Oven Light WPL-0052276
...
57
Retainer, Insulation-Orifice WPL-0060823

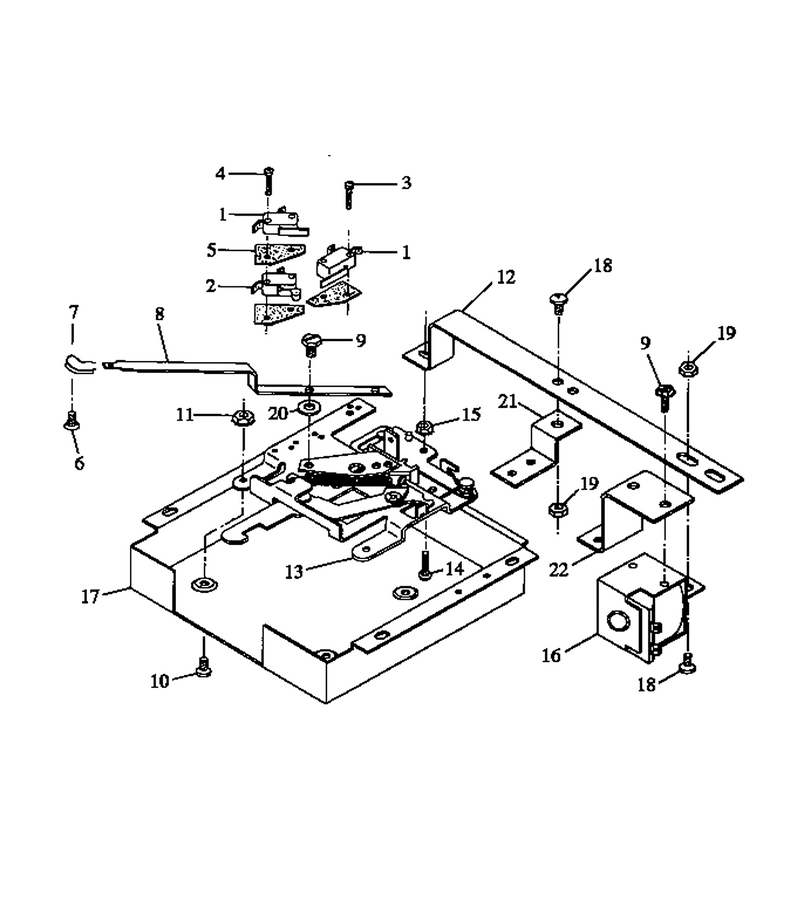

03 - Door Latch Assy

...
...
1
Switch, Clean, Primary Interl WPL-Y0042052
...
2
Main Contact Switch WPL-0042051
...
3
Screw 4 X 40x.500 Dyro T (Blk) WPL-Y0041826
...
4
Screw 4-40x15/16`` WPL-Y0041821
...
5
Insulation, Esm WPL-Y0091523
...
6
Screw, No.6-32 X .250 Pan Hd Ph WPL-Y0041785
...
7
Knob, Latch Handle (Blk) WPL-0302300
...
8
Latch Arm WPL-303039B
...
9
Screw 10-32 X.250 Hex WPL-0041774
...
10
Screw WPL-WP4159193
...
11
Nut WPL-M0282009
...
12
Lever, Solenoid WPL-Y0315542
...
13
Door Latch Assy Wo WPL-Y0041909
...
14
Screw 6 32x1 Slotted Rn Brass WPL-0041773
...
15
Nut K WPL-M0282005
...
16
Solenoid Eaton Pyro Th Wo WPL-Y0042049
...
17
Bracket, Door Latch WPL-0060840
...
18
Shoulder Screw WPL-Y0060923
...
19
Nut WPL-WP486255
...
20
Washer, 9/16`` X 1/4`` WPL-Y0041934
...
21
Bracket, Solenoid Lever WPL-Y0060831
...
22
Bracket, Solenoid WPL-Y0060830

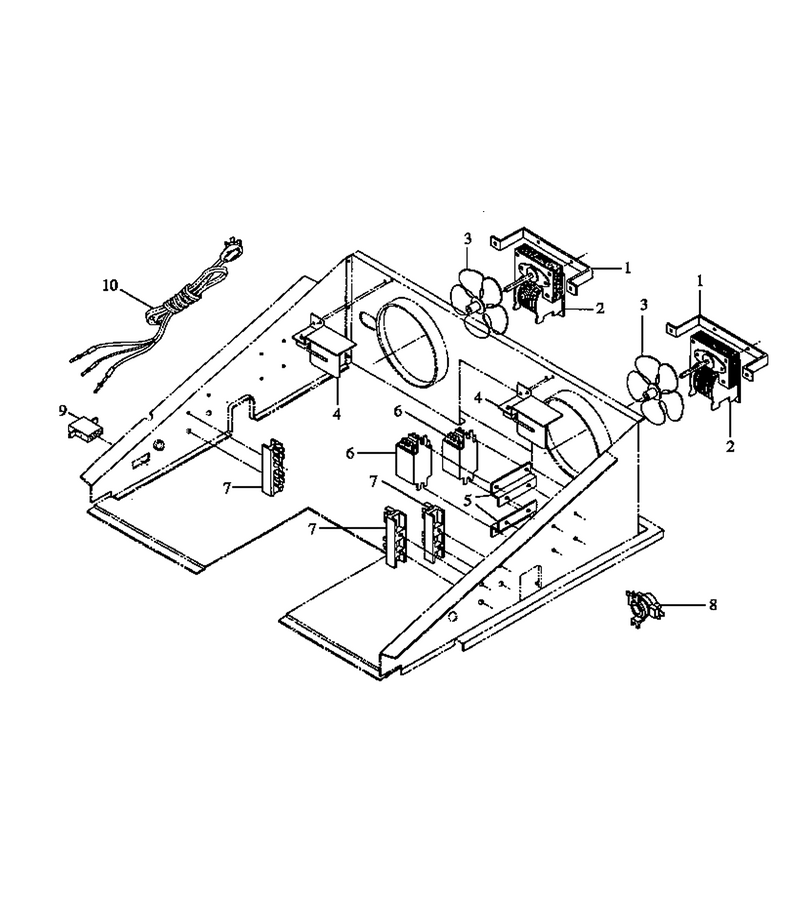

01 - Control Compartment

...
...
NI
Grommet-Fan WPL-Y0305243
...
1
Bracket-Motor Mount WPL-Y0305242
...
2
Fan Motor WPL-Y0042226
...
3
Blade, Fan WPL-Y0042754
...
4
Sail Switch WPL-0066207
...
5
Mtg. Bracket, Relay WPL-0054085
...
6
Relay WPL-Y0054074
...
7
Term Blk Eo&go 1m-2.5m-5m-10m WPL-Y0042191
...
8
Switch Fan Spdt WPL-Y0042056
...
9
Molex Receptacle 3 Circuit WPL-31748901
...
10
Supply Cord WPL-Y0054865

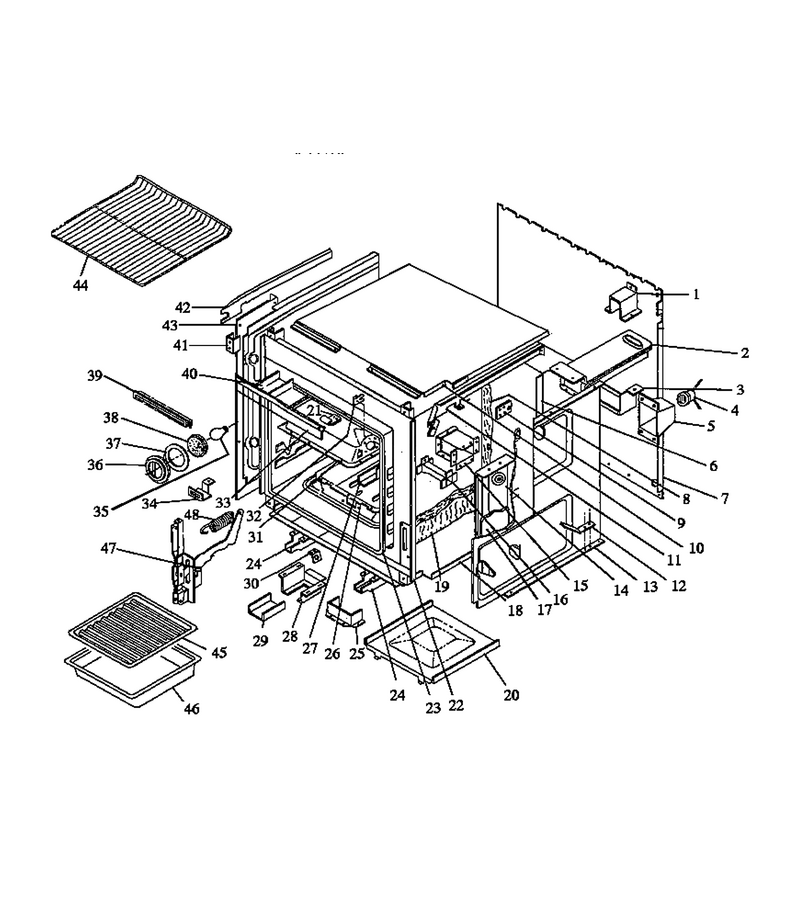

05 - Lower Cabinet

...
...
NI
Insulation, Vertical Flue WPL-Y0054299
...
1
Support, Rear Oven WPL-Y0305717
...
2
Horizontal Flue WPL-0060811
...
3
Retainer, Insul. Flue WPL-0060784
...
4
Sub 90264,kit Light Socket WPL-0073028
...
5
Lamp, Cup WPL-0060778
...
6
Retainer, Insul-Rear WPL-Y0054079
...
7
Back Cabinet WPL-Y0059743
...
8
Insulation, Wrapper WPL-31975801
...
9
Bracket, Oven Mounting-Pyro WPL-Y0041017
...
10
Oven Top, Lower Oven WPL-Y0060837
...
11
Air Channel, Rt WPL-0060835
...
12
Retainer, Spring WPL-Y0060759
...
13
Retainer, Insulation-Side WPL-Y0316868
...
14
Vertical, Air Duct WPL-0060819
...
15
Air Duct WPL-0060822
...
16
Wire Protector WPL-Y0060787
...
17
Insulation, Vertical Flue WPL-Y0054700
...
18
Oven Bottom-Lower WPL-Y0316878
...
19
Insulation, 4``x20x80`` WPL-Y0054296
...
20
Oven Bottom (Cg) WPL-315521CG
...
21
Chip Cover Pyro Wo WPL-0040405
...
22
See Note Front Frame -- (Not Field Replaceable WPL-Y00000000
...
23
Oven Shell WPL-60796CG
...
24
Runner, Base WPL-Y0060849
...
25
Retainer, Insulation-Orifice WPL-0060823
...
26
Kit, Lwr Burner Box WPL-0060847
...
27
Shield, Thermostat Bulb WPL-Y0060752
...
28
Shield, Bake Orifice WPL-Y0060814
...
29
Air Channel, Lower Bake WPL-Y0054275
...
30
Bracket, Bake Orifice WPL-Y0060846
...
31
Chamber Broil Burner WPL-Y0059415
...
32
Capillary Hole Cover WPL-Y0063351
...
33
Chip Cover Pyro Wo WPL-0040405
...
34
Mtg. Bracket, Oven Burner WPL-Y0060766
...
35
Conduit Assy Xrk324 WPL-0041275
...
36
Lens Retainer Stainless Steel WPL-0040995
...
37
Gasket,oven Light WPL-Y0041987
...
38
Lens, Oven Light WPL-0052276
...
39
Latch Handle Guide Pyro WPL-Y0042015
...
40
Air Channel, Upper Bake WPL-0054274
...
41
Support, Oven Front WPL-Y0060838
...
42
Air Channel, Lt WPL-Y0060834
...
43
Panel, Side WPL-Y0052366
...
44
Rack, Oven 19 3/16`` X 16 1/2`` WPL-314762J
...
45
Procelain Broiler (Pan And Grid) WPL-4396923
...
46
Procelain Broiler (Pan And Grid) WPL-4396923
...
47
Hinge Assy WPL-Y0052095
...
48
Spring, Oven Door-Pyro W/o WPL-Y0042740
