Amana PHO-203-UW (BOM: PHO-203-U W)

Model: PHO-203-UW (BOM: PHO-203-U W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

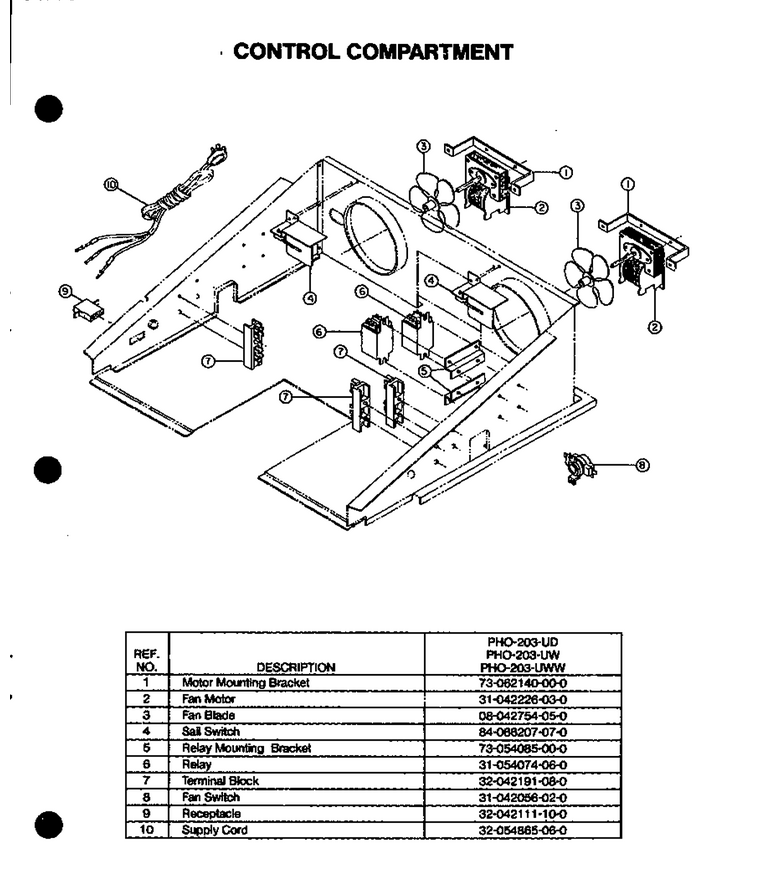

02 - Control Compartment

...
...
1
Bracket, Motor Mount WPL-0062140
...
2
Fan Motor WPL-Y0042226
...
3
Blade, Fan WPL-Y0042754
...
4
Sail Switch WPL-0066207
...
5
Mtg. Bracket, Relay WPL-0054085
...
6
Relay WPL-Y0054074
...
7
Term Blk Eo&go 1m-2.5m-5m-10m WPL-Y0042191
...
8
Switch Fan Spdt WPL-Y0042056
...
9
Molex Receptacle 3 Circuit WPL-31748901
...
10
Supply Cord WPL-Y0054865

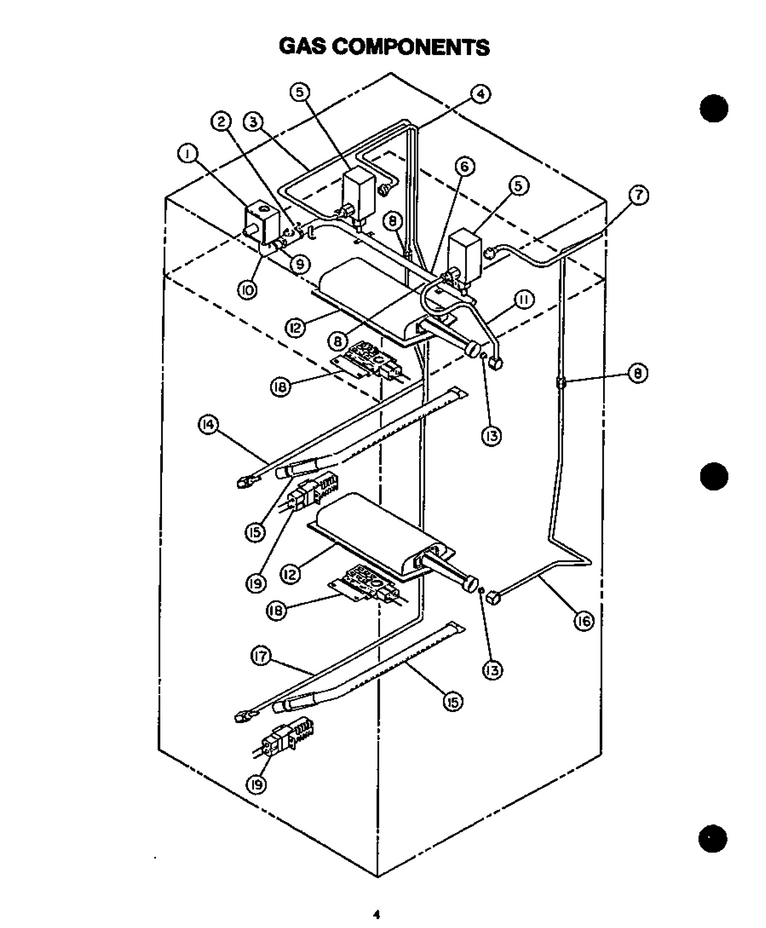

04 - Gas Components

...
...
NI
Orifice, No.59 Lp WPL-31865001
...
1
Regulator-5``/10`` Side Inlet WPL-Y0063684
...
2
Valve, Shut-Off WPL-Y0314271
...
3
Tubing WPL-Y0054836
...
4
Tubing Assy. WPL-Y0054835
...
5
Valve, Dual Thermal-Gas WPL-Y0060750
...
6
Manifold Assy. WPL-Y0060751
...
7
Tube, Lower Union, Valve WPL-Y0054838
...
8
Union 3/8 Cc X 3/8 Cc WPL-0062738
...
9
Nipple-1/2``-Pressure Regulator WPL-Y0097320
...
10
Elbow, Pipe-1/2`` X 90 Degree WPL-Y0097408
...
11
Tubing-Upper Broil To Valve WPL-Y0054839
...
12
Broil Burner Assy WPL-Y0054070
...
13
Orifice, No.52 Nat WPL-Y0060043
...
14
Hood & Tubing Upper Bake WPL-Y0054834
...
15
Burner, Bake (Wall Oven) WPL-Y0060775
...
16
Tubing-Lower Burner To Union WPL-Y0054837
...
17
Hood & Tubing Upper Bake WPL-Y0054834
...
18
Ignitor- B WPL-WP31939701
...
19
Ignitor- B WPL-WP31939701

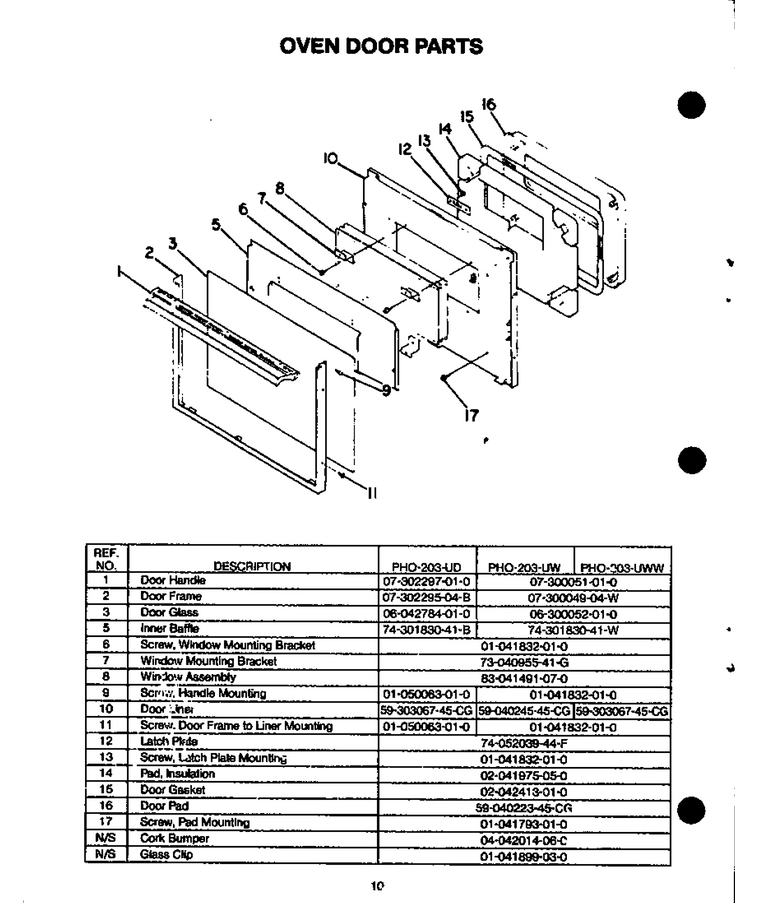

05 - Oven Door Parts

...
...
NI
Glass Clip WPL-Y0041899
...
1
Oven Door Handle WPL-0300051
...
2
Frame, Oven Door WPL-300049W
...
3
Door Glass, D Doors WPL-Y0300052
...
5
Inner Baffle, White WPL-301830W
...
6
Screw No.8x3/8 Sq. Drive WPL-Y0041832
...
7
Window Mtg. Brkt. Pk411 WPL-Y0040955
...
8
Window Assy WPL-0041491
...
9
Screw No.8x3/8 Sq. Drive WPL-Y0041832
...
10
Door Liner, Charcoal Gray WPL-0040245
...
11
Screw No.8x3/8 Sq. Drive WPL-Y0041832
...
12
Latch Plate WPL-Y0052039
...
13
Screw No.8x3/8 Sq. Drive WPL-Y0041832
...
14
Insulation, Wrapper WPL-31975801
...
15
Gasket, Door (76``) WPL-Y0042413
...
16
Backer, Oven Door (Cg) WPL-40223CG
...
17
Tapping Screw 8 18 Hex WPL-Y0041793

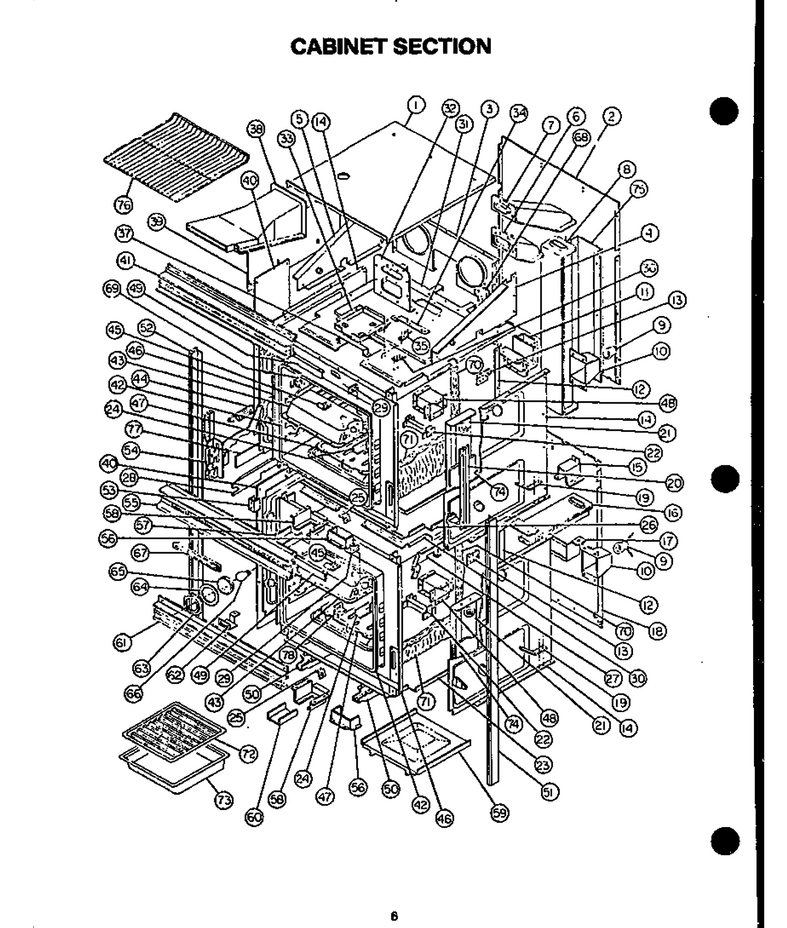

01 - Cabinet Section

...
...
NI
Insulation, Horizon. Flue WPL-Y0054705
...
1
Panel, Cabinet Top WPL-Y0060843
...
2
Cabinet Back, Upper WPL-Y0059744
...
3
Panel, Back Control WPL-Y0060841
...
4
Control Cover WPL-Y0060777
...
5
Control Compartment, Lh WPL-Y0060776
...
6
Flue, Upper Oven WPL-Y0060799
...
7
Flue, Lower Oven WPL-Y0060805
...
8
Vertical Flue WPL-Y0060808
...
9
Sub 90264,kit Light Socket WPL-0073028
...
10
Lamp, Cup WPL-0060778
...
11
Vertical Flue, Upper Oven WPL-Y0060802
...
12
Retainer, Insul-Rear WPL-Y0054079
...
13
Bracket, Oven Mounting-Pyro WPL-Y0041017
...
14
Retainer, Insulation-Side WPL-Y0316868
...
15
Support, Rear WPL-0060839
...
16
Horizontal Flue WPL-0060811
...
17
Retainer, Insul. Flue WPL-0060784
...
18
Back Cabinet WPL-Y0059743
...
19
Retainer, Spring WPL-Y0060759
...
20
Cover, Capillary WPL-0053137
...
21
Vertical, Air Duct WPL-0060819
...
22
Wire Protector WPL-Y0060787
...
23
Oven Bottom-Lower WPL-Y0316878
...
24
Shield, Thermostat Bulb WPL-Y0060752
...
25
Bracket, Bake Orifice WPL-Y0060846
...
26
Oven Bottom-Upper WPL-Y0059593
...
27
Air Channel, Rt WPL-0060835
...
28
Air Channel, Lt WPL-Y0060834
...
29
Capillary Hole Cover WPL-Y0063351
...
30
Oven Top, Lower Oven WPL-Y0060837
...
31
Oven Top, Upper Oven WPL-Y0060829
...
32
Bracket, Flue Support WPL-0060824
...
33
Bracket, Door Latch WPL-0060840
...
34
Lever, Solenoid WPL-Y0315542
...
35
Bracket, Solenoid Lever WPL-Y0060831
...
36
Bracket, Solenoid WPL-Y0060830
...
37
Shield, Terminal WPL-0060827
...
38
Flueway, Control Panel-Top WPL-31824201
...
39
Panel, Cabinet Side WPL-Y0060770
...
40
Panel, Side WPL-Y0052366
...
41
Trim, Control Panel Bottom WPL-0300035
...
42
Oven Shell WPL-60796CG
...
43
Chamber Broil Burner WPL-Y0059415
...
44
Spring, Oven Door-Pyro W/o WPL-Y0042740
...
45
Chip Cover Pyro W.o. WPL-0040398
...
47
Kit, Lwr Burner Box WPL-0060847
...
48
Air Duct WPL-0060822
...
49
Chip Cover Pyro Wo WPL-0040405
...
50
Runner, Base WPL-Y0060849
...
51
Trim, Side R.h. WPL-Y0300037
...
52
Trim, Side L.h. WPL-Y0300038
...
53
Support, Oven Front WPL-Y0060838
...
54
Hinge Assy WPL-Y0052095
...
55
Trim, Center WPL-0300034
...
56
Retainer, Insulation-Orifice WPL-0060823
...
57
Air Channel, Upper Bake WPL-0054274
...
58
Shield, Bake Orifice WPL-Y0060814
...
59
Oven Bottom (Cg) WPL-315521CG
...
60
Air Channel, Lower Bake WPL-Y0054275
...
61
Trim, Bottom WPL-0300033
...
62
Mtg. Bracket, Oven Burner WPL-Y0060766
...
63
Lens Retainer Stainless Steel WPL-0040995
...
64
Gasket,oven Light WPL-Y0041987
...
65
Lens, Oven Light WPL-0052276
...
66
Light Bulb WPL-8009
...
67
Latch Handle Guide Pyro WPL-Y0042015
...
68
Mtg. Bracket, Relay WPL-0054085
...
69
Bracket, Broil Chamb. WPL-0060783
...
70
Insulation, Wrapper WPL-31975801
...
71
Insulation, 4``x20x80`` WPL-Y0054296
...
72
Procelain Broiler (Pan And Grid) WPL-4396923
...
73
Sub 11161cg, Broiler Pan WPL-Y0011161
...
74
Insulation, Vertical Flue WPL-Y0054700
...
75
Retainer, Insulation WPL-Y0054295
...
76
Rack, Oven 19 3/16`` X 16 1/2`` WPL-314762J
...
77
Front Frame WPL-40147CG

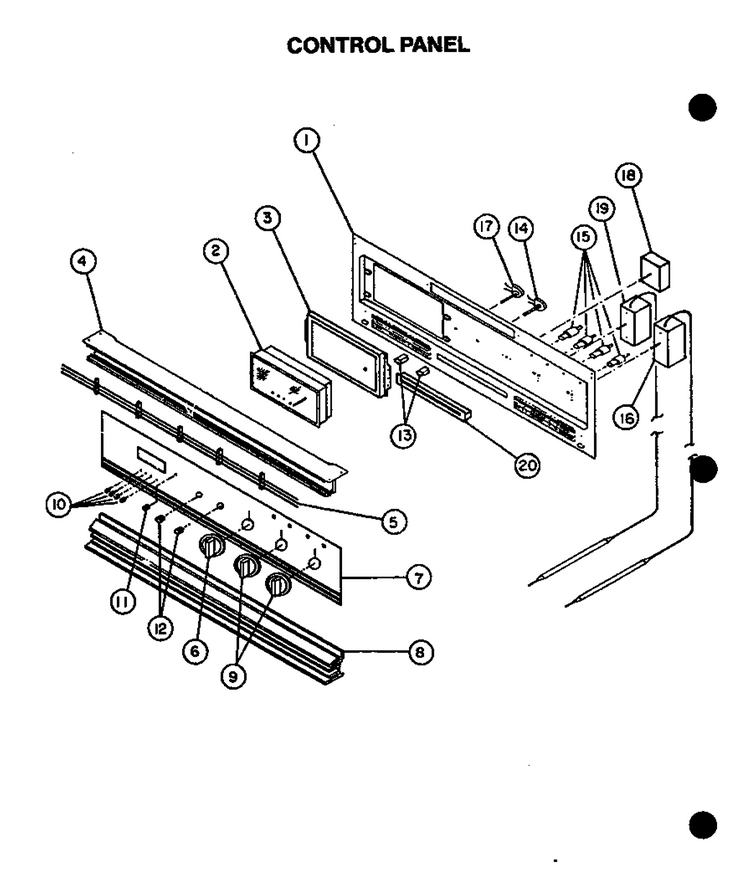

03 - Control Panel

...
...
NI
Screw WPL-WP90767
...
1
Mtg Bracket, Control WPL-0060833
...
2
Clock, Electronic WPL-0300935
...
3
Bracket, Clock Mtg. WPL-Y0060743
...
4
Trim, Control Panel Top WPL-0300036
...
5
Grill, Vent WPL-0300514
...
6
Knob, Selector WPL-0300040
...
7
Glass, Control Panel WPL-0300039
...
8
Trim, Control Panel Bottom WPL-0300035
...
9
Knob, Thermostat WPL-0300041
...
10
X Set Button, Timer WPL-0300045
...
11
Knob, Clock(Lt Gray) WPL-Y0300047
...
12
Knob, Clock(Lt Gray) WPL-Y0300047
...
13
Switch Bushing ,metal WPL-Y0042012
...
14
Switch, Oven Light WPL-Y0042055
...
15
Indicator Light WPL-Y0042183
...
16
Oven Thermostat WPL-Y0060760
...
17
Switch, Oven Light WPL-Y0042055
...
18
Selector Switch Pyro W/o WPL-0042038
...
19
Oven Thermostat WPL-Y0060760
...
20
Latch Handle Guide Pyro W.o. WPL-Y0042018

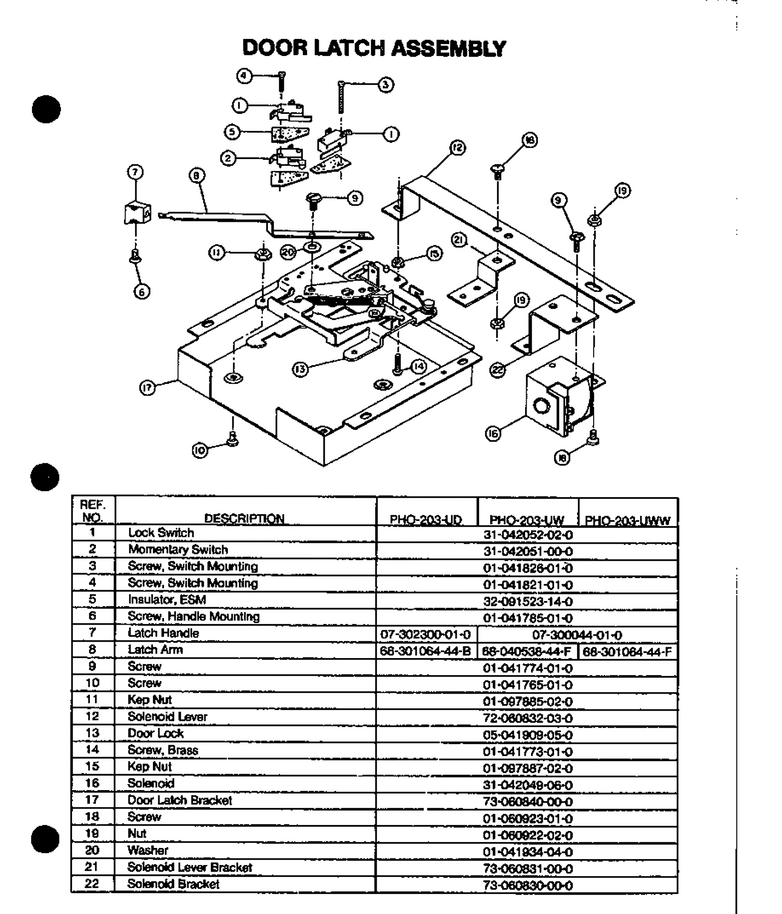

06 - Page 1

...
...
1
Switch, Clean, Primary Interl WPL-Y0042052
...
2
Main Contact Switch WPL-0042051
...
3
Screw 4 X 40x.500 Dyro T (Blk) WPL-Y0041826
...
4
Screw 4-40x15/16`` WPL-Y0041821
...
5
Insulation, Esm WPL-Y0091523
...
6
Screw, No.6-32 X .250 Pan Hd Ph WPL-Y0041785
...
7
Knob, Door Latch Lt Gray WPL-Y0300044
...
8
Latch Arm Pyro W.o. WPL-0040538
...
9
Screw 10-32 X.250 Hex WPL-0041774
...
10
Screw WPL-WP4159193
...
11
Nut WPL-M0282009
...
12
Lever, Solenoid WPL-Y0315542
...
13
Door Latch Assy Wo WPL-Y0041909
...
14
Screw 6 32x1 Slotted Rn Brass WPL-0041773
...
15
Nut K WPL-M0282005
...
16
Solenoid Eaton Pyro Th Wo WPL-Y0042049
...
17
Bracket, Door Latch WPL-0060840
...
18
Shoulder Screw WPL-Y0060923
...
19
Nut WPL-WP486255
...
20
Washer WPL-Y1041934040
...
21
Bracket, Solenoid Lever WPL-Y0060831
...
22
Bracket, Solenoid WPL-Y0060830
